It only works in 2:1 mode
I can't get it to work with my 5:1 set up
Printable View
It only works in 2:1 mode
I can't get it to work with my 5:1 set up
You using the latest drivers??? Runnin 5.1 fine here.....:cool:
using drivers that came with MBQuote:
Originally Posted by screwtech02
anyone have any good settings for memory performance for the g.skill 4gb 1066 memory??? im running 1037 bios, cpu at 3.8ghz, memory at 475 (5-5-5-15) timings. FSB is at 475, system is nice and stable, if anyone has good settings fot this set of memory please post, thanks.
Proc : E8600 @ 4.264ghz 533x8
Mobo : Asus Maximus 2 Formula
Ram : Team Xtreem PC2-6400 CL3's 2x1gb : 5-5-5-15 tRD 10 2.2v
PSU : Silverstone OP1000
OS :Windows Vista Ultimate 64bit
(Setting works for 4x1gb also.. didnt post cause rmaed one stick after running 1066 CL4 tRD 9 2.35v for nearly 2-3 months)

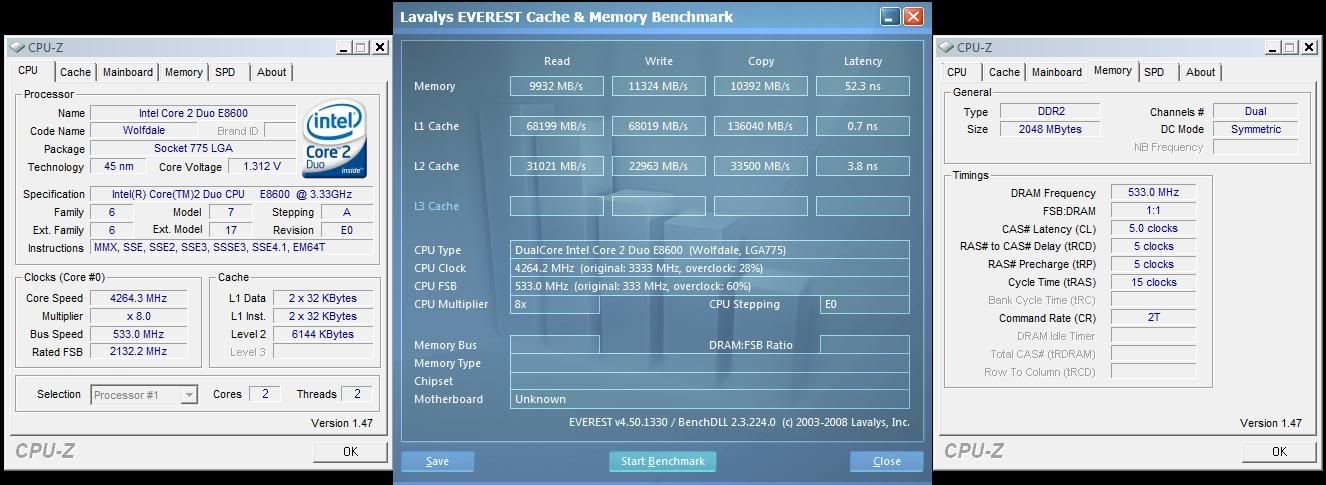

http://i287.photobucket.com/albums/l...ntitled2-1.jpg
http://i287.photobucket.com/albums/l...ntitled-21.jpg

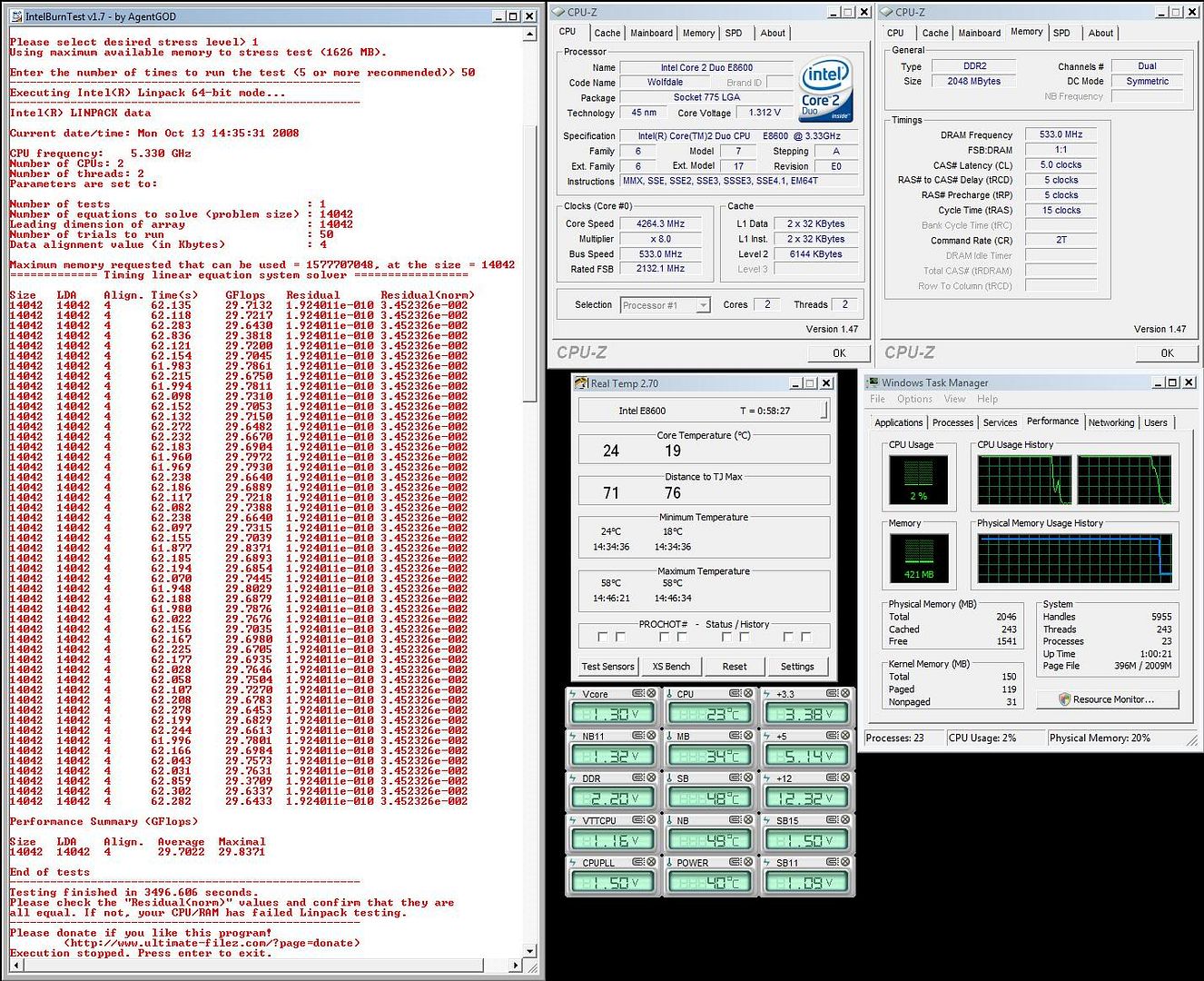

http://i287.photobucket.com/albums/l...ntitled3-1.jpg
Always test in diagnostic mode on vista 64 and u will be able to use all the free rams as much as u want and disable prefetch also..
PHP Code:Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 8
FSB Frequency : 533
CPU Clock Skew : Auto
North Bridge Clock Skew : Auto
FSB Strap to North Bridge : 333
DRAM Frequency: DDR2-1068
Dram Clock Skew CH1 A1 : Auto
DRAM Clock Skew CH1 A2 : Auto
Dram Clock Skew CH1 B1 : Auto
Dram Clock Skew CH1 B2 : Auto
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : Auto
Row Refresh Cycle Time : 25
Write Recovery Time : Auto
Read to Precharge Time : Auto
Read to Write Delay (S/D) : Auto
Write to Read Delay (S) : Auto
Write to Read Delay (D) : Auto
Read to Read Delay (S) : Auto
Read to Read Delay (D) : Auto
Write to Write Delay (S) : Auto
Write to Write Delay (D) : Auto
Write to PRE Delay : Auto
Read to PRE Delay : Auto
PRE to PRE Delay : Auto
ALL PRE to ACT Delay : Auto
ALL PRE to REF Delay : Auto
DRAM Static Read Control: Enabled
Dram Read Training : Enabled
MEM OC Charger : Enabled
Ai Clock Twister : Moderate
Transaction Booster : Manual
Performance Level = 10
PCIE Frequency : 100
CPU Voltage : 1.325
CPU PLL Voltage : 1.5000
FSBT : 1.16300
DRAM Voltage : 2.20
North Bridge Voltage : 1.32
South Bridge Voltage 1.5 : 1.5
South Bridge Voltage 1.1 : 1.1
CPU GTL Reference 0 : AUTO
CPU GTL Reference 1 : - 35mv
CPU GTL Reference 2 : AUTO
CPU GTL Reference 3 : - 35mv
North Bridge GTL Reference : AUTO
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
North Bridge DDR Reference : AUTO
Load Line Calabration : Enabled
CPU Sread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
what are your settings? :pQuote:
Originally Posted by Hazzan
has anyone experenced there pullins channels A-4/A-5-B-4/B-5 disappearing after changing settings in bios? sometimes after reboot they reappear,but most of the time need to reset cmos.
not for me, but I dont use them.Quote:
Originally Posted by radaja
I'll try them enabled and see whats happens on a few reboots.
I found running them enabled did not benifit my setup
i always try to enable them cause it seems like increases my bandwidth as if i lowering about a half of a pl.(7.5) instead of 8.im starting the rma proccess,so i need to get a new board any recommendations? also thanks for your help w/this issue GrnFinger
I enabled all pull-insQuote:
Originally Posted by radaja
rebooted 15 times, they were there everytime.
Pull-ins disabled
http://i237.photobucket.com/albums/f...t2_pullins.png

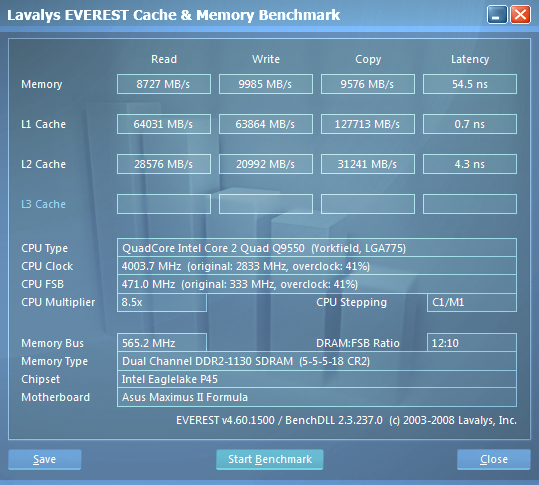

Pull-ins enabled
http://i237.photobucket.com/albums/f...t3_pullins.png
As for motherboards if price is not a factor then Rampage X48 is what I would suggest.
But if you cross ship your RMA you will have a MIIF is under a week
What kinda bandwidth are you getting now?Quote:
Originally Posted by GAR
I have a decent setup for F2-8500CL5D
@ Grnfinger , IM getting 8700 read 10067 write and 9500 copy at 475fsb PL10, timings 5-5-5-15, everything else set to auto, thanks.
Thats about the best I can do @ 1132MHzQuote:
Originally Posted by GAR
have you tried a lower PL?
I'm running PL8 but my timings are rather relaxed to get them stable
FSB Strap to North Bridge : 333
DRAM Frequency: DDR2-1132
Dram Clock Skew CH1 A1 : Advanced 350ps
DRAM Clock Skew CH1 A2 : Normal
Dram Clock Skew CH1 B1 : Advanced 350ps
Dram Clock Skew CH1 B2 : Normal
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 18
RAS# to RAS# Delay : 5
Row Refresh Cycle Time : 65
Write Recovery Time : 6
Read to Precharge Time : 5
Read to Write Delay (S/D) : 10
Write to Read Delay (S) : 4
Write to Read Delay (D) : 5
Read to Read Delay (S) : 6
Read to Read Delay (D) : 6
Write to Write Delay (S) : 5
Write to Write Delay (D) : 6
Write to PRE Delay : 16
Read to PRE Delay : 6
PRE to PRE Delay : 1
ALL PRE to ACT Delay : 6
ALL PRE to REF Delay : 6
DRAM Static Read Control: Disabled
Dram Read Training : Disabled
MEM OC Charger : Enabled
Ai Clock Twister : Moderate
Transaction Booster : Manual
Common Performance Level [8]
I do get better bandwidth at 1100 but there is a difference in timing

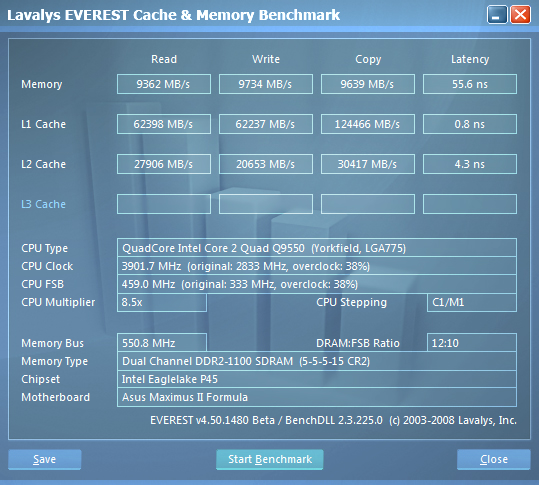

http://i237.photobucket.com/albums/f...900_everst.png
FSB Strap to North Bridge : 333
DRAM Frequency: DDR2-1103
Dram Clock Skew CH1 A1 : Advanced 300ps
DRAM Clock Skew CH1 A2 : Normal
Dram Clock Skew CH1 B1 : Advanced 300ps
Dram Clock Skew CH1 B2 : Normal
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : 3
Row Refresh Cycle Time : 55
Write Recovery Time : 6
Read to Precharge Time : 3
Read to Write Delay (S/D) : 8
Write to Read Delay (S) : 3
Write to Read Delay (D) : 5
Read to Read Delay (S) : 4
Read to Read Delay (D) : 6
Write to Write Delay (S) : 4
Write to Write Delay (D) : 6
Write to PRE Delay : 14
Read to PRE Delay : 5
PRE to PRE Delay : 1
ALL PRE to ACT Delay : 5
ALL PRE to REF Delay : 5
DRAM Static Read Control: Enabled
Dram Read Training : AUTO
MEM OC Charger : AUTO
Ai Clock Twister : Stronger
Transaction Booster : Manual
Common Performance Level [8]
Thanks bro, i appreciate it, ill try those settings when i get home. I have tried a lower PL, but it wont boot. The lowest i can go on 475fsb seems to be PL 10.
Nice setup, Grnfinger
@GrnFinger are you talking about the rampage extreme or the regular rampage?
Regular DDR2 X48 boardQuote:
Originally Posted by radaja
extreme would be nice but I'm not prepared to sell my kidney just yet:ROTF:
Hi,
really nice thread. Looks good :up:
Anyone has a MIIF with P45 rev. A3?
does anyone know if a Sunbeam core-contact freezer HSF will fit this? the black retension brackets looks like it would hit the left and top mosfet sinks.
http://img.photobucket.com/albums/v2...eamCCF_all.jpg
Has anyone pushed Corsair PC2-8500C5DF past 2.1v?
http://i390.photobucket.com/albums/o...1/cachemem.png
http://i390.photobucket.com/albums/o...191/asus1f.jpg
Maximus II Formula | XPPro/32 | Antec900 | Yate Loon 120mm/2200RPM X3 (2 Front Fans & 1 Exhaust Fan) | E8400 | Thermalright Ultra 120 Extreme/Scythe S-Flex SFF21F | Corsair Dominator 4GB (2x2GB) PC2-8500C5DF | WD RaptorX 150GB | Visiontek HD4870 | Lite-On 20X DVD+/-R | Scythe Kaze Master | Sytrin SHF1 Ultra HDD Cooler | Corsair TX750 Watts
I have run my ver 1.2 Dominators at 2.2 volts for months with no problemsQuote:
Originally Posted by al-
i dont know, dont have one but the bracket on my Ultima 90 hit the top sink so i couldn't mount horizontally but was able to mount vertical. so, it seems the top sink is a lil closer than the left one.Quote:
Originally Posted by WhiteFireDragon
Hi Guys,
I need help!!
My system not stable, after a while appears blue screen in the windows.
Do you have any clue about it? My computer is the signature. This configuration is stable's signature 24 / 7. Thank you in advance.
My configuration:
Quote:
Ai Overclock Tuner: Manual
OC From CPU Level Up: Auto
Ratio CMOS Setting: 8
FSB Frequency: 475
CPU Clock Skew: Normal
NB Clock Skew: Normal
FSB Strap to North Bridge: Auto
DRAM Frequency: DDR2-1141
DRAM CLK Skew on Channel A1: Advance 250ps
DRAM CLK Skew on Channel A2: Advance 250ps
DRAM CLK Skew on Channel B1: Advance 250ps
DRAM CLK Skew on Channel B2: Advance 250ps
DRAM Timing Control: Manual
1st Information:
CAS# Latency: 5 DRAM Clocks
DRAM RAS# to CAS# Delay: 5 DRAM Clocks
DRAM RAS# Precharge: 5 DRAM Clocks
DRAM RAS# Activate to Precharge: 15 DRAM Clocks
RAS# to RAS# Delay: Auto
Row Refresh Recycle Time: 55 DRAM Clocks
Write Recovery Time: Auto
Read to Precharge Time: Auto
2nd Information:
Read to Write Delay (S/D): Auto
Write to Read Delay (S): Auto
Write to Read Delay (D): Auto
Read to Read Delay (S): Auto
Read to Read Delay (D): Auto
Write to Write Delay (S): Auto
Write to Write Delay (D): Auto
3rd Information:
Write to PRE Delay: Auto
Read to PRE Delay: Auto
PRE to PRE Delay: Auto
All PRE to ACT Delay: Auto
All PRE to REF Delay: Auto
DRAM Static Read Control: Disabled
DRAM Read Training: Disabled
MEM. OC Charger: Disabled
Ai Clock Twister: Moderate
Ai Transaction Booster: Manual
Common Performance Level: 9
Pull-in of CHA PH1: Disabled
Pull-in of CHA PH2: Disabled
Pull-in of CHA PH3: Disabled
Pull-in of CHB PH1: Disabled
Pull-in of CHB PH2: Disabled
Pull-in of CHB PH3: Disabled
PCIE Frequency: 101
CPU Voltage: 1.41 :(
CPU PLL Voltage: 1.52
FSB Termination Voltage: 1.33850
DRAM Voltage: 2.31
North Bridge Voltage: 1.33
South Bridge 1.5 Voltage: 1.50
South Bridge 1.1 Voltage: 1.10
CPU GTL Reference (0): Auto
CPU GTL Reference (1): Auto
CPU GTL Reference (2): Auto
CPU GTL Reference (3): Auto
NB GTL Reference: Auto
DDR2 ChA Reference Voltage: Auto
DDR2 ChB Reference Voltage: Auto
North Bridge DDR Reference: Auto
CPU Configuration:
Ratio CMOS Setting: 8
C1E Support: Disabled
Max CPUID Value Limit: Disabled
Intel Virtualization Tech: Disabled
CPU TM Function: Disabled
Execute Disable Bit: Disabled
Load-Line Calibration: Enabled
CPU Spread Spectrum: Disabled
PCIE Spread Spectrum: Disabled
Based on info I gathered from following this thread, I have my Q6700 rock solid at 3720MHz (465x8). During 4 hours of OCCT and 2 hrs of Prime 95, max load temp on any core was 54c. However, I just feel I can go higher. I'm not even taking advantage of that x10 multiplier. 400x10 would seem like a natural. I've tried vcore at 1.5v and the memory at 1.9v (G.Skill stated max), but can't get stable beyond 3720MHz. I've been able to boot into windows Vista 64, but it quickly bombs out to a black screen and reboot. What other settings do I need to tinker with? what setting do I need to post for you to have a look at? 4000MHz would be nice. Thanks!!!
higher FSB is faster I wouldnt use the 10 multiQuote:
Originally Posted by TonyL222
9x450 would be a better setup imo and should be obtainable if your chip scales well.
Hey! I'v just got my new Asus Maximus II Formula, Can som Post (Or Re-post) some picz of their Bios-settings?
I've got an E1200 celeron CPU (yeah, i know - it sucks :P). I have reaced 3.45 ghz (1.425 volt) already, but i want to get longer, and since i haven't change anything besides volt-settings, frequency, and disabled all that Eist-function :banana::banana::banana::banana:.
Someone?
