Been messin with this board after the bios upgrade which was great and solved my loop reboot and my x- fi fatality hiccups brought down to perf 8 and damn she snappie my everest score increased to 58.ms :) so next i tried to overclock to 4500 and i lowered back down to perf 9 and 5 5 5 18 crashhh , tested ram alone up to 1000mhz with a 8 x 500 she acted ok ...latency also went down to 56.2 ms but why can I raise cpu speed ? cooling is very good so is power supply im lost
I tried these settings but i get crash on intel burn

******Motherboard Intelligent Tweaker (M.I.T.)******

Robust Graphics Booster.........................[ Auto ]
CPU Clock Ratio.................................[ 9 ]
Fine CPU Clock Ratio............................[ + 0.0 ]
CPU Frequency 4.5GHz...........................[ 500 x 9.0]

******Clock Chip Control******

CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 450 ]
PCI Express Frequency (Mhz).....................[ 100 ]
C.I.A 2.........................................[ Disabled ]

******Advanced Clock Control******

CPU Clock Drive.................................[ 800mv ]
PCI Express Clock Drive.........................[ 900mv ]
CPU Clock Skew..................................[ 0ps ]
MCH Clock Skew..................................[ 0ps ]

******DRAM Performance Control******

Performance Enhance.............................[ Standard ]
(G) MCH Frequency Latch.........................[ 400 ]
System Memory Multipler.........................[ 2.00D ]
Memory Frequency 1066...........................[ 900 ]
DRAM Timing Selectable..........................[ Manual ]

CAS Latency Time................................[ 5 ]
tRCD............................................[ 5 ]
tRP.............................................[ 5 ]
tRAS............................................[ 15 ]

******Advanced Timing Control******

tRRD[3].........................................[ 3 ]
tWTR[3].........................................[ 3 ]
tWR[6]..........................................[ 6 ]
tRFC[54]........................................[ 52 ]
tRTP[3].........................................[ 3 ]
Command Rate (cmd)[0]...........................[ 2T ]

******Channel A Timing Settings******

Static tRead Value [ 8 ] ................[ 9 ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]

tRD 2rd (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2wr (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2rd (Differnt Rank) [ 5 ] ................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto ]

Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]

******Channel A Driving Settings******

Drive Strength Profile..........................[ 1066 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]

Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]

******Channel B Timing Settings******

Static tRead Value [ 8 ] ................[ 9 ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]

tRD 2rd (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2wr (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2rd (Differnt Rank) [ 5 ] ................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto ]

Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]

******Channel B Driving Settings******

Drive Strength Profile..........................[ 1066 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]

Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]

******Motherboard Voltage Control******

Load-Line Calibration...........................[ Enabled ]
CPU Vcore [ 1.15 ]...................[ 1.38875 ]
CPU Termination [ 1.20 ]...................[ 1.280 ]
CPU PLL [ 1.50 ]...................[ 1.500 ]
CPU Reference [ 0.760 ]...................[ 0.835 ]

MCH Core [ 1.100 ]...................[ 1.300 ]
MCH Reference [ 0.760 ]...................[ 0.850 ]
MCH/DRAM Refernce [ 0.900 ]...................[ 1.000 ]
ICH I/O [ 1.500 ]...................[ 1.500 ]
ICH Core [ 1.100 ]...................[ 1.100 ]

DRAM Voltage [ 1.800 ]...................[ 2.000 ]
DRAM Termination [ 0.900 ]...................[ 1.000 ]
Channel A Ref [ 0.900 ]...................[ 1.000 ]
Channel B Ref [ 0.900 ]...................[ 1.000 ]

******Advanced BIOS Features******

Limit CPUID Max to 3............................[ Disabled ]
No-Execute memory Protect.......................[ Disabled ]
CPU Enhance Halt (CIE)..........................[ Disabled ]
C2/C2E State Support............................[ Disabled ]
C4/C4E State Support............................[ Disabled ]
CPU Thermal Monitor.............................[ Disabled ]
CPU EIST Function...............................[ Disabled ]
Virtualization Technology.......................[ Disabled ]

Quote:

---

Originally Posted by Hoss331

Download a program called MCHTemp it will tell you the temp of the NB.

---

hoss i dld MCHtemp but 1,3 ALPHA7 , could you make it work on W7x64 ?

Yea it works, windows wants a digitally signed driver so the easiest way to get around it is press F8 just before windows starts to boot. It will give you a list of options, choose "disable driver signature enforcement", this is just a quick work around so it wont be permanent. My temps dont even register anymore, even with very high voltage, so I dont use it since it only starts to show readings above about 46C.

current water
http://i131.photobucket.com/albums/p293/hoss281/mch.jpg

old air run
http://i131.photobucket.com/albums/p.../Untitledv.jpg

hey Hoss331 nice temps and voltages dude , 1.36 v and your running at 4.5 damnnnnn can you help me with my settings again ive been on this all day up and down and yes at 4.0 i have tight timmings and nice latency but with these p i pc 7200 i should be able to do a nice 1000 or more at 5 5 5 15 , just cant figure out why im crashing

Quote:

---

Originally Posted by Hoss331

Yea it works, windows wants a digitally signed driver so the easiest way to get around it is press F8 just before windows starts to boot. It will give you a list of options, choose "disable driver signature enforcement", this is just a quick work around so it wont be permanent. My temps dont even register anymore, even with very high voltage, so I dont use it since it only starts to show readings above about 46C.

---

thanks :up: will try

nice runs btw :up:

Quote:

---

Originally Posted by gurusan

I really want to try out the G.Skill ECO ddr3 sticks but they are so expensive. Anyone know other alternative modules that use the same low voltage ICs?

---

Quote:

---

Originally Posted by tool_462

I have these waiting for me in the apartment office, I'll pick them up tomorrow and can tell you what IC's they have:

http://www.newegg.com/Product/Produc...82E16820144363

1.3v rated voltage.

---

Just to ad on the list for the DDR3 boards:

G.SKILL ECO Series 240-Pin DDR3 SDRAM DDR3 1600 (PC3 12800) Model F3-12800CL7D-4GBECO

http://www.newegg.com/Product/Produc...-321-_-Product

So far the board is loving those mems 1750-1800 CAS6 :up:

Quote:

---

Originally Posted by the_real_7

hey Hoss331 nice temps and voltages dude , 1.36 v and your running at 4.5 damnnnnn can you help me with my settings again ive been on this all day up and down and yes at 4.0 i have tight timmings and nice latency but with these p i pc 7200 i should be able to do a nice 1000 or more at 5 5 5 15 , just cant figure out why im crashing

---

Try to prime this first,

Code:

---

******Motherboard Intelligent Tweaker (M.I.T.)******

Robust Graphics Booster.........................[ Auto    ]
CPU Clock Ratio.................................[ 9        ]
Fine CPU Clock Ratio............................[ + 0.0    ]
CPU Frequency 4.4GHz............................[ 489 x 9.0]

******Clock Chip Control******

CPU Host Clock Control..........................[ Enabled  ]
CPU Host Frequency (Mhz)........................[ 489      ]
PCI Express Frequency (Mhz).....................[ 100      ]
C.I.A 2.........................................[ Disabled ]

******Advanced Clock Control******

CPU Clock Drive.................................[ 800mv  ]
PCI Express Clock Drive.........................[ 900mv  ]
CPU Clock Skew..................................[ 0ps    ]
MCH Clock Skew..................................[ 0ps    ]

******DRAM Performance Control******

Performance Enhance.............................[ Standard ]
(G) MCH Frequency Latch.........................[ 400      ]
System Memory Multipler.........................[ 2.00D    ]
Memory Frequency 1066...........................[ 978    ]
DRAM Timing Selectable..........................[ Manual  ]

CAS Latency Time................................[ 5      ]
tRCD............................................[ 5      ]
tRP.............................................[ 5      ]
tRAS............................................[ 15      ]

******Advanced Timing Control******

tRRD[3].........................................[ 3      ]
tWTR[3].........................................[ 3      ]
tWR[6]..........................................[ 6      ]
tRFC[54]........................................[ 52      ]
tRTP[3].........................................[ 3      ]
Command Rate (cmd)[0]...........................[ 2T      ]

******Channel A Timing Settings******

Static tRead Value        [ 8 ] ................[ 9      ]
tRD Phase0 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase1 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase2 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase3 Adjustment    [ 0 ] ................[ Auto    ]

tRD 2rd (Differnt Rank)  [ 6 ] ................[ Auto    ]
tWR 2wr (Differnt Rank)  [ 6 ] ................[ Auto    ]
tWR 2rd (Differnt Rank)  [ 5 ] ................[ Auto    ]
tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto    ]

Dimm 1 Clock Skew Control.......................[ Auto    ]
Dimm 2 Clock Skew Control.......................[ Auto    ]
DDR Write Training..............................[ Auto    ]

******Channel A Driving Settings******

Drive Strength Profile..........................[ 1066    ]
Data Driving Pull Up Level......................[ Auto    ]
cmd Driving Pull Up Level.......................[ Auto    ]
ctrl Driving Pull Up Level......................[ Auto    ]
clk Driving Pull Up Level.......................[ Auto    ]

Data Driving Pull Down Level....................[ Auto    ]
cmd Driving Pull Down Level.....................[ Auto    ]
ctrl Driving Pull Down Level....................[ Auto    ]
clk Driving Pull Down Level.....................[ Auto    ]

******Channel B Timing Settings******

Static tRead Value        [ 8 ] ................[ 9      ]
tRD Phase0 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase1 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase2 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase3 Adjustment    [ 0 ] ................[ Auto    ]

tRD 2rd (Differnt Rank)  [ 6 ] ................[ Auto    ]
tWR 2wr (Differnt Rank)  [ 6 ] ................[ Auto    ]
tWR 2rd (Differnt Rank)  [ 5 ] ................[ Auto    ]
tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto    ]

Dimm 1 Clock Skew Control.......................[ Auto    ]
Dimm 2 Clock Skew Control.......................[ Auto    ]
DDR Write Training..............................[ Auto    ]

******Channel B Driving Settings******

Drive Strength Profile..........................[ 1066    ]
Data Driving Pull Up Level......................[ Auto    ]
cmd Driving Pull Up Level.......................[ Auto    ]
ctrl Driving Pull Up Level......................[ Auto    ]
clk Driving Pull Up Level.......................[ Auto    ]

Data Driving Pull Down Level....................[ Auto    ]
cmd Driving Pull Down Level.....................[ Auto    ]
ctrl Driving Pull Down Level....................[ Auto    ]
clk Driving Pull Down Level.....................[ Auto    ]

******Motherboard Voltage Control******

Load-Line Calibration...........................[ Enabled ]
CPU Vcore        [ 1.15    ]...................[ 1.4125  ]
CPU Termination  [ 1.20    ]...................[ 1.300  ]
CPU PLL          [ 1.50    ]...................[ 1.500  ]
CPU Reference    [ 0.760  ]...................[ 0.848  ]

MCH Core          [ 1.100  ]...................[ 1.320  ]
MCH Reference    [ 0.760  ]...................[ 0.863  ]
MCH/DRAM Refernce [ 0.900  ]...................[ 1.000  ]
ICH I/O          [ 1.500  ]...................[ 1.500  ]
ICH Core          [ 1.100  ]...................[ 1.100  ]

DRAM Voltage      [ 1.800  ]...................[ 2.000  ]
DRAM Termination  [ 0.900  ]...................[ 1.000  ]
Channel A Ref    [ 0.900  ]...................[ 1.000  ]
Channel B Ref    [ 0.900  ]...................[ 1.000  ]

******Advanced BIOS Features******

Limit CPUID Max to 3............................[ Disabled ]
No-Execute memory Protect.......................[ Disabled ]
CPU Enhance Halt (CIE)..........................[ Disabled ]
C2/C2E State Support............................[ Disabled ]
C4/C4E State Support............................[ Disabled ]
CPU Thermal Monitor.............................[ Disabled ]
CPU EIST Function...............................[ Disabled ]
Virtualization Technology.......................[ Disabled ]

---

just quickly tried 465fsb 1.24 vtt, 1.24 mch 0.8 mch ref, locked up just 20 seconds into orthos blend :( 460 fsb is at least 10 minutes orthos stable 1.2 mch, vtt and mch ref both stock 1.2 and 0.76 respectively. i get the feeling this board doesnt have much more in it since its a ud3lr not ud3p. but hwbot shows its possible to bench with the ud3lr and a quad at 510-520fsb so who knows :shrug: any other setting besides voltages that can have a significant effect on max fsb? already have performance level set to 9 in bios so loosening that further wont help i think. i suppose i could try 1.3 mch and 1.3 vtt but im not expecting miracles.

Apparently it has responded to volts, not a whole lot though. my first 10k write in everest

http://g.imagehost.org/0206/10k_write.jpg

Cpu pll 1.55v(stock), 1.3 vtt(up from 1.2), 0.805 cpu reference(stock), 1.2375 cpu vcore(stock), 1.3 mch(up from 1.1), 0.8 mch ref(up from 0.76), 1.55 ich i/o(stock), ich core 1.1(stock.)

It came up with an error less than a minute into orthos, plus it was paging almost constantly. thats odd, since it usually locks up if its a fsb limit. could it be my ram ran into its limit and needs cas6, possibly even 6-6-6-18?

RAMMAN, try better cooling on the NB first.

Your RAM doesn't need CAS 6, no way it needs it at 570MHz.

dont forget its rated for 600mhz 6-6-6-18 2.2v, its already at 570mhz 5-6-5-15 2.2v. btw it only got up to 520mhz 5-5-5-15 before it errored in orthos. keep in mind these are hynix chips according to an ocz rep in a different thread, not psc which will easily do 600mhz+ 5-5-5-15.

That's not good.... Then go for CL6, though I still think NB temps are limiting you.

Quote:

---

Originally Posted by Hoss331

Yea it works, windows wants a digitally signed driver so the easiest way to get around it is press F8 just before windows starts to boot. It will give you a list of options, choose "disable driver signature enforcement", this is just a quick work around so it wont be permanent. My temps dont even register anymore, even with very high voltage, so I dont use it since it only starts to show readings above about 46C.

---

Works yes pressing F8 there's a tool
http://www.ngohq.com/home.php?page=dseo

so you dont have to use F8 each time you must know this for sure but i post it just in case...either way my russian is bad lmao....and why it shows in % the temp :confused:

Cheers
Sergio

Quote:

---

Originally Posted by Don_Dan

Your drive settings are very high, raise skews to 150ps.

---

Tried to set the skews but cannot get into Windows at all, now tried other settings and running prime now, let see if there's improvement. Thanks again for your input!

Quote:

---

Originally Posted by Hoss331

Which test is it freezing on? Try this,

Code:

---

******Motherboard Intelligent Tweaker (M.I.T.)******

Robust Graphics Booster.........................[ Auto    ]
CPU Clock Ratio.................................[ 8        ]
Fine CPU Clock Ratio............................[ + 0.5    ]
CPU Frequency 4.2GHz............................[ 495 x 8.5]

******Clock Chip Control******

CPU Host Clock Control..........................[ Enabled  ]
CPU Host Frequency (Mhz)........................[ 495      ]
PCI Express Frequency (Mhz).....................[ 100      ]
C.I.A 2.........................................[ Disabled ]

******Advanced Clock Control******

CPU Clock Drive.................................[ 800mv  ]
PCI Express Clock Drive.........................[ 900mv  ]
CPU Clock Skew..................................[ 0ps    ]
MCH Clock Skew..................................[ 0ps    ]

******DRAM Performance Control******

Performance Enhance.............................[ Standard ]
(G) MCH Frequency Latch.........................[ 400      ]
System Memory Multipler.........................[ 2.00D    ]
Memory Frequency 1066...........................[ 990      ]
DRAM Timing Selectable..........................[ Manual  ]

CAS Latency Time................................[ 5      ]
tRCD............................................[ 5      ]
tRP.............................................[ 5      ]
tRAS............................................[ 15      ]

******Advanced Timing Control******

tRRD[3].........................................[ 3      ]
tWTR[3].........................................[ 3      ]
tWR[6]..........................................[ 6      ]
tRFC[54]........................................[ 54      ]
tRTP[3].........................................[ 3      ]
Command Rate (cmd)[0]...........................[ 2T      ]

******Channel A Timing Settings******

Static tRead Value        [ 8 ] ................[ 9      ]
tRD Phase0 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase1 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase2 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase3 Adjustment    [ 0 ] ................[ Auto    ]

tRD 2rd (Differnt Rank)  [ 6 ] ................[ Auto    ]
tWR 2wr (Differnt Rank)  [ 6 ] ................[ Auto    ]
tWR 2rd (Differnt Rank)  [ 5 ] ................[ Auto    ]
tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto    ]

Dimm 1 Clock Skew Control.......................[ Auto    ]
Dimm 2 Clock Skew Control.......................[ Auto    ]
DDR Write Training..............................[ Auto    ]

******Channel A Driving Settings******

Drive Strength Profile..........................[ 1066    ]
Data Driving Pull Up Level......................[ Auto    ]
cmd Driving Pull Up Level.......................[ Auto    ]
ctrl Driving Pull Up Level......................[ Auto    ]
clk Driving Pull Up Level.......................[ Auto    ]

Data Driving Pull Down Level....................[ Auto    ]
cmd Driving Pull Down Level.....................[ Auto    ]
ctrl Driving Pull Down Level....................[ Auto    ]
clk Driving Pull Down Level.....................[ Auto    ]

******Channel B Timing Settings******

Static tRead Value        [ 8 ] ................[ 9      ]
tRD Phase0 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase1 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase2 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase3 Adjustment    [ 0 ] ................[ Auto    ]

tRD 2rd (Differnt Rank)  [ 6 ] ................[ Auto    ]
tWR 2wr (Differnt Rank)  [ 6 ] ................[ Auto    ]
tWR 2rd (Differnt Rank)  [ 5 ] ................[ Auto    ]
tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto    ]

Dimm 1 Clock Skew Control.......................[ Auto    ]
Dimm 2 Clock Skew Control.......................[ Auto    ]
DDR Write Training..............................[ Auto    ]

******Channel B Driving Settings******

Drive Strength Profile..........................[ 1066    ]
Data Driving Pull Up Level......................[ Auto    ]
cmd Driving Pull Up Level.......................[ Auto    ]
ctrl Driving Pull Up Level......................[ Auto    ]
clk Driving Pull Up Level.......................[ Auto    ]

Data Driving Pull Down Level....................[ Auto    ]
cmd Driving Pull Down Level.....................[ Auto    ]
ctrl Driving Pull Down Level....................[ Auto    ]
clk Driving Pull Down Level.....................[ Auto    ]

******Motherboard Voltage Control******

Load-Line Calibration...........................[ Enabled ]
CPU Vcore        [ 1.15    ]...................[ 1.3875  ]
CPU Termination  [ 1.20    ]...................[ 1.340  ]
CPU PLL          [ 1.50    ]...................[ 1.500  ]
CPU Reference    [ 0.760  ]...................[ 0.848 or 0.873 ]

MCH Core          [ 1.100  ]...................[ 1.360  ]
MCH Reference    [ 0.760  ]...................[ 0.848 or 0.888 ]
MCH/DRAM Refernce [ 0.900  ]...................[ 1.020  ]
ICH I/O          [ 1.500  ]...................[ 1.500  ]
ICH Core          [ 1.100  ]...................[ 1.100  ]

DRAM Voltage      [ 1.800  ]...................[ 2.040  ]
DRAM Termination  [ 0.900  ]...................[ 1.020  ]
Channel A Ref    [ 0.900  ]...................[ 1.020  ]
Channel B Ref    [ 0.900  ]...................[ 1.020  ]

******Advanced BIOS Features******

Limit CPUID Max to 3............................[ Disabled ]
No-Execute memory Protect.......................[ Disabled ]
CPU Enhance Halt (CIE)..........................[ Disabled ]
C2/C2E State Support............................[ Disabled ]
C4/C4E State Support............................[ Disabled ]
CPU Thermal Monitor.............................[ Disabled ]
CPU EIST Function...............................[ Disabled ]
Virtualization Technology.......................[ Disabled ]

---

---

Hi Hoss, tried this setting but I cannot get into Windows. I found that I cannot set both skews to 0ps..... now trying settings below:
CPU Clock Drive.................................[ 800mv ]
PCI Express Clock Drive.........................[ 900mv ]
CPU Clock Skew..................................[ 50ps ]
MCH Clock Skew..................................[ 100ps ]

Thanks for your input and I'm sure I can find the stable point soon with you guys' help!

Quote:

---

Originally Posted by andressergio

Works yes pressing F8 there's a tool
http://www.ngohq.com/home.php?page=dseo

so you dont have to use F8 each time you must know this for sure but i post it just in case...either way my russian is bad lmao....and why it shows in % the temp :confused:

Cheers
Sergio

---

Yea I dont use the program enough to bother setting it to work all the time, just used it to check the temps a couple times. After the NB block was installed I tried up to 1.7s mch voltage and it didnt get hot enough to register anymore, so I havent used it since. :up: The older versions show the mch temp with a C, not sure why the newer one shows temps with %.

hey hoss331 tried setting , wont even boot :( guess im stuck at 4.0 maybe ill just raise slowly at my current timings and see what she'll do

I got a little suicide run on air here http://i282.photobucket.com/albums/k...o/th_49ghz.jpg

nice ! ! ! shiver_8 :clap:

I have a question about pci-e link width on UD3P. Cpu-z shows 8x and 16x. Can someone verify this is true or error. I have a couple scores to compare to. Thanks.

Quote:

---

Originally Posted by the_real_7

nice ! ! ! shiver_8 :clap:

---

Thanks. I can't get 5000mhz no matter what though. I threw 1.8v at it and nothing. I have benched at 563fsb at a lower multi and its stable the cpu just won't clock that high tho.

Quote:

---

Originally Posted by coop

I have a question about pci-e link width on UD3P. Cpu-z shows 8x and 16x. Can someone verify this is true or error. I have a couple scores to compare to. Thanks.

---

Do you have something in the other PCI-E slot? That will make the link width go to 8x. And do you have the videocard inserted in the 1st (top) PCI-E slot?

I have a card in both. Shouldn't they be 16x each?

No, only X38/X48 has 16x/16x, P35/P45 does only have 8x/8x when both slots are occupied.

Thanks Don Dan. Saves me from bios update.

Quote:

---

Originally Posted by shiver_8

I got a little suicide run on air here http://i282.photobucket.com/albums/k...o/th_49ghz.jpg

---

nice ,,, trux or D14 ?

Quote:

---

Originally Posted by Don_Dan

That's not good.... Then go for CL6, though I still think NB temps are limiting you.

---

i think cas 6 will stabilize it at 465-475, but i think anything beyond that is brick wall territory.

I finally got memory stable at DDR3 1333 (stock!). The problem was the ocz mem (or all DDR3 on this board?) doesnt like volts at all. I think hoss posted similiar few pages back. I couldnt get mine stable at rated 1.8v so after much :brick: i lowered to 1.78 then stable at 1.76. Now i can oc it and hopefully get 1600 stable. Also gonna try for 4.5 but think my cooling might limit me as am hitting 74 on IBT.

http://i104.photobucket.com/albums/m...1009-31-06.png
EIST enabled

You ain't lucky mate :( I'm out to check the third DDR3 ram kit on an UD3 ...a bit better than the 2 others but still very limited

The Ballistix PC16000 did worse than the Value ones (Trichanel) wich gave me 880 C7 best ever atmo ;)

http://hwbot.org/signature.img?iid=2...se&iehack=.jpg

...now on the Ripjaws C7 PC12800 that need less voltage for sure but still hard work though !! Definitly not the NB to rock with DDR3

Are there not any DDR reference voltage adustments on the EP45T?

Quote:

---

Originally Posted by Gaul

nice ,,, trux or D14 ?

---

I'm sorry I don't know what you're referring to :p:

Quote:

---

Originally Posted by shiver_8

I'm sorry I don't know what you're referring to :p:

---

Thermalright Ultra eXtreme or Noctua NH-D14 cooler. ;)

Quote:

---

Originally Posted by Songok

http://i104.photobucket.com/albums/m...1009-31-06.png
EIST enabled

---

Just wondering about the EIST thing, as it's something I'm considering when I finally get my cooling setup runing semi-passively. I know on my old opteron/dfinf4, I had to test the CPU at the multi and voltage it would be during c&q mode in order to guarantee stability if under mild load. Is the step down in voltage with C1E/EIST enabled at any risk of going too low whilst running at 6x multi with high fsb? What did you use to test it?

Here's my effort so far on getting my rig prime stable.

http://img294.imageshack.us/img294/6416/78584220.png

Quote:

---

Originally Posted by gurusan

Here's my effort so far on getting my rig prime stable.

http://img294.imageshack.us/img294/6416/78584220.png

---

Those volts are insanely low for that speed! Well done!

Very nice gurusan! Great vcore.

thanks. the weird thing is it's 1.2625V VID, highest I've ever had on a wolfdale.

Nicely done, as usual, some great clocks & voltages on this board.

Jor3lbr, do your MIPS mosfet blocks help a lot with stability at >4.5GHz? I know mine run hot, and I want to push further but I think these are now the cause of instability after managing to get CPU temps more reasonable (and I'm still p95 stable at 4.5GHz).

Quote:

---

Originally Posted by In-Fluence

Nicely done, as usual, some great clocks & voltages on this board.

Jor3lbr, do your MIPS mosfet blocks help a lot with stability at >4.5GHz? I know mine run hot, and I want to push further but I think these are now the cause of instability after managing to get CPU temps more reasonable (and I'm still p95 stable at 4.5GHz).

---

Guys I never used the blocks... I ended up selling them all.

All I use in the mosfet area are Fans. One on top of each mosfet area.

For stability above 4.5Ghz:
- Q9650 below 65oC;
- Right amount of memory tweaking (not too tight not to lose);
- NB below 70oC.

Fair enough, thanks for your summary.

With the cpu I have trouble getting below 70°C during p95 8k on the first core. the other 3 are sitting comfortably at 65°C at up to 1.4375v.
The 4th (weakest) core seems to increase in stability between 1.40-1.4125 and lasts around 10 tests during 8k at 1.4125, but it still fails, and gets worse when I go over that voltage. I know there's a fine line between temps/voltages here, but as the 4th core isn't too hot, this is the reason I'm starting to suspect the mosfets. But then it's a bit of a risk to splash out on some blocks if it's not going to help much more, and I'm simply reaching the cpu's limit.

Quote:

---

Originally Posted by In-Fluence

Are there not any DDR reference voltage adustments on the EP45T?

---

It does have reference voltage. Its not something i considered! I have been leaving it on auto when going for a 1600 oc on ddr3 1333. Should it typically be raised above or below auto?

I only asked because I didn't see them in the ET6 screenshot, just curious!

the DDR reference voltages should be half of the memory volts. I would start from there and work your way up or down :)

Perhaps skews are worth a try at those speeds too, they only had an effect when I was pushig my DDR2 beyond 1300, but in your case it might be more crucial :)

Quote:

---

Originally Posted by In-Fluence

Just wondering about the EIST thing, as it's something I'm considering when I finally get my cooling setup runing semi-passively. I know on my old opteron/dfinf4, I had to test the CPU at the multi and voltage it would be during c&q mode in order to guarantee stability if under mild load. Is the step down in voltage with C1E/EIST enabled at any risk of going too low whilst running at 6x multi with high fsb? What did you use to test it?

---

Does it step down voltage with EIST on? I thought it just lowered multi on the cpu when loads are low. Cpuz reports the voltage slightly higher (vdroop) when it is at x6 idleing as when at full load.

Quote:

---

Originally Posted by In-Fluence

I only asked because I didn't see them in the ET6 screenshot, just curious!

the DDR reference voltages should be half of the memory volts. I would start from there and work your way up or down :)

Perhaps skews are worth a try at those speeds too, they only had an effect when I was pushig my DDR2 beyond 1300, but in your case it might be more crucial :)

---

I'm half asleep! It doesnt have ram ref, i was thinking of term!! :rolleyes:
Cheers for the tips though, Im determined to get this ram oc'ed within an inch of its life!

Quote:

---

Originally Posted by Don_Dan

Thermalright Ultra eXtreme or Noctua NH-D14 cooler. ;)

---

Ahhh... neither. Using my good old $30 Xigmatek HDT-S1283.

Also before I call it a night just a quick question... Is there a trick that anyone knows of to decrease vcore but maintain stability? I tweaked my reference voltages (using a ud3p) and am prime stable, but my vcore is too high now and decreasing it results in errors. Does PLL help at all? Thanks:up:

Quote:

---

Originally Posted by gurusan

Here's my effort so far on getting my rig prime stable.

http://img294.imageshack.us/img294/6416/78584220.png

---

Great stuff Gurusan, Very nice indeed! I cant put vcore above 1.325 or IBT hits 76/77. My cooling is a noctua NH-U12P. All the reviews said it was great, turns out its not!! What cooler are using? Temps?

Quote:

---

Originally Posted by In-Fluence

Are there not any DDR reference voltage adustments on the EP45T?

---

The P and R T boards do have ref voltages, more than the ddr2 boards, but the LRs do not. So far the only one that seems to be of benefit is DRAM Term. when on 4.00B above 450fsb.

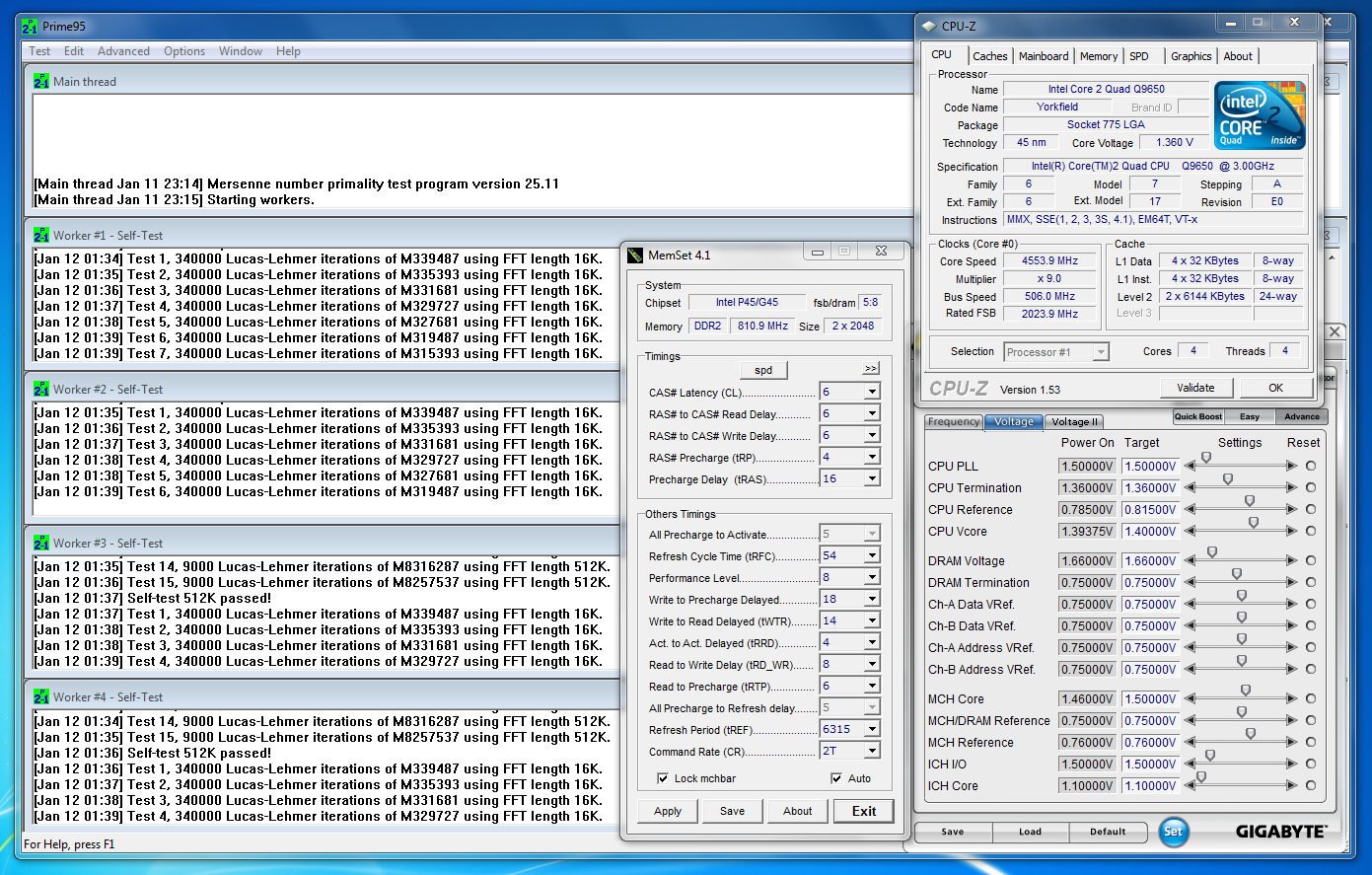

http://i131.photobucket.com/albums/p...281/4554c6.png

I see, good to know, thanks for the reply. I see you've got a 'voltage II' tab as well - nice :). The ram refs seem to have minimal effect on stability, although when I ran my reapers over 2.1v, the values did benefit from a notch above 0.5xvdimm, and that got me 1295MHz memtest #5 - 1 hour stable (plus a few passes of full test). As for the skews, on the MIIF, tuning the skews with one stick at a time in its own slot, and pushed to the limit was the best way to do it (and relaxed PL). Both sticks together makes it harder. Some settings will not boot at all, others will give you more stability, much like the CPU/NB skews.

Quote:

---

Originally Posted by Songok

Great stuff Gurusan, Very nice indeed! I cant put vcore above 1.325 or IBT hits 76/77. My cooling is a noctua NH-U12P. All the reviews said it was great, turns out its not!! What cooler are using? Temps?

---

The NH-U12P is great, some chips run hotter than others though, usually lower VID chips will run hot, I had a 1.165V VID chip once that ran hotter than the sun.

I am only using a Scythe Mine 100mm cooler that I picked up used for 10 quid :) Temps are not a problem as you can see, ambient is 20C. Also I don't usually use IBT because it heats the chip up so damned much, it's quite unrealistic IMO. I might do an IBT run later on to get in that 4.5GHz LinX stable club though :)

http://img687.imageshack.us/img687/6582/capturemhg.png

Quote:

---

Originally Posted by gurusan

The NH-U12P is great, some chips run hotter than others though, usually lower VID chips will run hot, I had a 1.165V VID chip once that ran hotter than the sun.

I am only using a Scythe Mine 100mm cooler that I picked up used for 10 quid :) Temps are not a problem as you can see, ambient is 20C. Also I don't usually use IBT because it heats the chip up so damned much, it's quite unrealistic IMO. I might do an IBT run later on to get in that 4.5GHz LinX stable club though :)

---

I didnt know VID was a factor with heat. I thought all chips would give the same temps at a given Vcore no matter what the VID? So lower VID=better oc but more heat? I had a mates E5200 at 4Ghz in my machine and it never passed 55@full load with the the NH-U12P now that i think of it. Maybe my E8400 is just a scorchio chip! It has a 1.175 VID btw. Agreed IBT does kick things up to a new level but ive had chips run small fft's for 24hrs+ and need a small vcore bump to get 25IBT passes without errors. I am open to the idea that IBT is so unrealistic as to be unneccesary though.

In my experience chips with lower VID run hotter and OC well. Chips with higher VIDs usually run much cooler but are not necessarily bad clockers (my current chip as an example).

1.175V is a good VID, I would keep pushing for 4.4GHz or maybe 4.5GHz :)

Quote:

---

Originally Posted by gurusan

In my experience chips with lower VID run hotter and OC well. Chips with higher VIDs usually run much cooler but are not necessarily bad clockers (my current chip as an example).

1.175V is a good VID, I would keep pushing for 4.4GHz or maybe 4.5GHz :)

---

I See! Learning something new here everyday, literally!
I can get small ffts stable at 4.4 with 1.248@CPU-Z (llc disabled) but temps are borderline at 75. 4.5 seems to need two notches of vcore higher (at least) and temps hit 78 so i havent primed that for more than couple of minutes. Have tried AS5 instead of the noctua compound but temps jumped 5c at load so im just gonna stick with 4.25 for now and start reading up on watercooling!!

Well I'm usually fine with low 80s for prime as normal system use the temps won't get quite as high. Watercooling is nice though as you really don't have to worry about temps much at all. I sold my WC setup over the summer and miss it :(

Mine's a 1.2 vid and I've hit 5GHz with it. Easily stable at 4.5 too. WC setup is more than likely to be needed for those kind of speeds though, particularly once you go over 1.35v on air.

Quote:

---

Originally Posted by Songok

I finally got memory stable at DDR3 1333 (stock!). The problem was the ocz mem (or all DDR3 on this board?) doesnt like volts at all. I think hoss posted similiar few pages back. I couldnt get mine stable at rated 1.8v so after much :brick: i lowered to 1.78 then stable at 1.76. Now i can oc it and hopefully get 1600 stable. Also gonna try for 4.5 but think my cooling might limit me as am hitting 74 on IBT.

http://i104.photobucket.com/albums/m...1009-31-06.png
EIST enabled

---

I still think you MCH ref might be 1 or 2 steps too low. It would be great if you could get your PL down to 8 or 9.:up: And your right more volts isn't always the answer. On my DDR3 setup more volts made unstable; less made stable, especially with the RAM. I always keep a voltage monitor program open so I can see what under/over volts from BIOS settings.

Its good to see this thread still going. Makes me want to go back to S775 and have some more fun. It would be fun to try on a DDR3 board where you aren't limited to 1.65vDimm.

Quote:

---

Originally Posted by In-Fluence

I see, good to know, thanks for the reply. I see you've got a 'voltage II' tab as well - nice :). The ram refs seem to have minimal effect on stability, although when I ran my reapers over 2.1v, the values did benefit from a notch above 0.5xvdimm, and that got me 1295MHz memtest #5 - 1 hour stable (plus a few passes of full test). As for the skews, on the MIIF, tuning the skews with one stick at a time in its own slot, and pushed to the limit was the best way to do it (and relaxed PL). Both sticks together makes it harder. Some settings will not boot at all, others will give you more stability, much like the CPU/NB skews.

---

Theres nothing really in the voltage II tab, it just pops up if you happen to scroll over that area. :up:

Again after a long time abusing the Q9650 it's still rock solid on Prime95 blend.

Key: Low Temps.

EP45-UD3P + Q9650@4500Mhz_1.32vcore + G.Skill ECO DDR3 1600Mhz

Don't mind ram timings they were relaxed the test was just to check CPU stress without ram interference :up:

Quote:

---

Originally Posted by bluestang

I still think you MCH ref might be 1 or 2 steps too low. It would be great if you could get your PL down to 8 or 9.:up: And your right more volts isn't always the answer. On my DDR3 setup more volts made unstable; less made stable, especially with the RAM. I always keep a voltage monitor program open so I can see what under/over volts from BIOS settings.

---

I have mch ref set to .71 in Bios, does it always read lower in ET? I got PL stable at 9 overnight, 8 failed but am going to try MCH changes and see if i can get it. Have more xilence 120mm fans on the way, so hopefully thatl sort temps and allow for 4.5 :)

http://i104.photobucket.com/albums/m...1008-55-34.png

I gave up with the Ripjaws PC12800C7 :( Nothing to do with them : 1333 C6 7-7-18 PL7 with 1,68v seems to be the wall for me
The mobo ran the vDimm @1.92v on "auto" lol ain't safe for sure ...but even in C7 it wasn't stable for Prime Blend (My dead UD3 DDR2 rev1.1 I miss you so much !!)

I may be back with the Crucial Value to show some good screenies ;) ...keep this thread alive mates !!

Very nice work on the DDR3 board Jor!

http://img30.imageshack.us/img30/4765/capturect.png

Quote:

---

Originally Posted by Eeky NoX

I gave up with the Ripjaws PC12800C7 :( Nothing to do with them : 1333 C6 7-7-18 PL7 with 1,68v seems to be the wall for me
The mobo ran the vDimm @1.92v on "auto" lol ain't safe for sure ...but even in C7 it wasn't stable for Prime Blend (My dead UD3 DDR2 rev1.1 I miss you so much !!)

I may be back with the Crucial Value to show some good screenies ;) ...keep this thread alive mates !!

---

Or try the new G.Skill Eco Series CAS6 1800Mhz.

Hi guys,

I just got my new x3370.

Trying to make to work but i've no chance. Something wrong with my bios settings? Everytime I change the "CPU Host Control" from disable to enable and leave the CPU Host Frequency to 333 (or whatever else), my ep45-ud3 refuse to boot (restart with defaults and claim an overclock issue).

Any Idea how should I set the bios for this x3370?

Quote:

---

Originally Posted by Songok

I have mch ref set to .71 in Bios, does it always read lower in ET? I got PL stable at 9 overnight, 8 failed but am going to try MCH changes and see if i can get it. Have more xilence 120mm fans on the way, so hopefully thatl sort temps and allow for 4.5 :)

---

ET shows the value when VTT is at 1.20 in BIOS. So .68v MCH ref when set at 1.20 VTT in BIOS will show .68 in ET. If you raise VTT to 1.24 in BIOS then you MCH will scale automatically with it and show .71 in BIOS and still show .68 in ET. So you need to set MCH ref to .70 or .72 when you VTT is at 1.20 before rasing it back up to 1.24.

Quote:

---

Originally Posted by Jor3lBR

Again after a long time abusing the Q9650 it's still rock solid on Prime95 blend.

Key: Low Temps.

EP45-UD3P + Q9650@4500Mhz_1.32vcore + G.Skill ECO DDR3 1600Mhz

Don't mind ram timings they were relaxed the test was just to check CPU stress without ram interference :up:

---

Very nice friend :up: good work there :up:

Cheers
Sergio

Just got a free upgrade to a brand new Q9550 from my old Q9400
and i can see it does 4.0 a lot easier than even my last one on this board..

although i gotta say there appear to be boot issues with this particular UD3R, almost like it doesn't wanna boot unless you set EXACTLY the right settings, took 25 tries once and had to remove the CMOS battery and even then....

Gonna give it's little brother the EP45 UD3L a try this afternoon....either way it's good to have a back up board...
and the 12 mb of cache doesn't hurt either....

http://i432.photobucket.com/albums/q...40LOWERPLL.jpg

Very nice work there jor3lbr, I see you had a nice low temp to work with too :D

Just got my RMA cheque from my dominator GT DDR2 modules at long last, so a set of trident 1200's are on the cards so I can finally acheive my goal of 4.5/ddr1200, and will hopefully be able to aim a higher for some more benching.

One thing I found is that 499x9 seems a load easier to stabilise than 500, and with nearly 0.2vcore less, has anyone else experienced this?

Finally settled on my 24/7 clock....got a nice balance between CPU freq., vcore, and memory performance :)

http://img121.imageshack.us/img121/5474/captureef.png

Quote:

---

Originally Posted by gurusan

Finally settled on my 24/7 clock....got a nice balance between CPU freq., vcore, and memory performance :)

---

Good work gurusan :up:
Nice high memory speeds and sweet FSB for 24/7. Those are now my targets too!! :clap:

Ok So i been having problems with my EP45-UD3P freezing up or powering off and even just going to a black screen. It was mainly when i tried to use over 1.30 vcore but now its gotten worse and does it with less things iv tried are below im out of ideas no one iv asked has had much of a idea of what could be causing it. Also on both boards i get a sound coming from around the cpu socket.

Tested
3 CPU's= E6600, Q6600, Q6600
2 rams sets= OCZ FLEX2 pc9200 2x2, some 1x1 pc6400
2 PSU= seasonic 850w, toughpower 680w
2 motherboards=EP45-UD3P p35 bloodiron
3 videocards= asus 5870, evga 8800gt, evga 8800gt

some proof that the UD3L ep45 can pull it's weight like it's bigger brother
haven't tried 500 yet, but all the settings are there - minus some references and fine pll control

4.0 was even easier on this one, now that i got a good one that actually boots

one thing that concerns me though, is the UD3L has bugger-all for pwm/mofset cooling - could get kinda hot

oh well - at least it WORKS now...



http://i432.photobucket.com/albums/q...66/proof-2.jpg

@ Jor and Guru...nice work! :up:

Guys is 1.670 ich i/o to much for everyday use ? i seem to got my pc stable but need ich up to 1.6700 to make it stable and it still makes the sounds coming from around the cpu socket. Pinpointed the sound as my megas making noise from the gas only thing it can be.

What do the Phase adjustments do in the BIOS?

They can actlike like partial steps to lowering trd (performace level), if all are set to '1' whils the board is running trd of 9, then it will be just like running 8 ;). It can help fine tuine memory performance & squeeze the last out of the NB.

Hey guys, got a question :

What's the best bios rev. for the UD3P and UD3R?

I'm still running F4 on the UD3P, managed to find a UD3R rev. 1.0 after a long and hard search. (haven't installed it yet, still sitting it it's box so can't say which bios is on it).

Thx,

Quote:

---

Originally Posted by Jupiler

Hey guys, got a question :

What's the best bios rev. for the UD3P and UD3R?

I'm still running F4 on the UD3P, managed to find a UD3R rev. 1.0 after a long and hard search. (haven't installed it yet, still sitting it it's box so can't say which bios is on it).

Thx,

---

for ud3p -- F10j has been good to me! :up:

Quote:

---

Originally Posted by Jor3lBR

Again after a long time abusing the Q9650 it's still rock solid on Prime95 blend.

Key: Low Temps.

EP45-UD3P + Q9650@4500Mhz_1.32vcore + G.Skill ECO DDR3 1600Mhz

Don't mind ram timings they were relaxed the test was just to check CPU stress without ram interference :up:

---

Nice work:clap:
Could you post your bios template?
What cooling do you use on CPU and MCH?
Cheers

Quote:

---

Originally Posted by Jupiler

Hey guys, got a question :

What's the best bios rev. for the UD3P and UD3R?

I'm still running F4 on the UD3P, managed to find a UD3R rev. 1.0 after a long and hard search. (haven't installed it yet, still sitting it it's box so can't say which bios is on it).

Thx,

---

For the UD3P either F10B or F10J. F10J has quick boot so it boots fast but has some reduced bandwidth and latency. F10B has normal bandwidth but no quick boot, it still boots faster than F4 though.

should i upgrade my BIOS on my GA-EP45-UD3R to F12e from F8. right now i do have my E8500 OCed to 4GHZ with 9.5x and 422 FSB 100% stable

is UD3P Rev 1.0 still very good compared to Rev 1.6? also does the NB get hot like in RE that you need to cool with a water block? i'm thinking of getting rev1.0 but can't decide if i should look for rev 1.6. is buying a used rev1.0 for 75 shipped good idea or should i be getting a new rev1.6 from egg at $110 AMIR. i already plan on going water with my cpu. so i''d figure if the NB gets hot, i can just throw on a MCW30 on it.

Quote:

---

Originally Posted by radi4fun

is UD3P Rev 1.0 still very good compared to Rev 1.6? also does the NB get hot like in RE that you need to cool with a water block? i'm thinking of getting rev1.0 but can't decide if i should look for rev 1.6. is buying a used rev1.0 for 75 shipped good idea or should i be getting a new rev1.6 from egg at $110 AMIR. i already plan on going water with my cpu. so i''d figure if the NB gets hot, i can just throw on a MCW30 on it.

---

rev 1.0 is the best mate for OC :up:

Cheers
Sergio

Quote:

---

Originally Posted by andressergio

rev 1.0 is the best mate for OC :up:

Cheers
Sergio

---

I'll believe that when I see proof! (see sig) :up:

Quote:

---

Originally Posted by In-Fluence

I'll believe that when I see proof! (see sig) :up:

---

yeah mine aint bad :D just didnt want to push more ;)

Quote:

---

Originally Posted by In-Fluence

I'll believe that when I see proof! (see sig) :up:

---

*usually* a bit better ;)

But who are we kidding here, all revisions of this board are quad-core overclocking monsters :clap:

Quote:

---

Originally Posted by tool_462

*usually* a bit better ;)

But who are we kidding here, all revisions of this board are quad-core overclocking monsters :clap:

---

for sure mate :up: just i've seen problems with rev 1.1 and some mem

Quote:

---

Originally Posted by andressergio

for sure mate :up: just i've seen problems with rev 1.1 and some mem

---

I get you. I just didn't want anyone putting down my beloved 1.6! :D

I've been having a few stabs at getting 4.5 linx stable, but I'm suffering as a result of what I believe to be a bit of an iffy temp sensor and another weird issue I hope some of you might be able to help with..

I managed up to 8 passes before the PC instantly shut off which indicated to me that a temperature reached it's threshold somewhere. After opening ET6 and looking at the CPU temp sensor on there, I noticed it was jumping around a lot by up to 15°C above the internal sensors. Below is a pic of me testing at 4.4, just to record the kind of spikes the sensor reaches (I guess speedfan would have been better):

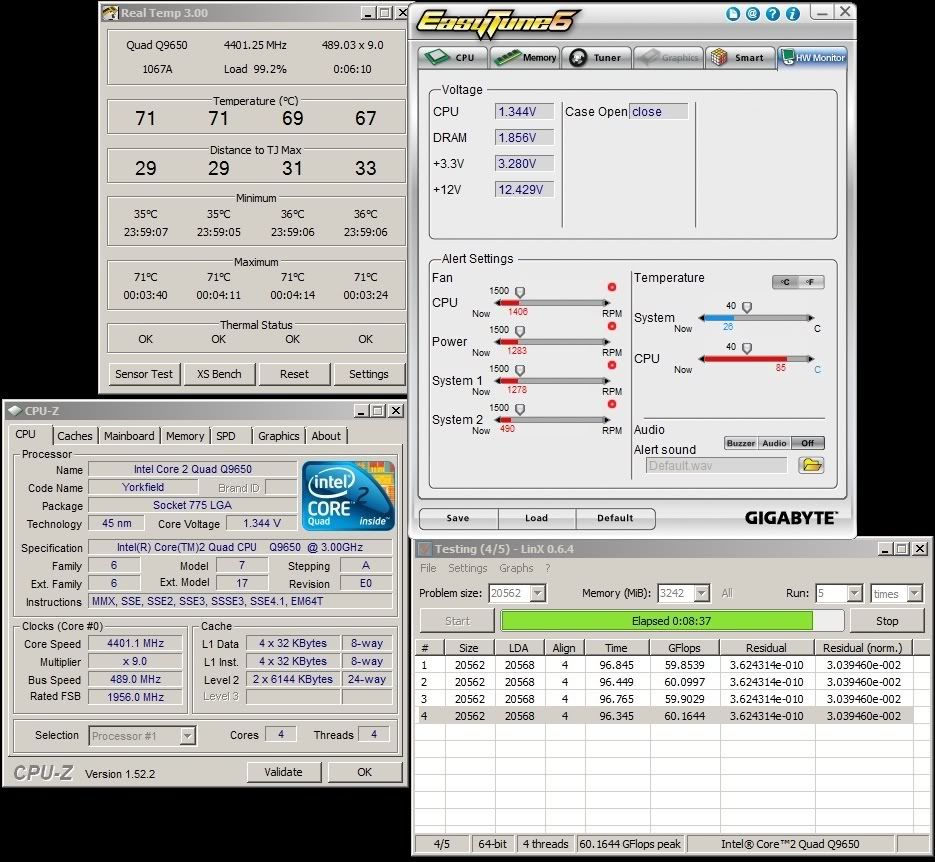

http://i194.photobucket.com/albums/z...useofcrash.jpg
Although I understand that the sensor is quite a way off the actual core temps in most people's cases, this one jumped between 75-93°C whilst under load, even though the actual core temperatures are what I think is ok for a linx run at these volts (i could have gone lower on the vcore, but this was just to help illustrate my point without crashing).

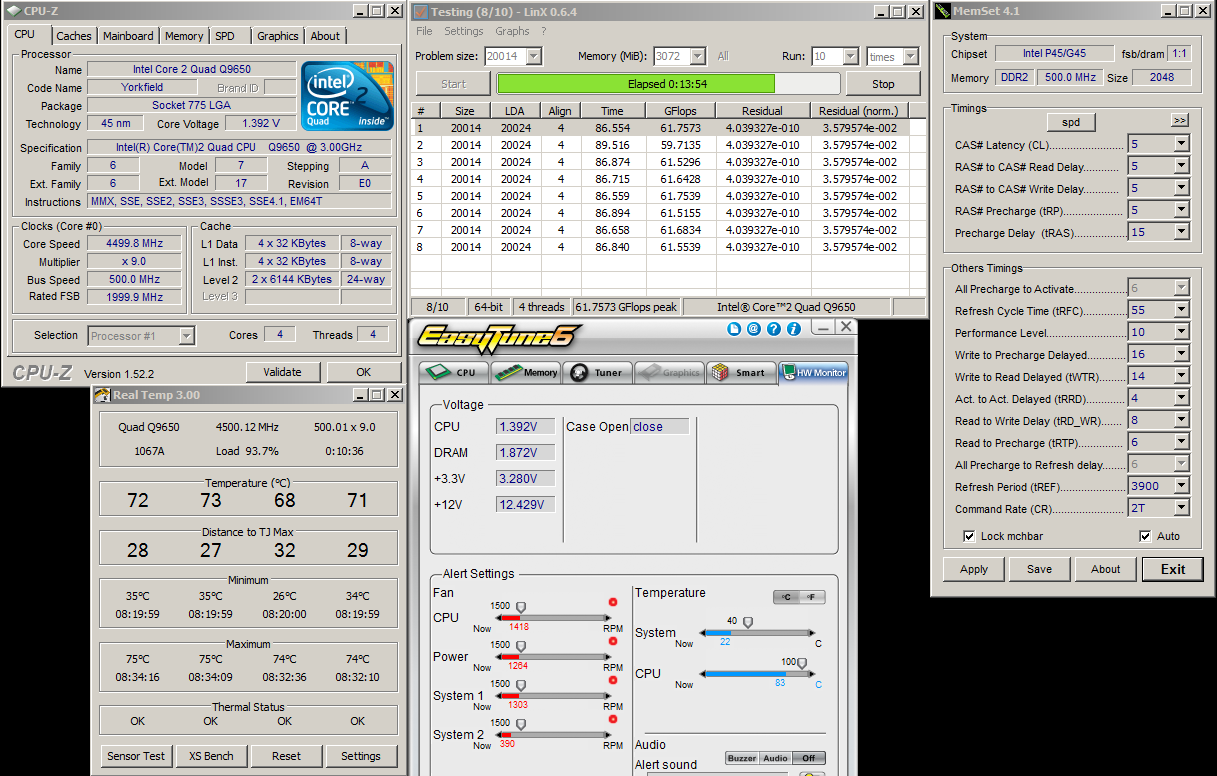

The furthest I've got is 8 passes at 4.5, and as you can see below, the temp is actually lower at higher volts:
http://i194.photobucket.com/albums/z...x/45-8pass.png
Shortly after this, ET6 spiked to 96°C and after that, it instantly shut down. (I assume it must have hit 100°C)

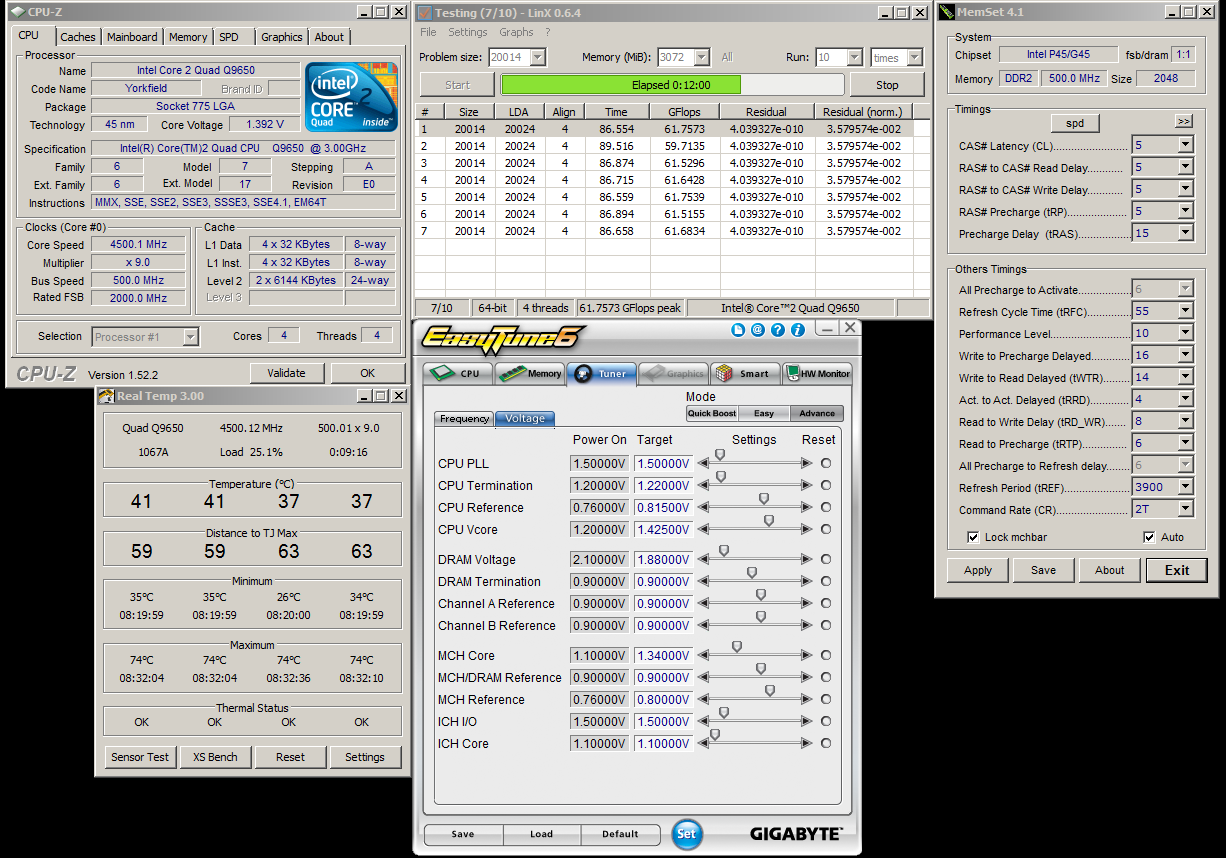

Below is another shot just before the previous one showing voltgaes:
http://i194.photobucket.com/albums/z...x/45-7pass.png


My other issue is sometimes when I run linx, temps run lots lower, and cpu runs slower and sometimes loses more than half the performance (i.e ~30 gflops rather than ~60), although nothing different shows in CPU-Z speeds or any other unusual events - could some process be interfereing with it even though everything else shows 0% usage? This is pretty much a fresh install of W7 64bit.

Any hints from the experinced pros are welcome! Do any of the bios offer lower CPU temp readings?

Hi guys , just got UD3P few days ago as my galaxy 650i ultra got busted due to 2 yrs of overclocking my q6600.. on that mobo it was doing 3.3ghz 24x7.

Now I wanna hit somewhere around 3.6ghz with this mobo.Went through few pages of this very very long thread.Looks like everyone is using 8xxx or 9xxx with this mobo. Is there anyone using q6600 with it. PLs post ur oc settings for it then :) so that I can start on a solid ground.. I have cooler master Extreme power 600 w psu and true 120. Since the heatsink on northbridge is sufficient hence I avoided swapping it with hr-05 sli. Now will it help if I replace the stock southbridge heatsink with Hr-05 sli or its not needed? .. Pls help guys .. On bios ver f8

You'll probably find the settings for the Q9xxx range will get you most of the way. You'll need more vcore to get lower clocks though and you won't be able to clock as high. I would suggest you start with all voltages/settings at default (not auto), set your multiplier to 6x and increase FSB from there whilst keeping a low multi (something like 400 will be worth starting from imo). It will also be worth checking if you can get 500fsb stable, just to find your CPU's limit and get a feel for what voltages you'll need. For everything other than CPU. There are no 'right' settings, it all depends on your CPU. Note that skews and CPU/MCH ref voltages are very helpful in getting stable, particularly at high fsb, although I don't know about this board and 45nm quads, If I kept my Q6600, I would probably have some settings for you.

See how far you can get, and post back with your settings and we could go from there. Remember to keep an eye on your temps though - those quads get proper toasty!

Quote:

---

Originally Posted by yogi7272

Hi guys , just got UD3P few days ago as my galaxy 650i ultra got busted due to 2 yrs of overclocking my q6600.. on that mobo it was doing 3.3ghz 24x7.

Now I wanna hit somewhere around 3.6ghz with this mobo.Went through few pages of this very very long thread.Looks like everyone is using 8xxx or 9xxx with this mobo. Is there anyone using q6600 with it. PLs post ur oc settings for it then :) so that I can start on a solid ground.. I have cooler master Extreme power 600 w psu and true 120. Since the heatsink on northbridge is sufficient hence I avoided swapping it with hr-05 sli. Now will it help if I replace the stock southbridge heatsink with Hr-05 sli or its not needed? .. Pls help guys .. On bios ver f8

---

Look for posts made by user name "Fatguy1992" on this thread, I'm pretty sure he pushed his Q6600 over 4300Mhaz daily:

- http://www.xtremesystems.org/forums/...rchid=19269694

Fatguy's Q6600 4050Mhz stable template:
http://www.xtremesystems.org/forums/...postcount=3227

man, all rev's seem good. you guys are getting insane fsb's that P5Q can't seem to hit. what kind of memory are you guys using? would this G.SKILL 4GB (2 x 2GB) DDR2 1066 (PC2 8500) Model F2-8500CL5D-4GBPK - Link be good enough? or do i have to get something that is even higher than this? and the Voltage 2.0V - 2.1V that the ram is rated at, is that fine to run in the board as well?

can someone post/link me to OC settings for this board. i have a q9550 e0 and coming from an asus p5e mobo, not sure what max volts are for this mobo/chipset. thanks in advance.

start reading at page 125 of this thread, that is where all this quads start to show up :D http://www.xtremesystems.org/forums/...05132&page=125

Had 4.0 GHZ easy the other day, and then lost it... i couldn't get it back no matter what i tried in the bios on the UD3L rev1 f4 bios... it seemed like it was resetting the memory speed on me...
so here's what happened: i updated the bios to f7 and it booted right away,,,,

just in case any of you folks have the ep45 ud3l and run into this:clap::clap::clap:
My god these Gigabyte boards are finicky.... :shakes::shakes: - but they run good....

http://i432.photobucket.com/albums/q...k666/TYYTY.jpg

that's all
enjoy....

Thanks guys for all ur replies..:up: I will start with settings posted by fatguy1992 .. got a pretty decent knowledge abt overclocking but zero knowledge about p45 chipset.As I was using nvidia 650i ultra for last two yrs and it was a decent board for its price. Will try different things and post how far I can go 24x7 :)

Quote:

---

Originally Posted by fatguy1992

Anyone want Q6600 settings? let me know :D Heres my stable 4.05GHz settings :) I have, 3.0GHz, 3.2GHz, 3.6GHz, 4.0GHz and 4.2GHz settings all stable.

Code:

---

******Gigabyte EP45 UD3P******

Robust Graphics Booster.........................[ Auto    ]
CPU Clock Ratio.................................[ 9        ]
Fine CPU Clock Ratio............................[ 0        ]
CPU Frequency 4.05GHz...........................[ 450 x 9  ]

******Clock Chip Control******

CPU Host Clock Control..........................[ Enabled  ]
CPU Host Frequency (Mhz)........................[ 450      ]
PCI Express Frequency (Mhz).....................[ 100      ]
C.I.A 2 [Disabled]

******Advanced Clock Control******

CPU Clock Drive.................................[ 800mv  ]
PCI Express Clock Drive.........................[ 900mv  ]
CPU Clock Skew..................................[ 0ps    ]
MCH Clock Skew..................................[ 0ps    ]

******DRAM Performance Control******

Performance Enhance [Standard]
Extreme Memory Profile (XMP)....................[ Auto ]
(G) MCH Frequency Latch.........................[ 400MHz ]
System Memory Multipler.........................[ 2.00D  ]
Memory Frequency 1066...........................[ 900MHz ]
DRAM Timing Selectable..........................[ Manual ]

CAS Latency Time................................[ 5        ]
tRCD............................................[ 4        ]
tRP.............................................[ 4        ]
tRAS............................................[ 15      ]

******Advanced Timing Control******

tRRD............................................[ Auto    ]
tWTR............................................[ Auto    ]
tWR.............................................[ Auto    ]
tRFC............................................[ Auto    ]
tRTP............................................[ Auto    ]
Command Rate (cmd)..............................[ 2    ]

******Channel A Timing Settings******

Static tRead Value        [ 7 ] ................[ 8        ]
tRD Phase0 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase1 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase2 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase3 Adjustment    [ 0 ] ................[ Auto    ]

tRD 2rd (Differnt Rank)  [ 8 ] ................[ Auto    ]
tWR 2wr (Differnt Rank)  [ 8 ] ................[ Auto    ]
tWR 2rd (Differnt Rank)  [ 7 ] ................[ Auto    ]
tRD 2wr (Same/Difft Rank) [ 9 ] ................[ Auto    ]

Dimm 1 Clock Skew Control.......................[ Auto    ]
Dimm 2 Clock Skew Control.......................[ Auto    ]
DDR Write Training..............................[ Auto    ]

******Channel A Driving Settings******

Drive Strength Profile..........................[ 1066MHz ]
Data Driving Pull Up Level......................[ Auto    ]
cmd Driving Pull Up Level.......................[ Auto    ]
ctrl Driving Pull Up Level......................[ Auto    ]
clk Driving Pull Up Level.......................[ Auto    ]

Data Driving Pull Down Level....................[ Auto    ]
cmd Driving Pull Down Level.....................[ Auto    ]
ctrl Driving Pull Down Level....................[ Auto    ]
clk Driving Pull Down Level.....................[ Auto    ]

******Channel B Timing Settings******

Static tRead Value        [ 7 ] ................[ 8        ]
tRD Phase0 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase1 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase2 Adjustment    [ 0 ] ................[ Auto    ]
tRD Phase3 Adjustment    [ 0 ] ................[ Auto    ]

tRD 2rd (Differnt Rank)  [ 8 ] ................[ Auto    ]
tWR 2wr (Differnt Rank)  [ 8 ] ................[ Auto    ]
tWR 2rd (Differnt Rank)  [ 7 ] ................[ Auto    ]
tRD 2wr (Same/Difft Rank) [ 9 ] ................[ Auto    ]

Dimm 1 Clock Skew Control.......................[ Auto    ]
Dimm 2 Clock Skew Control.......................[ Auto    ]
DDR Write Training..............................[ Auto    ]

******Channel B Driving Settings******

Drive Strength Profile..........................[ 1066MHz  ]
Data Driving Pull Up Level......................[ Auto    ]
cmd Driving Pull Up Level.......................[ Auto    ]
ctrl Driving Pull Up Level......................[ Auto    ]
clk Driving Pull Up Level.......................[ Auto    ]

Data Driving Pull Down Level....................[ Auto    ]
cmd Driving Pull Down Level.....................[ Auto    ]
ctrl Driving Pull Down Level....................[ Auto    ]
clk Driving Pull Down Level.....................[ Auto    ]

******Motherboard Voltage Control******

Load-Line Calibration [Enabled]
CPU Vcore        [ 1.25000 ]...................[ 1.3625  ]
CPU Termination  [ 1.20    ]...................[ 1.28  ]
CPU PLL          [ 1.50    ]...................[ 1.500  ]
CPU Reference    [ 0.766  ]...................[ I can't remember the number, but its 2 steps up from default  ]

MCH Core          [1.1      ]...................[ 1.3  ]
MCH Reference    [0.760    ]...................[ I can't remember the number, but its 1 step down from default  ]
MCH/DRAM Refernce [0.900    ]...................[ 1.000 ]
ICH I/O          [1.500    ]...................[ 1.500  ]
ICH Core          [1.100    ]...................[ 1.100  ]

DRAM Voltage      [1.800    ]...................[ 2.000    ]
DRAM Termination  [0.900    ]...................[ 1.000  ]
Channel A Ref    [0.900    ]...................[ 1.000  ]
Channel B Ref    [0.900    ]...................[ 1.000  ]

******Advanced BIOS Features******

CPU Multithreading..............................[ Enabled ]
Limit CPUID Max to 3............................[ Disabled ]
No-Execute memory Protect.......................[ Disabled ]
CPU Enhance Halt (CIE)..........................[ Disabled ]
C2/C2E State Support............................[ Disabled ]
C4/C4E State Support............................[ Disabled ]
CPU Thermal Monitor.............................[ Disabled ]
CPU EIST Function...............................[ Disabled ]
Virtualization Technology.......................[ Disabled ]

---

---

Can u post ur 3.6ghz and 4.0 ghz settings as well for q6600? I hope you still have them :)

Ok. Been able to clock q6600@3.6 ghz with ram@800 mhz -9x400 fsb 1:1 .My ram is pretty ordinary one- transcend 800mhz cl5.. I think max this ram can do is 900-950 mhz with loose timings.

Quote:

---

Originally Posted by dustin_ds3000

should i upgrade my BIOS on my GA-EP45-UD3R to F12e from F8. right now i do have my E8500 OCed to 4GHZ with 9.5x and 422 FSB 100% stable

---

can anyone give their input on this
