01-20-2009, 11:36 AM
MadDias

Quote:

Originally Posted by Trunks

Damn it seems i got a old bios, because phII doesn't post :/
damn you asus

it´s not the bios...
i could boot with the 0403 bios. try a cmos clear if u had another cpu in ur board before the phII.
01-20-2009, 11:50 AM
Ben_Brown

Quote:

Originally Posted by Trunks

Damn it seems i got a old bios, because phII doesn't post :/
damn you asus

Make sure you have ACC disabled. This will prevent it from posting.
01-20-2009, 02:06 PM
gsk3rd

How does nb freq help me oc my 9850? i always run it at 2000mhz. didnt even know how to up it til yesterday. my highest clock is 3.333 at 1.5v with 16.5x202. does it make my cpu stronger in benching?
01-20-2009, 07:54 PM
gsk3rd

Just purchased my 940!
01-20-2009, 08:38 PM
HondaGuy

9850 on this board @3.5 in Vista 64

http://img127.imageshack.us/img127/3...5nb2400yy9.jpg
01-21-2009, 08:10 AM
Trunks

Quote:

Originally Posted by MadDias

it´s not the bios...
i could boot with the 0403 bios. try a cmos clear if u had another cpu in ur board before the phII.

the problem is bios
it's v0302 ;)
01-21-2009, 12:21 PM
gOtVoltage

Quote:

Originally Posted by gsk3rd

How does nb freq help me oc my 9850? i always run it at 2000mhz. didnt even know how to up it til yesterday. my highest clock is 3.333 at 1.5v with 16.5x202. does it make my cpu stronger in benching?

Check PM

Quote:

Originally Posted by gsk3rd

Just purchased my 940!

I feel left out,,
im waiting for Febuary,,

Oh man,, 940 going lower i may have to buy sooner.

I have to hold out,,

Peer preshure @ Xtreme gonna ,,wanna ,, needa buy urge is getting to me.

Quote:

Originally Posted by Trunks

the problem is bios
it's v0302 ;)

Pull ,, Ram and CPU and Battery . Then reinstall Battery,, CPU with one stick of Ram.

All Phenoms B2/B3 boot with 302 ,, Even 940 can boot ,,

Once booted up and you can download Bios,, FLASH and USE the 602 Bios for ALL PHENOM for optimal performance and stability on ASUS M3A 79-T Dragon platform:yepp:.

Note:
Some ram may not default to JDEC ( reconized by Bios)
While using 302 bios It can under volt some types of ram( 1.5v instead of 1.8v ) cause a no boot.

Happens with some new and old Dominators and Kingston 1066mhz modules.Most *00mhz sticks should work fine.
01-21-2009, 01:25 PM
gOtVoltage

Quote:

Originally Posted by Daveburt714

FWIW Kevy, you may not need that much voltage on your Southbridge. Honestly, I've played with it before and it's never shown any big improvement by overvolting it (until now ;))...

Geez, even after a year of playing with Phenoms I'm amazed at how tricky these things are to overclock... :cool:
There are so many tweaks available it's hard to pin down which ones really help.

I'm sure it doesn't help that I keep changing parts though... :yepp:

1.22v - 1.28v is all that is needed.

I run mine @ 1.28v 24/7 . I have also pushed the HTT to 294+...The Higher the HTT then this becomes a factor if you have drive instabilities using High or even meduim HTT of 250.

In fact the SB @1.28v is actully good if running lots of hardware (drives and two+ or more Vidcards.)

P.S. i know ,, i coulda edited the above.
01-21-2009, 02:42 PM
Trunks

Quote:

Originally Posted by gOtVoltage

Pull ,, Ram and CPU and Battery . Then reinstall Battery,, CPU with one stick of Ram.

well, that didn't work..

anyway system is up and running,
http://valid.canardpc.com/cache/banner/489828.png
thx to my little X2 4000+ for the flashing work :p:
01-21-2009, 05:54 PM
Titan7171

Hey all Im all set up I got up to 3.5ghz stock voltage bench stable.....3.6ghz wouldnt get into windows so I upped the voltage to 1.4v (stock is 1.35v) and Im running benchies now. Im on vista 32 ultimate.

Bench just finished

19,475
sm2 7479
sm3 9899
cpu 4910

one thing......my multis only go to 20??
01-21-2009, 07:41 PM
gOtVoltage

Quote:

Originally Posted by Titan7171

Hey all Im all set up I got up to 3.5ghz stock voltage bench stable.....3.6ghz wouldnt get into windows so I upped the voltage to 1.4v (stock is 1.35v) and Im running benchies now. Im on vista 32 ultimate.

Bench just finished

19,475
sm2 7479
sm3 9899
cpu 4910

one thing......my multis only go to 20??

ASUS knows about that and the next BIOS should fix that 20x problem.

Also the SP2 beta works great with Vista 32.. Helped me get better performance all the way around , With my 9950. When i was using SP1 i could not exceed 3.5ghz.. Ive now run @ 3.6ghz on this old 140watt'r,, go figure:D
01-21-2009, 07:45 PM
demonkevy666

Quote:

Originally Posted by gOtVoltage

ASUS knows about that and the next BIOS should fix that 20x problem.

Also the SP2 beta works great with Vista 32.. Helped me get better performance all the way around , With my 9950. When i was using SP1 i could not exceed 3.5ghz.. Ive now run @ 3.6ghz on this old 140watt'r,, go figure:D

are they going to fix the no boot with ACC ?

I'm at the limit at 3.7ghz and I can't find any stability after that or getting to windows.
01-21-2009, 08:01 PM
gOtVoltage

Quote:

Originally Posted by demonkevy666

are they going to fix the no boot with ACC ?

I'm at the limit at 3.7ghz and I can't find any stability after that or getting to windows.

What i understand ,, ACC actually dosnt apply the the 940BE from what ive read...

Thats why it dosnt work on many mobos with ACC enabled,, Causes BSOD's or Noboot.

If i find a way to use it with 940/945 or if i hear of a( ASUS update CPU code) i will post it ASAP.

ATM ive seen and heard nadda about ACC and 940/945 being 100% workable.

For base Voltage i always run 2.8vdd (default is 2.5v) then i use whatever vcore which makes the Volts stock 1.3v (before i Oc). If i need more then i raise CPU/NB volts above stock setting. Thats how i get highest stable clocks with out ACC. Some chips will use less volts than others.

Note:

Phenom by far is one of the hardest platforms ive ever tweaked.
Just when you think your done theres a nother way to get More..painstakinly fun i must say.
01-21-2009, 10:15 PM
Daveburt714

Quote:

Originally Posted by gOtVoltage

1.22v - 1.28v is all that is needed.

I run mine @ 1.28v 24/7 . I have also pushed the HTT to 294+...The Higher the HTT then this becomes a factor if you have drive instabilities using High or even meduim HTT of 250.

In fact the SB @1.28v is actully good if running lots of hardware (drives and two+ or more Vidcards.)

P.S. i know ,, i coulda edited the above.

Thanks for the tips on the SB man! I'm not sure if there is a sensor on it, I still haven't even figured out what TMPIN1 is in AOD but I'm assuming it's the mobo/NB.... Did you ever do the "finger" test on your SB @ 1.28v's?
Call me old school but it's always pretty reliable... :D

Quote:

Originally Posted by gOtVoltage

For base Voltage i always run 2.8vdd (default is 2.5v) then i use whatever vcore which makes the Volts stock 1.3v (before i Oc). If i need more then i raise CPU/NB volts above stock setting. Thats how i get highest stable clocks with out ACC. Some chips will use less volts than others.

The Asus 79-T is the first board I've had with this option, I've never quite figured it out either.... What software do you use to check for the 1.3Vcore using Vddc, CPU-Z? I've played with it a few times but have never seen any performance increases so I usually just leave it on auto.

Thanks... Dave
01-21-2009, 10:50 PM
krjalone

Quote:

Originally Posted by gOtVoltage

What i understand ,, ACC actually dosnt apply the the 940BE from what ive read...

Thats why it dosnt work on many mobos with ACC enabled,, Causes BSOD's or Noboot.

If i find a way to use it with 940/945 or if i hear of a( ASUS update CPU code) i will post it ASAP.

ATM ive seen and heard nadda about ACC and 940/945 being 100% workable.

For base Voltage i always run 2.8vdd (default is 2.5v) then i use whatever vcore which makes the Volts stock 1.3v (before i Oc). If i need more then i raise CPU/NB volts above stock setting. Thats how i get highest stable clocks with out ACC. Some chips will use less volts than others. Also when you enable ACC temperature sensor goes bugged. It only shows 0c

Note:

Phenom by far is one of the hardest platforms ive ever tweaked.
Just when you think your done theres a nother way to get More..painstakinly fun i must say.

If you enable ACC from AOD board boots ok. But when you enable it from bios
no go. I tried it many times but it wont change anything. Maybe later with bios update. If you enable ACC temperature sensor goes bugged.
It only shows 0c
01-21-2009, 10:51 PM
Titan7171

1 Attachment(s)

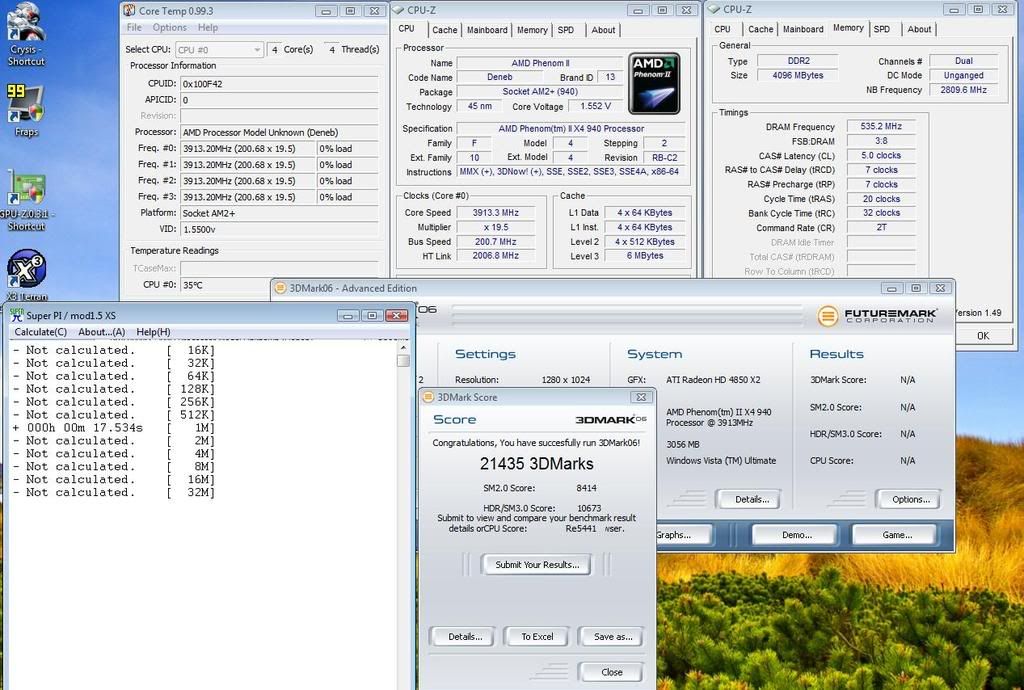

My cinebench score is only like 12,000 at 3.9ghz......Am I missing something?

http://i271.photobucket.com/albums/j...n771/speed.jpg
01-21-2009, 10:54 PM
XRogerX

i wish i can get some of your overclocks , then again im only on AIR most of you guys are on Water
01-21-2009, 10:58 PM
Daveburt714

Titan7171: Cinebench really likes 64bit OS's, if your running 32 that may be why your scores seem low (I'm on XP64)....

Nice clocks BTW... :up:
01-21-2009, 11:11 PM
afireinside

Yep get that 32 bit garbage off there. vista or XP X64 and your scores will be a boat load higher.
01-22-2009, 12:10 PM
cdnbum88

Anyone have 8 gig in this board?

If so, how does it do? OC?

I remember reading in the manual way back when, that it will downclock to 800 from 1066 or whatever you have. Did I remember that correctly?
01-22-2009, 01:12 PM
HondaGuy

Quote:

Originally Posted by cdnbum88

Anyone have 8 gig in this board?

If so, how does it do? OC?

I remember reading in the manual way back when, that it will downclock to 800 from 1066 or whatever you have. Did I remember that correctly?

Yes its on page 2-11....For system stability when four DIMM'a are installed.all DIMM's run at DDR2-800 Mhz as the default setting
01-22-2009, 02:06 PM
cdnbum88

Quote:

Originally Posted by HondaGuy

Yes its on page 2-11....For system stability when four DIMM'a are installed.all DIMM's run at DDR2-800 Mhz as the default setting

So with that said. I have some Mushkin Redline 1000's. 4x2gigs.

Will I be able to get them to 1000 or better or will the board limit me?
01-22-2009, 03:32 PM
crazydiamond

250htt on 800mhz divider
01-22-2009, 08:17 PM
HondaGuy

Here is all four DIMMs @ a 800 divider...

http://img243.imageshack.us/img243/1...nch3570bx1.png
01-22-2009, 08:51 PM
gOtVoltage

Quote:

Originally Posted by HondaGuy

Here is all four DIMMs @ a 800 divider...

http://img243.imageshack.us/img243/1...nch3570bx1.png

Exactly ,,

The above " how you would also run 1066mhz+ with four sticks..."

There is always a way.

Thanx for posting that Honda,, You reminded me that simply Showing a nice Sreenie is sometimes easier than explaining the whole shibang:D

Note:
Everest and AOD should show the VDD.
VDD is actually the Base Volts,, It mearly helps the Mobo not fluctuate as bad under load(Vdroop under load). The Higher the VDD the stronger(more Stable) the Base Volt will be during load provided im remebering that correctly:D
