so you can get E0 e8400 in bulgaria, but we cant get them in the usa? how do they run? i had an e8600 and wasnt impressed, and went back to an e8500 for now.Quote:
Originally Posted by Gligy
Printable View
so you can get E0 e8400 in bulgaria, but we cant get them in the usa? how do they run? i had an e8600 and wasnt impressed, and went back to an e8500 for now.Quote:
Originally Posted by Gligy
seem like sexy hehehe, in my country e0 is ready but try, this performance created by user in my countryQuote:
Originally Posted by Gligy
http://i240.photobucket.com/albums/f...1/e8400zg8.jpg
Can you tell us exactly what you did? Post all settings and testing method for stability. Thanks in advance.Quote:
Originally Posted by Vatos_locos
You said 4.3Ghz at 1.55v in one post. Then you talk about 4.6Ghz at 1.8v in another. I think that it pretty high. After any degradation, I would rather lower the speed than try to increase the voltage.
What kind of cooling are you using? Please tell me is phase or ln2 or dice.
My chip might be dying now. Orthos doesn't want to run very long.
i had this chip for burning only so i didn't care about degrade so i just put some volt o see how the cpu will react
for cooling i had water on the Cpu & board
For stability Prime95 with "Round Off Checking" on
so the first week he could do
3.8Ghz with 1.35
4.3Ghz with 1.55
4.6Ghz with 1.65V
now a week after runing for 24/7 @ 4.6 with 1.65V stable
thenhe needed for
3.8Ghz 1.4Volt
4.3Ghz 1.8
and for more Mhz only with the 1.9 and more Vcore
i didn't mined to lower the speed or the Voltage as now the cpu is for Rma and i'am waiting one 8600
the degrade from what i found with this chip is getting more and more aggressive if you run at Higher Voltages and only on high Cpu loads
i was running my first E8500 for 3 months @ 4.2 with 1.4V and no degrade...
it's funny that most of those degradations happen in Greece :D
it's the hardware that came inside Greece not the users
many people Confirms that the hardware is third grade
we had two 8880Gtx one from Greece and on from Usa
gues what the one from Greece when we where benching with dice she needed just one drop of water
and she died and the other from USA was covered with water and she was benching like crazy
the insulation was the same
So far, what batch is the best for e84/e85? I'm waiting for the new e0 will be available widely in my country.
Q814 and Higher seems to Clock Better...
Whats the word on the 8400 batch q808a? Mine requires alot of core voltage for a stable overclock.
A decent chip...mine does 4ghz @ 1.23Vcore, still w8'ing for u're results :cool:Quote:
Originally Posted by nut311
http://i308.photobucket.com/albums/k.../Overclock.jpg
Should I be comfortable with that voltage? I run this 24/7 and its very stable. Should I worry about degredation? The temps never get that high in prime, occt, or orthos. I usually never see any higher than 53c. I lapped my processor and am using a zerotherm nirvana with mx-2.
Why did you RMA it?Quote:
i didn't mined to lower the speed or the Voltage as now the cpu is for Rma and i'am waiting one 8600
I get 3.6ghz with 1.2 volts and 3.8ghz with 1.25 volts.
Seems like too high volts/temps to me for stable oc.
i get 4GHz stable with 1.32 volts and still keep it at 44 idle and 53 load with a true 120Quote:
Originally Posted by Fungus
because it was the worst chip i ever got and i had order on E8600 so it was useless to me :DQuote:
Originally Posted by Rickpatbrown
Hey guys. I really want to OC my E8400 to around 3.5 or so Ghz, but don't know squat about OCing. Anyone know where I should start?
specs: CORSAIR 620HX, ASUS P5Q-E, XIGMATEK HDT-S1283
btw- I idle around high 20's according to real temp, and orthos usually puts me around 40 degrees.
thanks a ton for any help!

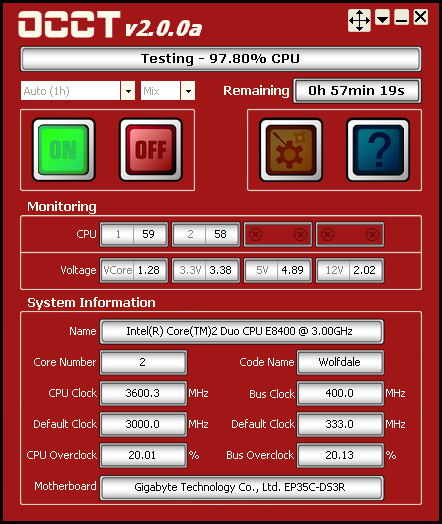

set the lower Voltages on your motherboard and set your fsb @ 400 Mhz
99% you wont need to do anything more and your cpu will work @ 3600Mhz
use prime small fft's for 5-8hours to see if you are stable
PS my rma is done but the game me on Q9450 :(
I see alot of results like that but I think its my batch. Ive seen people that need high voltage for a moderate oc like mine. Ive seen good results with this chip on my board too, although vdroop is huge. Im at 1.32v under load. If I try to get to 4ghz I would need over 1.4v. I have my vterm at 1.31 and cpugtl at 66% of my vterm and my nbgtl is at 67% of my vterm.Quote:
Originally Posted by Fungus
Quote:
Originally Posted by Vatos_locos
thanks for the reply XD, but could ya be a bit more specific about the voltages? ty!
set the Vcore @ 1.25
Vtt @ 1.1
DDR Voltage @ your rams default
the others Auto
boot @ 400 Fsb and you are done
The E8600 I just sold off did 4.0 (8x500) with 1.208-1.216. :) It was a good chip but ran a little warm.
What was wrong with it?Quote:
Originally Posted by Vatos_locos
thanks I'll try it out later :up:.Quote:
Originally Posted by Vatos_locos
Also, is there any reason why both RealTemp and CPU-Z are telling my my processor is running at 2 ghz? I haven't even messed with the bios yet...lol. CPU-Z is even telling me that my RAM is ddr3 and its frequency is 400? wth?:confused:
EDIT: so I know what vcore is, and im guessing DDR voltage=DRAM voltage, but whats VTT? thx!
it was not clocking with normal voltages stable at all the first core was giving me a Fetal error in prime even at stock speed/voltage ;)Quote:
Originally Posted by Rickpatbrown
about the 2Ghz i believe it Eist an C1 in your bios settings for the cpu z i knew about a bug with some P5Q but i cant tell you as long as you know your hardware the don't mind what cpu z reports :pQuote:
Originally Posted by 2bad
Vtt or Termination Voltage or Fsb termination is the same thing many boards use different names you will found it :)
Look what I got today- I was wery suprised I havent expected E0:up:
http://shrani.si/t/s/BO/2P9Pdyb/e8400-e0.jpg
Tests on SS will probably folow today:D
Something untill SS:
http://shrani.si/t/2J/Lu/uHHA8dj/e84004000.jpg
http://shrani.si/t/1q/PE/ZDbcYLA/4150-.jpg
Looks promising. I'll be all over these bad boys if they can hit clocks/volts like that consistently. I can't bring myself to buy a quad core being that no program I use will ever use the extra cores. Where are these chips coming from, Germany?Quote:
Look what I got today- I was wery suprised I havent expected E0
I brought my E8400 down to 3.915Ghz. I will keep it at 1.55v and see if it continues to degrade. It is 15+ hours Orthos stable.
One thing that makes me wonder is that I ran Intel Burn Test the other week. My chip went up to 77 degrees. I can't rule out wether that had something to do with the degradation that I experienced.
At the moment I'm at 4350mhz at 1.344-1.35V Stable
Haha I lol at your V's. Mine gets 4ghz @ 1.19v and it's rated 1.25v when it ran stock :rofl:
http://img293.imageshack.us/img293/8...6004ghzpw5.jpg
~Bex
very nice, where did you purchase it?
Are these E0 Stepping E8400 available in US?
Pretty confusing. My E8400 has progressively gotten worse. used to need 1.36v at 4.01Ghz and now it needs 1.38 for 3.91.
Pissed is not the word! :(
They'll start shipping today.Quote:
Originally Posted by Furiøùs
Was 1.36v at 4.01Ghz your initial overclock. These chips seem to clock higher when you first get them, but need a little more juice after a week or so. It should be stable from here on out. Let us know if it continues to require more voltage.Quote:
Originally Posted by Furiøùs
You shouldn't experience any noticeable effects from running 1.36volts for some time.
got a source for that?Quote:
Originally Posted by golfjam
Quote:
Originally Posted by Rickpatbrown
It was, but that 4.01Ghz number now wants 1.425v under load to be stable. thats not a ''little'' more juice by any means unfortunately.
Probably going to pickup a E8400 E0 stepping next month once newegg gets rid of their C0 stock.
http://www.pcplus.si/strojna-oprema/...-fsb-1333-s775Quote:
Originally Posted by gurusan
They have over 40 of them in stock:up:
a big sigh mate, do not compare E8600 with E8400 totally ridicilous :shrug:Quote:
Originally Posted by RCG_Bex
By the way my E8400 does 8 x 500 at 1.21Vcore stable so the difference is big in price yet low on Vcore... :rolleyes:
http://users.pandora.be/OAP/P5QDlx/Q805A546prime.JPG
What's your real opinion about it?
FPO Q807A367
How do you tell E0 stepping from C0 one? I've got brand-new E8500, pack date 8/7/08, Q822 batch. And why exactly E0 batch better than C0? :D
Does the S-spec number on the side say SLAPK or SLB9K? SLB9K is the E0 stepping....
SLB9K, so I guess it is E0 stepping... Now I need to a pick a mobo to oc this baby with :) I've got some decent DDR2 memory, any suggestions on what mobo to use with this? I'm coming off 975 chipset, nice one but old :)
Asus p5q - no vdroop. That'll be my next board.Quote:
Originally Posted by anzial
E0 steppings: They'll be easily recognisable by the new sSpec numbers: SLB9J for E8400, SLB9K for E8500 and SLB9C for E3110.
nice, where'd you buy it?Quote:
Originally Posted by anzial
Fry's, they are running special combo, e8500 + ecs mobo for $189 until tuesday (CPU alone goes for $199, lol). It's retail cpu, too :cool: It's funny, but the box and stock HSF is much smaller than e8400 package I got back in May (C0 stepping). Are these E0s supposed to run cooler, too?Quote:
Originally Posted by gurusan
I got my E0 E8400 from micro center for $149.99...already squeezed a 9.9s 1M out of it on air.
Weird thing, the E0 e8500 hangs on boot with this Fry's crappy ECS mobo but the C0 e8400 works just fine... is the cpu dead? or just not supported by the motherboard?
EDIT: NM, bios didn't support E0s out of the box. I've updated the bios, so it's all good now :D So it's warning to those who are buying new E0 stepping cpus along with new mobos - mobos may not support them out of the box ;) ECS came out with new bios only a month ago, maybe others did it much earlier than that...
hi
here is another sucker for you guys E8400 Q818A254.this one not even go to 4Ghz stayable with OCCT no matter what volts i put in.i also used auto
in bios but no go. in windows it freezes and reboots.as you guys konws 9*445 setting is very easy for MB and RAM to handle.any body else with this batch and p5k dlx MB whats your experience.i know most of these suckers make you very frustrated when you overclock them.
Hey which Fry's? Fountain Valley?Quote:
Originally Posted by anzial
LagunaX, quit chasing me around, lol :cool: I've answered your question in e8600 thread :p::DQuote:
Originally Posted by LagunaX
hey guys. i rma'd my E8400 CO stepping for some heat issues this past Thursday. do ya think they will ship me the newer E0 stepping CPU? man that would be nice.i hear they work nicely with the GA-EP35C-DS3R 2.1revison i should get it tomorrow maybe Wednesday at the latest. i hope its as easy to get to 3.6 ghz as the C0 stepping i sent back.
They are getting rid of the C0 stock. I really think you will get what is leftover.Quote:
Originally Posted by cincyrob
i kinda think the same thing, but the Intel guy did say it would be the newest batch number that i would receive. so i got a 50/50 chance it being a new E0 or just the newest batch of C0.
im waiting to contact Intel this morning to find out if they shipped it yet, and if they did what did they actually send me...crossing fingers..lol ill post back with the details
Hey, I am somewhat new to overclocking. However, I understand how it works and what settings to change and I have done a bit in the past, but nothing serious. I would still call myself a noob, do to lack of experience.
Any help would be appreciated as I am having trouble getting stable at anything other then default settings.
Computer stats:
cpu - e8500
mobo- p5e3 premium wifi@n - lots of options for overclocking
ram - ocz Reaper ddr3 12800, 1600mhz - This overclocks well i believe. 7-7-7-20
hdd - 4x250gig @ raid10
cpu cooler - ocz vindicator, works alright, could be better.
psu - corsair hx520w psu, upgrading to 620w when i go CF
Video - 4850 with accelero s1 attached will get a second one later.
All I want is a 4.1ghz oc cpu, and ram at default or higher speeds and rock solid/stable.
Whats a good starting point?
Edit: Batch # Q817A226
Hiredgoon just run the volts up to 1.40 volts and see what ya get in cpu speed
and then you can deside what you will settle for ;)
( or go to the max volts that makes ya happy)
i thought 1.4v was starting to get a bit high on just air cooling?Quote:
Originally Posted by HDCHOPPER
Quote:
Originally Posted by breakfromyou
eye eeked out 9.838 1 mil on my E8400 co stepping :D
thanks for the tip. picked up the combo today.Quote:
Originally Posted by anzial
e8500 SLB9K
q822a553 E0!
well i talked to intel again and they havent gotten my RMA E8400, which is a good thing.lol but they said again that the CPU sent back to me would be the newest Batch#. im hopeing it is the E0 steppin. 4.0ghz with a small amount of added volts is what im after...
you are welcome :DQuote:
Originally Posted by LagunaX
Newegg have E0 yet?
Are you going to add E8600 to this list?
Who Likey?
$204 total with tax from Fry's in Fountain Valley, CA.
E8500 E0 SLB9K Q822a553
ECS G31T-M Motherboard combo deal
4.5ghz @ 1.36v gets a little toasty on air but manageable...:)
http://i246.photobucket.com/albums/g...e8500ds3lA.jpg
I think I'll run 4.4ghz (1.328v) on air 24/7 as temps are more reasonable...:up:
http://i246.photobucket.com/albums/g...e8500ds3lB.jpg
Just got an older stepping Q745A784 Xeon E3110 and it seems to be quite a nice clocker!
So far seems stable at 490fsb (4.41ghz) with 1.456V ...this is after about 20 minutes of overclocking...running OCCT 30 min now
Nice:clap:. I hope mine will clock just as good :cool:Quote:
Originally Posted by LagunaX
Hmm seems my Asus Commando doesn't like the EO stepping. It'll work, it just doesn't recognize the chip.
BlueAqua .. have heard / read that a bios update fixes that
a few post up an ECS mobo needed it too
Yeah I never expected a bios update for the Commado, but they do have this one:Quote:
Originally Posted by HDCHOPPER
1703
2008/03/24 update
Description: Commando beta BIOS V1703
Patch Wolfdale E8300 will show CPU over voltage error.
Don't think there is any newer bios available that might help the Eo's
called INTEL again this afternoon. they still havent received my RMA yet. so thats a plus for me..
will the vid be the same with the E0 stepping? or has it increase a little..
question? with the new E0 stepping what actually makes it so much easier to OC these bad boys? im not no genious or anything like that so the answer might just blow me away...lmao
OMG, that's a nice chip, i love E0 Stepping :shocked:..u're temps are verry good, 60degres are not high...what cooler are u using?Quote:
Originally Posted by LagunaX
How good in the Thermal sensor in Those new E0 processor mine show always 34c and above even under single stage:D:D:D
http://xtupload.com/imgageoutput.php...47untitled.jpg
Do those E0 show sub zero temp ???
Wow, E0 is looking NICE!
And i thought my chip was good.. :p:
just talked with INTEL. theyt got my old CPU and the new one has been mailed out . so by friday i should have it up and running. they couldnt tell me which stepping i got. all they know is its the newest one they have in stock.?????so with wishfull thinking it is the E0
Read all the pages of this post, and any other posts you like, all the info you need is here. 4000-4100MHZ is easily doable on an E8500. And hang out at XSF, you will become an addict like the rest of us:DQuote:
Originally Posted by Hiredgoon
Sorry, quick question. I need to reseat my heatsink. I have a tube of AC5 and MX-2. Which one should I use?
MX2 , MX 2 MX2 :DQuote:
Originally Posted by BababooeyHTJ
MX-2.
Run a line splitting the chip in half in the direction of the little divot on each side of the green plastic board part (as if connecting the divots but in the middle).
Oh I have read all of this thread, and the p5e3 premium thread. I was also an addict before I came here, but more of a lurker then a poster.Quote:
Originally Posted by Retro
The thing is, I have tried all the peoples settings here, and I still can't get anything stable. This is what I need help with, and the main reason I started posting.
I would say MX-2.
I have had good luck with mx-2. Thanks for the replies guys. I reseated the heatsinks on my board and when I reseated the heatsink on my cpu I used a little too much. I lapped the processor and heatsink so I have to use a drop or two. I usually put a drop or two and spread it thinly with a credit card (seems to work well).
Don't have a p5e3 but in general:Quote:
Originally Posted by Hiredgoon
Disable eist, virtualization, spectrum, etc.
Set mch to 1.35 or 1.4v.
Try vcore of 1.35 AFTER vdroop (i.e. cpu-z vcore under load).
If there is a voltage dampener option in bios, use it.
Lock pci-e to 100.
Make sure that your RAM can do do 450 stable at 1:1 first b4 overclocking the ram or trying a higher ram:cpu ratio(try 8 x 450 first)
Check with realtemp that your load temps don't exceed 60c.
Good luck.:up:
hiredgoon... if you have tried every possible combo on your board and still not stable
then like it or not you have a dud chip... dud mobo.. funky ram.... or your parts dont like to play togather it happens
small shop here and have seen the wierdest things a setup wouldnt work change out mobo and all is fine... use that same mobo in another build ( all different parts ) and again all is fine !
it happens probbly a weak trace on mobo or something silly like that
good luck
Hi guys, I hope this is the right thread.
Just got a E8400 E0 (Batch Q820A726) and a Gigabyte EP45-DS4P :)
http://img84.imageshack.us/img84/3173/validgu1.gif
http://valid.x86-secret.com/show_oc.php?id=409569
SuperPI 1M = 10.3s
http://img507.imageshack.us/img507/8...x500ug9.th.gif
16609 3dmarks with a 9800GX2
http://img291.imageshack.us/img291/5...6gx2pp7.th.gif
After a lot of GTLref fine tuning I managed to get 500MHz FSB stable on low volts:
http://img301.imageshack.us/img301/8...x500za2.th.gif
vcore = 1,425v on BIOS (1,360v full)
vtt = 1,32v
vnb = 1,36v
GTLref1 = 0,79v (about 67%)
GTLref2 = 0,80v (also about 67%)
NBref = 0,67v (about 60%)
CPU = 60ºC full
Noctua U12P + Silverstone FM122B (108CFM) @ minimum (1000rpm)
doompc:rofl: ya eye saw thay kicked ya outta the E8600 thread
nice chip for the volts :up:
edit your post to tell what batch it is :D
Right thread :up:
15 minutes isn't exactly rock stable for sure though - my northbridge would cause a crash at 18 minutes until i got active NB cooling.
Great work but you need probably 1 hr to make the list ;)
Here's my 8400 C0 in it's 24/7 crunching groove (Q815A182). Pretty cheap setup overall. P35-DS3L, 2x2gb patriot, asus eah3870, sunbeam core contact/panaflo 114cfm, pcp&c 610. Pretty much flies through the work units. Very stable, error free machine. I don't think I'll be buying any more of the sunbeam heatsinks. It comes with a decent fan controller but the stock fan is pretty weak and the mounting system is really a pain. If I buy any more cheap hsf it'll probably be xigmatek, either s1283 or s1284. Not a whole lot of difference between those two as far as I can tell.
http://lakesidepc.com/ds3l.JPG
thats a killer setup for the bucks loomyn :up:
you do the hard work bro and eyel get the protiens done for ya ;)
thats my Old E8500.....dump on water plus
http://valid.x86-secret.com/show_oc.php?id=409757, vcore 1.600v (BIOS)
Any Temp Showing software (RealTemp,CoreTemp,...) displays a 5-7°C difference between cores of my CPU.
First When I assembled on my system, there where 3-4°C difference,
Later in 2-3 Weeks I got 7-8°C difference (measured with RealTemp 2.7 and while I replaced the Default Silicon Patch with new Silver Silicon Grease)
and Now I got 4-5°C difference between the cores (using RealTemp 2.75Beta)
in Idle Mode(2267MHz);
SpeedStep and C1E and C2 State Enabled I got: Core0/Core1=40°C/45°C @950rpm CPU Fan Speed
I want to know why are these differences?
Ok thanks guys, I will try out some more stuff. Would you RMA the cpu first or the MOBO? CPU being bought locally at a store, vs MOBO being an online purchase. God I hate to RMA.
I think the best OC I had was 8x500, but that failed the stress test pretty fast. While that could boot and run for a bit, 8x450 was not stable LOL!
OH BOY, the last day to return the CPU is tomorrow, I got to think quick, shal I do it ?
Loonym
is those temps under load? if not i see why your not impressed with that cooler.
still a nice OC on that DS3L i can only get 4.1ghz stable on my P35-DS3R
my new E8400 is out for delivery. i should have it this afternoon. hopen its a E0.
i know its early for the E0 steppings but is there any known batch # that is better than another?
if the CPU is local do it first. wont take as long. look for the E0 stepping when getting the new one,take it back replace it and try your other stuff with it then. if still the same results send out the mobo.Quote:
Ok thanks guys, I will try out some more stuff.
Would you RMA the cpu first or the MOBO? CPU being bought locally at a store, vs MOBO being an online purchase.
God I hate RMA.
are you sure your mem is compatible with your board? i had some crucial ballistix 1066(singlesided) that was junk and not compatable with my GA-P35-DS3R. it wouldnt let me do anything. crucial sent me some doublesided 16chip ddr2 800 and im rockin with them..
Thank you guys.
I updated the post with the processor batch.
I know 15min prime isn't garantee that it is stable (in fact thread 1 stopped after 30 mins).
I know it isn't heat problems, the volts are sweet low and I have a lot of fans cooling the silent pipe (both the VRM and NB sides).
I'm still tuning the system, I raised the volts one tad to run 3DMark. Looks stable now :)
Next, tune the memory (these GSkill PI run up to 1200 on 2,15v).
And then prepare for ludicrous speed FSB :rofl:
cincyrob, yeah load temps but I didn't get those temps until I put the 114cfm panaflo on. That alone would be ok because I normally like to use a big fan but man, the mount is really a pain. When I first saw the sunbeam core contact freezer it really grabbed my interest as a cheap TRUE alternative partly because of the unique mounting but after trying it I really dislike the mount system. It cools great but I'm not sure it's worth the hassle. If I ever swap it to another board I'll grab a bolt-thru kit and make it work.
Loonym: I'm using a Xigmatek HDT on a DS3L and it covers up to 4.5ghz ok on an E0 e8500 (see above posts).
However, the DS3L will fail Prime or Orthos after 18min because the NB fails due to heat for anything over 4.3ghz..
I put on old DFI lanparty NB fan over the DS3L NB with doublesided tape and it's stable for me now ;).
ok guys i got my CPU. its not the E0 stepping but its a newer model. here is the batch # how did i do? what shouldi expect out of it?
Batch# Q817A151
151 huh got me some rum..lol
pop 'er in and let 'er rip! :)Quote:
Originally Posted by cincyrob
http://shrani.si/f/h/3E/4BlJR9R5/super-pi-9359.png
This is my friends E8400 E0 under SS. The only limit is fu*** FSB wall. Because it can do almost 5ghz at 1.45V:D
What's the diff between MX-2 and Artic Silver 5?
I used the 5 i had lying around. Should i get some MX2 instead?
Ive gotten better temps with mx-2 (nothing huge) but I only tried AC5 once or twice and yes I did let it break in. The big difference is that mx-2 is not electriclly conductive and there is no breakin period. That makes it great for mainboards and graphics cards.
ok guys. i got the new CPU in. my temps are great compared to the old CPU. its not the E0 stepping but im happy.
i put it in fired it up to make sure its running then took it to 3.6ghz. running OCCT now. all's well so far.
i know you want me to take it to 4+ghz..lol i will in a couple days dont wanna toast it before i get to use it any..lol
here is some shots of everest,occt,cpuz.oh yea i have all settings at auto. so i havent done anything to it to get it to run 3.6ghz...
trust me now that i dont have the temps to worry about 4+ghz is on the way. hopefully i can run every day at 4.0ghz thats truely my goal.
under load here
http://i72.photobucket.com/albums/i1...rob/occt-1.png
at idle.
http://i72.photobucket.com/albums/i1...ep35c-ds3r.png
yes core 0 has a stuck sensor when idleing.
so should i rely on core 1 when idleing? can i fix a stuck sensor? or should i RMA this one casue of that and try for a E0???lmao
Maybe its me but around 60c seems hot to me. My E4400 @ 3.4GHz 1.55v has a load temp the same as your E8400 :p I would of thought your CPU would load around 50c tops with that vcore.
