600 CL4 done:
http://valid.canardpc.com/cache/banner/469756.png
Done with Team Xtreem DDR 2 1066mhz CL5 D9GKX Green PCB(2.7xvdimm:rofl:),E8500 E0,IP35 Pro,PL7:D
Not bad for Christmas?:ROTF:
Everest benchie at this setting:
http://i11.photobucket.com/albums/a1...05-6CL4PL7.png
Some AQ3 action with 590mhz CL4:
http://i11.photobucket.com/albums/a1...8-10262501.jpg
Yet to max out:D
OC4/3
Well done, mate! But something strange because of I have the same Read and Write speeds but Copy is 10500.
It is so because of Intel need more Mhz and tight timings don`t affect. Nvidia chipset would have done a great job with 600mhz cl4.
Just checking, its the 3:5 diver that is bugged on P45 mobo's?
fatguy1992,you are correct 3:5 is the bugged divider on the p45 chipset..
Just wondering, how can it be bugged? Like WTF did Intel do/not do?
Quote:
Originally Posted by WaterFlex
Something to do with my board,for some reason,Abit IP35 Pro always have a lower copy:shrug:
fatguy1992,thats a good question. I really dont know why its bugged, but i think i know someone who might just know(cryptik).maybe he has some insight into this issue.
True, lets hope Cryptik can answer our question :)
http://img301.imageshack.us/img301/4...7143432vb9.png
too bad that one is not actual ddr2 speed, actual speed is 411x3 = 1233MHz (instead of 411x3.33 1368MHz), just try it since the memory multi 3.33x still exists in this board's bios.
it's sure like a chipset bug, but i don’t know the technical detail behind this either.
but i think everyone agree, i also think motherboard makers also knows pretty well about this chipset bug.
WaterFlex, what about the latency results (with default tREF) in your P45 board?Quote:
Originally Posted by WaterFlex
http://img301.imageshack.us/img301/1...7133630dj8.png

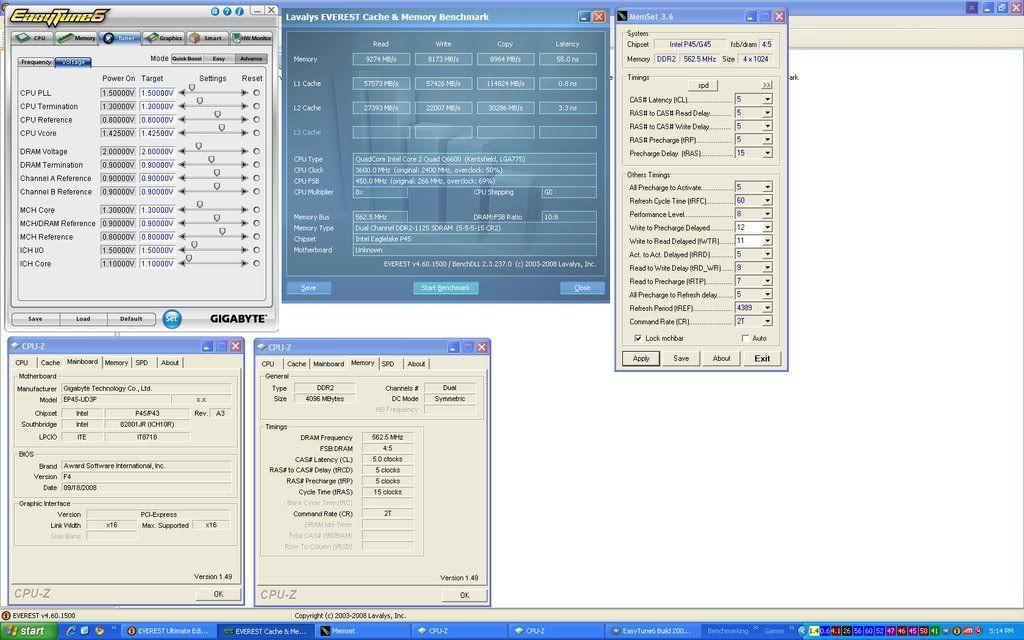

Could someone have a look at my 24/7 RAM settings and tell me what u think? Also what sub-timings should I change?
I'm wanting 2 keep my vdimm at 2.0v, but I could use 2.1v if I want, cause i have a 133CFM fan blowing on them :D.
BTW this is 4GB (4x1GB) of my CellShock PC2-8500 RAM.
http://i292.photobucket.com/albums/m...uy1992/1-1.jpg
I hope u can read the pic, I wish photobuckect would stop making them bad quality :mad:.
I would say your timings are fine, you can pass memtest fine ? you might be able to drop you TRFC a tad bit.
I haven't tried memtest yet. I'll run some stability tests later. Also I got TRFC at 40.
I'v changed over 2 only 2 stick now 2 see what they can do. Atm i'm at 1200MHz 5-5-5-15 @ 2.1v, i'm hoping for 1250MHz, but i'll have 2 change my FSB.
You should be able to run all 4 sticks at 1200, maybe higher, i was able to run 4x1 at 1300.
I did, but I had to rasie my MCH volts to make it stable, but then i'd have to change my MCH reference and so on and I CBF atm.Quote:
Originally Posted by neo mike
well im using the ep45t-ud3p, the ddr3 version, i left everthing on auto except mch voltage, cpu voltage, and memory divider and timings, i never even changed mch ref and all that stuff, and i hit 590fsb pretty easy. Sure if i played with the other voltages i could get more, but im just looking for 24/7 stable now. That board you have is a monster overclocker, but that quad will limit you, i would try to get 1200 4x1 stable, to me 2gigs aint enough, at least not in vista thats for sure.
crucial,cellshock have changed their chips
what else stays ?
i think only Teamgroup
I only have XP 32-bit :D
I'll get it stable tomorrow, to tired atm.
Can someone tell me why I can't even boot with my Cellshock Pc8000 5-5-5 with divider 3:8 and stock settings?It should get me an 533 DRAM Frequency.
And to start my machine, I need to clear cmos and select another divider..
i just got 4x 1GB Tracers, D9 BL12864AL1065.16FD3
however, i didn't know that the X38 (gigabyte) boards were crap when it come to installing 4x1GB 1066 memory. It won't post at all with all four in, does anyone know a way around this?
All the sticks are good, memtested.
You should be able to run all 4 sticks, i was able to run 4 sticks in my p45 gigabyte, did you loosen up the timings alot and try ?
Well, its taken me some time (too long really) but I'm finally getting a Wolfie. Tomorrow is when I will order one, likely on next day shipping :D
yeah, i tried. All four sticks are good, the person i bought them from had a EX38-DS4 and had the same problem, but they worked like champs on his X48 rampage. :hammer:Quote:
Originally Posted by neo mike
I'll probably sell them, double sided tracers should be easy to get rid of :up:
I haven't done it, but they all work and the guy said he ran a full pass of memtest..
CPU has been shipped and arrives tomorrow :up: Lets hope I can get her to hit 4G without too much discomfort!
E7200 installed and running. Made in Costa Rica not Malaysia and her badge is SLAPC, not SLAVN. Will report back after letting her settle in with OCCT for half hour.
Heres my opening bet since moving from the house of Allendale to the house of Wolfdale
