10-08-2007, 01:41 AM
Venom-Crusher

My results @ 7*580MHz=4.06GHz on H2O all bench pass :p:

CPU Core2 Duo E6300 Supported by Savoy
Mainboard DFI LANParty UT P35-T2R
Memory CellShock PC8000 4-4-4-12 1024mb*2
Graphic Card Sapphire HD2900XT 512MB 512-bit GDDR3 @ 941/2,358MHz
Harddisk Seagate 320 GB SATAII
PSU TT ToughPower 1200W
CPU Cooler Swiftech water cooling kit
VGA Cooler Custom water cooling kit

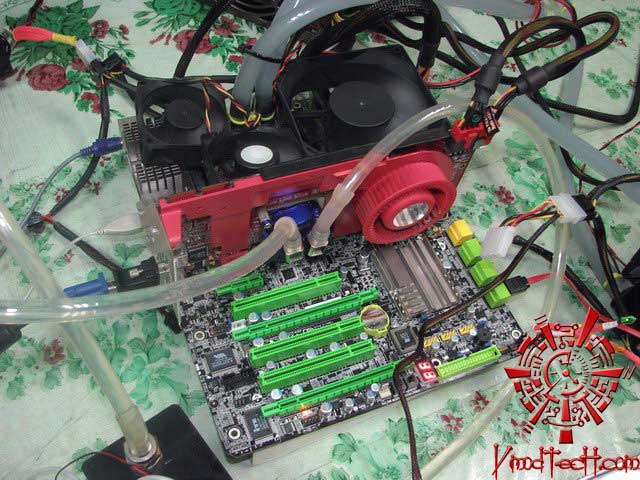

http://www.vmodtech.com/spaw/images/...80/utp35-9.jpg

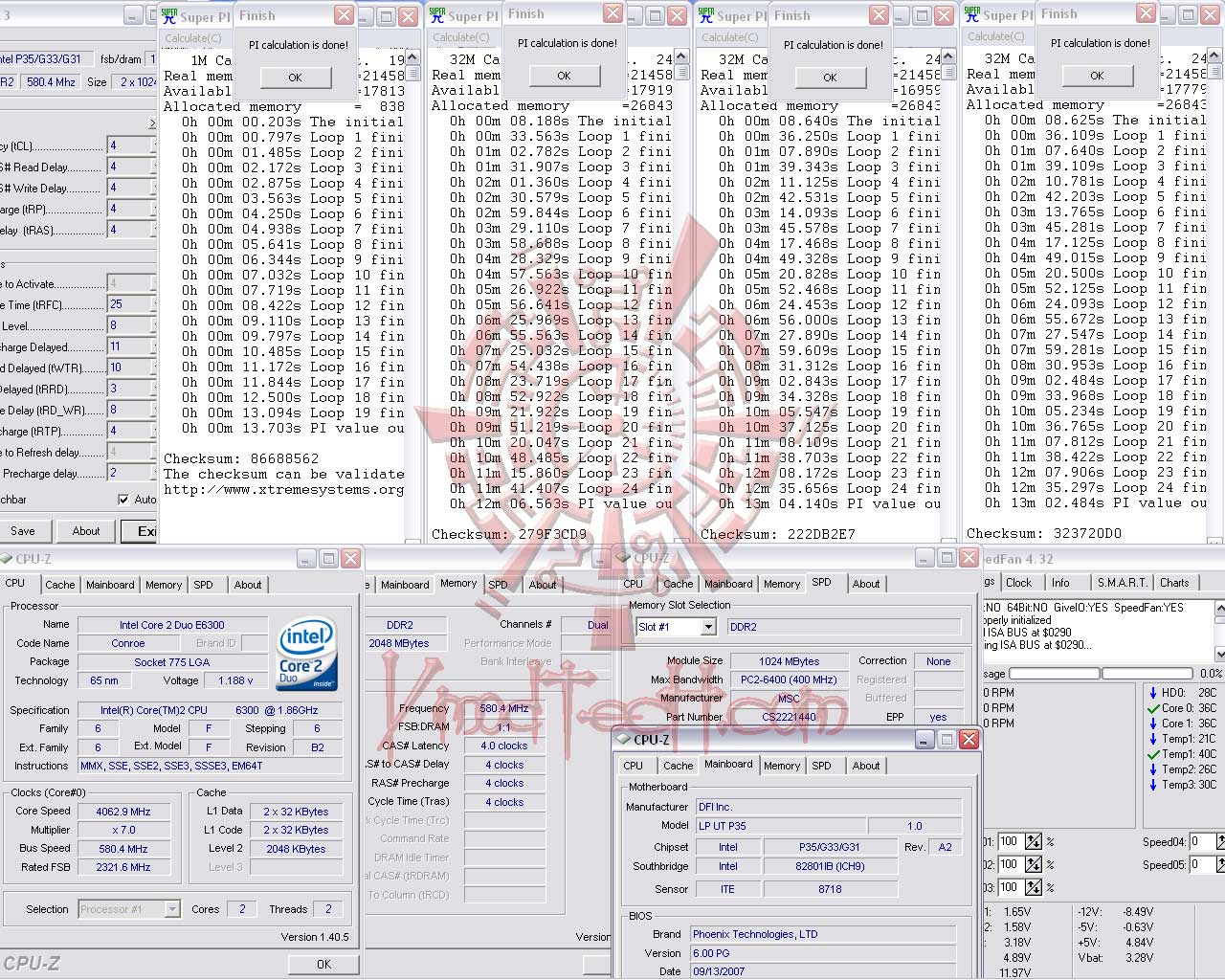

http://www.vmodtech.com/spaw/images/...0/32mt-580.jpg

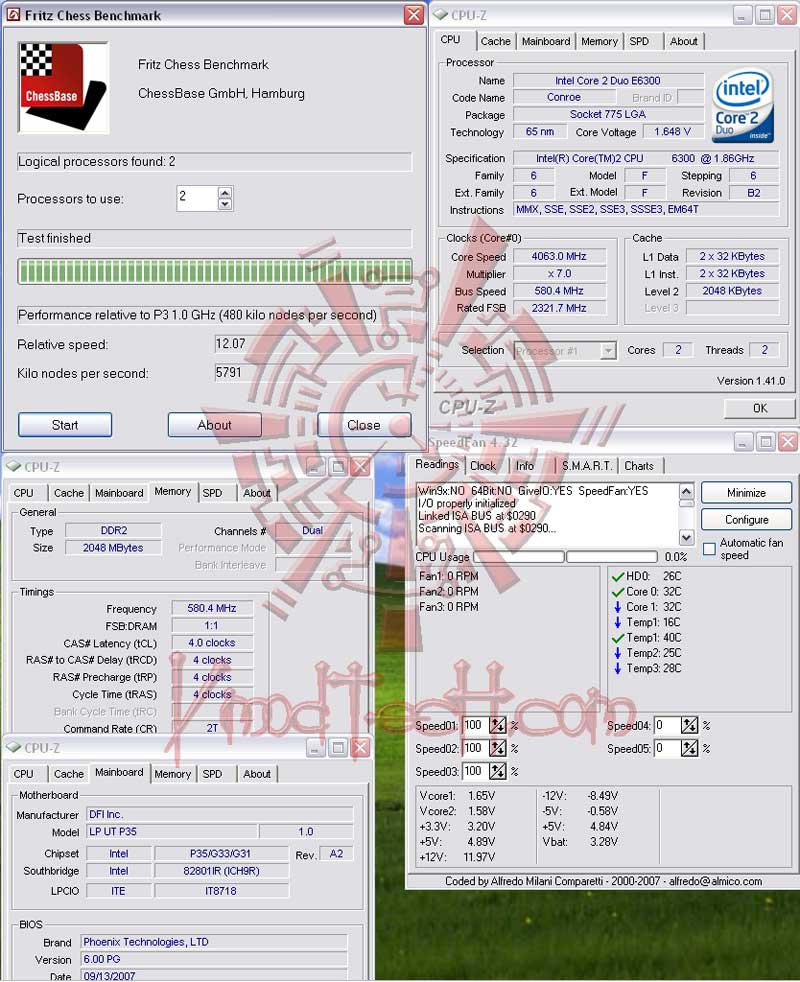

http://www.vmodtech.com/spaw/images/...ritz-2-580.jpg

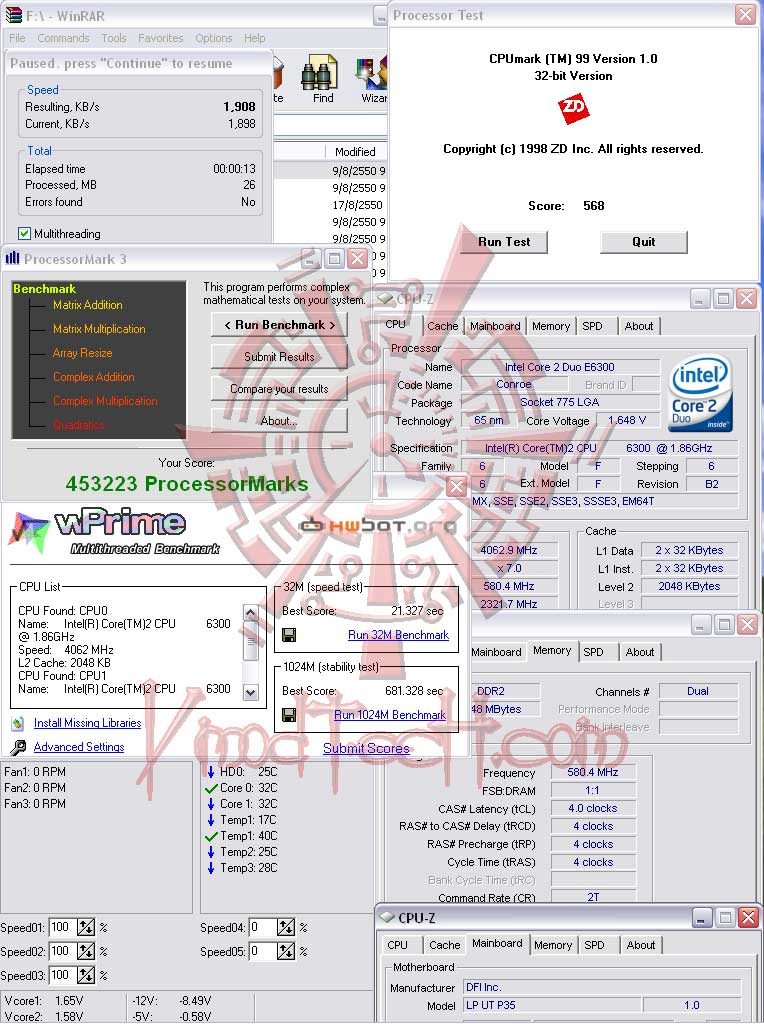

http://www.vmodtech.com/spaw/images/...ariety-580.jpg

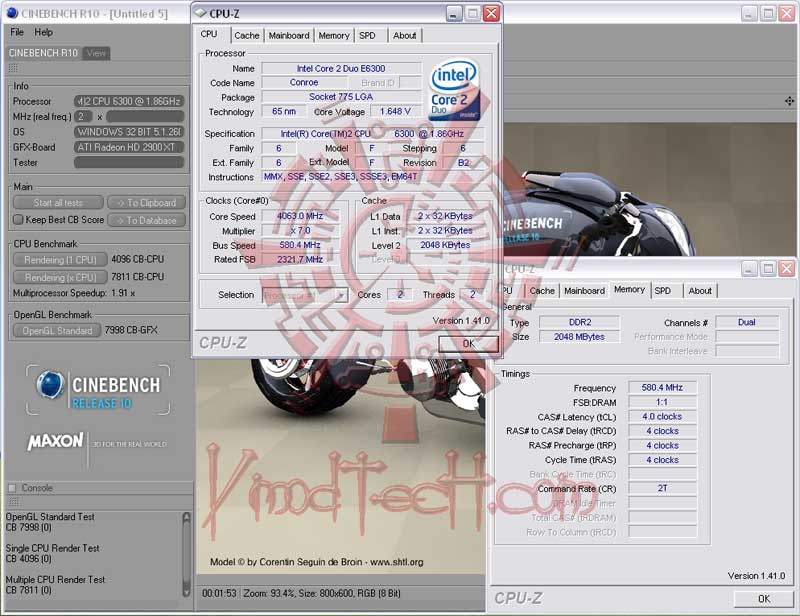

http://www.vmodtech.com/spaw/images/...0/cine-580.jpg

http://www.vmodtech.com/spaw/images/.../pcm05-580.jpg

http://www.vmodtech.com/spaw/images/...0/ev09-580.jpg

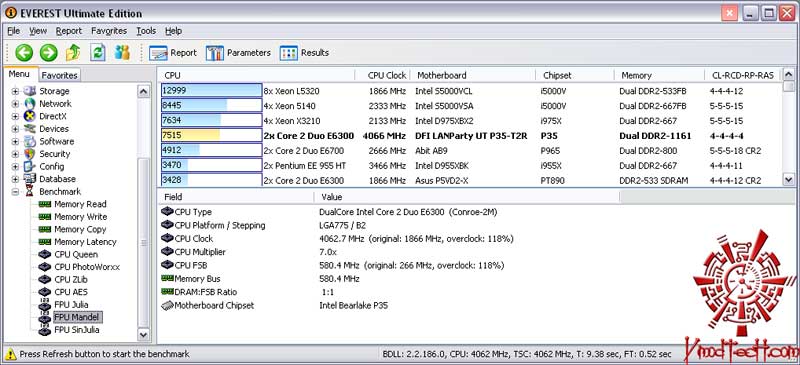

http://www.vmodtech.com/spaw/images/...0/ev10-580.jpg

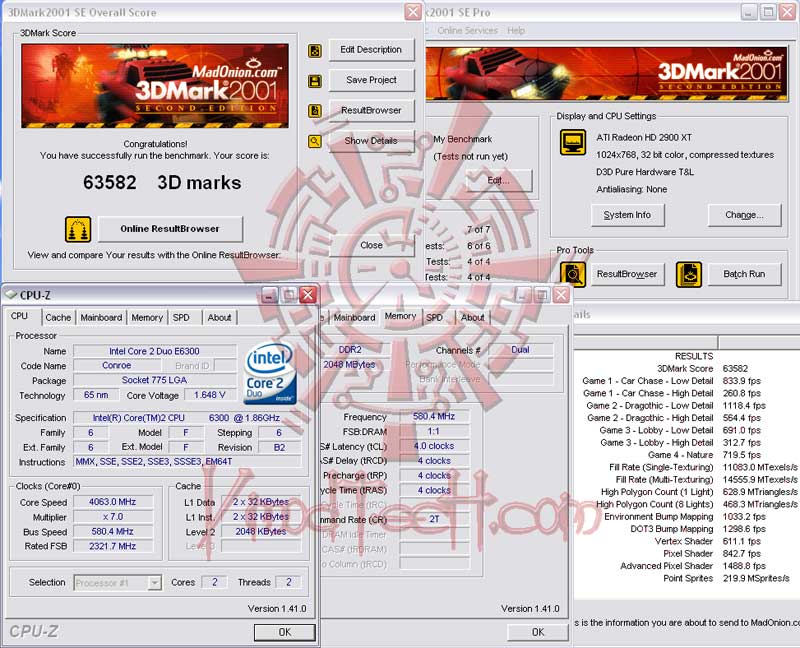

http://www.vmodtech.com/spaw/images/...580/01-580.jpg

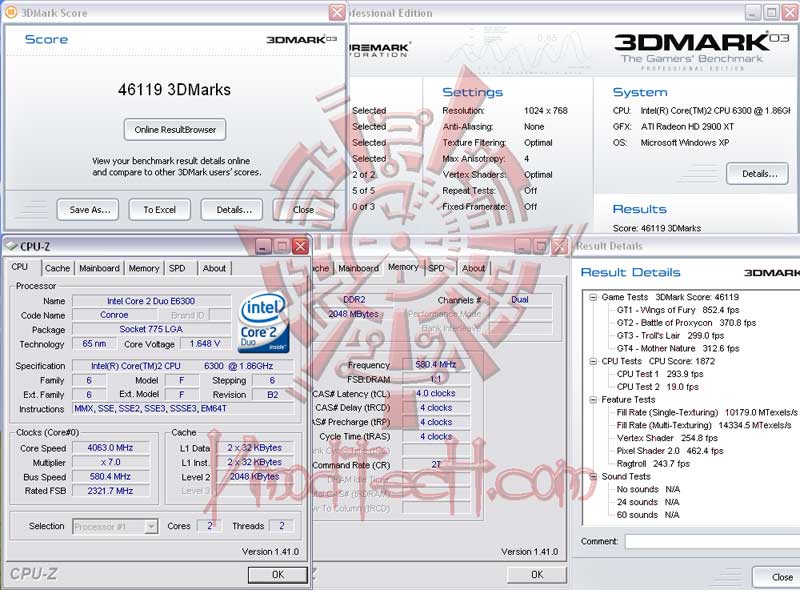

http://www.vmodtech.com/spaw/images/...580/03-580.jpg

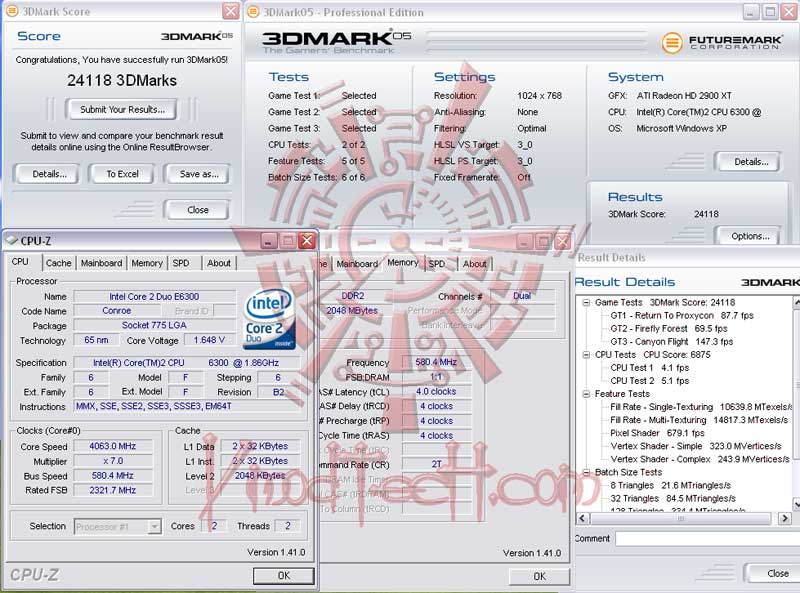

http://www.vmodtech.com/spaw/images/...580/05-580.jpg

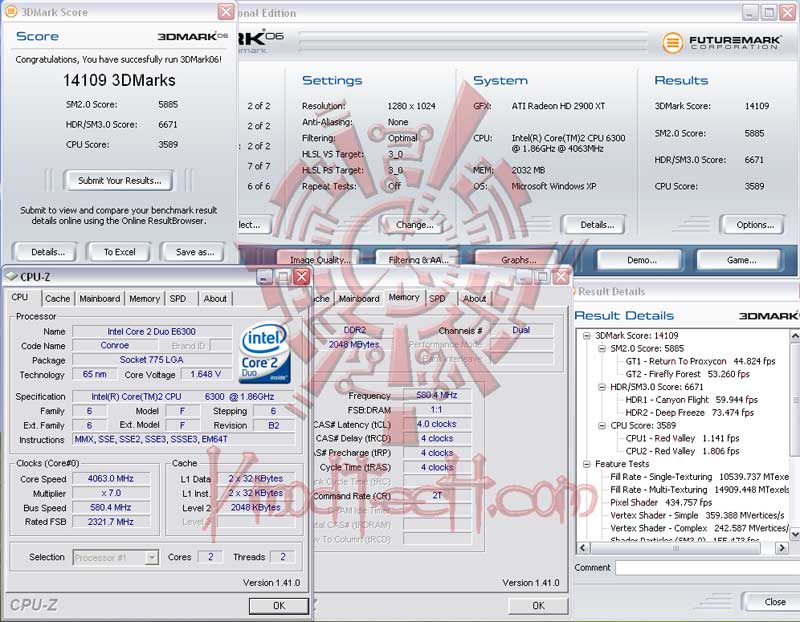

http://www.vmodtech.com/spaw/images/...580/06-580.jpg

http://www.vmodtech.com/spaw/images/...580/aq-580.jpg

Multiple7 MAX BOOT @ FSB 590.6MHz =4,134MHz !!!
http://www.vmodtech.com/spaw/images/...xboot7-590.jpg

more results & Bios Configuration : Vmodtech.com
10-08-2007, 02:41 AM
emoners

hmmm maybe i should change my cooling :)
10-08-2007, 04:03 AM
emoners

i wonder if it would've been possible for DFI to put a clear-CMOS switch on the rear...instead of just pressing the Reset button for 4 secs or jumping it.
10-08-2007, 02:16 PM
Brother Esau

@VenomCrusher......Now... raise you're Multi to X8 and use the 4:5 Divider and see whats what. Also what kind of Vdimm did you have to use?
10-08-2007, 02:16 PM
Brother Esau

Quote:

Originally Posted by emoners

i wonder if it would've been possible for DFI to put a clear-CMOS switch on the rear...instead of just pressing the Reset button for 4 secs or jumping it.

WHY????
10-08-2007, 04:56 PM
Jodiuh

Cause I just ran into a situation where the IP35 Pro needed it...and let me tell you how cool it felt. :D But it's possible to clear CMOS on this board by holding PWR/RST switches on my case?
10-08-2007, 05:03 PM
Brother Esau

Yes!!:) Read the manual.........@ that:D
10-08-2007, 06:25 PM
emoners

Quote:

Originally Posted by Brother Esau

Yes!!:) Read the manual.........@ that:D

But there are times that it doesn't clear
10-08-2007, 06:26 PM
ether.real

Anyone having any luck running 4x1GB Ballistix Tracer with the 1066 strap? I get stuck with a C1 POST code every time I try....

However, if I use the 800 strap and OC the FSB so that the RAM is actually at 1066, it boots fine.
10-08-2007, 07:27 PM
Solarfall

Quote:

Originally Posted by emoners

But there are times that it doesn't clear

noticed that too.. its not a huge problem for me cos i run my gear naked :D
10-09-2007, 02:12 AM
SmokeyTheBandit

New Beta bios available at the DFI site dated 10/5 :)

http://www.dfi.com.tw/Support/Downlo...FLAG=B&SITE=US
10-09-2007, 02:19 AM
Brother Esau

Yea, good if you have a Wolfdale or Yorkfield Processor!

Speaking of which anybody want to buy a Yorkfield Chip I know a little Birdie that just asked me if I wanted to buy it:D
10-09-2007, 03:53 AM
Venom-Crusher

Quote:

Originally Posted by Brother Esau

@VenomCrusher......Now... raise you're Multi to X8 and use the 4:5 Divider and see whats what. Also what kind of Vdimm did you have to use?

:p:

http://www.vmodtech.com/modules.php?...pid=256&page=2

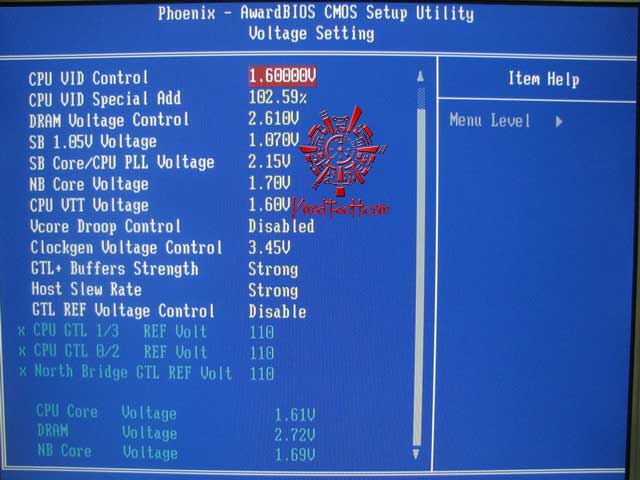

http://www.vmodtech.com/spaw/images/...0/bios-006.jpg
10-09-2007, 03:57 AM
emoners

wow 1.6v! that's scary on air. :(
10-09-2007, 04:05 AM
Praz

The memory voltage is more of a concern then VCORE. Like I already posted, the CellShock will not do 1100MHz+ without exceeding acceptable voltage with this chipset.
10-09-2007, 04:30 AM
C-N

Quote:

Originally Posted by emoners

wow 1.6v! that's scary on air. :(

Its on water see the bold bit & it was 1.64v :D

Quote:

Originally Posted by Venom-Crusher

My results @ 7*580MHz=4.06GHz on H2O all bench pass

CPU Core2 Duo E6300 Supported by Savoy
Mainboard DFI LANParty UT P35-T2R
Memory CellShock PC8000 4-4-4-12 1024mb*2
Graphic Card Sapphire HD2900XT 512MB 512-bit GDDR3 @ 941/2,358MHz
Harddisk Seagate 320 GB SATAII
PSU TT ToughPower 1200W
CPU Cooler Swiftech water cooling kit
VGA Cooler Custom water cooling kit
10-09-2007, 05:39 AM
Solarfall

Quote:

Originally Posted by emoners

wow 1.6v! that's scary on air. :(

hahah then you must think i'm a total nut for running my e6600 with stock heatsink (the fan was a few calibers bigger :D) with 1.7v :up:
at that time i had the now sold asus p5k deluxe (crappy board.. stay the hell away from it :down: )
10-09-2007, 06:48 AM
dzeuk_ph

Quote:

Originally Posted by ether.real

Anyone having any luck running 4x1GB Ballistix Tracer with the 1066 strap? I get stuck with a C1 POST code every time I try....

However, if I use the 800 strap and OC the FSB so that the RAM is actually at 1066, it boots fine.

Is it just me, or are there two 1066 (1:2 for 266FSB) straps on this board.. At first I was using the 266/1066 strap to run my mems at 1066Mhz at 266FSB.. But even at stock speeds, I've had difficulties regarding stability.. Then I tried the 200/800 strap in which is IMHO, is better..

Regarding the clear CMOS issues, I think you really need to wait for 4 secs of eack key press or else it will be a bad CMOS clear.. It was only once that I removed the battery and used the jumper to clear the CMOS. (When I first got my board)

Any Users of the latest Beta BIOS please?.. TIA..
10-09-2007, 07:09 AM
ether.real

Ya, I tried 266:1066 and 333:1066, neither would boot. Right now I am using 266:800 with FSB at 355MHz to get my CPU to 3.2 and my RAM to 1066, and its percectly stable.
10-09-2007, 07:35 AM
terroristone

i finally got past my c1 problem, it seems my ocz pc2 9200 flex's wont post at stock anymore, i got hold of a cheaper stick that is rated at 1.8 volts and bam all good now, but i just don't understand why my ocz's wont post anymore with that voltage like they would when i first got them....
Andrew
10-09-2007, 09:34 AM
pumbertot

Quote:

Originally Posted by terroristone

i finally got past my c1 problem, it seems my ocz pc2 9200 flex's wont post at stock anymore, i got hold of a cheaper stick that is rated at 1.8 volts and bam all good now, but i just don't understand why my ocz's wont post anymore with that voltage like they would when i first got them....
Andrew

isnt that caused by electron migration or some :banana::banana::banana::banana:?been overvolting and overclocking them?
10-09-2007, 09:40 AM
emoners

or maybe issues with mem above pc2 8500...???
10-09-2007, 10:21 AM
dzeuk_ph

Quote:

Originally Posted by terroristone

i finally got past my c1 problem, it seems my ocz pc2 9200 flex's wont post at stock anymore, i got hold of a cheaper stick that is rated at 1.8 volts and bam all good now, but i just don't understand why my ocz's wont post anymore with that voltage like they would when i first got them....
Andrew

Now this is beginning to happen to me.. Although with one stick only..
10-09-2007, 11:42 AM
Raja@ASUS

how much Vdimm have you guys been pumping into your ram?
10-09-2007, 11:46 AM
Solarfall

Quote:

Originally Posted by raju

how much Vdimm have you guys been pumping into your ram?

before my psu died 2.5v-2.3v :up:
