Quote:
Originally Posted by jackbrennan2008
Tried 4500mhz - ram 1867mhz cpu voltage 1.265V llc level 1 - NO GO.
change to 4400mhz ram 1867 same as above - pc started later changed
the ram to 2133mhz, so far pc did not yet crash.
at this moment I'm not trying DES since I fear my W7 will crash again.
so eventhough we have the same mb and processor, the Ram modules
seem to be very sensitive.
http://i66.photobucket.com/albums/h2...vllvlevel1.png
http://i66.photobucket.com/albums/h2...vllclevel1.png
Run Super PI 32M.
http://i66.photobucket.com/albums/h2...erPi30mrun.jpg
this is de Superpi 30m run.
This is 1M ,scroll at bottom is 32M.
http://img709.imageshack.us/img709/4...0120174744.png
this is de 32m run.
cpu 4400mhz cpu 1.265 V - LLC Level 1
ram 2133mhz 1.66 V profile 1
4400mhz just crashed slightly increased the cpu voltage to 1.285 mhz.
http://i66.photobucket.com/albums/h2...superpi32m.jpg
:up:
That's good one.
Try with BIOS F7d,should be better.
Just installed F7D
left cpu at 4400mhz cpu voltage 1.285 v
ram 2133 mhz 1.66 v
should I lower te cpu voltage to 1.265 v or set it to auto in the bios?
Up to 4.6 GHz can be all on Auto,except memory setting.
Try 4.6.
My 4.6GHz on Auto,except memory:
http://img717.imageshack.us/img717/4...0113065555.png
Guys, when coming from a cold boot, does your board reboot twice before going to the OS? My board would get stuck on C1 then reboot, then its the only time it would continue the boot process. Even on stock settings. :confused:
changed the settings to auto in the bios / ram profile 1 = 1.66v
and W7 booted up nicely.
Than I tried to use DES, and my PC CRASHED :mad:
this board does not like DES at higher settings, perhaps it make's
sence, since this programme tries to reduce voltage's etc. but we are
forcing the mb to start at an overclock of 35% at higher setting's than
standard?
I will e-mail GB in the Netherlands and ask them to relay this info
to Taiwan.
:)
You are lucky (only twice),my reboot 5,6,7-8 times with freeze on Logo screen,must off PSU,then again twice before I can go in the BIOS again.:shakes::shakes:Quote:
Originally Posted by maxxx
Don't use any additional software like DES,at this stage.Make your board stable first.Quote:
Originally Posted by Polypenko
Stasio since I flashed my bios to the F7d that has stopped for me. :confused:Quote:
Originally Posted by stasio
Stasio / Oc nub & Jackbrennan tks. for your help so far.
Running at 4600mhz Ram 2133mhz Bios all on auto.
Max Cpu Voltage 1.332 v
Insane easy overclock of 35 percent.
:)
http://i66.photobucket.com/albums/h2...ko/4600F7D.png
Thought I would try 8gb of ram, not matching kits, proabably the same other than heat spreaders.
that is pretty nice.
hey peeps
i got a few bios updates for UD4/5/7 which should sort this S3 multiplier dropping to 35x after exiting sleep mode
give it a crack
I tested UD7, it works, just enable S3 in bios
http://filefactory.com/file/b5167da/n/Desktop.zip
Thanks bro for all the help...Quote:
Originally Posted by dinos22
hmm seems new bios has more than just S3 fix, my bclock wall is no longer 104.3, i am booting past it now eeeek > up to 107 now heheh
Sounds good my ud5 gets in windows at 105.4 but locks up after a while. 104.4 is all i can run stable.Quote:
Originally Posted by dinos22
this one booted up at 105 and rest was through windows.
bclock isnt really a bit deal with you have unlocked multi but it can be useful for RAM clocks i guess heh
Yeah and I flashed with Q-Flash with no problem.:up:Quote:
Originally Posted by dinos22
Thanks Dinos will give it a try when I get up before work tomorrow. Um later this morning I guess that should be.
It doesn't fix the problem completely for me. My turbo MPs are set to 45 for all 4 cores and after wake up the turbo behaves like the default turbo function, like the mp are set 45,44,43,42 for the cores. At 100% load CPU runs at 4.2 and increases to 4.5 with the load going down. That's exactly how the default turbo function works.Quote:
Originally Posted by dinos22
Not 100% fixed from my point of view.
I found sweet sport for 24/7 :P
http://img43.imageshack.us/img43/232/51ghz.jpg
@skeyo Congrats!! Nice chip. :up:
First real try at raising bclk, just a little. Also seeing how these Mushkin Radioactive's oc on the UD7. Default is 1600mhz 6-8-6-24, they seem to do pretty good with this board.
thanks dino, let me see if i can do 108blck now instead of 107.5
How are you changing Bclk in windows?Quote:
Originally Posted by dinos22
Hey dinos, is this an update to F7d?
Quote:
Originally Posted by dinos22
I believe its f7e and yes it is..Quote:
Originally Posted by Eldonko
allrighty, another guy from down under has upgraded board and subscribed onto this thread, I got the board running a couple of hours ago, so I haven't done any real OC'ing yet
http://img641.imageshack.us/img641/5284/2600kes.jpg
so graphics wise I have gone from this....
http://img269.imageshack.us/img269/2633/bench2e.jpg
to this.....
http://img525.imageshack.us/img525/5779/2600k.png
Wih my GTX 460 set at 850mhz my score is
fps 39.7
score 1000
What Vk are you using?
==================================
set at 4600mhz bios all on auto gpu gtx 460 800mhz crash / 4400mhz - no problem.
any idea's why Dirt2 crashes whilst cpu is set to 4600mhz?
anyone else running Sata3 raid 0 Hdd's on this board?
are these numbers inline?
2 Sata3 WD black 1tb in raid 0
http://img16.imageshack.us/img16/8232/95484735.jpg
Uploaded with ImageShack.us
@Kingleo
Numbers are ok. You can't see difference from sata2 on regular hdd's. You can see them on ssd's.
testing with all low voltage to see if it can b stable :D
http://img696.imageshack.us/img696/4...r201101212.jpg
Uploaded with ImageShack.us
Just wondering if you guys are happy with you ud7 purchases? My only gripes are with the high price and blocked pci-e 1x slot. Thought of using a pci-e riser if I had to. What do you guys think?
Asus P8p67 deluxe a better buy?
Thanks.
BumpQuote:
Originally Posted by Lsdmeasap
I was wondering the same thing.
I am pretty happy with the new board. A better layout would be nice for sure, blocking the 1x slot was really a dumb idea, but I have no regrets about buying the UD7. My last asus board (rex3) is a real pos, I have no plans of going back to themQuote:
Originally Posted by davidm71
and the blackness of the pcb is pure sex....
http://img5.imageshack.us/img5/6815/img1331g.jpg

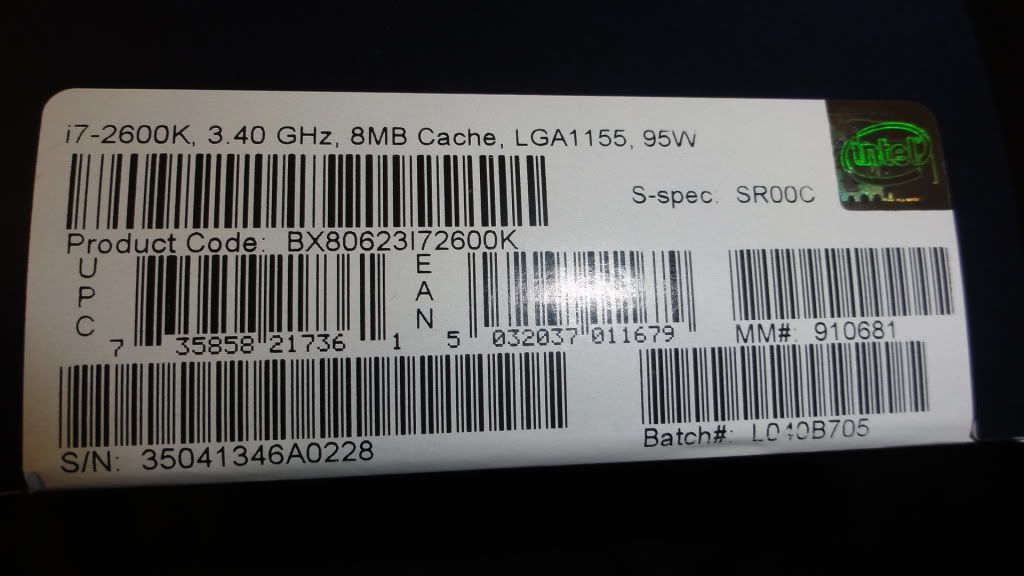

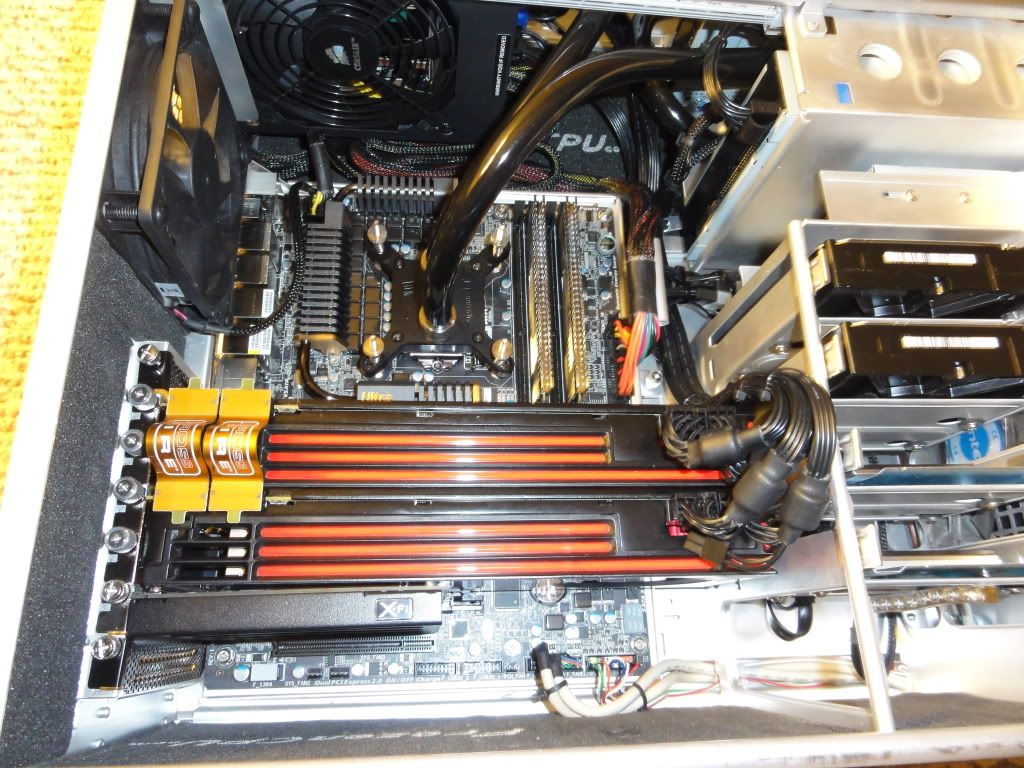

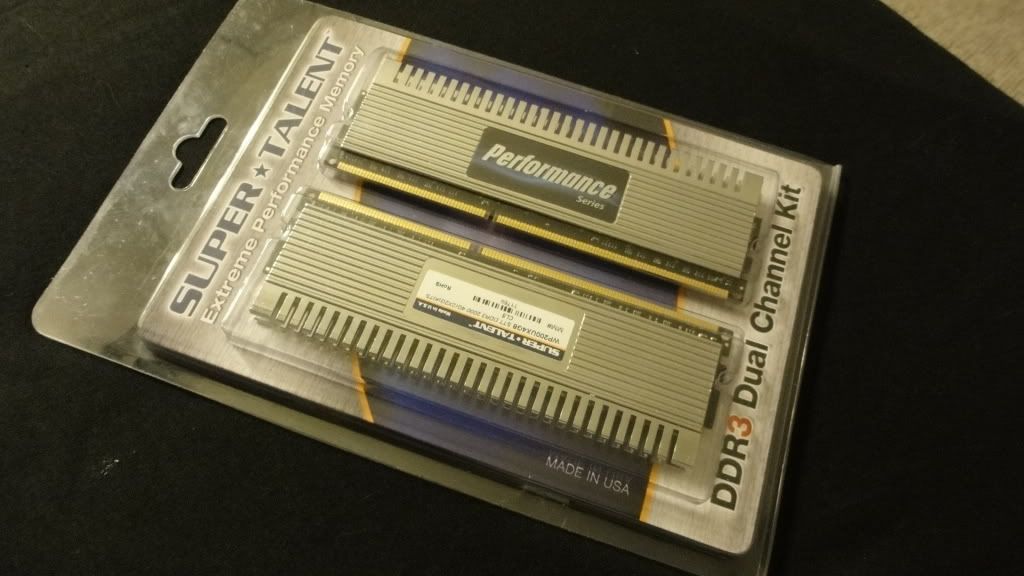

Decided to join the club , you guys look like you just have to much fun with these two toys , got my board together yesterday , and with a lil help from OC Nub My 2600K will boot into BIOS at 4.5 GHz without anything else changed, only multiplier to 45x, VID changes from 1.18 to 1.365. . stay mighty cool and passes 20 LinX . . . next I'm update this crappy f4 bios then start lowering vcore.
:D Let the games begin :D
http://i84.photobucket.com/albums/k7...7/DSC00247.jpg
http://i84.photobucket.com/albums/k7...7/DSC00253.jpg
http://i84.photobucket.com/albums/k7...7/DSC00262.jpg
http://i84.photobucket.com/albums/k7...7/DSC00259.jpg

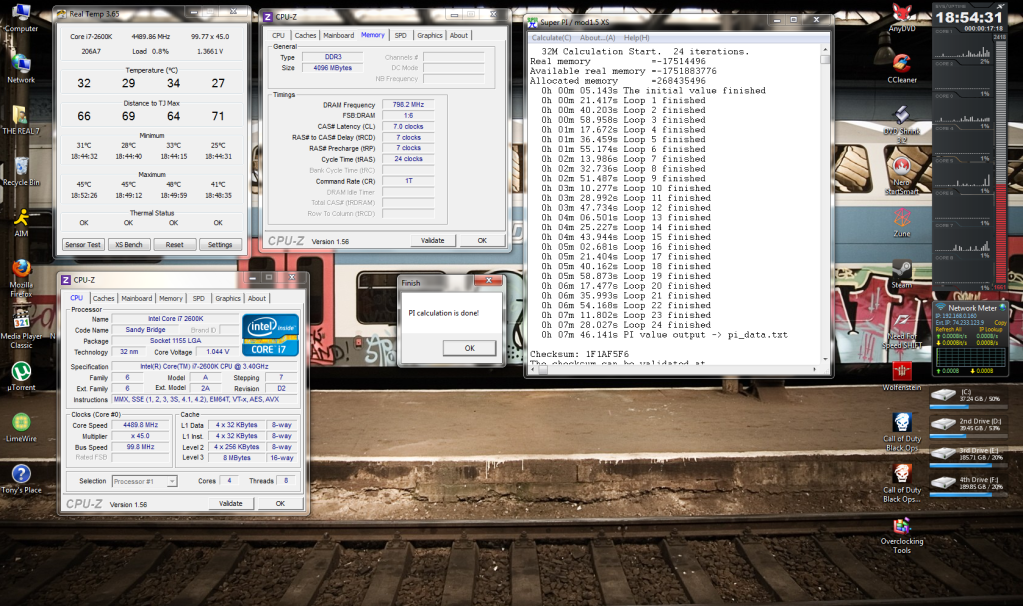

http://i84.photobucket.com/albums/k7...16-54-42PM.png
Congrats man!! Looking forward to seeing your results.
Thanks Nub for pushing me to get this board , I like it :up:Quote:
Originally Posted by OC Nub
Same batch as mine.... Looking forward to see what you get out of it.Quote:
Originally Posted by the_real_7
http://img339.imageshack.us/img339/7593/imag0286x.jpg
Uploaded with ImageShack.us
What Am i doing wrong? I got to 4.5 pretty easy at 1.26 volts, but up multi to 46 and i get 3 reboots into safe mode.
You probably need to enable Internal_PLL_Overvoltage if you haven't already.Quote:
Originally Posted by Nostromo
Quote:
Originally Posted by the_real_7
Man that case looks kinda small for airflow...
Quote:
Originally Posted by Polypenko
hummm Its not possible for your GTX460 to get the same score as 6950 CFX
see my settings:
AA x8
Af x16
1920x1080
Thanks, will try that.Quote:
Originally Posted by bmg
Running F7E
Also can anyone recommend a CPU block for this board? I have Apogee XT gigabyte friendly version, and it STILL
seems to be resting on the caps next to the socket.
Does anyone know when efi bios is coming out? It's not like I need it I just want to feel how it is using mouse in bios.
what settings do you have inbios as this does not happen in my case, it stays on 45 for me as i usually use 4.5GHz as a benchmarkQuote:
Originally Posted by nijel2@comcast.
it will but this will take some time it is not a priorityQuote:
Originally Posted by skeyo
once its released it will be a simple bios flash on current boards
ET6 mate no issues running it here :shrug:Quote:
Originally Posted by Lsdmeasap
Quote:
Originally Posted by Kingleo
yea for sure the same here . . . we can see what these babies can do :up:
Quote:
Originally Posted by kuroikenshi
well actualy its good the radiator is separate from case , it being small it has a positive pressure work great but maybe this year ill get bigger
http://i84.photobucket.com/albums/k7...c/DSC00146.jpg
well now that you show it that way.....:rolleyes::rolleyes:Quote:
Originally Posted by the_real_7
I'm not too faced to have the rad inside the case..... its so big;) cosmos S
One thing i have noticed with this board is that it will presume a failed overclock after a proper shutdown in Windows XP. It's strange, but everytime i shutdown Windows XP when running my 5527Mhz overclock, upon turning the PC on again, it will reboot a few times and inform me that it has encountered a failed overclock.
It's no biggie and might be there by design, but i'm sure it didn't do this after a proper shutdown of Windows 7...
Anyone else encounter this?
Hey guys, you can use this P67A BIOS template,to post your setting here.
Thanks to C-N.:up:
I am having some serious difficulties overclocking my system..
I am setting the following:
Multi : 45
C1E - Disabled
EIST - Disabled
C3/C6 - Disabled
CPU Thermal monitor - Disabled
Vcore: 1.3 - 1.35
QPI - 1.08 - 1.1
everything else is auto.
As soon as I launch prime I get a complete system lock BSOD and then three reboots and my bios restores to F3.
If I leave all settings on auto and only select the 45 Multi I can get into windows CPU-Z shows 1.26 - 1.28 Vcore but after about an hour of PRIME it failed.
Guys, been hitting a wall with this 4E error on the LED.
Sorry, I dun have any clue as to what this is? Needs more voltage?Quote:
1. Program MTRR of M1 CPU
2. Initialize L2 cache for P6 class CPU & program CPU with proper cacheable range
3. Initialize the APIC for P6 class CPU
4. On MP platform, adjust the cacheable range to smaller one in case the cacheable ranges between each CPU are not identical
What where your settings when you hit the wall. Please use the bios template above that will help.Quote:
Originally Posted by maxxx
More details are needed to provide a solution.
More voltage is not allways the solution. Well not always. :D
@1Day: Sorry, here's the settings I have when I get that error:
This boots up but gets stuck on 4E....
### MB Intelligent Tweaker ###
Advanced Frequency Settings:
CPU Clock Ratio .......................................[ 54
> Advanced CPU Core Features
CPU Clock Ratio .......................................[ 54
Internal CPU PLL Overvoltage...........................[ Enabled
Real Time Ratio Changes In OS .........................[ Disabled
Intel(R) Turbo Boost Tech .............................[ Disabled
Turbo Ratio (Core 1)...................................[ Auto
Turbo Ratio (Core 2)...................................[ Auto
Turbo Ratio (Core 3)...................................[ Auto
Turbo Ratio (Core 4)...................................[ Auto
Turbo Power Limit (Watts)..............................[ Auto
Turbo Current Limit (Amps).............................[ Auto
CPU Cores Enabled ............................ ........[ All
CPU Multi Threading....................................[ Enabled
CPU Enhanced Halt (C1E) ...............................[ Disabled
C3/C6 State Support ...................................[ Disabled
CPU Thermal Monitor ...................................[ Disabled
CPU EIST Function .....................................[ Disabled
Bi-Directional PROCHOT ................................[ Disabled
<
BCLK/DMI/PEG Clock Control ............................[ Enabled
BCLK/DMI/PEG Frequency Control ........................[ 1002
System Memory Multiplier (SPD) ........................[ 18.66
Advanced Memory Settings:
System Memory Multiplier (SPD) ........................[ 18.66
Performance Enhance ...................................[ Turbo
DRAM Timing Selectable (SPD) ..........................[ Quick
Channel Interleaving ..................................[ Auto
Rank Interleaving .....................................[ Auto
Channel A Timing Settings:
##Channel A Standard Timing Control##
CAS Latency Time ......................................[ 7
tRCD ..................................................[ 9
tRP .................................................. .[ 7
tRAS ..................................................[ 24
tRC .................................................. .[ Auto
tRRD ..................................................[ Auto
tWTR ..................................................[ Auto
tWR .................................................. .[ Auto
tWTP ..................................................[ Auto
tWL .................................................. .[ Auto
tRFC ..................................................[ 74
tRTP ..................................................[ 7
tFAW ..................................................[ Auto
Command Rate (CMD) ....................................[ 1
IO Latency ............................................[ Auto
Round Trip Latency ....................................[ Auto
Channel B Timing Settings:
##Channel B Standard Timing Control##
CAS Latency Time ......................................[ 7
tRCD ..................................................[ 9
tRP .................................................. .[ 7
tRAS ..................................................[ 24
tRC .................................................. .[ Auto
tRRD ..................................................[ Auto
tWTR ..................................................[ Auto
tWR .................................................. .[ Auto
tWTP ..................................................[ Auto
tWL .................................................. .[ Auto
tRFC ..................................................[ 74
tRTP ..................................................[ 7
tFAW ..................................................[ Auto
Command Rate (CMD) ....................................[ 1
IO Latency ............................................[ Auto
Round Trip Latency ....................................[ Auto
Advanced Voltage Control:
CPU
Load Line Calibration .................................[ Level 1
CPU Vcore .............................................[ 1.525
QPI/VTT Voltage 1.050v ................................[ 1.140v
System Agent Voltage 0.925v ...........................[ Auto
PCH Core 1.050v .......................................[ Auto
CPU PLL 1.800v ........................................[ Auto
DRAM
DRAM Voltage 1.500v ...................................[ 1.66
DRAM Vref 0.750v ......................................[ Auto
DRAM Termination 0.750v ...............................[ Auto
Ch-A Data VRef. 0.750v ................................[ Auto
Ch-B Data VRef. 0.750v ................................[ Auto
Ch-A Address VRef. 0.750v .............................[ Auto
Ch-B Address VRef. 0.750v .............................[ Auto
Miscellaneous Settings
Isochronous Support ...................................[ Disabled
Virtualization Technology .............................[ Disabled
Easy fix.
Multi 53 :D
Sorry to say you are not alone with that one. Many of us are at that point with the x54 multi. (or whatever the limit with our personal CPU mulit might be) I have even tried vcore of 1.7volts. Nothing will get it past my limit. Last time it took a bios update to get past the previous.
Sorry mate.
Not noticed a difference between XP & 7 here on my UD5Quote:
Originally Posted by jackbrennan2008
I would try
Performance Enhance ...................................[ Standard
You can always tweak the secondaries manually if it works & get the same bandwidth latency as Turbo etc.
@1Day: sighhh, guess bye bye to the dream of at least stepping to 5.5Ghz on this one. lolzQuote:
Originally Posted by 1Day
Have 2 cpu's giving me this problem now. 1 of them is just at 51x100.... :(
maxxx buddy you are not alone - maybe drop back a multi or two and work with your BCLK settings. I had to do that to get above the wall. Oh and I found F7d to be the BIOS update that allowed me to break the wall of 5.288GHz.
Dont feel bad, 5400mhz is pretty sweet. I am stuck at x52, I may get a 2500k to play with.
@1Day: thanks. I'll have to try it that way. My 1st cpu won't budge after 5.1Ghz, whether its the cpu multi or base clock being change.
@OC_Nub: yeah, just wanted to see if it can go further...
Huge issue, and I'm not sure what the cause is or how to solve it? I've tried 4-5 OS installs (Xp/Vista/Win7), all different and non edited versions, tried installing all .Net, flash/shockwave, java, all windows updates, multiple easytune versions, ect.Quote:
Originally Posted by OC Nub
No luck with anything!
See my comments about it on this page and the next
http://www.xtremesystems.org/forums/...264003&page=14
I bet there are MANY others with this issue and they just don't know it! I assumed you couldn't change Bclk with easytune because there wasn't a setting there, until I saw someone mention it on another thread.
So I bet plenty of others think the same since it's not there. It can't be my board because I have tried UD4 and UD7.
I was thinking maybe it's my CPU (ES D2), but you have retail, so it has to be something other than CPU's?
I am not sure what to try next, if there is anything left, but I am at a loss and it's driving me crazy!
Maybe us enabling/disabling a certain setting in the BIOS is causing this as an error/glitch? I've seen it before in the past a few times, not sure what setting it would be but I'm thinking about trying to find if this is the cause next.
Does anyone know the SetFSB creator? If so please ask when he will update for P67, thanks!
Before I hit my benching prowness , Im here working on my 24/7 @ 4.8 she runs cool so im tweak her so i can turn ll2 to ll1 and then mess with ram time see what different settings do , she's not golden but she definitely doing great in voltages and temps . Passes 20 LinX most on auto . . . ;)
http://i84.photobucket.com/albums/k7...at48stable.png
http://i84.photobucket.com/albums/k7...7/Untitled.png
Not sure what I was doing wrong before but just enabled LLC Level 1 and used 1.3Vcore and tried x44 with DDR1866 and here is the result so far. I am more interested right now in finding stable 24/7 oc's and then ill stress the system.
Here is a pic:
http://i.imgur.com/PSxDel.png
and here is the system :P I ordered an extended crossfire cable to try and keep my graphic card temps down.
http://i.imgur.com/iUjXPl.jpg
I would take down blck like already said, or i would check your temperatures. When i had a clodbug problem that was my stop code. That can also indicate not enough vcore, or cpu pll not right(increase/decrease) you might need to increase cpupll try 1.89 first. Also i know this applies to the UD4 you need to use turbo mode and enable tdp and tdc to 300, idk if you have to do this on the UD&, I am going to test it would, but on other boards it seems to keep back max oc.Quote:
Originally Posted by maxxx
I finally got it to work, reinstalled it again and it seems to work ok. Unfortunately I have no clue what was causing the problem.Quote:
Originally Posted by Lsdmeasap
Hope you are able to get it working.
@the real 7, glad you are enjoying your new toy. :up:
Thanks Nub :) this brought the fun back to oc , i have all kinds of things to mess with , I gotta find a good latency program cause i see no difference between 1600 6 6 6 20 vs 1866 8 8 8 24 timings except hard to get stable at 1866 in super pi 32Quote:
Originally Posted by OC Nub
Hey, total noob here with Intel systems, but my friend has this board, and every overclock he tries only applies to Turbo mode, while it clocks down during idle. We wanted to disable underclocking for testing, so we disabled Turboboost and EIST. Is it possible to keep the clockspeed at a constant setting?
Quote:
Originally Posted by Cybercat
Code:Internal CPU PLL Overvoltage...........................[ Enabled ]
Real Time Ratio Changes In OS .........................[ Disabled ]
Intel(R) Turbo Boost Tech .............................[ Disabled ]
Turbo Ratio (Core 1)...................................[ Auto ]
Turbo Ratio (Core 2)...................................[ Auto ]
Turbo Ratio (Core 3)...................................[ Auto ]
Turbo Ratio (Core 4)...................................[ Auto ]
Turbo Power Limit (Watts)..............................[ Auto ]
Turbo Current Limit (Amps).............................[ Auto ]
CPU Cores Enabled ............................ ........[ All ]
CPU Multi Threading....................................[ Enabled ]
CPU Enhanced Halt (C1E) ...............................[ Disabled ]
C3/C6 State Support ...................................[ Disabled ]
CPU Thermal Monitor ...................................[ Disabled ]
CPU EIST Function .....................................[ Disabled ]
Bi-Directional PROCHOT ................................[ Disabled ]
Yep, that worked. Thanks.
@sin0822: thanks for the reply mate. I am trying the bclock route but once I go over 54x100 (eg. 54x101), I get that "4E" error. I don't think heat is my problem as its running on a custom Boreas (TEC). Let me try those settings from the UD4. Crossing fingers...Quote:
Originally Posted by sin0822
yea what stasio says do not OC with turbo. Just set ratio instead.
yea what stasio says do not OC with turbo. Just set ratio instead. and you can also just enable ratio change in OS and it will disable Turbo Mode
Are you 100% sure that you didn't do anything else, or change or install anything?Quote:
Originally Posted by OC Nub
I've been through 7-8 easytune versions, 3 versions of win7 or more, 2 vista setups, XP, and even and old RC 7100 Win7 build, all with the exact same look and issue in easytune.
I cant think of anything I changed or did any different other than uninstall, and reinstall et6. If I find that is was something else I will let you know asap, I hate when something doesnt work like it should also.
My BCLK wont show up either. If i move the curser across it i get the arrows pointing left and right but that is it. I have tried 2 versions and both the same.
I am guessing the TDP/TDC are those I have highlighted. Still a no go. Should those settings be higher that 100? CPU PLL set to 1.90v. That 4E thing must be really a wall inside the SB. Does other boards have this same problem? Or its called something else?Quote:
CPU Clock Ratio .......................................[ 55
Internal CPU PLL Overvoltage...........................[ Enabled
Real Time Ratio Changes In OS .........................[ Disabled
Intel(R) Turbo Boost Tech .............................[ Enabled
Turbo Ratio (Core 1)...................................[ Auto
Turbo Ratio (Core 2)...................................[ Auto
Turbo Ratio (Core 3)...................................[ Auto
Turbo Ratio (Core 4)...................................[ Auto
Turbo Power Limit (Watts)..............................[ 100
Turbo Current Limit (Amps).............................[ 100
CPU Cores Enabled ............................ ........[ All
CPU Multi Threading....................................[ Enabled
CPU Enhanced Halt (C1E) ...............................[ Disabled
C3/C6 State Support ...................................[ Disabled
CPU Thermal Monitor ...................................[ Disabled
CPU EIST Function .....................................[ Disabled
Bi-Directional PROCHOT ................................[ Disabled
Yes, if you can think of anything, or cause it to be gone then re-appear again let me know how.Quote:
Originally Posted by OC Nub
Thanks, and sorry :(, but I'm glad I'm not alone on this still as that makes it harder to diagnose or try to get help with.Quote:
Originally Posted by ProStreetCamaro
I am sending in a report to Taiwan now to see if the BIOS guys or software team have ran into this issue in the past and can maybe tell us what is causing it or how to fix it.
I'll keep you posted on what they have to say.
maxxx,did you try with "Turbo Boost" Disabled?
I never Enable this over 4.8GHz.
As my memory is not compatible with P67(yet?),I start with Standard and CR on Auto(2),then if pass 32M,try with Turbo(CR2),then Standard/CR1,etc...Quote:
Originally Posted by sin0822
atm,
5GHz,1876 7-7-7-21-CR1/Turbo(32M ok)
(Wish to have new Ripjaws-X F3-17066CL8D-4GBXMD or F3-17000CL7D-4GBXHD)
@stasio: yup, I dun enabled this when I overclock, but I needed to access the TDP/TDC settings to test. If Turbo is disabled, they are greyed out and can't access them. I want/need to get over that 4E error. Btw, know if there are other batches for the 2600k in KL?Quote:
maxxx,did you try with "Turbo Boost" Disabled?
I never Enable this over 4.8GHz.
About ET6, same boat as the rest, can't change the bclock setting. On bios F7e.
New batches for the 2600K in KL(all out of stock),coming end of this month.Quote:
Originally Posted by maxxx
Thanks! As I mentioned before I bet there are plenty of people that cannot adjust Bclk via Easytune out there, they just don't know it yet because without the setting there you don't realize your missing anything until you see someone mention it.Quote:
Originally Posted by maxxx
I didn't know for a week or so, and just assumed it was not added to easytune because you can't adjust Bclk much anyway, but then I saw someone mention getting 3-4 more Bclk past what they set in the BIOS with easytune.
strange stuff this bclock business, lets see what software guys have to say :up:
Ya, it is very odd how it works fine for some but not others!
Hopefully they can figure it out for us.
Running real smooth @ 5Ghz
100% Stable can't get any better.
100% load max temp 74c
I'll also show a pic of my setup...
http://thumb5.webshots.net/t/82/182/...5NuqhYH_th.jpg
### MB Intelligent Tweaker ###
Advanced Frequency Settings:
CPU Clock Ratio .......................................[ 50
> Advanced CPU Core Features
CPU Clock Ratio .......................................[ 50
Internal CPU PLL Overvoltage...........................[ Enabled
Real Time Ratio Changes In OS .........................[ Disabled
Intel(R) Turbo Boost Tech .............................[ Disabled
Turbo Ratio (Core 1)...................................[ Auto
Turbo Ratio (Core 2)...................................[ Auto
Turbo Ratio (Core 3)...................................[ Auto
Turbo Ratio (Core 4)...................................[ Auto
Turbo Power Limit (Watts)..............................[ Auto
Turbo Current Limit (Amps).............................[ Auto
CPU Cores Enabled ............................ ........[ All
CPU Multi Threading....................................[ Enabled
CPU Enhanced Halt (C1E) ...............................[ Disabled
C3/C6 State Support ...................................[ Disabled
CPU Thermal Monitor ...................................[ Disabled
CPU EIST Function .....................................[ Disabled
Bi-Directional PROCHOT ................................[ Disabled
<
BCLK/DMI/PEG Clock Control ............................[ Enabled
BCLK/DMI/PEG Frequency Control ........................[ 1002
System Memory Multiplier (SPD) ........................[ 18.66
Advanced Memory Settings:
System Memory Multiplier (SPD) ........................[ 18.66
Performance Enhance ...................................[ Standard
DRAM Timing Selectable (SPD) ..........................[ Quick
Channel Interleaving ..................................[ Enabled
Rank Interleaving .....................................[ Enabled
Advanced Voltage Control:
CPU
Load Line Calibration .................................[ Level 2
CPU Vcore .............................................[ 1.48
QPI/VTT Voltage 1.050v ................................[ 1.1
System Agent Voltage 0.925v ...........................[ 1.250
PCH Core 1.050v .......................................[ 1.050
CPU PLL 1.800v ........................................[ 1.80
DRAM
DRAM Voltage 1.500v ...................................[ 1.66
DRAM Vref 0.750v ......................................[ Auto
DRAM Termination 0.750v ...............................[ Auto
Ch-A Data VRef. 0.750v ................................[ Auto
Ch-B Data VRef. 0.750v ................................[ Auto
Ch-A Address VRef. 0.750v .............................[ Auto
Ch-B Address VRef. 0.750v .............................[ Auto
Miscellaneous Settings
Isochronous Support ...................................[ Disabled
Virtualization Technology .............................[ Disabled
Quote:
Originally Posted by TheHardCase
Nice with a little push on you vdimm 1.66 and why you push System Agent Voltage ?
Quote:
Originally Posted by dinos22
software threw BIOS has never been definite always glitchy , now more than ever cause giga worries about quality in board first , and works out glitches later
itll be fine giga always come thru :up:
Hope that can fix it before 8 days from now!
You are right though, they will get it sorted out for sure!
well i cant guarantee 8 days . . . but i can tell you giga updated a bored that been out a year already threw BIOS and drivers EP45-UDP3 " FFb 0.70 MB 2010/10/06 " where in good shape " giga takes care of businessQuote:
Originally Posted by Lsdmeasap
Ya I know they take care of business for sure!
I am in contact with them often
if you are Lsdmeasap please tell them. this long 3 bootloop on bios mistakes needs helpQuote:
Originally Posted by Lsdmeasap
the bootloop is common on other GB boards, its the BIOS checking and rechecking itself. When the OC fails and then bootloops that is really annoying because it should reset, but sometimes fails to reset the OC. I am surprised you were able to change blck through windows OC Nub, i have no luck with it, i actually thought you have to reboot to change blck, and it isn't possible through windows, but who knows.
before we had a normal reboot , but this one take 2 the time and erases my xfi setings . . . why you think ?Quote:
Originally Posted by sin0822
It asks you to restart, click restart later, the changes to bclk will be applied right away when you click "set", they will also be applied on restart.Quote:
Originally Posted by sin0822
Ok i think i have found the maximum for my board without putting the PLL voltage over 1.96 and the vcore over 1.555v with LLC Level 2.
5523.84Mhz
http://i24.photobucket.com/albums/c1...e7757/CPUZ.jpg
http://valid.canardpc.com/show_oc.php?id=1611255
I've printed out that template so i'll note down my settings when i get that done!
Wprime run:
http://i24.photobucket.com/albums/c1...757/wprime.jpg
Super PI 1M - I forgot to sleect the memory tab :(. 9-9-9-24 1T 937Mhz
http://i24.photobucket.com/albums/c1...7757/55688.jpg
3DMark 2001 SE
http://i24.photobucket.com/albums/c1...estevagpuz.jpg
