Locked multipliers can go down, but the "locked" means that they can't exceed their stock value.
For instance, the 1055T is locked at 14, meaning you can't go higher, but you can go lower, which is why you see the 13, 13.5, etc. You can use any multiplier up to and including 14, but not above 14.
locked multiplier means its only locked higher than stock, you can still use all the multipliers that are lower than stock to help fine tune nb/ram/etc if you want
you must be new to overclocking :p: locked@14x means max=14x.Quote:
Originally Posted by seiferoth10
I am pretty new, and my last two procs (7750 kuma and x3 720) were black editions, so it's the first time I'm playing around with a locked multi.
At 1.52V load (1.55V BIOS) and 4004 MHz, this 1055T system is pulling 420W. 247W idle. Talk about guzzling power... I'm thinking we may need to revise our 1.55V max for 45nm recommendation. That would be suicide for a budget board.
Define budget board.Quote:
Originally Posted by Particle
In this case, I'd be most worried about most boards with only four power phases and those without a heatsink on the MOSFETs. This same system only pulls about 175W idle in a lower vCore configuration, so ALL of that differential is being dumped as heat into the heatsink (minus 25ish percent lost in the PSU and CPU power regulators). We're talking somewhere over 200 watts for the CPU (all heat). This particular board even has vCore options in the BIOS all the way into the 1.8V range, so it is probably designed for a little abuse.
If anything, I'm most impressed with this Tuniq Tower 120 Extreme.
Maybe a non properly cooled VRM system or medium/low quality standard capacitors to power the processor...Quote:
Originally Posted by Polizei
The most common and low cost boards designed to support 95W processors ( being optimistic since I already have a Biostar AM2 board that recommended only 65W or lower processors ).
@Particle,
I'm very confused with the temperature reading from every software that I tried. All register 13-14ºC Idle but the environment ( ambient ) is 22ºC. Full load temps are 34-35ºC. That temps looks unrealistic to me. Any guess about this ? since the readings are directly from the core can I supose that the temperature curve ( or something like ) is changed ?
I nominate cpuz/hwmonitor for the standard on voltage(under full load) and cpu temp (not core temp)
On my Foxconn A79A-S that has 5 phases and the mosfets have a heatsink, I noticed running 4Ghz at 1.39V (1.42 under load), the caps and the ferrite cores were too hot to touch - measured at 62C which I think is not good long term.Quote:
Originally Posted by zhadoom
The board was reporting temps at 56C (core temp was reporting 52). With vcore set to default - 1.28v (1.31 under load) and multiplier to 19, I now have it running prime95 at 47C for the last 9 hours. Huge difference in temps.
I think overclocking Thubans by increasing vcore beyond 1.45v is something I would not attempt unless you have watercooling and the board has 8+2 phases capable of handling at least 140W with active cooling on the VRM.
I`m troubled about that readings. All softwares show the same.Quote:
Originally Posted by p4spooky

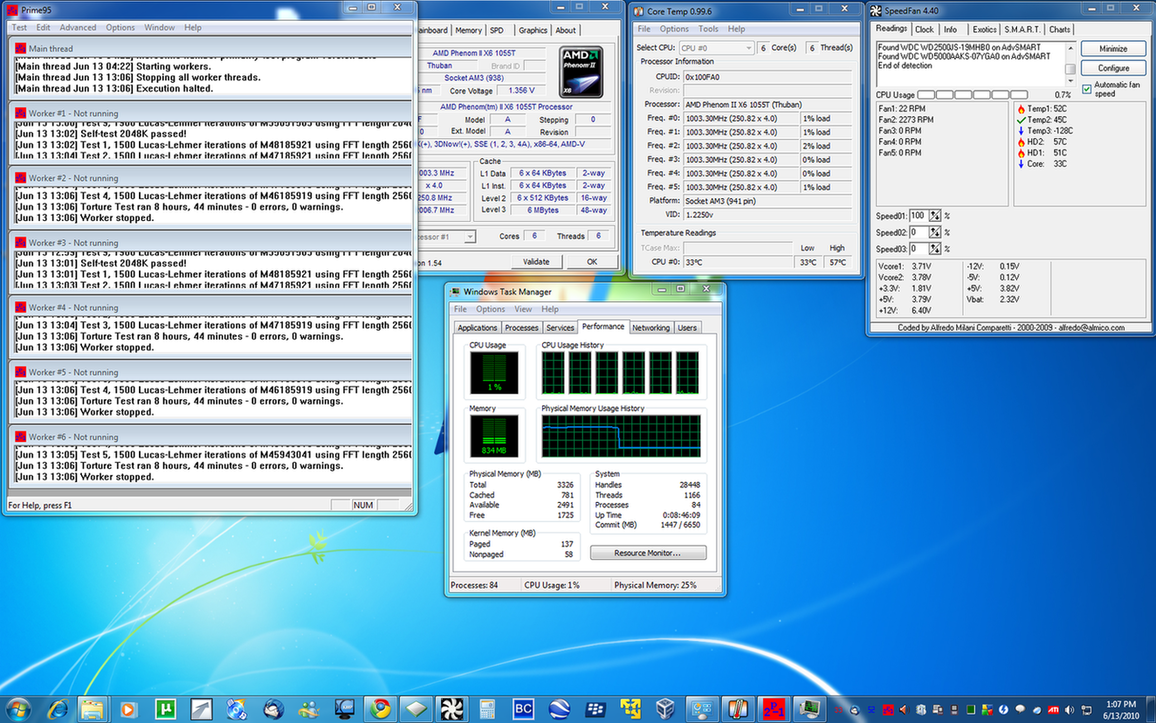

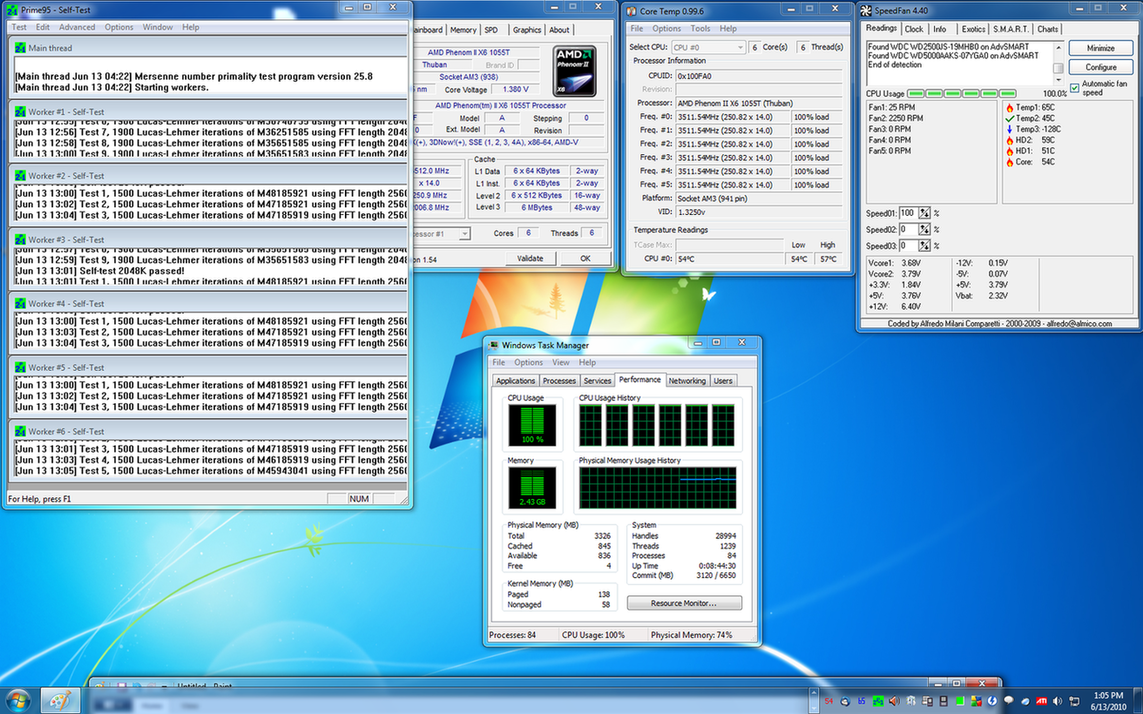

This snapshot is about 2 hours of x264 conversion.
Anyone knows the default VID for each p-state ?
Your results are fairly consistent with what we're all seeing. Nothing appears to be calibrated for Thuban's temperature probe yet. +10-20C for real temps are what we're guessing.Quote:
Originally Posted by zhadoom
I agree with this basicallyQuote:
Originally Posted by p4spooky
The x6 oc'ed is putting rather high demands on the pwm
I stick by cpuz/hwmonitor as my refrence of choice.
Any other temps/voltage readings I dismiss as invalid imo
Read somewhere to use temp monitor that came with the board.
Ran Bionic for 8 days at stock speeds but 100% on all cores using the stock X6 cooler. Outside air temp was in the mid 90s F most of the week and I don't know what the inside temp was because the thermostat only goes up to 90F but it was warm. Asus probe never budged from 48C. Only the cpu cooler fan speed varied from ~2500 rpm at night to 4800 rpm in the afternoon. Computer never blinked. 250mm fan above the board on Antec Skeleton case.
It is in air conditioned room now and OC to 4.0G/1.4v still with stock cooler and can game all night without hiccups.
I'm really happy with this 1090T.
Regarding temperature readings: as said earlier the CPU temperature is about 10-15C higher then core temperatures. (At full load)
To get the CPU temperature -
1. New version of CPUID Hardware Monitor (1.16)
2. Use software provided by motherboard manufacturer (example: Asus PC Probe II)
3. Try AMD Overdrive -> Status Monitor -> Board Status
4. Other software? Usually TMPIN0 (May differ between motherboard manufactures?)
I hope for BullDozer AMD just disables reading core temps all together, if not then they really need to include the max core temp ratings in their CPU specs and give programmers the correct code (formula) for reading them.Quote:
Originally Posted by nex_73
Both of my AMDs core temps are laughable,.. both on air coolers and core temps are 2+C lower then room temp at idle. :rofl:
Oh, I see. My MSI 890GXM-G65 only has four phases, but the heatsink over the MOSFETs has a "140W Ready" sticker. Budget? It's probably budget because it's a 890GX board but I don't know. :shrug:Quote:
Originally Posted by Particle
It's not to say four phase boards cannot do it reliably, but it's going to be a lot less common than say a typical six or eight phase board. Everyone exceeds design specs at their own risk.
isn't this suppost to be 1090TQuote:
Originally Posted by slaveondope
CPU Model: AMD Phenom II X6 1055T
CPU Stepping: CCBBE CB 1011BPMW
CPU Frequency: 3710 MHz
CPU vCore: 1.48V
CPU Multiplier: 14x
CPU Turbo: Disabled
CPU NB Speed: 2120 MHz
HT Ref Speed: 265
RAM Speed: DDR3-1413
RAM Timings: 9-9-9-24-1T
RAM Configuration: 2 x 2GB
RAM vDIMM: 1.62v
Motherboard: MSI 790FX-GD70
Chipset/Socket: 790FX + SB750, AM3
Bios Version: 1.12 (1.C)
Cooling: TRUE 120 Push Pull
Temps:22C idle 42C load
Operating System: Windows 7 Professional
32/64-Bit: 64
Stable/Suicide/Untested: Unstable
Folding@Home: Failed EUEs
Prime 95: Untested
OCCT Burn: Passed 1hr Burn
OCCT Linpaq: Untested
Overdrive: Failed Calculation error
CineBench 11.5: Passed 6.28pts
CineBench 10: Passed 1X - CB 4280; 6X - CB 20391; Multi speed up - 4.76x
HyperPi: Passed 1M, 8M, 32M Time ~40min
Intel Burn: Untested
wPrime: Untested
Vantage Score: Passed P17970 http://service.futuremark.com/compare?3dmv=2194745
Verdict: Unstable Froze right after completion of OCCT.
Yep your right its a 1090TQuote:
Originally Posted by kms108
Edited earlier post
http://img692.imageshack.us/img692/9...sstable.th.png
4.1ghz 9 hours stable... this is as far as i think it will go until i have to push it to 1.6v and i dont want to do that, its weird though, only 7.7 in windows cpu score, what is a 7.9??? and who has a stable 24hour system like that??
btw its a CCBBE CB 1011MPMW
CPU Model: AMD Phenom II X6 1090T
CPU Stepping: CCBBE CB 1015DPMW
CPU Frequency: 4300MHz
CPU vCore: 1.478V
CPU Multiplier: 20.5x
CPU Turbo: Disabled
CPU NB Speed: 2726 MHz
HT Ref Speed: 209.8
RAM Speed: DDR3-1398 MHz
RAM Timings: 9-9-9-24-1T
RAM Configuration: 2 x 2GB
RAM vDIMM: 1.55v
Motherboard: ASUS Crosshair IV Formula 0707
Chipset/Socket: 890FX + SB850, AM3
Bios Version: 0707
Cooling: aircooling Xigmateg 1283 DK
Temps:20C idle 45C load (coretemp)
Operating System: Windows XP Professional SP3
32/64-Bit: 32
stable: LInX about 20 minutes
stable for hard benchmarks: max to 4370 MHz
stable for easy benchmarks: max to 4600 MHz:up:
validation: 1.55V 4800 MHz
http://valid.canardpc.com/cache/screenshot/1192367.png
http://valid.canardpc.com/cache/banner/1192367.png
next: testing Win7 64-bit stability
for those of you using an H50, did you replace the thermal paste that comes on it? i accidentally bought some mx-3 thinking i would need it. should i leave whatever is on there or replace it?
replace it
CPU Model: AMD Phenom II X6 1090T
CPU Stepping: CCBBE CB 1010BOMW
CPU Frequency: 4,050MHz
CPU vCore: 1.4625V
CPU Multiplier: 19.5x
CPU Turbo: Disabled
CPU NB Speed: 3,105 Mhz
HT Ref Speed: 207.7Mh1z
RAM Speed: DDR3-1,656 MHz
RAM Timings: 7-7-7-21-1T
RAM Configuration: 4 x 2GB
RAM vDIMM: 1.60v
Motherboard: ASUS Crosshair IV Formula
Chipset/Socket: 890FX + SB850, AM3
Bios Version: 0801
Cooling: Water cooling EK-Supreme HF - Acetal
Temps: 49C load (Everest) Ambient 23C
Operating System: Windows 7
32/64-Bit: 64
stable: 1Hr Prime Blend
Stability:-
Click Picture to enlarge
http://www.images.clunk.org.uk/revie...@8-primev1.png
For full benches and bios settings: 4050Mhz 207Mhz. x19.5 RAM 1,660 7-7-7-21
apparently the H50 comes with Shin Etsu paste already applied and most people are telling me i shouldn't replace it?
Hey Particle thanks for adding the unstable classification. Is the FSB system on the MOBO? If so then mine is weak.
Here's my thuban:
* CPU Model: AMD Phenom II X6 1090T BE
* CPU Stepping: CCBBE CB 1011APMW
* CPU Frequency: 4000 MHz
* CPU vCore: 1.504V
* CPU Multiplier: 20x
* CPU Turbo: Disabled
* CPU NB Speed: 3000 MHz
* HT Ref Speed: 200 MHz
* RAM Speed: DDR3-1333
* RAM Timings: 6-6-6-19-1T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.85V
* Motherboard: GA-MA790XT-UD4P
* Chipset/Socket: AM3, 790FX + SB750
* Cooling: watercooling
* Temps: 29C Idle / 45C Load
* Operating System: Vista Home Basic
* 32/64-Bit: 32
* Stable/Suicide/Untested: Stable
Volts are a bit high but for now that's all i could come up with given time constraints (work is killing me these days :().
Stability test and other info in the pic (click to enlarge):
http://img685.imageshack.us/img685/4...cpu3knb.th.jpg
More to come in this weekend :yepp:
Some aircooled testing with Thuban X6 1090T 1010MPMW. 26c ambient temp and cooled by Noctua NH-D14.
CPU-Z show's voltage wrong, perhaps cause LLC? Used 1.525v for all of those.
wPrime1024
http://i882.photobucket.com/albums/a...g?t=1274480587
wPrime32
http://i882.photobucket.com/albums/a...g?t=1274480589
Vantage
http://i882.photobucket.com/albums/a...g?t=1274480590
Cinebench R10
http://i882.photobucket.com/albums/a...g?t=1274480593
More testing tonight!
Hey. I was building plateroof for my mom all day so it's nice to relax, take couple beer and
bench some! I didnt have inspiration for 3DMark06 last night so i tried it now. Today was
little colder day than yesterday, thermometer showing 24c in my room, noctua cooling.
3DMark06 full test
http://i882.photobucket.com/albums/a...g?t=1274559037
3DMark06 CPU-test, system gave me bsod when i runned full test.. NB too high perhaps?
http://i882.photobucket.com/albums/a...g?t=1274559082
so whats the best way to find the most accurate temps? and anyone with H50, how tight did you screw down the bracket on?
Hello all! :)
It was time to test mine 1010 Batch thuban first time with about 10-12L LN2. Chip isnt maxed out yet cuz used pretty much time for getting HD5870 run with LN2 and then came condensation and it was just a waste of time :/ I was pretty proud of this cpu because it did over 4650MHz spi 1M with air coolin ;)
Setup:
1090T Batch 1010
Crosshair IV Formula
2x1 and 2x2gb kingston
GTX470
HX1000
So here is some 2D results and 3D with GTX470 on stock cooling:
http://hwbot.org/community/submissio...t_be_17.61_sec
http://hwbot.org/community/submissio...be_10sec_609ms
http://hwbot.org/community/submissio...70_42265_marks
http://hwbot.org/community/submissio...70_30811_marks
GTX470 is with default clocks so 3D scores isnt so good, 06mark cpu score is pretty good tough :) I will add some pics of the setup when i get those on my pc!
Very nice clocks on LN2 there, SeMbEr. That tears it...I need to get a 1090. They seem much better behaved, which is unusual.
I request this thread be stickied.
* CPU Model: AMD Phenom II X6 1090T BE
* CPU Stepping: CCBBE CB 1016DPMW
* CPU Frequency: 3510 MHz
* CPU vCore: 1.35V
* CPU Multiplier: 14x
* CPU Turbo: Disabled
* CPU NB Speed: 2000 MHz
* HT Ref Speed: 250 MHz
* RAM Speed: DDR3-1333
* RAM Timings: 9-9-9-24-2T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.4V
* Motherboard: ASUS M4A89GTD PRO
* Chipset/Socket: AM3, 890GX + SB850
* Cooling: Stock
* Temps: 45C Idle / 64C Load
* Operating System: Windows 7
* 32/64-Bit: 32
* Stable/Suicide/Untested: Stable
You're on the charts now, but you'll need a stability run of eight hours to constitute eligibility for a "Stable" classification.
i knew that and done, do i need to provide a screen shot?!, it was done before the post, and i re-adjusted the vcore to 1.35v from 1.375v btw if u can edit that
Yes, you will need to provide a screen shot of the run.
Ran same setting under stock voltage. tested by 72hour Folding@Home Torture. CPU Voltage 1.36v.Quote:
Originally Posted by =SOC= Admiral
Verdict: This thing ain't crashing.
The culprit of my CPUs low overclocking potential is none other than the Motherboard having a weak fsb.
* CPU Model: AMD Phenom II X6 1090T BE
* CPU Stepping: CCBBE CB 1011MPMW
* CPU Frequency: 4119 MHz
* CPU vCore: 1.500V
* CPU Multiplier: 20.5x
* CPU Turbo: Disabled
* CPU NB Speed: 2612 MHz
* HT Ref Speed: 200 MHz
* RAM Speed: DDR3-1600
* RAM Timings: 7-7-7-15-1T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.65V
* Motherboard: Gigabyte GA-890FXA-UD5
* Chipset/Socket: AM3, 890FX + SB850
* Cooling: Air (XIGMATEK 1284 w Ultra Kaze fan)
* Temps: 25C Idle / 48C Load
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Stable 9+ hours well it was stable Im investigating.... getting BSOD's
http://img692.imageshack.us/img692/9...oursstable.png
A gentle overclock for these hot days. I think i'm gonna have to remount the mugen, check for concavity of the ihs/base.
* CPU Model: AMD Phenom II X6 1055T
* CPU Stepping: CCBBE CB 1014GPMW
* CPU Frequency: 3612 MHz
* CPU vCore: 1.3625v bios, 1.408v load cpu-z
* CPU Multiplier: 14x
* CPU Turbo: Disabled
* CPU NB Speed: 2580 MHz
* HT Ref Speed: 258 MHz
* RAM Speed: DDR3-1376
* RAM Timings: 6-6-6-18-24-2T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.687 V bios
* Motherboard: ASRock 880G Extreme3
* Chipset/Socket: AM3, 880G + SB850
* Cooling: Air (Scythe Mugen 2 w/ 1850rpm Gentle Typhoons push/pull)
* Temps: 28C Idle / 49C Load (hwmonitor CPUTIN)
* Operating System: Windows 7 Pro
* 32/64-Bit: 64
* Stable/Suicide/Untested: Stable 8+ hours P95(x64) blend
Screen
http://www.aww-kittah-aww.com/up/fil...d_8hstable.jpg
* CPU Model: AMD Phenom II X6 1090T
* CPU Stepping: CCBBE CB 1015BPBW
* CPU Frequency: 4000 MHz
* CPU vCore: 1.375V
* CPU Multiplier: 20x
* CPU Turbo: Disabled
* CPU NB Speed: Auto (200x12=2400 MHz)
* HT Bus Speed: Auto (200x11=2200 MHz)
* HT Link Speed: Auto (200 MHz)
* RAM Brand and Model: Aeneon DDR2-667
* RAM Speed: DDR2-800
* RAM Timings: 5-5-5-18-2T
* RAM Configuration: 2x2 GB
* RAM vDIMM: 2.00V
* Motherboard: Gigabyte 785GM-US2H (Rev 1.1)
* Chipset/Socket: 785G + SB710, AM2+
* Cooling: Scythe Infinity + 38mm fan (2000RPM)
* Temps: 22C Idle / 46C Load
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Stable
Running
http://img684.imageshack.us/img684/5038/linpack50a.jpg
Ending
http://img534.imageshack.us/img534/6464/linpack50b.jpg
Results
http://img19.imageshack.us/img19/6464/linpack50b.jpg
Remember folks that I'll need a screenshot of 8+ hours before you'll be marked stable. It's not that we don't trust you here, but we do need our results to be outwardly verifiable.
* CPU Model: AMD Phenom II X6 1055T
* CPU Stepping: Under Cpu
* CPU Frequency: 4073 MHz
* CPU vCore: 1.55V (LLC 1,598)
* CPU Multiplier: 14x
* CPU Turbo: Disabled
* CPU NB Speed: 2327 MHz
* HT Ref Speed: 291 MHz
* RAM Speed: DDR3-1550
* RAM Timings: 9-9-9-24-27-1T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.9V
* Motherboard: ASUS M4A89GTD Pro
* Chipset/Socket: AM3, 890FX + SB850
* Cooling: Air (Zalman CNPS9700, 3x120mm, 1x92mm)
* Temps: 21C Idle / 69C Load (HandBrake 6h, 224 fps/s)
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Stable
Note
- core0 - 14x291
- core1 - 14x291
- core2 - 14x291
- core3 - 14x291
- core4 - 13,5x291
- core5 - 12x291:mad:
I have to push vCore so high, cause core5 is so weak. vDIMM is maybe too high.
http://i6.aijaa.com/t/00450/6261067.t.jpg
Hey. I'm new. Just got my 1090T up and running, and did some quick overclocking. I'll be back once I get time to 'fine tune' some more. :)
* CPU Model: AMD Phenom II X6 1090T BE
* CPU Stepping: CCBBE CB 1010MPMW
* CPU Frequency: 4000 MHz
* CPU vCore: 1.425V
* CPU Multiplier: 20x
* CPU Turbo: Disabled
* CPU NB Speed: 2000 MHz
* HT Ref Speed: 200 MHz
* RAM Speed: DDR3-1600
* RAM Timings: 8-8-8-24-2T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.65V
* Motherboard: ASUS Crosshair IV Formula
* Chipset/Socket: AM3, 790FX + SB750
* Cooling: H2O Corsair H50 Push\Pull
* Temps: 30C Idle / 66C Load
* Operating System: Windows 7 Ultimate
* 32/64-Bit: 64
* Stable/Suicide/Untested: Stable
Attachment 104888
I've been pretty much able to get my 1055T stable at 3850mhz. I'm just not sure if my temps are unusually high.
Running prime on small FFT I get the following temps at stock speed / stock voltage. Is TMPIN0 the temp of my cpu or is TMPIN1 or TMPIN2? Do these temps seem about right at stock speed/voltage? I'm using Cooler Master Hyper 212 Plus CPU Cooler. I installed w/ Artic Silver 5 compound, but had to twist the cooler after setting down b/c initially set down facing the wrong direction (oops). I didn't lift it off the cpu at all, i just twisted it to the correct position. I'm wondering if that could affect my installation. I also noticed there was a tiny section on the side of the cpu that wasn't fully covered by the heatsink, although I didn't see any other way that it would have locked in (I don't think I didn't anything wrong on that front).
Thanks in advance for any response / advice.
http://img16.imageshack.us/img16/728/stockq.jpg
First run. I didn't try lower voltages or memory timings.
* CPU Model: AMD Phenom II X6 1055T BE
* CPU Stepping: CCBBE CB 1012APMW
* CPU Frequency: 4004 MHz
* CPU vCore: 1.475V BIOS / 1.488V CPUz
* CPU Multiplier: 14x
* CPU Turbo: Disabled
* CPU NB Speed: 2860 MHz
* HT Ref Speed: 286 MHz
* RAM Speed: DDR3-1525
* RAM Timings: 7-8-7-24-1T
* RAM Configuration: 4 GB (2 x 2 GB) GSkill ECO
* RAM vDIMM: 1.50V
* Motherboard: Gigabyte GA-890GPA-UD3H Rev1
* Chipset/Socket: AM3, 890GX + SB850
* Cooling: Thermalright Ultra 120 Extreme + NMB 120x38
* Temps: 28C Idle / 52C Load
* Operating System: Windows 7 Ultimate
* 32/64-Bit: 32
* Stable/Suicide/Untested: Untested (1Hs. Prime Blend and 1Hs. OCCT Linpack stable)
http://img687.imageshack.us/img687/7585/thuban4.th.png
http://img.photobucket.com/albums/v6...6/f0f705fb.jpg
CPU Model: AMD Phenom II X6 1055T
CPU Stepping: CCBBE CB 1015DPAW
CPU Frequency: 3800/4200 MHz
CPU vCore: 1.400V
CPU Multiplier: 14x / 15.5 Turbo
CPU Turbo: Enabled
CPU NB Speed: 2176 MHz
HT Ref Speed: 272 MHz
RAM Speed: DDR3-1450
RAM Timings: 9-9-9-24-2T
RAM Configuration: 8 GB (4 x 2 GB)
RAM vDIMM: 1.71V
Motherboard:MSI 890GXM-G65
Chipset/Socket: AM3, 890GX + SB850
Cooling: H50 w/ 25mm spacer and 38x120mm fan
Temps: 23C Idle / 47C Load
Operating System: Windows 7
32/64-Bit: 64
Stable/Suicide/Untested: Untested (see below)
5 Runs Linx may not be Extreme but it's stable as far as I'm concerned
This varies from motherboard to motherboard what order they are in. If the manufacturer has their own monitoring program you can run that and figure out what matches with what in HWMonitor.Quote:
Originally Posted by coolade
Just picked up a 1055T and a Crosshair iv and have hit a wall at 258mhz bus speed :(
Very stable at these settings but cannot get the board to boot over about 260, just bluescreens on login. Have dropped the multi and it still does it. I doubt its the IV, maybe a duff cpu? All voltages are auto though ive played with upping the ones to do with cpu and nb and nothing changes :confused: llc is enabled
Any help be welcome
CPU Model: AMD Phenom II X6 1055T
CPU Stepping: Will check
CPU Frequency: 3624MHz
CPU vCore: 1.40V
CPU Multiplier: 14x
CPU Turbo: Disabled
CPU NB Speed: 2071 Mhz
HT Ref Speed: 258.9Mhz
RAM Speed: DDR3-1380MHz
RAM Timings: 9-9-9-25-2T
RAM Configuration: 6 x 2GB
RAM vDIMM: 1.60v
Motherboard: ASUS Crosshair IV Formula
Chipset/Socket: 890FX + SB850, AM3
Bios Version: 0801
Cooling: Xigmatech 1283
Temps: 57C load
Operating System: Windows 7
32/64-Bit: 64
stable: 7 hours linx (testing)
Why don't you try using the Turbo multipliers? Maybe 250*16
when i set it in bios or the clocking utility it doesnt change from multi 14 :confused:
One or two weak core? You have to test each core one by one, then you find which one (or two) weakest. Pull down multi for them.Quote:
Originally Posted by mrbungle
Y mait
bsod are more like ram problems, try to replace the memory
ram perfect in a i7 system :(
will try mem test and see what comes of it
what bios are you using?
used 5 and 8
1. reason I'm using cool & quit nowQuote:
Originally Posted by Particle
2. how did you take out the gpu wattage I have no idea which one you used here? lol
Hi y'all
My first attempt at an OC so be gentle ! :p
water cooled rig i just built for the 1090T .. having a blast and got to 4.0 ghz tonite .. well impressed
* CPU Model: AMD Phenom II X6 1090T BE
* CPU Stepping: CCBBE CB 1013CPMW
* CPU Frequency: 4000 MHz
* CPU vCore: 1.425V
* CPU Multiplier: 20x
* CPU Turbo: Disabled
* CPU NB Speed: 2400 MHz
* HT Ref Speed: 200 MHz
* RAM Speed: DDR3-1600
* RAM Timings: 6-6-6-20-2T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.65V
* Motherboard: GIGABYTE GA890FXA-UD7
* Chipset/Socket: AM3, 890FX + SB850
* Cooling: WATER
* Temps: 31C Idle / 44C Load
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Untested
only tested a couple of hours in OCCT not the full 8 yet .. so untested

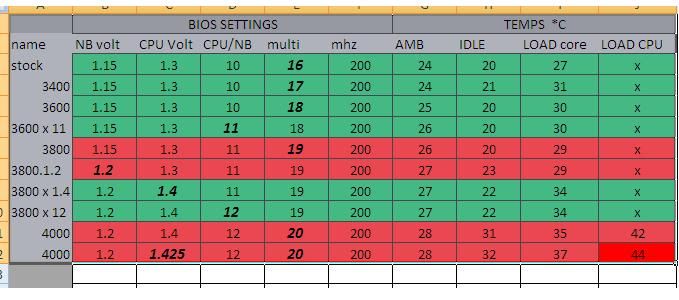

http://i870.photobucket.com/albums/a...mp/tableoc.jpg
quick question .. I can obviously push the CPU and other parts Much further
but for 24/7 use BOINCing and Gaming ... where's a good safe place to stop the OC ? can it handle 4.5ghz 24/7 ?? :shrug:
thanks
OCD
- CPU Model: AMD Phenom II X6 1055T
- CPU Stepping: CCBBE CB 1014GPMW
- CPU Frequency: 3795 MHz
- CPU vCore: 1.36V
- CPU Multiplier: 13.5x
- CPU Turbo: Disabled
- CPU NB Speed: 2810 MHz
- HT Ref Speed: 281 MHz
- RAM Speed: DDR3-1874
- RAM Timings: 8-9-8-24-1T
- RAM Configuration: 2 x 2GB
- RAM vDIMM: 1.71V
- Motherboard: ASUS Crosshair IV Formula
- Chipset/Socket: 890FX + SB850, AM3
- Cooling: Water (Heatkiller 3.0)
- Temps: 27C Idle / 41C Load
- Operating System: Windows 7
- 32/64-Bit: 64
- Stable/Suicide/Untested: Unstable (?) (only ~1hr LinX)
http://www.abload.de/thumb/3800-linx-1uhck.png http://www.abload.de/thumb/3800-linx-2vfnq.png
Hi! I browse these forums often, but never post.
Heres my OC.
* CPU Stepping: CCBBE CB 1010BPMW
* CPU Frequency: 3807 MHz
* CPU vCore: 1.360V (1.35v BIOS)
* CPU Multiplier: 13.5x
* CPU Turbo: Disabled
* CPU NB Speed: 2820 MHz
* HT Ref Speed: 282 MHz
* RAM Speed: DDR3-1504
* RAM Timings: 6-8-6-24-2T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.65V
* Motherboard: Gigabyte GA-890GPA-UD3H (Rev 2)
* Chipset/Socket: AM3, 890GX + SB850
* Cooling: Air (Megahalems)
* Temps: ~22C Idle / 38C Load (HWMon)
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Stable 13 hours Prime95 Blend
http://img7.imageshack.us/img7/3589/105538blend.th.png
http://img7.imageshack.us/img7/3589/105538blend.png
Got it 8 hour small FFT stable at 4.0Ghz/1.488v.
Did a 3dMark06 suicide run at 4.3/1.616v NB @ 2762. Almost passed it at 4.4 with the same volts.
Is this a new CPU or a new result for your existing 1055T entry?Quote:
Originally Posted by Chri$ch
nice Yogi, low voltage sipper.
Use the Blend test to stress the CPU-NB as well.Quote:
Originally Posted by Yogi965
___________________________________________
Here are my results so far:
* CPU Model: AMD Phenom II X6 1090T BE
* CPU Stepping: CCBBE CB 1008DPMW
* CPU Frequency: 4100 MHz
* CPU vCore: 1.512V
* CPU Multiplier: 20.5x
* CPU Turbo: Disabled
* CPU NB Speed: 2800 MHz
* HT Ref Speed: 200 MHz
* RAM Speed: DDR3-1600
* RAM Timings: 7-7-7-18-1T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.67V
* Motherboard: Biostar TA890FXE
* Chipset/Socket: AM3, 890FX + SB850
* Cooling: Water (Heatkiller 3.0)
* Temps: 26C Idle / 49C Load
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Stable
* CPU Model: AMD Phenom II X6 1090T BE
* CPU Stepping: CCBBE CB 1013CPMW
* CPU Frequency: 4000 MHz
* CPU vCore: 1.425V
* CPU Multiplier: 16x
* CPU Turbo: Disabled
* CPU NB Speed: 2750 MHz
* HT Ref Speed: 250 MHz
* RAM Speed: DDR3-1333
* RAM Timings: 6-6-6-18 1T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.85V
* Motherboard: Gigabyte MA790FXT-UD5P
* Chipset/Socket: AM3, 790FX + SB750
* Cooling: H20 (HK3)
* Temps: 25C Idle / 43C Load
* Operating System: Server 2008 R2
* 32/64-Bit: 64
* Stable/Suicide/Untested: 4.3Ghz clean boot
http://i121.photobucket.com/albums/o...-6-6-18-27.png
My observation is I can have either 1600 ram+2400NB or 1333 ram+3000NB.
I thought initially the chip was somehow faulty or a ram incompatibility (Mushkin 996601). Not sure how to make a decision. I like games, and even then, the better choice would probably depend on the game itself.
Sals, definately go w/ higher NB :)
also DedEmbryonicCe1, do your mainboard sensors not work correctly? i was thinking you might want to check the contact the heatsinks are making on the mobo since the temps seem kinda high
I also found that to be an issue. I can overclock my RAM to DDR1704 with the stock timings and voltage but only when my CPU&CPU-NB overclock is lighter. When I tried combining everything together I found that the same voltages were not stable anymore and I couldn't get my RAM to pass Memtest in Windows. That's why I'm still using the multipliers and not the HT reference clock.
I don't know if that one reading is accurate or not. The only part of the board I found to get particularly hot were some of the mosfets for the RAM slots so I put heatsinks on those. I have a 120mm fan blowing over the RAM slots and another over the mosfet heatsink. The mosfet heatsink was only "warm" to the touch during Prime95.

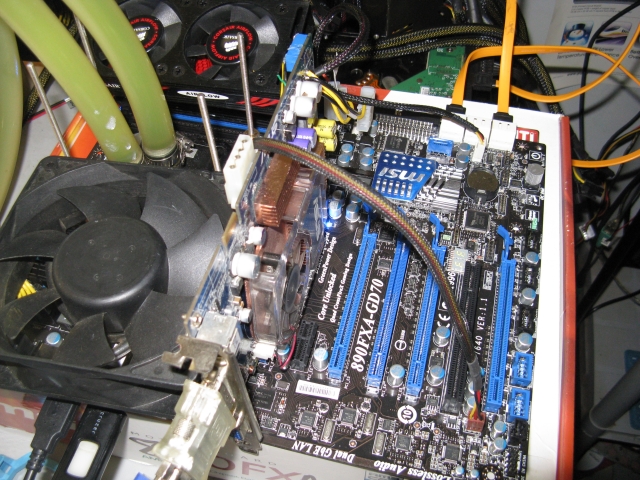

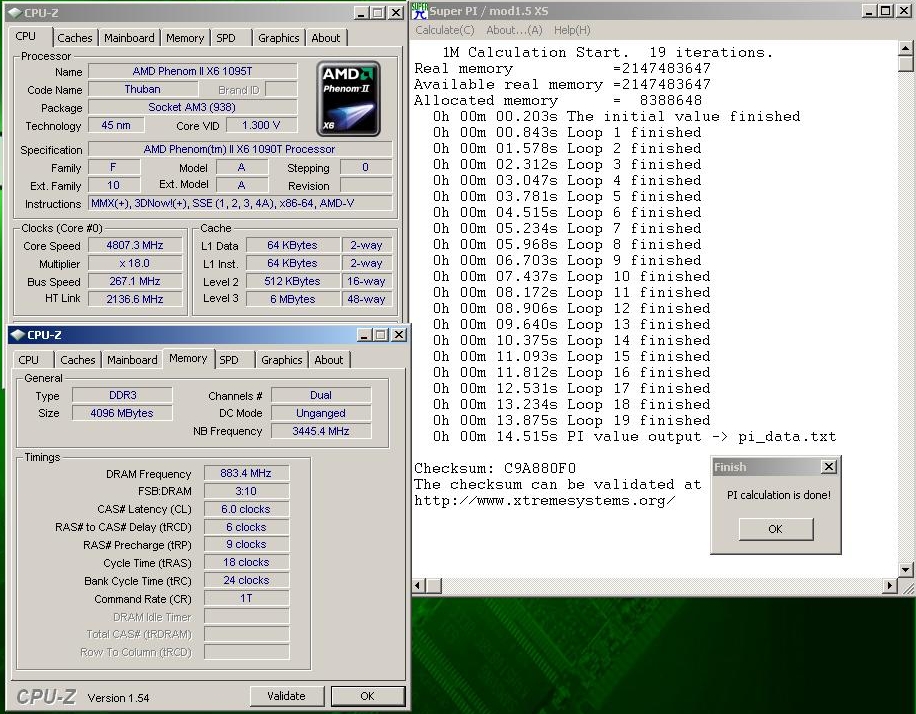

Here's one for the unstable charts on air.

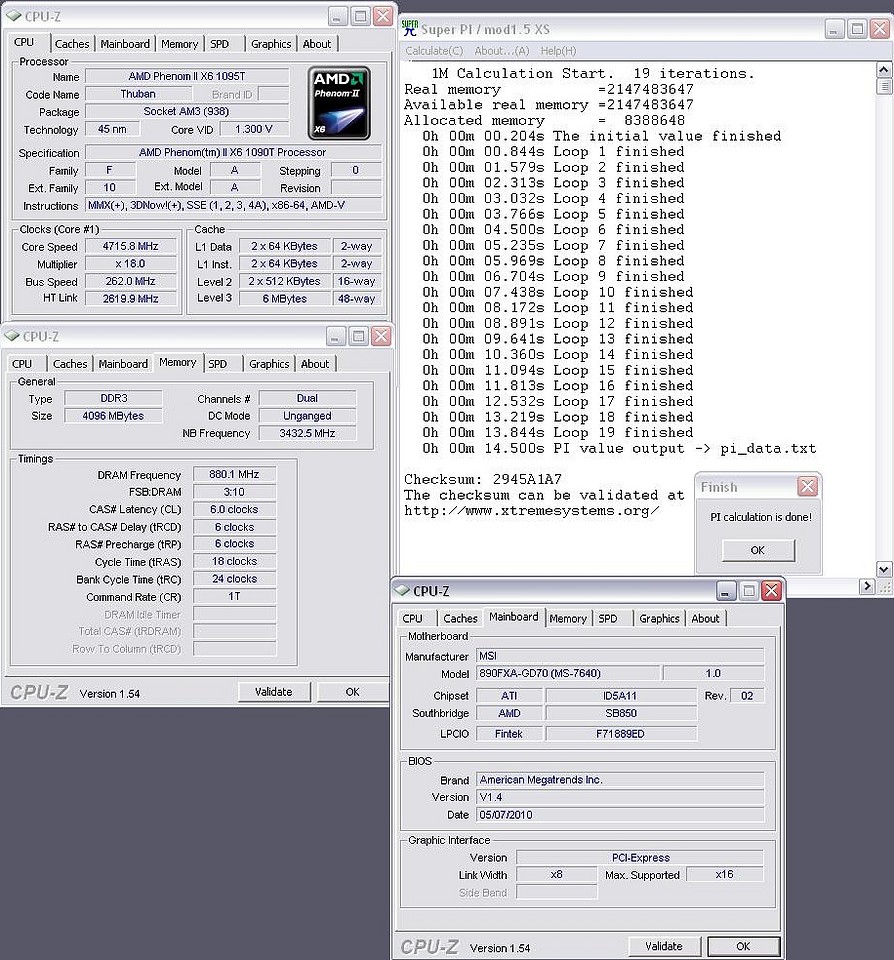

http://chew.ln2cooling.com/qdig-file...g_1m%20msi.jpg

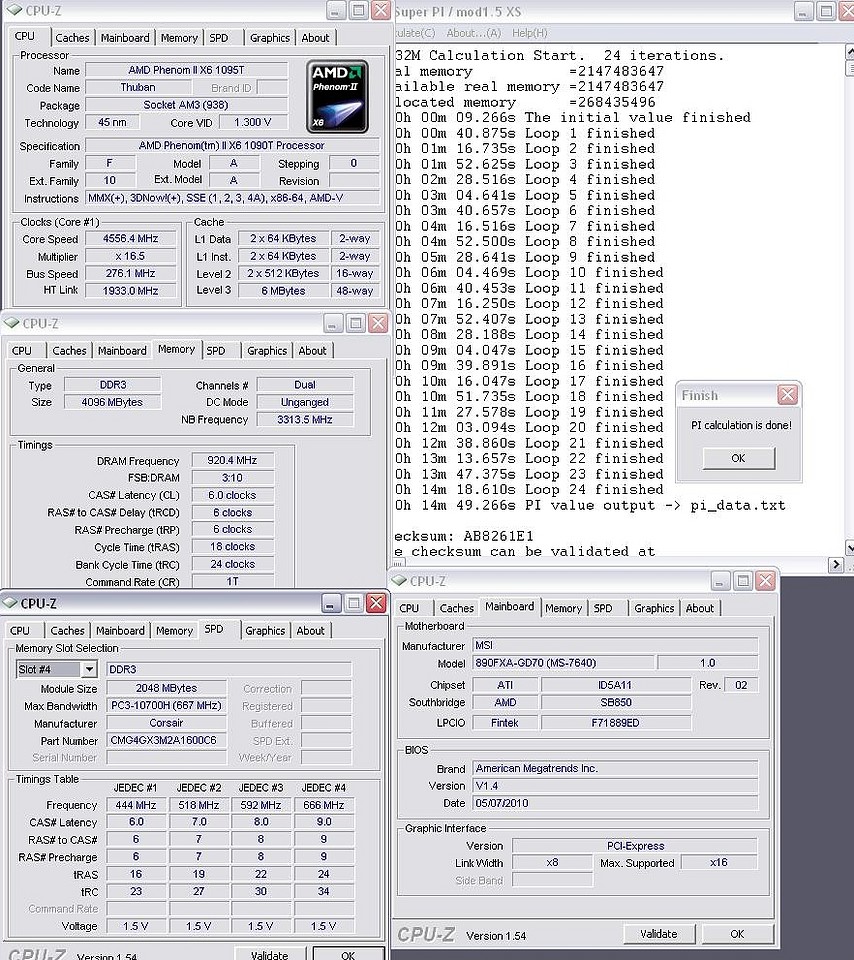

http://chew.ln2cooling.com/qdig-file..._32m%20msi.jpg
Thanks, pretty big gap for 3.8-4.0 stable though :/Quote:
Originally Posted by richierich
I know, I was just trying to get my CPU stable first. Im gunna wait till I get my water loop setup before I do some more OCs.Quote:
Originally Posted by DedEmbryonicCe1
chew, any big differences you have noted between mobos regarding cpu clocks? like do any of them clock the same chip much better than the others, or less volts, etc??
Look at the Stepping, its a new CPU :)Quote:
Originally Posted by Particle
Regards
Chris
What was ambient temp on those test's? How low ambient temp can be
considered as aircooling? Might put my pc in to the freezer.. not!:D
My pb sp1m with 25c ambients is 4,6GHz, but that's with 32bit vista, havent
had time to test this little thuban with xp yet..:shakes:
Got SF3D OC Inflection point LN2 pot last week so little more "extreme" testing soon!:up:
Quote:
Originally Posted by chew*
maybe hes using that big indoor AC unit he posted the other day:shrug:Quote:
Originally Posted by Asmola
The air coming out of my ac was 10c.........so itas possible with a bigger unit to get lower.
Chew is master, he has mostly the best AMD scores with Air/watter etc, if he want it :)
can i hav ethe stepping added to mine?
CCBBE CB 1013CPMW green PCB
Yep thats MSI for you at 72F.Quote:
Originally Posted by crazydiamond
Clocks cpu alot higher at the cost of clock per clock performance. ;) Single threaded to multi threaded speeds are a rather large gap.
Titan we have had this discussion before, assumption is the mother of all F ups.
Might want to check HW bot, I do own the fastest single core chip in Pi ;)
Be glad to go on water and then phase change to show you guys linear scaling.
While you may need an AC blowing on your system. I have the equipment actually designed to do cold properly so why bother. Makes alot more sense to bolt cold to cpu than blow it at it ;)
So while you do it out of necessity I don't bother. I use AC's for what they are meant for, keep room at 72F ;)
It's summer time that AC is doing what it's meant to do, keep my living room cool.
Quote:
Originally Posted by chew*
Wow, dont be so modest ....:clap:
converation is over not taking your bait ;)Quote:
Originally Posted by Titan7171
good choice.Quote:
Originally Posted by chew*
sorry for the late screen shots, but better late than never i guess.
idle:
http://i53.photobucket.com/albums/g6...cking_IDLE.png
load:
http://i53.photobucket.com/albums/g6...cking_LOAD.png
stable -.-
computer refuses to boot up @ anything above 3.75Ghz, some friend told me that my psu is holding me back overclocking a 6-core processor, it's a 650w coolermaster psu, shouldn't that be enough to reach 4.0Ghz?!
I have a HX 520W running +4.15GHz so no problem there.Quote:
Originally Posted by DeMagH
It depends on what GPU(s) and other hw you have?
You really should look over your temperatures!
(Speedfan Temp1 is your CPU temperature, you shouldn't go after Core Temp as there is a difference in core and cpu temp)
65C is a bit high, you don't want to go over 62C...
The gpu is an HD 4670 @ stock. not a big deal i guess.
well its hot nowadays in egypt "where i live" and i don't usually do stressful operations on the cpu, but it is a good note as i figured out my temps are a bit higher than most, using freezer pro 7 rev.2, might want to recheck the HS base some other time later.
also, what temps should i stick to?! core temp reporting 57c as u can see in the LOAD screen shot while speedfan is @ 65
Well a 4670 could not stress the PSU more then my GF 9600GT :)
57C is your CORE temp and 65C is your CPU temp
It's the CPU temp you should go after (stick to) - not getting over 62C
I got a new one
* CPU Stepping: CCBBE CB 1010BPMW
* CPU Frequency: 4004 MHz
* CPU vCore: 1.424V (1.44 load)
* CPU Multiplier: 14x
* CPU Turbo: Disabled
* CPU NB Speed: 2860 MHz
* HT Ref Speed: 286 MHz
* RAM Speed: DDR3-1525
* RAM Timings: 6-8-6-24-2T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.65V
* Motherboard: Gigabyte GA-890GPA-UD3H (Rev 2)
* Chipset/Socket: AM3, 890GX + SB850
* Cooling: Air (Megahalems)
* Temps: ~22C Idle / 43C Load (HWMon)
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Stable 10 hours Prime95 Blend
http://img204.imageshack.us/img204/7...540test.th.png
http://img204.imageshack.us/img204/7861/105540test.png
Got my 1090t setup running only a couple days ago. At 4.2 with 1.42v so far, still working things out. Loving the 1090t so far though, great for $299.
http://img.techpowerup.org/100616/Capture013.jpg
4.2GHz, 1.38v idle, 1.42v load.
* CPU Stepping: ----
* CPU Frequency: 4200 MHz
* CPU vCore: 1.38v (1.42v load)
* CPU Multiplier: 21x
* CPU Turbo: Disabled
* CPU NB Speed: [testing]
* HT Ref Speed: 200 MHz
* RAM Speed: DDR3-1600
* RAM Timings: [testing]
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.68V
* Motherboard: MSI 890FXA-GD70
* Chipset/Socket: AM3, 890GX + SB850
* Cooling: Water - Apogee XT
* Temps: 18C Idle / 35C Load (HWMon)
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Untested, 5 runs of ITB
I'll get your guys' new entries when I'm back in town Friday.
This thread should be stickied ?
why is not.
+1 for sticky
I agree demonkevy666
I hope they finally do so :D
+1 for sticky
And maybe a "standard" for cpu temp/voltage readings... ?
HWiNFO32 is good and should manage to get the readings of most boards...
Updated the charts with all known-outstanding submissions. PM me if I've missed you.
Regarding stickying this topic, someone just needs to message a moderator like MovieMan and they'll do it. I don't want to do it myself since it would just seem that I'm trying to serve my own purposes although I agree.
+1 for sticky as well >> do we really need to vote for this?! the thread speaks for itself, informative, organized .. etc.
The mods don't regularly cruise the AMD section for threads to sticky. They've said in the past to tell them if you want something stickied. That's how the original Phenom list of overclocks got to be so.
Water testing MSI now.
Still scaling speed. Imagine that :rolleyes:
http://chew.ln2cooling.com/MSI890FX/msiwater1m.jpg
http://chew.ln2cooling.com/MSI890FX/msi1mwaterpic.jpg
* CPU Model: AMD Phenom II X6 1055T
* CPU Stepping: Under Cpu cooler
* CPU Frequency: 4200 MHz
* CPU vCore: 1.5V (LLC 1,55)
* CPU Multiplier: 14x
* CPU Turbo: Disabled
* CPU NB Speed: 2400 MHz
* HT Ref Speed: 300 MHz
* RAM Speed: DDR3-1600
* RAM Timings: 9-9-9-24-27-1T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.7V
* Motherboard: ASUS M4A89GTD Pro
* Chipset/Socket: AM3, 890FX + SB850
* Cooling: Air (Noctua NH-D14)
* Temps: 17C Idle / 46C Load
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Stable/Untested (Prime 5h, large TTF)
Note: core5 is only multi 12,5
http://i9.aijaa.com/b/00274/6350699.jpg
chew* CPUZ Realy Show True Voltage? 1.3 With 4.8GHZ Vcore???? :D
maybe if hes on 32nm :p:Quote:
Originally Posted by ViViD
ok, i will wait for that...
* CPU Model: AMD Phenom II X6 1090T BE
* CPU Stepping: unknow, did not check
* CPU Frequency: 4202.4mhz
* CPU vCore: 1.480
* CPU Multiplier: 20.5x
* CPU Turbo: Disabled
* CPU NB Speed: 2664.9MHz
* HT Ref Speed: 205 MHz
* RAM Speed: DDR3-1366.6
* RAM Timings: 6-7-6-18-1T
* RAM Configuration: 4 GB (2 x 2 GB)
* RAM vDIMM: 1.85V
* Motherboard: MSI 790fx gd-70
* Chipset/Socket: AM3, 790FX + SB750
* Cooling: liquid, pa120.2, mcw 355/ek g3/8 top, dtek v2, mcw60v2
* Temps: 28C Idle / 42C Load, dynamic fan profile
* Operating System: Windows 7
* 32/64-Bit: 64
* Stable/Suicide/Untested: Untested, seams stable but i cannot waste power with 8 hours of occt in the summer, its stable for 45min
SS in the HWbot
http://hwbot.org/community/submissio...be_16sec_678ms
nah no where near that, roughly 1.55 IIRC, ambients havent changed and on a smallish rad 2x120 + dtek ( my high performance water setup is down atm ).Quote:
Originally Posted by ViViD
Tbh it makes almost no diff in single threaded ( 100 mhz ) and no gains at all for max cpu-z, need cold temps from my phase to see gains i guess.
Load apps is where i see the biggest diff.
