P5B Deluxe: BIOS screens for maximum overclocking success

Had my E6600 at 3 and 3.2 GHZ

Got Unknown Device Driver windows (crash and reboot) ??
Anyone have any idea what this is ?
Got my computer slowed back down and cooled off.
Have not got this error again.

Had it running Orthos all night at 3.2 GHZ.
Did not get any errors.
Core temp said it was running between 55 and 60 C
during Orthos.

Later after I had finished Orthos, it had cooled down to 45 C (idle).
This is when I started getting the errors ??

Let it cool off and went back to 2.4 GHZ. No more errors.

sounds like an issue with your windows install, did you reformat when you got the p5b?

Brand new machine (2 months old).
New windows load.
Unless there is something on here that is a problem.
Device Manager does not show any unknown devices.

Have not seen it before.

What is good temp for E6600 at idle and load ??
Don't have to have the fastest. Want good temp.

Thanks!

Quote:

---

Originally Posted by FullMoon

Brand new machine (2 months old).
New windows load.
Unless there is something on here that is a problem.
Device Manager does not show any unknown devices.

Have not seen it before.

What is good temp for E6600 at idle and load ??
Don't have to have the fastest. Want good temp.

Thanks!

---

overclock as high as you can! test by running 2 instances of orthos

good temps = high overclock

high overclock means add voltage

add voltage = higher temps



hmm? :stick:
I suggest buying a good cooler and you can have your cake and eat it too! :)

as far as good temp well thats in the eye of the beholder.
a good temp to me is -50c load

what cpu cooler do you have?

this is cheap and cools nicely
http://www.xtremesystems.org/forums/...d.php?t=125189

if you want more advice about cooling then I would go to the aircooling section first.
if you are using the stock cooler that came with your cpu it belongs in the garbage or use it as a paperweight.

I have something very similar to that.
Arctic Freezer 7 Pro

Maybe I need to work on the cooling in my Case.
The Temps you are talking about are nice.

Thanks!

Quote:

---

Originally Posted by FullMoon

I have something very similar to that.
Arctic Freezer 7 Pro

Maybe I need to work on the cooling in my Case.
The Temps you are talking about are nice.

Thanks!

---

did you mount with that stock thermal goop that came already on it or did u use arctic silver 5 or something similar? Also its good to have a good intake fan on the front of your case and a good exhaust fan. this creates a wind tunnel through the case and you will get better temps. also make sure the path is clear of cable clutter otherwise it's not going to be very effective. I'm sure you know this already but I just in case. good luck :)

sorry about off topic guys but he is new and needs our help.

Hi Guys,

I'm new to the overclocking scene and need some help on the BIOS settings.
I've followed cableguy's recommended settings save for all the power settings.
I intend to run my system @ 3.2gHz(400x8) daily.
Here are my system specs-

Intel Core 2 Duo E6400 (B2 Stepping) on a Scythe Infininity
Asus P5B-D Wifi/AP
GEIL DDR2-800 Ultra Dual Channel 4-4-4-12 (Should be D9s)
Antec P180B

I live in Singapore and the ambient temps are around 31 degrees celsius.
Temps at stock speed and voltage are around 55 degress celsius on orthos.

Can anyone give me a hand on the memory settings? There's a load of them.
Also, what voltages should I run the vcore,vfsb and vnb at?

I've managed to get 3.04gHz (380x8) on 1.3375vcore, is this ok?

Thanks for the help! Posts regarding BIOS settings fall into this thread right?

im kinda a noob at overclocking but i got a problem :p

i got the Asus P5B deluxe mobo with E6600 cpu
i got it stable at 3.6ghz 9x400 vcore at 1.5V

and i got the same setup in bios as FCG but i cant get it higher then this and my cpu is 37 degrees 40 when stressed.. so yeah i want it higher but if i put the FSB higher it just wont boot i got bios version 0804
anyone got some idea's what it could be? im trying to find info about it a long time but i cant find anyone else with that problem

(i got Thermaltake Symphony watercooling + Vulcano cpu cooler with 2 fans mounted on it)

and im new to XS so hi to everyone ^^

Quote:

---

Originally Posted by Kakulukia

You can see it on the box and on the cpu itself.

Still , the best overclocks are done by an E6300.

---

do you have any links to these 5GHZ+ E6300's?

Quote:

---

Originally Posted by X.T.R.E.M.E_ICE

do you have any links to these 5GHZ+ E6300's?

---

^^^^ cheap shot ^^^^^

Quote:

---

Originally Posted by Astor

im kinda a noob at overclocking but i got a problem :p

i got the Asus P5B deluxe mobo with E6600 cpu
i got it stable at 3.6ghz 9x400 vcore at 1.5V

and i got the same setup in bios as FCG but i cant get it higher then this and my cpu is 37 degrees 40 when stressed.. so yeah i want it higher but if i put the FSB higher it just wont boot i got bios version 0804
anyone got some idea's what it could be? im trying to find info about it a long time but i cant find anyone else with that problem

(i got Thermaltake Symphony watercooling + Vulcano cpu cooler with 2 fans mounted on it)

and im new to XS so hi to everyone ^^

---

1.5V for only 3.6ghz?? which week CPU do u have? I am at 1.3875V on the Vcore for 9x400 and my temp is about 37 idle and ~58 under load (that's on air)!! Have u changed your voltage on the Northbridge?

Quote:

---

Originally Posted by ericminou

1.5V for only 3.6ghz?? which week CPU do u have? I am at 1.3875V on the Vcore for 9x400 and my temp is about 37 idle and ~58 under load (that's on air)!! Have u changed your voltage on the Northbridge?

---

you know that not all cpus are the same?

Quote:

---

Originally Posted by X.T.R.E.M.E_ICE

do you have any links to these 5GHZ+ E6300's?

---

hehe, 5ghz isnt reached by an E6300, yet :cool: .

Can someone tell me how to set up my BIOS in order to run E6300 at 400fsb?
What settings should i set for vcore, nb vore,sb vcore, fsb termination voltage and for vanderpool tehnology, c1e support, cpu tm function and peci?

When i set all to auto the cpu vcore goes to 1.5 which i think for 2.8ghz is large value.

Quote:

---

Originally Posted by Millyons

you know that not all cpus are the same?

---

Yes and that's why I asked which week CPU he had:slap:

Quote:

---

Originally Posted by ericminou

1.5V for only 3.6ghz?? which week CPU do u have? I am at 1.3875V on the Vcore for 9x400 and my temp is about 37 idle and ~58 under load (that's on air)!! Have u changed your voltage on the Northbridge?

---

got week 30A >< but i cant get it higher at all and yeah i tried that also on my nortbridge but gonna try and set my voltage lower but i got it at 46 on orthos stressed.. so i want it higher but cant get it.. but my job is Intel certified gonna try and change my cpu if its wrong batch number i thought 28B was a good one >< but im not sure at all anymore

Quote:

---

Originally Posted by Kakulukia

Didnt/dont u have mathmetics at school?

4=FSB
5=Dram

like 4x333=xxx/5= xxx (x2 =ddr)
2:3=
2x333=xxx/3=xxx(x2=ddr)

As revv said, 4:5 is faster. But you'd better go 1:1 till cpu's limit.

---

Till cpu's limit ??
How does throttling work ?
What is the best utility to measure this ?

I am running at 3.2 GHZ with a 1.325 VCore.
Memory is 1:1
I am getting around 60 C Load with TAT.
The Throttle Graph on RightMark CPU Clock drops and bounces back up ?
Also. Does ThrottleWatch work with a E6600 ? It does not display the
graph for Throttle.

Thanks:)

i changed my fsb termination to 1.4v and nb to 1.55v and can get higher fsb and lower ram timings than at 1.45 and 1.65v (and nb has active cooling).

Seen that the NB max voltage on that screeny is 1.65V:)

How does the HS cope with this for anyone else whos got their board actually running without problems:p:

OT: Anyone know if Asus Probe shows the NB voltage and Temps?

Thanks:)

can someone help me make a decision. i'm running an e6300 on a p5b-e @ 450FSB with 2x1GB Ballistix DDR2 1000. I want to run 5:4 or 500FSB 1:1 with 6x multi, but the stupid mobo doesn't have enough juice for the mem sticks. i was thinking to swap the mobo for the p5b deluxe for $30 more, but i'm worried the ones at newegg won't do 500+FSB. the other option is to mod the vdimm on the current board so i can pass 2.1v, but i'm not good at soldering and i don't want to measure voltages off the mobo.

i would prefer just getting the deluxe, but am i risking my oc on a board that may or may not do 500+ FSB?

Quote:

---

Originally Posted by douirc

can someone help me make a decision. i'm running an e6300 on a p5b-e @ 450FSB with 2x1GB Ballistix DDR2 1000. I want to run 5:4 or 500FSB 1:1 with 6x multi, but the stupid mobo doesn't have enough juice for the mem sticks. i was thinking to swap the mobo for the p5b deluxe for $30 more, but i'm worried the ones at newegg won't do 500+FSB. the other option is to mod the vdimm on the current board so i can pass 2.1v, but i'm not good at soldering and i don't want to measure voltages off the mobo.

i would prefer just getting the deluxe, but am i risking my oc on a board that may or may not do 500+ FSB?

---

I wouldnt spend money on it. It is 2less what u get back.
HAve u really memtested what ur memory can do with that limited Vdimm?
Running 1:1(@450) isnt that slow compared to 4:5, it is a very little difference.

Btw, running 500 @1:1 needs more juice than 450, dont forget that ;) besides 6x500=3ghz and 7x450=faster:D

So, try to mod or live with it.

2people with northbridge questions,

setting it to 1.65V doesnt have any influence, JUST keep it at 1.55V.

Quote:

---

Originally Posted by Bootup05

Seen that the NB max voltage on that screeny is 1.65V:)

How does the HS cope with this for anyone else whos got their board actually running without problems:p:

OT: Anyone know if Asus Probe shows the NB voltage and Temps?

Thanks:)

---

The stock hsf can cope with 1.65v. It get's pretty hot though. I'm going to upgrade mine with an aftermarket hsf.
No it doesn't show NB voltage and temps.

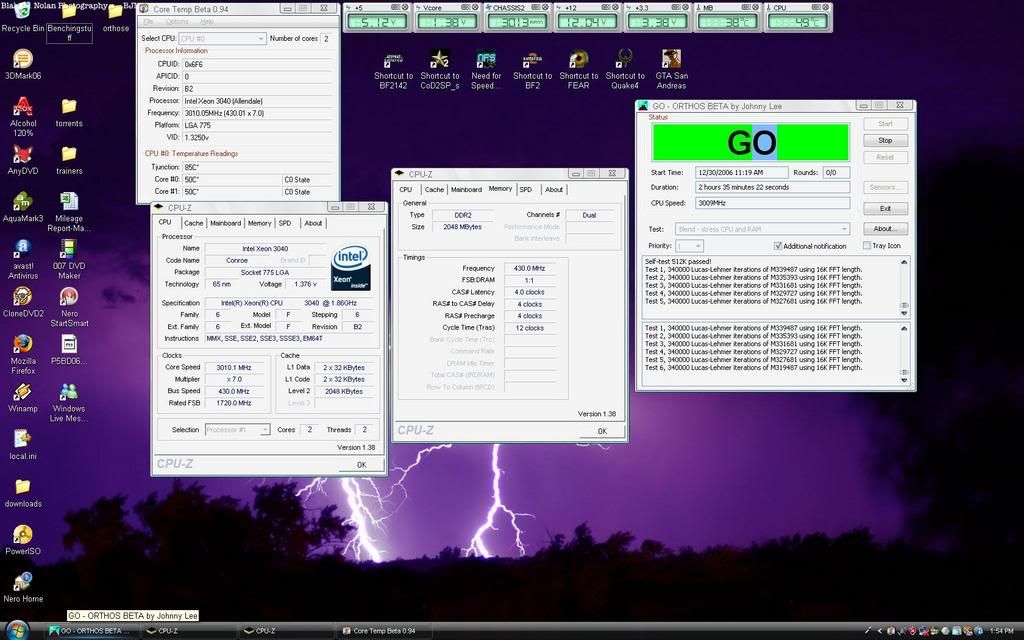

Just wanted to post my progress so far. Finally got some RAM that works... Corsair and their IC switcheroo kinda pisses me off.

But anyway... here are the specs. I am going to do a full night of small FFTs for stability, but I am confident it will pass. So far a quick 2.5 hr blend will suffice. Hopefully my settings might help someone out. First, I started with many of the setting found here.

The voltages/clocks are:

BIOS 804
fsb clock = 490 @ 1:1
Ram timings = 5-5-5-15 (loose for now)
Vcore = 1.4875 (Bios), 1.45 actual
Vnb = 1.55
Vsb = 1.6
Vmch = auto
Vdimm = 2.25 (spec is 2.2 for my sticks)
Vterm = 1.4

Honestly, I don't know if I needed anymore than 1.5 Vsb, but it definitely seems to be happier with 1.55 Vnb and 1.4 Vterm than anything lower.

Also, at about 466 fsb I was running something like Vcore 1.32 actual and had to crank it up bigtime to get 490 fsb. I think I may be able to push a little higher though... hopefully 500+.

Edit: Vcore was actually a touch lower in BIOS than I thought.

http://img186.imageshack.us/img186/5...rclock1sf6.jpg
http://img46.imageshack.us/img46/8954/core2bn1.jpg

Do some memtesting to ensure that memory is stable.
If u have done that, you can run Small Ftt's instead of blend test.

Voltages are set well.
Did u ty with auto FSB term? My pc is now more stable with auto fsb term than with manually selected 1.4V.

(24A week cpu s mostly reach 500+)

(u're a Thierry Henry fan? :lol: )

Hehe, yeah Henry is the man. He is missing the magic touch this year and has been injured, but nobody can say he isn't one of the best strikers of all time. Some of his goals look practically impossible, yet he scores them anyway.

But enough football talk :) Yeah I am running fsb 500 mhz with small FFT all night tonight. I am currently at 2hrs or so and stable. I don't feel like it will be a problem. Heck, I might leave it like this 24/7 if it is game stable. Temps don't push over 53C or so on core temp with Orthos going. With a smaller overclock I was like 39C on load, but 53C shouldn't hurt anything. (this all assumes the Core temps from the DTS are accurate, which they probably aren't :rolleyes: )

I may try the auto termination voltage at some point and see if I can push further. Right now I am about to mod a case though, so my system will be coming apart in a couple days here once it is ready.

And yeah I did memtest some but only up to 510 mhz at 5-5-5-15. I will get into it more later on if I push for a 100% overclock and/or tweaking my ram timings.

I ran my E6600 at 500 fsb x 9 with everything on auto except for vcore and mem.

However, all baords are not created equal.

I have 2 other P5B's and one reaches 572 x 7 on auto, while the other 2 reach 562 and 550, all with the same cpu and mem. I rma'd a 4th board that wouldn't go over 510 with any multiplier and any settings.

For some reason my 2 wifi's go higher than the non wifi

does any of this make sense? or just pot luck?

500 x 9.

It's late, but the word that comes to mind is... whoa.

Hi mates, I've been doing some tests with my Conroe 6600 (@ air cooling) with these settings:

CPU: 400x9
RAM: DDR2-800 (1:1)
PCI: 101
PCI Clock: 33.33
Vcore: 1.45 in bios (1.4 load)
Memory: 2.1v
Timmings: 4-4-4-8-4-30-0-10-5-10
Idle temps: +/-47º
Load temps: +/- 60º :rolleyes:

The hardware:

- Tower: Coolermaster Centurion 534
- PSU: LC power 850 Watt modular
- Board: ASUS P5B DELUXE
- CPU: Intel Core2 Duo E6600
- Cooler: COOLERMASTER HYPER TX SOCKET 775
- VGA: Sapphire X1950XT 256MB DDR3
- MEM:CORSAIR 2GB PC2-6400C4 XM2 DOMINATOR SLI READY
- HD: WESTERN DIGITAL 320GB SATA II 16MB CACHE 3200KS

I'll post some screens later with my settings so you can help me tweak my system, mainly on Memset since I don't understand much of it. :confused:

Next step will be cooling this Conroe with a homemade phase-change done by |Ricky|.

Later mates.

Jorge

I have a E6600.
If I run it at 333 X 9 (3 Ghz), vcore 1.3875, vfsb 1.45, vnb 1.45, vsb 1.6,
I get 45 C idle and between 55 and 60 C load (Core Temp using TAT). C1E is turned off. Is this bad ?? I have a Arctic Cooling Freezer 7 Pro with Arctic Silver 5. Would a Tuniq Tower help ?? Or is it my old Antec case with the 80 mm fans ? I have installed all the 80 mm fans. What is a new case that would provide good cooling, but not be too expensive ?

Thanks!

Quote:

---

Originally Posted by jll

Hi mates, I've been doing some tests with my Conroe 6600 (@ air cooling) with these settings:

CPU: 400x9
RAM: DDR2-800 (1:1)
PCI: 101
PCI Clock: 33.33
Vcore: 1.45 in bios (1.4 load)
Memory: 2.1v
Timmings: 4-4-4-8-4-30-0-10-5-10
Idle temps: +/-47º
Load temps: +/- 60º :rolleyes:

The hardware:

- Tower: Coolermaster Centurion 534
- PSU: LC power 850 Watt modular
- Board: ASUS P5B DELUXE
- CPU: Intel Core2 Duo E6600
- Cooler: COOLERMASTER HYPER TX SOCKET 775
- VGA: Sapphire X1950XT 256MB DDR3
- MEM:CORSAIR 2GB PC2-6400C4 XM2 DOMINATOR SLI READY
- HD: WESTERN DIGITAL 320GB SATA II 16MB CACHE 3200KS

I'll post some screens later with my settings so you can help me tweak my system, mainly on Memset since I don't understand much of it. :confused:

Next step will be cooling this Conroe with a homemade phase-change done by |Ricky|.

Later mates.

Jorge

---

Are your temps CPU or Core TEMP ??

Quote:

---

Originally Posted by FullMoon

I have a E6600.
If I run it at 333 X 9 (3 Ghz), vcore 1.3875, vfsb 1.45, vnb 1.45, vsb 1.6,
I get 45 C idle and between 55 and 60 C load (Core Temp using TAT). C1E is turned off. Is this bad ?? I have a Arctic Cooling Freezer 7 Pro with Arctic Silver 5. Would a Tuniq Tower help ?? Or is it my old Antec case with the 80 mm fans ? I have installed all the 80 mm fans. What is a new case that would provide good cooling, but not be too expensive ?

Thanks!

---

I dont know what your price range is but this one will do and is steel not the plastic that breaks the hinges off the door .
the p180b is better for 20.00 more
http://www.newegg.com/Product/Produc...82E16811129154
:cool:

Quote:

---

Originally Posted by kwalker

I dont know what your price range is but this one will do and is steel not the plastic that breaks the hinges off the door .
the p180b is better for 20.00 more
http://www.newegg.com/Product/Produc...82E16811129154
:cool:

---

Thanks!

I have Antec PLUSVIEW1000AMG (Old Antec Server case with Window).
It is full of 80 MM fans (sucking in the front and exhausting out the rear).
Is this the first thing you would try? Over the cooler ? To help keep my Temp's down.

Thanks:D

Quote:

---

Originally Posted by FullMoon

Are your temps CPU or Core TEMP ??

---

Core temps Fullmoon! Why? is it too hot?

Thanks for the reply!

Jorge

Hey everyone ive been having some problems ocing my new conroe build.

P5b Deluxe bios 0804 with TT Big Typhoon (idle 40 load 47+)
E6300
Patriot ddr2-800mhz @ 5-5-5-12
Evga 7900 gto
Corsair hx 520

Right now my cpu is running at 2.8 (400x7) and is completely stable with dual orthos runnin for 12 hours. Once i start pushing my fsb higher than 400 though my mem seems to get overclocked past 800 mhz and creates instabilities. I tried lowering the speed through the dram frequency option in the bios but it wont let me go below 800mhz at 400 fsb. How do i set up mem dividers so i can push my fsb higher?

Quote:

---

Originally Posted by jll

Core temps Fullmoon! Why? is it too hot?

Thanks for the reply!

Jorge

---

Sounds real good to me for Core Temp and the speed you are running :D

I think my problem is that I need a better Cooler and Case!

I suspect I know the answer to this already but...

Let me start off by saying I know that my RAM does 1080+ mhz, so my problem isn't that.

I can run stable at 505 fsb x7, but a few mhz higher and the computer freezes on the first dual prime iteration. I tried lowering my multi to 6x to the same result with basically every possible voltage setting in BIOS for the mobo. (1.55 vNB and 1.4 vTT seem to work best)

Anyway, I tried back at 7x multi with higher vCores: stuff like 1.5, 1.525, 1.55 and the problem actually gets worse. At 1.55 I can't even boot.

I was wondering if my limiting factor is the processor, mobo, or both? I feel like maybe both are topping out at about the same time, but that is quite the coincidence.

Quote:

---

Originally Posted by FullMoon

Thanks!

I have Antec PLUSVIEW1000AMG (Old Antec Server case with Window).
It is full of 80 MM fans (sucking in the front and exhausting out the rear).
Is this the first thing you would try? Over the cooler ? To help keep my Temp's down.

Thanks:D

---

Case air flow will bring all your temps in line.
You would be surprised how this will affect your temps overall
:cool:

Quote:

---

Originally Posted by kwalker

Case air flow will bring all your temps in line.
You would be surprised how this will affect your temps overall
:cool:

---

I took the side off my old Antec Case.
With all the 80 MM fans running at full speed I do not feel a whole lot of air flow :eek:

with the Vanderpool technology setting, I cant turn mine off- its greyed out (using ..0804- er latest bios)

after a cold boot you can disable it :)

I saw something posted about not setting Dram Frequency to Auto. Why is this? I thought Auto automatically kept the ram at 1/1 with the FSB. I have mine set to Auto and cpuz reads as 1/1.

Another question is regarding the posts about the pcie setting itself from 16x to 1x sometimes. How do you know this? Where do you go to read which it is?

Another post so I don't ask too many questions is one post.

Question # 1.
I'm currently at 9x356 (1/1) stable to get my 3.2 gig. I'm quite happy with that cpu speed, though I would like to have 8x400 instead to get the 3.2 gig. So far I can't get it. Will boot but Windows freezes after a bit requiring a reboot. Voltages are as follows:

CPU Voltage - 1.25 volts.
Memory Voltage - 1.9 volts
FSB Termination Voltage - Auto
NB VCore - Auto
SB VCore - Auto
ICH Chipset Voltage - Auto

Any suggestions to voltages to get the 8x400?

Question # 2.
I'm running 2 gigs of Corsair PC6400C4 ram. I have it set to SPD in BIOS. Cpuz shows timings as 5-6-6-18 (@ 1.9 volts). This ram is rated (EPP SPD) at 4-4-4-12 (@ 2.1 volts). I can't get it. In fact I can't get anything other than the 5-6-6-18 even at 2.1 volts. Even 5-5-5-18 won't boot. I'm stymied on this. I would think I should be able to get better than 5-6-6-18.

Any ideas?

Quote:

---

Originally Posted by Mike89

Another post so I don't ask too many questions is one post.

Question # 1.
I'm currently at 9x356 (1/1) stable to get my 3.2 gig. I'm quite happy with that cpu speed, though I would like to have 8x400 instead to get the 3.2 gig. So far I can't get it. Will boot but Windows freezes after a bit requiring a reboot. Voltages are as follows:

CPU Voltage - 1.25 volts.
Memory Voltage - 1.9 volts
FSB Termination Voltage - Auto
NB VCore - Auto
SB VCore - Auto
ICH Chipset Voltage - Auto

Any suggestions to voltages to get the 8x400?

Question # 2.
I'm running 2 gigs of Corsair PC6400C4 ram. I have it set to SPD in BIOS. Cpuz shows timings as 5-6-6-18 (@ 1.9 volts). This ram is rated (EPP SPD) at 4-4-4-12 (@ 2.1 volts). I can't get it. In fact I can't get anything other than the 5-6-6-18 even at 2.1 volts. Even 5-5-5-18 won't boot. I'm stymied on this. I would think I should be able to get better than 5-6-6-18.

Any ideas?

---

try cpu voltage at 1.4v

Holy crap I had a hard time with this. Ran at 3.2 gigs (9x356) with no problems at all. When I tried to go to 8x400 to get same cpu speed, all kinds of issues popped up!

I finally realized the deal about not using Auto for Dram Frequency. Using Auto got me 1/1 but the ram SPD would only run at 5-6-6-18 instead of the 4-4-4-12 it was rated at. Changing the Dram Frequency to DDR800 got me the 1/1 and now the SPD was at 4-4-4-12.

The other issue I had was no matter what voltages I set for FSB Termination Voltage, NB Voltage, SB Voltage, and IHC Chipset voltage, the computer would either not boot, would freeze in Windows or the pcie would change to 1X. I even tried changing the PCI setting to 120. I could boot up with this and the 16x would return but now I lost my IDE controller (yellow exclamation in Device Manager under "Standard Dual Channel PCI IDE Controller") and my two DVD drives would not show up.

I was just about to go back to the 9x356 when I tried one last change of setting the PCI to 110. That seems to have done it. Got the 16x back, drives showing and no freezes so far. Still didn't have any luck with the voltages and have them all set back to Auto except for Ram at 2.1 volts and CPU at 1.35 volts.

If I missed something, I'm all ears.

Quote:

---

Originally Posted by Baroudan

after a cold boot you can disable it :)

---

You mean power cycling the system?

Also I cant see the EIST(enhanced speedstep...) option so I dont know if its disabled or not.

last option cpu tab in bios.

I don't see a Speed Step option either.

Mounted the phase change cooler on my P5B Dlx today. But when I started clocking, everyting just went to h***... Wasn't able to set one setting without restart. What's your experience with this board and pase change cooling?

Trying to get this 400x8 fsb is kicking my butt (or kicking my system's butt). I ended up going back down to 9/356 to get my goal of 3.2 gigs. I tried everything under the sun to get 400x8 but it's just not stable. When I'm running at 8x400, every single time I boot up from a shut down, I get the 1x deal. I have to then reboot to get it back to 16x. Too much hassle. After my reboots to get the 16x the computer mostly runs ok. I did have something screwy happen one time when I stuck in a usb flash drive. Started hearing screeching sounds from speakers, mouse movement became caddy wampus and cpuz showed some screwy cpu reading of 3.38 gig or something when it was set to 3.2 gig. Scared the crap out of me.

I can do the 9x356 stable, no 16x changing to 1x anymore and still have my ram a 1/1 4-4-4-12. I think I better quit before I blow this thing up!

Evidently once you hit the 400 range, things start to get hairy.

Mike89, did you try 402 MHz FSB?

No, I tried 401.

I've seen mention here about a 903 BIOS? The Asus website lists only one, the 804.

mike did you lock pci @33 it sounds like pci is ocing with fsb

Yes, PCI locked at 33.33 and the other at 101.

Quote:

---

Originally Posted by Mike89

No, I tried 401.

I've seen mention here about a 903 BIOS? The Asus website lists only one, the 804.

---

Ther is a 903, 908 and 910 beta floating around.

910 is not beta, today I flash my board with it. In bios adds some USB new setting. OC ~15FSB better than 804.
BTW what was the problematic divider?

Quote:

---

Originally Posted by Gam3Ra

910 is not beta...OC ~15FSB better than 804.

---

Really ? What's the change log ?

If the 903 BIOS is not Beta, why does Asus not list it?

I flashed 908. could post in 530 on fsb.. for the fun of it I tried 540, sam v settings.. and haven't been able to start it since

Tried cmos clear?

About to fire mine up for the first time. WEEEE here goes guys.
Any idea where I can get those 910 bios? All I see on the website is 804.
Here are my system specs...what do you guys think I should be able to go for as far as FSB, core, voltage, and memory timings etc.... Let me know what you guys think I should be aiming for.

System:

e6600 Conroe
Lian-Li v2100plus II Case
OCZ Platinum pc8000 Ram (2gigs)
Tuniq Tower 120 cpu cooling
Default Nbridge cooling (I have thermalright HR-05 but not installed right now..too tired to install it lol).
EVGA 8800gtx vid card.

So what do you guys think I should start with the settings?

Quote:

---

Originally Posted by mrt2

About to fire mine up for the first time. WEEEE here goes guys.
Any idea where I can get those 910 bios? All I see on the website is 804.
Here are my system specs...what do you guys think I should be able to go for as far as FSB, core, voltage, and memory timings etc.... Let me know what you guys think I should be aiming for.

System:

e6600 Conroe
Lian-Li v2100plus II Case
OCZ Platinum pc8000 Ram (2gigs)
Tuniq Tower 120 cpu cooling
Default Nbridge cooling (I have thermalright HR-05 but not installed right now..too tired to install it lol).
EVGA 8800gtx vid card.

So what do you guys think I should start with the settings?

---

Go http://www.xtremesystems.org/forums/...d.php?t=127995
For link to 910 bios. I just flashed from 0908 to 10 and so far no problems.

hey all ive got a Xeon 3040 running @ 3.0 1.5350v and my bios config is the same as the 1st post in this thread.

my bios is 804

My problem is everytime i run orthos i can run a Large FFT test for hours and the same with Small FFT tests for around the same amount of time... But when i run a blended test it fails in minutes..... I have tried playing with the voltages and everything and no go.... any one have any ideas?

Quote:

---

Originally Posted by (clanger)(doa)

hey all ive got a Xeon 3040 running @ 3.0 1.5350v and my bios config is the same as the 1st post in this thread.

my bios is 804

My problem is everytime i run orthos i can run a Large FFT test for hours and the same with Small FFT tests for around the same amount of time... But when i run a blended test it fails in minutes..... I have tried playing with the voltages and everything and no go.... any one have any ideas?

---

Blend is usually a memory problem. First try this on blend..... from the dropdown menu select "Custom"..... change the "memory to use" box to roughly 1/2 of your system memory. If that does not help things I'd suggest Memtest-ing you memory to it's max, then dropping down 2-3 mhz for a saftey margin in Windows. I've always found my memory is not quite as stable in Windows as my max in Memtest.

maybe just hit the memory with a tad more voltage or loosen the timings some??

Quote:

---

Originally Posted by cdelong

Blend is usually a memory problem. First try this on blend..... from the dropdown menu select "Custom"..... change the "memory to use" box to roughly 1/2 of your system memory. If that does not help things I'd suggest Memtest-ing you memory to it's max, then dropping down 2-3 mhz for a saftey margin in Windows. I've always found my memory is not quite as stable in Windows as my max in Memtest.

maybe just hit the memory with a tad more voltage or loosen the timings some??

---

they are d9's at 2.4 vdimm and timings of 5-5-5-5-15

ya think they can take more vdimm?

I'm not sure you even need 2.4v? I've run my Ballistix DDR1000 @ 2.15v up to 475fsb w/ a E6400 and 7x multiplier. You need to run memtest.... test #5. Let it run for 30 minutes. If you don't get any errors, startup normally with the same settings. Like I said, sometimes in Windows you will have to back down a few mhz to keep from borking your OS.

Well just out of curiosity I tried the voltage settings in the screen shots at the beginning of this guide and now my pc won't post....what should I do? Is there a cmos clear jumper?:(

turn off the PSU and unpluged it for a minute. Now plug it back in and turn the PSU switch back on. before booting your computer press the Insert key and hold it down. Keep holding the insert key down while you press the power button to start your PC. It should start right up.

On occasion I have had to do it twice in a row for it to post.

My cpu is running at 60C isn't this mega high? My multiplier is 7 and FSB is at 450. I tried to run my fsb at 500x6 and it boots but freezes....
Any suggestions on how I can get my FSB higher and also why my load tem is so freaking high?

PBDelux Wife/AP
Tuniq Tower 120
Lian-Li V2000 Case

high voltage = high heat. try dropping the vcore, i assume since you said you set them to fcg's settings you are @1.5 vcore which is alot.

you guys are awsome.... THANKS

CHECK IT OUt 3000mhz and stable.... changed the ram timeings and backed down the vdimm to 2.25v presto stable and this chips got more megahurtz in it i hope to hit 3.4 you guys rock.
I even think i can back the vcore down too...

http://i53.photobucket.com/albums/g6...us/3stable.jpg

Any suggestions for getting my FSB at 500+? Also I have OCZ Platinum pc8000 RAM, do you guys think I could set my ddr2 to 1200(the next step up from the current) instead of 960? Would the performance gain even be worth it? And one last question, I'm currently running the 0804 bios... Are the 0908 bios for the p5bdeluxe interchangable with the wifi version? Are all the p5b deluxe bios usable for al lthe deluxe version boardS? If so, where would I get the 0908 bios from? =)
I know it's a lot of questions but I really appreciate all the help you guys are providing, it's really helping me tweak my board. :toast: :woot:

ok currently I'm at:
FSB= 480
Multiplier= 7
DDr2-960
PCI-E Frequency- 110
Memory Voltage- 2.25
Cpu Vcore- 1.425
FSB Term Voltage- 1.45
NB vCore- 1.45
SB- 1.6
ICH Voltage- 1.215

Oh yeah and my current cpu temp is 56C is that decent or should I try to lower my cpu vcore more?

Quote:

---

Originally Posted by mrt2

Any suggestions for getting my FSB at 500+? Also I have OCZ Platinum pc8000 RAM, do you guys think I could set my ddr2 to 1200(the next step up from the current) instead of 960? Would the performance gain even be worth it? And one last question, I'm currently running the 0804 bios... Are the 0908 bios for the p5bdeluxe interchangable with the wifi version? Are all the p5b deluxe bios usable for al lthe deluxe version boardS? If so, where would I get the 0908 bios from? =)
I know it's a lot of questions but I really appreciate all the help you guys are providing, it's really helping me tweak my board. :toast: :woot:

ok currently I'm at:
FSB= 480
Multiplier= 7
DDr2-960
PCI-E Frequency- 110
Memory Voltage- 2.25
Cpu Vcore- 1.425
FSB Term Voltage- 1.45
NB vCore- 1.45
SB- 1.6
ICH Voltage- 1.215

Oh yeah and my current cpu temp is 56C is that decent or should I try to lower my cpu vcore more?

---

To get over 500 stable raise your NB and SB voltages.
What is your memory timings at 960? Try loosening timings/raise memory voltage and test using memtest to see if your memory is stable at 1200. There is a bandwith improvement even with looser timings. My Pcmark, 3DMark and Pi scores improved for me.
The 0908 or 910 Bios also works for the Wifi. I am running 910 with no problems. The only improvement I have seen is the ability to run the same OC with a little less vcore.
You can get the bios from this thread:http://www.xtremesystems.org/forums/...d.php?t=127995

Is 56c your load temp? If so your fine. If it is Idle you need to improve your cooling or lower your vcore which will reduce your OC.

I have a voltage issue. Here is my system specs.

P5B Deluxe
E6600 L629B361
Scythe SCNJ-1100P CPU Cooling
Arctic Silver 5
G.SKILL 2GB (2 x 1GB) Model F2-6400CL4D-2GBPK
CORSAIR 520 watt PW
XFX GeForce 7900GS 256MB
Seagate Barracuda 7200.10 320 gig sata
LITE-ON 16X DVD±R DVD Burner sata
COOLER MASTER Centurion 5 CAC-T05-UB case

Bios settings
Bios 804
CPU 401x8
DDR 802
PCI F 100
PCI Clock 33.3
Spread Spectrum Disabled
Memory Volts 1.9
CPU V Core 1.225
FSB 1.3
NB 1.25
SB 1.5
ICH Auto
C1E Disabled
Max CPUID Disabled
Vanderpool Enalbled
CPU TM Enabled
Execute Disable Enabled
Memory 4,4,4,12,4,42,3,10,5,13

It runs fine. I have run Orthos for 6 hours on Blend. I have looped 3DMark 03 and 05 for 2 hours. With the volts on 1.225 it says it has 1.18 at idle and 1.16 under load. My temp is 43c at idle and 60c load on pc probe, 41c idle 56c on Intel Thermal. If I set the V Core to Auto it chks. 1.12 in pc probe. If I turn the V Core to say 1.3 the temp goes up. I'm wondering if I am not getting a true reading.

Here is CPU Z and asus probe

I don't know how you guys are running the mega fsb's over 400 without losing 16x PCI (it changes to 1x). At least that's what happens when I try to hit 400 fsb. Kinda defeats the whole deal if you plan on using a good vid card in games.

How do i know what my pci-e is running at? How do I check?

Open cpuz, Mainboard tab.

Quote:

---

Originally Posted by Mike89

I don't know how you guys are running the mega fsb's over 400 without losing 16x PCI (it changes to 1x). At least that's what happens when I try to hit 400 fsb. Kinda defeats the whole deal if you plan on using a good vid card in games.

---

If I put my NB Vcore to anything LESS then 1.55 I have the 1x issue.

hey,

just built my rig and i'm having some evil temp issues. It's at like 53C idle, 70 Orthos load (less during SuperPI oddly). THis doesn't seem right for the setup, I've already reseated the HSF and changed out the Scythe goop for OCZ Ultra 2 I had lying around.

Rig and voltages:
P5B Deluxe w/ 0804 bios
CPU: E6600 @ 8x420 (3.36ghz)
RAM: Crucial Ballistix PC2-8000, running at 2.15V, 1:1, 4-4-4-12
HSF: Scythe Ninja Plus (original, with the backplate)
--the Scythe fan is on the RAM side blowing through the HSF
CPU Vcore: 1.425 (probe reports 1.38 in windows)
FSB Termination: 1.3V
NB: 1.45V
SB: 1.6V
ICH: 1.215V

Anyone have any ideas? I'd like to push further but these temps already scare the hell out of me.

Quote:

---

Originally Posted by newls1

If I put my NB Vcore to anything LESS then 1.55 I have the 1x issue.

---

I have the exact opposite problem. Anything over 1.55 and it drops to 1x. I have set the bios at 1.45 and then use my VR(voltmod) to raise it to 1.6 and it still drops to 1x so it is either the bios detects the voltage and drops it due a poor bios code or it is a design flaw.

DCarez ... Your IHS may not be flat and need lapped. Or your heatsink.

Anyone have any idea why in windows when I go to the system properties it reports me as running 4.3ghz when I'm only running at 3.37?

Quote:

---

Originally Posted by mrt2

Anyone have any idea why in windows when I go to the system properties it reports me as running 4.3ghz when I'm only running at 3.37?

---

System assumes you're running at max/native multiplier when you're not.

I'm having the same problem with heat. At Idle my system is almost 60C WTH could be wrong with this picture? BTW when you say the IHS might not be flat...what is IHS? :D
I'm using the Arctic silver 5 stuff...is this stuff good or should I be using something else? Possibly I need to take my Tuniq Tower off...clean it and the cpu and reconnect it... think that might help? What could possibly be the culprit and also what should a normal/decent idle speed be with a e6600@ 3.37 with a tuniq Tower 120 and cpu core volt of 1.4?

Same thing here on NB voltage relating to the 1x issue. If I set anything MORE than 1.45 volts, I get the 1x. If I set it to 1.45 or less, computer won't boot (at anything at or above 400 fsb. So I'm stuck. It's why to get my goal of 3.2 gigs (which I'm happy as a clam about), I had to settle for 9x356. For my system it's the definite sweet spot.

With 910 bios I am currently able to run my northbridge voltage at 1.57 with my vmod before the 1x problem kicks in. I have found that when the pc boots at 1x I will pull the power plug for 10 secoonds and then turn the pc back on it will boot at 16x.

Quote:

---

I have found that when the pc boots at 1x I will pull the power plug for 10 secoonds and then turn the pc back on it will boot at 16x.

---

That's just not acceptable to me. I had that same issue at 401. Didn't take me long to say, "enough of this". That just cannot be a healthy condition for the system.

I got to hand it to you guys that have been able to get a 400+ FSB that is STABLE. I gave it my system's best shot but couldn't get it. I think I wanted over 400 just to say, "I could" but in all reality my 9x356 @ 3.2 gig is still above Intel's $1000 processor so I can't complain. :)

geez!!! i guess i must be lucky then.

i run 8 x 475 with 1.65 volts on the NB and don't lose 16x pci-e frequency.

Quote:

---

Originally Posted by corvus_corax

Very nice FCG :toast:
For those guys with troubles with 500FSB+ you can try raising ICH Chipset Voltage up to 1.215V. I make that for 500FSB+, otherwise there is no boot or stops in Windows boot screen and actually the SB voltage i don't use 1.8V, with 1.6V is fine for me up to 500FSB, over 508FSB i need raise it :)

See ya!

---

Just what i need to know. Cheers, :)

umm help i was benching and the system shut off and it will not post.... it does the double boot then does nothing??? wtH.... Iv reset the BiOs and nothing took out the ram and still does the same thing without ram... ive taken everything off the system and still nothing happends... took out the vid card and still no go.... umm i have a Xeon 3040 and a P5b-d Did i kill the Xeon??

Quote:

---

Originally Posted by (clanger)(doa)

umm help i was benching and the system shut off and it will not post.... it does the double boot then does nothing??? wtH.... Iv reset the BiOs and nothing took out the ram and still does the same thing without ram... ive taken everything off the system and still nothing happends... took out the vid card and still no go.... umm i have a Xeon 3040 and a P5b-d Did i kill the Xeon??

---

You may need a stick of ram that will boot at low voltage, go into bios and increase the voltage to watever your power sticks require then shut off the power supply and add the correct ram modules. You have no listed your system specs so I cant really help. This is what I am assuming since you've reset the bios.

It might work with just one stick to boot up with, first try one stick then if that doesnt work try another one. May also be a damaged stick.

nope these are D9's stock speeds of 533 and vdimm 1.8v
Yes ive reset the bios and still no go.. looks like its gonna get RMA'ed
tried both sticks... it still does the same thing even with out any sticks in it...
specs :

Xeon 3040
Asus P5B-d
2gb D9's tested @ 900Mhz 1:1, 1200mhz @ 4:5
8800GTs
xfinity 500w (i know shut up :P)

Quote:

---

Originally Posted by (clanger)(doa)

nope these are D9's stock speeds of 533 and vdimm 1.8v
Yes ive reset the bios and still no go.. looks like its gonna get RMA'ed
tried both sticks... it still does the same thing even with out any sticks in it...
specs :

Xeon 3040
Asus P5B-d
2gb D9's tested @ 900Mhz 1:1, 1200mhz @ 4:5
8800GTs
xfinity 500w (i know shut up :P)

---

probably toasted that psu if you were 3d benching w/ a 8800 and a overclocked c2d you can exceed the capacity of that ultra easily. try a different psu. and also don't rule out the memory without checking it first.

nope PSU reads good. This Ultra has been a great PSU and has POwered a overclocked 9750Gx2 and a presler 930 @4.5.. I dont care what ppl say about ultra's the Xfinity line is a good PSU and Ive tested this one and its still solid.

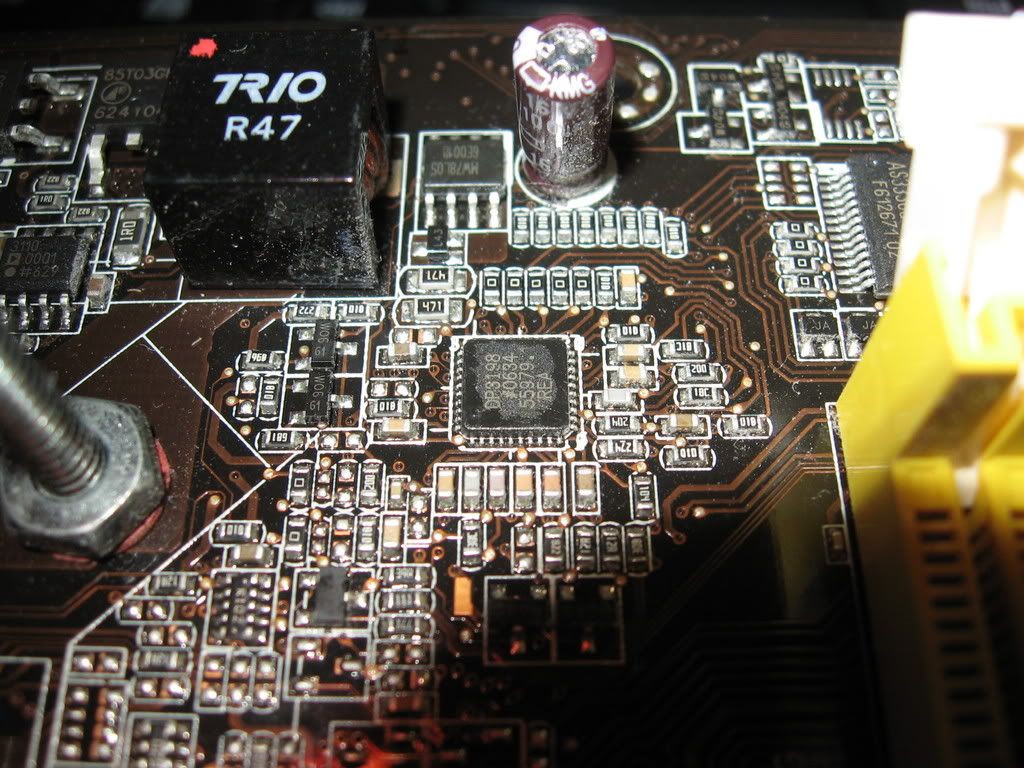

EDIT i think i found what died... the vcore IC didnt look like that before >: )

http://i53.photobucket.com/albums/g6...s/IMG_0340.jpg

Any thoughts on my last post guys?

Heres a quick question, will having static read on my memory set to "faster" will it enhance memory performance or is it better left off?

I really need to lap this CPU. This Ballistix RAM is incredible:

E6600 @ 3.2 (401x8) 1.4vcore bios, 1.36 probe idle, 1.34 load
DDR2-8000 Ballistix rated 5-5-5-15 500MhZ @ 2.2V, running 4-4-4-12 at 500MhZ @ 2.25V (why is there no 2.2V option in my BIOS?)
My temps still suck on the CPU, though. :(

http://valid.x86-secret.com/show_oc?id=152381

Quote:

---

Originally Posted by DCarez

just built my rig and i'm having some evil temp issues. It's at like 53C idle, 70 Orthos load (less during SuperPI oddly). THis doesn't seem right for the setup, I've already reseated the HSF and changed out the Scythe goop for OCZ Ultra 2 I had lying around.

Anyone have any ideas? I'd like to push further but these temps already scare the hell out of me.

---

I'm having the same problem... (as is MRT2 I see). Similar setup to DCarez but with a 6700/Corsair/Zalman9500 and only oc'd to the same point 3.2ghz (which should be less stressed than the 6600 put to the same place). Really bummed on this as it seems way too hot! I'm going to lap the cpu tonight and give it another try.

Quote:

---

Originally Posted by ChaosMinionX

Heres a quick question, will having static read on my memory set to "faster" will it enhance memory performance or is it better left off?

---

Disable for best memory overclock.
