09-13-2008, 10:53 AM
elsupremo

Quote:

Originally Posted by 64dragon

imo, it seems like your boards isn't getting enough power. your using the 8 pin power and not just the 4 pin with the cap on the other 4 right?

Yes, I am using full 8 pin power. I agree, it sounds like not enough power - but then again it runs fine with the 280 in there.

@ Vaderat - Yes, I'll add them, but here they are again real quick:
QX9650 @ stock speeds and voltages, I think stock vcore is ~1.25v.
2 GB GSkill 6400 @ 2.0 - 5-5-5-15 (Tried 2 different sets of same RAM, also tried another Gskill DDr2 800 set, different model).
All other voltages set to Auto, except I tried setting NB (along with VTT) to 1.28 or 1.3, did not help anything.
Cooler Master 850W Real Power Pro

I did install the full Catalyst Suite, but this problem emerges before I ever get into Windows, since the computer cannot post at the same stable OC settings as I use when the GTX 280 is in the computer.

I have created a RMA label and I'm planning on getting a replacement board. This is just a very unusual situation that seems too much like hardware defect. Not even stable at stock? C'mon...

Thanks for your input though! :)
09-13-2008, 06:10 PM
CryptiK

If as you say other people are running the same card without any issues, and you have established it is not a power or ram related issue, I think it's time for the RMA. I can't think of a specific reason why the board wouldn't work with the card, but you have tried everything and eliminated other options, and the fact of the matter is they should just work, without issues. Hope you have better luck with the replacement.
09-13-2008, 06:13 PM
elsupremo

Quote:

Originally Posted by CryptiK

If as you say other people are running the same card without any issues, and you have established it is not a power or ram related issue, I think it's time for the RMA. I can't think of a specific reason why the board wouldn't work with the card, but you have tried everything and eliminated other options, and the fact of the matter is they should just work, without issues. Hope you have better luck with the replacement.

Same thing I am thinking. :) Thank you all who offered help, I'm really appreciative. I already made the RMA request and am shipping it back Monday. Fortunately, a friend has a mobo I can use in the meantime to stay up and running. Thanks again, and I'll let you guys know the result of the replacement board installation and whether it solves my problems. I kind of suspect the PWM chip on my particular board was defective.
09-13-2008, 06:38 PM
kwalker

Q9550 L815B264
24/7 4 GHz stable settings
I'm stuck on 1:1 Ram at the moment but that wont be too much longer before I get the right combination :D

Ai Overclock Tuner: Manual
OC From CPU Level Up: Auto
Ratio CMOS Setting: 8.5
FSB Frequency: 471
CPU Clock Skew: Auto
NB Clock Skew: Auto
FSB Strap to North Bridge: Auto
DRAM Frequency: DDR2-943MHz

DRAM CLK Skew on Channel A1: Auto
DRAM CLK Skew on Channel A2: Auto
DRAM CLK Skew on Channel B1: Auto
DRAM CLK Skew on Channel B2: Auto
DRAM Timing Control: Manual

1st Information:

CAS# Latency: 5 DRAM Clocks
DRAM RAS# to CAS# Delay: 5 DRAM Clocks
DRAM RAS# Precharge: 5 DRAM Clocks
DRAM RAS# Activate to Precharge: 15 DRAM Clocks
RAS# to RAS# Delay: Auto
Row Refresh Recycle Time: Auto
Write Recovery Time: Auto
Read to Precharge Time: Auto

2nd Information:

Read to Write Delay (S/D): Auto
Write to Read Delay (S): Auto
Write to Read Delay (D): Auto
Read to Read Delay (S): Auto
Read to Read Delay (D): Auto
Write to Write Delay (S): Auto
Write to Write Delay (D): Auto

3rd Information:

Write to PRE Delay: Auto
Read to PRE Delay: Auto
PRE to PRE Delay: Auto
All PRE to ACT Delay: Auto
All PRE to REF Delay: Auto
DRAM Static Read Control: Auto
DRAM Read Training: Auto
MEM. OC Charger: Enabled
Ai Clock Twister: Auto
Ai Transaction Booster: Auto

PCIE Frequency: 100

CPU Voltage: 1.38750
CPU PLL Voltage: 1.65900
FSB Termination Voltage: 1.43125
DRAM Voltage: 2.1
North Bridge Voltage: 1.55050
South Bridge 1.5 Voltage: Auto
South Bridge 1.1 Voltage: Auto

CPU GTL Reference (0): Auto
CPU GTL Reference (1): Auto
CPU GTL Reference (2): Auto
CPU GTL Reference (3): Auto
NB GTL Reference: Auto
DDR2 ChA Reference Voltage: Auto
DDR2 ChB Reference Voltage: Auto
North Bridge DDR Reference: Auto

CPU Configuration:

Ratio CMOS Setting: 8.5
C1E Support: Disabled
Max CPUID Value Limit: Disabled
Intel Virtualization Tech: Disabled
CPU TM Function: Disabled
Execute Disable Bit: Enabled

Load-Line Calibration: Enabled
CPU Spread Spectrum: Disabled
PCIE Spread Spectrum: Disabled
09-13-2008, 07:30 PM
CryptiK

Quote:

Originally Posted by elsupremo

Same thing I am thinking. :) Thank you all who offered help, I'm really appreciative. I already made the RMA request and am shipping it back Monday. Fortunately, a friend has a mobo I can use in the meantime to stay up and running. Thanks again, and I'll let you guys know the result of the replacement board installation and whether it solves my problems. I kind of suspect the PWM chip on my particular board was defective.

Well whatever the issue was, hope your new one goes well and doesn't take to long to get to you.

Quote:

Originally Posted by kwalker

Q9550 L815B264
24/7 4 GHz stable settings
I'm stuck on 1:1 Ram at the moment but that wont be too much longer before I get the right combination :D

PHP Code:

Ai Overclock Tuner: Manual OC From CPU Level Up: Auto Ratio CMOS Setting: 8.5 FSB Frequency: 471 CPU Clock Skew: Auto NB Clock Skew: Auto FSB Strap to North Bridge: Auto DRAM Frequency: DDR2-943MHz DRAM CLK Skew on Channel A1: Auto DRAM CLK Skew on Channel A2: Auto DRAM CLK Skew on Channel B1: Auto DRAM CLK Skew on Channel B2: Auto DRAM Timing Control: Manual 1st Information: CAS# Latency: 5 DRAM Clocks DRAM RAS# to CAS# Delay: 5 DRAM Clocks DRAM RAS# Precharge: 5 DRAM Clocks DRAM RAS# Activate to Precharge: 15 DRAM Clocks RAS# to RAS# Delay: Auto Row Refresh Recycle Time: Auto Write Recovery Time: Auto Read to Precharge Time: Auto 2nd Information: Read to Write Delay (S/D): Auto Write to Read Delay (S): Auto Write to Read Delay (D): Auto Read to Read Delay (S): Auto Read to Read Delay (D): Auto Write to Write Delay (S): Auto Write to Write Delay (D): Auto 3rd Information: Write to PRE Delay: Auto Read to PRE Delay: Auto PRE to PRE Delay: Auto All PRE to ACT Delay: Auto All PRE to REF Delay: Auto DRAM Static Read Control: Auto DRAM Read Training: Auto MEM. OC Charger: Enabled Ai Clock Twister: Auto Ai Transaction Booster: Auto PCIE Frequency: 100 CPU Voltage: 1.38750 CPU PLL Voltage: 1.65900 FSB Termination Voltage: 1.43125 DRAM Voltage: 2.1 North Bridge Voltage: 1.55050 South Bridge 1.5 Voltage: Auto South Bridge 1.1 Voltage: Auto CPU GTL Reference (0): Auto CPU GTL Reference (1): Auto CPU GTL Reference (2): Auto CPU GTL Reference (3): Auto NB GTL Reference: Auto DDR2 ChA Reference Voltage: Auto DDR2 ChB Reference Voltage: Auto North Bridge DDR Reference: Auto CPU Configuration: Ratio CMOS Setting: 8.5 C1E Support: Disabled Max CPUID Value Limit: Disabled Intel Virtualization Tech: Disabled CPU TM Function: Disabled Execute Disable Bit: Enabled Load-Line Calibration: Enabled CPU Spread Spectrum: Disabled PCIE Spread Spectrum: Disabled

I think your vFSB, vNB & vPLL are a bit too high, but that's a good start. Just work on the ram now I guess.
09-13-2008, 08:10 PM
CryptiK

What do you guys put for the DDR2 ChA/B Reference and Northbridge DDR Reference voltages?

The eqn is 0.5 Vtt x vdimm + Y

As at stock (1.8 - 1.9v vdimm) the resulting voltage would be ~ 0.95v, and I run 2.07v vdimm, I use -30mv for all 3 values, to correct them back to about 1v.

0.5 x 2.07v - 30mv = 1.005v

I don't know how these voltages affect overclocking/stability, so I just corrected them back to around stock, and I have had no issues so far.
09-13-2008, 09:23 PM
GaBBa-Gandalf

@ CryptiK

Do u know exactly why u can set four CPU-GTLs ?

CPU GTL Reference (0): Auto
CPU GTL Reference (1): Auto
CPU GTL Reference (2): Auto
CPU GTL Reference (3): Auto

I mean... thats for quadcore? - Should u use than all four?

I heard u should use the GTLs 0.667 for 65nm and 0.635 for 45nm...

Could u explain it, please.

GaBBa
09-13-2008, 09:43 PM
CryptiK

Yes you're correct, each GTL Ref tunes a single core of a quad core processor.

Some boards (P5Q-Deluxe for example) link 2 cores together, so there is only 2 GTL Ref values to adjust, giving you less control.

For a 65nm you do use 0.667x and for 45nm you use 0.635x, as a starting point, but you can tweak up or down as needed for your particular cpu. However this board with bioses 0604 and later have a different format, not just a multi. As a result you need to enter the appropriate Y value, the multi stays as either 0.0635x or 0.667x. I gave an example of how to adjust the two 0.667x GTL Y values to give the same voltage as the 0.635x GTL's a few posts above - that was for a 45nm cpu. To adjust it for a 65nm CPU, you leave the 0.667x GTL's on auto as they are already correct, and adjust the 0.635x GTL's to give the same voltages the 0.667x GTL's. In the example a few posts above (Vtt = 1.14v), this means you would add 40mv to the 0.635x GTL's and that would make the resultant voltage the same as the 0.667x GTL.

I'm not sure which GTL Refs are used for a dual core (I would assume only 0 & 1) but it's common practice to adjust them all to the same level even if you have a dual.

Hope that helps.
09-14-2008, 12:32 AM
TouGe

Quote:

Originally Posted by CryptiK

What do you guys put for the DDR2 ChA/B Reference and Northbridge DDR Reference voltages?

The eqn is 0.5 Vtt x vdimm + Y

As at stock (1.8 - 1.9v vdimm) the resulting voltage would be ~ 0.95v, and I run 2.07v vdimm, I use -30mv for all 3 values, to correct them back to about 1v.

0.5 x 2.07v - 30mv = 1.005v

I don't know how these voltages affect overclocking/stability, so I just corrected them back to around stock, and I have had no issues so far.

I reasoned the following:
Default VTT = 0.94V

0.5(2.13V) + Y = 0.94V
Y = 0.94V - 1.065V
Y = -12.5mV

I've had A/B set to these values for about 4 days now and I haven't run into any issues with stability (checked w/ 15 passes of Linpack & 200% of memTestPro).

I don't know if my logic is correct here so please feel free to correct it if need be.
09-14-2008, 12:55 AM
CryptiK

Correct except for your conversion from volts to millivolts. It's not -12.5mv, it's -125mv

There's 1000 mv in 1 volt

0.001v = 1 mv
0.010v = 10 mv
0.100v = 100 mv

:up:

**There's something I want to add concerning this, I'm relatively sure the Reference voltage should scale up with increasing vdimm, however I'm not sure what the 'safe max' is, so that's why I dropped it back a little, but I'd like some input from anyone who knows something about it. Where's freecableguy when you need him - I may ask about it on the tech repository.
09-14-2008, 03:16 AM
TouGe

^^Good catch:up:. I'll make the changes in a few and see what happens, if anything. I'd also like to hear FCG input on this matter. If you hear anything from him please repost here.
09-14-2008, 03:51 AM
TouGe

All those years spent in engineering and chemistry and I can't convert mV...Oh if my professors could see me now:D.

I ended up averaging default DIMM VTT (0.94V) w/ what it is set to now at my current vDIMM (2.11V) which is 1.06V. This leads me to -55mV (-125mV seems rather low) which I am currently testing using memTestPro. If I get 200% w/o errors and Prmie Blend passes for two hours then I will drop it some more and see where it leads me.

I'm not sure what to look for as far as stability other than running memTest and Prime Blend. I just really dislike having settings left on auto and if I can lower voltages while keeping my same clocks than I am all for it, of course.
09-14-2008, 05:50 AM
Grnfinger

Quote:

Originally Posted by kwalker

Q9550 L815B264
24/7 4 GHz stable settings
I'm stuck on 1:1 Ram at the moment but that wont be too much longer before I get the right combination :D

I'm not sure how you got it stable running everyting AUTO but nice job!

If your ram can handle it I would run this
Strap 333 @ 1132MHz you can then set a PL of 8 for some nice bandwidth

My Mushkins at 1132MHz will damn near hit 10K read write and copy in Everest. Sadly I cant seem to get 4.0GHz 100% stable, prime will run for hours and hours with 3 cores passing everytime tho core 2 fails at 45mins with "SUMOUT ERROR" very frustrating for I have tried everything, even a ton of vcore dosent help.
09-14-2008, 07:53 AM
The Nemesis

Quote:

Originally Posted by Grnfinger

I'm not sure how you got it stable running everyting AUTO but nice job!

Overvolting PLL. I'm 20+hours prime stable @ 3.8GHz 1.35v PLL 1.5v. 3.9GHz freezes after a couple minutes unless I raise PLL to around 1.7v.
09-14-2008, 08:03 AM
Grnfinger

Quote:

Originally Posted by The Nemesis

Overvolting PLL. I'm 20+hours prime stable @ 3.8GHz 1.35v PLL 1.5v. 3.9GHz freezes after a couple minutes unless I raise PLL to around 1.7v.

I can run 3900 10 hours stable with reasonable volts.
333 strap and 1103MHz ram PL8, LLC enabled

My GTL's are set to a + value any change and it fails prime and linpack
The values dont match the formula I know but they work so I dont argue with them

CPU Voltage : 1.3875
CPU PLL Voltage : 1.53975
FSBT : 1.33850
DRAM Voltage : 2.095
North Bridge Voltage : 1.39150
South Bridge Voltage 1.5 : 1.5
South Bridge Voltage 1.1 : 1.1

CPU GTL Reference 0 : +30mv
CPU GTL Reference 1 : +20mv
CPU GTL Reference 2 : +20mv
CPU GTL Reference 3 : +30mv
North Bridge GTL Reference : AUTO
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
North Bridge DDR Reference : AUTO

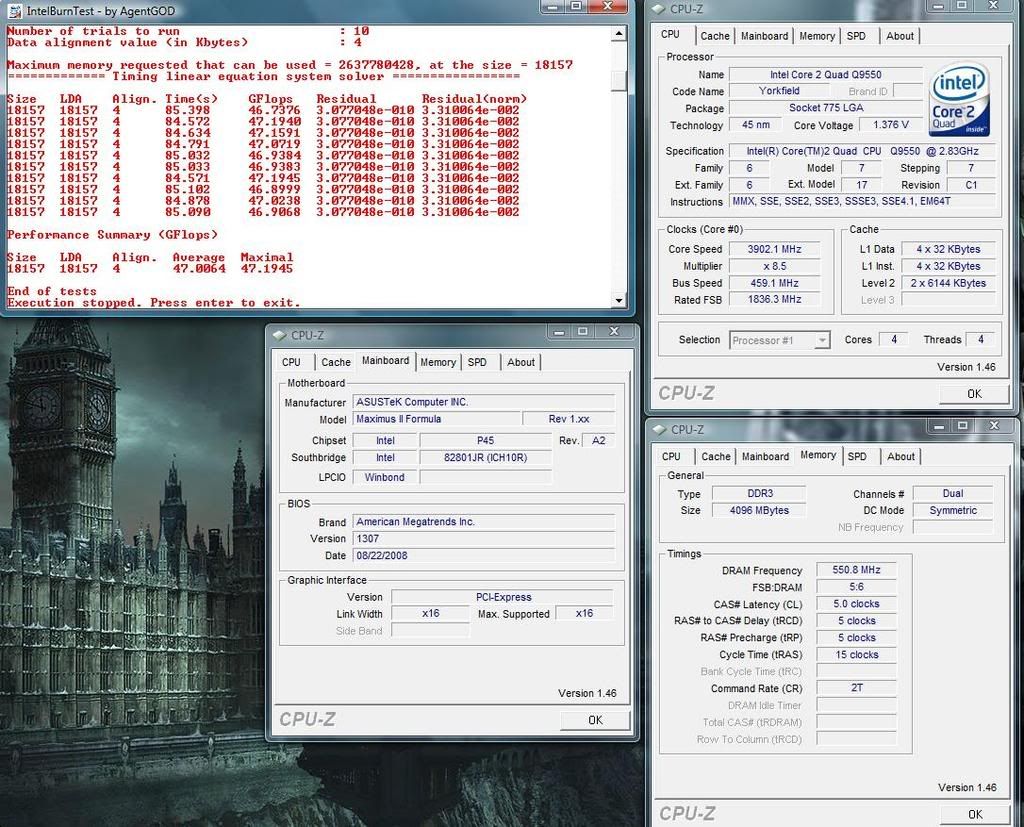

http://i237.photobucket.com/albums/f.../3900_MIIF.jpg

http://i237.photobucket.com/albums/f...npack_3900.jpg
09-14-2008, 08:19 AM
The Nemesis

@Grnfinger

Nice job. I gave up trying to get 3.9GHz stable & tried to optimize voltages and memory @ 3.8GHz. I think there's a limitation in my settings that are preventing me from hitting 3.9GHz and since I can't hit 500FSB for 4GHz, the 100MHz increase didn't seem worth all the headache. That extra .5 multiplier is key I see.
09-14-2008, 08:37 AM
Grnfinger

Quote:

Originally Posted by The Nemesis

@Grnfinger

Nice job. I gave up trying to get 3.9GHz stable & tried to optimize voltages and memory @ 3.8GHz. I think there's a limitation in my settings that are preventing me from hitting 3.9GHz and since I can't hit 500FSB for 4GHz, the 100MHz increase didn't seem worth all the headache. That extra .5 multiplier is key I see.

I share the same attitude for 4.0GHz
To much headache for the little gained
I can bench 4.0GHz all the way to 4.2GHz and even play a few games with no issues, but still cant get the 1 core to stop failing no matter what I try.
09-14-2008, 09:41 AM
genec57

Another ditto - My E8600 is rock solid at 4.5. 4.6 eludes me and after a few hours of struggle I decided to be happy with what I have got.
09-14-2008, 11:45 AM
ATLNY

Quote:

Originally Posted by Grnfinger

Suggestions are in bold
lmk how it works out.
going to post a 4.0GHz setup shortly

Did you post setup for 4.0 GHz yet
09-14-2008, 12:12 PM
vab206

Quote:

Originally Posted by Legacy

You need to put the X-Fi card in the Black PCI Slot ! Your problem will then Disappear

ive got the card in the black slot... still doing the same thing.
09-14-2008, 02:03 PM
ATLNY

Ok
I am stable at 3.8 GHz with the following setting
but I can't get it stable over that
I tried playing with the bios but it seems it's Impposible to hit 4

Asus Maximus Formula II Bios 0901
Corsair XMS2 DHX DDR2PC6400 (4 GB)
Corsair VX550W 550W
Cpu E84000

Ai Overclock Tuner: Manual
OC From CPU Level Up: Auto
Ratio CMOS Setting: 9
FSB Frequency: 424
CPU Clock Skew: auto
NB Clock Skew: auto
FSB Strap to North Bridge: 333
DRAM Freq: Auto
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : auto
Row Refresh Cycle Time : auto
Write Recovery Time : auto
Read to Precharge Time : auto

Read to Write Delay (S/D) :auto
Write to Read Delay (S) : auto
Write to Read Delay (D) : auto
Read to Read Delay (S) : auto
Read to Read Delay (D) : auto
Write to Write Delay (S) : auto
Write to Write Delay (D) : auto

Write to PRE Delay : auto
Read to PRE Delay : auto
PRE to PRE Delay : auto
ALL PRE to ACT Delay : auto
ALL PRE to REF Delay : auto

DRAM Static Read Control: Auto
Dram Read Training : Auto
MEM OC Charger : auto
Ai Clock Twister : auto
Transaction Booster : auto
PCIE Freq: 100

CPU volt:1.32500
CPU PLL Voltage: auto
NB Voltage: auto
DRAM Voltage: 2.10475v
FSB Termination Voltage: auto
SB Voltage: auto
SB 1.5 Voltage: auto

CPU GTL Reference 0 : auto
CPU GTL Reference 1 : auto
CPU GTL Reference 2 : auto
CPU GTL Reference 3 : auto
North Bridge GTL Reference : AUTO
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
North Bridge DDR Reference : AUTO

Ratio CMOS Setting: 9
C1E Support: Disabled
Max CPUID Value Limit: Disabled
Intel Virtualization Tech: Enabled
CPU TM Function: Disabled
Execute Disable Bit: Enabled

Load-Line Calibration: enabled
CPU Spread Spectrum: Disabled
PCIE Spread Spectrum: Disabled
09-14-2008, 02:19 PM
Grnfinger

Quote:

Originally Posted by ATLNY

Ok
I am stable at 3.8 GHz with the following setting
but I can't get it stable over that
I tried playing with the bios but it seems it's Impposible to hit 4

Asus Maximus Formula II Bios 0901

Try this

Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 445
CPU Clock Skew : Normal
North Bridge Clock Skew : Normal
FSB Strap to North Bridge : 333
DRAM Frequency: DDR2-1069
Dram Clock Skew CH1 A1 : Normal
DRAM Clock Skew CH1 A2 : Normal
Dram Clock Skew CH1 B1 : Normal
Dram Clock Skew CH1 B2 : Normal

DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : 3
Row Refresh Cycle Time : 55
Write Recovery Time : 6
Read to Precharge Time : 3

Read to Write Delay (S/D) : 8
Write to Read Delay (S) : 3
Write to Read Delay (D) : 5
Read to Read Delay (S) : 4
Read to Read Delay (D) : 6
Write to Write Delay (S) : 4
Write to Write Delay (D) : 6

Write to PRE Delay : 14
Read to PRE Delay : 5
PRE to PRE Delay : 1
ALL PRE to ACT Delay : 5
ALL PRE to REF Delay : 5

DRAM Static Read Control: Enabled
Dram Read Training : AUTO
MEM OC Charger : AUTO
Ai Clock Twister : Stronger
Transaction Booster : Manual

Common Performance Level [8] maybe 9 or 10 if you get a DET DRAM Hang

Pull-In of CHA PH1 Disabled
Pull-In of CHA PH2 Disabled
Pull-In of CHA PH3 Disabled
Pull-In of CHA PH4 Disabled
Pull-In of CHA PH5 Disabled
Pull-In of CHB PH1 Disabled
Pull-In of CHB PH2 Disabled
Pull-In of CHB PH3 Disabled
Pull-In of CHB PH4 Disabled
Pull-In of CHB PH5 Disabled

PCIE Frequency : 101

CPU Voltage : Whatever your CPU needs
CPU PLL Voltage : 1.50
FSBT : 1.33850
DRAM Voltage : 2.095
North Bridge Voltage : 1.39150
South Bridge Voltage 1.5 : 1.5
South Bridge Voltage 1.1 : 1.1

CPU GTL Reference 0 : +20mv
CPU GTL Reference 1 : +10mv
CPU GTL Reference 2 : +10mv
CPU GTL Reference 3 : +20mv
North Bridge GTL Reference : AUTO
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
North Bridge DDR Reference : AUTO

Load Line Calabration : Enabled
CPU Sread Spectrum : Disabled
PCIE Spread Spectrum : Disabled

lmk how you make out
09-14-2008, 03:07 PM
kwalker

Quote:

Originally Posted by Grnfinger

I'm not sure how you got it stable running everyting AUTO but nice job!

If your ram can handle it I would run this
Strap 333 @ 1132MHz you can then set a PL of 8 for some nice bandwidth

My Mushkins at 1132MHz will damn near hit 10K read write and copy in Everest. Sadly I cant seem to get 4.0GHz 100% stable, prime will run for hours and hours with 3 cores passing everytime tho core 2 fails at 45mins with "SUMOUT ERROR" very frustrating for I have tried everything, even a ton of vcore dosent help.

The best the ram will do is 1081 450 FSB.
they will do higher but requires a latency change.
then they come alive over 500 FSB but thats for another day.
On the formula board they seemed to clock higher 1200 +.
probably a difference in divider at higher FSB.
This is were the QX9XXX shines.
Ram shopping :D:D:D
09-14-2008, 03:23 PM
kwalker

Quote:

Originally Posted by CryptiK

Well whatever the issue was, hope your new one goes well and doesn't take to long to get to you.

I think your vFSB, vNB & vPLL are a bit too high, but that's a good start. Just work on the ram now I guess.

Absolute Max on the Q9550 Vtt is 1.45 as for the north bridge I know the Intel P45 chipset has dropped the absolutes as well but hey
If you own a Ferrari
what good is it in the garage. :cool:
the Q9XXX CPU's have protection devices on die the prevent damage due to high static voltages and I'm sure to exceed this by quite a margin
the only thing I don't like is the Pll voltage :shrug:
As for the Ram......... this has been an issue for me with the dominator's and the Maximus II.
We shall see
09-14-2008, 04:36 PM
ATLNY

Quote:

Originally Posted by Grnfinger

Try this

Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 445
CPU Clock Skew : Normal
North Bridge Clock Skew : Normal
FSB Strap to North Bridge : 333
DRAM Frequency: DDR2-1069
Dram Clock Skew CH1 A1 : Normal
DRAM Clock Skew CH1 A2 : Normal
Dram Clock Skew CH1 B1 : Normal
Dram Clock Skew CH1 B2 : Normal

DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : 3
Row Refresh Cycle Time : 55
Write Recovery Time : 6
Read to Precharge Time : 3

Read to Write Delay (S/D) : 8
Write to Read Delay (S) : 3
Write to Read Delay (D) : 5
Read to Read Delay (S) : 4
Read to Read Delay (D) : 6
Write to Write Delay (S) : 4
Write to Write Delay (D) : 6

Write to PRE Delay : 14
Read to PRE Delay : 5
PRE to PRE Delay : 1
ALL PRE to ACT Delay : 5
ALL PRE to REF Delay : 5

DRAM Static Read Control: Enabled
Dram Read Training : AUTO
MEM OC Charger : AUTO
Ai Clock Twister : Stronger
Transaction Booster : Manual

Common Performance Level [8] maybe 9 or 10 if you get a DET DRAM Hang

Pull-In of CHA PH1 Disabled
Pull-In of CHA PH2 Disabled
Pull-In of CHA PH3 Disabled
Pull-In of CHA PH4 Disabled
Pull-In of CHA PH5 Disabled
Pull-In of CHB PH1 Disabled
Pull-In of CHB PH2 Disabled
Pull-In of CHB PH3 Disabled
Pull-In of CHB PH4 Disabled
Pull-In of CHB PH5 Disabled

PCIE Frequency : 101

CPU Voltage : Whatever your CPU needs
CPU PLL Voltage : 1.50
FSBT : 1.33850
DRAM Voltage : 2.095
North Bridge Voltage : 1.39150
South Bridge Voltage 1.5 : 1.5
South Bridge Voltage 1.1 : 1.1

CPU GTL Reference 0 : +20mv
CPU GTL Reference 1 : +10mv
CPU GTL Reference 2 : +10mv
CPU GTL Reference 3 : +20mv
North Bridge GTL Reference : AUTO
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
North Bridge DDR Reference : AUTO

Load Line Calabration : Enabled
CPU Sread Spectrum : Disabled
PCIE Spread Spectrum : Disabled

lmk how you make out

it hangs right after it post
the message said "checking NVRAM.."
then I went to 10 PL
I reset it, but then at said checksum does not match computer
it would not go any futher from there

Show 100 post(s) from this thread on one page
