awesome chip you have there
any wprime 1024 :D ?
Printable View
awesome chip you have there
any wprime 1024 :D ?
Yep, although it was done a few weeks ago, before the OCCT run.Quote:
Originally Posted by 71proste
http://i37.tinypic.com/if1hf8.jpg
kitfit
since u have such a nice proc and ram with good cooling
isnt it better to have higher qpi so ure gc's also have a large gain
like bclk 200x23-24 , dram 2k c7 uncore 4k. qpi 7.2ghz
has it ever been done.??
never seen any 950/3540 with dram proc 200x23 dram 2000mhz CL7
^^
I'm working on 200x23 dram 2k c8 at the moment.
nice oc :clap:Quote:
Originally Posted by kitfit1
Quick question. my current PSU only has *one* 8-pin motherboard power connector. Can I do my initial build with only one plugged in so I don't have to wait for a new PSU to arrive with the appropriate connectors, or will it be an unstable setup?
[QUOTE=Delemon;4078433]Quick question. my current PSU only has *one* 8-pin motherboard power connector. Can I do my initial build with only one plugged in so I don't have to wait for a new PSU to arrive with the appropriate connectors, or will it be an unstable setup?[/QUOTE
One is fine unless you plan on going "Xtreme"!!:D
I have the Corsair HX 1000 but i dont have both plugged in, its pointless enless your doing 5GHZ +, my system is 100% stable at 4.2ghz with 1 8pin plugged in :up:Quote:
Originally Posted by Delemon
Well im at 4.0 and im stable. Ive tried to do 4.2 but no matter my settings or volts I cant get it. Im plenty happy at 4.0ghz and I plan to use this for 24/7. I just want to check to make sure my settings are good.
Mother Board ( EVGA X58 760 )
Bios ( s61b )
CPU ( 920 D0)
CPU Cooler ( D-tek v2 )
Memory ( Corsair Dominator GT 1866 6gb )
PSU ( Corsair hx620 )
GPU ( XFX 4890 )
Operating System ( Windows 7 Ultimate x64 RC )
Frequency Control
CPU Clock Ratio ( 21X )
CPU Host Frequency (Mhz) ( 191 )
MCH Strap ( Auto )
CPU Uncore Frequency (Mhz) ( Auto)
CPU Clock Skew ( 0 ps )
Spread Spectrum ( Enable )
PCIE Frequency (Mhz) ( 102 )
OC Recovery ( disabled )
Memory Feature
Memory Speed ( Std. )
Memory Control Setting ( Enabled )
Memory Frequency ( 2:8 1067Mhz )
Channel Interleave Setting ( 6 Way )
Rank Interleave Setting ( 4 Way )
Memory Low Gap ( Auto )
tCL Setting ( 7)
tRCD Setting ( 8 )
tRP Setting ( 7 )
tRAS Setting ( 28 )
Voltage Control
EVGA VDroop Control ( With VDroop )
CPU VCore ( 1.35 )
CPU VTT Voltage ( +175 )
CPU PLL VCore ( Auto )
QPI PLL VCore ( Auto )
DIMM Voltage ( 1.65 )
DIMM DQ Vref ( +0mV )
IOH VCore ( Auto )
IOH/ICH I/O Voltage ( Auto )
ICH VCore ( Auto )
VTT PWM Freq (4990Khz)
CPU PWM Freq (1210Khz)
CPU Impedance (less)
QPI Signal Compensation (less)
CPU Feature
Intel SpeedStep ( Disabled )
Turbo Mode Function ( Enabled )
CxE Function ( Disabled )
Execute Disable Bit ( Disabled )
Virtualization Technology ( Disabled )
Intel HT Technology ( Enabled )
Active Processor Cores ( All )
QPI Control Settings ( Enabled )
QPI Link Fast Mode ( Enabled )
QPI Frequency Selection ( 4.8 )
did you try disabled HT?Quote:
Originally Posted by Michowski
No I havent
try then :D
My classified 759 died yesterday, best motherboard for core i7. :D Now i plane classified 760 or 762 4-way. :D
4-way with two NF200 is good?
Yesterday I got in my hand a calss. E760 mobo.
It was too sexy that I was going to buy it to replace my R2E, if my finance was better I would have :shakes:
Prime Blend 5.5GB / LinX 5.58GB
finding LinX min vDIMM is higher than Prime.. anyone else get the same ?
my min vTT also higher for LinX (> 20x), but maybe a more marginal difference showing due to +/-25mv only for set vTT.
201x21 / HT on+off / 2:10
Code:Frequency Control
CPU Clock Ratio ( 21X )
CPU Host Frequency (Mhz) ( 201 )
MCH Strap ( Auto )
CPU Uncore Frequency (Mhz) ( 20x )
CPU Clock Skew ( 0 ps )
Spread Spectrum ( Disabled )
PCIE Frequency (Mhz) ( 100 )
Memory Feature
Memory SPD ( Standard )
Memory Control Setting ( Enabled )
Memory Frequency ( 1333Mhz / 2:10 )
Channel Interleave Setting ( 6 Way )
Rank Interleave Setting ( 4 Way )
Memory Low Gap ( Auto )
tCL Setting ( 7 )
tRCD Setting ( 7 )
tRP Setting ( 6 )
tRAS Setting ( 20 )
tRFC Setting ( 55 )
tsrWrTRd Setting ( 15 )
RTL A/B/C ( 54-56-58 )
B2B Setting (Auto)
Command Rate ( 1t )
Voltage Control
EVGA VDroop Control ( With VDroop )
CPU VCore ( 1.3750 HT off ) ( 1.4250 HT on )
IOH/ICH I/O Voltage (1.5)
ICH vcore (1.05)
QPI PLL VCore ( 1.1 )
IOH PLL VCore ( 1.5 )
CPU PLL VCore ( 1.5 )
IOH VCore ( 1.1 )
CPU VTT Voltage ( +225 Prime ) ( +250 LinX )
DIMM Voltage ( 1.62 Prime ) ( 1.63 LinX )
DIMM DQ vRef ( -50)
VTT PWM Frequency ( 250 )
CPU PWM Frequency ( 800 )
CPU Impedance ( Auto )
QPI Signal Compensation ( Auto )
CPU Feature
Intel SpeedStep ( Disabled )
Turbo Mode Function ( Enabled )
CxE Function ( Disabled )
Execute Disable Bit ( Disabled )
Virtualization Technology ( Disabled )
Intel HT Technology ( On/Off )
Active Processor Cores ( All )
QPI Control Settings ( Enabled )
QPI Link Fast Mode ( Enabled )
QPI Frequency Selection ( 4.800 GT/s )
OC Recovery ( disabled )
DMM voltages @ read pads
vcore with droop
vcore HT on ---- 1.425V set (DMM: 1.355V Prime / 1.345V LinX)
vcore HT off --- 1.375V set (DMM: 1.318V Prime / 1.308V LinX)
vTT Prime ------ 1.425V set (DMM: 1.423V load)
vTT LinX ------- 1.450V set (DMM: 1.447V load)
vDIMM Prime ---- 1.620V set (DMM: 1.655V idle / 1.650V load = 0.005V droop)
vDIMM Linx ----- 1.630V set (DMM: 1.665V idle / 1.670V load = 0.005V positive droop)
idle DMM vdimm = 0.035V higher (@ pads) than BIOS set.
RTL 54-56-58 (all screens)

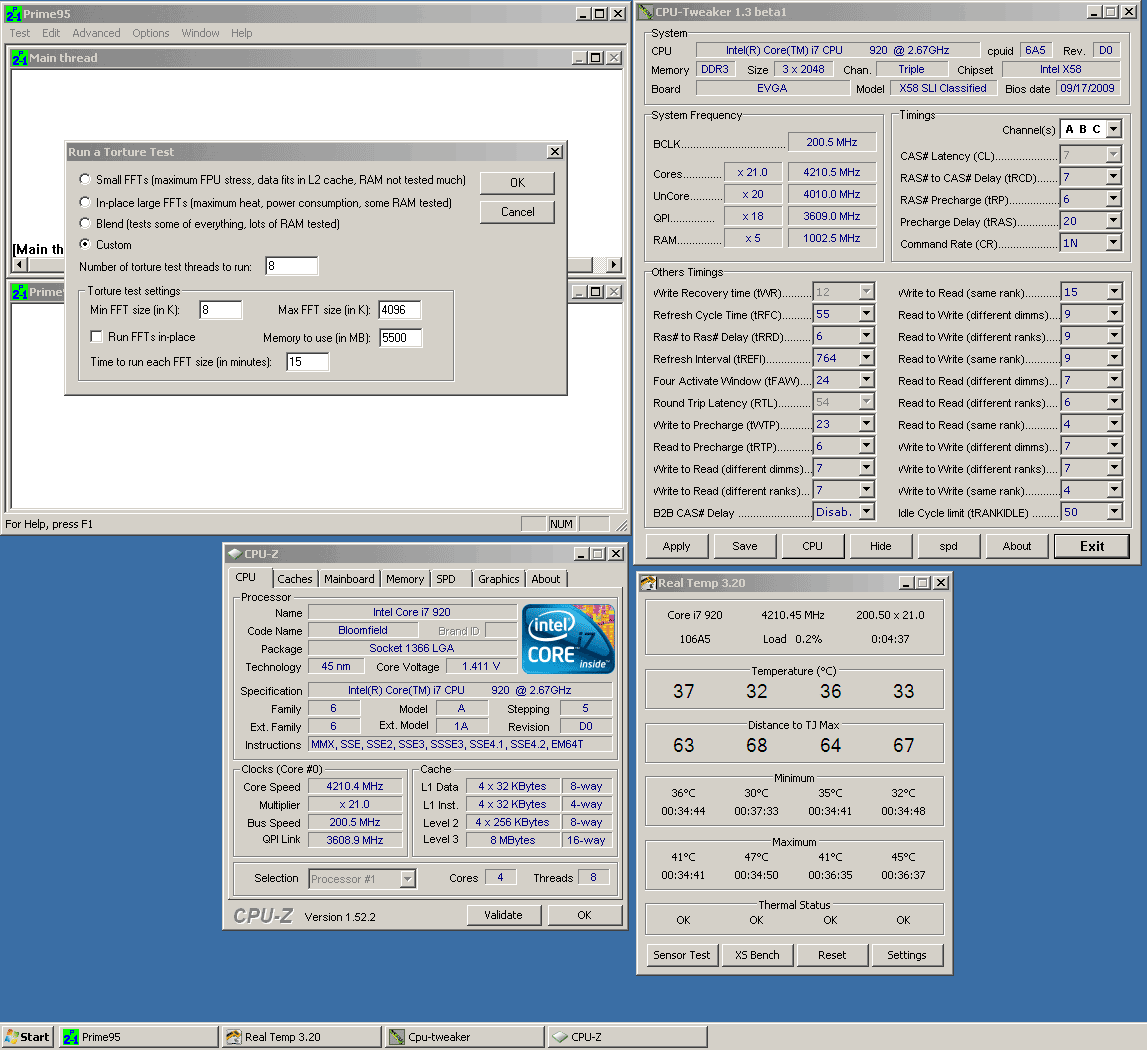

201x21 / HT ON / 2:10
Prime: vTT 1.423V load DMM / vDIMM 1.650V load DMM (1.62V set)
http://i447.photobucket.com/albums/q...n_PB0_s61A.gif
http://i447.photobucket.com/albums/q...B10_s61A_1.gif
test LinX x20 5.58GB = FAIL
http://i447.photobucket.com/albums/q...10_L18F_s6.gif
vDIMM up to 1.63V set Eleet = LinX x20 ok two runs
http://i447.photobucket.com/albums/q...10_Lx_s61A.gif
vDIMM back to 1.62V set Eleet = fail LinX
http://i447.photobucket.com/albums/q...B10_Lx_s-1.gif
> 20x LinX also needs 1.45V vTT set, but i haven't tested more than 30 with HT on
201x21 / HT OFF / 2:10
Prime: vTT 1.423V load DMM / vDIMM 1.650V load DMM (1.62V set)
http://i447.photobucket.com/albums/q...f_PB9_s61A.gif

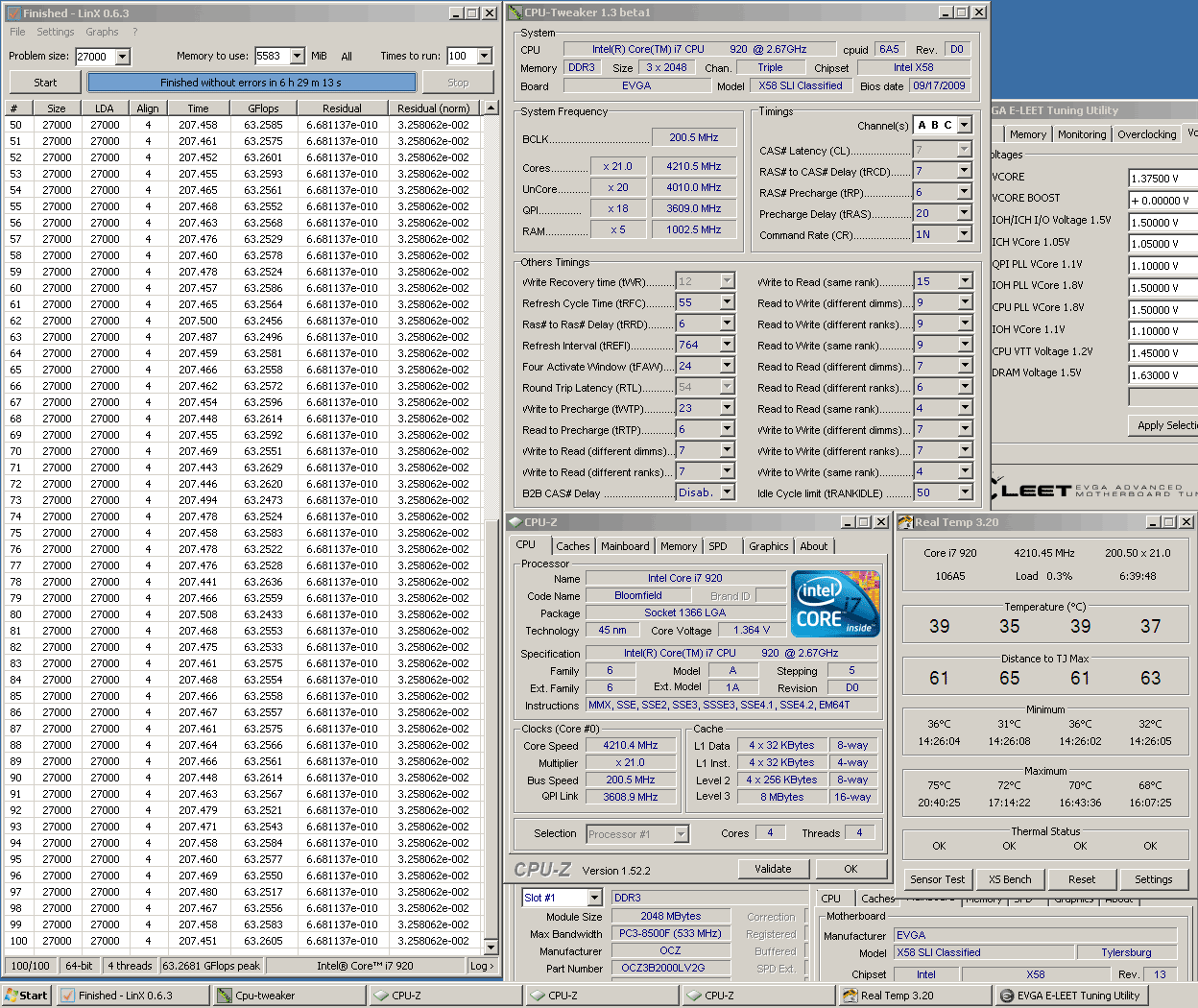

LinX: vTT 1.447V load DMM / vDIMM 1.670V load DMM (1.63V set)
http://i447.photobucket.com/albums/q..._L100_s61A.gif

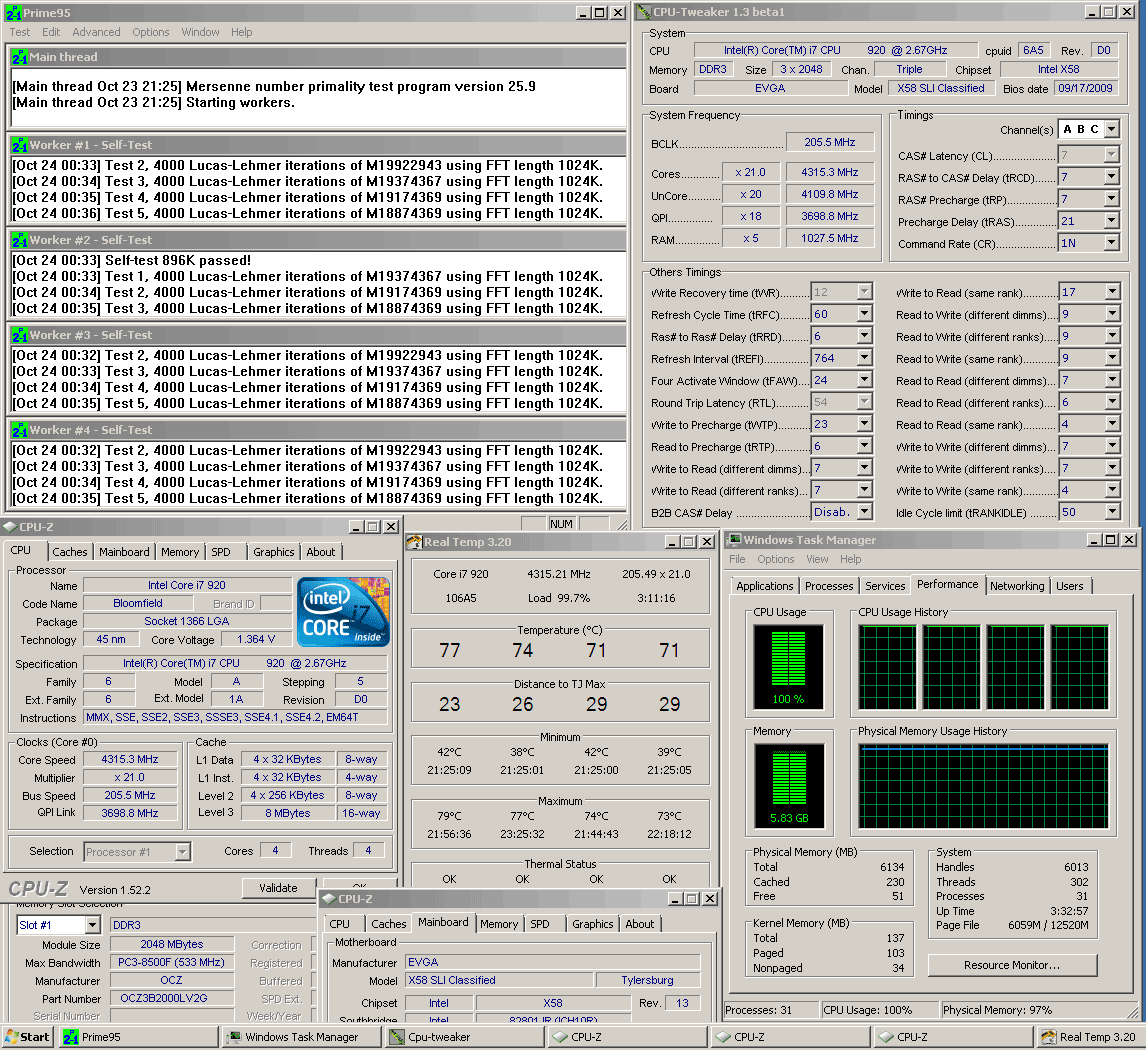

206x21 / HToff / 2:10 / CL7 / vTT 1.498V load DMM / vDIMM 1.70V load DMM
Prime 896/1024k 5.5GB, but still need higher vdimm for LinX x20
http://i447.photobucket.com/albums/q..._PCB3_s61A.gif
Hello
after 9 years of AMD now I am back with intel ( from 96 to 2000 I was intel boy)
I love the core i7 and the evga mobo the only thing I do not like is the low memory gap, I have 12G but can only use 9.5......
I shuld try some quad fermi in the future......
I will require a hand to max things out and to stabilize the beast :)
Did none of you guys get a weird issue with your USB mouse not working after every reboot, forcing you to unplug and replug it after every reboot?
Its driving me nuts! I downloaded the intel chipset drivers but the update happens so quick I don't think it did anything. Still, with Windows 7 I figured the default MS drivers would be plenty fine to prevent crap like this from happening.
No one else encountered this?
^even without chipset drivers, win7 detected my mouse and installed as USB gaming mouse.
Turned off HT and im over an hour and a half on prime for 4.2ghz at 1.35v. Seems to be stable. Im gonna stop it at the 2 hour mark.Quote:
Originally Posted by 71proste
same here.Quote:
Originally Posted by Bojamijams
not after every boot, but very often. i wait 30-60 seconds and then w7 found my mouse :rolleyes:
ht on= higher temps,more vcore(in most cases)
ht off=lower temps,better max oc ;)
anyone ever seen anything like this
http://clubnboc.com/forum/index.php?...ach=5346;image
Getting this error trying to run sli 7800gtx 256mb
If I take the card out or change slots it still has the error.
Fresh OS install 85.96 drivers, and all chipset drivers installed.
Read something about changing aperature size but that was agp, but I tried anyways and same issue. Also tryed installing single card first, then adding second card and still no dice.
Is this a nf200 issue? Ive seen others running this setup on different x58 boards?
whats the error code splave?
error code 12
