01-21-2007, 09:18 PM
rick_fx

Quote:

Originally Posted by Blackoberst

Those temps seem very strange to me. I've touched the base of heatsink, and it's warm. At 68C should be hot, so I don't think they're real.

I think this also, the base of my Tuniq Tower120 is barely warm at 83C :shrug:
http://i16.tinypic.com/2rp41hg.jpg
01-21-2007, 09:58 PM
alpha0ne

Quote:

Originally Posted by rick_fx

I think this also, the base of my Tuniq Tower120 is barely warm at 83C :shrug:

If its barely warm @ 83C then the contact between the sink and CPU must be very bad, you really need to check the TIM
01-21-2007, 11:33 PM
rick_fx

Quote:

Originally Posted by alpha0ne

If its barely warm @ 83C then the contact between the sink and CPU must be very bad, you really need to check the TIM

False, CPU and heatsink are lapped and contact is excellent ;)

Lapping CPU and heatsink gave me an 11C load temps drop :)
01-22-2007, 01:14 AM
Ancient1

Enable PECI in CPU features to get reliable Temp readings ?
C2D rated max temp is 61.4C !
01-22-2007, 07:36 AM
Drager2

Ancient1 Up, especially for subzero temps. Rated = not real ;)
01-22-2007, 07:42 AM
0verl0ad

I got my new E6600. It´s a L629B172. Has someone made any experiences with the stepping?
01-22-2007, 08:13 AM
Miwo

Quote:

Originally Posted by 0verl0ad

I got my new E6600. It´s a L629B172. Has someone made any experiences with the stepping?

it should be a really good one. Everyone wants to get their hands on the "B" chips because they will do higher clocks at lower voltages, but they seem to run a little hotter at the same volts/speeds as a comparable "A" chip. Have fun with it, should hit 3.6GHz easily id imagine, but of course YMMV
01-22-2007, 10:24 AM
rick_fx

Quote:

Originally Posted by Ancient1

Enable PECI in CPU features to get reliable Temp readings ?
C2D rated max temp is 64C !

I never thought I'd read such comments on this forum. :rolleyes:

This is XtremeSystems, FYI
01-22-2007, 10:34 AM
0verl0ad

Quote:

Originally Posted by Miwo

it should be a really good one. Everyone wants to get their hands on the "B" chips because they will do higher clocks at lower voltages, but they seem to run a little hotter at the same volts/speeds as a comparable "A" chip. Have fun with it, should hit 3.6GHz easily id imagine, but of course YMMV

Maybe the CPU could reach this. But not with my board. It has a xtrem vcore drop (set to 1,7v in bios an 1,52v under load). And it seems that my board doesnt like my e6600. Every mhz over ~380mhz fsb is unstable. with my e6400 i could set it up to 500+.
01-22-2007, 11:24 AM
rick_fx

E6700 L617B
DFI RD600
Tuniq Tower 120 ; Air temp = 22C

3867Mhz at 1.52V :)
http://i18.tinypic.com/2eb74wo.jpg
01-22-2007, 11:31 AM
Blackoberst

Anyone tested MX-1 on C2D?
I ran out of AS5 and put some MX-1. Now I have to wait a few days to see the results.
01-22-2007, 01:47 PM
Tallman

What a useless thread this is. He hasn't updated the db since August of 2006 :mad: .:slapass:
01-23-2007, 03:02 AM
Ancient1

rick_fx

There's a difference between nicely fried French and over done French Fries LOL

I helped a guy with OC and overall modding.. his P4 805 ran at 69C when Intel states 64C is max. When I slowed the CPU fan just little bit with a paintbrush (nice for dust cleaning), There was an immediate BSOD. and again at boot (less load).. so , its nice to have a CPU/Sys overheating control but running too hot .. well you understand
01-23-2007, 03:23 AM
Blackoberst

1 Attachment(s)

3010@1.248

I think it's the lowest voltage on this frequency, but I'll try lower.
01-23-2007, 06:47 AM
rick_fx

Quote:

Originally Posted by Ancient1

rick_fx

There's a difference between nicely fried French and over done French Fries LOL

Lol, what's wrong with overdone french fries :D

Quote:

When I slowed the CPU fan just little bit with a paintbrush (nice for dust cleaning), There was an immediate BSOD. and again at boot (less load)..

Paintbrush for dust cleaning is a good idea :)

No BSOD's for me yet. If I remove one fan (4 total) from around the Tuniq Tower, the CPU starts to throttle a bit :banana:
02-02-2007, 04:00 PM
Tempest_

My first post here! :)

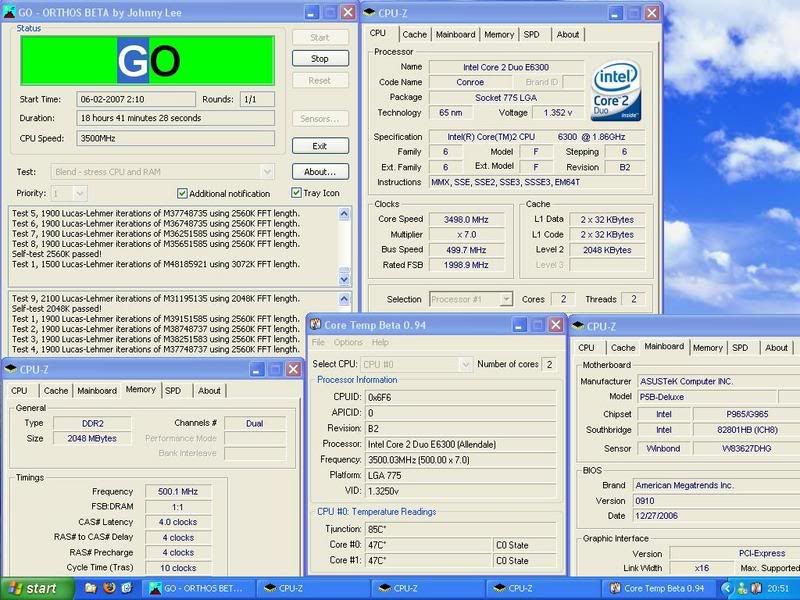

Tempest_ - *E6300 Orthos stable 18hours+ @ 3,5Ghz* (*1,4250V (Bios)*) | *Tuniq Tower 120* | *P5B Deluxe Wifi/Ap* | *Team Xtreem Dual Channel Kit 2GB PC2-6400 CL4*

http://i11.photobucket.com/albums/a1...5014250V06.jpg

Super PI 1M @ 3,5Ghz (Same settings)

http://i11.photobucket.com/albums/a1...r54/PI1M01.jpg
03-15-2007, 08:54 PM
iviustang50h

I am having some major issue with my new setup.

I just received my Asus Commando, E6600, Tuniq Tower and G.Skill PC8000 memory. I am a "noob" so please forgive me, but I have read through the entire commando results thread and many of the sticky's and am perplexed. My issue is that I can't even maintain stability at 3.2GHz. Prime95/Orthos crashes in one minute. What am I doing wrong? Please help.

Sorry for being so noobish!
03-15-2007, 10:53 PM
Ancient1

iviustang50h
no need to be "Sorry for being so noobish" . everybody doesn't know something.

I suspect temps , i.e the Tuniq might be improperly installed .
did u put good thermal paste ?
If Crash occures at temp Y , than , load Bios Defaults and see if it crashes at same temp Y .
03-16-2007, 04:59 AM
iviustang50h

Quote:

Originally Posted by Ancient1

iviustang50h
no need to be "Sorry for being so noobish" . everybody doesn't know something.

I suspect temps , i.e the Tuniq might be improperly installed .
did u put good thermal paste ?
If Crash occures at temp Y , than , load Bios Defaults and see if it crashes at same temp Y .

Thanks for the kind words. It's nice to be welcomed here on this forum!

I suppose it is possible I installed the Tuniq Tower wrong. I followed the directions as best as possible and hand tightened the four screws until I could barely turn them anymore. Is that too tight? I also have the fan inside the unit facing the rear of the case and blowing air out the back. Is that correct? I did use Arctic Silver 5 for the thermal paste.

Here are my bios settings that I used when trying to reach 3.2 stable (I have a E6600 overclocked to a 3.4 stable on a P5B Deluxe with no issues, but something is wrong with the commando setup:mad: ).

When overclocking my settings were:

Using Bios 803
Spread spectrum - off
PCI clock sync - 33.33
PCI express frequency - 100
DRam - 1:1 (533)

CPU Vcore - 1.45
FSB Voltage - 1.4
NB Vcore - auto
Memory voltage - 2.3 (per G.Skill specs. I have the DDR1000 stuff rated at 4-4-4-5)
DDRII Channel A, B and Ref voltage - all 3 at auto
SB Vcore - 1.5
SB Chipset Voltage - auto
ASUS C.G.I. - auto
Static read control - auto
Cas Latency - 4
Ras to Cas - 4
Ras Precharge - 4
Active to Precharge - 5
Write recovery time - 6
DRAM TRFC - 42
DRAM TRRD - 10
Write to Read - 10
Read to Precharge delay - 10
Write to Precharge delay - 11

CPU ratio CMOS setting - 9
C1E - disabled
Max CPUID Value - disabled
Vanderpool Tech. - disabled
PECI - disabled

Sorry for the long list, but I want to get this issue fixed.

Thanks!
03-16-2007, 06:36 AM
Dublin_Gunner

Quote:

Originally Posted by iviustang50h

Thanks for the kind words. It's nice to be welcomed here on this forum!

I suppose it is possible I installed the Tuniq Tower wrong. I followed the directions as best as possible and hand tightened the four screws until I could barely turn them anymore. Is that too tight? I also have the fan inside the unit facing the rear of the case and blowing air out the back. Is that correct? I did use Arctic Silver 5 for the thermal paste.

Here are my bios settings that I used when trying to reach 3.2 stable (I have a E6600 overclocked to a 3.4 stable on a P5B Deluxe with no issues, but something is wrong with the commando setup:mad: ).

When overclocking my settings were:

Using Bios 803
Spread spectrum - off
PCI clock sync - 33.33
PCI express frequency - 100
DRam - 1:1 (533)

CPU Vcore - 1.45
FSB Voltage - 1.4
NB Vcore - auto
Memory voltage - 2.3 (per G.Skill specs. I have the DDR1000 stuff rated at 4-4-4-5)
DDRII Channel A, B and Ref voltage - all 3 at auto
SB Vcore - 1.5
SB Chipset Voltage - auto
ASUS C.G.I. - auto
Static read control - auto
Cas Latency - 4
Ras to Cas - 4
Ras Precharge - 4
Active to Precharge - 5
Write recovery time - 6
DRAM TRFC - 42
DRAM TRRD - 10
Write to Read - 10
Read to Precharge delay - 10
Write to Precharge delay - 11

CPU ratio CMOS setting - 9
C1E - disabled
Max CPUID Value - disabled
Vanderpool Tech. - disabled
PECI - disabled

Sorry for the long list, but I want to get this issue fixed.

Thanks!

up the vcore to 1.5 (only after you check the temps at the moment)

Also, your ram is underclocked, 1:1 with an fsb of 355 (assuming you're at 3.2Ghz) is only 710Mhz
03-16-2007, 08:32 AM
Jodiuh

He shouldn't need 1.5 on the CPU for 3.2...
03-16-2007, 10:08 AM
Dublin_Gunner

Shouldnt certainly does not mean doesnt

Some chips simply need a little more voltage, and 1.5 is safe on air.
03-16-2007, 11:01 AM
Ancient1

if the pc crashes at certain, low, temp , overclocked AND default , than the cooling is suspect.
I don't have same mobo.
03-16-2007, 11:49 AM
iviustang50h

Quote:

Originally Posted by Dublin_Gunner

Shouldnt certainly does not mean doesnt

Some chips simply need a little more voltage, and 1.5 is safe on air.

With a help from Mr. Deeds and other like you, I seem to have gotten over my initial hump. I changed the vcore to 1.5V and changed tras from 5 to 12. That ram is rated at 5 tras, but if it doesn't work and will only work at 12, so be it. I will mess with it down the road to see if it is really the tras or the extra vcore voltage that fixed it.

Obviously I want to overclock higher than 3.2 What is the recommend voltages for running my e6600 at 3.6 on a Tuniq Tower (CPU Vcore, FSB Voltage, NB Vcore, SB Vcore, SB Chipset Voltage)?

Cheers to Mr. Deeds and you all for helping me out. Hopefully this does the trick!
03-16-2007, 11:54 AM
Markmk

Markmk - 3.6ghz Prime stable (1.42v) - Water cooled - Abit IN9 32X Max - Cellshock PC6400 (D9GKX) @ 944 4-4-4-12 2.2v

http://img520.imageshack.us/img520/6730/36ghzhs9.jpg

OK guys, im kinda new to overclocking on Intel so this is what ive managed so far. Im fairly happy with this chip. 3.6Ghz@1.42v. Im aiming for 4Ghz. Any suggestions would be greatfully recieved
