The Official X2 Overclocking Thread (Please Post Your OC's)

;)

Code:

---

X2 3800+ CCBWE 0545RPMW
DFI nF4 Ultra-D 623-2
1*512 TCCD 507 | 2*256 BH5
1*Gb X800XL
Antec True Power 2.0 550W
Win XP Pro SP2

Watercooling:
Pump Atman A-103 (1200l - 1.2m)
Condenser from Air-Conditioning
Homemade waterblock

CPU Max Stable @Stock volts: 2450MHz @1.31V - TCCD @245MHz CPU/10

VID= 1.31
CHIPSET= 1.15
LDT= 3x
VDDR= 2.7

RAM Timings at stock
CPC = 1T
CAS Latency(CL) = 2.5
RAS to CAS(Trcd) = 3
Min RAS# Active time(Tras) = 7
Row Precharge Time(Trp) = 3


CPU Max Stable @1.55V: 2706MHz @1.55V - BH5 @226MHz CPU/12

VID= 1.55
CHIPSET= 1.3
LDT= 3x
VDDR= 3.7

RAM
CPC = 1T
CAS Latency(CL) = 1.5
RAS to CAS(Trcd) = 2
Min RAS# Active time(Tras) = 5
Row Precharge Time(Trp) = 2

---

http://www.beforeoverclock.com/image...700%5b2%5d.jpg

http://www.beforeoverclock.com/image...PUMARK2450.png

and just a shot to make a validation @2.9GHz... I guess it's possible to validate above, but I had not enough time to do so.
2906MHz @ 1.55V | http://valid.x86-secret.com/show_oc.php?id=63512

http://www.beforeoverclock.com/image...MWCPUZ2906.png

4400+ 0534 MPM batch 1764

Watercooled and naked

http://www.klokking.com/bilder/7p.JPG

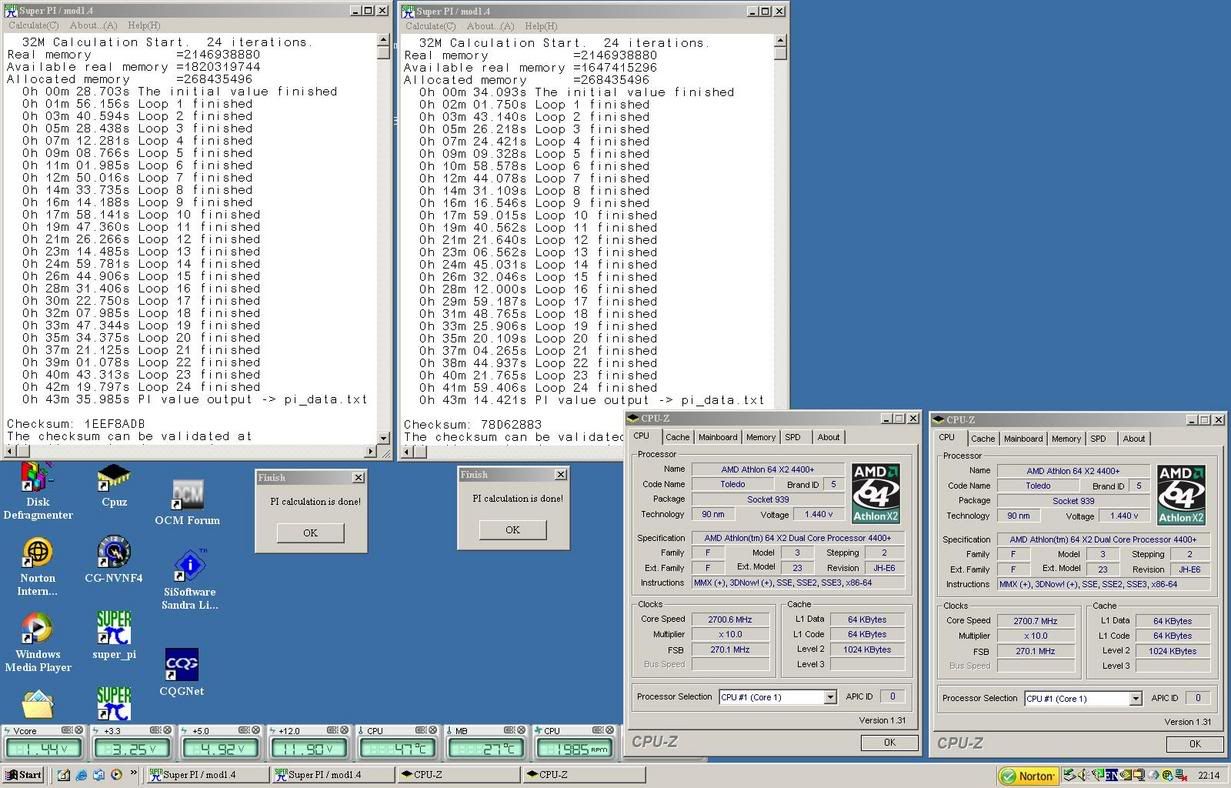

X2 4400+ CCBWE 0544
Air Cooled XP90c/Noiseblocker SE 92mm
270*10 @1.425(Bios)
Asus a8n-SLI premium(Bios 1009)
PSU seasonic S12 500W
2*1Go Corsair XMS multi 333 Settings 2.5-3-3-7 @2.8v
O/S Windows 2000
http://i18.photobucket.com/albums/b1...262/OC2700.jpg

Well i think i just found the cpu that might top my 3.0gig x2 3800. stepping of my 3800

ADA3800DAA5BV
LDBHE 0541 RPDW
batch #50564

X2 4200 i just spotted
ADA4200DAA5BV
LDBHE 0540 VPMW
batch #50082

Updated my results;

http://www.xtremesystems.org/forums/...2&postcount=51

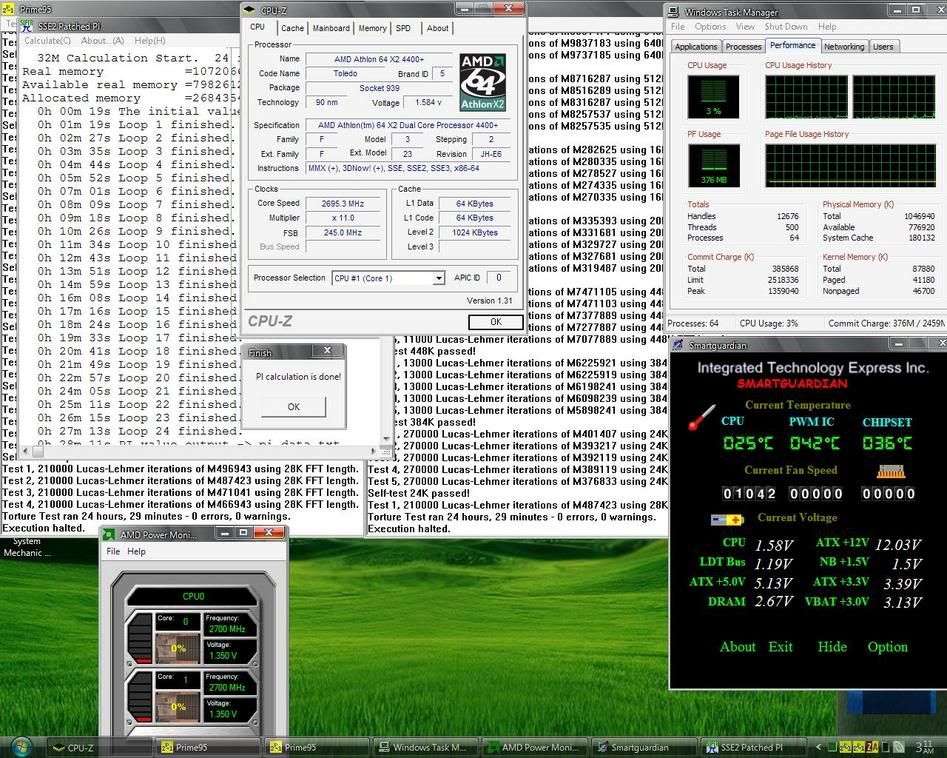

My results, 4400+ at 2.7 Ghz

CCBWE 0529 RPMW

http://i7.photobucket.com/albums/y27...i/ff687ec0.jpg

Is this DB ever updated? (last update was done on 10-21-2005 at 06:51 AM)

People jumped on the opteron bandwagon thats why........

I'll be updating it tomorrow... I have been really busy... Plus it seems that alot of people are not following the rules so their oc will not be put on the list and thank you to the ones who did follow the rules...

x2 3800+ CDBHE 0545 RPMW:

Received a few days ago and booted up @ 2.7 ghz with 1,5v. I did not test for stability as I was just checking before mounting it in my mach 2 rig.

It's now running 10*303, 1,63v. Mem is on divider as I wait for my rma'd ocz pl pc4800 to return. I will report stability when I've done a few tests. So far it looks promising :)

Quote:

---

Originally Posted by toreide

x2 3800+ CDBHE 0545 RPMW

---

You got it on phase now? Where did you get it? That's a quite uncommon stepping, I think.

Please, post all details here:

http://www.xtremesystems.org/forums/...ad.php?t=87232

:)

X2 4400+ (110W - ADA4400DAA6CD)
CCBWE 0546SPAW
Batch 517K

CPU-Z validated

EDIT See new clock below :).

4400 CCBW 0532TPMW
Water Cooled

CPU VID 1.55
VID Special 113%
LDT 1.5
Chipset 1.5
DRAM 2.9


http://home.earthlink.net/~unccvsa/s...nshot2xspi.jpg
http://valid.x86-secret.com/show_oc?id=73427

ummm wierd............for some reason a64tweaker isn't right.
this is what it should be.
http://home.earthlink.net/~unccvsa/s...a64tweaker.jpg

setting the LDT/FSB to x3
Lower the voltage to 2.7
280HTT
http://home.earthlink.net/~unccvsa/s...eenshot280.jpg

3800+ LDBHE 0601TPMW 00274
DFI SLI-DR
TT BigTyphoon - 1300RPM

Still climbing with this one. I have some issues to sort out before I can get it any higher. BIOS 704-2BTA wont let me run the BallistiX on divider over 225 HTT, so I have to run 1:1 and my BallistiX seems to crap out at 285 3-3-3-7

With only 1.4v for 2850 im hoping 2950-3000Mhz maybe... would be nice a nice 24/7 clock.

http://www.urettferdig.no/forman/ima...X2_2850_SP.JPG

Another result from the Norwegian jury:
http://www.xtremesystems.org/forums/...1&d=1140903988
I just got it yesterday, burning in at the moment, passed 3 hours dual prime. It seems to have hit a (preliminary) wall around 300x9, took 0,05v to go from 295->300.
By the way, this Ultra -d is a bit silly; the 10x multiplier doesn't seems to work above ca 230htt (BSODS etc), experienced the same thing on a 3500+ Clawhammer i had, tried 3 different bioses, lotsa settings. I'm on win2k btw.

Got this running over the weekend. It runs solid on 300x10 with 4 hours of BF2. 340 is the max I can do and can't raise the multiplier do to voltage lock on the A8N32.

Athlon 3800+ 64 X2
ADA3800DAA5BV
LDBHE 0605GPMW

340*9 @1.556(Bios)
Vapochill LS -40c idle -37c load
Asus A8N32-SLI Deluxe [1103 BIOS]
2GB (2x1) OCZ DDR500 Gold GX XTC @ 2.5-3-3-7-1T @ 225mhz
Windows XP x64
Enermax Noisetaker 600W PSU SLi Cert.

X2 4400+ (110W - ADA4400DAA6CD)
CCBWE 0546SPAW
Batch 517K

CPU-Z validated

http://www.diduknow.co.uk/dual%20pri...%20running.PNG

And then:

http://www.diduknow.co.uk/dual%20pri...0validated.PNG

LDBHE 0607UPMW
Water Cooled
haven't tried any more volts yet, but I think there's more left in the chip
http://img122.imageshack.us/img122/3...145v1ms.th.jpg

CCBWE 0529RPMW X2 3800+ watercooled with AquaXtreme MP-05, 50z, 120.3
Crucial Ballistix z503 2gb

Ambient temp = 22C Load Temps = 37C (6800GS in the loop also on MP-01)

http://www.jpop.com/gocchin/x238002850.jpg

Lo all, let me drop mine :banana:

CPU: A64 3800+ LDBHE 0601 TPMW @ 10x280MHz 1.5v in BIOS
Cooling: RBX / Maze4GPU / HWLabs BIX-II / 2x 120mm ADDA Monsters! :D / Eheim 1048
MoBo: DFI NF4 LP Ultra-D with 623-3 BIOS
RAM: 2 x 512MB Crucial Ballistix PC4000 @ 2.6v (RAM is untouched for now! :bananal: )
PSU: Tagan 2Force 530W

http://img384.imageshack.us/img384/3...20049kt.th.jpg

PS, for all of you who wants to post Prime95/SP2004 screenies, PLEASE DO LARGE FTT's rather than the SMALL one!!

Haha, put my 4600 under phase today and got some nice out of it, but I was on the last iteration of dual SuperPi 32M, 265x12 (3180 MHz) @ 1.65v and just as I went to screenshot it, Windows Explorer crashed. The SuperPi instances kept on running to the end, that was the wackiest part. Ah well, start again. :D

so why not just restart explorer then?

Quote:

---

Originally Posted by don_vercetti

so why not just restart explorer then?

---

How do you do that from Task Manager, as that was the only thing I could interface with?

Quote:

---

Originally Posted by stone_cold_Jimi

How do you do that from Task Manager, as that was the only thing I could interface with?

---

File > New Task (Run....) > explorer.exe > ENTER :)

Quote:

---

Originally Posted by smids

File > New Task (Run....) > explorer.exe > ENTER :)

---

Kewl thanks. Next time.... :)
