ctgilles,
Download the modifed flashorm fromhere:.
Have a good read while you're at it.
After that, download the ATI bios linked from that page.
Follow the instructions & you should be good to go.
As I stated in one of my earlier posts, this is the way I did it:
"Make sure that you save your old bios first, then use flashrom16 & empty.bin to empty the bios & then flash your VC's bios straight away with the lastest ATI X800XT PE bios (520/560)."
Hope this helps...
Minnyboy
I remember getting frustrated, because I forgot how to put the utility onto the floppy. Ya forget things ya haven't done for a long time. ;) Did you download it to your desktop, then unzip it TO the floppy?Quote:
Originally Posted by ctgilles
Sapphire X800 Pro Vivo 1.6ns -> X800 XT PE (16 Pipes)
Flashed with Giga! Gonna try others!
Benchs with 520/560, one more mhz and starts artifacting and then boom! :P
Gonna try to increase vpgu. What do you suggest?
Best wishes
Jorge Lopes
You could try to download a raw image from bootdisk.com and I believe you can burn it with nero.Quote:
Originally Posted by ctgilles
I would first try another bios. I read somewhere that the gigabyte bios gives you less voltage. Just flash the ATI XT-PE bios and try again.Quote:
Originally Posted by jll
Did you measure your Vgpu?
i thougt ati bioses cant change vgpu?
I read somewhere that the Gigabyte bios gives you 0.1V less Vgpu. I am not sure about that. Please correct me if I'm wrong.
Thanks for posting the link to W1zzard's modified flashrom. After reading his page there, it looks to me like his method is the best because you can go back to 12 pipes if the card isn't fully functional with 16. Apparently, the Gigabyte flash method leaves you stuck with 16 pipes. Also you only have to flash once.Quote:
Originally Posted by Minnyboy
Anyway, it worked for my Sapphire VIVO. I backed up my stock bios and flashed directly to the latest XT PE bios.
I phobos, thanks for the response!Quote:
Originally Posted by phobos
I've broke the barrier of the 520/560 but my card generates too much heat! Can't make a whole run of 3d01 that the card just stops! :mad:
Got to take it on the chilly and see "her" real power. Gonna test the mems today to see if they react better.
Dont have a multimeter, so no mesaures here... :rolleyes:
Thanks in advance
Best wishes
Jorge Lopes
Manufacturer:HIS X800Pro VIVO ICEQ II
Bios Used: Gigabyte Bios
Successful: Yes
520/560 I haven't pushed it to it's limits but the HIS cooler is remarkable.
Saphire X800 PRO VIVO Toxic
Modified Flashrom + Saphire X800 XT PE bios
Success: Yes
Issues: Seems to black screen on me after ATITOOL runs artifact tester for 80 seconds.
PSU shouldn't be an issue got a new OCZ PowerStream 520W running.
Anyone else get same problem?
Temp is 54C loaded with ATITOOL.
Tried 4.10 and 4.11 both black screen me to death.. no graphics corruption, no artifacts/checkerboards just freezes comp and black screens.
Fixed the CLI.exe error by installing .net 1.1 But still blackscreens after 60 seconds of ATITOOL. Annoying cause I don't get any graphic corruption but still pos freezes the comp. I had AI disabled also.
Damn drivers...
Weird...
I successfully flashed this model using the modified flash tool and the modified 16 pipe PRO VIVO BIOS. I verified that I had 16 active pipelines, and I saw a jump in the ATI Tool 3d View from 115 fps to over 320 fps. I flashed back to my original bios immediately since the temp went to over 75 C almost immediately with stock cooling. I believe I need to flash with the Gigabyte flash tool back to my original BIOS, since I reset the card to its original configuration (12 pipes, 115 fps) with the modified tool.
Use the modified flashrom to flash to the ATI X800 Pro VIVO 16P (AGP) 256 MB bios from here. That will give you 16 pipes and stock X800 Pro clocks.Quote:
Originally Posted by jman0918
Nothing a little pencil on the Vgpu resistor won't fix! it doesn't help that ATitool cannot test the R420 core properly, I think the latest beta remedies that issue along with fixing the incorrect memory timing options.Quote:
Originally Posted by `schr0et
any of u guys wanting to sell your cards? let me know lol ;)
My powercolor worked just fine. Really bad overclocker though, only 555/610 with AC silencer and 1.55 vgpu and 2.3 vdd. Tried every voltage up to those levels aswell. Got me some 32k with a 3700 @ 10x260 and bh-5 @ 2-2-2.
My Powercolor has a face with memory 2ns and the other face 1.6ns
anything with this problem?? xDD :(
It should be no problem to activate the pipelines but you will probably not get so high mem clocks.Quote:
Originally Posted by Umek
My Grandmars X800Pro VIVO mod to XT-PE without any problem. I got it oc to 580/600 with watercooling, clean in Atitool.
At the moment it's at 645/600 with the help of a couple of pencil stroke. I couldn't be happier. :banana:
holy :banana::banana::banana::banana:.
grandmars is the hong kong brand for PowerColour btw.
ah fung where did you get your card and how much?
I got my Asus AX800Pro TVD at Wanchai Comp City for $3430, less than standard pro. =D
its running at XT PE stock, but i haven't had time to do the mod. will let you know once i do
successsful...
Asus AX800Pro TVD -> X800XT Platinum Ed
1. uninstall old drivers
2. reboot, to make sure they're gone
3. use techpowerup.com guide, plus ATi X800XT PE bios (submitted Sep 29)
4. reinstall omega drivers 2.5.90 (cat. 4.10beta)
brilliant. very simple, very quick.
question: Haven't tried to overclock yet but is there a difference as to which bios I use? the techpowerup.com library has an Asus X800XT PE bios. should I use that since its the same brand and someone said the Asus cards get around 1.44v to the vgpu as opposed to 1.41 for most other cards, or is there another bios that's providing some exceptional overclocking?
gpu at 40'C in 2d, haven't run anything intensive yet.
what does the A.I. function do? its in my Custom Settings for radlinker. and should I use OverDrive or manually overclock?
Oh it's Powercolor? I'm not sure, all brands look like the same to me, BBA anyway.Quote:
Originally Posted by sh33p
It bought a used VIVO for $2400, but was defective at first. Then the replacement turned out to be excellent. The highest oc that can finish 3dm05 is 666/605 with vmod.
Now I cut the voltage a bit and be happy at 636/600 for everyday use.
Is it true that ATI is making partners use 2ns mem on the vivos now............ I just read that on some forum so it doesn't have to be true, wandering if anyone here heard about it
I cant find the pencilmod anymore does anyone have a link to the right thread? thank you.
http://xtremesystems.org/forums/showthread.php?t=35585
i'm gonna try the asus bios first see how much vgpu that gives me some people say its higher than usual. just measured got 1.3
gonna buy a 2b pencil from the school bookshop tomorrow
Manufacturer: Sapphire
Bios Used: Gigabyte
Succesful: Yes. :)
I'm planning on doing a voltmod soon because the core won't go any higher than 525 without artifacts.
Can anyone tell me there thoughts about this Gigabyte X800Pro vivo I am looking closelt at this one for the mod and can't really afford another if this one fails:(
-milkmover
All the VIVOs have had equal success with flashing. Gigabytes are just as well as any other brand from all of the results I've seen.
I found a great deal on a Abit Rx800pro vivo and am going to get that this week if it stays in stock :upset:
-Milkman
No, I had Bad pipe lines. :(
- Sapphire X800Pro vivo
- bios Flashed Gigabyte then Ati
- Default Voltage was 1.36v
- Cooling: Using Default HSF.
I had a budget for either 68GT or X800 pro. My heart/gut feeling was on Gainward 6800GT. But most of my friends recommend me to get a X800 pro vivo and flash it to a XT PE. So I did. What a Freaking nightmare!
Flashing to XT PE went smoothly. Only when I started to test then S h i t Happened! Basically Artifacts, artifacts every Freaking where! See AquaMark below:
http://img.photobucket.com/albums/v1...I/Gpu/aqua.jpg
It was running 520/560 XT PE speed. I tried up the Gpu core voltage by pencil mod to 1.41v. that was no help. I was going to slap a MCW50 Gpu block onto it but it never got to that point. I tweaked the HSF to spin at Max. using AtiTool but that did not help either.
Finally I gave up hope and Flashed back to a X800 Pro. To my horror the artifacts still appeared after flashing back to X800pro. I tought that the Flash back got screwed up and checked in AtiTool and it detected 12 pipe lines. meaning flashing back was ok.
In the end I had to RMA the card. Got back a new one with 1.4v on the Gpu voltage. But now I'm reluctant to flash again. I replaced the default HSF w/ an Arctic Silencer. O/C results were not to shabby. 560/570 Core/Memory.

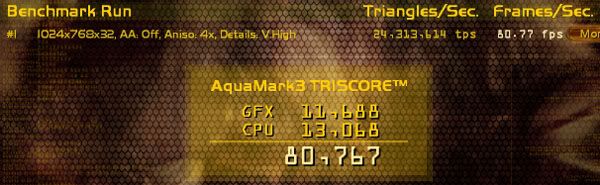

AquaMark:
http://img.photobucket.com/albums/v1...0-9x306250.jpg

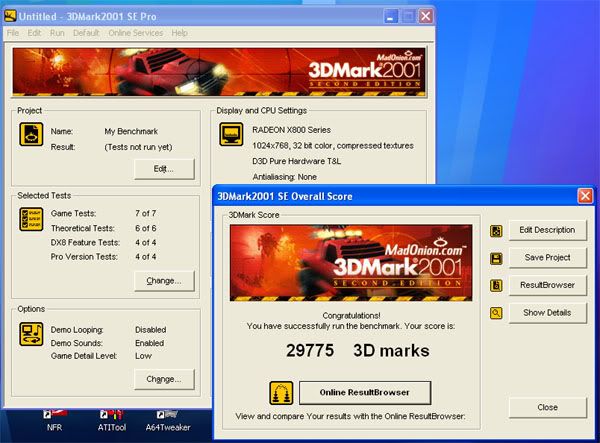

3Dmark'01SE:
http://img.photobucket.com/albums/v1...0-9x306250.jpg

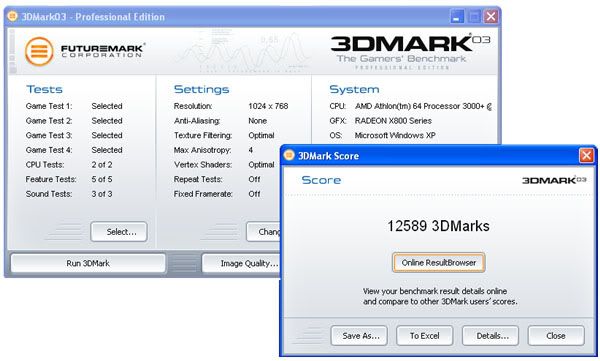

3DMark'03"
http://img.photobucket.com/albums/v1...0-9x306250.jpg

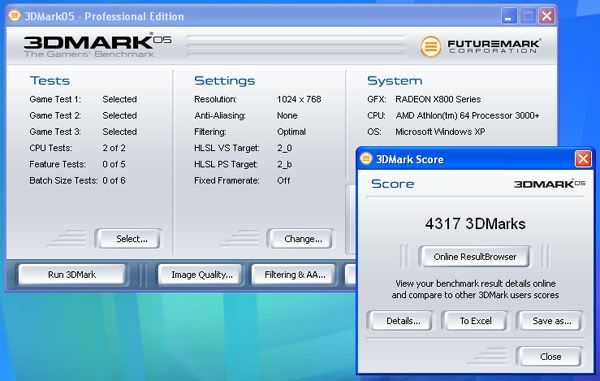

3Dmark'05:
http://img.photobucket.com/albums/v1...5-9x300250.jpg
any confirmations of the x800pro vivo pci express working the same as the agp's?
hey guys new to the forums and first post :),
flashed my card to an XT PE and it worked :)
powercolour X800PRO VIVO bought locally (West Australia) for AU$750 3 months ago
successfully flashed to an X800 XT PE using the gigabyte bios
enabled 16pipes and 520core/560mem
I also had the x800 xt pe sticker under the x800 pro sticker on the heatsink!
good luck to everyone else!!!!
subscribed:::
What's the word on the ABIT x800 Pro VIVO ?
I assume it will flash... how about it's clocks?
ive heard of a few flashes that open up the pipes but some are damaged!
BBA x800 Pro flashed fine to official XT PE bios. 575 / 590 no artifacts with Zalman heatpipe + fan. Slight vmod. Going all out with water in a month :)
Where did you get this information? I would be interested in learning more about the facts in any such cases.Quote:
Originally Posted by aCidbAbY
http://www.pcunleash.com/bbs/zboard....emReview&no=39
holy crap dude i cannot believe i found this card reveiw:D
i searched all over 3 different forums for the link but no!
then did a search for (comparing x800 bios LE damaged pipelines) and viola i found it!
but it is for the 6800 mod not the x800 ...:doh:
So no one has any experience with the ABIT X800 Pro?
What about the new x850 Pro, XT, XT PE... Are they worth looking into?
Only x800 Pro VIVO's can be flashed. No one knows if any of the x850 line of cards can be flashed.
Yes.. the Abit is a Vivo...
Am I correct in assuming that the x850 is a whole new card? I haven't seen anything on them at all...
x850 are just overclocked versions of the x800's. They're the same everything, just different pipes / clockspeeds.
If your x800 Pro is a VIVO you can flash it.
Hmmm... Can an x800 flash to an x850 XT PE??? Now that would rock! :rocker:Quote:
Originally Posted by cuddles
Why would that rock? The x850 XT PE is just 540 / 560 instead of a normal XT PE @ 520 / 540. Most people are overclocking far past those speeds dude.
I think you're missing the point of flashing. XT / XT PE's (and x850 XT / XT PE's) have 16 pipelines. x800 Pro's have 12 pipelines. The VIVO cards come with the pipelines ONLY disabled in the BIOS of the card, so by flashing it to an XT PE bios, you enable those extra pipelines and get a nice big performance increase. With all other Pro's (non-VIVO's) the pipelines are not only disabled in the bios, but are physically laser cut off of the board itself, so flashing does absolutely nothing but mess up the card.
Flashing to an x850 will give you nothing.
It's as simple as this...
I have an x800 XT PE...
I have an x850 XT PE...
Which sounds more impressive? ;)
But you won't have an x850 XT PE, you'll just have an XT PE Bios.
I have an x800 Pro flashed to XT @ 575 / 590...
That sounds much more impressive ;).
http://www.computerhq.com/images/053...9/531915_2.jpg
That's an impressive looking card...
I think it's ugly as hell. The x850 series is just for availability. It isn't anything new. The cards are barely overclocked versions of previous cards and are PCI-E, those are the only differences.
But that cooler looks like it would be pretty decent... Granted... I would rather get an x800 for the money and put it on water...
The x850 is a whole new chip... hmmmmm....Quote:
The new cards — the X850 XT and X850 XT Platinum Edition — are based on the R430 and R480 chips.
Mfg: Asus AX800 Pro Vivo
Bios: Asus ax800Pro Vivo 16p
Successful: Yes
With stock cooler i couldn't bench 3D03 it just froze at 510mhz gpu, but i replaced it with old VGA Silencer (older one all aluminum) and im able to bench over 520mhz now, now it freezes over 530mhz, but i don't get any artifats, the card just freezes within few seconds in 3D
edit: my default vgpu is 1.43v
Asus X800 Pro Vivo to Connect3D XT bios
success at 16 pipes and can OC to 535/575
helped get my 3dmark2001 score below :)
gocchin are you using 1600x1200 @ 85hz by any chance, i started using my pc at that resolution with the ax800 and 2d quality is so horible that i almost can't use it my 9800pro has much better 2D quality at that resolution. 1240x1024 is fine though but anything at and above 1600x1200 is bad. In text docs letters even are in green and brown not black. Anyone else have this prob with the x800 ?
My BBA in sig causes no issues. Desktop res is 2048x1536 @ 60 Hz.
GIGABYTE ATI X800 vivo flashed fine but the core speed maxes out about 20 mhz less than my ATI X800pro did.
Memory speed increased from 587-594 to 614mhz vs the X800pro card I replaced.
4 more pipes sure helps even at lower core speeds.
Oh it does, I don't have a link for benches, but I've heard experiences on HardOCP and it really does help, even with lower speeds.
First post, so excuse my ignorance. I have an ATI hardmodded x800pro. I am aware that it just takes a flash with the vivo's. I have however done the hard mod . Here's my problem or connundrum. After I flash my card to either an XT or 16pipe vivo, and run ATI tool, I show 16 pipes enabled. From everything I have read, when ATI tool shows 16 pipes enabled, they are enabled..correct me if I am wrong please. Now after this, when I reinstall the drivers , it automatically reverts back to only 12 enabled pipes showing in ATI tool. Surely there must be a step or a lock that i am missing here. If anyone has an idea , please let me know. I bought this before i realized the Vivo thing, but i feel like i am very close . I am not sure if it has something to do with ASIC ID( that's why I tried 16pipe vivo Pro flash also), or is there sometype of lock on the driver, or do I need a specific modified forced driver install different than what is on the catalysts?? Please help..I really want to get this done as I have a great card , I can run 550+ on memory and core with no artifacting , so I really would love to utilize those extra pipes. I hit 12500 on 3dmark03 with current rig, so looking for that little bit xtra.
ATI X800pro VIVO went to XT PE for me no problems. Worked like a champ.. To bad i traded it away.
XT BIOS Flash on a retail non-VIVO X800 Pro succesfull...
1.6ns memory (Purchased at CompUSA like FUGGERs non-VIVO was)
this would be the first non vivo that i have heard of working with just flash by itself but wouldnt surprise me...did you have any issues installing drivers? see above post pleaseQuote:
Originally Posted by LilGator
A lot of the original CompUSA Built by ATI boxed x800 Pro's were really VIVO's, but not labelled as such. That is probably what happened.
probably correct, how would I know if this has VIVO capabilities? (Rage theater chip?)
No driver issues btw... before and after driver upgrade = 16 pipes
Look for the yellow plug on the back. The ones sold at CompUSA for the first week or two came with 16 pipes enabled, they were boxed wrong :p:
heh, i'm an idiot, it does have the yellow connector :) doi, a successful flash nonetheless :p:
haha thats awesome gator. how much did u pay for it?
I have a Saphire x800 Pro VIVO on the way... I'll drop in and let you know how it goes.
Sapphire X800Pro VIVO with GC16 Ram FAILED.
Got checkerboard artifacts whenever anything 3d is happening, not too bad in games but ATi Tool scan is pretty ugly.
Flashed empty.bin and back to Sapphire X800Pro VIVO, ie 12 pipes again, but still no good.
Any ideas?
You sure you flashed it right?
FAILED! :lol:Quote:
Originally Posted by Rodzilla
Stock out of the box the Core was kicken arse! It would go all the way up to 571 and lock up... this thing was overheating before it could hit the Artifact limit in AtiTool! :up:
I was disappointed to see that the memory would only do 480 :(
Anyway... when I tried to Flash it to an XT I would get artifats no matter what clocks I tried to run... I put them at and below the stock x800 Pro speeds and it kept giving me a Checkerboard pattern of groups of dots...
I tried several different BIOS but none would work. So I assume it has bad pipelines...
Has anyone had any luck fixing bad pipes?
Asus X800Pro ViVo @ XT PE 520/560 no mod :D
sapphire x800pro vivo: blue pcb
mod: worked
methode: modified flashrom to x800xt pe
The thing is: after extensive playing for a few hours I get artifacts at stock xt pe speeds.
I'm gonna try voltmodding it next week. Will let you guys know how it turns out.
Success
Sapphire X800 Pro Vivo 1.6ns -> XT PE ATI BIOS (voltmod).
Before the voltmod I used the Sapphire XT BIOS 500/500, could only get around 509 MHz core. After voltmod I can go about 535 before artifacts. Will be getting an ATI arctic silencer later.
1 question: I'm using the latest Omega drivers, and I have 2 unknown devices show up when I start Windows. What are these? Something to do with VIVO?
Yes.
You might be able to get more! My AX800Pro Vivo (TVD) got 535/575 with no mods ;)Quote:
Originally Posted by Supertim0r
Gecube X800PRO vivo edition with Samsung 1,6
1. Used paddys guide
2. Flashed with the Gigabyte Flash/Bios
Rebooted
3. Flashed with the Ati X800XT bios
Rebooted
4. Windows finds the X800XT Platinium Edition WUHUUUU
5. Reinstalled Drivers
Rebooted
6. Checked ATI Tool, 16 PIPES WUHHUUUUU
7. Ran the 3D demo box and LOTSS of GFX errors FECKKKKKKKK
Guess I was 1 of the unlucky 1s.. :(
Or did I do something wrong :confused:
Me and you are in the same boat... I had the same thing happen...Quote:
Originally Posted by Exco
I'm thinking a good Volt mod on the GPU might fix it... hmmmmm
try a little pencil action, it helps
That's the kind of confirmation I was looking for! Thanks!Quote:
Originally Posted by Shroomalistic
I would have done it a long time ago... but if it wouldn't fix it why solder on a lame card...
(I don't own any pencils... only a 15W soldering iron ;) )
Sapphire X800 Pro VIVO
1st Giga BIOS
2nd Sapphire X800XT BIOS modded to reduce clocks to 480/500.....was getting crashes after gaming for a few hours at 500/500. Volts read 1.38 using XT BIOS. What BIOS delivers best voltage? I am going to do the vmod after my ATI Silencer arrives, hopefully tomorrow.
Noob 2 a Genie.Quote:
Originally Posted by Shroomalistic
How is that done then m8 ?
VGPU mod
http://www.vr-zone.com/?i=817&s=1
Some good info on readings of resistance and voltage here...
http://www.xtremesystems.org/forums/...ad.php?t=47869
Repeat of Vgpu mod... and a mem mod
http://www.vr-zone.com/?i=852&s=1
Vddr and Vddq mod
http://www.xtremesystems.org/forums/...ad.php?t=47578
Some good info on all mods for x800
http://www.xtremesystems.org/forums/...6&page=1&pp=25
Good place to find any other mod ninfo you may be missing...
http://www.xtremesystems.org/forums/...splay.php?f=85
And me that thought I was only gonna use a pencil :stick:
well feck it, gonna send my card back and have it change 2 this card --> Asus RADEON X800 PROTVD / 256DDR
Anyone had any luck with that ? :toast:
GeCube Pro VIVO:
Paddy's guide
1-Giga bios
2- X800XTPE Bios
16 pipes open and completely functional :D
Gpu is watercooled by a swiftech mcw50 :D
Well as I said i my previus post I RMA´d my Gecube xchange it for the ASUS X800TVD that cost like 50$ more then the Gecube.
Flashed it with the Gigabyte bios, (16 Pipes enabled) worked like a charm and the card is even running 3Dmark03 stable on default clock settings :toast:
Now 1 question, will I get even more out of the card by flashing it with the X800XT Bios?? I mean for overclocking..
EDIT: please watch your language :D
-saaya
Just went to buy a Gecube and noticed there prices are now higher :eek: ... Wonder if it's cuz you ripped them off... hmmmmm...Quote:
Originally Posted by Exco
mfg: Asus AX800Pro/TVD
Bios: Asus AX800XTPE (500/500mhz) my own edited bios
Successful: yes but i think i sould have pincelmod or something to get it at 520/560 i can oc it to 520/535 100% stable i have tryed the gigabyte bios to unlock 16p it's works but can't run at xtpe's speeds :(
i use Arctic-Cooling ATi Silencer 4 Rev.2
How ?? any pics ?? and I don`t want no use any tools other than the pencil
Quote:
Originally Posted by Shroomalistic
this mod is still working? i thought ati got rid of all these vivo cards
Is this for people doing pci-e without a laser cut? Mines got a laser cut...
:fact: hey guys,
i was working on my buddys p4 3.2 775 comp,with his 6 month old x800xl.
few words on ati cards for all to bash.for 1 i have used both companies over the years and i have to say i have never seen a company(ati)ask for there paying customers to pay $20(usa)dollars for tech support over the phone..riot..anyway the x800xl s supposdly runs at 400MHz, adding up to a peak texel fill rate of 6,400 Megatexels/second (16 pixel pipelines x 400MHz graphics core equals 6,400). This figure is 12% higher than NVIDIA’s GeForce 6800 GT, whose peak fill rate is 5,600 Megatexels/sec on paper.ATI pairs the R430 core up with 256MB of GDDR3 memory operating at 500MHz, which is the same clock speed NVIDIA clocks their GeForce 6800 GT’s memory at.now all specs close to or the same on paper,i currently have bfg 6800gt(agp),and bfg 6800ultra here in box(pci-e)i bought off my buddy for $250.having the 6800gt now for few months i can say its rock solid hands downruns all games i play quake4,bf2,hl2.no issues buggy driver fixes etc,unlike ati on the other hand i installed bf2 for my pal so we could play together,and lemme tell u how horrible that card is(x800xl).16 pipes...plz more like 8 it felt like,my freind is like dude...whats up with this toilet..im like dude its not nvidia.hes like what gives.i explained that Radeon HAD its days of glory when the 9700 Pro totally annihilated the GeForce4 line. By the time Nvidia released its GeForce FX 5900 Ultra behemoth, ATI already had the Radeon 9800 Pro on the market and the 9800XT on the horizon. By holding a product-release advantage over Nvidia, ATI was able to leverage its performance lead for an entire GPU generation.still offering weak buggy drivers still won that generation.differnt story now 7800gtx\gt vs 520 core plz ...whatever man.point is if your a ati fanguy stay away from x800xl...total crap performance,and 16 pipes.plz u gotta be kidding me.barely 30 fps bf2,q4,settings med.forgot to metion he runs ocz powerstream 520 as well as i(with my 6800gt)but i get 60-90 fps in the same 2 games settings hi.and heres the funniest thing of all dont u ppl know that the whole 520 core holdup with sli stolen technology from ati now the cornyfire(crossfire)they fried a top secret number of 520 cores trying to beat the 7800gt\gtx sli mode scores.ya lets turn up the core clock speed and mabye turn it up more to keep up with stock nvdia cards....what a joke.all our games are simply played better on nvidia cards not by some mysterious reasons or luck,its that nvidia stays in close contact with game developers like id,raven,havoc engine,ea etc...to simply build a better card revolving around performance for the infrastructure of the games we play now and games to come were ati trys to play catch up as it stole sli tech from nvidia and COPIED IT calling it the crossfire.now before the bashing begins,let me say one thing,im sure there are here and i seen many times ati comps simply romp scores like 3dmark etc with immense amounts of time tuning,tweaking etc to compare and even beat some nvidia based comps but dollar for dollar with stock or even overclocked cars nvidia simply flat out runs better on games without all the guess work or hours of support that u have to pay for(lmao)if your buying a card now for under $370 u can get a 7800gt(20pipes) that will utterly smash any ati card that comes close to that price range with simply putting it in your mobo and running whatever games u want period.and btw the nvdia 8000(top secret)will not only destroy the 520 core but stay on top like nvidia has been doing :fact:
Is Paddy007's guide for agp or pci-e?
http://paddy007uk.freeservers.com/VG...SH%20GUIDE.htm
