I know I need to pull the cooler to find out, I was asking on what writing I need to see on the chips to tell me if it is 1.1ns or 1.2ns.
Nevermind, after googling for awhile I found it. RAM chips need to say BJ11 on them to be 1.1ns.
*EDIT* OK I feel like a total n00b now... it was listed in the OP :doh: :hitself: :am: :nuts:
Anyway I pulled my cooler and my chips say BJ11 so that is cool. Now I just need to get a X1900XTX BIOS and flash
crap! :(
I have the 1.1ns memory so I just flashed to the XTX BIOS. Seemed to go fine, everything looks fine, but when I load up 3D the screen starts to artifact horribly :( I don't know why though.... darnit!
Guess I'm going back to my XT bios... :(
http://img235.imageshack.us/img235/6...00gtv10zg9.jpg
http://img80.imageshack.us/img80/2446/x1900gttopec5.jpg
http://service.futuremark.com/compare?3dm05=2305286
Using 1.575v/2.009/2.009/1.5V +CAtalyst 6.10
Some x1900GT Rev1 reference...
Just got my ATi X1900 XT from Ebay seller and noticed that there are two resistors (C3017 & C3018) missing on the back side of the card (you can see 'em on the attached picture). May be someone knows what they do:) The card seems to work fine, but it overclocks only to 685 Core, 790 Mem on 1.45/2.1/2.1 voltages.
What happens when you increase the voltages more?
That overclock does not seem bad at all with those volts.
Voltage increase does not give me any more overclock, only system becomes less stable with more voltage. May be that is because of these resistors. Does anybody know what they do?
_____________________________
Asus A8R32-MVP Deluxe 0502 Bios
AMD X2 4200+ 2.86 GHz, HT 1240 MHz (258x11)
Geil Platinum 1GB PC4000 516 MHz 2.5-3-3-5
ATi X1900 XT 512MB AC Accelero x2
2X36GB Raptors RAID 0
Aerocool ZeroDBA 620W
Quote:
Originally Posted by davidge
Yep, it does lools like the resistors that Supply GPu... anyway the card has 7 phases and those are referent to just one of them... so probably you miss a phase, thats why your overclock don't get any better w/ higher voltages.... or cause you are using the crap original cooler @ 90ºC
i have a litle problem whit atitool 0.25 beta 15,when i kill ati2eevxx.exe atitool do not permit to change frequancy to my x1900xt:mad:
I had the same problem. Try ATItool 0.25 BETA 14, it worked for me.
Davidge, the missing items are two CAPACITORs, bypass caps that act as little highspeed powersupply's. They'd be the same value as the others of the same size in that long line going up the back of the card.
Both broken would be affecting one of the voltage regulators (the stuff under the long red heatsink.
You should send the manufacturer a copy of that picture, nd request them to tell you the VALUE (in XX uf) of those caps, you can purchase replacements from Digikey Electronics and replace them yourself with a quality SMD soldering iron... Weller 1301 type. Would take you about 1 minute.
Otherwise see if the manufacturer would RMA/repair it for you.
Im getting the HR-03 cooler for my XTX and was wondering if it is safe to attach a 120mmfan to the power plug on the card?
specifically an S-flex SSF12F (1600 rpm fan)
anyone have any idea if it would be ok?
ive been told not to power a 120mm fan from the card but i thought if anyone has done it it would be here so.....
:slapass: Bad move Sapphire... :nono:Quote:
Originally Posted by blind_ripper
I'm sorry to take advantage of your situation right now but could you backup the bios of your X1900XTX 1.2ns ? I have a X1900XT from Sapphire with the same Infineon 1.2ns chips and it would be nice to run this card on XTX speeds without an overclocking tool doing it for me every time.
Maybe you could send W1zzard @ techpowerup.com an e-mail with the XTX 1.2 bios so he can place it in the online ATi bios database. His e-mail can be found on the botom of the page.
I think there are more people around who would like their X1900XT 1.2 to run as a XTX.
Thanx in advance
I would not be to fast to say infineon memory sucks. I bought a X1900XT from Sapphire with infineon memory and it seems to perform better than those with Samsung memory. All benches below with E6600@3,9GHz on an ASUS P5W DH Deluxe. X1900XT clocked at 729/845Mhz.
http://www.lordm.net/files/conroe/peter/3DMark05-6.jpg
http://www.lordm.net/files/conroe/pe...3DMark06-6.jpg
http://www.lordm.net/files/conroe/pe...3DMark03-5.jpg
http://www.lordm.net/files/conroe/pe...3DMark01-5.jpg
Dang. dissapointing first test with my new x1950xtx
4850 in 06 @ stock gfx. My x1900xt did 6400 @ 715\810... so something is wrong!
Ah, found it already! seemes like its stuck @ 2d speeds! could that be beacuse i opened ati tool and closed it again? I didnt dissable any services so they are still running!
Oh, thats more like it! 6250 with card @ stock... now lets OC!
Can someone please quide me a bit in ATItool? ive downloaded 0.25b pre8, do i still need to disable all the services and how do i make the card run 500\600 2d and xxx\xxx 3d?
trying to get to know Ati tool.
Why can i only bump memory in 9mhz(18) steps? Its like that with core too!
And for 2d\3d use, do u make a profile for gaming and one for 2d and just switch with hotkeyes or what?
Edit: And i have 3 not 2 CLI.exe process to disable!?
Use 0.25b16, and create 2 profiles- 2D and 3D like you said. You can set "3d detection" in settings to start up 3d when 3d app is detected and go back to 2D when it's closed. Works really great with:
400/400 1.00/1.8/1.8/1.435
700/800 1.40/2.02/1.9/1.456
I recommend beta 16 over beta 14, the new clock setting method in the change log seems better. The screen doesn't go black anymore for a split second, and before every once in a while my computer would freeze when coming out of a game, even though everything is stable. Hasn't happened with beta16
yeah, got beta 16 pre 8
So i dont have to disable any services anymore?
Quote:
Originally Posted by davidge
its more likely your overclock is held back by heat. Those caps arent really neccesary.
Did you use LOD tweaks at all?Quote:
Originally Posted by Korgan
My sapphire X1900XTX also uses infineon 1.2 mem. I have reached 880 with the mem. using 2.199v.
what lod you used??Quote:
Originally Posted by Korgan
No LOD, only all settings on performance.
you used driver 6.10 or 6.11:confused:Quote:
Originally Posted by Korgan
6.10. Havent done any benching with 6.11 yet. Waiting for the cold to come to Sweden :D
http://i3.photobucket.com/albums/y83...9/P1030917.jpg

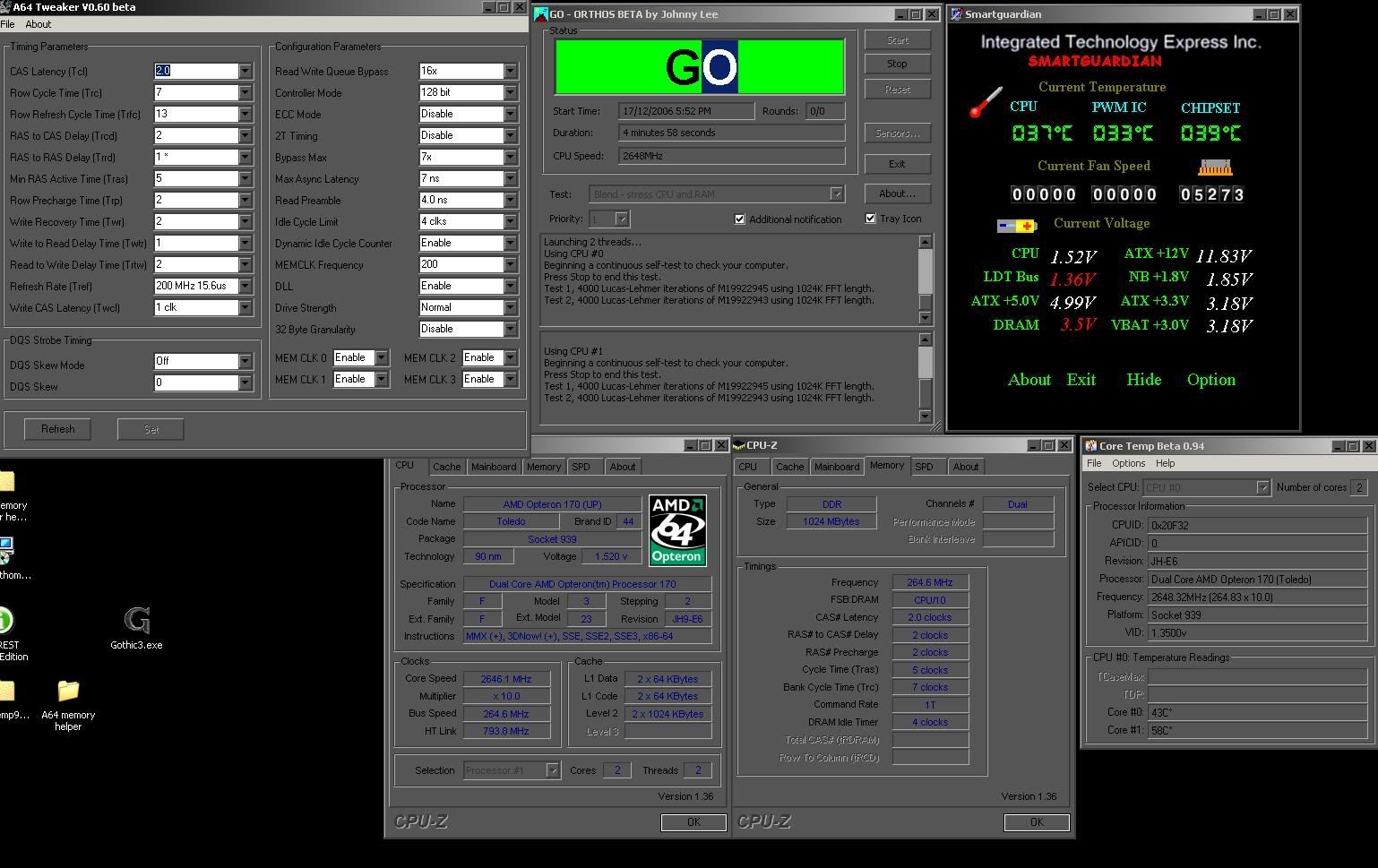

http://i3.photobucket.com/albums/y83/dasa09/oc.jpg
x1900xt master 1.2ns
vgpu 1.575
mvddc 2.086 stock
mvddq 2.086 stock
vddci 1.58
atitool test
gpu crashed at 789mhz
mem artifacted over 860mhz
it seems vddci helps this cards mem and raising or lowering the mvddc\q makes no difference
temp after 15min of atitool test
64c
49c
41c
with dd maze4
where as the x1900xtx 1.1ns is a little different
vgpu 1.575
mvddc 2.276v-2.35v
mvddq 2.086 (stock)
vddci 1.486 (stock)
gpu crashes at ~789
mem artifacts at 860-900 depending how high i push the mvddc
