11-29-2007, 01:32 PM
Fujimitsu

Quote:

Originally Posted by Spawne32

I cant believe how you guys take pics with such awesome lighting, where abouts is that pump sold? And how good is it?

The software that comes with it looks pretty sweet, not sure about performance though theres a post about it somewhere.
11-29-2007, 03:14 PM
stormshadow

Quote:

Originally Posted by SparkyJJO

nope not just you, I think you're right! Looks like the pump outlet is straight to the corner outlet of the fuzion, not the inlet...

Quote:

Originally Posted by MorGo7h

Just fix the fuzion and you have a nice rig :D

i knew it! :D

but i can't help but wonder...

how are the temps in that configuration? :shrug: :)
11-29-2007, 03:43 PM
ka lok

Bugger!! didnt even know that the Block has to be a certain way :eek:. Will Change that tom.

The temps are not too bad (i think), 38c idle and 52c load. My E6600 is overclocked to 3.6ghz needing 1.5125v and havent oced 8800gtx yet.

Cant get it to be stable with orthos yet, but will play crysis with no probs, albeit stuttery at times.

By the way, silly qu ahoy- do i need to turn cpu block upside down or do i need to switch tubes round?

Sorry if im not making much sense, very new to all this.
11-29-2007, 03:52 PM
stormshadow

Quote:

Originally Posted by ka lok

Bugger!! didnt even know that the Block has to be a certain way :eek:. Will Change that tom.

The temps are not too bad (i think), 38c idle and 52c load. My E6600 is overclocked to 3.6ghz needing 1.5125v and havent oced 8800gtx yet.

Cant get it to be stable with orthos yet, but will play crysis with no probs, albeit stuttery at times.

By the way, silly qu ahoy- do i need to turn cpu block upside down or do i need to switch tubes round?

Sorry if im not making much sense, very new to all this.

in this case, the block is mounted fine. Just redo the tubing so that the water goes IN through the center hole and OUT through the corner hole.
11-29-2007, 03:58 PM
ka lok

cheers for pointing that guys:up:

by the way, what are the implications of having the tubes the wrong way round? just curious
11-29-2007, 04:03 PM
stormshadow

Quote:

Originally Posted by ka lok

cheers for pointing that guys:up:

by the way, what are the implications of having the tubes the wrong way round? just curious

you tell us :)

doesn't seem like it's a world-ending error. water is still flowing - just not as optimally as it could be.
11-29-2007, 04:03 PM
Nate P.

Nice rigs guys.
11-29-2007, 04:12 PM
ka lok

will keep you guys updated on if there is any differences in temps after I switch the tubes round.

have to stop typing now coz wife is trying to sleep and apparently I tap keys very loudly! speak to u guys tom!
11-29-2007, 05:29 PM
AAjax

Quote:

Originally Posted by Spawne32

I cant believe how you guys take pics with such awesome lighting, where abouts is that pump sold? And how good is it?

No doubt, looks sweet, but how dose it werk?
11-29-2007, 05:31 PM
AAjax

http://www.sharkacomputers.com/aqcoaqmoeh10.html

Never mind, google is my friend

Edit: 7ft max head? Am I figuring this right?
11-29-2007, 06:21 PM
Nate P.

Quote:

Originally Posted by Spawne32

I cant believe how you guys take pics with such awesome lighting, where abouts is that pump sold? And how good is it?

Looks like a render.. I could be wrong though.:shrug:
11-29-2007, 06:38 PM
YugenM

Quote:

Originally Posted by AAjax

http://www.sharkacomputers.com/aqcoaqmoeh10.html

Never mind, google is my friend

Edit: 7ft max head? Am I figuring this right?

That's a non-XT version.
11-29-2007, 07:42 PM
AAjax

Quote:

Originally Posted by YugenM

That's a non-XT version.

Thx!
11-29-2007, 09:57 PM
fireice2

Quote:

Originally Posted by Origin_Unknown

can we get some more pics then please :D

No problem. :D here are some more pics. :D

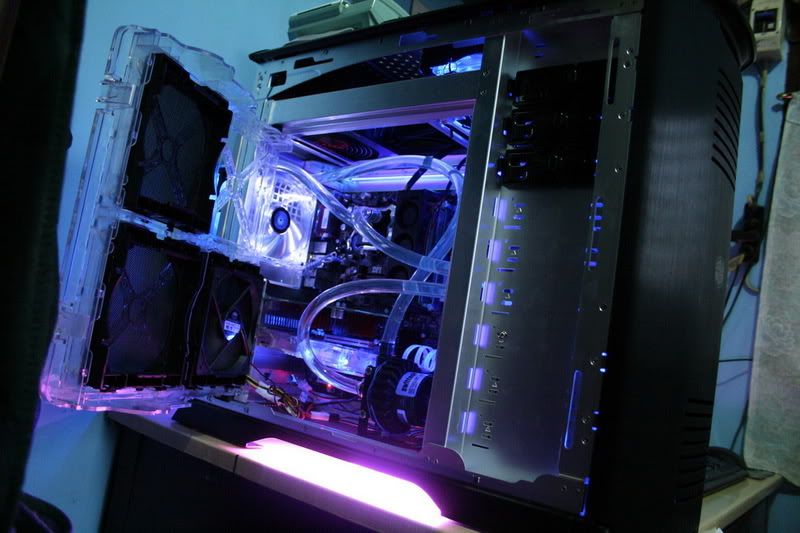

http://i54.photobucket.com/albums/g1...ledresized.jpg

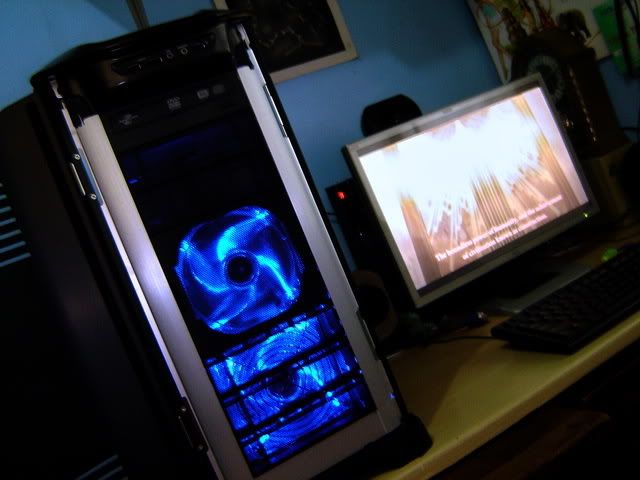

http://i54.photobucket.com/albums/g1...r/outside2.jpg

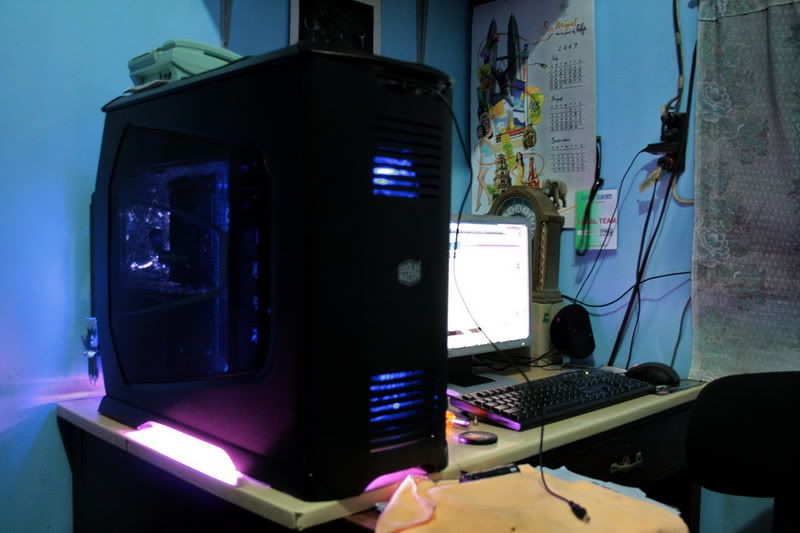

http://i54.photobucket.com/albums/g1...de3resized.jpg

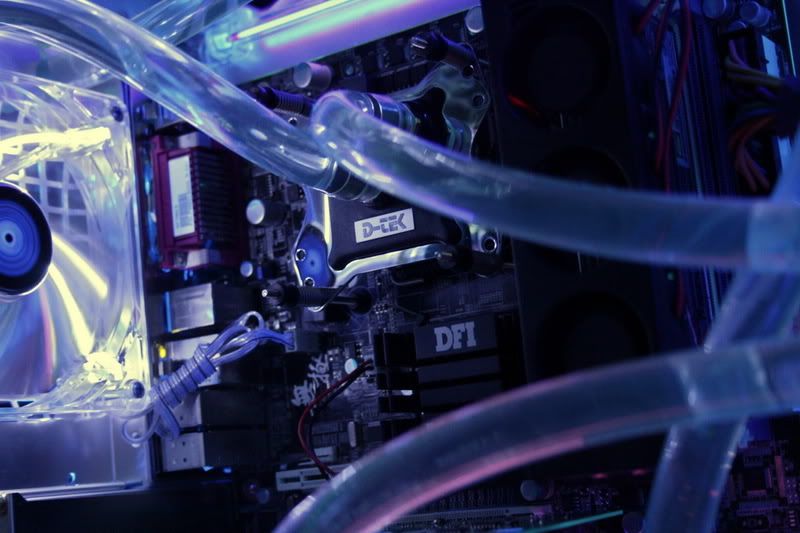

http://i54.photobucket.com/albums/g1...er/Closeup.jpg
http://i54.photobucket.com/albums/g1...r/inaction.jpg
11-29-2007, 11:30 PM
disruptfam

looks sik!!!! is that just distilled water no coolant??

Looks nice like that i think i may just use distilled water aswell and let the uv neon's light it up :)

when you upgrade our gfx card take out the fan side bracket thing and wc the gfx card aswell
11-30-2007, 12:10 AM
peebee

There are also clear coolants available. Here in germany one of the best, without making the tube looking cloudy. It is called Innovatek Protect.
Available as a concentrate to mix with distilled water, or also ready mixed.

I hope to have my 343b ready soon. :( I need more space for my 2 loops. They won´t fit in my old built :(

http://www.lifepatcher.com/pc/test/sys/testsys1.jpg
11-30-2007, 12:50 AM
fireice2

Yup! Pure distilled H20. :D As for the Gfx card, I'm fine cooling it with air. for easy maintenance. hehehe

But i think I'll keep the bottom 2 fans on the side panel to keep cool components .
11-30-2007, 03:49 AM
ka lok

1 Attachment(s)

Quote:

Originally Posted by stormshadow

you tell us :)

doesn't seem like it's a world-ending error. water is still flowing - just not as optimally as it could be.

Hi Stormshadow, just finished retubing the cpu block and looks like this now

Decided to turn cpu block upside down to keep the tubing running in the same pattern.

Temps have not changed at all, still 38c idle and 52c load but have not let as5 run in yet, so temp might change still.

By the way, i think i was looking at some of your previous rigs for inspiration towards this, had one pic saved on my last HD. Thanx for that :up:
11-30-2007, 04:18 AM
emoners

@fireice2: why not use the coolant?
11-30-2007, 04:33 AM
CyberDruid

Quote:

Originally Posted by peebee

There are also clear coolants available. Here in germany one of the best, without making the tube looking cloudy. It is called Innovatek Protect.
Available as a concentrate to mix with distilled water, or also ready mixed.

I hope to have my 343b ready soon. :( I need more space for my 2 loops. They won´t fit in my old built :(

http://www.lifepatcher.com/pc/test/sys/testsys1.jpg

I can see that :D A veritable tower of power...:eek:
11-30-2007, 04:37 AM
CyberDruid

Quote:

Originally Posted by fireice2

My first water cooling project. :D

From this...

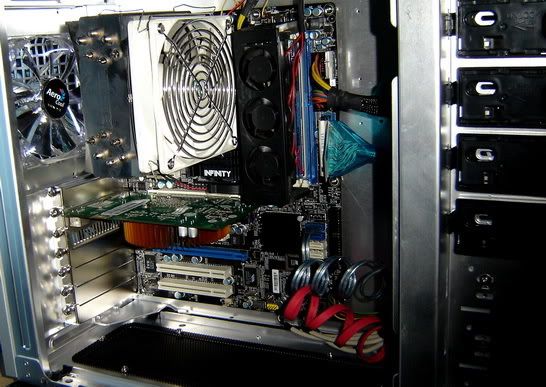

http://i54.photobucket.com/albums/g1...er/inside1.jpg

To this...

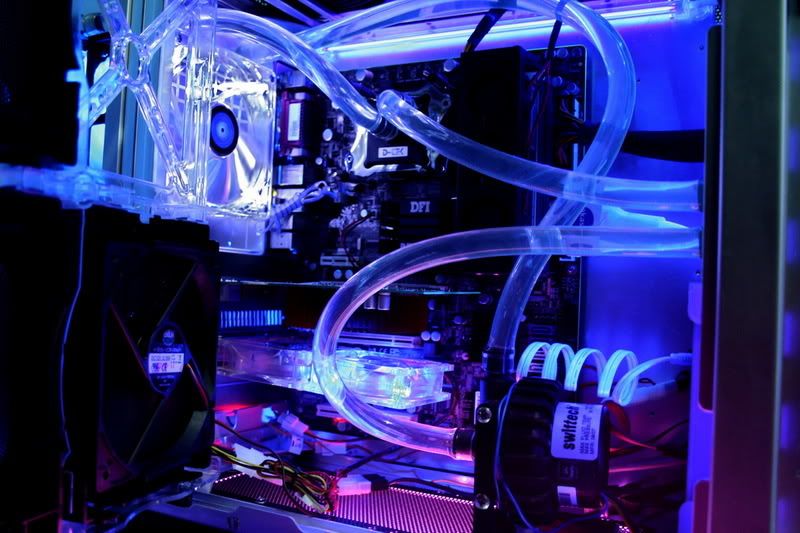

http://i54.photobucket.com/albums/g1...de3resized.jpg

I see you have a coil to keep your Data cool :p: I like that:cool:
11-30-2007, 04:43 AM
Sparky

Quote:

Originally Posted by emoners

@fireice2: why not use the coolant?

Lowers thermal conductivity. Pure distilled water for best temps :up:

fireice, that looks sweet!
11-30-2007, 05:22 AM
disruptfam

peebee looking good man!! could u post your worklog here @ xs aswell please
11-30-2007, 05:40 AM
fireice2

@emoners
I was thinking of adding a Fesser UV Black Dye. :D

But that would be for the next lanparty. hehehe We have monthly lanparties in my place so having a fancy coolant would be nice.

But for daily usage, I still prefer pure H20. :D

@cyber & sparky
Thanks guys! :D

Really have to thank the water-cooling veterans for keeping me away from pre-built kits and also for the ideas on how to setup my loop. :D

I also realized that my two favorite colors are really blue and purple. mwehehehe
11-30-2007, 06:00 AM
peebee

Quote:

Originally Posted by disruptfam

peebee looking good man!! could u post your worklog here @ xs aswell please

Maybe, if it goes on with the PC 343b, I can open up a Thread. For the first it will be enough to present the german log as well. Pictures say more tha a hundred words ;) In about two weeks it goes on, so I can make a separate in here. :cool:
