Although it is the dual 12v rail version, eWiz still has the FSP 550 for quite a bit less than newegg: http://www.ewiz.com/detail.php?name=PS-FS550PN
Printable View
Although it is the dual 12v rail version, eWiz still has the FSP 550 for quite a bit less than newegg: http://www.ewiz.com/detail.php?name=PS-FS550PN
Ah, nice to see you're back Jeff.
Once the disease catches you, you can't quit (maybe shortly, but you'll always come back).
Something else :
does anyone know any good aircoolers for these 1.6 xeons?
The IWT's noise is too much, and I'd like something more quiet, but good performing too.
Asus PCH-DL is an alternative if you need 64-bit PCI slots. It's design is very similar to PC-DL.
Power delivery on Asus boards aren't so good, best to get PSU with adjustable rails (e.g. OCZ PowerStream), or mod the boards.
NCCH-DL limits FSB to 233 (max I could go is 239). Best board is still the expensive IWILL DH-800.
1.6/2.4 LVs are good choices. Get the CoolerMaster heatpipes.
Examples of good OCs on air
PCH-DL by DoubleDutch
2.4LVs on PC-DL by Manatoba
http://pierrotlemaboule.free.fr/xeon1.6c.jpg
Heatpipes for ASUS PC-DL/PCH-DL or other Prestonia boards only linkQuote:
Originally Posted by Jupiler
wow, how many CPUs do you have?Quote:
Originally Posted by pokipoki
Hehe... It's just a pic I pulled off some post @2cpu.com. Some french guy bought them.
A note about PSUs :
I have an Enermax EPS12V 660W (dual-rails) but the board is poor with voltages (droop etc). Using another OCZ PowerStream 520W gives better OC after I adjusted the rails.
Thanks for the link.Quote:
Originally Posted by pokipoki
Hope I can find them somewhere here.
I found a a store in germany which sells the CM heatpipes.
The passive E3W-NPTXC-01 is sold out.
Would the E3W-N73CS-01 or E3W-N73SC-01 be a good alternative?
https://www.ssl-id.de/hsm-zamecki.de..._prestonia.htm
I'm trying to get a pair of E3W-N73SC-01 coolermasters through a shop in Gent... I'l let you know how they perform when I get them, ok?Quote:
Originally Posted by Jupiler
I have 1 PCH-DL rig completed, just waiting to slam those coolermasters on it :D
Going on what Jeff said, I fricking love my dually, its my main rig, I spend more time on it than any other puter, including my nice un fast A64. I just need another gig of RAM in it then Im sorted. A new PSU would be great as these CPUs boot at 3.2 but I cant get any more than 2.94 stable for D2OL, so if there is anyone out there who can "donate" a good PSU for the cause I would very much appreciate it. Im only running an antec 350watt ATM.
X2 AMD64 are just too much money ATM.
Thanks.Quote:
Originally Posted by Duc
Got a link of the shop?
I might go for the E3W-N73CS-01, as they're only 25€/piece.
But I'll wait for our results too.
LinkQuote:
Originally Posted by Jupiler
But those specific coolers are not in his list, I requested them through mail... and he agreed to try ordering them for me (he's an ex-cop who used to work with me in Gent before he started his own pc-shop ;) )
I have finally given in to my curiosity of the dual xeon 1.6 OC. Im ordering a pc-dl deluxe and two 1.6 lv SL6XK cpus. I already have a dual xeon server running, but this one, I want to be my everyday windows machine. How stable would this be running at say, 2.5-2.7 Ghz running d2ol and regular windows stuff and gaming? I have two sticks of 512 Mb ddr400 infineon. I have read that windows 2000 pro (that i have) will only recognize the physical cpus. Is that true? So, I need xp pro (that i need) to recognize the logical cpus and utilize the potential? I have a Tagan 480 watt eps p/s for it with 3.3v 28a, 5v 48a, 12v 28a. The CM coolers that I am thinking of using are rated for 3.06 Ghz, does that translate in to OC speed?
Good deal. Added to the guide. http://www.adventurevision.com/smilies/cheers.gifQuote:
Originally Posted by totensiebush
E3W-NPTXC-01 is the best air cooler for Prestonias due to the heatpipes, but it is hard to find (need some patience here).
Best to combo with low-noise fans in push-n-pull config (cable ties required). Optimum cooling performance at low-noise. Long discussion here
Remember that for ASUS PC-DL or PCH-DL you need Coolermaster E3W-NPTXC-01
Use E3W-NPTXS-04 for ASUS NCCH-DL or IWILL DH-800 boards
Pics : Cooler Master E3W-N73CS-01 (non-heatpipe)
Pics : 2x Heatpipe Fujikira Heatsinks for Prestonia Xeons
Pics : E3W-NPTXS-04 on NCCH-DL
SMP Gallery
Sources for Coolermaster E3W-NPTXC-01 :
US : http://www.orbitmicro.com/products/a...cpu%20fans.htm
EUROPE : http://www.hsm-zamecki.de/shop/inde...n_prestonia.htm
Swifttech MCX603-V : http://www.frozencpu.com/cpu-swi-03.html?id=9Fi3cV7V
WATER COOLING : PX - http://www.frozencpu.com/ex-blc-157.html
I have those on my 2.4lv ES@3.4ghz idle (33-35c) full(46-48c) roomtemp ~22cQuote:
Originally Posted by Duc
Quote:
Originally Posted by pokipoki
Great stuff here... I'll add it to the guide if you don't mind. ;)
BTW, just noticed your siggy... think you could run Cinebench and post your results? Dual 4GHz is impressive!!! :eek:
I just took apart the whole rig today for fan/heatsink modding. Only 1 CPU is installed now, screenies posted below. I'll post again when both CPUs are up.
With single Xeon, my NCCH-DL can scale up to FSB 285MHz (limited by my memory). When in dual-CPU mode, the FSB is cut by half. The highest I could go stable was 238MHz.
Cinebench make Noconas look weak. Dual 4GHz scores around 795/33.2s or so, but SuperPI scores are better than Gallatins/Prestonias. Prestonias at 3.6GHz will beat my Noconas at Cinebench :D
SirG (from 2cpu.com) who has dual 4GHz Gallatins scores Cinebench 870/30.3s. Check his sig here
My screenshots :
Xeons VID u-wire from 1.3875v => 1.4500v
Idle 46C, load 55C, open case with table fan :D

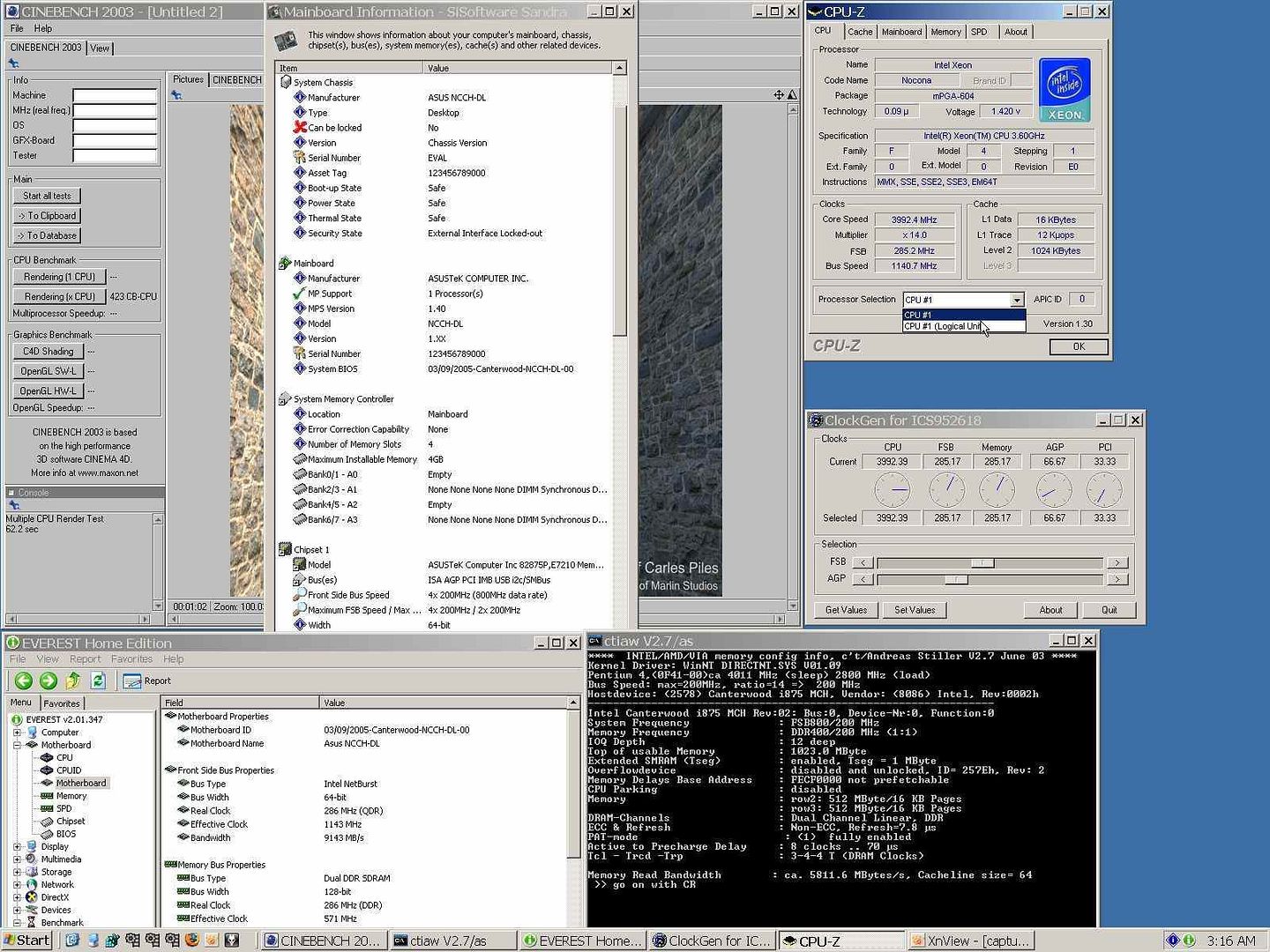

Single CPU 285 x 14 = 3992MHz PAT 3-4-4-8

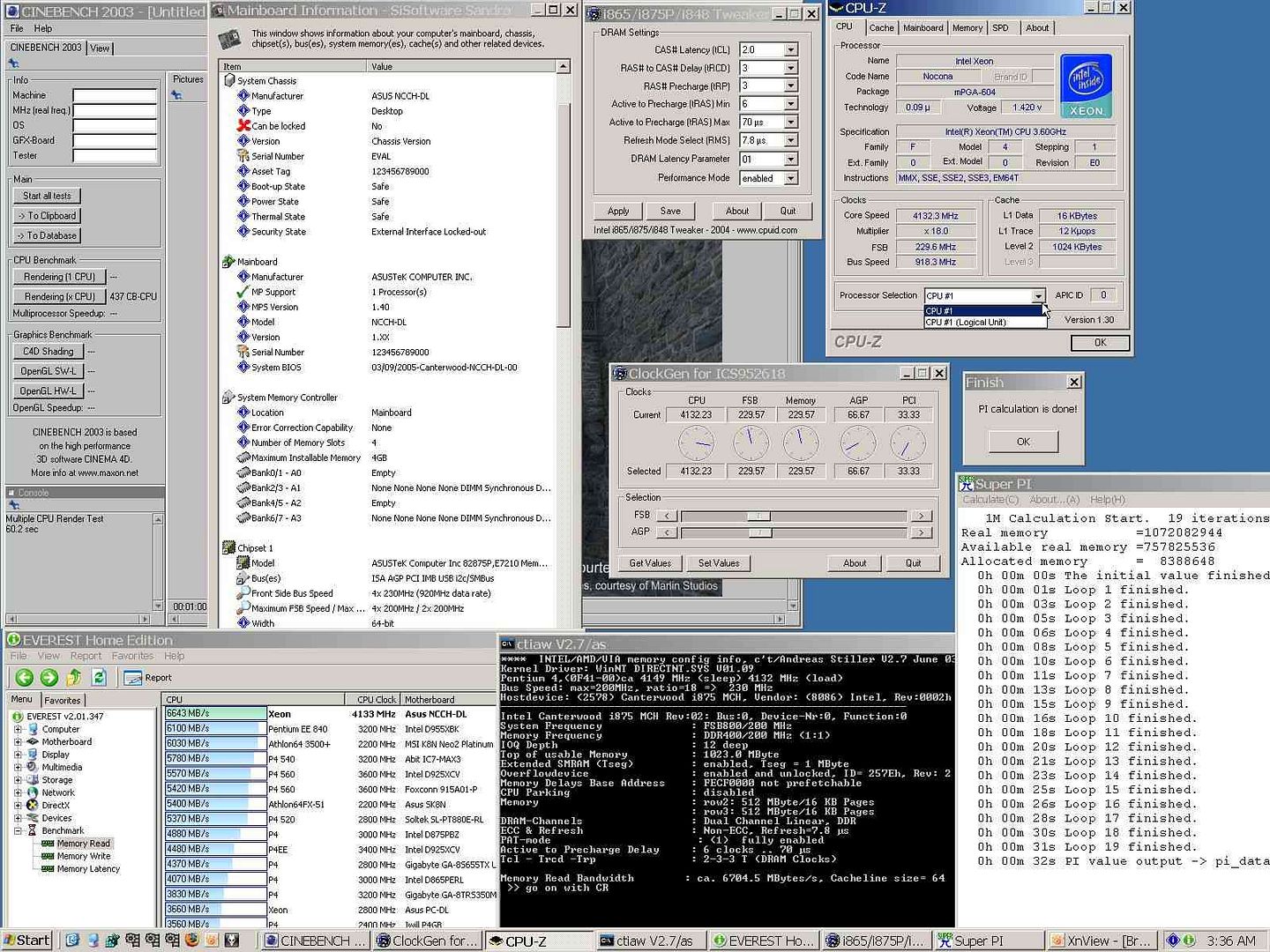

Single CPU 229 x 18 = 4132MHz PAT 2-3-3-6
For newbies & veterans alike, tutorial on building & overclocking dual-Xeons
Complete Xeon Overclocking Guide 2.0
http://www.ocforums.com/showthread.php?t=405402
The Xeon Thread
http://www.ocforums.com/showthread.php?t=329096
http://www.ocforums.com/showthread.php?t=363017
Thats why we have our own tutorial. Please don't post about other forums when we have the same thing on ours.
Both guides are not the same. The link contains additional hardware purchasing & modding info, including alternative coolers, boards & u-wire mods of fsb/bsel from different gen xeons. Doesn't 2cpu & datamine have those info as well?Quote:
Originally Posted by live2game2003
There's no single site that has everything.
Regards,
poki
I just recieved Xeon 1.6 lv sl6xk costa rica numbers 0013 and 0014.
<img src="http://www.rdn.cc/gifs/xeon013-2.jpg"><br>
I picked up some xeon cooler master hs/fans cheap ($8 each) from my supplier. Nobody in town sells them retail or even know what they are supposed to look like :D And I didnt want to pay online retail 50 or 60 bucks anyway, I hope these will do.
<img src="http://www.rdn.cc/gifs/cmxeon.JPG">
Just waiting for my pc-dl dlx
Its Christmas in July!!!! :D :D :woot:
Received one of them today and it's brand new and the box is in great shape. Don't know how they are selling them so cheap but these are a great deal.Quote:
Originally Posted by Jeff
:woot:
I have one of those on the way too :D Thanks Jeff, good to hear that they are what they say. cant wait :D
Man... I forgot I sold/gave away all my spare memory. :( And it looks like NewEgg.com is out of that great TwinMOS stuff. :( :(
Sucks having almost a complete rig sitting here doing nothing. :down:
