Try connecting a 20k VR between pin 1 and ground. Decrease resistance to increase voltage. Find a Vgpu read point before doing the mod to check that it is Vgpu which is increasing :)
Printable View
Try connecting a 20k VR between pin 1 and ground. Decrease resistance to increase voltage. Find a Vgpu read point before doing the mod to check that it is Vgpu which is increasing :)

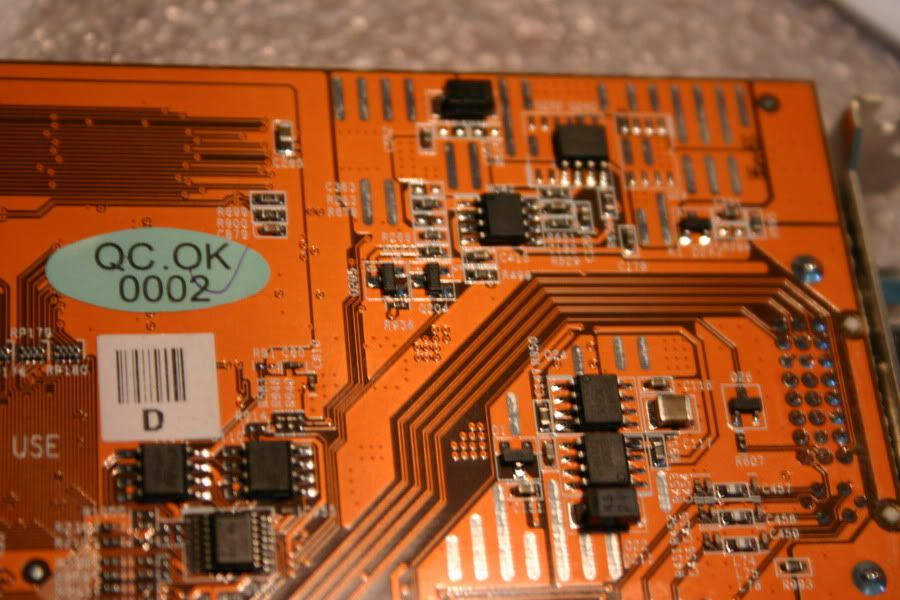

i've done a pencilling on R266 (the resistor which has one end ground and direct contact with pin 1 on the other side)
the original resistance is 688ohm, and now it's 675ohm, n then read the voltage via monitoring software (vGuru) and...found that my vmem is raised from 2,67 to 2,74v right now...:D :D :banana: :banana:
after some benchies, the mem can run @ 360 (720DDR) for hours :banana: , before mod it can only reach 300MHz (600DDR)
really quite extra frek for this Samsung 3,6ns with still naked :banana: (no ramsink yet :p: )
so it's the vmem regulator, right?
i wanna fully mod this card, can u show us how to raise the vgpu?
the gpu maxed out @ 580 @ around 1,35-1,37v :mad:
wonder if it vmodded :stick:
i'll be back with the front face pic of this card :)
Thx so much persivore :D :D :toast:
In a post from the 12th, you said the mem could already run at 360Mhz.Quote:
Originally Posted by wedfighter
sorry Dr Jay, it just miss typed :)
Cool. I'm very interested in your results as I have the same card.
with 2,8v for mem,it can reach 385 :banana:
see the attachment
meanwhile we've to wait for the front face pic, as my digicam not returned yet :(
DrJay, can u upload the front face pic? :)
I'll try tomorrow. I'll have to borrow my girlfriend camera though.Quote:
Originally Posted by wedfighter
Congrats on the memory speed! Very fast for ATI ddr1. I have a 9600xt with 2.5ns bga ram that will only do 10 mhz more....so, for tsop chips that is fantastic.

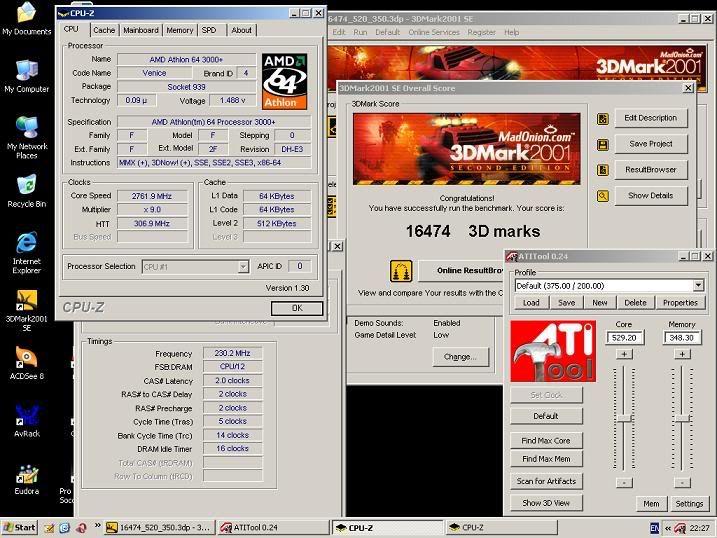

here i can get. All out of the box, stock cooling etc, but i only use cat 4.9 driver, so bad :(
http://i4.photobucket.com/albums/y10...74_520_350.jpg
@wedfighter : that's vgpu modded too ? stock cooling ?
@HydroX
gpu not modded yet...it's still @ 1.35v
i'm using crappy watercooling i made my self
n i'm not using ice cube yet :)
wonder if it vmodded...
are u andiko, roller, embuh or d4ve :D
SOOT
@wedfighter : i'm their friend, adrhyan :D
you give a pencil mark on that resistor, right ? how to do the vdimm mod without pencil , but using a variable resistor ?
well, and i want to do that vgpu mod now... :D

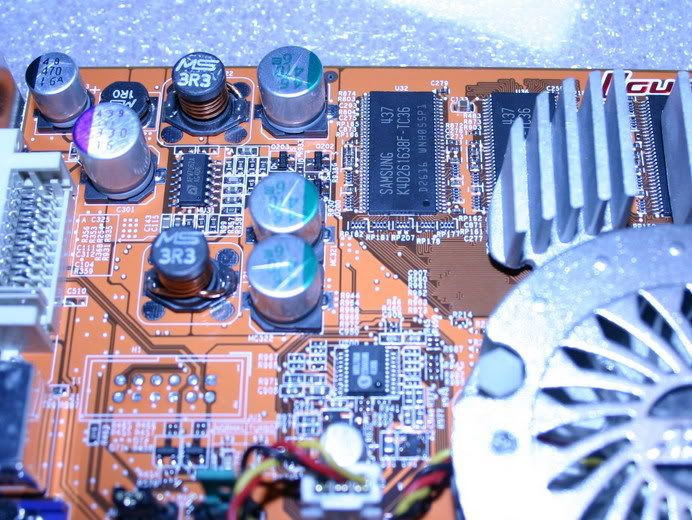

About making mod: Could you 'HydroX' specify all marking codes of those two smaller IC (less than 20 pins) at top foto ? One is sited middle of capacitors and the other right/below of green capacitors.
in the middle : APW7062A
but, now my card is in RMA progress, so i can't see what written on the chip below green caps
thanks :)
oh i see the John de Britto boy right? :DQuote:
Originally Posted by HydroX
just put a 15K Variable Resistor beetween pin 1 of the APWand the ground, it exactly the same way with the pencil mod :)Quote:
Originally Posted by HydroX
and the vgpu mod is same as the vmem mod, but this time on the front board APW chip on the pin no.5 :)
yeah, you're right :D
for the mod, when in school, i've thinking, the APW7037 pin 1 or the resistor direct to pin 1, for the Vddr mod, then APW7062A (in front side) pin 5 for the Vgpu mod, right ?
err...pin 5, so it's number 5 from the top right, correct ?
thanks...
EDIT : i can't do the mod now. i've blown my card when i measuring voltage ( my hand slipped) and BUFFFF, a fire over the IC :stick:
i have a saphire x300 128 bit that i v-modded and i could not find any help on but i figured it out if anyone is interested i can make a thread otherwise its alot of work to write a guide and upload pics. some results tho stock volts 1.19
1.19-459mhz
1.7 596 benchable 590 stable
i can make pics and also i did cap mods to as the stock ones were really really scorching hott haha
________
British Cooking
Sorry wedfighter, I couldn't get the camera for a front pic of the card.Quote:
Originally Posted by wedfighter
Looks like HydroX posted it though. :toast:
never mind DrJayQuote:
Originally Posted by DrJay
i've done a vgpu mod anyway... :)
but..my card still in RMA progress this time, i've short circuit some resistors at the core, due to my careless when fitting a waterblock :mad:
the last time i've try the vgpu mod, i can hit 620 with 1,52v :D
@ Hydro X
yeah right definitely pin number 5 (located at the same row as the pin no.1 (pin with dot marking)) :toast:
i'm interested in Vmod on Saphier X300 128-bit.. i enjoy if you can make some guide..Quote:
Originally Posted by brandinb
i have an asus x300 se vga card, can you post a picture or integrate name and connection to be?
bye
please is veri important:) :toast:
and me (MSI x300se TD128E)
Sorry doing little bump, but i got His Excalibur x300 128mb and 128bit with Hynix memory chips and ill give you pic from back soon.
http://img.yunmin.com/catalog/down/a/VGA/A0035021_B.jpg
Ok, lil bumpz0r!
Here's the pics. Ill hope someone will help me..
So how could i do mem and gpu vmod?
http://www.hot.ee/northb/video/DSC05829.JPG
http://www.hot.ee/northb/video/DSC05830.JPG
http://www.hot.ee/northb/video/DSC05831.JPG
http://www.hot.ee/northb/video/DSC05832.JPG
I need also vgpu and vmem mod for asus eax300 256mb. Here are some pictures...
