06-02-2011, 03:03 PM
chew*

Quote:

Originally Posted by Raja@ASUS

Yeah, you just gotta figure out the BIOS. The board is primarily for BD but it does a darn good job with Thuban if you configure BIOS properly - also why I run Memtest first, just to give you a hint ;)

-Raja

Yah a few things are quirky, GTX's 3's are not going to be plug and play for endusers it seems.

Here's GTX 3's stable now.

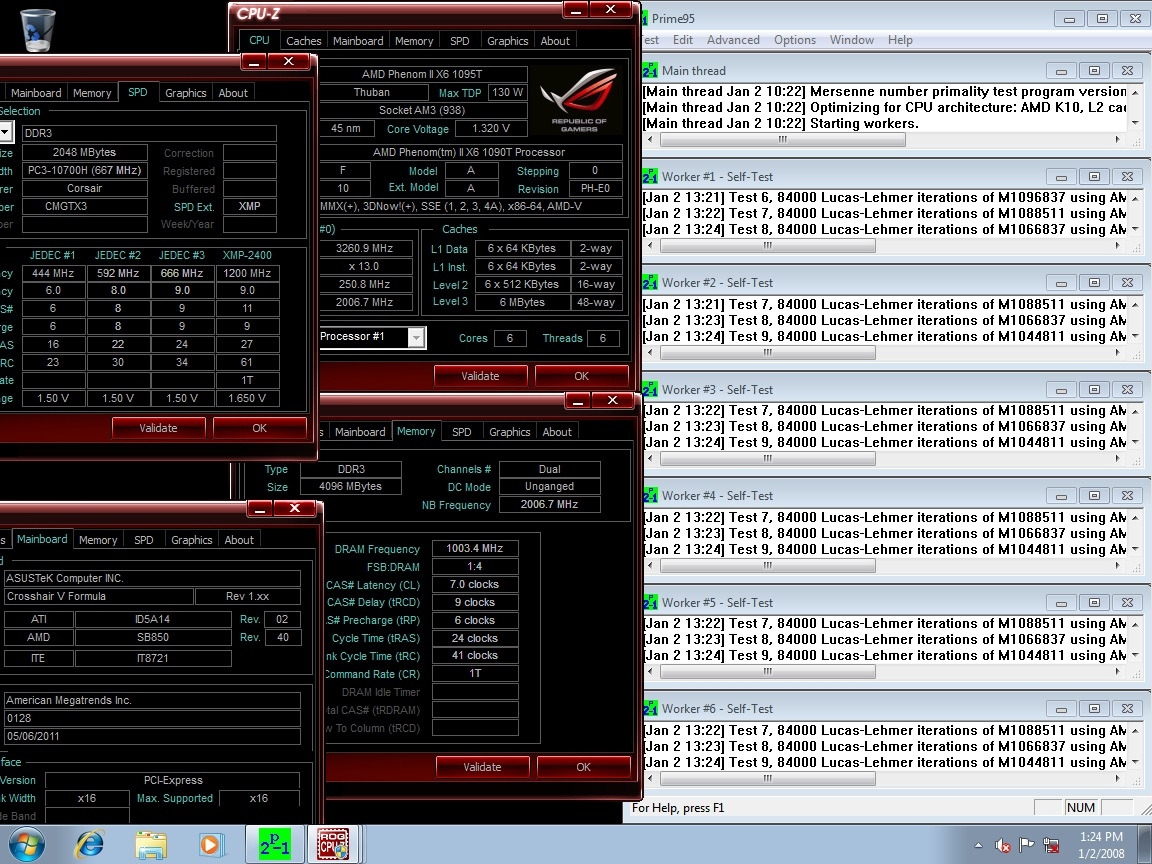

http://chew.ln2cooling.com/Ch5/gtx3%20pass.jpg

Here's the culprit sub timings ( to loose at defaults is the issue )

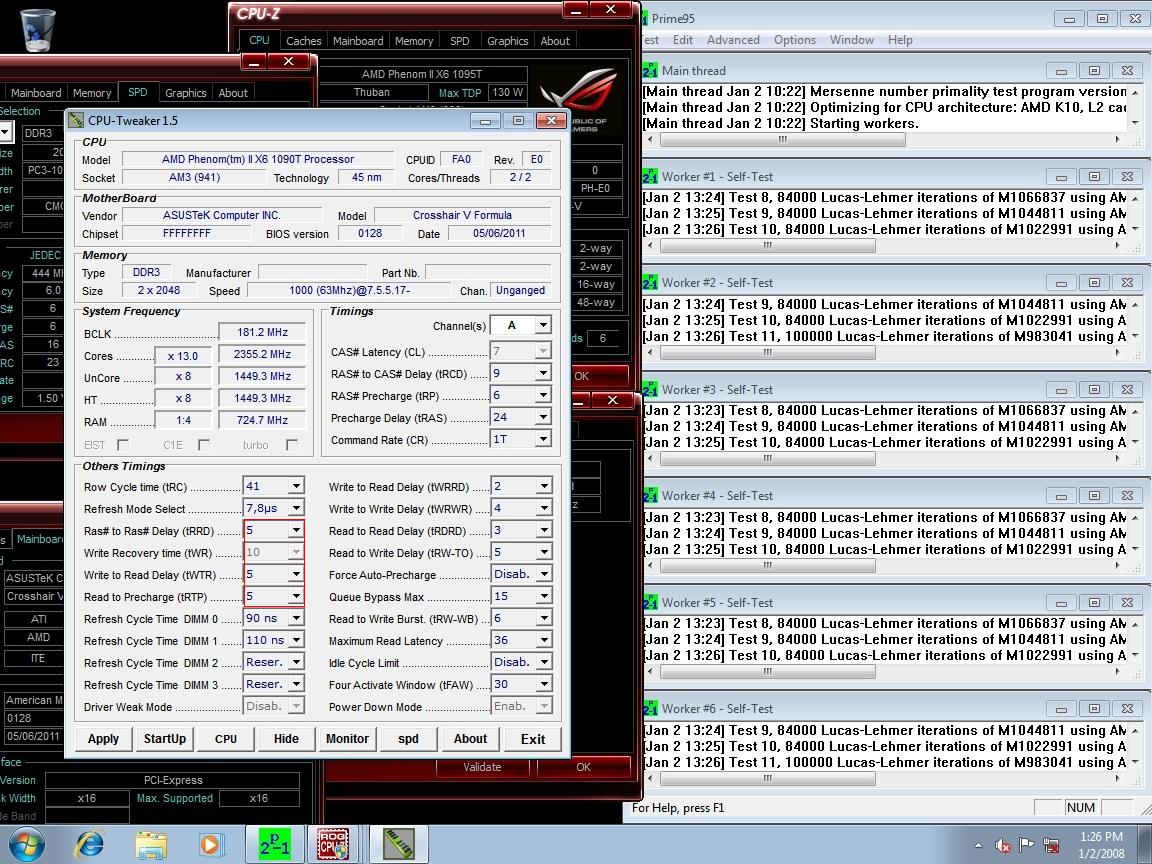

http://chew.ln2cooling.com/Ch5/gtx3%20pass%202.jpg
06-02-2011, 03:06 PM
Raja@ASUS

Too loose or too tight?

You got anything stable over DDR3-2100 yet?
06-02-2011, 03:10 PM
chew*

Quote:

Originally Posted by Raja@ASUS

Too loose or too tight?

You got anything stable over DDR3-2100 yet?

To loose raja, IIRC 6-5-6-12 was default?

Not yet but atm I'm testing module compatibility as average joe, aka set primaries and go save the GTX3's seeing as they exhibited issues right away.

Just plugged in a set of 8 gig 1600 7-8-7 so far granted 2T but they are passing slacked at 2000, thats an improvement for this set.
06-02-2011, 03:17 PM
Raja@ASUS

Quote:

Originally Posted by chew*

To loose raja, IIRC 6-5-6-12 was default?

Not yet but atm I'm testing module compatibility as average joe, aka set primaries and go save the GTX3's seeing as they exhibited issues right away.

Just plugged in a set of 8 gig 1600 7-8-7 so far granted 2T but they are passing slacked at 2000, thats an improvement for this set.

Ignore the 6-5-6 they are not going to impact stability for being too loose. tWR sometimes has a few offsets behind the scenes so it might be that.

Should have a BIOS guide up soon.

-Raja
06-02-2011, 03:23 PM
chew*

Quote:

Originally Posted by Raja@ASUS

Ignore the 6-5-6 they are not going to impact stability for being too loose. tWR sometimes has a few offsets behind the scenes so it might be that.

Should have a BIOS guide up soon.

-Raja

Could have been tWR, will verify later, want to finish ripping through the rest of the ram, quite a few sets to go through.
06-02-2011, 04:28 PM
chew*

Trfc is reading odd in twkr I noticed raja.

Any bios in particular adressed anything to do with trfc?
06-02-2011, 04:33 PM
Raja@ASUS

Quote:

Originally Posted by chew*

Any bios in particular adressed anything to do with trfc?

Not that I know of Chew. What values are you getting?
06-02-2011, 07:14 PM
chew*

Quote:

Originally Posted by Raja@ASUS

Not that I know of Chew. What values are you getting?

the GTX3 screenshot was set 90ns, twkr reporting 90/110?

Just left auto with an 8 gig set one channel reads 160 as it should rest are reserved.
06-02-2011, 07:50 PM
chew*

This is actually preety nice considering what it is. Might be able to suck them in, not sure.

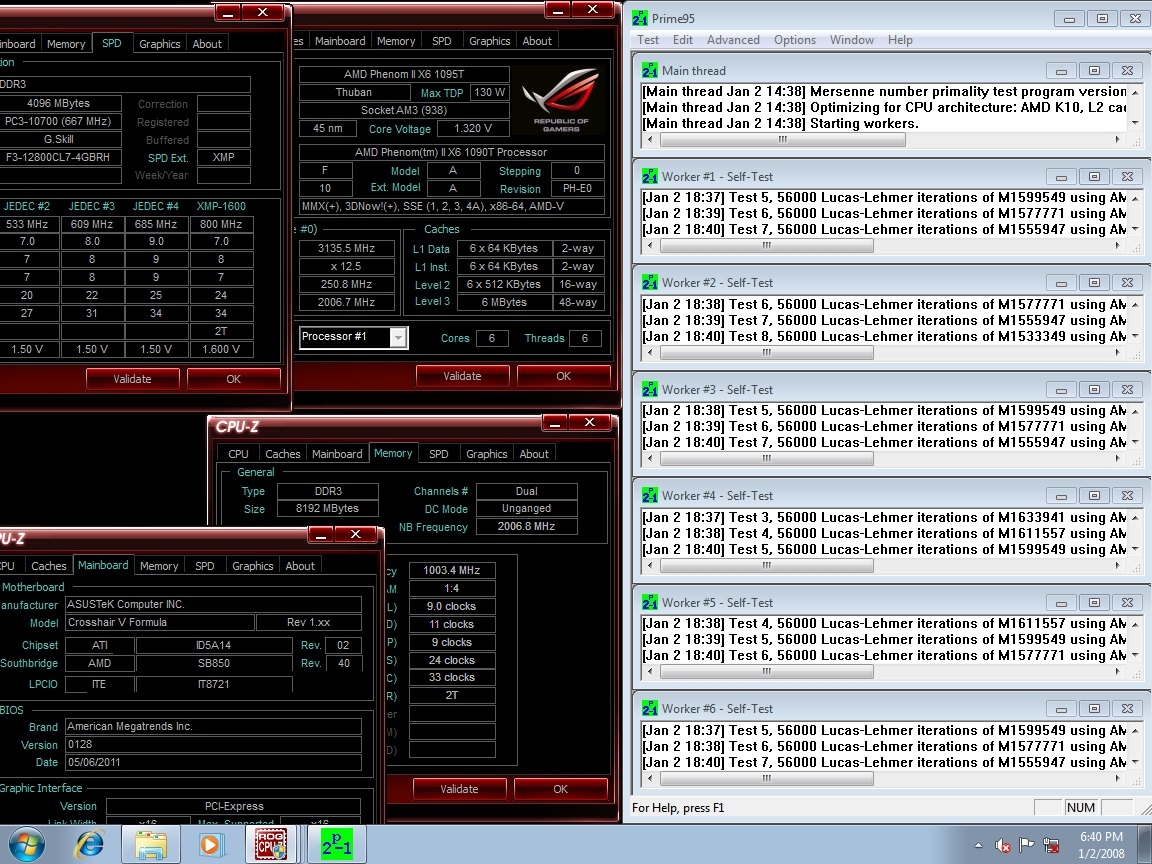

http://chew.ln2cooling.com/Ch5/2000%20gskill%204.jpg

Tried a set of corsair vengeance 2000 dimms high latencies, they need a little time put in maybe.
06-02-2011, 09:40 PM
Raja@ASUS

Quote:

Originally Posted by chew*

the GTX3 screenshot was set 90ns, twkr reporting 90/110?

Just left auto with an 8 gig set one channel reads 160 as it should rest are reserved.

Could be a Tweaker issue as that has been known to misreport at times, though I will check it out.. Those GTX3s; what happens when you leave the primaries on AUTO?

-Raja
06-02-2011, 10:16 PM
chew*

Quote:

Originally Posted by Raja@ASUS

Could be a Tweaker issue as that has been known to misreport at times, though I will check it out.. Those GTX3s; what happens when you leave the primaries on AUTO?

-Raja

Will test in a bit, got the rig tied up with mismatched sets for some 16 gig 2000 action atm.
06-02-2011, 11:49 PM
Oliverda

Same analogue PWM as we have seen in the past. Digi+ is just marketing.:down:

Gigabyte switched to DrMOS at least.
06-03-2011, 12:19 AM
Raja@ASUS

Quote:

Originally Posted by Oliverda

Same analogue PWM as we have seen in the past. Digi+ is just marketing.:down:

Gigabyte switched to DrMOS at least.

Don't confuse the FETs used for the capabilities of the buck controller - it is Digi+.
06-03-2011, 01:05 AM
chew*

Quote:

Originally Posted by Oliverda

Same analogue PWM as we have seen in the past. Digi+ is just marketing.:down:

Gigabyte switched to DrMOS at least.

gigabyte switched to dr.mos? Isn't that a MSI trademark?

From what I see personally MSI is using renesas still, and giga switched to Sic this time around but that is best discussed in those threads when I create them.

On topic, here's some mismatched 16 gig action at 2000 ram.

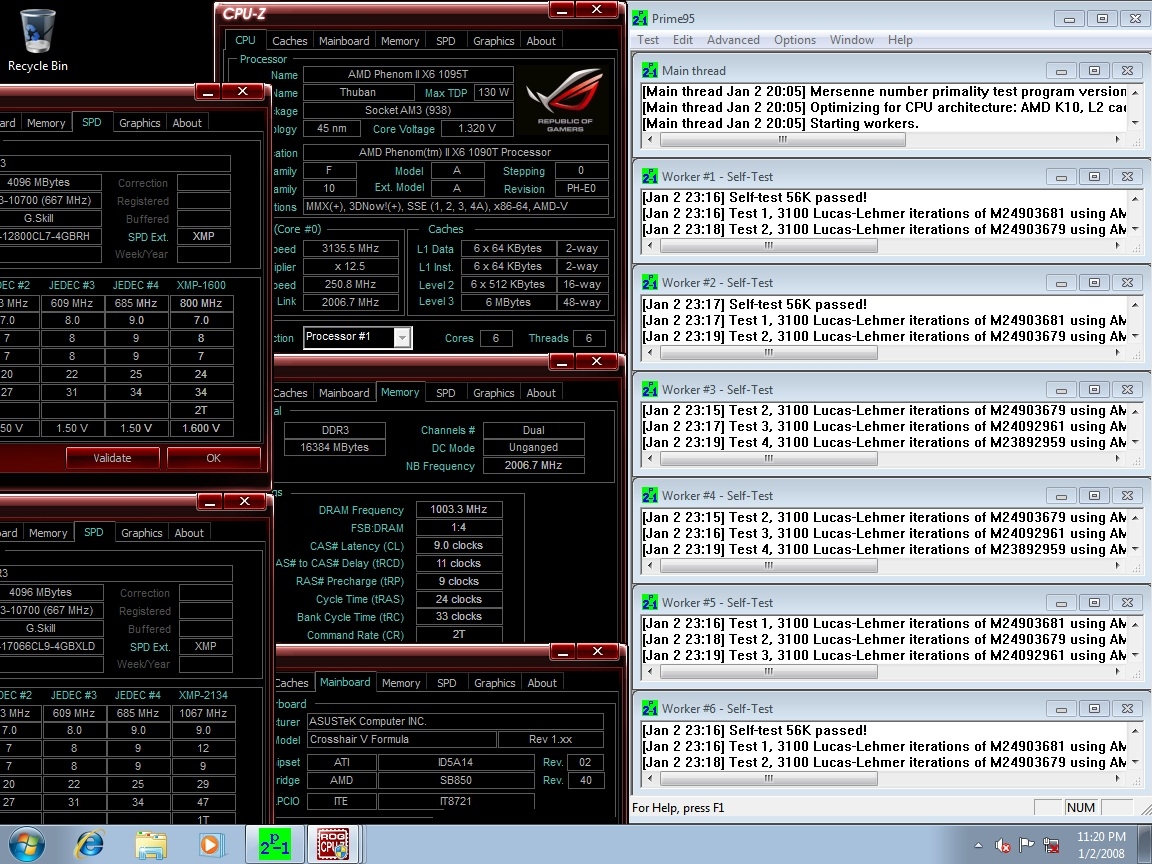

http://chew.ln2cooling.com/Ch5/16gb.jpg
06-03-2011, 01:59 AM
Oliverda

Quote:

Originally Posted by chew*

gigabyte switched to dr.mos? Isn't that a MSI trademark?

From what I see personally MSI is using renesas still, and giga switched to Sic this time around but that is best discussed in those threads when I create them.

On topic, here's some mismatched 16 gig action at 2000 ram.

No, it's not.

http://ipon.hu/_userfiles/Image/joke...0fxa-ud7-8.jpg

When are you going to test the GA-990FXA-UD7?:)

ON: Did you experience Vdroop or OV on CH V?
06-03-2011, 02:53 AM
hiwa

good points for Extreme benching chew, thanks for sharing :up:
06-03-2011, 03:11 AM
[XC] Oj101

Is the floating HT issue still around or has it been addressed with this board? And yes, I can't wait to see some of the other boards :D
06-03-2011, 11:26 AM
chew*

Quote:

Originally Posted by Oliverda

ON: Did you experience Vdroop or OV on CH V?

Your going to experience vdroop on any board......this particular board has 5 levels of llc.

Oj, don't have XP installed atm, with win 7 64 it's fine however.
06-03-2011, 11:48 AM
FlanK3r

Quote:

Originally Posted by [XC] Oj101

Is the floating HT issue still around or has it been addressed with this board? And yes, I can't wait to see some of the other boards :D

no, this is fixed:up:
06-03-2011, 12:47 PM
Oliverda

Quote:

Originally Posted by chew*

Your going to experience vdroop on any board......this particular board has 5 levels of llc.

Oj, don't have XP installed atm, with win 7 64 it's fine however.

The question would have been the amount of the vdroop. Anyway, my 790FX-GD70 has much much lower vdroop without LLC than the CH IV had with the stupid llc.:rolleyes:
06-03-2011, 01:49 PM
chew*

Quote:

Originally Posted by Oliverda

The question would have been the amount of the vdroop. Anyway, my 790FX-GD70 has much much lower vdroop without LLC than the CH IV had with the stupid llc.:rolleyes:

A discussion of old boards and all there failings best discussed in a new thread. In that thread i can show you pics of a pile of dead GD-70's along with cpu's ;)
06-03-2011, 02:11 PM
Oliverda

Quote:

Originally Posted by chew*

A discussion of old boards and all there failings best discussed in a new thread. In that thread i can show you pics of a pile of dead GD-70's along with cpu's ;)

Ok, then please tell me the amount of vdroop with auto setting.:p:
06-03-2011, 02:14 PM
chew*

Quote:

Originally Posted by Oliverda

Ok, then please tell me the amount of vdroop with auto setting.:p:

It's added to list :)

Board has been running 24/7, let me finish what i am working on now first.
06-03-2011, 08:24 PM
chew*

Progress is always a good thing........

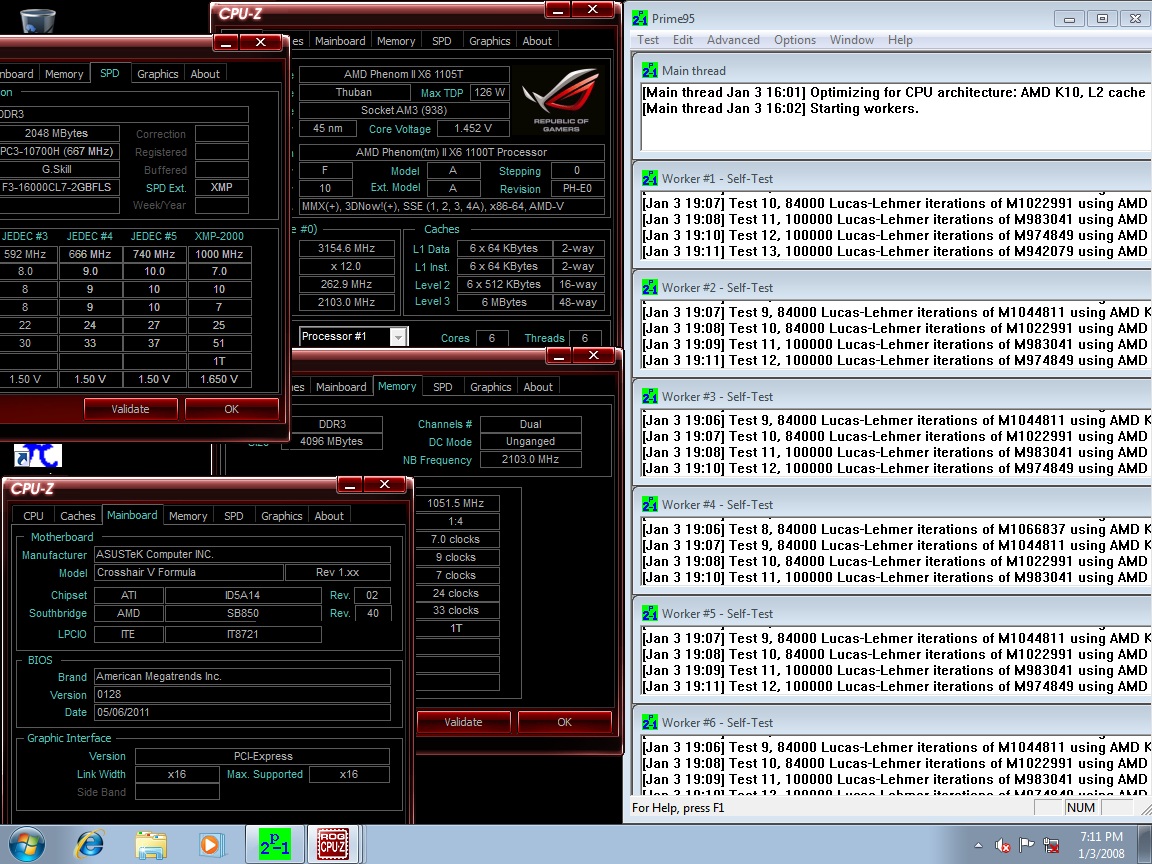

http://chew.ln2cooling.com/Ch5/1100%202.jpg
06-04-2011, 11:18 AM
chew*

Raja as requested.

GTX 3 Auto with ram set to 2000 voltage defaulting to 1.65.

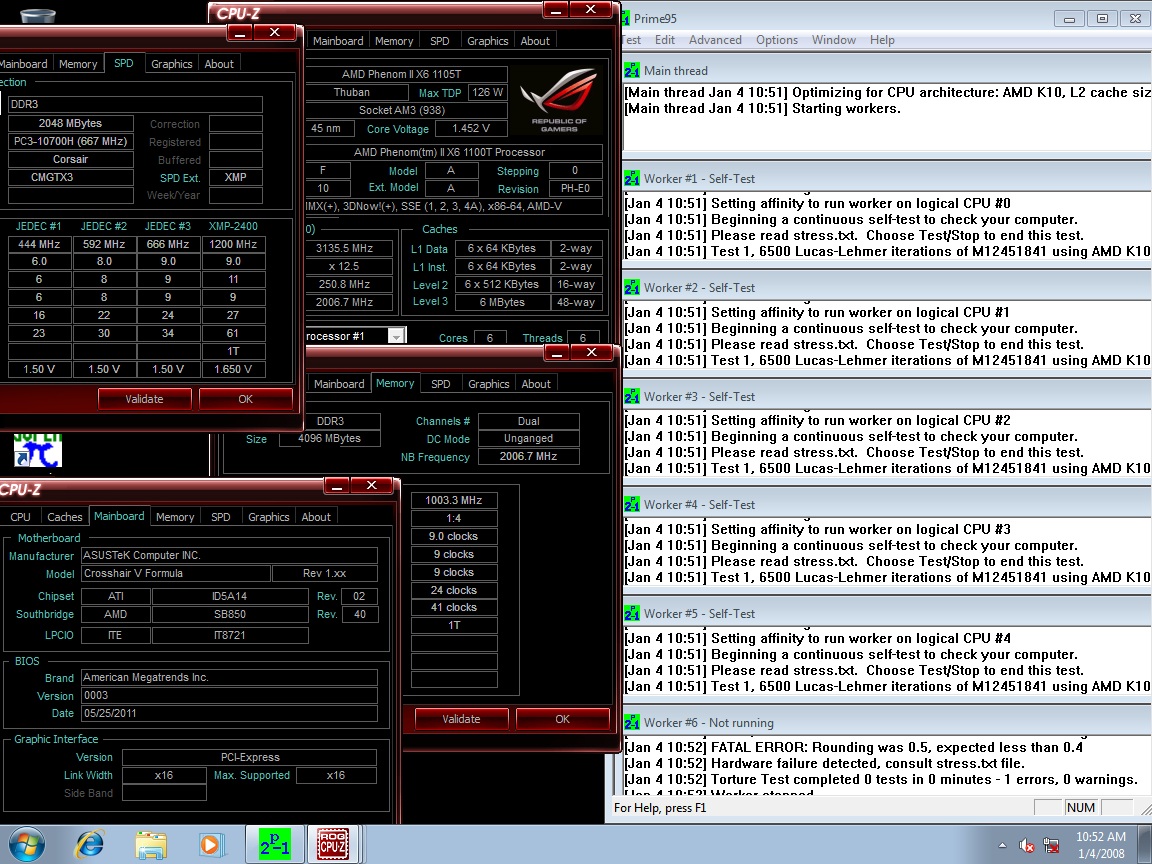

http://chew.ln2cooling.com/Ch5/GTX%2...ail%201003.jpg

Further investigating.

DOCP

1023 pass ( 1.65v ) I didn't let this run long.....usually failure is instant.

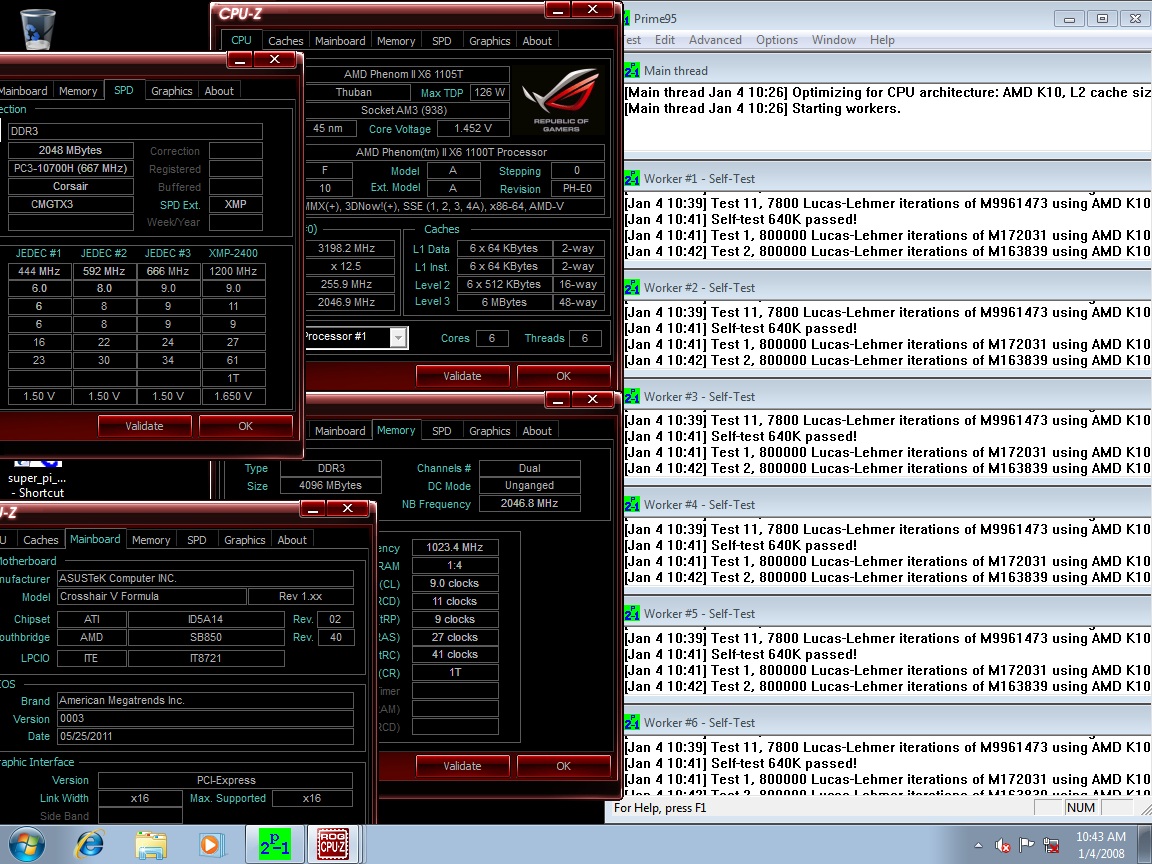

http://chew.ln2cooling.com/Ch5/GTX%2...ass%201023.jpg

DOCP fail point 1043 ( 1.65v )

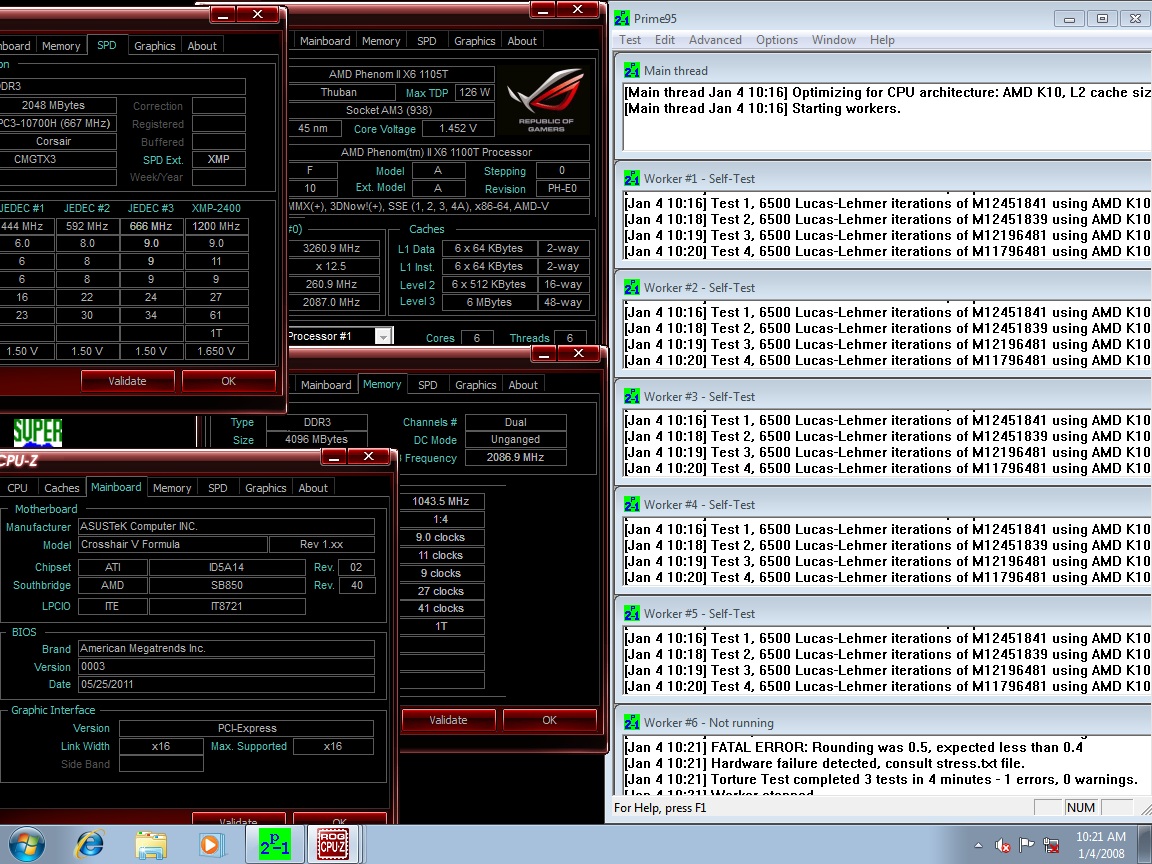

http://chew.ln2cooling.com/Ch5/GTX%2...ail%201043.jpg

Considering i can manually tune these to 7-9-6 at 2000 I would say compatibility atm has something to be desired.
