Frozen SS

Quote:

---

Originally Posted by LukeXE

great :)

---

thanxs luke
my new cases came back today, 50cm long 23cm wide and 24cm hight
compressor styds in base and studs for the LCD so cant see the srews :toast:

http://img295.imageshack.us/img295/5...1758iy6.th.jpg

http://img295.imageshack.us/img295/9...1759wf5.th.jpg

Awesome kayl.
They'r looking very professional :toast2:

Very nice Kayl :) SS?

Quote:

---

Originally Posted by jinu117

Very nice Kayl :) SS?

---

thanxs bLanK} GoD
jinu117 is a single stage :toast: .
mini frozen cascade case.

Kayl, I'm in the process of designing a new case. An enclosure(about the dimensions of the one below) is going to carry a phase change unit(by jin, thanks man!) and will be located in the interior of the case. I want to keep as much heat out of the interior of the case as possible, so I would like to add some insulation to the inside of the phase enclosure. The only idea I could come up with is a section of "sound mat"(like what is used in vehicles trunks by car stereo installers).

Do you have any recommendations on a type of thin, effective insulation?

Quote:

---

Originally Posted by kayl

thanxs luke
my new cases came back today, 50cm long 23cm wide and 24cm hight
compressor styds in base and studs for the LCD so cant see the srews :toast:

http://img295.imageshack.us/img295/5...1758iy6.th.jpg

http://img295.imageshack.us/img295/9...1759wf5.th.jpg

---

Quote:

---

Originally Posted by goatboy

Kayl, I'm in the process of designing a new case. An enclosure(about the dimensions of the one below) is going to carry a phase change unit(by jin, thanks man!) and will be located in the interior of the case. I want to keep as much heat out of the interior of the case as possible, so I would like to add some insulation to the inside of the phase enclosure. The only idea I could come up with is a section of "sound mat"(like what is used in vehicles trunks by car stereo installers).

Do you have any recommendations on a type of thin, effective insulation?

---

i used this stuff i think it was 17mm or so thick.
it just foam similar to foam with silver foil on one side for heat resistance.

http://img85.imageshack.us/img85/2169/11ay6.th.jpg

Thanks. Exactly what I was thinking about.

Something a normal hardware store would carry? Where did you pick it up?

goatboy i just glued it to the case

The new BA series of Kirby.
only just came in.
1/3hp r404/507

http://img179.imageshack.us/img179/6...sidels0.th.jpg

http://img383.imageshack.us/img383/5...ide2uc2.th.jpg

http://img80.imageshack.us/img80/539...lackgd0.th.jpg


http://img80.imageshack.us/img80/768...ttomuf4.th.jpg

I just looked at the serial number, and it seems that this is the 16 one of this compressor. Layed the parts out in the case today, need to keep the low volatage wires away from the high voltages ;)

http://img208.imageshack.us/img208/1...9355cs3.th.jpg


http://img208.imageshack.us/img208/8...9357la7.th.jpg

http://img157.imageshack.us/img157/9...9358op6.th.jpg

Been trying some r507/410a/290 blends but low side pressure was a little high. after a little chat with drew i have decided to go straight r507 with this condenser. I first tried single fan then went push pull fan config.
But this little condenser just couldnt handle R410a very well:mad:
maybe with the cube condenser and a longer capillary line ill try stright r410a with next build :toast:

http://img242.imageshack.us/img242/4926/3dq2.th.jpg

http://img242.imageshack.us/img242/9663/184xe7.th.jpg

http://img149.imageshack.us/img149/7162/2jr3.th.jpg

http://img246.imageshack.us/img246/7738/4gy2.th.jpg

http://img97.imageshack.us/img97/8933/5hs9.th.jpg

Your a machine kayl. keep up the awesome work.

Quote:

---

Originally Posted by {.bLanK} GoD

Your a machine kayl. keep up the awesome work.

---

thanxs bLanKGoD
I tried straight r410a the other day like we spoke about and not much luck. i hope you can do better than me.
0-5psi lowside had 250psi high side , but 300-350 load with 10-15psi lowside.
Specially summer time the condensing temp is higher.
I tried 2.7m to 3.3m of 0.031" as well with not much luck. Had better results with longer capillary line but still high side pressure was to extreme for my liking.
I dont think ill try straight r410a again, maybe a few squirts with r507 but thats it.
i then charged it with stright r507 and now idle 200psi and 250psi load:toast:

I managed to finally get the gfroster XE working which i had had here for months. this was the 4th different model compressor i have tried it in with no luck. i had to wire the compressor and fans manually, then start the controller after the compressor starts to stop it from tripping the gfroster and getting bad characters etc :toast:

http://img440.imageshack.us/img440/6...ningqj3.th.jpg


http://img124.imageshack.us/img124/9152/sidexb7.th.jpg

http://img485.imageshack.us/img485/5...9509th0.th.jpg

http://img150.imageshack.us/img150/3...9510ld6.th.jpg

Nice units kayl :)!

thanxs brettbeck.

My variac arrived today, 0-260V 500VA :toast:
Perfect for a triple load tester :stick:

I am gonna make another resistor load to go from 0-250+ W ;)
Little mirror to check all joins just to make sure all joins done properly.
And tomorrow im hoping to pick up a new dual stage vacuum pump.
Late Christmas here heeheh.

http://img441.imageshack.us/img441/1...9624bi6.th.jpg

http://img178.imageshack.us/img178/7...9626nu4.th.jpg

http://img142.imageshack.us/img142/3...9627oe8.th.jpg

finally a real vac pump :toast:

http://img407.imageshack.us/img407/4...0900wh7.th.jpg

do you have description about this vac pump ?

little dual stage pump ? :D

Quote:

---

Originally Posted by kayl

finally a real vac pump :toast:

---

Awwww. isn't it cute hahaha

Quote:

---

Originally Posted by kayl

finally a real vac pump :toast:

http://img407.imageshack.us/img407/4395/1201070900wh7.th.jpg

---

good choice :fact:
CPS are makes very good vaccum pumps

Quote:

---

Originally Posted by Duniek

good choice :fact:
CPS are makes very good vaccum pumps

---

i got a new mobo last week, a P5b -E Plus, bit cheaper than a delux.
But i wouldnt recommend them to any as they are a pile of SHIITEE
They are missing a hole bunch of IC around the socket, so not phase 8 regulation, i guess to same some $$.
WEll i has at a lan and I was running 1.7vcore and 2.45 RAM and auto everything else at the time.
THis was the second time i have used the mobo on phase change.
I put a friends E6400 in there and got it to 32m stable at 4.1GHz.
so i dropped OC back to 4ghz and ran orthos and it failed.
So then i tried 3.85GHZ and ran orthos few mins and it crashed.
And the smell of smoke. SO that was the end of that, luck i hand another stock PC in the car to use for the rest of the day.
I stuck a copper block on the end of the cooler and some of the guys added small drops of water on it till we got this heeheh.
ITs regulor or what ever the IC is, is the one that you read the NB voltage off, so seems the NB was the issue?????

http://img250.imageshack.us/img250/8...edic2yv.th.jpg

http://img242.imageshack.us/img242/3092/frost8fa.th.jpg

http://img250.imageshack.us/img250/1142/ice8nr.th.jpg


http://img442.imageshack.us/img442/5539/lan5cg.th.jpg

Oh dude that sucks. Your mates E6400 ok I hope though?
Great you finally made it to lan, but not such a great first impression :p:

Get the part # off of the IC and order another one. Most IC's a fairly common. Looks like 4 soldering points, not to bad to solder.

Good point.
For the 1$ it will cost you for the new regulator or whatever it is, cheap experiment. It may just live again.

I though about do that lostinspace and blankgod, but I don’t really like this mobo hey, I have only had it a week and the issues its given me might see if I can swap it at the shop and pay some more $$ and get a different mobo again.
With the vcore set at 1.7v in bios it droops to 1.6v in windows during 32m benches, then I run orthos and that droops to 1.44v which cant be good. I have only had it a weeks so RAMing it will be easy. There must be something else wrong with this mobo for the Vcore to droop that much.
There some more info I have posted about this mobo at this thread as well.
Half the Ic around the socket are missing compared to the deluxe version of this mobo
http://www.xtremesystems.org/forums/...d.php?t=130556

Yeah fair enough.
If you can RMA it, go for it.
It does sound like a pretty:banana: mobo.

Basically finished, first unit i have used the Freeze Pack Controller in a cased unit, turned out well.
i dont mind this controller, alot easier to wire and also like the fan speed contoll:toast:


http://img405.imageshack.us/img405/2...0123qz6.th.jpg


http://img405.imageshack.us/img405/4...0125gi4.th.jpg


http://img258.imageshack.us/img258/9...0138vj9.th.jpg

Good job Kayl,very nice work mate.

Looks very good kayl - your work keeps improving all the time :toast:

Quote:

---

Originally Posted by runmc

your work keeps improving all the time

---

Exactly what i wanted to say :) I still remember the first getto style single stages.

Good job kayl :toast:

thanxs very much guys, i really did like the getto days no so much competition just ppl posting getto builds. I remember when we first started brazing stainless steel suction line it was a bread through :toast:

My new 1/4HP R507/r410a frozen SS system.
E6700 @ 1.82vcore 32m SPi and Wprime around -30c.


http://img297.imageshack.us/img297/1...0242je4.th.jpg

http://img299.imageshack.us/img299/7...0241de6.th.jpg

http://img523.imageshack.us/img523/4...5sechk2.th.jpg


http://img502.imageshack.us/img502/3...m23sms4.th.jpg

Wprime

http://img511.imageshack.us/img511/2...reruta9.th.jpg

http://img523.imageshack.us/img523/5...82vcpw6.th.jpg

QX6700 benching at -26c load -31c idle. seems no matter what vdroop i set vcore still droops with WPRIME 1024m run droops from 1.76v to 1.67v.
SPI runs are ok though, no droop :D
Vmem 2.4v and also 1.65v NB volts.

http://valid.x86-secret.com/show_oc?id=195760

http://img104.imageshack.us/img104/6...tiontz0.th.jpg

http://img513.imageshack.us/img513/3...0256gs2.th.jpg


http://img104.imageshack.us/img104/9...8sectj7.th.jpg

http://img513.imageshack.us/img513/2...0257ym6.th.jpg

http://img384.imageshack.us/img384/7...0259vy4.th.jpg

http://img513.imageshack.us/img513/3...0258eg2.th.jpg

http://img503.imageshack.us/img503/2...mspigl2.th.jpg

http://img256.imageshack.us/img256/5...4224iu4.th.jpg

New littel frozen SS system.
THis unit does -37c idle on a E6700 at 1.75vcore
-26c load orthos, -33c spi benching.

http://img518.imageshack.us/img518/7...0356ly9.th.jpg

ON the load tester

http://img337.imageshack.us/img337/7...tingqx0.th.jpg

The start to a Nf11 danfoss unit, 1/3HP R507 refrigerant.
Gfroster Value controller.

http://img514.imageshack.us/img514/9...0401qt4.th.jpg

http://img514.imageshack.us/img514/7...0404ye4.th.jpg


http://img514.imageshack.us/img514/5...0407qg9.th.jpg


http://img508.imageshack.us/img508/1...0410bf9.th.jpg

http://img520.imageshack.us/img520/7...0411aj3.th.jpg

http://img71.imageshack.us/img71/486...0412xq9.th.jpg

Put a k-type display in the 1/4HP R507/r410a frozen SS system

http://img180.imageshack.us/img180/3...0579rr5.th.jpg


http://img520.imageshack.us/img520/8...0582ak2.th.jpg

nice display Kayl, good find there!

Quote:

---

Originally Posted by kayl

The start to a Nf11 danfoss unit, 1/3HP R507 refrigerant.
Gfroster Value controller.

http://img514.imageshack.us/img514/7...0404ye4.th.jpg

---

You guys got the hookup on condensers over there:up:

Quote:

---

Originally Posted by Unseen

Exactly what i wanted to say :) I still remember the first getto style single stages.

Good job kayl :toast:

---

Yeah -:D Remember the good old days :up:

Quote:

---

Originally Posted by kayl

Put a k-type display in the 1/4HP R507/r410a frozen SS system

---

kayl,
How accurate is the display? and did you have to tweek the pots much? Just curious, put two of the same ones in my load tester but it will be a few days before it's finished.
Eric,

Quote:

---

Originally Posted by Blaster

nice display Kayl, good find there!

---

Thanxs blaster, got them off chilly1.

Quote:

---

Originally Posted by gosmeyer

You guys got the hookup on condensers over there:up: How accurate is the display? and did you have to tweek the pots much? Just curious, put two of the same ones in my load tester but it will be a few days before it's finished.
Eric,

---

Yes they are a nice size condenser.

seems the temp displays read a few c's colder as temps go lower.
just a few c's colder than real room temp.
Im yet to play with the pots, was just gonna use way is.

http://img217.imageshack.us/img217/2...0587uc8.th.jpg

http://img167.imageshack.us/img167/6...0588ma1.th.jpg

Kayl you need to cut the side out ofyour case..i cant believe u didnt do it before you put it together....I ended up cutting a slot on side of my Vapo to let my Ls sit underneath nice and square..i couldnt handle the Angle trick any longer eheh....

Kayl i cant wait untill you get the 3/4 Compressor and to see if you could sqeeze it into your case been looking at all your builds here it might go close??

depends if u have that copper coily thing i suppose..the thing in front of condensor....

I couldnt see issue with rear fan mounted at rear of the case could you ???
then the only worry is GSMaster controller lcd screen being smaller than the hole..But i can Email John and ask him if he could send me over a larger LCD display to fill the Hole im sure he would.

Nice link /thread Cheers Hori :up:

really great work i love it :up:

one day i will learn to build this pretty things :p:

OCFX do enough reading and you can build units. I learnt it all from XS ;)

Quote:

---

Originally Posted by HoriWanderFuLL

Kayl you need to cut the side out of your case..i cant believe u didnt do it before you put it together....I ended up cutting a slot on side of my Vapo to let my Ls sit underneath nice and square..i couldnt handle the Angle trick any longer eheh....
Kayl i cant wait untill you get the 3/4 Compressor and to see if you could sqeeze it into your case been looking at all your builds here it might go close??
depends if u have that copper coily thing i suppose..the thing in front of condensor....
I couldnt see issue with rear fan mounted at rear of the case could you ???
then the only worry is GSMaster controller lcd screen being smaller than the hole..But i can Email John and ask him if he could send me over a larger LCD display to fill the Hole im sure he would.
Nice link /thread Cheers Hori :up:

---

Yeah I had plans to cut a hole in the side of the new pc case, but just havnt got around to it. The case also has a clear window side panel so will look sweet when its finished and done properly.
Lets hope we can squeeze the 3/4hp compressor into a frozen SS case along with the starting gear( run and start caps as well as the relay enclosure, it will be tough, if need I might take the start gear out of the enclosure)

http://img244.imageshack.us/img244/5929/mach2jd5.th.jpg

Yes the idea of having the rear fan on the back of the case will give us an additional 35mm room, we need all the room we can get. The issue with the LCD isn’t the window hole, it’s the LCD mounting holes are different to my current case, you can stick the LCD to the case like I did with this unit.

http://img405.imageshack.us/img405/2...0123qz6.th.jpg

Because you have the push buttons for the controller on an extended cable we don’t have to drill holes for t hose. This is actually my last case left.

That lcd looks ok ...
rear fan at back will be just fine if it fits

Chat later

Cheers Hori

Quote:

---

Originally Posted by HoriWanderFuLL

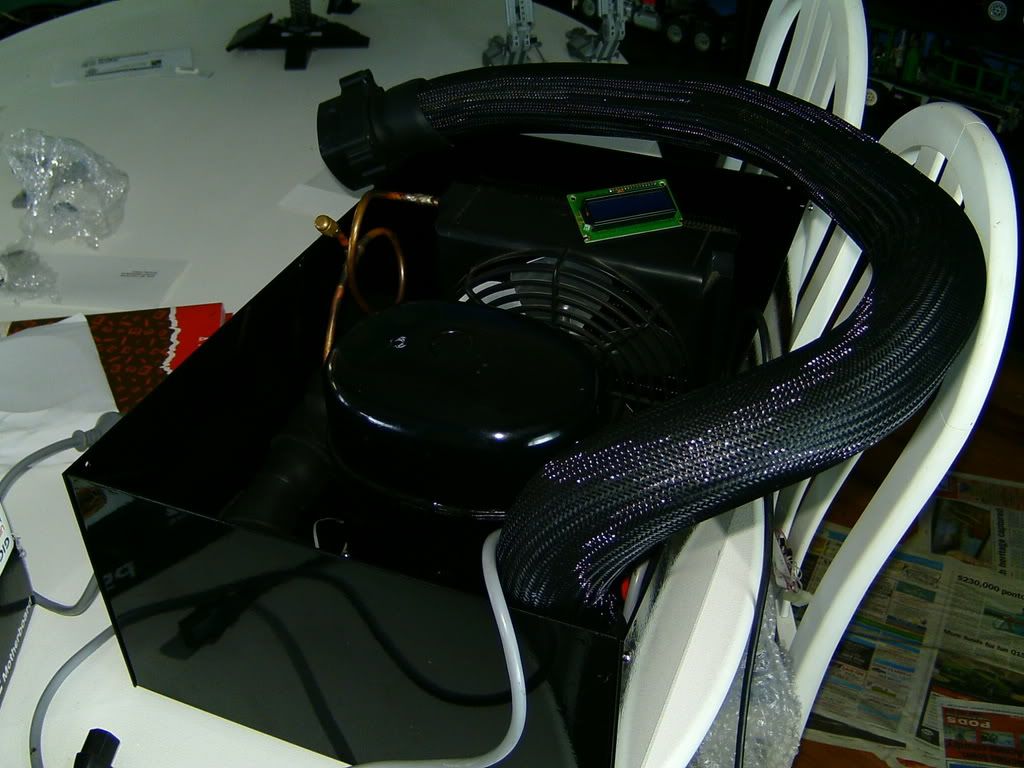

That lcd looks ok ...
rear fan at back will be just fine if it fits

Chat later

Cheers Hori

---

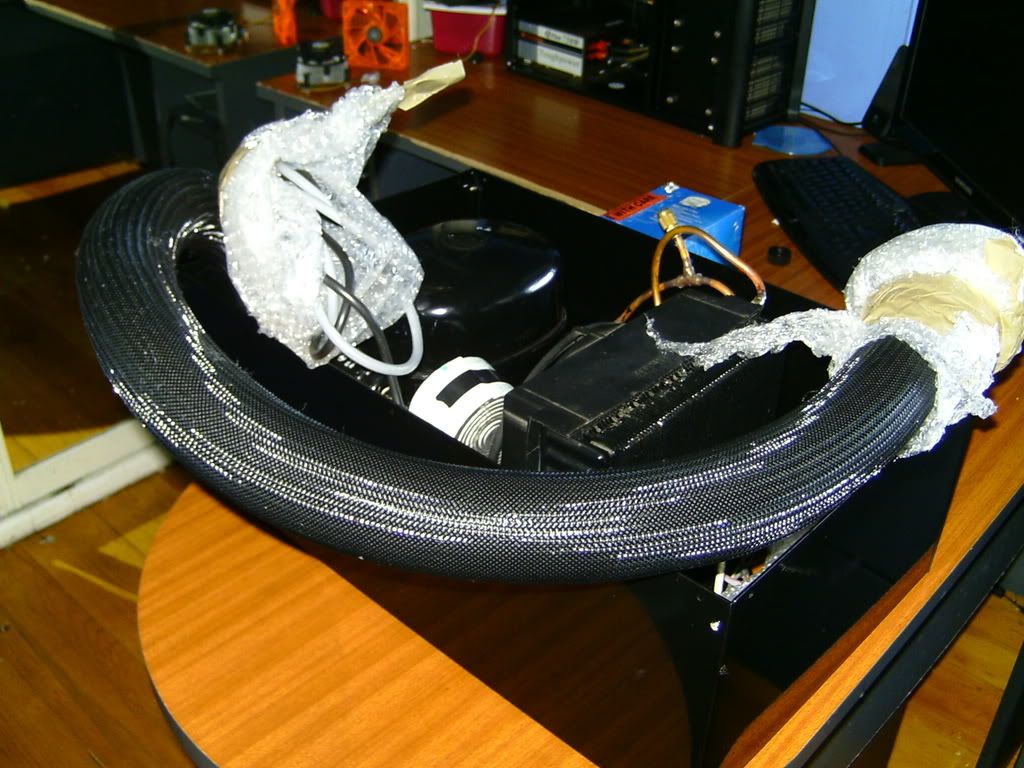

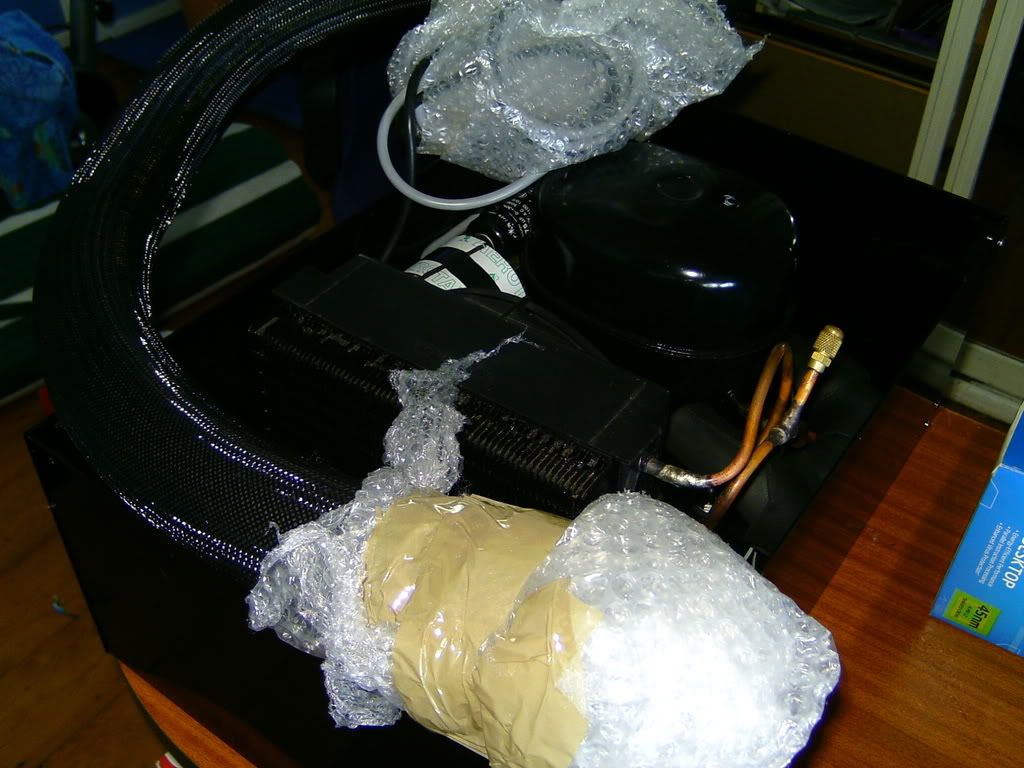

3/4Hp compressor with r410/507/r290 blend of refrigerants.
Horri will install a gsmaster controller at a later date ;)


http://img263.imageshack.us/img263/8...0784km7.th.jpg

http://img263.imageshack.us/img263/4...0785pq5.th.jpg

http://img263.imageshack.us/img263/6...0786na0.th.jpg

Im so Xcited looks verry tidy Kayl.

i cant wait for the benchtesting pictures over the weekend...

Cheers Hori

Little QX6850 action on single stage phase change with Gigabyte GeForce 8800GTS 320MB
Heres some results on air along with a QX6850 at 4420Mhz on a single stage cooler, managed to pick up a few points on Hwbot.

3Dmark 2003 - 39309 marks

http://img528.imageshack.us/img528/5...0920nl6.th.jpg

3Dmark 2006 - 12653 marks

http://img262.imageshack.us/img262/3...5320li1.th.jpg

Aquamark - 215583 marks

http://img128.imageshack.us/img128/4...8viecv5.th.jpg

3Dmark 2001 - 69410 marks

http://img63.imageshack.us/img63/109...rk01hp1.th.jpg

PCMark 2005 - 11381 marks

http://img404.imageshack.us/img404/4...8120ii1.th.jpg

3Dmark 2005 - 20853 marks

http://img262.imageshack.us/img262/5...5320de3.th.jpg

idle

http://img403.imageshack.us/img403/1...1158kx0.th.jpg

load -36c

http://img403.imageshack.us/img403/5...1157cg2.th.jpg

Verry Nice kayl.. you been busy again buy the looks of it...
Did not take you long to mount up another cooler eheh

Quote:

---

Originally Posted by HoriWanderFuLL

Verry Nice kayl.. you been busy again buy the looks of it...
Did not take you long to mount up another cooler eheh

---

actually this one back in may, it recently sold and i installed controller and gave it a quick bench before sending out :up:

Picked up my cases today.
GSmaster controller case

http://img254.imageshack.us/img254/6034/25630393gc5.jpg
http://img156.imageshack.us/img156/7011/52353038ze4.jpg
http://img180.imageshack.us/img180/2784/17082258wd9.jpg


Basic unit with a on switch, k-type display and varible fan speed.
THis lot gets powder coated next year , just deciding what colours ;)
http://img180.imageshack.us/img180/1571/55638836qp8.jpg

http://img205.imageshack.us/img205/2114/dsc01725ty1.jpg

You should powder coat some in transparent colors so they will be a candy color. Candy red, candy blue, candy green.

Quote:

---

Originally Posted by 2long4u

You should powder coat some in transparent colors so they will be a candy color. Candy red, candy blue, candy green.

---

im gonna get some black and some silver
they are ready just have to pick them up.

First small unit ready, 1/4Hp compressor

http://img259.imageshack.us/img259/3531/dsc01835wm8.jpg
http://img222.imageshack.us/img222/1302/dsc01836sp0.jpg

Cases are back from the powdercoaters, silver and black with silver specs though the powder

http://img255.imageshack.us/img255/1751/dsc01856nk9.jpg
http://img244.imageshack.us/img244/5852/dsc01859fs1.jpg

LeChuck Cases?

No, don't think so.
If you look more closely, you can see that LeChuck uses another design. (Screws e.g.)

very good looking cases kayl. really like the design :) what displays is those cutouts for?

Regards
Tim

Quote:

---

Originally Posted by Moc

LeChuck Cases?

---

nar, kayl specials cnc punched :up:
i wanted to get the side pannels laser cut with Frozen SS graphics on the side, the Frozen parts small letters and the SS larger in fancy writing.
but they were quiet pricy and went for holes.

Quote:

---

Originally Posted by tim-

very good looking cases kayl. really like the design :) what displays is those cutouts for?

Regards
Tim

---

thanxs tim, i got one lot for the gsmaster controller, and the rest are for the k-type displays with a simple on off switch.

-49c first turn on and -40--38c load with a E8500
Pitty it has a 540FSB wall :( also tried on DDR2 and DDR3 same FSB wall.

http://img98.imageshack.us/img98/4976/29405797fh9.jpg
http://img132.imageshack.us/img132/3167/83508323al3.jpg
http://img132.imageshack.us/img132/5359/46003659fu6.jpg
http://img132.imageshack.us/img132/828/97897513nf2.jpg

Nice work and results!
Got a Q, do you not use ball valves or low loss fittings on your hoses? How do you get it off without shooting refrigerant and oil everywhere?

Quote:

---

Originally Posted by n00b 0f l337

Nice work and results!
Got a Q, do you not use ball valves or low loss fittings on your hoses? How do you get it off without shooting refrigerant and oil everywhere?

---

i sold my QX6700, and bought a Q600 cheap for load testing. Post 152 was wprime1024 with Q6600 1.7v load testing ;)
I only got the E8500 Friday so im just having a play. Benching is half the fun of building these coolers :yepp:

When i have the access point on the suction line (this compressor has the crapy kirby connection, and its over $100 for that connection to connect to this access point.
So I have the access on the suction line.
For refrigerant lines I just use normal ones nothing special. To remove the hose I would turn the unit off and wait till suction line is at room temps and system cooled down, then remove both sides with minimal refrigerant and oil loss. this also stops the low sides access valve from getting a slow leak, which is what happens if you remove it when system cold, especially on cascades :up:

In USA we have to have low loss, but without it, with like a propane, you get quite alot of gas coming out as well as the cold.

Quote:

---

Originally Posted by n00b 0f l337

In USA we have to have low loss, but without it, with like a propane, you get quite alot of gas coming out as well as the cold.

---

Interesting, i wish i had one that removes the core while vacuuming :yepp:
CHanged mobos and flashed to a different bios
NO more 540FSB wall, can boot 560mhz and walling at 582FSB
8.828sec 1Mb SPI
9mins 58 sec 32m SPI

http://valid.x86-secret.com/show_oc.php?id=303238

http://img526.imageshack.us/img526/1523/582fsble6.png
http://img183.imageshack.us/img183/3955/dsc01897sb6.jpg
http://img183.imageshack.us/img183/2555/dsc01895tp1.jpg
http://img183.imageshack.us/img183/3547/dsc01896jt0.jpg
http://img403.imageshack.us/img403/4...8secspinm6.png
http://img167.imageshack.us/img167/7...n32mspiyq8.png

Nice chip as well as results!
I think that's my next chip buy. Well done kayl.

Quote:

---

Originally Posted by gosmeyer

Nice chip as well as results!
I think that's my next chip buy. Well done kayl.

---

thanxs gosmeyer, with the right mobo and ln2 this cpu should do 600+ FSB :up:

been working on another 1/2hp unit basic k-type display.
I have found a source for accumulators finally, now idle isnt an issue with popping n crackling and units tunned for 250w+. Accumulator is around 17cm long, little big but it really does the trick.
Load with a Q6600 at 1.7vcore wprime 1024m was -41c, -45c idle :clap:
temps just after the accumulator at load was -27c.
seems the longer i benched the colder it got :yepp: cant complain


http://img145.imageshack.us/img145/8444/11dm6.jpg
http://img155.imageshack.us/img155/6435/85734322vu2.jpg
http://img137.imageshack.us/img137/2118/57203446xk5.jpg
http://img231.imageshack.us/img231/2112/24812412sj0.jpg

nice performance, accumulator and especially the case :up:

is it a 25mm thick fan you use? looks so.

Quote:

---

Originally Posted by tim-

nice performance, accumulator and especially the case :up:

is it a 25mm thick fan you use? looks so.

---

yeah origally it was, but i ended up changing it for a bigger one.
liquid line at load was a little hot and needed the extra air flow to keep discharge pressure down ;)
pity cause i got 20 of them sent in the other day. might have to try push pull setup next unit :up:

yes you're right.. I've tried 25mm thick fans, with same flowrate as my 38mm, but if you check datasheet you will see that the 38mm ones has alot more potential to force true a condenser due to it has alot higher push/pull capacity.

Quote:

---

Originally Posted by tim-

yes you're right.. I've tried 25mm thick fans, with same flowrate as my 38mm, but if you check datasheet you will see that the 38mm ones has alot more potential to force true a condenser due to it has alot higher push/pull capacity.

---

yes they sure do. I have just ordered some new cube condensers with push pull fan setup, and will use the 25mm thick fans at low speeds for quiet operation :yepp:

New 3/8Hp unit r290/r410a blend
GIGABYTE X38T DQ6
Q6600
2GB DDR3 Corsair Dominators 1800Mhz C7
Asus EAH3870X2
1.78vcore load hehehe
-45c cpu head idle, -37c 12cm before compressor
and -39/40c head load, -33c 12cm before compressor

http://img340.imageshack.us/img340/7449/97852355aq7.jpg
http://img512.imageshack.us/img512/5777/24428637ns1.jpg
http://img181.imageshack.us/img181/545/79641120un9.jpg

load wprime 1024Mb runs ;)
http://img120.imageshack.us/img120/9...x469fsber7.png
http://img120.imageshack.us/img120/9...sec4220ue9.png

3dmark 06 20k ;)

http://img511.imageshack.us/img511/6...rk06runue5.png


248w power consumption idle and 275w load

http://img262.imageshack.us/img262/8444/dsc02197xk3.jpg
http://img229.imageshack.us/img229/5206/dsc02201vi4.jpg

GIGABYTE X38T DQ6
QX9650
2GB DDR3 Corsair Dominators 1800Mhz C7
Asus EAH3870X2
1/5Hp Frozen SS -26c load -33c idle. 90w idle 110w load power consumption :up:


validation 5090Mhz

http://img243.imageshack.us/img243/9...idationet2.png

http://img143.imageshack.us/img143/2599/dsc02220ge4.jpg
http://img527.imageshack.us/img527/5985/dsc02216sv6.jpg


http://img507.imageshack.us/img507/4586/yz250001.jpg


http://img507.imageshack.us/img507/2258/yz250003.jpg


http://img507.imageshack.us/img507/8853/yz250004.jpg

3dmark06 21966Marks

http://img512.imageshack.us/img512/4...66markszk8.png

wprime 1024Mb 264sec : 4mins 24sec

http://img521.imageshack.us/img521/7...m264secvn7.png

3dmark 05 30k

http://img175.imageshack.us/img175/1...dmark03ia9.png

Nice work kayl! The 3/8th HP unit should be here any day now. I saw a delivery van deading towards my house today as i left for work so it could be here tonight. :yepp:

That little 1/5th HP unit is mad! hes so Cute! :)

Can't wait for some sub-zerrrooo :D :D

That 1/2hp with the accumulator, that an r12 compressor?

Nice work Kayl :) :up: ........Finnally getting back to what XS is about ,Great work and great overclocks !!!!!!!!! Not just cooling units on load testers.....they have their use, but ultimaly it's about the OC's .:clap: :up:

Quote:

---

Originally Posted by n00b 0f l337

That 1/2hp with the accumulator, that an r12 compressor?

---

The sticker says R134A. If you look really good, you can see it.

Quote:

---

Originally Posted by n00b 0f l337

Nice work and results!
Got a Q, do you not use ball valves or low loss fittings on your hoses? How do you get it off without shooting refrigerant and oil everywhere?

---

This is simple procedure my friend, After you are don charging you close off the tank, then you turn off the discharge service port valve, then you open your high side manifold valve, then slowely open the low side manifold valve and allow the system to pump out your hoses. If you front seat the suction service valve you can actualy pull your hoses right down to 0psi.

Quote:

---

This is simple procedure my friend, After you are don charging you close off the tank, then you turn off the discharge service port valve, then you open your high side manifold valve, then slowely open the low side manifold valve and allow the system to pump out your hoses. If you front seat the suction service valve you can actualy pull your hoses right down to 0psi.

---

Figured it out already, however he does not have a valve on the highside to close off the schraeder or such.

Quote:

---

Originally Posted by wdrzal

Nice work Kayl :) :up: ........Finnally getting back to what XS is about ,Great work and great overclocks !!!!!!!!! Not just cooling units on load testers.....they have their use, but ultimaly it's about the OC's .:clap: :up:

---

thanxs wdrzal, good to see ya around again :clap:

Quote:

---

Originally Posted by n00b 0f l337

Figured it out already, however he does not have a valve on the highside to close off the schraeder or such.

---

correct, i normally have one have it on there for the iniatal charge when load testing in the shed. then when finished turn the cooler off and wait till she cools down then take gauges off (high side) when pressure alot lower. i take suction hose off when system is running and in positive pressure and loose almost no gas.
WHen tunning inside and doing small tweaks just use low side gauge/hose and not bother with the high side. i know max high sider pressure when i give the cooler 270w :yepp:



Heres the first silve case frozen SS i have made. Basically finished just need to do some benching
1/5hp with r404a refrigerant

http://img164.imageshack.us/img164/1700/dsc02337qb8.jpg
http://img87.imageshack.us/img87/3566/dsc02338qc7.jpg



Picked up a bunch of push pull fans condensers, cant wait to uses these babie :bounce:

http://img127.imageshack.us/img127/9458/11sy7.jpg
http://img186.imageshack.us/img186/7626/kayl5zl0.jpg

heres a new 3/4hp units im working on
http://img104.imageshack.us/img104/7666/22fc7.jpg
http://img134.imageshack.us/img134/7902/33un0.jpg

Just making a guess on width here, and god I wish I had more of those cubers, is Drew still selling em? But rotate that condenser 90 degrees, do push pull across the condenser from side to side of the tray, and you should get a bit more room to pipe :)

I think drew is starting to run low on them. Maybe after he sold kayl all of these he decided to wait a bit...

peace

Quote:

---

Originally Posted by n00b 0f l337

Just making a guess on width here, and god I wish I had more of those cubers, is Drew still selling em? But rotate that condenser 90 degrees, do push pull across the condenser from side to side of the tray, and you should get a bit more room to pipe :)

---

yeah last i spoke he has a few, not sure how many though.
the condenser 90 degrees is a great idea fresh air in and hot air straigh out of the case, went very well in drews units, i was thinking of trying one, but my cases arnt quiet suit as there isnt enough breather holes in the side :(

3/4HP Frozen SS. ON boot it does -50c and then settles down to -45c idle -42cload 1.8vcore 5Ghz
Speed fan reads idle core temps correct it seems.

http://img181.imageshack.us/img181/2839/82242098id2.jpg
http://img375.imageshack.us/img375/4137/53068990ry2.jpg

Quote:

---

Originally Posted by kayl

3/4HP Frozen SS. ON boot it does -50c and then settles down to -45c idle -42cload 1.8vcore 5Ghz
Speed fan reads idle core temps correct it seems.

---

How could you get the (on-boards to read)?=Accuratly
I could only get about -2c or so.

Had to go by the vapochills software and my Fluke88.
Both were close to the same, aorund -40 to -35c.

I run the Q66 and it doesnt have the DTS errors that the
45nm wolfies have?

I had to mount my temp probe on the top of my IHS as i didnt want to mill it out.
Its not small/flat enough for that.

Here is a pic i took for another member who is/was thinking of buying it.
If i could hold the probe closer (too cold) it would report within 2c or so of the vapo software.

http://i114.photobucket.com/albums/n...Picture739.jpg

Quote:

---

Originally Posted by sirheck

How could you get the (on-boards to read)?=Accuratly
I could only get about -2c or so.

Had to go by the vapochills software and my Fluke88.
Both were close to the same, aorund -40 to -35c.

I run the Q66 and it doesnt have the DTS errors that the
45nm wolfies have?

---

I think it depends on the motherboard to how well they can read the die temps. Try downloading the latest speed fan maybe. I have tried 2 different E8500's on this mobo and they seem to read about correct. BUt in other motherboards i had noticed temps change from board to board.

[QUOTE=sirheck;3221734]I had to mount my temp probe on the top of my IHS as i didnt want to mill it out.
Its not small/flat enough for that.
Here is a pic i took for another member who is/was thinking of buying it.
If i could hold the probe closer (too cold) it would report within 2c or so of the vapo software. [\QUOTE]

THe vapors cheap though and read temps from the suction line leaving the cpu head and not at the base of the block. :shakes:

could you guess the wattage its holding at -42c?

great units... those temps are insane! and is the cpu temp way off or do you have a incredible evap/mount :p:

Quote:

---

Originally Posted by teyber

could you guess the wattage its holding at -42c?

great units... those temps are insane! and is the cpu temp way off or do you have a incredible evap/mount :p:

---

2oow on the load tester
230w is -38c, load tester not insulated though

those are incredible results!

Is that with r290?(or blend r290/404/507a w/e?)

I just noticed the vacuum gauge in the pic with the condensers :) nice

Havn't seen you around lately. i hope everything is OK!

Quote:

---

Originally Posted by teyber

those are incredible results!

Is that with r290?(or blend r290/404/507a w/e?)

I just noticed the vacuum gauge in the pic with the condensers :) nice

Havn't seen you around lately. i hope everything is OK!

---

Thanxs, its r404a and shot of r290. THere isnt much gas in this unit as it floods with idle on these wolfdale cpus.
Havnt been doing much laterly as its winter here so making these things at night in the shed is a little cold. But with the cascde build on the way should keep busy. I also bought 4 mach2's so will be making some new cases for those and a work over on those units in time :yepp:
THinking new longer cases will work nice with a cube condenser and push pull fans :up:

3/4hp frozen ss phase change cooler with the gsmaster controller. will run push pull fans on the condenser :)
Unit will be tuned with Core i7 either a 920 or a 940 not sure yet


http://img201.imageshack.us/img201/465/78481535qe1.jpg
http://img201.imageshack.us/img201/7...pg/1/w1000.png

http://img208.imageshack.us/img208/3848/48157351nn5.jpg
http://img208.imageshack.us/img208/4...pg/1/w1000.png

http://img208.imageshack.us/img208/2094/71121164wo8.jpg
http://img208.imageshack.us/img208/7...pg/1/w1000.png

http://img208.imageshack.us/img208/3678/99822935kf9.jpg
http://img208.imageshack.us/img208/9...pg/1/w1000.png

Whoa ya post pics here too man 8D i cant wait get this up running.

Big Thumbs up man !

i got water cooling thread started in Water cooling section if can help there would be sweet.

Tim

All units now need a suction line accumulator so that at idle the compressor doesn’t freeze, then at load with hyper threading enabled there is enough refrigerant to hold the load of these heatmonsters ;)


http://img353.imageshack.us/img353/1330/49868424dd2.jpg
http://img353.imageshack.us/img353/4...pg/1/w1000.png

http://img101.imageshack.us/img101/9747/39822592ku1.jpg
[URL=http://g.imageshack.us/img101/39822592ku1.jpg/1/]http://img101.imageshack.us/img101/3...pg/1/w1000.png[/URL

unit is reading same temperature as my ktype meter

http://img186.imageshack.us/img186/9756/21464883ft5.jpg
http://img186.imageshack.us/img186/2...jpg/1/w750.png

With the gsmater controller there are some smarts that monitor the pc voltage
The molex plug is connected to the pc power supply, if the power supply was to shut down 10seconds later the controller shuts down the cooler and the pc for safety reasons
When yor press the pc power button that starts the cooler, when the cooler reaches the boot temperature it automatically starts the pc. The boot temperature and shut down temperate can be set through the gsmaster controller.
if the pc is overclocked really high using a very high voltage, if the set shut down temperature is reached the controller makes a beeping noise as a warning, then when critical temperature is reached the pc is shut down as well as the cooler automatically for safety reasons.

http://img186.imageshack.us/img186/6984/68958413fw4.jpg
http://img186.imageshack.us/img186/6...jpg/1/w750.png


Hey guys little Frozen SS cooling action :) I feel sorry for the poor i7 920


Test Configuration:
• Gigabyte X58-UD5 F4 bios
• Intel Core i7 920 retail chip 3837A902
• 3x1GB 1800MHz CAS7D DDR3 Corsair Dominators
• 1GB Gigabyte GTX280 Graphics Card (AIR)
• 1000W Silver Stone PSU
• Windows XP Pro 32bit SP2

Insulating with faber-Castell Art erasers ensured a air tight socket. My first run with normal insulation I got some condensation inside the socket after a few hours :( The 1366 socket is a lot bigger and its very hard to insulate with the erasers to ensure the socket is air tight.

http://img156.imageshack.us/img156/7986/55473531rq9.jpg
http://img156.imageshack.us/img156/5...pg/1/w1000.png

Little faber-Castell Art erasers around the cpu head enclosure to ensure a air tight seal to the other service

http://img515.imageshack.us/img515/3456/50779835cf5.jpg
http://img515.imageshack.us/img515/5...pg/1/w1000.png


http://img156.imageshack.us/img156/2595/66973612lf7.jpg
http://img156.imageshack.us/img156/6...pg/1/w1000.png


And some pics of the Frozen SS im in the middle of tunning, these i7 cpu’s are heat monsters running hyper threading.

http://img387.imageshack.us/img387/3533/83024405gc7.jpg
http://img387.imageshack.us/img387/8...jpg/1/w750.png

http://img515.imageshack.us/img515/5476/84417163bj8.jpg
http://img515.imageshack.us/img515/8...jpg/1/w750.png


http://img387.imageshack.us/img387/3231/53882213ld6.jpg
http://img387.imageshack.us/img387/5...pg/1/w1000.png



Wprime 1024Mb runs the PC was measuring 455w power draw from the mains socket using 1.48v @4434MHz 186sec. Hyper threading turned off power draw was only 370W and a fair bit slower even with the higher clocks: 4576Mhz @1.53v 260sec.

http://img401.imageshack.us/img401/6...cteamausj8.png
http://img401.imageshack.us/img401/4...png/1/w998.png

http://img78.imageshack.us/img78/920...secteamhx9.png
http://img78.imageshack.us/img78/wpr...ng/1/w1018.png


For 3dmark similar thing, a lot hotter running hyper threading but not much difference in score overall. Hyper threading gave a better result at a lower overclock.

http://img230.imageshack.us/img230/6...6teamauiy6.png
http://img230.imageshack.us/img230/3...ng/1/w1309.png

http://img220.imageshack.us/img220/7...6teamauau5.png
http://img220.imageshack.us/img220/2...ng/1/w1327.png


4660MHz validation, wish I can get 1core with the 22x working?? Anyone got it working on the gigabyte mobos??

http://valid.canardpc.com/show_oc.php?id=477259

http://img125.imageshack.us/img125/8266/cpuz4660yr4.png
http://img125.imageshack.us/img125/c...png/1/w969.png


1mb SPi 8.859 sec

http://img242.imageshack.us/img242/7388/1mspiuh1.png
http://img242.imageshack.us/img242/1...ng/1/w1060.png


32m SP 7m 57.609 sec

http://img517.imageshack.us/img517/4204/32mspigj5.png
http://img517.imageshack.us/img517/3...png/1/w924.png


32mb Wprime 5.827 sec


http://img517.imageshack.us/img517/4...bwprimedr2.png
http://img517.imageshack.us/img517/3...png/1/w985.png

:up: Kayl you do very nice work. I enjoyed looking thru your thread, it makes me think about considering a Vapor Phase Change Cooling system but then again I was not paying enough attention in science class. :shrug:

hey, wouldn't plumber putty achieve the same results, or no? And why?

Heres my SS unit that Kayl built me :D

I know my pics aren't that good.

http://i292.photobucket.com/albums/m...2/BILD0441.jpg
http://i292.photobucket.com/albums/m...2/BILD0442.jpg
http://i292.photobucket.com/albums/m...2/BILD0443.jpg

I'm very happy with my unit and i'll hook it up to my PC on Thursday (when I get a day off school).

Quote:

---

Originally Posted by fatguy1992

Heres my SS unit that Kayl built me :D

I know my pics aren't that good.

I'm very happy with my unit and i'll hook it up to my PC on Thursday (when I get a day off school).

---

amazing what spare parts can do, that case is actually from the first cascade design a few years ago, was the HX section of the cacade with the cascade sitting ontop ;)
http://www.xtremesystems.org/forums/...t=97321&page=2 9 (the bottom section)

cant wait to see the results fatguy1992

Quote:

---

Originally Posted by kayl

amazing what spare parts can do, that case is actually from the first cascade design a few years ago, was the HX section of the cacade with the cascade sitting ontop ;)
http://www.xtremesystems.org/forums/...t=97321&page=2 9 (the bottom section)

cant wait to see the results fatguy1992

---

Well I got 4.545GHz on my Q6600 when I first gave it a shot, but I didn't get a chance this time so its going to be a while before I have time again. Next time I'm aiming for 4.7GHz (yes I have a really good Q6600). I only got 4.94GHz on me E8500 cause my UD3R (which i'd only got 1 day before I started benching) had a c*** FSB wall, but since i'v gone back to air i'v flashed the BIOS and its all good again :) same story for my E5200.


Thanks

had a few days off this week, recently got some new 2hp rotary compressor to try as well :)

http://img20.imageshack.us/img20/1830/2hprotary004.jpg

http://img233.imageshack.us/img233/43/dsc03627m.jpg


http://img189.imageshack.us/img189/5707/dsc03630b.jpg

http://img194.imageshack.us/img194/2264/dsc03632f.jpg

http://img189.imageshack.us/img189/4739/dsc03643n.jpg


http://img233.imageshack.us/img233/452/dsc03644.jpg

Some pics of the system almost finished.
Strapped some fans to the compressor for additional cooling, this 2hp compressor runs hot

http://img253.imageshack.us/img253/573/dsc03646c.jpg


http://img162.imageshack.us/img162/1407/dsc03649j.jpg

Got the system up and running tonight finally, stripped my GTX280, lacered the card. Insulated and put system together. SO far there doesnt appear to be any condensation forming on the card. Only been benching 30mins, results to come Friday ;)

http://img196.imageshack.us/img196/7...enching001.jpg

http://img216.imageshack.us/img216/1...enching002.jpg




http://img228.imageshack.us/img228/8...nching003w.jpg

http://img197.imageshack.us/img197/3...enching004.jpg


http://img228.imageshack.us/img228/3...enching005.jpg




http://img199.imageshack.us/img199/6...enching006.jpg

http://img216.imageshack.us/img216/7...enching007.jpg



http://img43.imageshack.us/img43/752...enching011.jpg

little benching tonight managed 26k 3dmark 06

http://img128.imageshack.us/img128/7...ark0626299.jpg

re did the insulation this time no erasers on the gpu card as it was sweeting too before

this time one layer 3mm then mounting bolts then a second layer worked well ;)

http://img99.imageshack.us/img99/3789/dsc03653.jpg


http://img196.imageshack.us/img196/5020/dsc03654j.jpg


http://img81.imageshack.us/img81/8327/dsc03655vgs.jpg



http://img221.imageshack.us/img221/6192/dsc03658u.jpg

http://img229.imageshack.us/img229/3223/dsc03660.jpg

http://img198.imageshack.us/img198/8141/dsc03662a.jpg

found the vmod on XS, but it didnt increase my overclock at all
stock was 1.068v, at 1.25v the system wasnt clocking as well
stock
stok load voltages were 1.2v
seem colder temps reflected better oc than increase in volts
love to see this card on ln2.
i also tried the evga software vmod which SHOWED correct voltages at idle, but load volts dropped back stock @ 1.2v no matter what i set it to.
so vmod is the only true voltage increase for this card :mad:

http://img145.imageshack.us/img145/8159/dsc03664u.jpg


http://img178.imageshack.us/img178/8751/dsc03665x.jpg


http://img178.imageshack.us/img178/1024/dsc03666v.jpg

Number 3 rank on hwbot for single GTX 280 vantage 16509

http://img99.imageshack.us/img99/3100/15536713.jpg
