Liquid Cooling Case Gallery

this is my first liquid system (on the cheap side :D), I finished it yesterday, if you click on the photo you'll be headed to the thread in which I ask for some help with my temps :)

http://www.drusie.com/cesare/computer_bologna1_1024.jpg

Case Cooler Master 690 II advanced
Pump OCZ hydro pulse 800 L
single rad with a 140 fan adapted (cooler master 1200RPM) @12v
dual rad XSPC RS240 with two Thermaltake 120 fans (TT-1225A 1900RPM) @7v
reservoir XSPC single bay 5,25
CPU WB Ybris eclipse
VGA WB Ybris ACS-G
barb fittings 1/2"
tubing 1/2" silicon

http://i458.photobucket.com/albums/q...D/DSC_0350.jpghttp://i458.photobucket.com/albums/q...D/DSC_0364.jpghttp://i458.photobucket.com/albums/q...D/DSC_0356.jpg

After the last update.
http://img830.imageshack.us/img830/1402/sam0076l.th.jpg

What case is that owikh84? Surely isn't the TJ07, looks like you can fit three quad radiators (2 on bottom, 1 on top) in that massive beast!

Quote:

---

Originally Posted by Systemlord

What case is that owikh84? Surely isn't the TJ07, looks like you can fit three quad radiators (2 on bottom, 1 on top) in that massive beast!

---

It's a LittleDevil Case I think..

btw impressive build

Its LittleDevil's case
http://www.performance-pcs.com/catal...8aa76a095385f6

Quote:

---

Originally Posted by Systemlord

What case is that owikh84? Surely isn't the TJ07, looks like you can fit three quad radiators (2 on bottom, 1 on top) in that massive beast!

---

sorry didn't update my siggy.
the case is LD PC-V8 inverted.
my wc is dual loop: 2 quad rads at the bottom to cool the CPU & RAM; 1 quad rad at the top to cool the GPUs.

PC specs:
- Intel Core i7 2600K Processor
- Gigabyte P67A UD7 B3 Motherboard (temporary) - MIVE-Z is on the way
- Corsair Dominator GT 2000MHz 8-9-8 2X2GB DDR3 DRAM
- 2X MSI nVidia GTX580 SLI Graphic Cards (GC) / GPU
- 2X Intel SSD X25-M 160GB Gen2 Solid State Drive in raid0 (SSD)
- WD Caviar Black 1TB SATA3 hard disk drive (HDD)
- Corsair AX1200W Power Supply Unit (PSU)
- LiteON 24x DVD-RW Writer
- LittleDevil PC V8 Inverted Casing + LianLi Alu case feet black
- Dell Ultrasharp 3008WFP LCD Monitor
- Logitech Z5500 Speaker
- Asus Xonar D2X Sound Card

Cooling gears:
EK Supreme HF Plexi-Nickel - CPU block
EK MIVE Plexi-Nickel WB - Mobo block (for the incoming MIVE-Z)
EK RAM Block for Corsair DomGT Plexi+Nickel
2x EK FC580 GTX+ - Plexi+Acetal - GC blocks
1X Feser TFC-480 Quad Radiator (for GPU cooling)
2X XSPC RX480 Quad Radiators (for CPU cooling)
2X Swiftech MCP655 Vario Pump with EK D5 Top POM
2X EK Multioption X2 250 Advanced Reservoir
Bitspower & Feser Compression Fittings mainly silver shinning 1/2" ID 3/4" OD
Primochill Clear Tubing 1/2" ID 3/4" OD
Primochill Blood Red Non Conductive coolant
16X Scythe GT 1850rpm fans
2X Aerocool Shark Devil Red 140mm fans

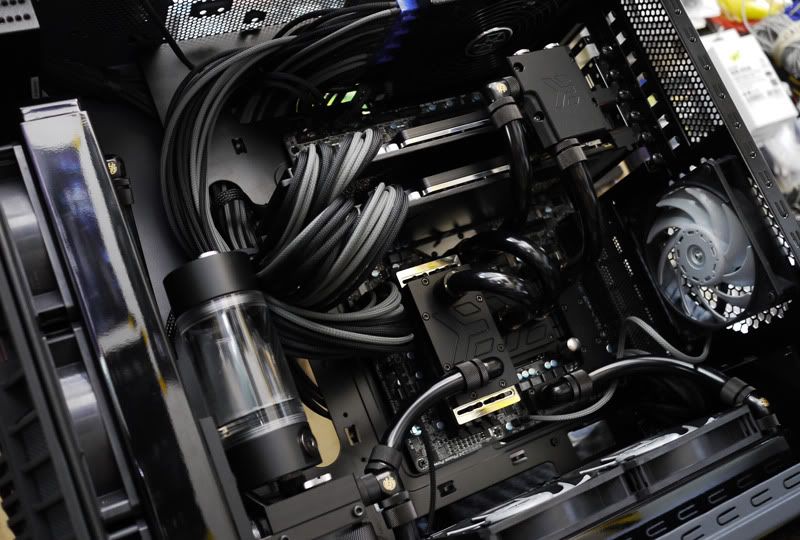

http://i20.photobucket.com/albums/b2...1120343800.jpg

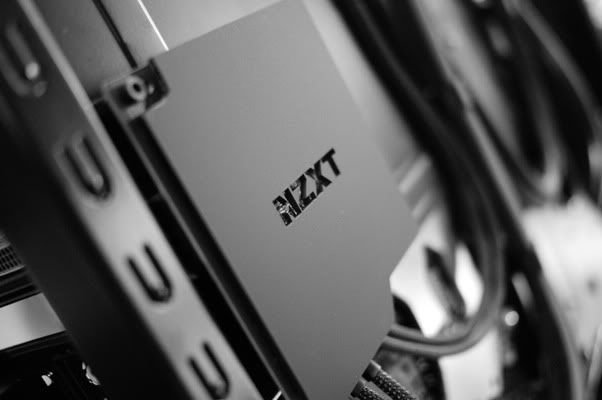

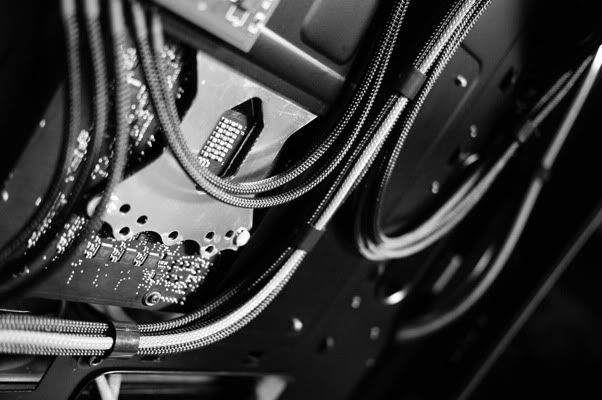

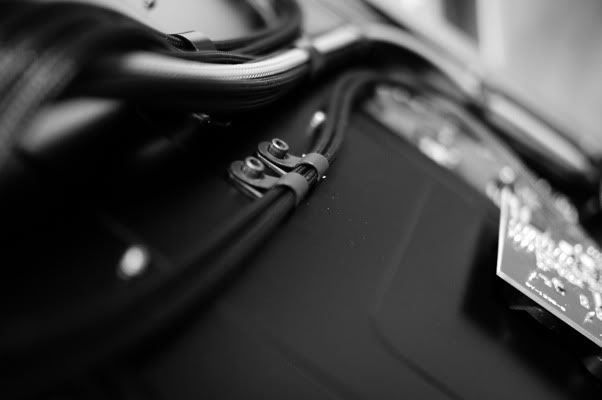

back of mobo tray:
http://i20.photobucket.com/albums/b2...z/_1110836.jpg

http://i20.photobucket.com/albums/b2...z/_1110864.jpg

http://i20.photobucket.com/albums/b2...z/_1110840.jpg

recent build for a friend/client:
-CM HAF 932 reverse atx mod.
-i7 2600
-16GB Cosrsair Dominator GT
-Gigabyte P67 UD7
-Quadfire AMD 6990 GPU

tantric... amzing...

That machine looks really nice!

mind showing us some mroe pictures?

^ thanks!

Nice tantric!!!

Come to aus build my pc k haha

Quote:

---

Come to aus build my pc k haha

---

haha! i wish :D

finally finished with this box Attachment 117864Attachment 117865

@Tantric - SUPER SMEXY! Loving it! :D

Such a nice case owikh84, well done with filling it up too ;D next, sr-2 please :D

Quote:

---

Originally Posted by imersa

Such a nice case owikh84, well done with filling it up too ;D next, sr-2 please :D

---

Thanks imersa!
SR-2 would have to wait till next year - LGA2011 :D

@Tantric Very nice job and love the beautiful photos.

Quote:

---

Originally Posted by owikh84

Thanks imersa!
SR-2 would have to wait till next year - LGA2011 :D

---

I have to ask, I'm dying to know... is that you in your avatar? and please give us a ballpark figure on how much your parents spent on your build?

Quote:

---

Originally Posted by dunway

I have to ask, I'm dying to know... is that you in your avatar? and please give us a ballpark figure on how much your parents spent on your build?

---

TBH the avatar is grabbed from net thus it is not me.
Total damage for the whole rig including monitor & those RAMs is at least $10k USD.

tantric, that is some nice work there! :clap:

the end of project is near ...

http://www.abload.de/img/_dsc0477aukar.jpg

http://www.abload.de/img/_dsc0471a803.jpg

http://www.abload.de/img/_dsc0458gk41.jpg

Malik don't you have dust in your house ???
every picture i've seen from all of your builds is soooo clean! how do you do that?
nice rig by the way ;)

Quote:

---

Originally Posted by josk1

Malik don't you have dust in your house ???
every picture i've seen from all of your builds is soooo clean! how do you do that?
nice rig by the way ;)

---

I think he use the gloves for touching components, and a compressor for the dust lol :D

Is it ok to fit the EK Supreme HF 90 degrees clockwise (or even 180?) like the photo above?
Just asking this because it would make tube routing much easier in my case, I am sure I have seen some where saying otherwise!

Please don't tell me you can't see his pictures are being photoshoped :) It's very easy to see if it was edited or not, don't you think?
