** Official ** Gigabyte UD3 P45 Series -- EP45-UD3 / EP45-UD3R / EP45-UD3P

Quote:

---

Originally Posted by adpr_02

Hey I used those settings you recommended and my pc was blue screening like mad. I had to raise the CPU Ref to 8.35, and MCH core to 1.37 to get into windows.

I immagine this question's been asked a bilion times, but what is the highest voltage you would put through these (q9550)?

CPU ref
MCH ref
CPU Core

I looked online and the answer is usually 1.3625 or something, but I see people putting 1.45 through these quads all the time...

---

Maybe your quad can´t do 4,0GHz without raise the vcore above 1,3625, maybe it´s to much for it, you may have to settle for less.

Go above 1,3625 for 24/7 is not recommended if you intend to hold on to that chip for a while, for a short while for bench it´s probably okey.

The ref voltage don´t work the same way as, for example vcore, more voltage higher GHz output, those value work best in a certain % of CPU Term.

I have found that CPU ref work best ~63,5% of CPU Term with 45nm dual and quad and MCH ref ~70% (for quad) and ~60% (for dual) of CPU Term, one or two step up or down from that should be enough.

Quote:

---

Originally Posted by andressergio

nuzgo, hoss31

are you using those SSDD to load just OS ?

Cheers
Sergio

---

I'm using 2 128 SSD's in RAID. That is partitioned 146 for OS and programs 88 for Steam games.

Quote:

---

Originally Posted by Hoss331

AFAIK the tridents are using the same ICs as the blades and if you put 2.1v through them there not going to be happy! The blades dont scale well past 1.9v and the 1 person ive seen put 2.1+ to his said they didnt clock as good afterwords.

And how is a gtx295 scoring less than a 4870 in WEI? :confused:

---

Good to know. Maybe i wont pair them. I'll test the tridents and pi seperate and just grab a second set of whichever is better.

You got me on the WEI numbers...dont know why it scores lower. I score 21k on 3dmark06 and vantage.

Here is where I'm at with my new setup for my Work PC. I was hoping for lower vcore than what I have, but not sure I can do it. I cant's pass large FFT's if I lower vcore cuz it fails in about an hour. I'll have to tweak more as I find time to try to lower volts, but I can live with this for now! I still am trying to figure out why my CPU Temp reads about 10c higher than my Core 1/2 Temps when stress testing.

http://img529.imageshack.us/img529/4201/e75008x500.jpg

Quote:

---

Originally Posted by nugzo

I'm using 2 128 SSD's in RAID. That is partitioned 146 for OS and programs 88 for Steam games.

---

very nice mate are those the normal Gskill's SSD ?

Cheers :up:
Sergio

Quote:

---

Originally Posted by andressergio

very nice mate are those the normal Gskill's SSD ?

Cheers :up:
Sergio

---

Looks like someone plans to get some SSD drives:up:

Quote:

---

Originally Posted by xzulu

Looks like someone plans to get some SSD drives:up:

---

damn mate i love them lol :rofl:

Installed F9 here, seems to be fine.

http://3dxtreme.net/other/Q9550%20L8...am-UD3P-F9.jpg

Quote:

---

Originally Posted by andressergio

nuzgo, hoss31

are you using those SSDD to load just OS ?

Cheers
Sergio

---

I use the 120g vertex for win7, games, and daily use. The 640WD I use for vista, misc. storage and the 32g warp for xp and benching.

my UD3P is making a noise, it seems that comes from the CPU VRM, when the BIOS and in FULL
is normal?

If its a buzz noise its normal.

I still haven't had a chance to sit down and overclock mine.

Quote:

---

Originally Posted by andressergio

very nice mate are those the normal Gskill's SSD ?

Cheers :up:
Sergio

---

Gskill Titan. been so many new SSD's out since i got these, i dont know how these stack up to the new ones.

Installing Trident 9600's now.

Quote:

---

Originally Posted by nugzo

Installing Trident 9600's now.

---

They wouldnt boot into windows at 1200 1.8 but will at 1.9v. Everest scores identical to the pi's. Now lets see if they'll go any higher :yepp:

Is there any way to reduce the amount of mch voltage needed? I need 1.36 to get 475, but to get to 500fsb I need 1.46

Anybody have anything you want me to try with the Tridents? So far tried 400/2.66d=1333, 200/2.66c=1333, 2.66/2.50a=1250 all were no post. Auto settings.2.0v That was at 500fsb. I'll try droppin the multi and raisin the fsb some now. i'll also try to drop pl to 7 for the 333/2.40b=1200.

Ok, now thats 2 sets of tridents that wont boot 1200 at 1.8, maybe there not the same ics as the blades.

Quote:

---

Originally Posted by nugzo

Anybody have anything you want me to try with the Tridents? So far tried 400/2.66d=1333, 200/2.66c=1333, 2.66/2.50a=1250 all were no post. Auto settings.2.0v That was at 500fsb. I'll try droppin the multi and raisin the fsb some now. i'll also try to drop pl to 7 for the 333/2.40b=1200.

---

I thought the 2.66 strap was bugged (at least on mine and others). Try 333 or 400.

266/2.50 works fine on my board

Quote:

---

Originally Posted by nugzo

Anybody have anything you want me to try with the Tridents? So far tried 400/2.66d=1333, 200/2.66c=1333, 2.66/2.50a=1250 all were no post. Auto settings.2.0v That was at 500fsb. I'll try droppin the multi and raisin the fsb some now. i'll also try to drop pl to 7 for the 333/2.40b=1200.

---

Damn....

@nugzo

How hot are they at 2.0v?

Dead. I put the pi 9600's in with them at 1000 1.9v, Pi's were tested stable at the lower voltage. No post with all 4 Dimms.. Now wont post with just tridents. Pi's still post fine. Maybe the 2.0 got em? I have an antec spot cool on them. Dunno. I wasnt that impressed b4 they died. Gonna get some more Pi's...

Quote:

---

Originally Posted by nugzo

Dead. I put the pi 9600's in with them at 1000 1.9v, Pi's were tested stable at the lower voltage. No post with all 4 Dimms.. Now wont post with just tridents. Pi's still post fine. Maybe the 2.0 got em? I have an antec spot cool on them. Dunno. I wasnt that impressed b4 they died. Gonna get some more Pi's...

---

Yeah these LV are VERY sensible to volts specially when the Gigabyte board is known to overvolt mem's, I would say that 1.9v on BIOS is more like 2.0v on real world.

Stick with the 9600 PI's that can take 2.5v without breaking a sweet.

I finally got my other ssd for the xp install and so far its showing some nice gains in spi. The timings on the xp runs were a little tighter but were only about 1 sec better than the win7 timings. Later in the week I should be able to get some improved 5ghz 1m runs done.

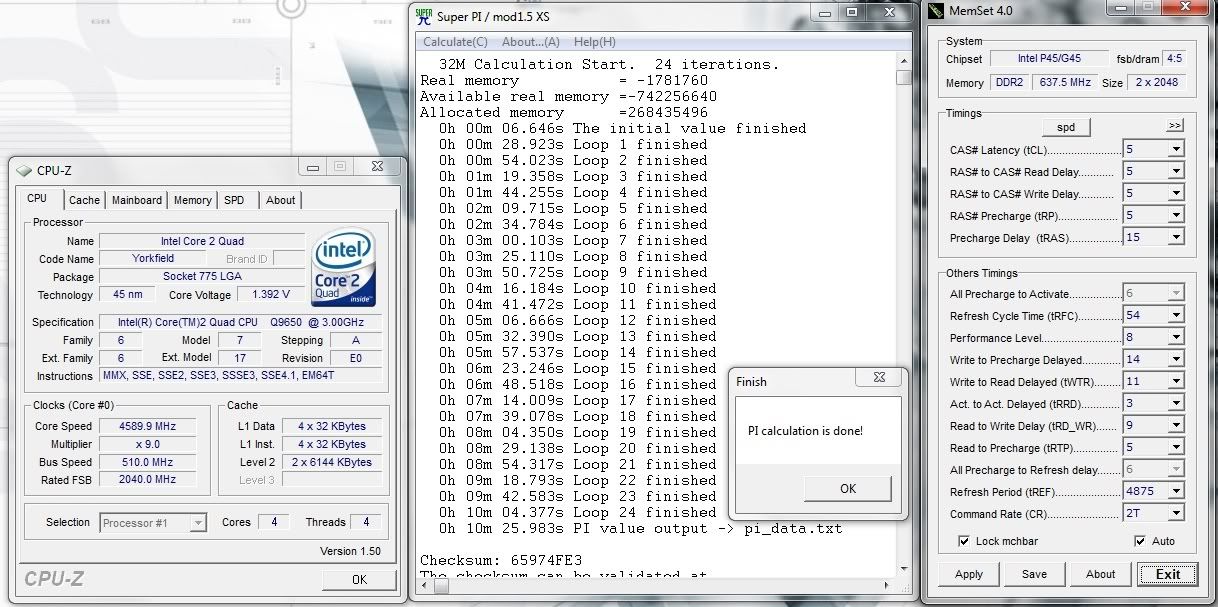

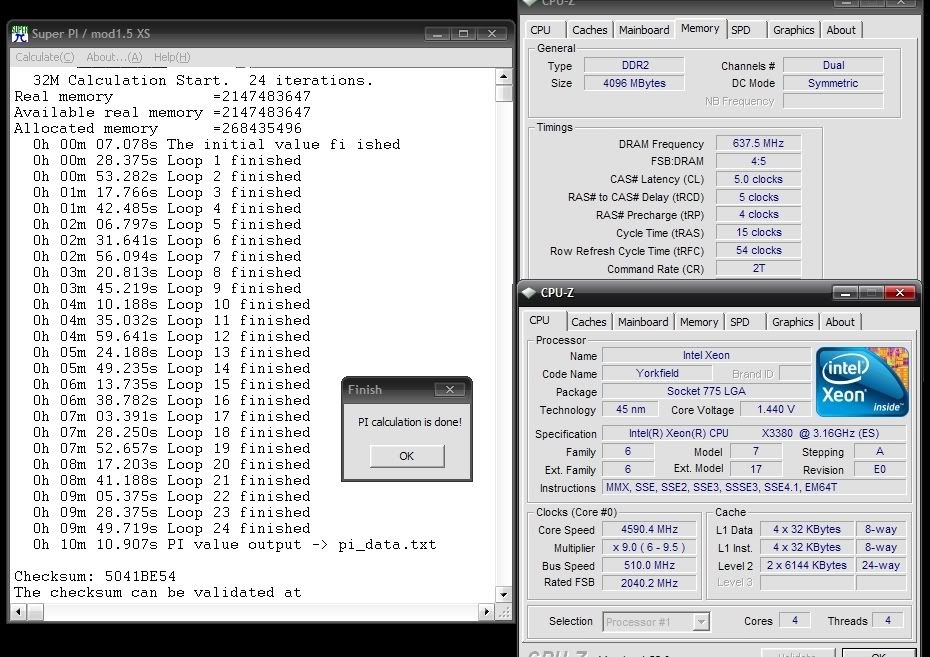

4.59 1275
http://i131.photobucket.com/albums/p...mapImage5x.jpg
http://i131.photobucket.com/albums/p...apImage14b.jpg

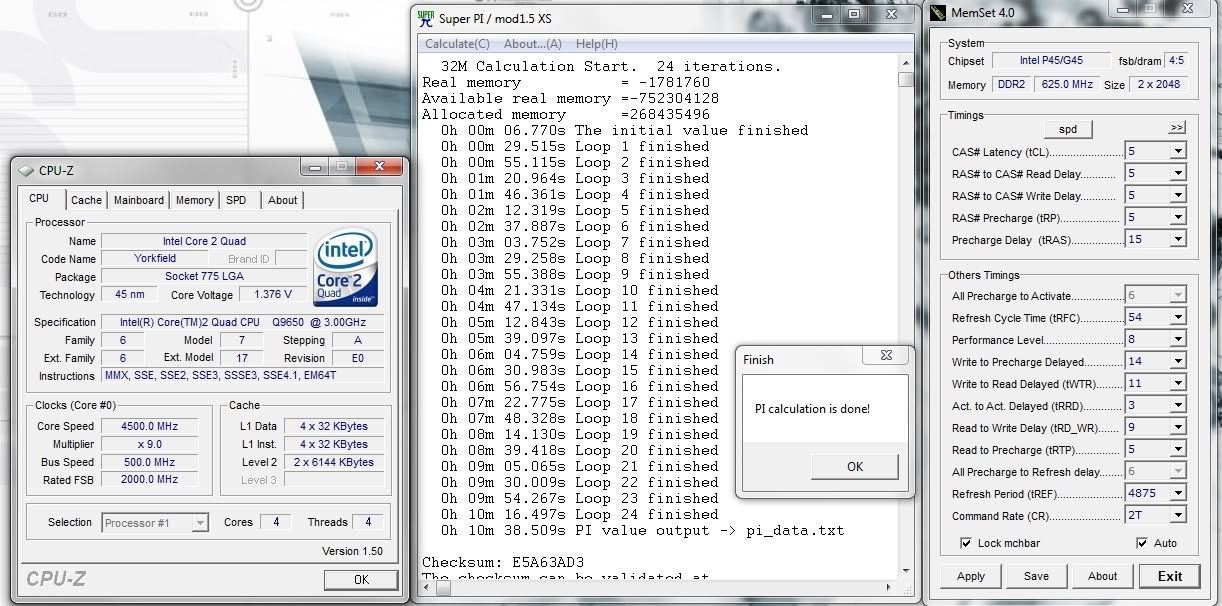

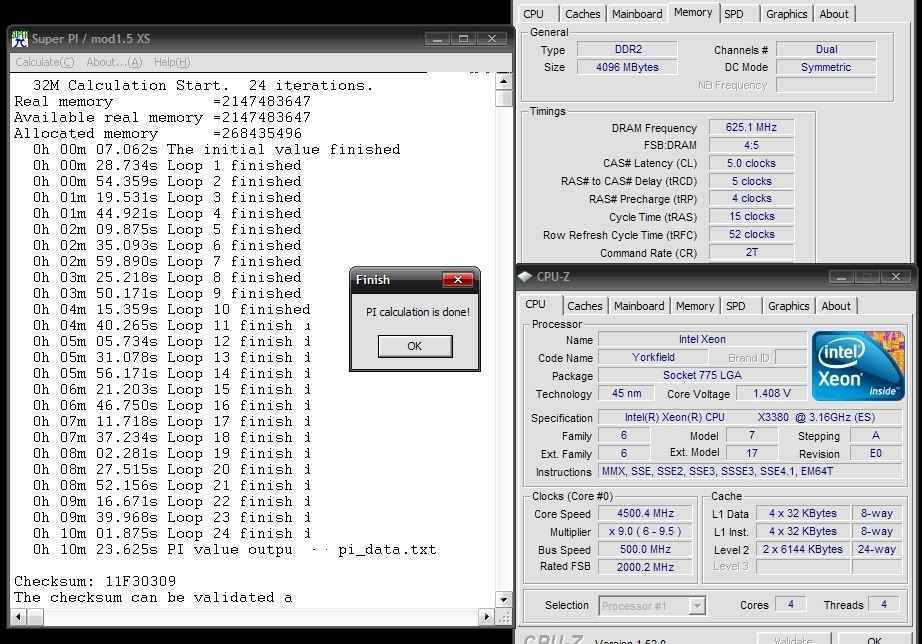

4.5 1250
http://i131.photobucket.com/albums/p...mapImage6x.jpg
http://i131.photobucket.com/albums/p...mapImage6v.jpg

Quote:

---

Originally Posted by nugzo

Dead. I put the pi 9600's in with them at 1000 1.9v, Pi's were tested stable at the lower voltage. No post with all 4 Dimms.. Now wont post with just tridents. Pi's still post fine. Maybe the 2.0 got em? I have an antec spot cool on them. Dunno. I wasnt that impressed b4 they died. Gonna get some more Pi's...

---

OUCH! Damn, looks like those LV tridents are...just like what Jor3lBR said. Sensitive.

Yeah, the 9600 PI's look like they're still the best. Just like what Sergio said, no matter how much voltage you give it it, it could take it.:up:

Quote:

---

Originally Posted by nugzo

Dead. I put the pi 9600's in with them at 1000 1.9v, Pi's were tested stable at the lower voltage. No post with all 4 Dimms.. Now wont post with just tridents. Pi's still post fine. Maybe the 2.0 got em? I have an antec spot cool on them. Dunno. I wasnt that impressed b4 they died. Gonna get some more Pi's...

---

nugzo, That just sucks:( Good luck with the Pi's. Hope it works with another set for ya.

I'm trying CPU Term everywhere from 1.3-1.4v wiith CPU ref ~63% and MCH ref ~60% (at Ghostleader's recommendation), MCH 1.36-1.5v

I've gotten stable (Orthos for a hour) once at 505 FSB 4.05 GHz and 1212 MHz.

I have yet to get the RAM past 1240 without failing Memtest, Linpack, etc...

Any ideas?

Code:

---

CPU =intel E4000 E0
Motherboard = GAEP45-UD3P
BIOS Version =  6
Ram = Pi 9600
MB Intelligent Tweaker(M.I.T.)
Robust Graphics Booster ...............: Auto
CPU Clock Ratio .............................:
Fine CPU Clock Ratio.....................:
CPU Frequency ..............................:4040


Clock Chip Control
Standard Clock Control
CPU Host Clock Control..................:
CPU Host Frequency (Mhz) ............:277
PCI Express Frequency (Mhz) .........:1008


DRAM Performance Control
Performance Enhance...................: Turbo
Extreme Memory Profile (X.M.P.).....: Dis
(G)MCH Frequency Latch...............:333
System Memory Multiplier ..............:
Memory Frequency (Mhz) ..............:1212
DRAM Timing Selectable ................:

Standard Timing Control
CAS Latency Time........................:5
tRCD .............................................:5
tRP.................................................:5
tRAS..............................................:15


Advanced Timing Control
tRRD...........................................:A
tWTR..........................................:A
tWR............................................:A
tRFC...........................................:55
tRTP...........................................:A
Command Rate (CMD) ....................:0


Channel A
Static tRead Value.........................:9
Channel B
Static tRead Value.........................: 9


Motherboard Voltage Control
CPU
CPU Vcore….………................................:1.38
CPU Termination…..... 1.200V*...............:1.36
CPU PLL…………………....1.500V*.......:A
CPU Referen.…………....0.755V*...........:.76

MCH/ICH
MCH Core…………….....1.100V...........:1.44
MCH Reference….…….0.800V............:.72
MCH/DRAM Ref.…......0.900V..............:N
ICH I/O……………….....1.500V............:N
ICH Core…………...……1.100V...........:N

DRAM
DRAM Voltage ……....1.800V............:2.100
DRAM Termination .…0.900V............:N
Channel A Reference 0.900V............:N
Channel B Reference 0.900V............:N

---
