Innovation Cooling's Diamond 7 TIM test results

Quote:

---

Originally Posted by xoqolatl

About the wattage, I am measuring it with Zalman's MFC-2 fan controller; I have found that it fluctuates ±15 watts depending on WU type. I have not checked which WUs are most power hungry. The downside of this method is that I am measuring total power consumption, not the CPU alone.

---

I have lists on stock cpu's and can calculate the wattage for the overclocked cpu's I update my data list once in a while. just drudge work

Quote:

---

Originally Posted by fart_plume

If you have trouble finding it I have a butt load of it I used to test gold foil imprint stamping.I know this stuff I have works from 30*f to 400*f.

---

Why would the temperature handling capabilities of this carbon paper matter? It' s not like you're going to run your system with the paper between the HS and and cpu. Sorry if I'm missing something here.

:P

I think it's more of an issue that some papers are very temperature sensitive and this one isn't, but I'm just guessing.

Received my film today...awaiting instructions. :up:

I just thought it would be good if had a paper you could apply heat to in case someone want to turn the pc on for heat mark pattern. Heat does change the physical size of objects and charateristics, a cold test might not give as accurate pattern imprint as a warm imprint.

Quote:

---

Originally Posted by fart_plume

I just thought it would be good if had a paper you could apply heat to in case someone want to turn the pc on for heat mark pattern. Heat does change the physical size of objects and charateristics, a cold test might not give as accurate pattern imprint as a warm imprint.

---

Sounds dangerous to equipment. -shrug- Maybe it's just me. :p:

i was thinking about trying to actually run the pc just switch it on for a quick boot then off again.

Quote:

---

Originally Posted by fart_plume

i was thinking about trying to actually run the pc just switch it on for a quick boot then off again.

---

Of course. I was just thinking a little deeper into it. I'm unsure how fast these chips heat up, even at idle. How would you know if it's not gonna overheat instantly, or if it didn't.. how would you know when it's reached a temp high enough, but without going overboard.

I'm not trying to throw your idea out if it seems that way. :D

guess it's one of those things we'll never know till someone tries it, like with an old chip....................:shrug:

You have the paper on hand, what about an old rig? :D

the only two rigs i have that have an ihs are my main one (new quad) and the wifey's opteron(no touchy that,lol). hmmm I might have an old pentium to try it on be interesting to see the pattern cold and one warm. I'll have to give that a try this weekend.

Pressurefilm Instructions

Key points

The test needs to come from a system that has been thermally tested with ICD7 I need to be able to relate the pressure test to a thermal result.

Ideally I would like tests from an equal number of +/- thermal results

Test is run cold - Cpu should be room temp

Take one donor and print and place the smooth sides to sink and IHS with the "frosted sides" facing each other, place on cpu and mount sink.

Note approximate room temp

Wait 10 min disassemble and place print in the sample envelope provided.- Do not seal! I want to scan each one before I send them out for processing.

Note heat sink and cpu on sample envelope. also note the number of your posted forum thermal result . Place samples in return envelope provided and return.

I only need a max of 2 per if you only want to do one thats fine. Extras are for any misfires or your own use if you want to check contact on you own

Thanks for your time and efforts

Andrew

Quote:

---

Originally Posted by tastymannatees

I also had a thought on a poorman's or DIY contact test. coat the IHS with graphite(soft pencil ?) put a piece of paper, maybe tissue paper 1.5X 1.5 in. between the IHS and sink and clamp. Should show where the CPU is making contact and where it is not. Kind of like taking a rubbing off an old tombstone

Or better yet use some carbon paper from the old typewriter days and a clean piece of white paper

Might be interesting to compare to the pressure film result

---

I thought about the carbon paper as well. I told my wife that it looked almost the same after I had worked with the 2 sheets I had.

Quote:

---

Originally Posted by tastymannatees

Pressurefilm Instructions

Key points

The test needs to come from a system that has been thermally tested with ICD7 I need to be able to relate the pressure test to a thermal result.

Ideally I would like tests from an equal number of +/- thermal results

Test is run cold - Cpu should be room temp

Take one donor and print and place the smooth sides to sink and IHS with the "frosted sides" facing each other, place on cpu and mount sink.

Wait 10 min disassemble and place print in the sample envelope provided.- Do not seal! I want to scan each one before I send them out for processing.

Note heat sink and cpu on sample envelope. also note the number of your posted forum thermal result . Place samples in return envelope provided and return.

I only need a max of 2 per if you only want to do one thats fine. Extras are for any misfires or your own use if you want to check contact on you own

Thanks for your time and efforts

Andrew

---

let me add 1 thing to these instructions! label the top of the cpu on the print.

Got the films today, will mail you back the results tomorrow as well as post some pictures on here.

Quote:

---

Originally Posted by littleowl

I thought about the carbon paper as well. I told my wife that it looked almost the same after I had worked with the 2 sheets I had.

---

I would think you get the same kind of contact image as you would with the film. then you could compare it to an assortment of good and bad contact images of the pressure film with thermal data and get a pretty good idea of where you stand contact/performance wise.

Quote:

---

Originally Posted by littleowl

let me add 1 thing to these instructions! label the top of the cpu on the print.

---

1.5 square

Not much room left and I would not want spoil any results

Quote:

---

Originally Posted by tastymannatees

1.5 square

Not much room left and I would not want spoil any results

---

hum good point. the reason I say that is because if it were not from the intel hole on my chip i wouldn't have been able to tell you on the two I posted on here what way they went. most boards hold the chip sideways where some hold the chip up and down. I would think you will get maybe the same imprison but different side. does that make since? for example take my images I scanned in. you see where the ihs hole is in both of them well the hole is in the top right of my chip so the images are sideways compared to my chip, My chip is sideways in this mobo.

I recieved the pressure film tests today. I'll be testing them tonight :)

Quote:

---

Originally Posted by Gamekiller

Of course. I was just thinking a little deeper into it. I'm unsure how fast these chips heat up, even at idle. How would you know if it's not gonna overheat instantly, or if it didn't.. how would you know when it's reached a temp high enough, but without going overboard.

I'm not trying to throw your idea out if it seems that way. :D

---

THERMTRIP# is activated on most of the Intel chips. When my cooling was less than ideal last year on the farm, I had numerous visits from Mr Therm...:eek: When the signal is activated, it stops the CPU cold to prevent burning it up. I would be willing to give it a whirl on one of my machines if we think it would be useful.

Quote:

---

Originally Posted by tastymannatees

1.5 square

Not much room left and I would not want spoil any results

---

I should think just marking pin 1 with a marker dot in the right corner would be useful and not spoil the film?

Regards,
Bob

Quote:

---

Originally Posted by 123bob

I should think just marking pin 1 with a marker dot in the right corner would be useful and not spoil the film?

Regards,
Bob

---

I would think that would be ok as well as maybe just cutting a corner with a pair of scissors

I am trying to get a better handle on mounting hardware so I was looking at Fuggers post with the Koolance backplate (At least Fugger liked ICD7)

http://www.xtremesystems.org/forums/...d.php?t=183814

and I was particularly interested in the hole in the center obviously it would allow some Flex in the socket and I am sure it is there for a reason.

Then looking at the recent madshrimp review it looks like it does not help performance much at all.

http://www.madshrimps.be/?action=get...80&articID=810

Is this related to the O ring bowing the waterblock?

Here are my Pressure Film results:

Ambient Temp ~18C

All screws were turn all the way down as my previous testing for the IC Diamond 7.

http://i31.photobucket.com/albums/c3...d/IMG_0351.jpg

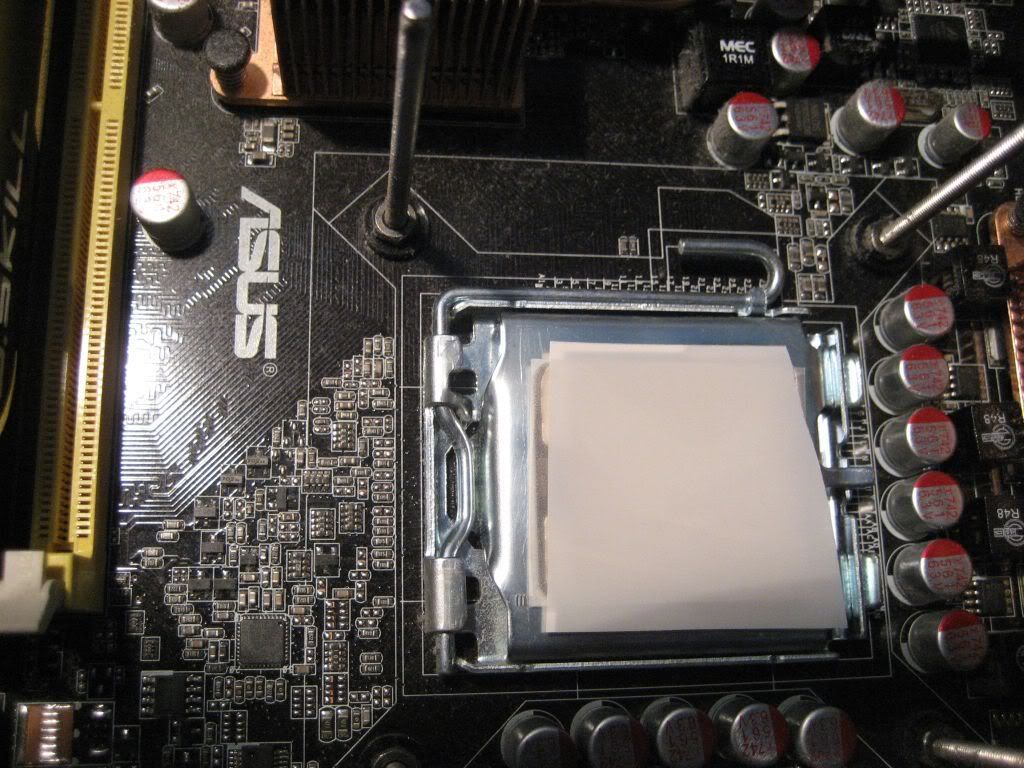

Donor and Print together, rough side against the rough side of Print and Smooth side face up

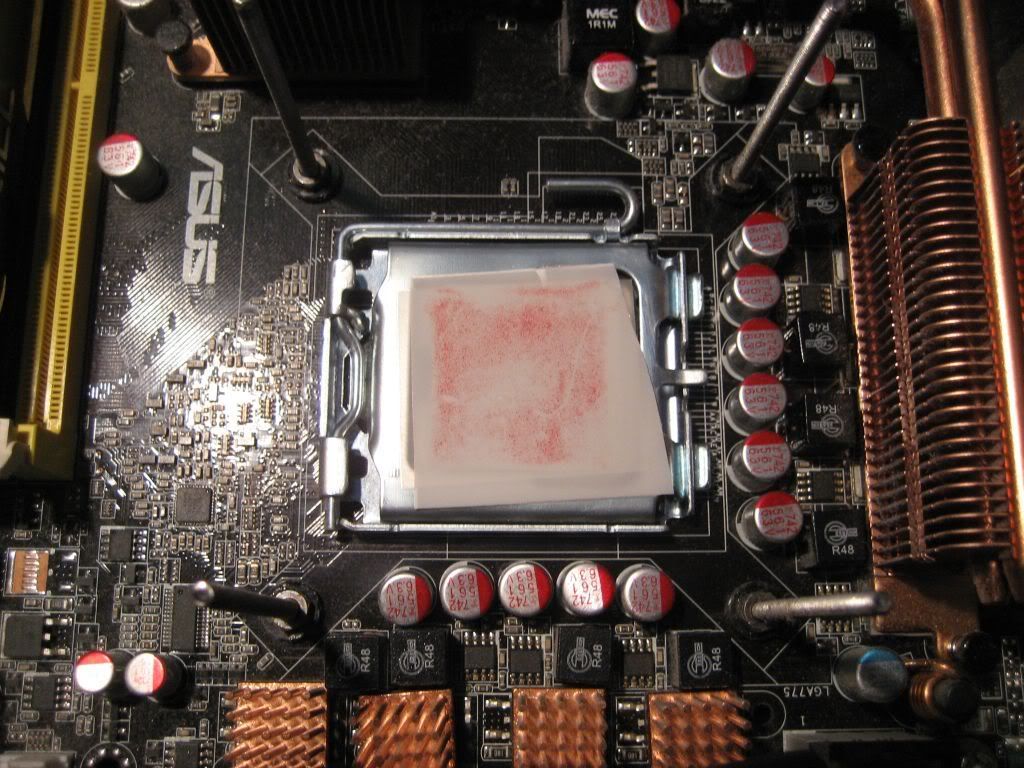

Mount and After 10 minutes, Disassemble:

http://i31.photobucket.com/albums/c3...d/IMG_0352.jpg

http://i31.photobucket.com/albums/c3...d/IMG_0354.jpg

So you want me to sent the right side one back?

Edit: Remove first pic to avoid confusion.

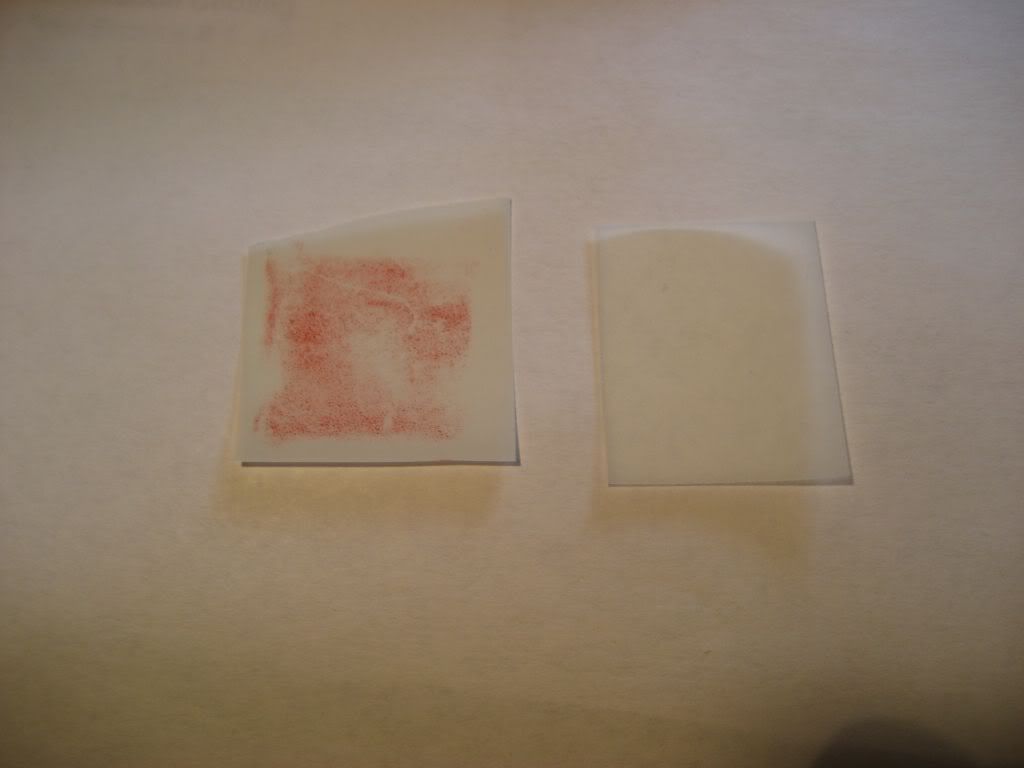

the red imprinted one on the left

Looks like you have great contact all across most of the paper with good pressure to boot.

An example of why you use thermal grease. The polka dot pattern The dark dots are where you are making contact the white or unexposed space in between are where there is little or no contact. gives it that kind of "mottled" look

Andrew, I think you messed the 2 envellopes up. The actual pressure film (the left one on Bail_w's pictures) was in the donor envellope here as well :)
