@ Grnfinger, I'm kinda temp (I hope) stuck @ 475FSB on lowish voltages for now.
Did you state before latest Bios was bad for you and that 1307 and 1901 are better ?
Thanks for the info the other day, but until I got NB GTL sorted out I could not even do 425FSB stable no matter what.
I could boot into Windows at 490FSB with high voltages though but now its all stable at 475FSB mainly due to the NB GTL.
I found out my set up needs Positive values on the NB (Minus wont boot at current clocks) so set the CPU GTL's to Positive also (seemed ok at Minus but I assume best to keep in line with NB.
Cheers, I'll get to work on detailed timings & stuff after I get a few more of the other setings tuned. There's definitely a few timings I could drop down by 1 or more which might hopefully bump the speeds up a touch. I'm still testing my NB GTLs at the moment, (seemingly at the same stage as Humeyboy:) seems like negative ones are working better for me. I've done all the way up to +80 with +20 being the best one, that is until I went negative, so far -15 has more than doubled stability time for me, but still plenty to go!
Humeyboy - I think you should stick with the positive CPU GTLs you had in the 1st place. I'm no expert on this level of o/cing, but I'm pretty certain adjusting them to match your NB isn't the way to go. I'm finding that sticking with my tuned CPU GTLs (which are +40,0,+40,0) prevented reboots, and has given me consistent results when moving on to tune up the NB GTL. Of course it might be a completely different story with your 45nm chip...just my 2p :) Good luck with it!
My PC is empty at the moment since I'm waiting for my Q9650 to arrive so I took the opportunity to remove the motherboard heatsink and replace the crap that ASUS put on with my Zalman thermal paste. I was getting NB/SB temps of 45-48C with everything at stock so hopefully that'll improve. What sort of chipset temps are you guys getting, particularly those of you who have replaced the TIM with something better?
I found 1901 to be a very good bios, I honestly have not played with NB gtls much maybe I should give it try.Quote:
Originally Posted by humeyboy
When I first got the board I ran my CPU GTLs at a positive value and it worked for me with a Q9550, then when the GTL calculator came out I went with a negative value and its still stable so I don't know
I removed my complete stock cooling and replaced TIM with AS5, my NB is on water running 1.45vNB and I'm sitting at a cool 37c idle, single loop with a Q9650/4870X2/NB 120.3 radQuote:
Originally Posted by LennyRhys
Yea minus or positive on CPU GTL's is kind of the same for me but not for the NB, its currently +40 (worked out on calc, -40 will not even post).
I will try CPU all -40 and NB +40 (they are same since both 45nm and I have voltages the same for VTT and NB.
With all my LGA 775 board I need diffrent NB GTL depends on if I run dual or quad (45nm).
With a quad I need something between auto and +80, I can be stable with LinX and Prime95 blend but Crysis fail, Crysis need between +60 and +80 to be happy and I´m stable with all three around the same.
With a dual I need something between auto and -60
Of course above is depended on which bus speed and VTT value, with a quad is like higher bus speed and higher VTT volt, more at the +, with a dual it´s the other way around.
Please share your results, I'm interested in testing out NB gtl's, I'm going to power up the MIIF this weekendQuote:
Originally Posted by humeyboy
Well it wont boot with 475FSB with the CPU GTL's @ -40 with the NB GTL @ +40.
I thought I had 480 FSB today but it froze, seem many get stuck at about 475 FSB on Quads.
I am on the latest (not necessary the best) Bios though, I may try 1307 and 1901 and then contact Asus and try get some support.
I ain't 100% sure if my settings are the best/lowest they can be but I'm 100% stable at 475FSB with 8GB.
Where do I get a blank template ? (I need print it out to fill in info while in Bios).
Just copy and paste a filled out template into Microsoft Word and erase all the values, then print that out.
Ai Overclock Tuner: Manual
OC From CPU Level Up: Manual
Ratio CMOS Setting: N/A (only testing FSB not MHZ)
FSB Frequency: 475
CPU Clock Skew: Auto
NB Clock Skew: Auto
FSB Strap to North Bridge: 333MHz
DRAM Frequency: 950Mhz
DRAM CLK Skew on Channel A1: Auto
DRAM CLK Skew on Channel A2: Auto
DRAM CLK Skew on Channel B1: Auto
DRAM CLK Skew on Channel B2: Auto
DRAM Timing Control: Manual
1st Info: 5-5-5-15
2nd Info: Auto
3rd Info: Auto
(Tried 55 tRFC, but its 52 Default and makes no difference as ram is still under its stock 1066mhz)
DRAM Static Read Control: Enabled
DRAM Read Training: Enabled
MEM. OC Charger: Enabled
Ai Clock Twister: Moderate (May try Stronger later)
Ai Transaction Booster : Manual
Common Performance Level [10] (May try 8 later)
Pull-In of CHA PH1 Disabled
Pull-In of CHA PH2 Disabled
Pull-In of CHA PH3 Disabled
Pull-In of CHA PH4 Disabled
Pull-In of CHA PH5 Disabled
Pull-In of CHB PH1 Disabled
Pull-In of CHB PH2 Disabled
Pull-In of CHB PH3 Disabled
Pull-In of CHB PH4 Disabled
Pull-In of CHB PH5 Disabled
PCIE Frequency : 100/101/103 (testing all possibly even 105)
CPU Voltage: 1.1840 (set higher to test FSB not MHZ)
CPU PLL Voltage:1.55 (will help lower VCore later)
FSB Termination Voltage:1.27225 (1.26 Real)
DRAM Voltage: 1.99875 (Asus lights LED Amber at 2.0v)
North Bridge Voltage:1.27225 (1.26 Real)
South Bridge 1.5 Voltage: 1.5
South Bridge 1.1 Voltage: 1.1
CPU GTL Reference (0): +40mv
CPU GTL Reference (1): +40mv
CPU GTL Reference (2): +40mv
CPU GTL Reference (3): +40mv
NB GTL Reference: +40mv
DDR2 ChA Reference Voltage: Auto
DDR2 ChB Reference Voltage: Auto
North Bridge DDR Reference: Auto
CPU Configuration: LLC Enabled/All rest disabled
Try this:
Ai Overclock Tuner: Manual
OC From CPU Level Up: Manual
Ratio CMOS Setting: N/A (only testing FSB not MHZ)
FSB Frequency: 475
CPU Clock Skew: Auto
NB Clock Skew: Auto
FSB Strap to North Bridge: 333MHz
DRAM Frequency: 950Mhz
DRAM CLK Skew on Channel A1: Auto
DRAM CLK Skew on Channel A2: Auto
DRAM CLK Skew on Channel B1: Auto
DRAM CLK Skew on Channel B2: Auto
DRAM Timing Control: Manual
1st Info: 5-5-5-15
2nd Info: Auto
3rd Info: Auto
(Tried 55 tRFC, but its 52 Default and makes no difference as ram is still under its stock 1066mhz)
DRAM Static Read Control: Enabled
DRAM Read Training: Enabled
MEM. OC Charger: Enabled
Ai Clock Twister: Moderate - also try light and lighter as you want to take the stress off the NB to test
Ai Transaction Booster : Manual
Common Performance Level [10] (May try 8 later)
Pull-In of CHA PH1 Disabled
Pull-In of CHA PH2 Disabled
Pull-In of CHA PH3 Disabled
Pull-In of CHA PH4 Disabled
Pull-In of CHA PH5 Disabled
Pull-In of CHB PH1 Disabled
Pull-In of CHB PH2 Disabled
Pull-In of CHB PH3 Disabled
Pull-In of CHB PH4 Disabled
Pull-In of CHB PH5 Disabled
PCIE Frequency : 100/101/103 (testing all possibly even 105)
CPU Voltage: 1.1840 (set higher to test FSB not MHZ)
CPU PLL Voltage:1.55 (will help lower VCore later)
FSB Termination Voltage:1.27225 (1.26 Real)
DRAM Voltage: 1.99875 (Asus lights LED Amber at 2.0v)
North Bridge Voltage:1.35 - 1.45v - this will probably need to be in this range rather than the 1.26v range
South Bridge 1.5 Voltage: 1.5
South Bridge 1.1 Voltage: 1.1
CPU GTL Reference (0): +40mv
CPU GTL Reference (1): +40mv
CPU GTL Reference (2): +40mv
CPU GTL Reference (3): +40mv
NB GTL Reference: +40mv ** try -70mv up to +70mv most people seem to find a sweet spot in that range, my setup prefers negative values**
DDR2 ChA Reference Voltage: Auto
DDR2 ChB Reference Voltage: Auto
North Bridge DDR Reference: Auto
CPU Configuration: LLC Enabled/All rest disabled
Thanks but I'm 100% stable with my above settings at 475mhz.
Its trying to get above this that's an issue, I have tried more voltage but it does not help, must need mess with some other settings or try older Bios.
NB will not let PC even post the Bios with -settings above speeds.
Hmmm, a bit strange that you guys get that to work, I thought that around this worked for a 45nm dualQuote:
CPU GTL Reference (0): +40mv
CPU GTL Reference (1): +40mv
CPU GTL Reference (2): +40mv
CPU GTL Reference (3): +40mv
CPU GTL Reference (0): +40mv
CPU GTL Reference (1): auto
CPU GTL Reference (2): auto
CPU GTL Reference (3): auto
and around this for a 45nm quad
CPU GTL Reference (0): auto
CPU GTL Reference (1): -40mv
CPU GTL Reference (2): auto
CPU GTL Reference (3): -40mv
and I thought that default value is this
CPU GTL Reference (0): 0,635
CPU GTL Reference (1): 0,667
CPU GTL Reference (2): 0,635
CPU GTL Reference (3): 0,667
I understood you are stable at 475 FSB, I meant when you go for 475 - 500 FSB, they are the settings you will most likely need to alter. vNB will especially need to be adjusted as you are also running 8GB ram.Quote:
Originally Posted by humeyboy
im trying to get 4x1gb D9GMH stable on this bord. Atm i have it at 562.5MHz with a divider of 4:5, but i want them at 600+ MHz. Anybody here has 4 ram sticks running at 600+ here on this board?
If so what are your settings?
Increasing the TRFC memory timing is supposed to help a lot with 4 sticks, have you tried vaues over 50?
havent tried that yet. will try it when im done rebuilding my pc :)Quote:
Originally Posted by In-Fluence
thx for the advice
Just setup the MIIF ran a quick run using Humeyboy's NB GTL settings, will test more today, NB GTL's seem to play a huge roll in high FSB Stability
471x9 1130MHz Ram
http://i237.photobucket.com/albums/f...e_471FSB-1.png
Bios 1901
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 471
CPU Clock Skew : Delay 100ps
North Bridge Clock Skew : Delay 100ps
FSB Strap to North Bridge : 333
DRAM Frequency: DDR2-1131
Dram Clock Skew CH1 A1 : Normal
DRAM Clock Skew CH1 A2 : Normal
Dram Clock Skew CH1 B1 : Normal
Dram Clock Skew CH1 B2 : Normal
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : 3
Row Refresh Cycle Time : 55
Write Recovery Time : 6
Read to Precharge Time : 3
Read to Write Delay (S/D) : 8
Write to Read Delay (S) : 3
Write to Read Delay (D) : 5
Read to Read Delay (S) : 4
Read to Read Delay (D) : 6
Write to Write Delay (S) : 4
Write to Write Delay (D) : 6
Write to PRE Delay : 14
Read to PRE Delay : 5
PRE to PRE Delay : 1
ALL PRE to ACT Delay : 5
ALL PRE to REF Delay : 5
DRAM Static Read Control: Enabled
Dram Read Training : Disabled
MEM OC Charger : Enabled
Ai Clock Twister : Stronger
Transaction Booster : Manual
Common Performance Level [8]
Pull-In of CHA PH1 Disabled
Pull-In of CHA PH2 Disabled
Pull-In of CHA PH3 Disabled
Pull-In of CHA PH4 Disabled
Pull-In of CHA PH5 Disabled
Pull-In of CHB PH1 Disabled
Pull-In of CHB PH2 Disabled
Pull-In of CHB PH3 Disabled
Pull-In of CHB PH4 Disabled
Pull-In of CHB PH5 Disabled
PCIE Frequency : 103
CPU Voltage : 1.325
CPU PLL Voltage : 1.59275
FSBT : 1.37825
DRAM Voltage : 1.9
North Bridge Voltage : 1.4108
South Bridge Voltage 1.5 : 1.55300
South Bridge Voltage 1.1 : 1.20600
CPU GTL Reference 0 : Auto
CPU GTL Reference 1 : -45mv
CPU GTL Reference 2 : Auto
CPU GTL Reference 3 : -45mv
North Bridge GTL Reference : +40mv
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
North Bridge DDR Reference : AUTO
Load Line Calabration : Enabled
CPU Sread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
My NB GTL ain't +40 just by luck, its due to me doing the same calculation as you do for CPU GTL's, its a 45nm Chipset so same formula applies
I think at 1.4108v NB your NB GTL would work out more than +40 (Will it even post at -40 ?)
Seems a tad higher volts esp as not 1:1 but that could be as your on Stronger and 8.
Also for now (not perm) lower to Moderate and 10 to see if you can get more FSB and try it on 1:1
I'm fine tuning settings now, +40 was a base to start cause of your template....
looking for 475 to 480
Have not tried a negative NB GTL value yet, will test this later today and see if it will post
Calculating it will give you a ballpark and a starting point. However experimentation will show the best GTL setting for and particular FSB, divider, and other hardware combination.Quote:
Originally Posted by humeyboy
Negative NB GTL's will allow my rig to post untill I go below -30 anything lower will not post.....
475x9 @ 1140MHz ram the chip is stable but the ram craps out on IBT guess thats the max for my GSkill 8800 kit, testing my other kits of ram currently
Adjusting NB GTL's from +40 all the way to +80 has no effect on stability at 475FSB setting to +30 and IBT fails

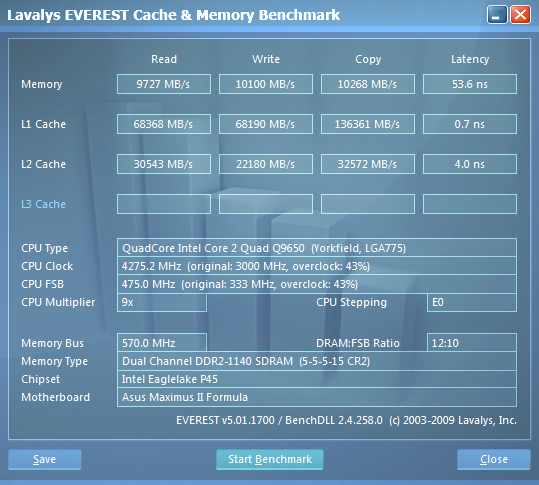

http://i237.photobucket.com/albums/f...5FSB_test1.png
Nice clocks with that 9650 and decent bandwith :cool:
My 9550 settings for 24/7 are with gtl's at auto.
there are a few settings a tad on the high side.... pll, northbridge ,and vtt but Its what I found most reliable running VMserver with two Ubuntu installs folding non stop.
I can do anything I need or want except playing Crysis at the same time :D
The settings haven't changed for 7 months except 8 gig of gskills @ 1100/1.85 volts. and I haven't smoked a component as of yet

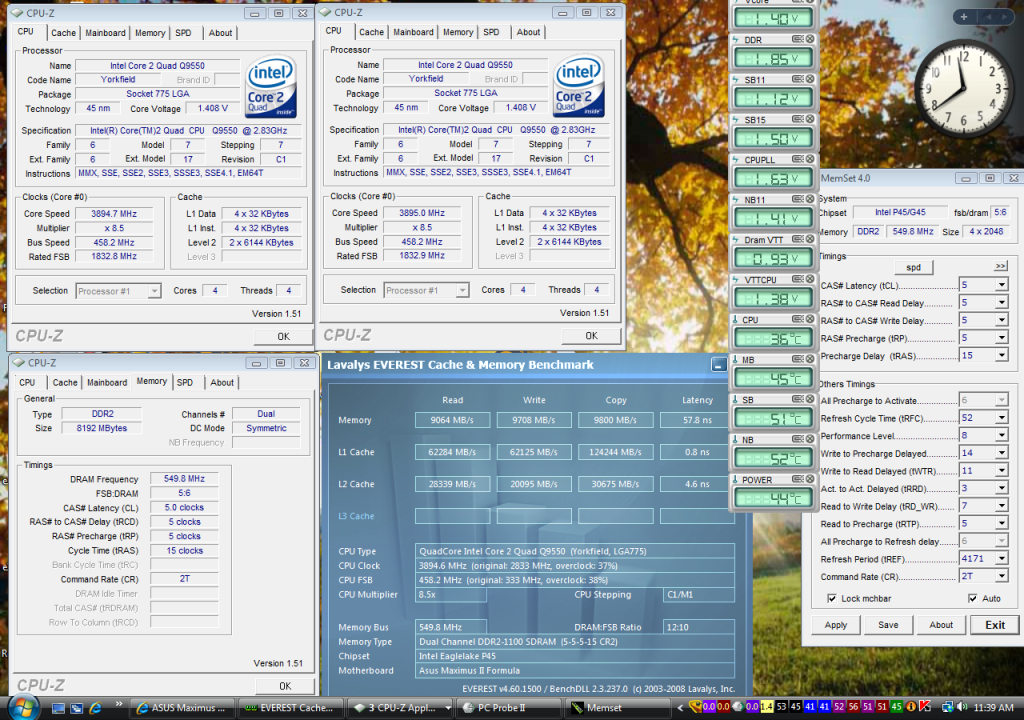

http://i201.photobucket.com/albums/a...9_11-39-32.png
Sorry for asking but there are150 pages .....
Is it a good board for OC? For dual and quad cores. Is it better than TPower for duals?
