Micron D9JNM from the first few ram kits i bought them from my local retailer some time ago,
i also have a kit of same ram model number but this kit uses Micron D9KPT, i haven't tried this kit since i bought it so i don't know how this one work in the EP45T board.
and sorry if the picture wasn't clear.
http://img196.imageshack.us/img196/2050/img2101t.th.jpg
http://img198.imageshack.us/img198/984/img2105m.th.jpg
Quote:
Originally Posted by Ghostleader
couldnt get 9x512@4608 stable with 1.34v but i did get
9x511@4599 w/1.34v,i tried LinX but it jumped straight to 70c
so i stopped it.i set my mch ref back to 0.750v and set cpu
clock skew to 50ps.
http://i436.photobucket.com/albums/q...34v3hrs43m.jpg
http://i436.photobucket.com/albums/q...43mstopped.jpg
here i tightend up the ram timings.
http://i436.photobucket.com/albums/q...erestscore.jpg
That explains the trouble I'm having getting 8.5x500-510 stable :down:. I'm stable at 8x500-510 with 1.375 vcore BIOS. But I need at least 1.40-1.425 in BIOS for 8.5x500. Unless I'm missing something (which I'm sure I am!) How much is vMCH tied to CPU stability? Or is is strictly for ram?Quote:
Originally Posted by coop
http://img42.imageshack.us/img42/1360/8x5001200pl8.jpg
http://img269.imageshack.us/img269/4...5101224pl8.jpg
Anyone running or had running a 45nm Core 2 at 7x600fsb with ram at 1200mhz ???
I have fired up my EP45T-UD3P, I poped in my Q9650 and began with FSB 450 4,05GHz and 2x1 Dominator 1800C7 but it refuse to boot what ever i did except use the XMP profile but then it throw lot of volt, hmmmm, not good.
Well I switch those ram for my 2x2 Transcend 1800C8 and tried to boot at 450 1800 CAS8 but no way it would boot, what the %£#& :mad:
Tried with FSB 500 4,0GHz and ram 1600 777 21 2T tRD9 and yes it booted and I could run some tests. :)
I could almost use all settings from my DDR2 version of EP45-UD3P on this EP45T. :)
I´ll be back with some bandwidth, Super Pi and stability screenies. :D
what NB Waterblock do you suggest for my ud3r ?
and for the mosfets are 2 enzotech mst 81 good ?
Hey, I found a high FSB. Amazing what you discover when you keep on fiddling!
http://i383.photobucket.com/albums/o...can/555FSB.jpg
My old way still works better:
http://i383.photobucket.com/albums/o...can/490FSB.jpg
The only nb block that I know of that fits right is the EK 5.Quote:
Originally Posted by LuKe88
Threre are also Anfitfc and Mips who has ud3/p/r waterbloks both for chipsets and mosfets
Looky Here: www.aquatuning.de
That's Anfitec
I'm still running bios 6 that came with my rev 1.1
Should I use another (see my sig)?
great .. i can find the ek nb/sb 5 here in italy :DQuote:
Originally Posted by Hoss331
and what about the enzotech mst 81 for the mosfets ?
I think most of the bios's are pretty equal.Quote:
Originally Posted by 18 is # 1
Is anyone else having problems using Memset? It worked fine with my Old P5K Dlx but with my new UD3P (rev 1.0) the "Apply" Button is greyed out and i cant change anything from within windows.
I have tried it on the F6 and F9 BIOS and i get the same issue, any ideas?
Can't seem to get past 466 fsb!
45-ud3r
q9650 466x9= 4.19g
muskin 8500 4x2g, 2.4b =1116
true w/ sythe ultra kaze 2000 in push/pull, lapped
1.35 cpu
1.32 nb
all other settings auto
tried changing all voltages, multipliers but cant get past 4.19g (super pi 1m=11.123 secs)
temps def not prob, very well ventilated case- all stress tests runs 8+ hours
waiting on new ocz blades 1200- think mem is the prob
anyone with ideas?
thx
I just figured out, that it can only be used in "Turbo" mode...at least in 6.:shrug:Quote:
Originally Posted by Papa.Smurf
If you're running 1:1, you should get to 550 FSB without an issue (RAM wise).Quote:
Originally Posted by kahuna321
I had to drop to multi of 7 to get above 500 FSB.
It works fine for me in standard mode on F9.Quote:
Originally Posted by 18 is # 1
very nicely done 18 is# 1,hell youve only had the board for a couple of weeks and your already at 555fsb:up:Quote:
Originally Posted by 18 is # 1
anyone interested in my board or ram?
Hey dudes,
Time to defend your most-interesting gigabyte LGA775 mobos.
Check this thread out and vote for what you think is best :
http://www.xtremesystems.org/forums/...d.php?t=226716
XmX
Ah, alright ill check it out.Quote:
Originally Posted by 18 is # 1
Thanks! :up:
I must say that those EP45 are so easy to get up to FSB 500 on a 45nm quad, I just love it. :)

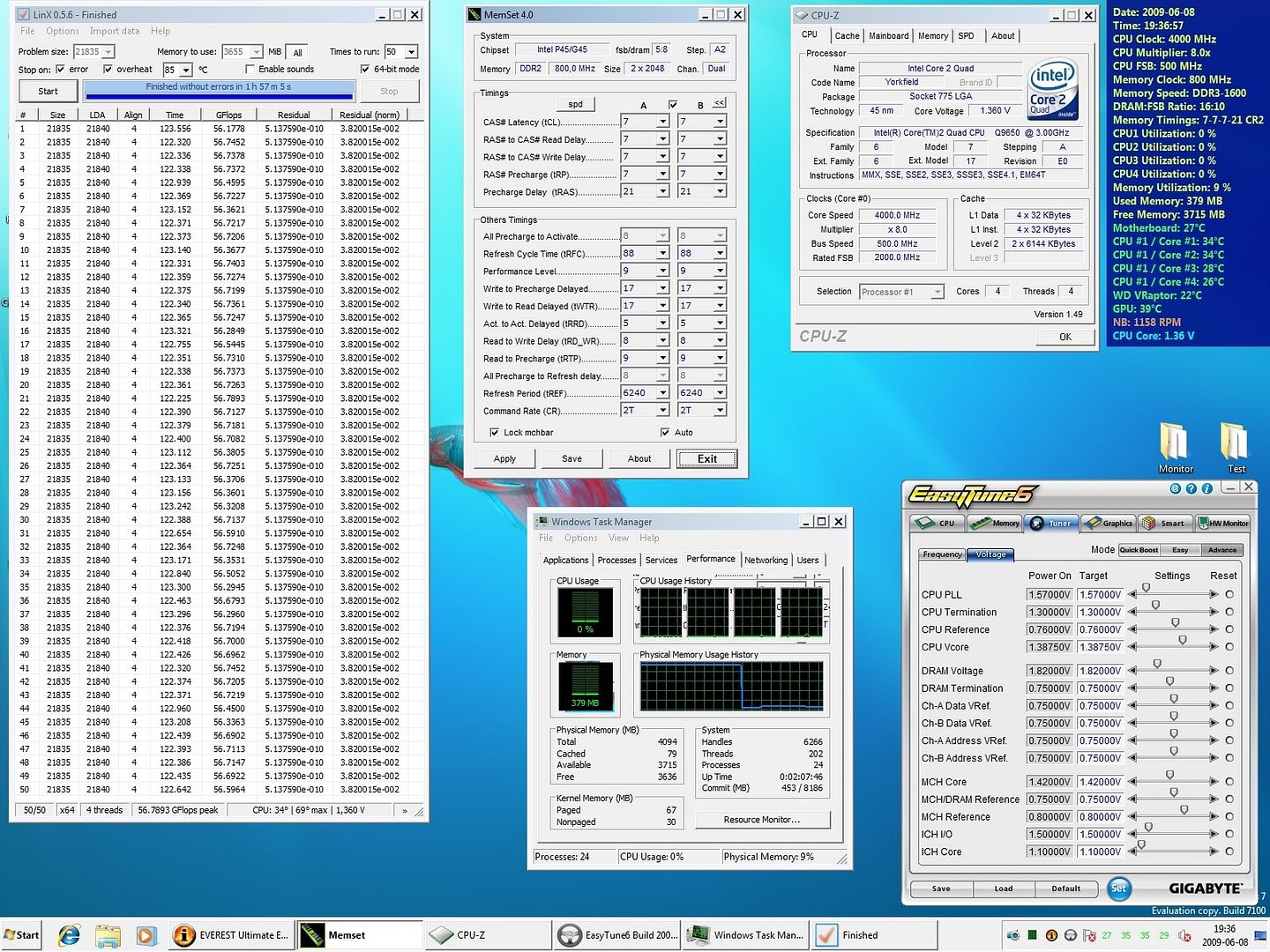

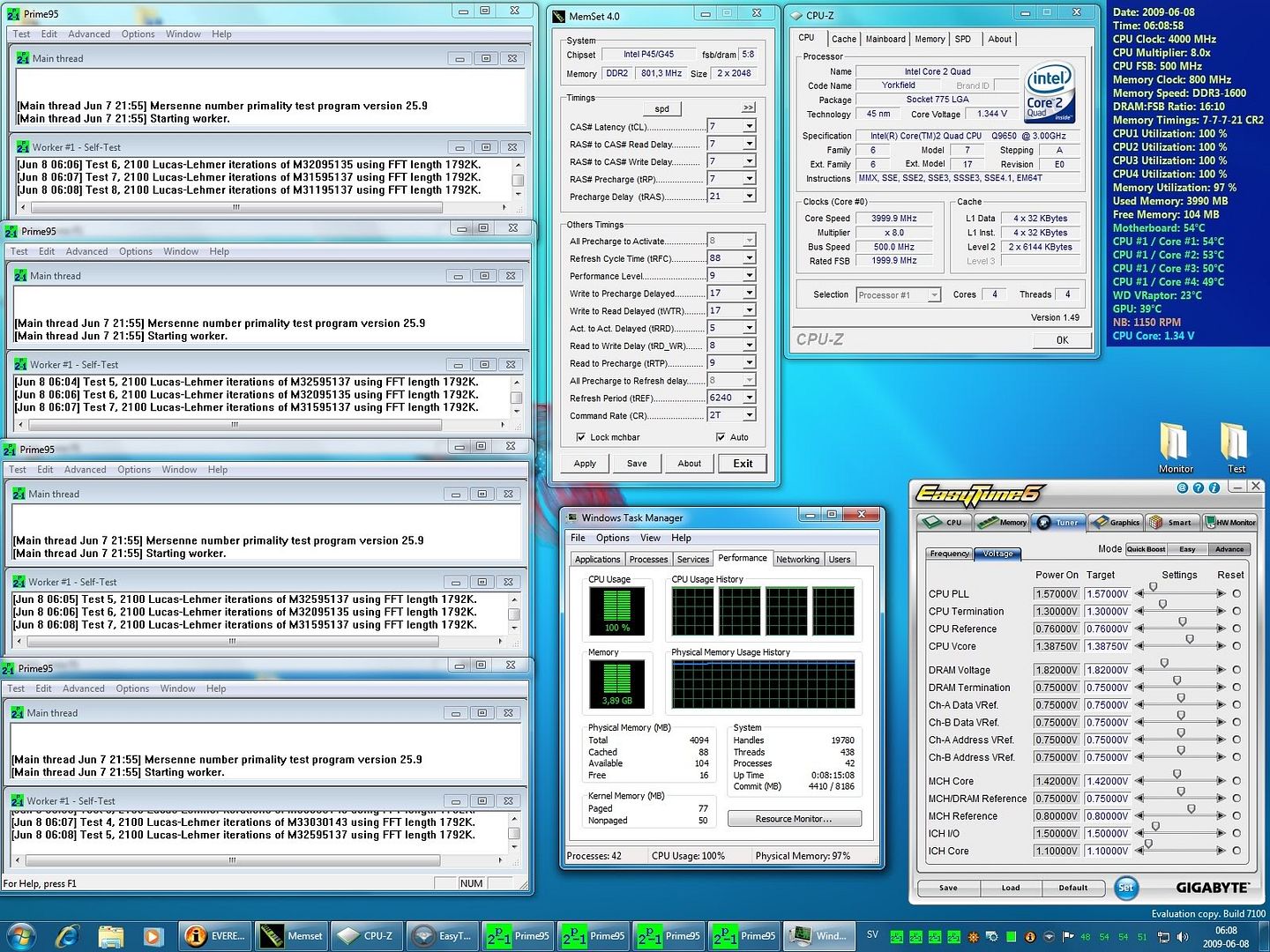

Here´s my EP45T-UD3P with Q9650 @ 500 4,0GHz and 2x2 Transcend 1800C8 @ 1600 777 21 tRD9 stable with LinX and P95 custom blend 4x900mb ram load.
http://i282.photobucket.com/albums/k...tRD9Turb-4.jpg
http://i282.photobucket.com/albums/k...tRD9Turb-3.jpg
and yes she passed all of them :D
http://i282.photobucket.com/albums/k...tRD9Turb-2.jpg

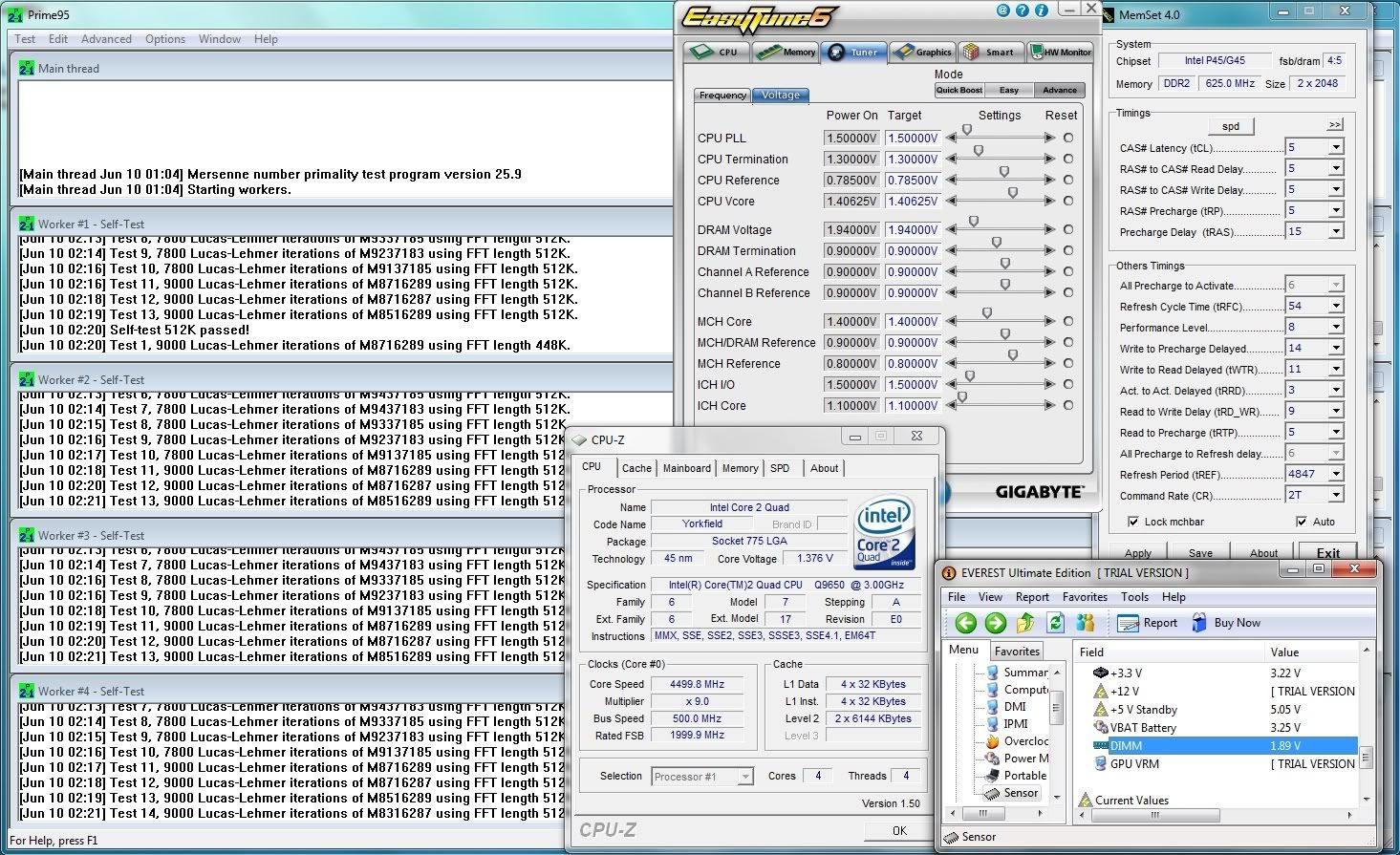

This is what I have so far with the blades. This is a custom large fft run with 1600mb of ram selected, same as what blend uses, instead of the 8mb that large fft would normally use. Vdimm 1.92 is apparently borked on this board or bios because it cant be set, its either 1.90 or 1.94. The weird part is 1.90 gives me 1.87 actual and 1.94 gives me 1.89 actual, basically what 1.92 would. :shrug:
http://i131.photobucket.com/albums/p...mapImage6b.jpg
Looking good Hoss331 :up:

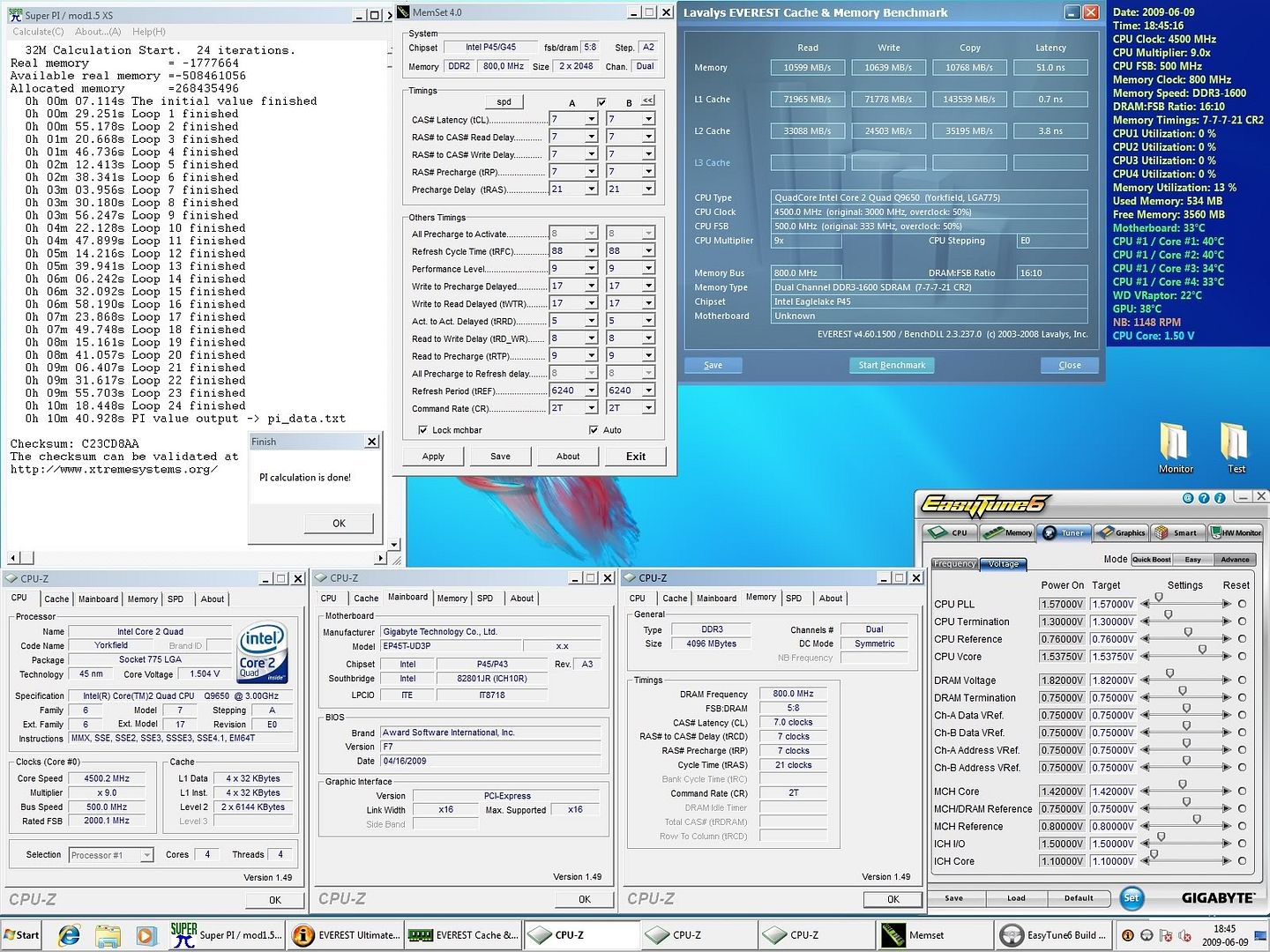

How are your bandwidth and Super Pi 32M at that speed, here´s mine at FSB 500 4,5GHz ram @ 1600 777 21 tRD 9 Turbo, subtiming are all on auto.
http://i282.photobucket.com/albums/k...RD9Turbost.jpg
o got it to run at 9x512@4608 w/134v but it failed after 59minutes
im going to keep messing with it,i know i can get stable with 1.34v
http://i44.tinypic.com/2yyo1v6.jpg
