04-19-2007, 05:16 AM
sbrehm72255

Quote:

Originally Posted by soccerswim8

woah dude what case is that??^^

Quote:

Originally Posted by Hard H20

Yeah, really. What model case is that? Looks like a lot of room in there!

It's just a 3 year old Mountain Mods U2 UFO, great case for setting up water cooling. Expensive though.
04-19-2007, 11:23 AM
marauder16

oo nice to see you here sbrehm72255, or should I say Bio ;)
Yeah, a U2-UFO is like a 'forever' case, once you get it you'll have it very long, but there's the price again... well, I'm saving for a Horizon :D
04-19-2007, 12:01 PM
stormshadow

sbrehm72255 - where did you get that black mesh again?
04-19-2007, 03:19 PM
Darkatom

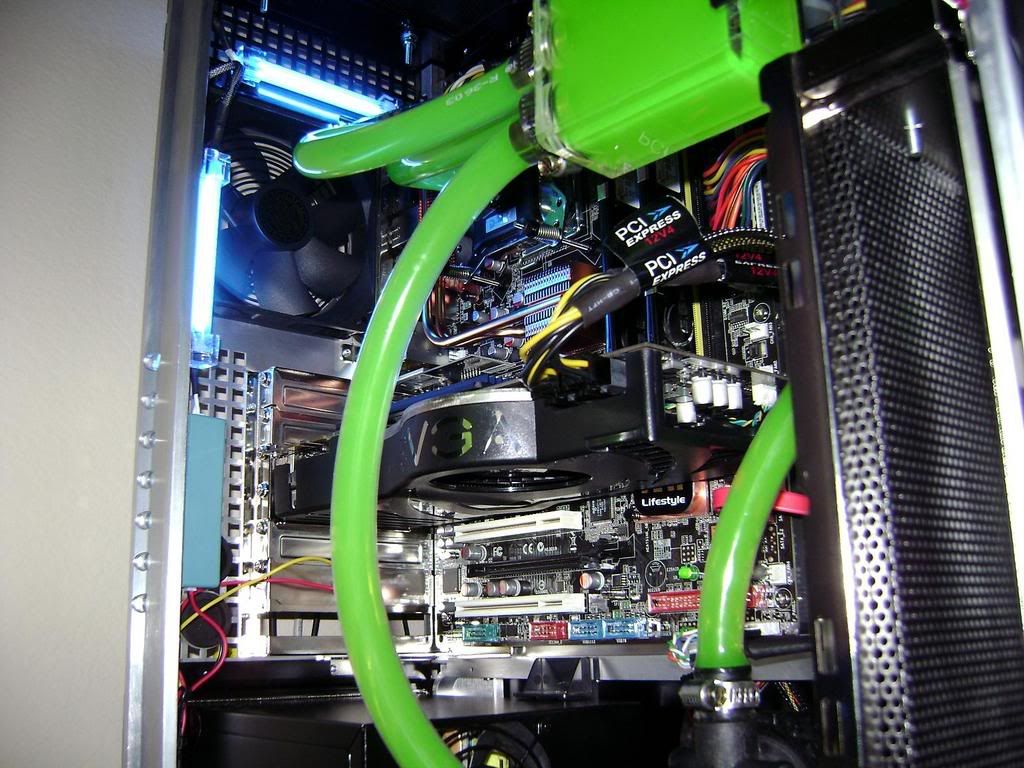

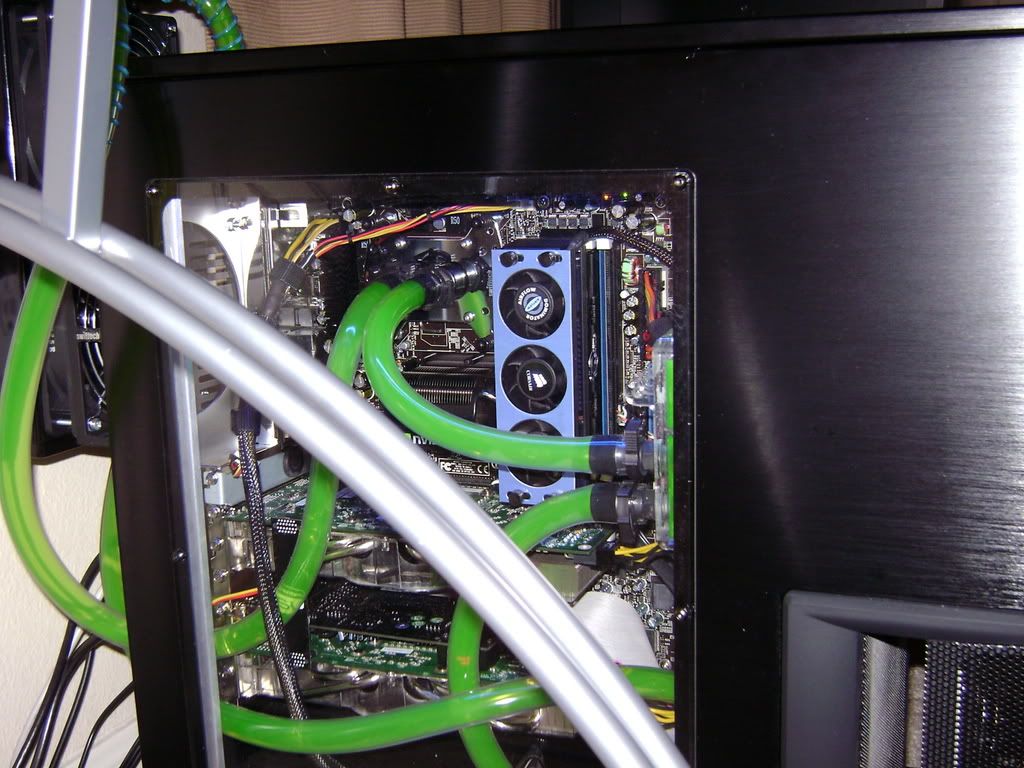

Here is my TJ09.

http://i175.photobucket.com/albums/w...Picture017.jpg
http://i175.photobucket.com/albums/w...Picture009.jpg
http://i175.photobucket.com/albums/w...Picture007.jpg
04-19-2007, 03:37 PM
Okda

IMHO you could have done it in a better way with much shorter tubes
04-19-2007, 04:16 PM
Grinch

Quote:

Originally Posted by Darkatom

Here is my TJ09.

http://i175.photobucket.com/albums/w...Picture017.jpg
http://i175.photobucket.com/albums/w...Picture009.jpg
http://i175.photobucket.com/albums/w...Picture007.jpg

I would have flipped the rad upside down so the barbs were on the bottom to make for shorter tubing..:woot:

I did the same thing when I did my 1st watercooling setup...live and learn...that was before I went to a lian-li v2000b and did everything internal...

btw...what pump are you using?
04-19-2007, 04:37 PM
PenumbralFigure

Would flipping the rad upside down affect the flow much? Seems like it would, but having seen a bunch of WCers with upside down rads, it probably doesn't, or at least, not enough to matter.
04-19-2007, 04:38 PM
Grinch

I have done it with a swiftech rad and a thermochill with no problems at all..
04-19-2007, 04:40 PM
Okda

Quote:

Originally Posted by PenumbralFigure

Would flipping the rad upside down affect the flow much? Seems like it would, but having seen a bunch of WCers with upside down rads, it probably doesn't, or at least, not enough to matter.

not at all
04-19-2007, 05:30 PM
Darkatom

I'm using the MCP655. As for the way I mounted it, I would have mounted it inside the case, inplace of the 2 120mm fan slots. But decided not to because there is a lot of heat coming off the board. I really didnt want my temps to be affected. And since the case already comes predrilled with 2 holes, there wasnt any need for me to mod. I did consider flipping it upside down and have one tube pass through the pci bracket but like I said I still would have to have drilled another hole.

All in all, I'm pretty happy with end result and thanks for the comments.
04-19-2007, 07:01 PM
YugenM

Quote:

Originally Posted by sbrehm72255

Nothing really all that special here, but it works OK for me..........;)

*pictures edited out*

nice to see you here, BH :)
04-19-2007, 07:26 PM
sbrehm72255

Quote:

Originally Posted by YugenM

nice to see you here, BH :)

Thanks, nice to be here..........:) I'm totally enjoying all the wonderful water cooling threads..........:woot:
04-19-2007, 08:39 PM
Hawkbizkit

Just finished this week...

http://imagehosting.overhauledpc.com...ng_1_thumb.jpg http://imagehosting.overhauledpc.com...ng_2_thumb.jpg
04-19-2007, 08:43 PM
serialk11r

Quote:

Originally Posted by Hawkbizkit

Just finished this week...

http://imagehosting.overhauledpc.com...ng_1_thumb.jpg http://imagehosting.overhauledpc.com...ng_2_thumb.jpg

Pretty nice lookin' there!
04-19-2007, 08:49 PM
afireinside

http://sean.nickfire.com/headphones/0407PCSETUP.JPG

This needs changing ASAP before summer.... Looking to get a lian li maybe, and water on the card.
04-19-2007, 08:55 PM
septim

hawkbizkit, that is nice, first setup?
and welcome to liquid cooling forums.

that looks like a Thermaltake case, if so, word of advice, plan on replacing them 80mm fans soon, they get noisy pretty quickly.
i have Xaser3, jigsawed front to fit 2 120mm fans and rear to fit 1 120mm fan.
and the top soon to fit 2more 120mm fans.
04-20-2007, 12:48 PM
cyberspyder

Quote:

Originally Posted by afireinside

http://sean.nickfire.com/headphones/0407PCSETUP.JPG

This needs changing ASAP before summer.... Looking to get a lian li maybe, and water on the card.

I see Grados and Senns.....:D
04-20-2007, 01:18 PM
Istasi

Quote:

Originally Posted by cyberspyder

I see Grados and Senns.....:D

I think those are Beyer DT770's, not Senn's ;)

Nice headphones, though.
04-20-2007, 01:22 PM
kakarlsen

Wow, my first post on XS.

Anyways, here's the stash I've filled up my Lian Li PC-6277 with:
http://img367.imageshack.us/img367/3...2771ne0.th.jpg http://img367.imageshack.us/img367/4...2772un6.th.jpg http://img367.imageshack.us/img367/2...2773qm4.th.jpg

Some nude pictures :p

http://img475.imageshack.us/img475/8...2774ts8.th.jpg http://img459.imageshack.us/img459/9...2775bb7.th.jpg http://img459.imageshack.us/img459/5...2776fs7.th.jpg http://img367.imageshack.us/img367/1...2777hw3.th.jpg http://img462.imageshack.us/img462/4...2778nc8.th.jpg
I know, I know, the rad mount isn't perfect, but was in a hurry. (wich i bad, off course)

Laing D5, Swiftech Apogee GT, EK-FC8800 GTX, Cooltek Extream 240...
04-20-2007, 02:43 PM
matt100

buy an acryan radgrill and all will be hidden ;)
04-20-2007, 03:46 PM
cyberspyder

Quote:

Originally Posted by Istasi

I think those are Beyer DT770's, not Senn's ;)

Nice headphones, though.

Arrg...got me there:cool:
04-20-2007, 08:48 PM
terminator_no2

Hi guys,:wave:
After visiting this forum for a long time, looking for an answers to my watercooling questions, I've finally, decided, to join in and show my rig, which, lets be honest, would be much harder to build if not this forum! :clap:
http://img182.imageshack.us/img182/9...ure2010uf3.jpg
http://img89.imageshack.us/img89/939...ure2015mg7.jpg
http://img228.imageshack.us/img228/1...ure2020ee1.jpg
http://img157.imageshack.us/img157/4...ure2025yd4.jpg
http://img157.imageshack.us/img157/3...ure2075rn5.jpg
Thanks!
Caligula
04-20-2007, 10:47 PM
biggles1

Quote:

Originally Posted by terminator_no2

Hi guys,:wave:
After visiting this forum for a long time, looking for an answers to my watercooling questions, I've finally, decided, to join in and show my rig, which, lets be honest, would be much harder to build if not this forum! :clap:

Thanks!
Caligula

Really, really nice! Well done!
:banana:
04-21-2007, 01:18 AM
matt100

Quote:

Originally Posted by terminator_no2

Hi guys,:wave:
After visiting this forum for a long time, looking for an answers to my watercooling questions, I've finally, decided, to join in and show my rig, which, lets be honest, would be much harder to build if not this forum! :clap:

Thanks!
Caligula

that's your first attempt???

amazing, well done.
04-21-2007, 01:23 AM
Solarfall

terminator_no2 what additive are you using?

your case looks really sleek and sexy.. nicelly done mate :up: ... please join us stacker lovers,and post you rig to Stacker slacker thread.

BTW :welcome: to XS
