06-10-2009, 12:12 PM
HousERaT

Quote:

Originally Posted by OC_Newbee

For those that hit 1200+ on there 8500 LV set. Can you pass at least 10 run of test# 5 of memtest+ at anything above 1160 and up? I can boot at 1200 but memtest test#5 stable is a different story.

I have the 8500 set and you should be able to hit 1200+ if your equipment plays right. What I've learned is that you need to have a really good working multiplier/divider. My first crack at this was at high cpu mhz and therefore I could only get stable at about 1175. I've reduced my cpu speed and put myself on the 2:3 divider and I'm stable now at 1190 and counting. When I get home tonight I'll play around with it some more. No reason in the world why I shouldn't be able to get over 1200 since right now my memory voltage is only at 1.84v.
06-10-2009, 12:23 PM
Jupiler

1250Mhz, 1.90V (1.90V set in bios, Everest reads 1.89V).
Gonna push it a little more.

http://www.abload.de/img/oczblade_pc8500lv_1250klqz.jpg
06-10-2009, 01:43 PM
18 is # 1

Quote:

Originally Posted by HousERaT

I have the 8500 set and you should be able to hit 1200+ if your equipment plays right. What I've learned is that you need to have a really good working multiplier/divider. My first crack at this was at high cpu mhz and therefore I could only get stable at about 1175. I've reduced my cpu speed and put myself on the 2:3 divider and I'm stable now at 1190 and counting. When I get home tonight I'll play around with it some more. No reason in the world why I shouldn't be able to get over 1200 since right now my memory voltage is only at 1.84v.

Keep trying. I can't get 1180 stable in any form or fashion.:brick:
06-10-2009, 06:35 PM
18 is # 1

Made 1200, but the CPU was turned down so far, it was SLOOOW.
http://i383.photobucket.com/albums/o...uncan/1200.jpg
06-11-2009, 05:26 AM
HousERaT

Here's the best I could do so far, Platinum 8500LV4GB@1195Mhz.

http://img14.imageshack.us/img14/446...lv4gb5a.th.jpg
06-11-2009, 06:21 AM
-n7-

Quote:

Originally Posted by 18 is # 1

Made 1200, but the CPU was turned down so far, it was SLOOOW.
http://i383.photobucket.com/albums/o...uncan/1200.jpg

3:5 ratio is bugged though, so that's actually 2:3 (DDR2-1080) AFAIK...
06-11-2009, 10:27 AM
zsamz_

n7 there is a shippment commin in from taiwan tomorow so monday should be in
if u wanna order i think u better call it in
06-11-2009, 10:46 AM
Jupiler

1270Mhz, 1.90V :

http://www.abload.de/img/oczblade_pc8500lv_12709skw.jpg
06-11-2009, 10:49 AM
SNiiPE_DoGG

Its a shame that it must be PL10 but great speeds nonetheless Jupiler :) can we get an everest bench at that speed?
06-11-2009, 11:14 AM
Jupiler

I'll post one tomorrow.

About using LVL 10 :

I tried running with the same settings and voltages with LVL9, but got an error at the 448k test on one of the cores.
Adding some more voltage (1.92V VDimm and MCH a notch) didn't help either, so I thought that maybe changing the Performance Level might resolve it.
And it did.

I ordered another kit today, see how that does when it arrives.
06-11-2009, 11:15 AM
SNiiPE_DoGG

adding NB voltage allows you to lower PL generally.
06-11-2009, 11:28 AM
paul_

WOW O.o you run 1.5 through an E8400? I assume that's not your 24/7 setup...
06-11-2009, 11:30 AM
SNiiPE_DoGG

Quote:

Originally Posted by paul_

WOW O.o you run 1.5 through an E8400? I assume that's not your 24/7 setup...

his vcore is 1.264....
06-11-2009, 11:30 AM
Hoss331

Quote:

Originally Posted by Jupiler

I'll post one tomorrow.

About using LVL 10 :

I tried running with the same settings and voltages with LVL9, but got an error at the 448k test on one of the cores.
Adding some more voltage (1.92V VDimm and MCH a notch) didn't help either, so I thought that maybe changing the Performance Level might resolve it.
And it did.

I ordered another kit today, see how that does when it arrives.

1.92 on my board is borked, if you try to set 1.92 in et6 or bios it will not change the actual voltage. If you try to set 1.92 in et6 then press set again or even close then reopen et6 it will go back to 1.90. Try setting yours than check it againest everest, 1.90 gives me 1.87 actual loaded, 1.92 makes no difference, 1.94 gives me 1.89-1.90 actual loaded, basically what 1.92 should be.
06-11-2009, 11:39 AM
Jupiler

Quote:

Originally Posted by Hoss331

1.92 on my board is borked, if you try to set 1.92 in et6 or bios it will not change the actual voltage. If you try to set 1.92 in et6 then press set again or even close then reopen et6 it will go back to 1.90. Try setting yours than check it againest everest, 1.90 gives me 1.87 actual loaded, 1.92 makes no difference, 1.94 gives me 1.89-1.90 actual loaded, basically what 1.92 should be.

OK,
I'll check it out tomorrow.
06-11-2009, 12:39 PM
Zeus

Performance Level is a NB latency setting and has nothing to do with ram capabilities.

Nice results there Jupiler! I managed to finish 1M at DDR1252 with 1.92V but couldn't get it stable enough to finish Linpack though.

Playing around with Trfc helped, so did playing around with Drive strength settings but there are a lot of Drive Strength options in bios i need to figure out yet.
06-11-2009, 12:51 PM
Hoss331

1275, I did this last night, Ill probably play with it some more tonight.

http://i131.photobucket.com/albums/p...apImage14b.jpg
06-11-2009, 12:59 PM
fatguy1992

Wow this RAM is awesome, anyone know were I can pick a kit in Australia?

Thanks
06-11-2009, 01:54 PM
Jupiler

Very nice, Hos331.
How much MCH voltage for running it with LVL 8 ?
06-11-2009, 02:00 PM
paul_

Quote:

Originally Posted by SNiiPE_DoGG

his vcore is 1.264....

Ah, that's a PLL voltage... I need sleep :wiggle::doh:
06-11-2009, 04:35 PM
Hoss331

Quote:

Originally Posted by Jupiler

Very nice, Hos331.
How much MCH voltage for running it with LVL 8 ?

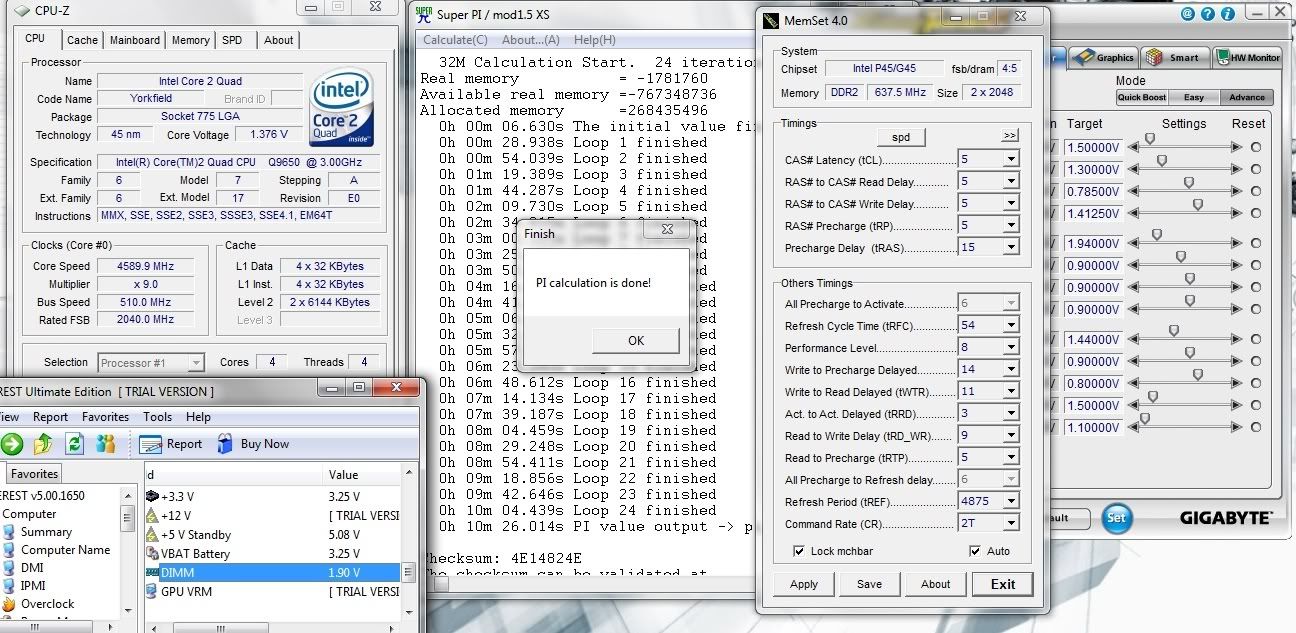

I may be able to it with 1.42, havent tried, but this is I was able to it with last night. :up:

http://i131.photobucket.com/albums/p...apImage10m.jpg
06-12-2009, 10:46 AM
Jupiler

Quote:

Originally Posted by SNiiPE_DoGG

Its a shame that it must be PL10 but great speeds nonetheless Jupiler :) can we get an everest bench at that speed?

As requested :

1270Mhz, 1.94V (ET6 reads 1.94, Everest : 1.92V), Performance Level 8

http://www.abload.de/img/oczblade_pc8500lv_12700xcf.jpg

1270Mhz, 1.94V (ET6 reads 1.94, Everest : 1.92V), Performance Level 9

http://www.abload.de/img/oczblade_pc8500lv_1270jboq.jpg

1270Mhz, 1.94V (ET6 reads 1.94, Everest : 1.92V), Performance Level 10

http://www.abload.de/img/oczblade_pc8500lv_1270q9zv.jpg
06-13-2009, 06:35 AM
mkk

Some new results mostly with lower V (all from BIOS, Everest VDimm read in screens)

+ one 2,15V shot, last one, no more crazy V from me in these topic anymore, tried to reach dual channel 1100 CL4 and have :)

BIOS 1,9V - 1032 CL4 - 32M passed
http://img4.imageshack.us/img4/8537/10324441532m.jpg

BIOS 2,0V - 1057 CL4 - 32M passed
http://img32.imageshack.us/img32/194/10574441532m.jpg

BIOS 2,1V - 1080 CL4 - 32M passed
http://img188.imageshack.us/img188/6...804441532m.jpg

BIOS 2,15V - 1100 CL4 - 1M passed
http://img195.imageshack.us/img195/2739/1100444151m.jpg
06-13-2009, 08:00 AM
SNiiPE_DoGG

Nice work Jupiler :clap: did the NB voltage do it for you on the PL?
06-13-2009, 09:26 AM
mkk

Quote:

Originally Posted by SNiiPE_DoGG

Nice work Jupiler :clap: did the NB voltage do it for you on the PL?

@ Jupiter,

Try using 1,45+ Vnb , you should be able to get PL7.
