05-21-2008, 05:57 AM
quattro_

Quote:

Originally Posted by quattro_

what do you guys think of this e8400 batch: q745a741
im about to buy it so please respond soon

never mine i found out it sucks and cant reach 4ghz
05-21-2008, 06:28 AM
zfactor

arghh how does everyone get these 807a's??? i see soo many good ones in those and ive ordered 3 different ones and cant get one...
05-21-2008, 07:18 AM
Mtrx

Quote:

Originally Posted by Monstru

Hmm...could you run a quick FSB test with multi 6?

I wish but I can´t go for the highest fsb with this ram because only overclocks a bit:(, the best is 887mhz that´ll be my next step at 9,5x443 when I reach stability at 421x9.
05-21-2008, 08:29 AM
Brahmzy

Just an update... I did experience the dreaded burn-in or degradation with my E8400.

I originally was 24hr. Orthos stable at 4.1 GHz w/1.328V actual. Now, after a month and a half my OC has settled to 4.0GHz w/1.330V ish actual. It has been rock solid, but I did lose a little bit of my OC and it took a little bit more VCore. I'm still happy with 4.0GHZ for $200 though!. It also appears that any degradation that is going to happen, has already happened.
05-21-2008, 01:06 PM
Darkatom

I noticed the samething myself yesterday. I originally needed 1.34 real vcore for 4.0ghz, now it requires 1.36 real for the same speed which means i'll be idling at 1.39vcore before droop. I decided to drop my oc down to 3.99 using the original vcore.
05-21-2008, 01:12 PM
ThatGuy16

Quote:

Originally Posted by quattro_

never mine i found out it sucks and cant reach 4ghz

My Q745A567 does 4.0Ghz at 1.216v / load
05-21-2008, 01:27 PM
Hughyhunter

Quote:

Originally Posted by oron_S

E8500 Q807A
4270 @ 1.38725V BIOS STABLE
DFI X48 LT T2R
anyone knows what's the max voltage for 24/7 on E8500?

What is BIOS stable? How bout an hour or two Orthos? Then I'll be asking questions!

Quote:

Originally Posted by quattro_

what do you guys think of this e8400 batch: q745a741
im about to buy it so please respond soon

A fine batch... Just a bit older. I have Q746, it does require more voltage than recent batches but will get you to 4.05ghz and above (might!).

Quote:

Originally Posted by Brahmzy

Just an update... I did experience the dreaded burn-in or degradation with my E8400.

I originally was 24hr. Orthos stable at 4.1 GHz w/1.328V actual. Now, after a month and a half my OC has settled to 4.0GHz w/1.330V ish actual. It has been rock solid, but I did lose a little bit of my OC and it took a little bit more VCore. I'm still happy with 4.0GHZ for $200 though!. It also appears that any degradation that is going to happen, has already happened.

I had same problem. I was 1.375v @ 4.05ghz stable for hours the first week but after about a month it failed in 45mins. I had to bump up to 1.39v, which isnt bad but kinda sucks!
05-21-2008, 05:05 PM
lanolar

Quote:

Originally Posted by unclewebb

Could users with the new 45nm chips try using CPU-Z to report VID and compare that to what CoreTemp is saying?

If you go into the INI file for CPU-Z just set Sensor to OFF:

Sensor=OFF

and instead of it reporting your actual voltage it will display the VID of your chip.

http://img133.imageshack.us/img133/3200/corevidgi4.png

I'm a little biased here as well. I just released RealTemp 2.5 which also displays VID and I'm interested in finding out which program is right. I think Intel and CPU-Z have a pretty close relationship and I tend to trust CPU-Z. I think CoreTemp might be reporting VID too low on the new 45nm chips.

Core VID 1.225 for my E8400 from CPU-Z
05-21-2008, 09:10 PM
laragirl83

Just got my new E8400 (Q809A348), haven't pushed it too much, but whats for sure, it can do 9*400MHz@1.200V easely. Thats what I expected, tough :)
Will test it later...
05-22-2008, 04:52 AM
ante_ante

Got a E8400 today with batch Q812A233, havent seen any around but it´s so good that i hoped. But 500x8 with 1.3250v in bios and 1.31 in cpuz seems to be stable. Haven´t tried any prime yet but for some gameplay it´s working perfect.
05-22-2008, 09:47 AM
Mtrx

E8500
Q748A212 (testing@4000)

http://img293.imageshack.us/my.php?image=1603ca9.jpg
05-22-2008, 11:07 AM
anubis_is_evil

i'm thinking to buy Xeon 3110, coz hard to find E8400 right now...

is it good as E8400 ? :)

thx
05-22-2008, 11:43 AM
Infa

Same :banana::banana::banana::banana: diffrent names ;)
05-22-2008, 02:31 PM
yankee

Here are the results with my E8200, batch Q741A402.
Other specs:
P5K-SE
Ballistix 8500, batch 16fd5
Diamond AMD 3850 512M
Corsair HX620
A05-A
FuZion, PA160, DDC 2.3(petra's)

500 FSB Cas 4 was easy.
http://lh5.ggpht.com/d.hopero/SDXwtM...20trboost2.jpg

Max Valid:
http://valid.x86-secret.com/cache/screenshot/360199.png

Super Pi 1M:
http://lh4.ggpht.com/d.hopero/SDXv78...11.031.bmp.jpg

Another SuperPi 1M, but the memory tab wasn't open so i couldn't submit to hwbot :(
http://lh6.ggpht.com/d.hopero/SDXv_c...fsb523.bmp.jpg

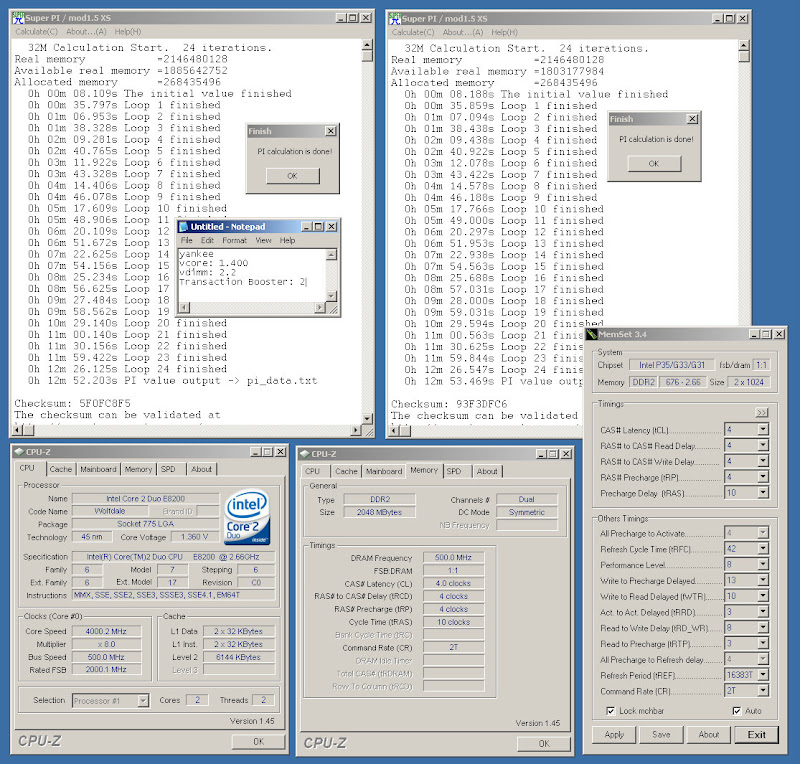

SuperPi 32M:
http://lh4.ggpht.com/d.hopero/SCy9ZG...imm2.3.bmp.jpg

PiFast:
http://lh3.ggpht.com/d.hopero/SDXwKs...stvdimm2.3.jpg

I have yet to play with subtimings, and i just got some smartcoils for my loop, there were some tubes that were kinking pretty bad. So rest assured, when i beat these scores, you'll know. :)
05-22-2008, 02:44 PM
yankee

Quote:

Originally Posted by unclewebb

Could users with the new 45nm chips try using CPU-Z to report VID and compare that to what CoreTemp is saying?

You're right, man!

http://lh4.ggpht.com/d.hopero/SDX2s8...etempwrong.JPG
05-22-2008, 03:38 PM
ZenEffect

what is considered high voltage id vs low?

i just recieved a E7200 w/ vid 1.1000, is that average? good? bad?
05-22-2008, 05:20 PM
ThatGuy16

Looks like mine has "degraded" or had its "burn in" time. I tried to run orthos, it fails after 1 minute and a half.

Before it was stable at 1.216v load, now im priming at 1.23v load.

However! i have been benchmarking the past few days with voltage from 1.475v up to 1.55v (1.55v was not long, a couple minutes at most. Mostly 1.475)

I noticed before i could boot into widows at 4.6Ghz at 1.44v, now it needs about 1.475v, maybe less.
05-22-2008, 07:11 PM
barong

mine , sorry i forgot the batch i will post soon
http://img26.picoodle.com/img/img26/...tm_46ce929.png
05-22-2008, 10:13 PM
Hughyhunter

Quote:

Originally Posted by ThatGuy16

Looks like mine has "degraded" or had its "burn in" time. I tried to run orthos, it fails after 1 minute and a half.

Before it was stable at 1.216v load, now im priming at 1.23v load.

However! i have been benchmarking the past few days with voltage from 1.475v up to 1.55v (1.55v was not long, a couple minutes at most. Mostly 1.475)

I noticed before i could boot into widows at 4.6Ghz at 1.44v, now it needs about 1.475v, maybe less.

Same dang thing happened to me. I did a suicide run and never saw my nice voltages again! :down:
05-22-2008, 10:29 PM
ThatGuy16

I wonder if i do it again, if it will "degrade" more. Or if all the damage has been done... i love running 3dmark at 4.6Ghz :p:
05-22-2008, 10:47 PM
Hor$eman

Quote:

Originally Posted by ThatGuy16

I wonder if i do it again, if it will "degrade" more. Or if all the damage has been done... i love running 3dmark at 4.6Ghz :p:

What voltages are you running at 4.6? I can get 4.53 working ok, but over that it heats up too much?
VCore:
PLL:
VTT:
05-22-2008, 11:58 PM
Leeghoofd

Quote:

Originally Posted by yankee

You're right, man!

they might read out the VID better now (or worse), for my Qx9650 it's hilarious...

note : I added the older coretemp and for my Qx that seems more realistic... or you can say this CPU does 4ghz at almost stock voltage...naaaah

http://users.pandora.be/OAP/VID.JPG

Will add the E8400 in the weekend when I get the CPU back
05-23-2008, 02:58 AM
Jodiuh

Going from 4050 to 4095 yields a 5.9 rating for Vista on my setup. Is it the same for everyone there?

E8400 @ 4095 and quite cold w/ low volts still all around. It's not the super chip we've seen around here, but I did manage to "draft" him out of a few other higher MAX VID retail boxes from Fry's. :D I only wanted 4, this is all gravy.
http://img.photobucket.com/albums/v2...e8400_4095.jpg
05-23-2008, 03:03 AM
Mykou

succeeded to raise my fsb at 568 on X48

( failed at 570 , freeze after getting vista desktop lol )

http://pix.nofrag.com/9/d/2/c233b628...62633668tt.jpg

http://valid.x86-secret.com/show_oc.php?id=365101
05-23-2008, 05:42 AM
CrazyNutz

Quote:

Originally Posted by Darkatom

I noticed the samething myself yesterday. I originally needed 1.34 real vcore for 4.0ghz, now it requires 1.36 real for the same speed which means i'll be idling at 1.39vcore before droop. I decided to drop my oc down to 3.99 using the original vcore.

Quote:

Originally Posted by ThatGuy16

I wonder if i do it again, if it will "degrade" more. Or if all the damage has been done... i love running 3dmark at 4.6Ghz :p:

It's characteristic for these cpu's to need a little more vcore after they
burn-in. However after it completes the burn-in phase it will not (should not :) ) degrade further. I've seen this happen even at stock vcore.

After my CPU completed the burn-in phase it needed +.024mv to be
100% stable @ my initial overclock. I have since had it up to 1.6v (for brief
periods) and It has not degraded any further, and I check it regularly.
