From the looks of it, it's being held in Jönköping, Sweden.Quote:
Originally Posted by disruptfam
Printable View
From the looks of it, it's being held in Jönköping, Sweden.Quote:
Originally Posted by disruptfam
SWEDEN!!!!!!!!!!!!!!!!!!!!!!!!!! :shocked:Quote:
Originally Posted by Waterlogged
Didn't think the worlds biggest lan would be in Aus oh well....
OK guys i've ran into a problem.... :down:
I originally wanted to mount my mcr120 to the back exhaust fan.I did a trial fitting last night....and looks like a no go...will fit there,BUT!! it blocks my mofset block so there's no way i can route the tubing there... :(
Here's pic to show youse what i mean.....
Mofset block...
http://img159.imageshack.us/img159/6...pics157yr4.jpg
mcr120 as you see it blocks the block.... i know its not all the way back but tried last night didnt work just to give an idea...
http://img261.imageshack.us/img261/2...pics158yd2.jpg
Sorry about bad pic quality did them in rush...
So were do you guys rekon i can put the mcr120???
The front in the bottom sectoin is no go...would hit the other rads...
Maybe @ the top of the case???
Like what dark prodigy did??
http://img513.imageshack.us/img513/4/dpyw9.jpg
http://img509.imageshack.us/img509/6123/dp2ed8.jpg
How would i go about cutting that out.. for a rad grill same as above pic?
Also where can i get a black 120 rad grill?
cheers fellaz thanks in advance for the input!
Anyone?
Hey m8!
I think you either want to have the rad up there on top of the case or have the little 120mm rad hooked in the back of the case. You make 2 holes for the tubing using a 1" hole saw and your good to go!
When you can't have everything internal, external is the way to go. It still is going to be more easy to mount the rad back there and make 2 small holes instead of one big on top of the case, right?
Put the fan on the outside of the case and the rad on the inside, screw through the fan holes of the case, should hold the two together and give you about 25 more mm to work with
Doesn't really work. There's a recess the fan mounts in.Quote:
Originally Posted by Shlomo
Its outside rear, top, inside side or in side panel with liberal tubing, or underneath somewhere.
I've lost track of where all your bits are. Have to look back a bit before suggesting anything.
Yeah I see, he wouldn't be able to put on his case door.. hmm...Quote:
Originally Posted by Jedda
Looks like you'll have to drill yourself a 120mm hole somwhere...
Well, it can be done. Thats why I mentioned liberal amounts of tube. You need the rad loop sections long enough to lift the panel out and sideways. I did it with a V1000 and MCR220.Quote:
Originally Posted by Shlomo
Its not a great solution, though.
Think you might be right about a hole though.
PC Case Gear have AC Ryan Rad Grills here.
DisruptFarm, what motherboard is that? Is that a dual socket mobo?
Maybe, towards the front in the top. In the top 5 1/4 bay?
That wasn't his build... he was using it as an example.Quote:
Originally Posted by MonkeyHood
Cheers fellaz...Quote:
Originally Posted by Jedda
I Think i will cut a hole at the top of the case... just like dark prodigy did and mount it next to my dvd drive.
Any info on the procedure of cutting my case to accomadate the rad??
I will use my jigsaw for the cut...but i mean what will use to sketch out the hole??? rad grill?
cheers guys
If you have the radgrill, use it for the outline but then you will probably see the edge thru the grill. The best way would be to outline the contour, offset 1/8" outward and cut there. When the grill is installed, you will not see the edge unless you see from a certain angle.
I used the grill to mark out my cuts after laying masking tape over the area. Then neatened up with a 6" half round bastard file.
Gotta strip all the electronics from the case though. Al dust and swarf can do some real damage.
Cover the whole top with tape and measure out everything in pencil. Measure twice cut once.
cheers fellaz i ordered a fan grill...
Will cut when i get it probably next week sometime...
Damn i would of liked to cut into my case on the w/e... :(
You can do this without a fan grill if you get the exact measures for the radiator. Thermochill provided a pdf with all the measures you need and that's the way I'm going to do since I will not order a grill before a few weeks (not a lot of money, thank you xmas shopping and I'm waiting for welshtom to do a special project to save on shipping).Quote:
Originally Posted by disruptfam
I'm using a mcr120 swiftech i could get the measurements off the there site.... :)
Just the fan holes is 105mm between centers so it's a easy way to start off then cut arond.
How about fan-case-rad? seems like there are enough room for the tubing below the fan...
I dont understand what you mean rad outside the case???Quote:
Originally Posted by eXa
I would to keep everything internal....:up:
cheers
Hey fellaz back again...
Need your opinion....
Ok all my blocks are black/acetal except for my ek acrylic fc block...I'm thinking about purchasing the acetal top, to keep The sleek black look through the case.What do you guys think?? Here's some pic's with my new camera...still figuring out how to use... :)

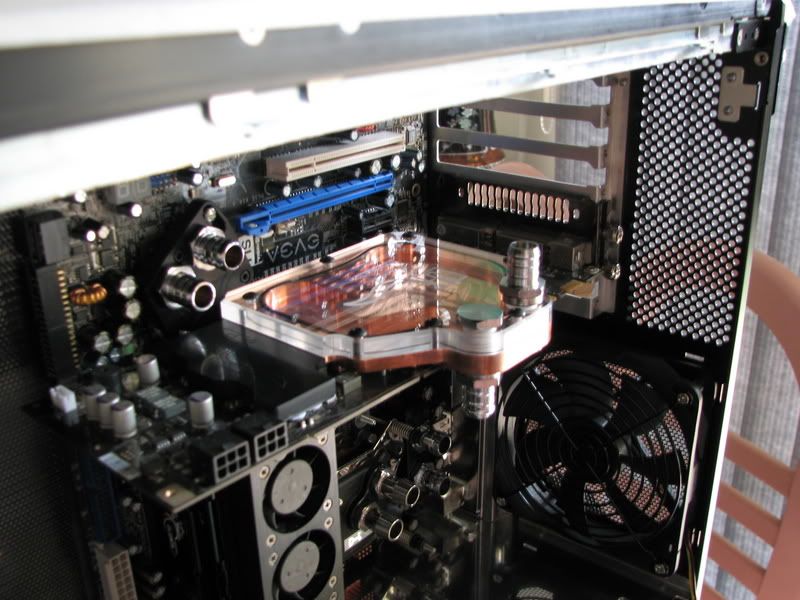

http://i212.photobucket.com/albums/c...wcamera021.jpg

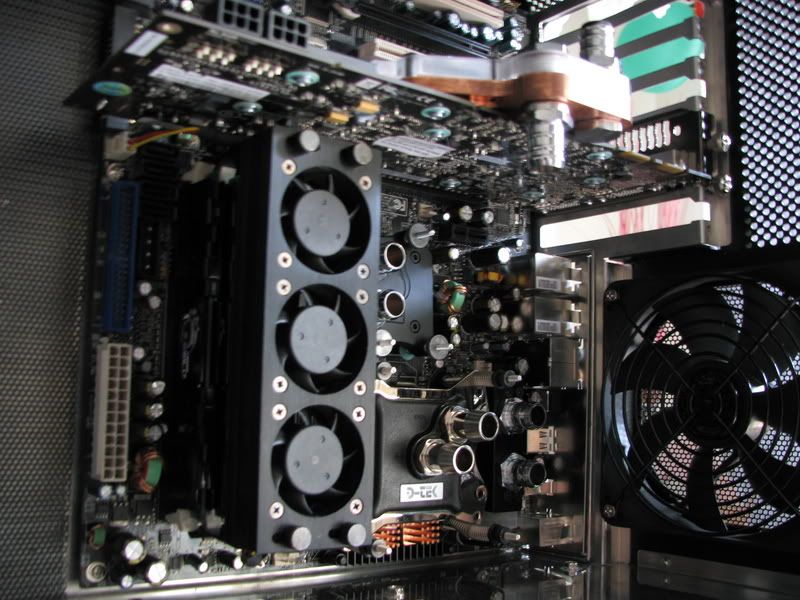

http://i212.photobucket.com/albums/c...wcamera020.jpg

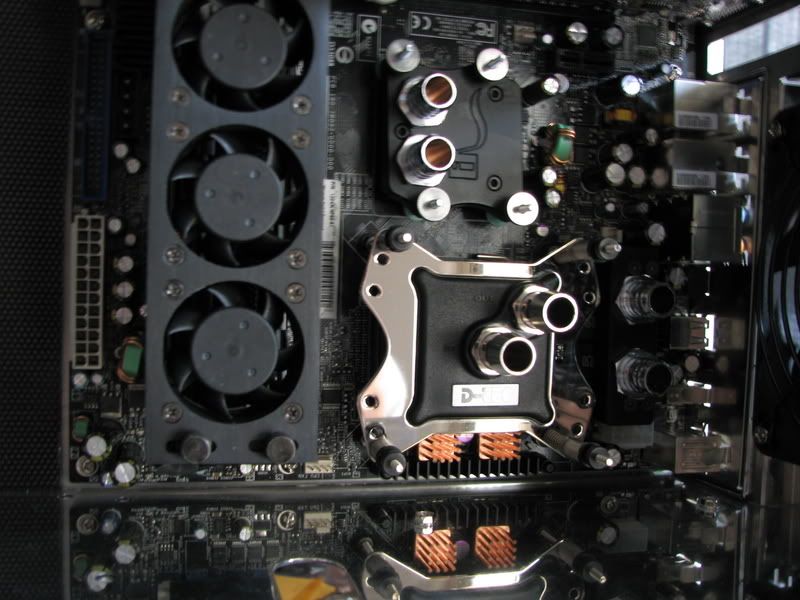

http://i212.photobucket.com/albums/c...wcamera019.jpg
What do guys rekon... stick with acrylic top or get the acetal and keep everything black and sleek??
cheers :)
Some other pic's :) starting to look sexy

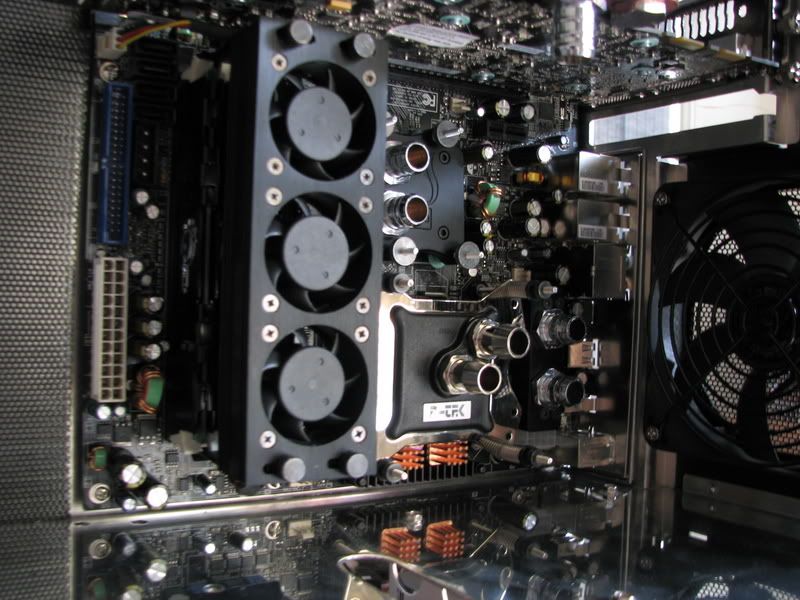

http://i212.photobucket.com/albums/c...wcamera024.jpg

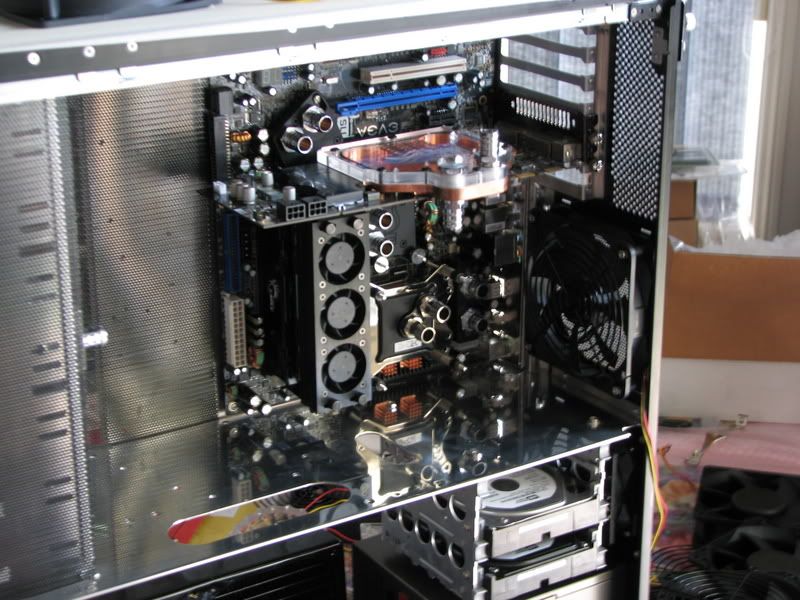

http://i212.photobucket.com/albums/c...wcamera023.jpg

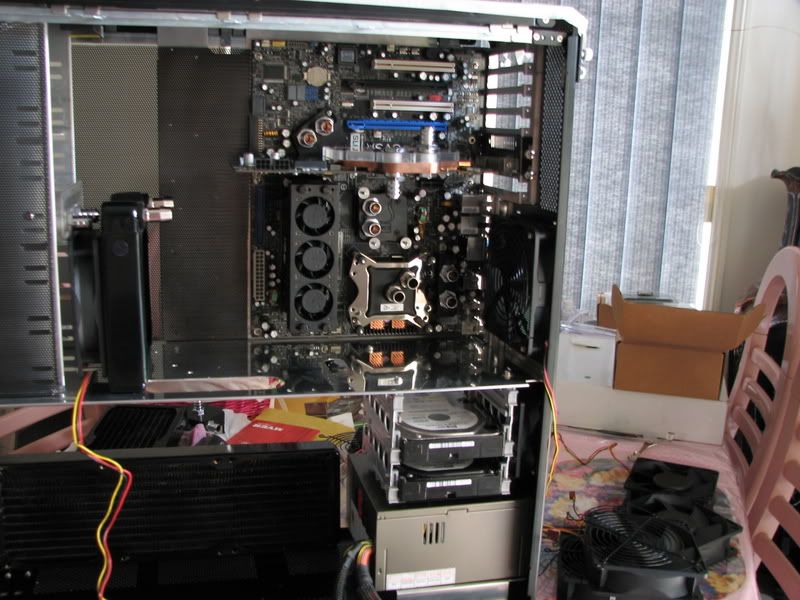

http://i212.photobucket.com/albums/c...wcamera022.jpg

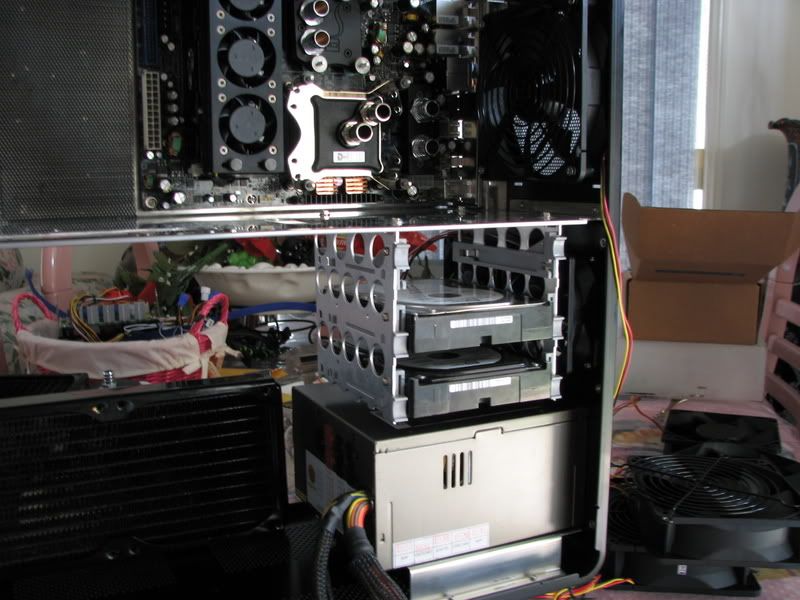

http://i212.photobucket.com/albums/c...wcamera028.jpg

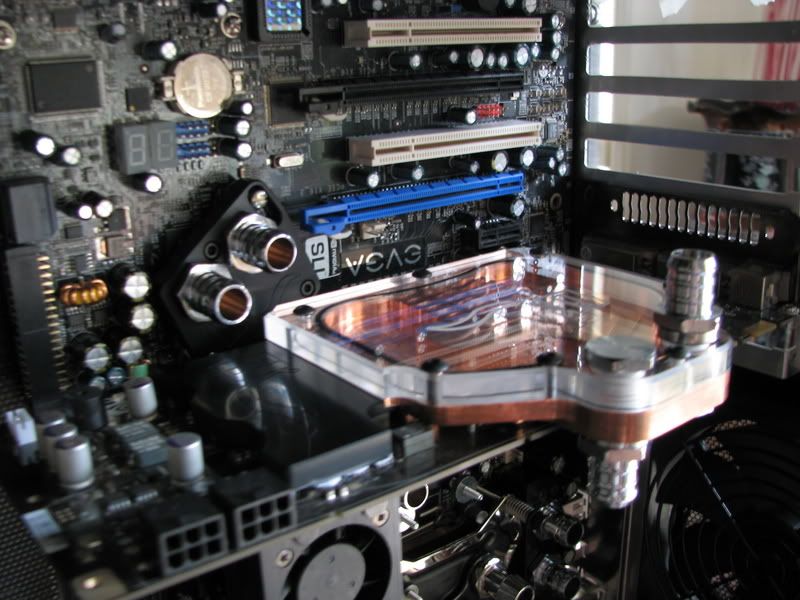

http://i212.photobucket.com/albums/c...wcamera026.jpg

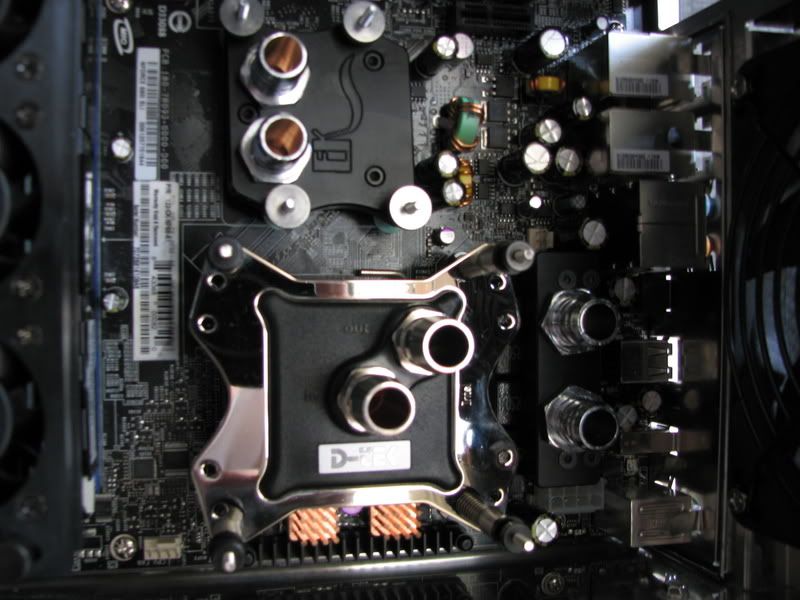

http://i212.photobucket.com/albums/c...wcamera025.jpg
enjoy!
keep it like it is.
looks hot bro.
It's look grat.. keep going on :d i need to see all this finished!!!
Cheers fellaz need all your opinion's though
Keep my acrylic gpu top (see coolant)
or
Get the black acetal top (keep everything black and sleek)
:)
