05-11-2009, 03:39 PM
Lu523

Dang! You put it in a case. I have mine behind my computer desk. Even there it runs at 23 C while crunching.
05-11-2009, 05:52 PM
JAWS

Quote:

Originally Posted by tiro_uspsss

while I havent got mine running, I'd pick the Intel ones over the SI ones :up:

cool thanks

Quote:

Originally Posted by Lu523

Dang! You put it in a case. I have mine behind my computer desk. Even there it runs at 23 C while crunching.

lol I knew I kept the ancient antec workstation for something. I bought it for my first amd duron 700 build. it fits perfect. :up:
05-11-2009, 06:08 PM
Movieman

Quote:

Originally Posted by JAWS

cool thanks

lol I knew I kept the ancient antec workstation for something. I bought it for my first amd duron 700 build. it fits perfect. :up:

I'm amazed it takes a 12x13" EATX board..
05-14-2009, 02:23 PM
JAWS

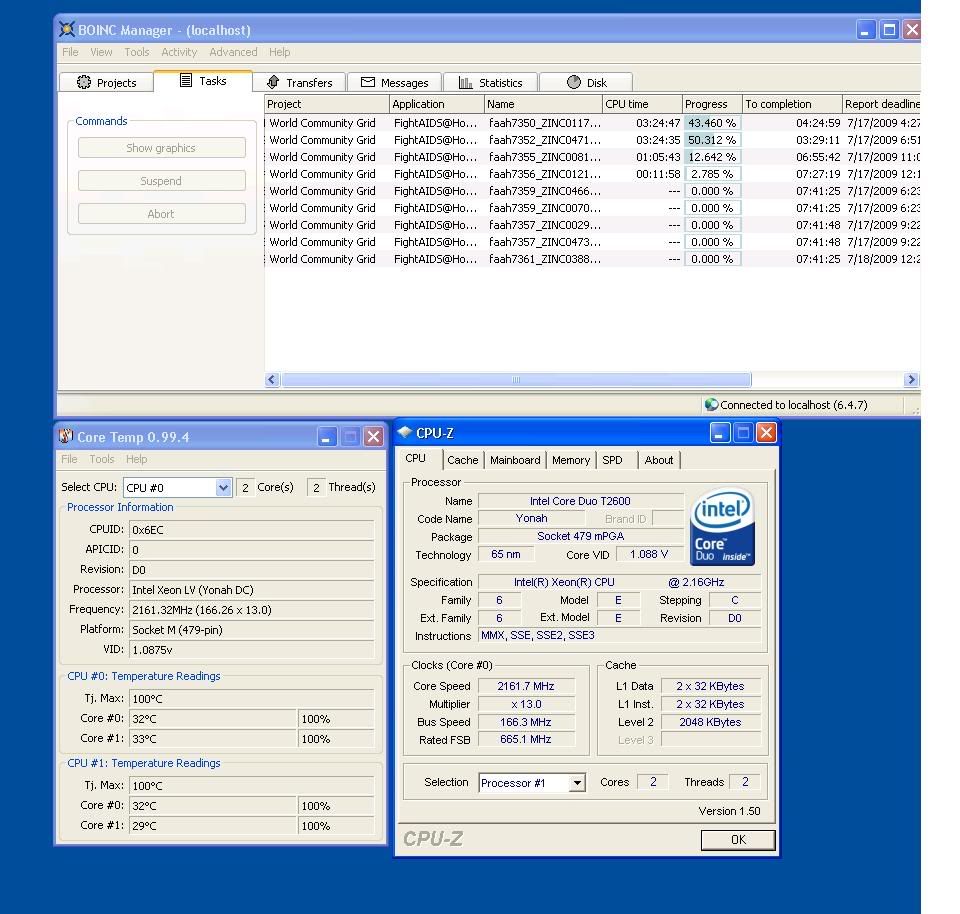

http://img40.imageshack.us/img40/6701/tempserver.th.jpg

is this normal for one core to be higher?
05-14-2009, 02:27 PM
Movieman

Quote:

Originally Posted by JAWS

http://img40.imageshack.us/img40/6701/tempserver.th.jpg

is this normal for one core to be higher?

non issue, as it's such a low temp it wouldn't concern me.
These are rated for 100C so 20 anything is cake..
Mine run at up to 40C in a closed case and 34C in an open case..
This is one of those deals where I look at the temps and then look at the X3380 at 57C at 100% load and just smile.:D
05-14-2009, 03:18 PM
Bail_w

Quote:

Originally Posted by JAWS

http://img40.imageshack.us/img40/6701/tempserver.th.jpg

is this normal for one core to be higher?

Perhaps, you may want to reapply thermal paste and remount the heatsink?
05-14-2009, 04:02 PM
Gamekiller

Quote:

Originally Posted by JAWS

well I got my baby up and running. :up: I just want to thank everyone for this thread. All my questions were answered in here. One question though, what sata port does everyone use for hd. both worked for me.
My first duallie!!!
http://img25.imageshack.us/img25/5936/511032.th.jpg

Kind of off topic, but... that exact power supply you have... I had one of them go out the other day. c_c I hate to even look at it. lol Not sure what size yours is but mine was 650w and it died after 2 years of running at maybe a max of 300W..

Anyways, sorry if I missed it in this huge thread but how many boinc points do these produce? And what could a complete setup cost someone?
05-14-2009, 04:05 PM
Movieman

Quote:

Originally Posted by Gamekiller

Kind of off topic, but... that exact power supply you have... I had one of them go out the other day. c_c I hate to even look at it. lol Not sure what size yours is but mine was 650w and it died after 2 years of running at maybe a max of 300W..

Anyways, sorry if I missed it in this huge thread but how many boinc points do these produce? And what could a complete setup cost someone?

The Corsair 400w is an excellent PSU for this build.
$49.95 at the egg.
As to cost to build( In the USA:
board: $30.00
memory: $37.00(2x1gig)
HS: $10.00 each and shipping
cpu's: Tough to say, it's "catch as catch can" from ebay.
maybe $100.00/pair right now
05-14-2009, 04:17 PM
Gamekiller

Thanks Dave! These are rather cost effective little items it seems. Who doesn't want a dual socket rig of some type? :up:

How many boinc points could one expect from this setup?
05-14-2009, 04:18 PM
Movieman

Quote:

Originally Posted by Gamekiller

Thanks Dave! These are rather cost effective little items it seems. Who doesn't want a dual socket rig of some type? :up:

How many boinc points could one expect from this setup?

7000-8000 a day WCG points, divide by 7 for boinc points.
05-14-2009, 04:32 PM
Lu523

Avg. boinc for my 2gig sammys is 1009.28 or 7064.96 WCG. I have a pair of 1.6 setting on my desk doing nothing. I need to find them a home.
05-14-2009, 04:37 PM
Movieman

Quote:

Originally Posted by Lu523

Avg. boinc for my 2gig sammys is 1009.28 or 7064.96 WCG. I have a pair of 1.6 setting on my desk doing nothing. I need to find them a home.

I'm still searching for those elusive 2167's and the impossible to find 2300's..:D
05-14-2009, 04:38 PM
Gamekiller

That's a pretty decent output for this price and power usage. I'm sure that's why there's a 46 page long thread on them. =p Thanks guys.
05-14-2009, 04:44 PM
Movieman

Quote:

Originally Posted by Gamekiller

That's a pretty decent output for this price and power usage. I'm sure that's why there's a 46 page long thread on them. =p Thanks guys.

It isn't that it's huge power as it isn't.
What it is, is a decent output in a machine that will essentially run without maintainence, ok, so blow out the dust twice a year, run cool, use just a little elec and do all of the above well.
The key is that the parts were orginally server quality.
The board was $430-480 depending on who was selling.
At that price back in 2006 it wasn't worth doing but at $30.00 for the board and $100.00 for a pair of cpu's it is.
My Sammy rigs have done well over 2,000,000 WCG points so far.
05-14-2009, 04:48 PM
Gamekiller

Another good thing is the amount of heat produced. My Q6600 alone could heat my room in the winter. (Also doesn't help that my room is upstairs.)
05-15-2009, 02:26 PM
Sparky

Yep I can't wait to get mine online.

hint hint Dave...

:p:
05-15-2009, 02:31 PM
Martijn

Dave, beat this. :D

Oh yeah, check the CPU power in the HW monitor window. Victor knew what was good.

Yup, that's right. 30W fully loaded, 50C passive on my CNPS-9500. 12W idle :ROTF:
05-18-2009, 03:35 PM
Sparky

I know for F@H the x8 bus doesn't matter. Heck I was running a card on a first gen PCIe x4 slot with no issues on it :D
If you are referring to GPUgrid, I don't know.
05-19-2009, 02:02 PM
JAWS

Quote:

Originally Posted by Gamekiller

Another good thing is the amount of heat produced. My Q6600 alone could heat my room in the winter. (Also doesn't help that my room is upstairs.)

this was the deciding factor when building the Sossa. I honestly can't believe how cool this sever runs under full load. I live in Florida and the room it runs in doesn't heat up at all. I had to see it run first hand, before I believed. :p:
05-19-2009, 07:05 PM
jspace

Not sure if this is a good price, but here's what I found on ebay.
Link
05-19-2009, 07:11 PM
emuexport

Quote:

Originally Posted by jspace

Not sure if this is a good price, but here's what I found on ebay.
Link

Thats the going rate at the moment as far as I am aware. Only a few people are selling them and he's one of them.
05-20-2009, 04:03 PM
JAWS

Quote:

Originally Posted by jspace

Not sure if this is a good price, but here's what I found on ebay.
Link

great, first thought after reading this post.......hmmm well another mobo is only $30. :yepp:
05-23-2009, 04:56 PM
Gamekiller

Quote:

Originally Posted by gongo

WCG needs to get CUDA-enabled...

Yes, I agree. I have a GTX 295 I'd like to throw on a WCG project. Sorry F@H guys, that project tends to give me a headache and it might cut into my WCG points. :p:

We've had enough new projects lately to at least have 1 of them be CUDA based. Too bad. =/

On another off topic side note I upgraded my athlon 6400+ to a phenom 9600 because my old rigs mobo died and I had the phenom waiting to be used thanks to an awesome member from here. I oc'd the phenom to 2.7ghz, not sure if it'll go higher. Cpu temp is around 42*c with some cheap copper butterfly HS I had. (24*c amb)

I'd like to mess around with a sossaman rig.

/random post :D
05-23-2009, 06:36 PM
emuexport

Quote:

Originally Posted by Gamekiller

/random post :D

:off:
Not enough of these lately!

Thread derailment must return to XS WCG!!!:up:
05-26-2009, 03:47 AM
Movieman

Quote:

Originally Posted by gongo

So I've finally got Sammy2 crunching and GPU folding, seems like the 64-bit requirement is only there in case you want to use the CPU to fold as well (but obviously I want to keep the CPU on WCG).
Now to get Sammy1 re-installed with Linux and BOINC. Just had to sort out a little mishap with the remote management cards fighting over IPs on the router, but that's fixed now. :)
I also got a little sidetracked fiddling with the alsa usb sound driver, I've been trying to get 5.1 analog out of this usb card and it took writing my own patch to the driver to get it working... gotta love Linux!

:up:
05-26-2009, 06:02 AM
Sparky

Quote:

Originally Posted by gongo

So I've finally got Sammy2 crunching and GPU folding, seems like the 64-bit requirement is only there in case you want to use the CPU to fold as well (but obviously I want to keep the CPU on WCG).
Now to get Sammy1 re-installed with Linux and BOINC. Just had to sort out a little mishap with the remote management cards fighting over IPs on the router, but that's fixed now. :)
I also got a little sidetracked fiddling with the alsa usb sound driver, I've been trying to get 5.1 analog out of this usb card and it took writing my own patch to the driver to get it working... gotta love Linux!

The 64 bit requirement for folding is only if you are running SMP on the CPU under Linux. If it is SMP under Windows, 32 bit is fine. GPU only needs Windows (though some have gotten it working under Linux). So with running WCG on the CPU, bits are a moot point :)
05-29-2009, 06:42 PM
Movieman

Quote:

Originally Posted by gongo

is anyone else here folding on a sammy? i'm seeing about 25% load on one cpu core just to keep the gpu loaded with f@h... is it normal to see such a high load? i mean, i expect to see a little higher than normal because i'm running the f@h gpu client through wine, but still. it"s cutting into my crunching! i've stopped folding for the time being until i do a little more reading on the f@h forums. wcg needs to get some gpu programs going, they don't seem to have problems adding new projects so there's obviously a lot of dev work happening.
either that or f@h needs to get serious about a linux gpu client, they've been talking about it for a while now it seems.

Yes, unfortunately that is exactly the type of load you see..:shrug:
05-30-2009, 08:51 AM
Sparky

Quote:

Originally Posted by gongo

is anyone else here folding on a sammy? i'm seeing about 25% load on one cpu core just to keep the gpu loaded with f@h... is it normal to see such a high load? i mean, i expect to see a little higher than normal because i'm running the f@h gpu client through wine, but still. it"s cutting into my crunching! i've stopped folding for the time being until i do a little more reading on the f@h forums. wcg needs to get some gpu programs going, they don't seem to have problems adding new projects so there's obviously a lot of dev work happening.
either that or f@h needs to get serious about a linux gpu client, they've been talking about it for a while now it seems.

nvidia or ATI card?

nvidia should take only a couple percent at the most. ATI does take a whole core by default unfortunately, but if you tinker enough (and pull a few hairs) you can get it to drop down decently enough. Not as low as nvidia but usually pretty close.
06-19-2009, 01:31 AM
tiro_uspsss

MM: which mounting holes does this mobo have again? s604 or s771?
06-19-2009, 02:29 AM
Martijn

Quote:

Originally Posted by tiro_uspsss

MM: which mounting holes does this mobo have again? s604 or s771?

s604 IIRC, but the height is different so s604 heatsinks won't fit.
06-19-2009, 02:49 AM
s0lid

Quote:

Originally Posted by tiro_uspsss

MM: which mounting holes does this mobo have again? s604 or s771?

s423, s603, s604 and lga771 have basicly the same mouting holes :)
06-19-2009, 03:59 AM
tiro_uspsss

Quote:

Originally Posted by s0lid

s423, s603, s604 and lga771 have basicly the same mouting holes :)

Quote:

Originally Posted by Martijn

s604 IIRC, but the height is different so s604 heatsinks won't fit.

thanks guys :up:
06-24-2009, 12:55 AM
Bail_w

i have an extra pairs of 2.0ghz SL9HN sossaman for sale. let me know if anyone interested.

Edit: GONE!
06-24-2009, 08:14 PM
Sparky

Quote:

Originally Posted by Bail_w

i have an extra pairs of 2.0ghz SL9HN sossaman for sale. let me know if anyone interested.

Edit: GONE!

:wasntme:

I couldn't help it :shrug:

Calling DR SIG! I'm ADDICTED :nuts: http://i58.photobucket.com/albums/g2...illy_nilly.gif
06-29-2009, 08:05 PM
Bail_w

i decided to mod the pci-express x8 slot to fit my 9600gso. Took me a while with my knife and stove, but it wroth it. :D
06-29-2009, 08:38 PM
tiro_uspsss

Quote:

Originally Posted by Bail_w

i decided to mod the pci-express x8 slot to fit my 9600gso. Took me a while with my knife and stove, but it wroth it. :D

pics please! :)
06-29-2009, 08:40 PM
Sparky

Quote:

Originally Posted by Bail_w

i decided to mod the pci-express x8 slot to fit my 9600gso. Took me a while with my knife and stove, but it wroth it. :D

Did you avoid chopping the trace like I did :rofl:
06-30-2009, 02:30 PM
Bail_w

Quote:

Originally Posted by tiro_uspsss

pics please! :)

Right here. Instead of taping the card, i tape the screw with electrical tape.

http://i31.photobucket.com/albums/c3...w/IMG_0489.jpg
http://i31.photobucket.com/albums/c3...w/IMG_0490.jpg
http://i31.photobucket.com/albums/c3...w/IMG_0491.jpg

Quote:

Originally Posted by SparkyJJO

Did you avoid chopping the trace like I did :rofl:

nope :up:
06-30-2009, 04:00 PM
tiro_uspsss

Quote:

Originally Posted by Bail_w

Right here. Instead of taping the card, i tape the screw with electrical tape.

niiiice :toast: :up:
06-30-2009, 04:15 PM
Movieman

It's toast Bail time! Nice work!:up:
06-30-2009, 05:07 PM
OldChap

I find myself wondering if a better solution would be one of those pci(e) risers that adapt 4-8-16 slots (example): http://linitx.com/viewproduct.php?prodid=11681
06-30-2009, 05:15 PM
Bail_w

Quote:

Originally Posted by gongo

those of you who have put in video cards: do you notice any problems with irq fighting?

i have an issue where every once in a while usb1 and my 9800gtx both grab irq 16, and sometimes that results in stuttering on my usb devices.
i had to add 'noirqdebug' to my grub init line to resolve that (not really a resolution, just prevents the kernel from trying to jump in to 'fix' things by disabling the irq and making it even WORSE).

i also noticed that the EDAC module goes completely CRAZY posting errors to dmesg every 100ms when the video card is doing 'work' (also known as playing X-Wing Alliance...) or anything that requires 3d acceleration.
looks like it doesn't appreciate being on a gen1 pcie 8x bus and would rather have room to stretch its legs...
i fixed that one by just disabling the EDAC module altogether!

anyway, just wanted to share that i didn't have any of these problems with the quadro nvs 290 or the geforce 8600gt because they're not quite as hungry for bandwidth. with the geforce 9800gtx, i can really see that it's starving for a wider bus.

So far, i have not experienced any problems yet.

Quote:

Originally Posted by OldChap

I find myself wondering if a better solution would be one of those pci(e) risers that adapt 4-8-16 slots (example): http://linitx.com/viewproduct.php?prodid=11681

you have a case that allows your to mount your card horizontally? if so, go for it. if not, then you have to find one that rises up vertically.

Edit: here is one:
http://linitx.com/viewproduct.php?prodid=11465

Oh yeah, the motherboard has pci-express x8 slot not x4.
07-01-2009, 01:28 PM
Sparky

Just got a weird error on sammy 2. It gives a "processor missing microcode" error, listing it 4 times (for all 4 cores I presume). What's up with that? The BIOS seems to be reading the chips OK, and it is booting off the windows disc fine :shrug:
07-01-2009, 01:46 PM
Movieman

Quote:

Originally Posted by SparkyJJO

Just got a weird error on sammy 2. It gives a "processor missing microcode" error, listing it 4 times (for all 4 cores I presume). What's up with that? The BIOS seems to be reading the chips OK, and it is booting off the windows disc fine :shrug:

check bios version and make sure your on the newest..
could be a newer cpu and older bios.
07-01-2009, 01:56 PM
Sparky

Ah OK... going to update it now. Safe to do with these chips that it is apparently a little unsure of?
07-01-2009, 02:05 PM
Bail_w

Quote:

Originally Posted by SparkyJJO

Just got a weird error on sammy 2. It gives a "processor missing microcode" error, listing it 4 times (for all 4 cores I presume). What's up with that? The BIOS seems to be reading the chips OK, and it is booting off the windows disc fine :shrug:

Update the bios then is fine, but i did not bother to update it because it is too much work.
07-01-2009, 02:28 PM
Sparky

BIOS update fixed it :D
Thanks.
07-01-2009, 04:11 PM
Bail_w

Quote:

Originally Posted by SparkyJJO

BIOS update fixed it :D
Thanks.

Did you use floppy or usb method?
07-02-2009, 07:17 AM
tiro_uspsss

ooh how it sucks to have no money.. I just stumbled across a deal that might interest sammy owners.. Kingston, 4x 2GB DDR2-400 ECC/REG DIMMs (8GB total) for USD$60 (2nd hand of course)... anyone want? :D I will post link.. later.. :p:

to compare newegg sells Kingston 2x1GB of the same spec stuff for USD$40..
07-02-2009, 07:42 AM
CaptMorgan

Intel Board

Ok my Sammy(s) build has been forever in the waiting-life has its bumps sometimes. anyways I am setting up the board, drive and PSU on a nice clean shelf so I am going caseless. After doing some reading which metal prongs at the bottom of the board i am supposed to touch together with say, a screwdriver, to jumpstart the board? I tried last night a few times had the lights on the board once I had it plugged in; but the lights seemed to flicker on and off. Now I figure i am doing this all wrong:(. Also I am going to setup another board and all the components just to make sure it is not any of the parts.
Just to double check I have a bunch of 2gb and 1gb for all my boards-if for now I am only placing 2 of each( of course just the same number;)) which slots would they go in?
Thanks guys
07-02-2009, 08:07 AM
Sparky

Quote:

Originally Posted by Bail_w

Did you use floppy or usb method?

I actually have a few floppy drives and disks lying around still so I just did that.

Quote:

Originally Posted by CaptMorgan

Ok my Sammy(s) build has been forever in the waiting-life has its bumps sometimes. anyways I am setting up the board, drive and PSU on a nice clean shelf so I am going caseless. After doing some reading which metal prongs at the bottom of the board i am supposed to touch together with say, a screwdriver, to jumpstart the board? I tried last night a few times had the lights on the board once I had it plugged in; but the lights seemed to flicker on and off. Now I figure i am doing this all wrong:(. Also I am going to setup another board and all the components just to make sure it is not any of the parts.
Just to double check I have a bunch of 2gb and 1gb for all my boards-if for now I am only placing 2 of each( of course just the same number;)) which slots would they go in?
Thanks guys

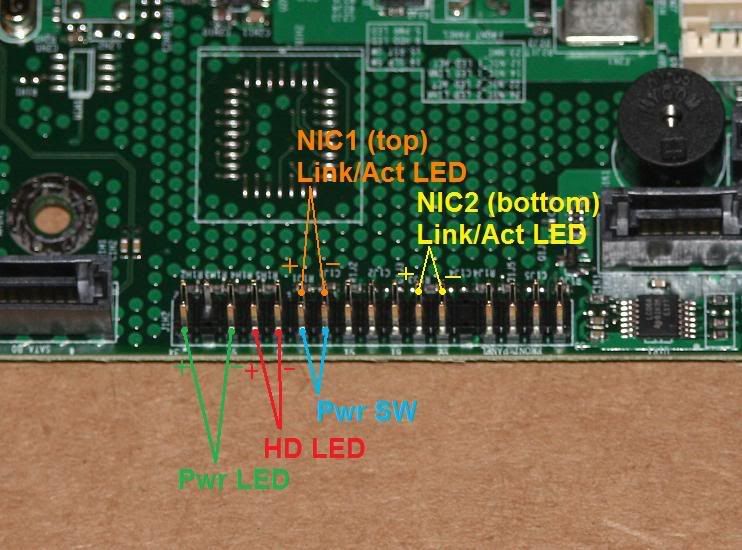

Here this pic should help, I went poking around on the board with switches and LEDs :D

http://i58.photobucket.com/albums/g2...O/sampanel.jpg

According to the manual for this board, you fill from top down. So I'd put two 2GB in the first two slots and the next two slots put the 1GB.
07-02-2009, 10:05 AM
Sparky

What's up with the onboard video on these things?

I just installed XP on sammy 2 using onboard, but now when it tries to boot it goes to "out of range" on my LCD. I tried an older CRT, same deal! What's up with this?
07-02-2009, 10:11 AM
Movieman

Quote:

Originally Posted by SparkyJJO

What's up with the onboard video on these things?

I just installed XP on sammy 2 using onboard, but now when it tries to boot it goes to "out of range" on my LCD. I tried an older CRT, same deal! What's up with this?

That's weird, I have had mine connected to both CRT and a Dell LCD with the onboard vid..
I use 1024x768 res..
07-02-2009, 10:18 AM
Sparky

Both phases of windows install went fine, I could see everything.

Now it POSTs (can see that) goes to the XP loading screen (can see that) then it goes out of range with vertical refresh rate at 58Hz. Goofy... :confused:

Worked ok under server 2008 but I only have 1 license for that.
07-02-2009, 10:29 AM
Sparky

I got it working. I used my laptop to compare keystrokes, and was able to go into the display properties > advanced settings > monitor tab and change the refresh rate without seeing what I was doing :p:

Had 3 options in the list - 58Hz, 60Hz, and 66Hz :wth: Thankfully my LCD could deal with 66Hz as I had selected that by accident. Set it to 60Hz and now things look normal, and the refresh rate list now has the typical 60Hz, 70Hz, 75Hz listed :rolleyes:
07-02-2009, 10:31 AM
Movieman

Quote:

Originally Posted by SparkyJJO

I got it working. I used my laptop to compare keystrokes, and was able to go into the display properties > advanced settings > monitor tab and change the refresh rate without seeing what I was doing :p:

Had 3 options in the list - 58Hz, 60Hz, and 66Hz :wth: Thankfully my LCD could deal with 66Hz as I had selected that by accident. Set it to 60Hz and now things look normal, and the refresh rate list now has the typical 60Hz, 70Hz, 75Hz listed :rolleyes:

yea Sparky! :cheer:
07-02-2009, 10:44 AM
Bail_w

This is weird... I connects the onboard video to my 2405fpw with a vga cable and never have any problems with it.
07-02-2009, 11:04 AM
Sparky

I'm guessing it was just XP's goofy default driver for the onboard video of this board.
07-02-2009, 11:11 AM
CaptMorgan

Those 2 power "prongs" worked on the other board I put together,Thanks. I will take the other board apart and resemble it, might of done something wrong along the way!
07-02-2009, 11:13 AM
Movieman

Quote:

Originally Posted by CaptMorgan

Those 2 power "prongs" worked on the other board I put together,Thanks. I will take the other board apart and resemble it, might of done something wrong along the way!

go to intels site and grab the manual..
This is a funky board and you will want that manual plus all the new drivers,etc..
07-02-2009, 11:15 AM
Sparky

Oh something I discovered about the 8 pin CPU power... a 4 pin works fine on it (that's all I have). Just center the 4 pin on the 8 pin (make sure you got the latch on the correct side), and shove it in :D Yeah it fits tight because you are sticking a "square peg in a round hole" so to speak but it works, and these CPUs pull so little power that only one 12V per CPU is fine. The wires and plug don't get even slightly warm.
07-02-2009, 11:20 AM
Movieman

Quote:

Originally Posted by SparkyJJO

Oh something I discovered about the 8 pin CPU power... a 4 pin works fine on it (that's all I have). Just center the 4 pin on the 8 pin (make sure you got the latch on the correct side), and shove it in :D Yeah it fits tight because you are sticking a "square peg in a round hole" so to speak but it works, and these CPUs pull so little power that only one 12V per CPU is fine. The wires and plug don't get even slightly warm.

I wouldn't do that.. Get a 4 to 8 pin adapter from PPPC's for under $10.00..:D
07-02-2009, 12:40 PM
Sparky

I may consider doing that, but it results in basically the same thing anyway (all the power through the 4 pin).

As of right now I have sammy 2 up and running! I am totaling 16 cores crunching :D That's nothing compared to some here but considering I went from 8 rigs to 4 and have more (and faster) cores running I think it is pretty good :up:

Now to rig something up a little more permanent for sammy 1 and 2 to fit in instead of sitting on boxes sitting on the desk and floor :rofl:
07-02-2009, 01:20 PM
Bail_w

Quote:

Originally Posted by SparkyJJO

Now to rig something up a little more permanent for sammy 1 and 2 to fit in instead of sitting on boxes sitting on the desk and floor :rofl:

They are fine. :D
07-02-2009, 02:08 PM
Movieman

Quote:

Originally Posted by SparkyJJO

I may consider doing that, but it results in basically the same thing anyway (all the power through the 4 pin).

As of right now I have sammy 2 up and running! I am totaling 16 cores crunching :D That's nothing compared to some here but considering I went from 8 rigs to 4 and have more (and faster) cores running I think it is pretty good :up:

Now to rig something up a little more permanent for sammy 1 and 2 to fit in instead of sitting on boxes sitting on the desk and floor :rofl:

you know I don't like rackmounts but Sammy is the exception to me..The question is would you need a @U or 3U to get by the HS and fan height..
They did put these in 1U's with those super lound little 40x56mm fans but that would drive you nuts..
maybe the cheapest way out is just a 2ft or 4ft wide shelving unit and lay them in place on cardboard..
07-02-2009, 02:21 PM
Sparky

Yeah that's what I'm figuring. A cardboard thing of some sort.

Eventually I want to have a rack, with 4U cases (can take standard PSUs that way, with standard PCIe cards), and stick all crunchers in the rack. Have the bottom half full of 4U cases with quads (or better), top half with KB, mouse, LCD, and radiators, and have the whole thing watercooled. That's my dream anyway :D
07-02-2009, 02:32 PM
CaptMorgan

dreams...I bought a shelf at home depot i will put all of them on there, cost i think 90 bucks not bad:)
07-02-2009, 08:40 PM
Bail_w

Quote:

Originally Posted by CaptMorgan

dreams...I bought a shelf at home depot i will put all of them on there, cost i think 90 bucks not bad:)

remember to post a picture of them in that shelf. :D
07-03-2009, 03:12 AM
tiro_uspsss

http://forums.2cpu.com/showthread.php?t=94815
07-06-2009, 07:02 PM
Bail_w

Have couple pairs of 2.0ghz SL9HN sammy for sale again. Let me know if anyone are interested.
07-06-2009, 10:44 PM
CaptMorgan

Well what an educational world ubuntu is i will post my adventures in that area also-found a tempt monitoring program that did and didn't work:cool::shakes:
but alas my first sammy i running @ 28c, not too bad. It's late but i will have some pics soon-electrician is coming next week to setup some power in the basement area for Sossaman City:yepp:
07-06-2009, 11:08 PM
PoppaGeek

Quote:

Originally Posted by CaptMorgan

Well what an educational world ubuntu is i will post my adventures in that area also-found a tempt monitoring program that did and didn't work:cool::shakes:
but alas my first sammy i running @ 28c, not too bad. It's late but i will have some pics soon-electrician is coming next week to setup some power in the basement area for Sossaman City:yepp:

Looking forward to some hardware p0rn! ;)
07-07-2009, 11:42 PM
Bail_w

Oh ya, i found a 2.16ghz SL9HM sossaman but i need another one though. :D
07-07-2009, 11:44 PM
Movieman

Quote:

Originally Posted by Bail_w

Oh ya, i found a 2.16ghz SL9HM sossaman but i need another one though. :D

No way in hell..:eek: Where?
Was it here?..:)
http://www.upgradebay.net/sl9hm.html
07-07-2009, 11:46 PM
Bail_w

Quote:

Originally Posted by Movieman

No way in hell..:eek: Where?

I got it off ebay but its only one though :(

Edit: Here is a screenshot

http://i31.photobucket.com/albums/c3...untitled-8.jpg
07-07-2009, 11:47 PM
CaptMorgan

You just found 1:cool:- still good find, remmeber Dave said He was searching high and low for that 1
07-07-2009, 11:48 PM
CaptMorgan

Jeez Dave were you sleeping and did you hear Bail w post or something;)
07-07-2009, 11:50 PM
Movieman

Quote:

Originally Posted by Bail_w

I got it off ebay but its only one though :(

Edit: Here is a screenshot

http://i31.photobucket.com/albums/c3...untitled-8.jpg

Nice score.. There is supposedly also a 2300mhz version out there..

Quote:

Originally Posted by CaptMorgan

Jeez Dave were you sleeping and did you hear Bail w post or something;)

How'd you know?:rofl:
07-07-2009, 11:52 PM
Bail_w

Quote:

Originally Posted by Movieman

Nice score.. There is supposedly also a 2300mhz version out there..

How'd you know?:rofl:

Really? i thought 2.16ghz is the highest. What is the sSpec for the 2.3ghz?

edit:

http://www.cpu-world.com/cgi-bin/SSpec_Chart.pl

i can't find any 2.3ghz here.
07-07-2009, 11:54 PM
Movieman

Quote:

Originally Posted by Bail_w

Really? i thought 2.16ghz is the highest. What is the model for the 2.3ghz?

I don't know off the top of my head. They were used in a funky 4 blade unit shaped like a normal tower..
I even called the company to see if they had any left..:D
Let me see if I can find a link to it.
07-08-2009, 12:02 AM
Movieman

http://www.intel.com/Assets/PDF/gene...s_m_060830.pdf
07-08-2009, 12:06 AM
Bail_w

Quote:

Originally Posted by Movieman

http://www.intel.com/Assets/PDF/gene...s_m_060830.pdf

That is weird. According to the intel processor sSpec finder, there is no 2.33ghz intel xeon lv.

http://processorfinder.intel.com/Lis...528&SearchKey=

Filter by package: Micro-FCPGA

:confused:

edit: nvm, SL9HM did not come up in that list as well, so i guess there are 2.33ghz sammys.
07-08-2009, 12:08 AM
Movieman

Quote:

Originally Posted by Bail_w

That is weird. According to the intel processor sSpec finder, there is no 2.33ghz intel xeon lv.

http://processorfinder.intel.com/Lis...528&SearchKey=

Filter by package: Micro-FCPGA

:confused:

I know, and they also made a merom that works in this board but that "doesn't" exist also..:rofl:
07-08-2009, 12:10 AM
Movieman

Quote:

Originally Posted by Movieman

I know, and they also made a merom that works in this board but that "doesn't" exist also..:rofl:

The more I think on it that 2.33 they mention in the PDF probably is a merom and not a sossaman..
Those would be interesting as they are 4mb cache and 800fsb native and 64 bit OS capable..
07-08-2009, 12:15 AM
Bail_w

Quote:

Originally Posted by Movieman

The more I think on it that 2.33 they mention in the PDF probably is a merom and not a sossaman..
Those would be interesting as they are 4mb cache and 800fsb native and 64 bit OS capable..

Well, the specs listed under "NEXXUS 4820-BB" are exactly described as a sossaman. On the other hand, under "NEXXUS 4820-AL", they listed the model of the Xeon LV processor which is 64bit capable.

Hmmm, one thing caught my attention is under "NEXXUS 4820-BB", they listed the 2.33ghz sossaman is 32gb and up to 64gb memory capable. Don't you think for a 32bit processor would be able to use 64gb of ram?
07-08-2009, 12:25 AM
Movieman

Quote:

Originally Posted by Bail_w

Well, the specs listed under "NEXXUS 4820-BB" are exactly described as a sossaman. On the other hand, under "NEXXUS 4820-AL", they listed the model of the Xeon LV processor which is 64bit capable.

Hmmm, one thing caught my attention is under "NEXXUS 4820-BB", they listed the 2.33ghz sossaman is 32gb and up to 64gb memory capable. Don't you think for a 32bit processor would be able to use 64gb of ram?

The 5148 cpu's they list for that are the low voltage woodcrests, like the orginal C2D's..E6600's
It's a cluster server so interlinked it could use that much memory.. It's like a baby Cray in some ways..
16 sammys interconnected would have some interesting computing power and in that case would be decent..
Time for bed and congrats on your find..
You can PM me how much you stole it for!:D
07-08-2009, 03:14 AM
s0lid

Quote:

Originally Posted by Bail_w

Oh ya, i found a 2.16ghz SL9HM sossaman but i need another one though. :D

Well that's a FIND m8!
07-08-2009, 04:06 AM
Martijn

Quote:

Originally Posted by s0lid

Well that's a FIND m8!

That ^^

I never saw one for sale either :(
07-08-2009, 04:08 AM
Martijn

Multiple Sammy's available on ebay here:

http://cgi.ebay.com/Xeon-dual-core-L...3%3A1|294%3A50

$50/piece, but I've seen worse.
07-08-2009, 08:55 AM
Bail_w

Quote:

Originally Posted by Martijn

Multiple Sammy's available on ebay here:

http://cgi.ebay.com/Xeon-dual-core-L...3%3A1|294%3A50

$50/piece, but I've seen worse.

I have 2.0ghz sammys for 85 dollars shipped per pair via usps priority mail con usa :D
07-08-2009, 09:09 AM
Movieman

Quote:

Originally Posted by Bail_w

I have 2.0ghz sammys for 85 dollars shipped per pair via usps priority mail con usa :D

Is your 2160 sammy going to get mixed up in one of those pairs? :hrhr:
07-08-2009, 09:11 AM
Sparky

I'm working on a case design for my sammys. Would be much easier if I could use one PSU to run both of them. Has anyone done this before? If I split the 24 pin between the two boards, and I hit the power button of one, would both come on together? If I tell one to shut down, does it shut both down or just end up restarting the one, or....? How would this work? Does anyone know? :shrug:
07-08-2009, 09:11 AM
Bail_w

Quote:

Originally Posted by Movieman

Is your 2160 sammy going to get mixed up in one of those pairs? :hrhr:

No way i am selling that. :D
07-08-2009, 09:15 AM
Movieman

Quote:

Originally Posted by SparkyJJO

I'm working on a case design for my sammys. Would be much easier if I could use one PSU to run both of them. Has anyone done this before? If I split the 24 pin between the two boards, and I hit the power button of one, would both come on together? If I tell one to shut down, does it shut both down or just end up restarting the one, or....? How would this work? Does anyone know? :shrug:

I wouldn't.. Go to newegg and get the Corsair 400w PSU..
Excellent and to be honest, perfect for a sammy rig..

Quote:

Originally Posted by Bail_w

No way i am selling that. :D

I know, was teasing..hell of a find..:up:
07-08-2009, 09:22 AM
Sparky

Quote:

Originally Posted by Movieman

I wouldn't.. Go to newegg and get the Corsair 400w PSU..
Excellent and to be honest, perfect for a sammy rig..

I know, was teasing..hell of a find..:up:

Well I have two PSUs, that's not the issue. Just that the box size is perfect to fit both sammies in and a single 500W PSU. I can shove both PSUs in there, just thought maybe one would make things potentially easier.
07-08-2009, 09:26 AM
Movieman

Quote:

Originally Posted by SparkyJJO

Well I have two PSUs, that's not the issue. Just that the box size is perfect to fit both sammies in and a single 500W PSU. I can shove both PSUs in there, just thought maybe one would make things potentially easier.

I never liked the idea of putting two systems on one PSU even if it was a big one.. Just doesn't seem the smart way to go and leaves you open to losing 2 systems if something nasty happens.
07-08-2009, 09:27 AM
Sparky

How true.

I'll just shoehorn both PSUs in this box then :D
07-08-2009, 09:28 AM
Movieman

Quote:

Originally Posted by SparkyJJO

How true.

I'll just shoehorn both PSUs in this box then :D

That's a smart boy!:D (Italian accent)
07-08-2009, 09:35 AM
Martijn

Quote:

Originally Posted by SparkyJJO

I'm working on a case design for my sammys. Would be much easier if I could use one PSU to run both of them. Has anyone done this before? If I split the 24 pin between the two boards, and I hit the power button of one, would both come on together? If I tell one to shut down, does it shut both down or just end up restarting the one, or....? How would this work? Does anyone know? :shrug:

There are howto's with C2D based systems on the internet. I've seen one and it should work. I'd have a look around at google. 2 Sammys would be fine on any PSU, it would only be 200W maximum.
07-08-2009, 09:47 AM
Sparky

Ran into an snag. Everything was fitting perfectly in this box until I realized I need a spot to put the hard drives. With one PSU there would be enough room for the drives but with two PSUs it is a struggle. If only this was about 2 inches taller...

I did a google, Looky I found CyberDruid posting how to do it - with the power up questions I had answered! :D

http://www.overclock.net/faqs/112866...ply-power.html

Show 100 post(s) from this thread on one page

All times are GMT -8. The time now is 02:54 AM.

XtremeSystems
