Quote:
Originally Posted by Absolute_0
Man, you are killing me...throwing those crazy numbers like there is no tomorrow...
my CPU's status:
Out of Foreign Customs, February 24, 2006, 10:44 pm
Into Foreign Customs, February 23, 2006, 6:39 pm, SWEDEN
Arrived Abroad, February 23, 2006, 6:39 pm, SWEDEN
It will be here on tuesday I guess..
..looks like the customs had a peek at it though. :(
well, well...hopefully I'll be good for the rest of this year with this babe..:p:
Maybe someone at customs who just happens to be a computer enthusiast in desperate need of a good Opty dual core 0550V/UPMW is checking ALL small boxes :eek: :D :banana:Quote:
Originally Posted by Clint
hehe..suddenly it can't be found...3 months later they compensate me with either a new 170'er of some crappy stepping or they give me the value of the CPU at the time of compensation....how to explain to a official the difference of steppings??Quote:
Originally Posted by alpha0ne
..nah, lets just hope this will not happend.:p:
Oh no, what temps due they coldbug at??? My Mach II with my Oty 148 @ 1.58 runs -22 to -17 (-51 evap) idle, and -7 to -5 under load. You were saying that the cpu seems to run hotter though right?Quote:
Originally Posted by Absolute_0
If its bad I may have to sell the unopened 170 0550 VPMW cpu then. :(
Hi,Quote:
Originally Posted by alpha0ne
well I never saw a proper comparison between the same chip using different cooling so I didn't figure that a lower temp on the processor core would reduce the amount of vCore it needed to run stable.
I always thought the advantage of water cooling was because it was quiet and that it could cool a CPU better than air, therefore allowing more vCore to be pumped through the processor? (resulting in a higher overclock!).
So which law of physics are we dealing with here exactly?
It's those damn electrons, those damn electrons..and conduction.
When hotter they run loose..and jump all around the place;)
..or I could be talking right out of my ass here..lol!
NEW 170
CCB1E 0550 VPMW
Run hotter than previous 165 i have :(
BTW is there any one bother to answer my question here:
http://www.xtremesystems.org/forums/...ad.php?t=90540
http://i19.photobucket.com/albums/b1...0pic/2700b.jpg
Quote:
Originally Posted by zentrad
my new 0550UPMW runs hotter than my 0546XPMW idles about 15F hotter....loads about 20F degress hotter as well
I will probably get flamed but
with my huge experience..2 optys 165 and 170..temps never seem to be an issue
My cpus hit OC wall well before the 55C limit I had..max they did on air was 51-52C with 1.55v on my 170
My PWMIC all never crashed my setup even when it was running 63/64 under dual prime 95 with my opty 170
within in reason it seems temps are not a big deal..except when you are "really" pushing the chips limit???
170 max was 2700 @1.5v...maybe 2750 @1.55v but never really finialized this as it was not worth it(load 47/49C on air)
165 seem to max 2610 no matter vcore(load 1.49 46-48C)
after doing some testing here is what I have found out with this 0550UPMW at 1.45V (in bios) on my 0546XPMW I would idle at around 26C and load around 37C....with the 0550UPMW I idle around 31C and load around 53C....I am starting to think that perhaps the IHS might not have good contact with the core.....I have an SLK948U coming from canada and when I get it I think I am going to pop the lid on my 170 and see what happens...
For those who can find it, my advise - get Opteron 175 OEM version CCBWE 0530
No sign of cold bug in a mod VapoLS (-60 evaporator / less than -30ºC on the bios)
These "golden" CCBWE 0530's in a good single phase can do 3.400Mhz benchable on booth cores
http://pedrorocha.planetaclix.pt/Opt...perPI25sec.jpg
Max speed
http://pedrorocha.planetaclix.pt/Opt...cpuz_small.jpg
And this
http://pedrorocha.planetaclix.pt/SandraOpti3350.jpg
More than 30.000 MIPS and a Performance Rate of 10.066 that's shick:) :)
Holy Macarony...tha IS sick!:slobber:Quote:
Originally Posted by Pedro Rocha
Hmm something is wrong. Since yesterday, my idle and load temps have risen to 30C and 46C respectively from 25-27C and 39-41C. That can't just magicly happen like that, this room is cooler today than it was before this started yet my temps are still higher at exactly the same settings. No improvement at all after a remount. Something is wrong here...
Well I've been doing a bit of thinking, and apart from borked sensors, the only explanation I can think of is that I'm using a small PWM fan which doesn't have any spread onto the CPU. I swapped out the stock BT fan for a Panaflo and it's loading at 38-39C at 2.75GHz.
EDIT: Uploaded screenie
Received the gift from my friend---opty 170 CCB1E 0550 VPMW. Thanks Alex :toast:
Here's my result so far. Not too sharpy. It can do SPI32 but not prime. Core0 crap out around 5 minutes. This's with IHS off and water cool.
http://img519.imageshack.us/img519/1...1703ghz2hy.jpg
I think the IHS is bad on my 0550UPMW for sure...at 1.325V load 46C idle 35C...on 0546XPMW load 37C idle 26C...anybody else think that the IHS is not making good contact with core?
Argh I'm having to start priming again, got an IRQ_LESS_OR_NOT_EQUAL BSOD (related to my HDD I think) :( This time I'm trying for 2.8 :) Temps are around 39-40C loaded so far :)
Theres usually not much gain in removing the IHS on Dual-coreQuote:
Originally Posted by Grinch
I have 25C difference between idle and dual-prime at 1.75V :slapass:
IHS remounted under Mach I
^What?? Removing IHS on dual core is where the MOST gain is :stick:
maaaaaaan you're killing me with these CPUs :p:Quote:
Originally Posted by nop
I am about to embark on my first system build and have a 165 CCB1E 0550VPMW and a 170 CCB1E 0550VPMW. I am just waiting on my video card to arrive. Went a little nuts and ordered a Saphire X1900XTX.
So will probably start with the 170 first and plan on using a Zalman CNPS9500 LED air cooler.
Thought all I had to do was put a dab of arctic silver on top of the cpu and attach the Zalman as directed. But on this forum you guys talk about removing the "IHS".
So here is my n00b question, what is the "IHS"? Should I be removing this?? :confused:
Will post results for both processors probably next weekend. Hope mine are as good as the other ones that have been posted :D
If you're asking what is the IHS, do not consider removing it. It's a dangerous operation that removes the metal top off the processor exposing the bare core; temps go down a few degrees but it's not recommended for first timers.
EDIT

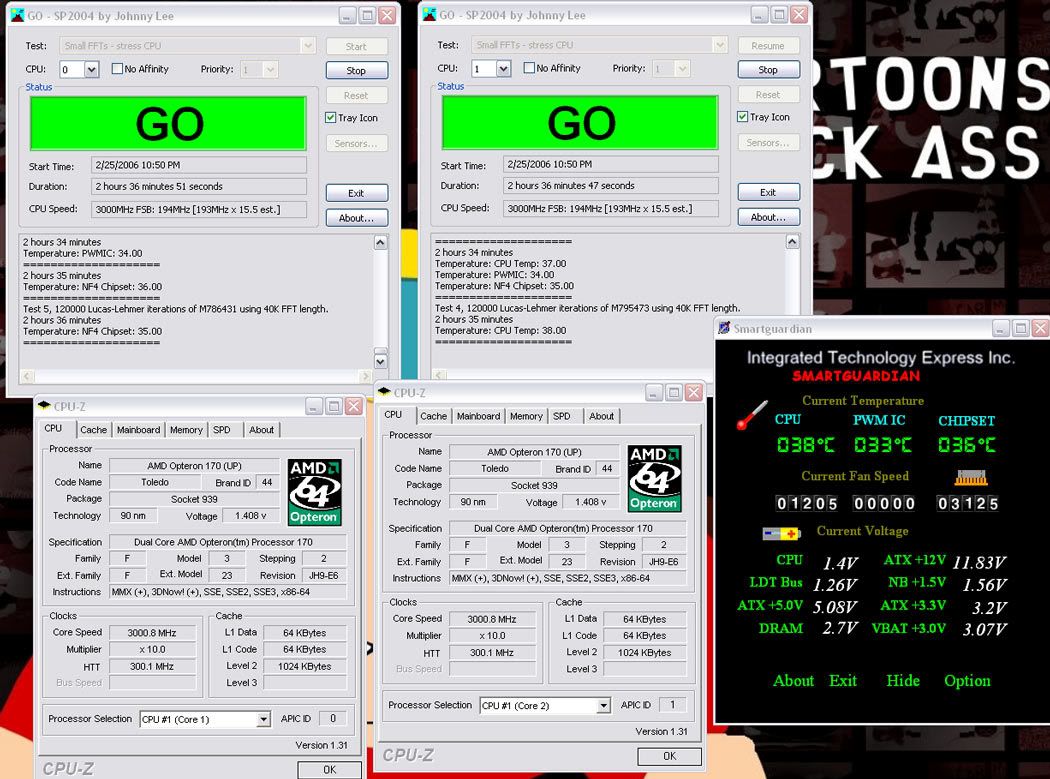

Remounted my WC, dropped temps a few degrees :)
http://img.photobucket.com/albums/v7...l/d04ce710.jpg
As a noobie OCing can be very frustrating..the first time builds and OCs..you need patience and lower expectations..after 7yrs of OCing and nothing extreme like phase change..I only use air because more cost effective, although with all the fan purchases..trying to get best balance of quiet operation..I probably should buid a water cooling setup..but I fear a water leak and a pooched setupQuote:
Originally Posted by ceevee
The result you see here are by experienced OCers who tinkerand tweak alot to get this great OCs
with that said OC is always an unknown even with the best setup in anyone's hands
The 165 should do 2.7-2.8 pretty easy, 170 may hit as high as 2.9 on air...but you will need to tweak your setup and ram.
Keep your expectations at 2.7-2.8 range and you should be happy, if you hope for 3Ghz this will be harder ..especially as first time builder
what mobo?, what psu(this is very important as you will have so big power draws in your setup..ie cpu/videocard)..do not cut corners on PSU and Mobo choice....
PSU:
OCZ Powerstreams..520W and up
Zippy
Power PC & Cooling
Seasonic 500/600W
Antec 550W?
and few others but that seem to do well for many overclockers
Mobos..DFI Ultra D/SLI DR, Expert mobos
Asus A8N 32 SLI
Please take your time, becareful and ask questions...do not try to remove the cpu ..too high a chance you will kill it
The rest of my build components are:
OCZ 520W Modular PSU
DFI Lanparty nf4 Ultra-D
G.Skill F1-4800 DDR600 RAM 2x512mb
NXZT case (I do not see the model number on it but it has 3x120mm and 1x90mm fans)
ZALMAN CNPS9500LED
waiting on the X1900XTX to arrive in the mail before I can start.
Does anyone have any suggestions for these components? My understanding is that I install CPU, one stick RAM, and PSU and try to turn it on to see the bios and do memtest? Is this correct? Then I add other stick RAM, test again. Then one component, test, one component, test etc. Is this right?
thanks for a great forum, I feel I have learned a lot just by hanging around and reading for a few weeks before I post. :)
Just assemble everything on a testbed first. I don't think all those steps are necessary unless you encounter problems on the first boot. Use the DFI box with some foam and antistatic wrap that it comes with. Also, make sure you have clearance for the vid card panel.
