    Armeniandave's Wall Mounted Case

    Well many of you know I built my MM extended ascension awhile back. While I love it I am never really satisfied so I'm gonna sell the case and start something I have had in my mind for a long time.

    My case will be mounted on my wall in my office between two large cabinets.

    It will be watercooled with two Dual DDC Clear Acrylic Top's each going into a MCR320 and MCR220 sandwich. I want to reuse as much as I can from my current build so buying new rads is not an option right now.

    Cable Management as well as tubing management are of utmost importance. When its done it will look very simple yet will have alot going on under the hood.

    I'm going with a blue theme this time so as to be different then the red theme I've used in the past. The blue will be the same as in my blue brackets.

    I'll be using two slot loaded DVD burners as well.

    Here's a couple of renders that will show you what I'm thinking about. The pictures don't show any wiring or tubing holes yet. That will come soon.

    Enjoy and feel free to ask questions or suggestions!









    Armeniandave
    i7 970 4.0 Ghz 1.325v // Asus P6X58D Premium // Windows 7 Ultimate 64bit // 12gb Corsair Dominators // 2- GTX 580 Hydrocoppers in SLI// 2-OCZ Vertex 2 Raid//128Gb Corsair SSD (Temp Storage) // Custom Wall Mount Case // Corsair 1000W // SyncMaster 2433BW // Dual loops 2-laing 355's each with XSPC dual top // (UN) 3G Brackets & X-Brackets // Swiftech Apogee XT // 2 x 120.3 & 2 x 120.2 Swiftech Rads//

    Wall Mount Build Log: http://www.xtremesystems.org/forums/...d.php?t=242186
    MM Extended Ascension Build Log:http://www.xtremesystems.org/forums/...d.php?t=212236[/SIZE][/SIZE][/SIZE]

  2. #2
    Xtreme Member
    Join Date
    Nov 2008
    Location
    Eagle Rock, Ca.
    Posts
    398
    Enjoyed your last build and this looks to be very interesting, Dave.
    What case are you using? Completely fabricated by you?
    [SIGPIC][/SIGPIC]

    Now Playing

    black freighter: i7 920 | evga classified | mm extended ascension pedestal | 2 x 300gb vraps
    dead men tell no tales build: q9770 | asus striker 2 extreme | 2x4gb ddr3 ocz reaper | 2 x gtx 280 oc2 | 2x 300gb vraps | mm ufo-cyo | pcp&c 1200W

  3. #3
    Xtreme Enthusiast
    Join Date
    Mar 2008
    Location
    San Diego
    Posts
    581
    Absolutely 100% fabricated!

    I seriously looked all over the web for any wall
    mounted case's and there wasn't really anything
    out there. One guy stuffed like six PC's into one
    but it looked a bit messy and didn't really have
    the attention to detail that I like.

    The main case will be out of wood with fabricated metal
    in strategic places. When it's done you won't really see any
    wood but the wood makes a great base on which to build upon.
    i7 970 4.0 Ghz 1.325v // Asus P6X58D Premium // Windows 7 Ultimate 64bit // 12gb Corsair Dominators // 2- GTX 580 Hydrocoppers in SLI// 2-OCZ Vertex 2 Raid//128Gb Corsair SSD (Temp Storage) // Custom Wall Mount Case // Corsair 1000W // SyncMaster 2433BW // Dual loops 2-laing 355's each with XSPC dual top // (UN) 3G Brackets & X-Brackets // Swiftech Apogee XT // 2 x 120.3 & 2 x 120.2 Swiftech Rads//

    Wall Mount Build Log: http://www.xtremesystems.org/forums/...d.php?t=242186
    MM Extended Ascension Build Log:http://www.xtremesystems.org/forums/...d.php?t=212236[/SIZE][/SIZE][/SIZE]

  4. #4
    Xtreme Member
    Join Date
    Nov 2008
    Location
    Eagle Rock, Ca.
    Posts
    398
    Quote Originally Posted by armeniandave View Post
    Absolutely 100% fabricated!
    How UNshocking of you.


    Sub'd, matey
    Last edited by CptDreadFlint; 12-31-2009 at 01:26 AM. Reason: forgot to cross a T and dot an I.

  5. #5
    Moderator
    Join Date
    Aug 2007
    Location
    Back and forth between Florida and Maine
    Posts
    4,097
    Excellent news! I'm sure this will be another beautiful build, Dave.

  6. #6
    Xtreme Enthusiast
    Join Date
    Mar 2008
    Location
    San Diego
    Posts
    581
    Thanks Shazza and let me congratulate you on your new status.
    It's well deserved!

    I want this to be beautiful and functional.
    It will be in a way a blending of furniture
    and computer to create something not seen yet.

    The hard part will be saying bye to my MM case..
    i7 970 4.0 Ghz 1.325v // Asus P6X58D Premium // Windows 7 Ultimate 64bit // 12gb Corsair Dominators // 2- GTX 580 Hydrocoppers in SLI// 2-OCZ Vertex 2 Raid//128Gb Corsair SSD (Temp Storage) // Custom Wall Mount Case // Corsair 1000W // SyncMaster 2433BW // Dual loops 2-laing 355's each with XSPC dual top // (UN) 3G Brackets & X-Brackets // Swiftech Apogee XT // 2 x 120.3 & 2 x 120.2 Swiftech Rads//

    Wall Mount Build Log: http://www.xtremesystems.org/forums/...d.php?t=242186
    MM Extended Ascension Build Log:http://www.xtremesystems.org/forums/...d.php?t=212236[/SIZE][/SIZE][/SIZE]

  7. #7
    Xtreme Enthusiast
    Join Date
    Mar 2008
    Location
    San Diego
    Posts
    581

    Update on the case

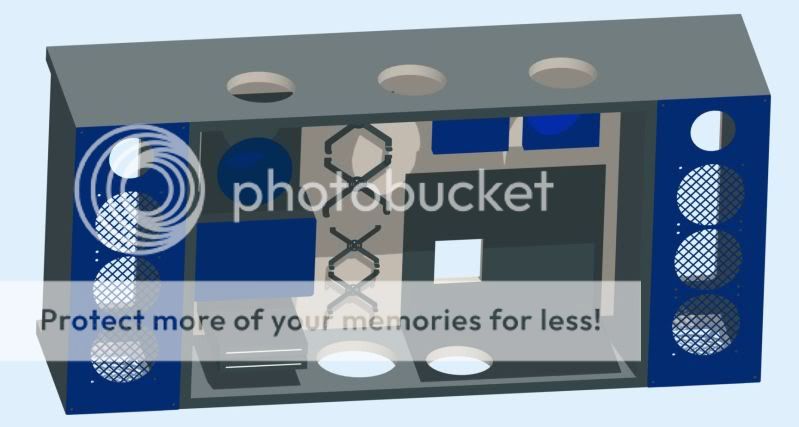

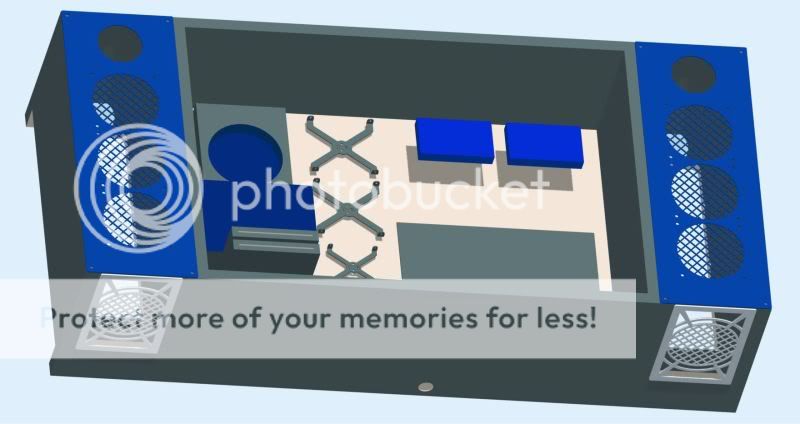

    Here are some CAD drawings that are starting to show some details.
    The pics show the air intakes on the bottom of the case and also the access panel on the back to facilitate connectors and so forth.
    Also you can see some ideas for the fan placements.

    I'm working on the front panel that will cover all of the components. It will be a metal frame with a lightly smoked acrylic.



    i7 970 4.0 Ghz 1.325v // Asus P6X58D Premium // Windows 7 Ultimate 64bit // 12gb Corsair Dominators // 2- GTX 580 Hydrocoppers in SLI// 2-OCZ Vertex 2 Raid//128Gb Corsair SSD (Temp Storage) // Custom Wall Mount Case // Corsair 1000W // SyncMaster 2433BW // Dual loops 2-laing 355's each with XSPC dual top // (UN) 3G Brackets & X-Brackets // Swiftech Apogee XT // 2 x 120.3 & 2 x 120.2 Swiftech Rads//

    Wall Mount Build Log: http://www.xtremesystems.org/forums/...d.php?t=242186
    MM Extended Ascension Build Log:http://www.xtremesystems.org/forums/...d.php?t=212236[/SIZE][/SIZE][/SIZE]

  8. #8
    Xtreme Enthusiast
    Join Date
    Mar 2008
    Location
    San Diego
    Posts
    581

    Design just about completed

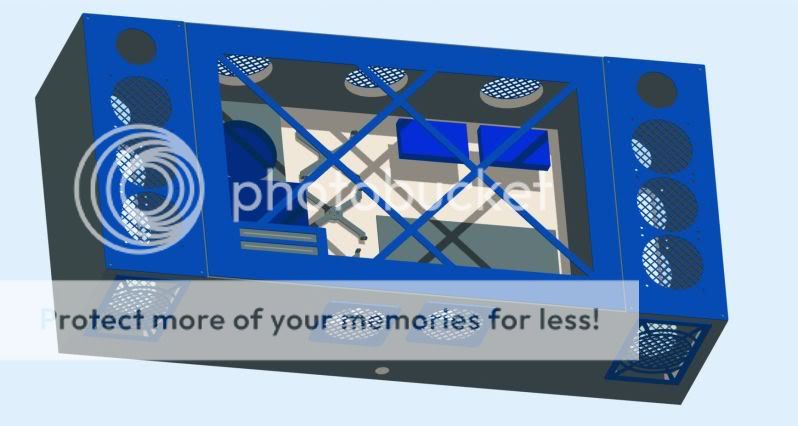

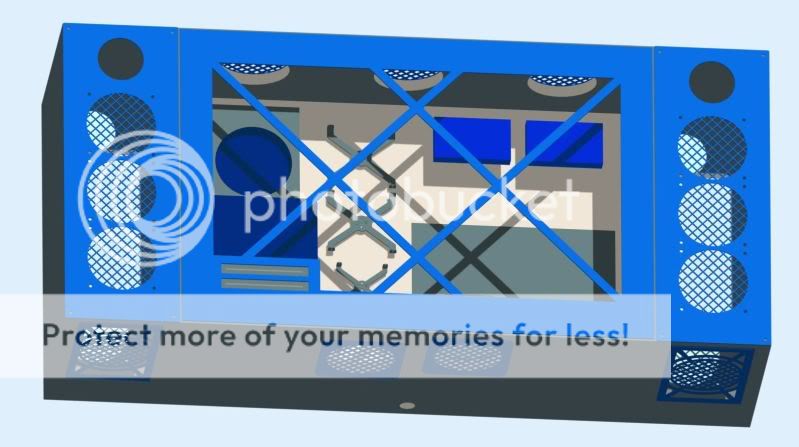

    Here's a shot of the front grill.
    I'm going with the same pattern
    as the little grills only blown up huge!

    The right and left grills where the rads
    are may be black to contrast the blue
    on the front grill and the custom X-Brackets.

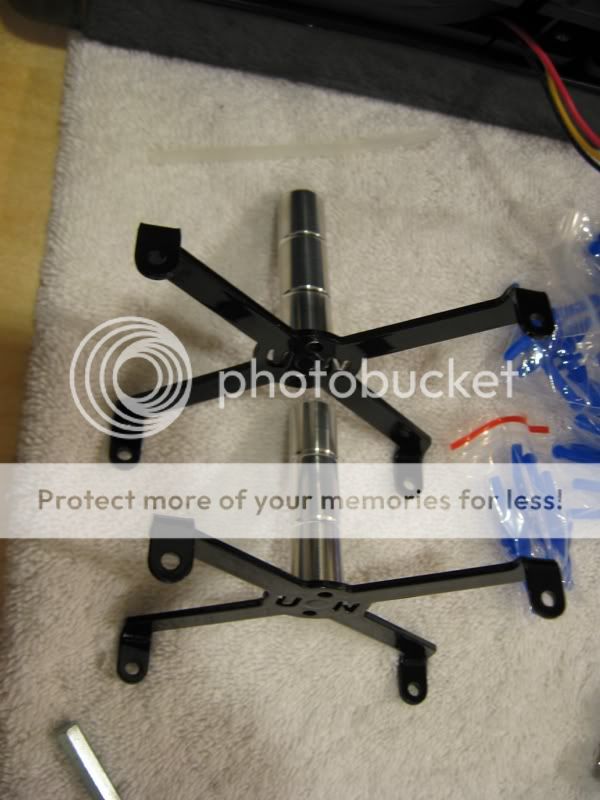

    I'm making some X-Brackets that will mount
    3.5" drives so they'll match the smaller X-Brackets.

    I will be starting on the case on Wednesday.
    Grills will all be cut next week.



    i7 970 4.0 Ghz 1.325v // Asus P6X58D Premium // Windows 7 Ultimate 64bit // 12gb Corsair Dominators // 2- GTX 580 Hydrocoppers in SLI// 2-OCZ Vertex 2 Raid//128Gb Corsair SSD (Temp Storage) // Custom Wall Mount Case // Corsair 1000W // SyncMaster 2433BW // Dual loops 2-laing 355's each with XSPC dual top // (UN) 3G Brackets & X-Brackets // Swiftech Apogee XT // 2 x 120.3 & 2 x 120.2 Swiftech Rads//

    Wall Mount Build Log: http://www.xtremesystems.org/forums/...d.php?t=242186
    MM Extended Ascension Build Log:http://www.xtremesystems.org/forums/...d.php?t=212236[/SIZE][/SIZE][/SIZE]

  9. #9
    Xtreme Enthusiast
    Join Date
    Jan 2009
    Location
    Moscow, Russia
    Posts
    684
    wow, subd!
    Worklog: Project Black Copper
    Lian Li PC-P80 | Thermochill PA140.3 | Noiseblocker fans | mdpc-x stuff

  10. #10
    Xtreme Enthusiast
    Join Date
    Aug 2009
    Location
    Louisville, KY
    Posts
    582
    Your work is great.. subed

  11. #11
    Xtreme Enthusiast
    Join Date
    Mar 2008
    Location
    San Diego
    Posts
    581
    Thanks Kenjiwing & aka_GK!

    I think it's really hard for people to imagine
    a completely watercooled case on the wall.
    If you Google it you will only find half-hearted
    attempts. If anyone knows me I don't do anything
    half ass so believe me when I say that when this is done
    I have a feeling people are gonna be really surprised
    at the results!

    Parts are starting to roll in and fabrication on
    the case has been started.

    Thanks!
    i7 970 4.0 Ghz 1.325v // Asus P6X58D Premium // Windows 7 Ultimate 64bit // 12gb Corsair Dominators // 2- GTX 580 Hydrocoppers in SLI// 2-OCZ Vertex 2 Raid//128Gb Corsair SSD (Temp Storage) // Custom Wall Mount Case // Corsair 1000W // SyncMaster 2433BW // Dual loops 2-laing 355's each with XSPC dual top // (UN) 3G Brackets & X-Brackets // Swiftech Apogee XT // 2 x 120.3 & 2 x 120.2 Swiftech Rads//

    Wall Mount Build Log: http://www.xtremesystems.org/forums/...d.php?t=242186
    MM Extended Ascension Build Log:http://www.xtremesystems.org/forums/...d.php?t=212236[/SIZE][/SIZE][/SIZE]

  12. #12
    Xtreme Enthusiast
    Join Date
    Mar 2008
    Location
    San Diego
    Posts
    581
    Well for the three people out there watching this here's an update.

    The case is being built right now!
    Here are some pics of the pieces coming together.
    The channels are for the wires for the fans.
    The top and bottom fans will be inset and the wiring
    totally invisible. To do this we had to dado a groove
    into one piece and then glue it to another piece. This
    makes a channel big enough for the wiring to go thru.







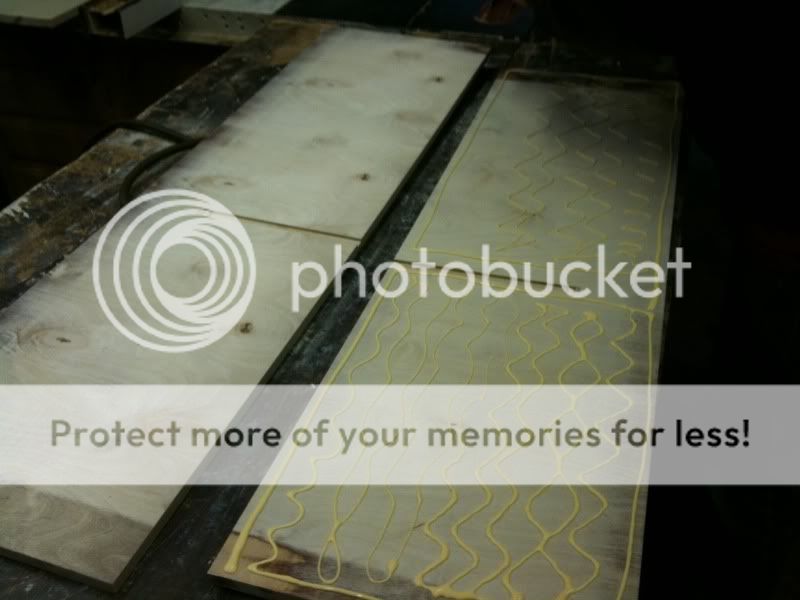

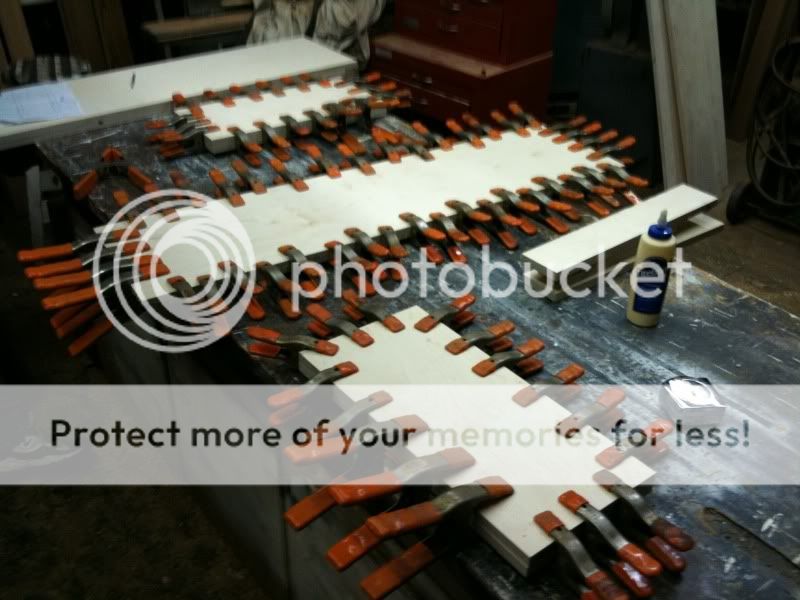

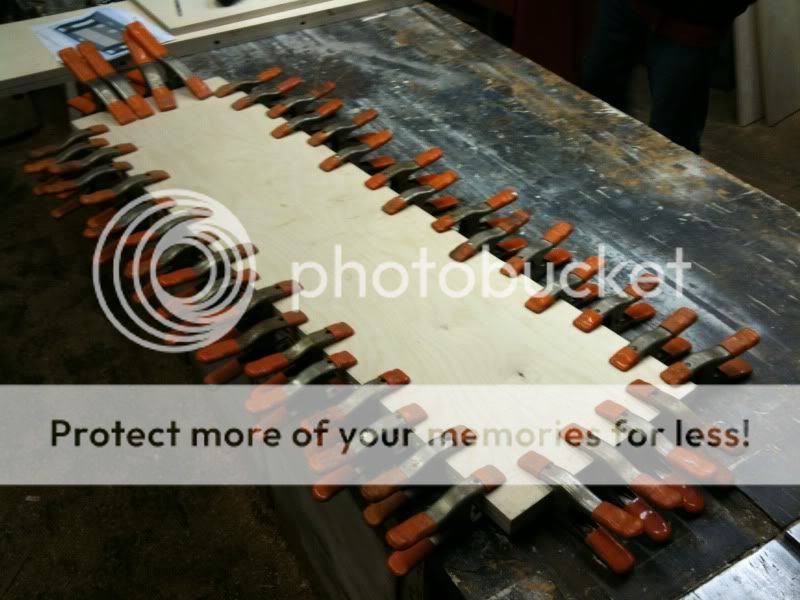

    Here's most of the pieces drying after being glued together.





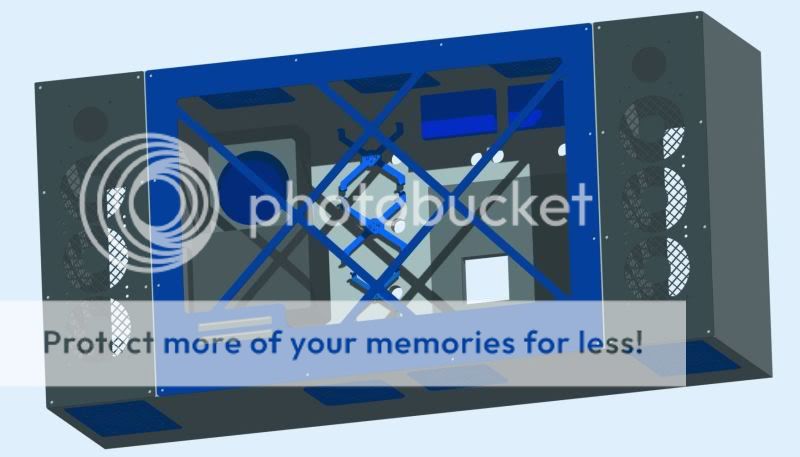

    Here's some more detailed renderings so you can see where everything is going.






    Here's how the rads will be configured.
    There is one of these on each side.





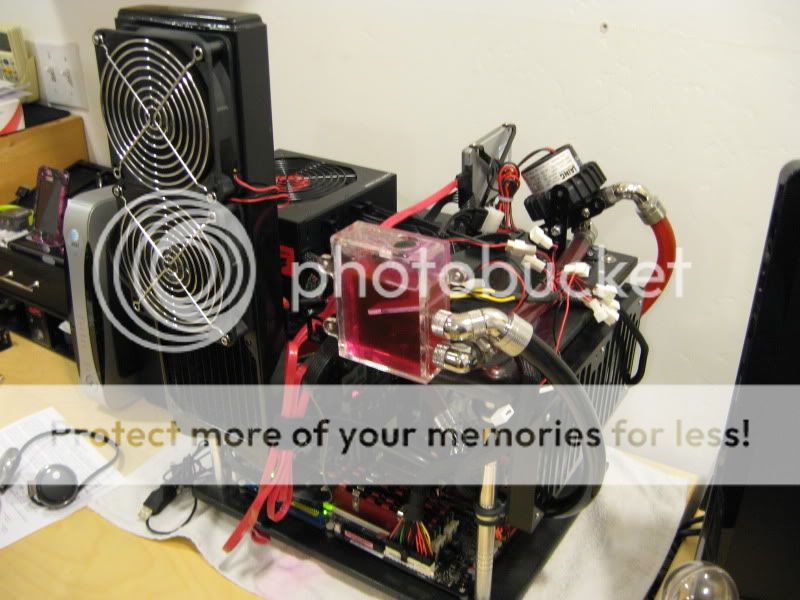

    Finally here is my temporary rig until the new one is done!
    It's a bit smaller than the last one......



    I also have a bunch of parts coming in on wednesday, I'll show more of those later.

    Thanks for checking this build out!!
    Last edited by armeniandave; 01-18-2010 at 10:26 PM.
    i7 970 4.0 Ghz 1.325v // Asus P6X58D Premium // Windows 7 Ultimate 64bit // 12gb Corsair Dominators // 2- GTX 580 Hydrocoppers in SLI// 2-OCZ Vertex 2 Raid//128Gb Corsair SSD (Temp Storage) // Custom Wall Mount Case // Corsair 1000W // SyncMaster 2433BW // Dual loops 2-laing 355's each with XSPC dual top // (UN) 3G Brackets & X-Brackets // Swiftech Apogee XT // 2 x 120.3 & 2 x 120.2 Swiftech Rads//

    Wall Mount Build Log: http://www.xtremesystems.org/forums/...d.php?t=242186
    MM Extended Ascension Build Log:http://www.xtremesystems.org/forums/...d.php?t=212236[/SIZE][/SIZE][/SIZE]

  13. #13
    Xtreme Addict
    Join Date
    Feb 2008
    Location
    Australia, Perth
    Posts
    1,167
    We're all watching! Just waiting for updates! Looking good so far...that's a load of clamps!

  14. #14
    Xtreme Enthusiast
    Join Date
    Jul 2008
    Location
    kibbler the nibbler
    Posts
    984
    Yeah I'm still watching dude!

  15. #15
    Registered User
    Join Date
    Jul 2009
    Location
    Gothenburg, Sweden
    Posts
    25
    redicoulous amout of clamps u have, subd!
    It's snowing!

  16. #16
    Xtreme Member
    Join Date
    Jun 2008
    Location
    Orange County,CA
    Posts
    106
    jenga!

    (UN) Designs pimp

    undesignsbrackets

  17. #17
    Xtreme Enthusiast
    Join Date
    Mar 2008
    Location
    San Diego
    Posts
    581
    Alright I got some parts from Performance-PC's today!

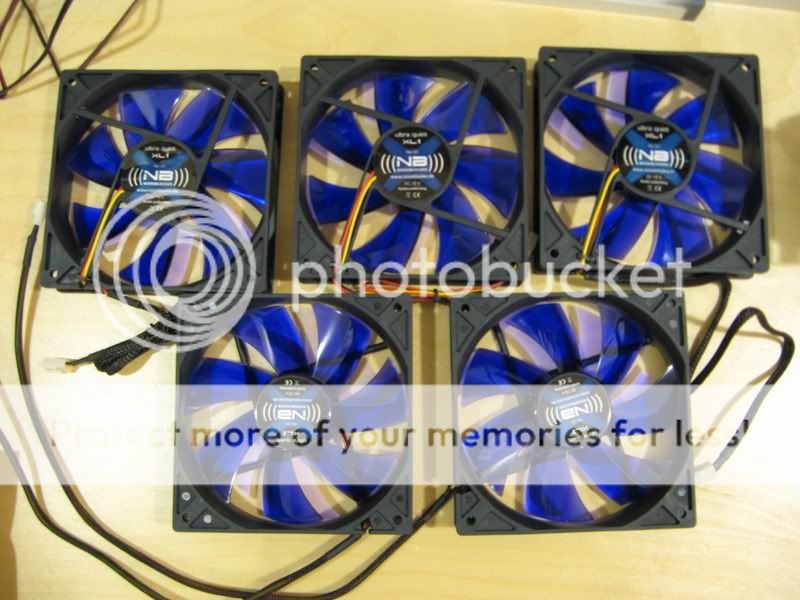

    First off are the Noiseblocker NB-BlackSilentFans!
    There's two 60cfm for intake and three 40cfm for exhaust.
    When these are mounted you wont even see one wire or the fan frame!



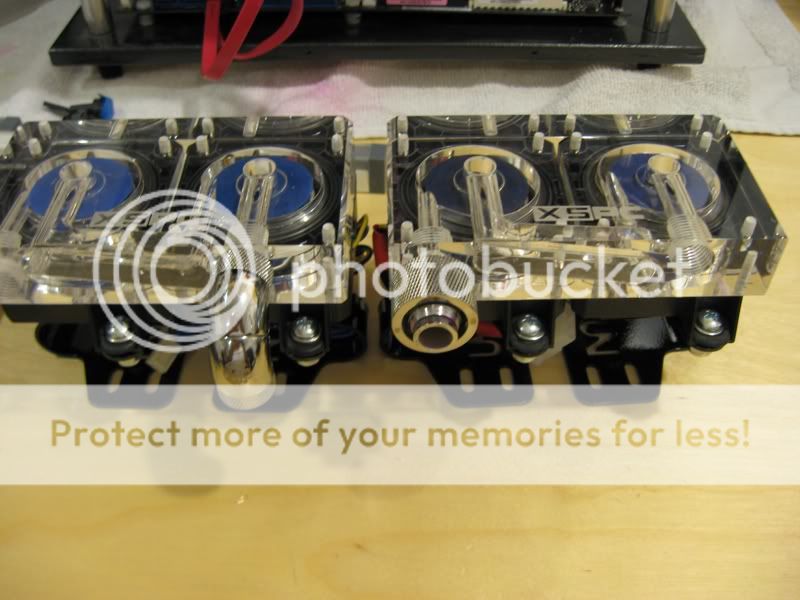

    Next up is the new pump layout. I'm going with dual MCP355's for each loop. I'm doing this for flow, um pressure, no that's not right, oh ya they just look really cool and I had the space for them!! They'll be mounted on my 3G brackets so no worries whatsoever about vibration.







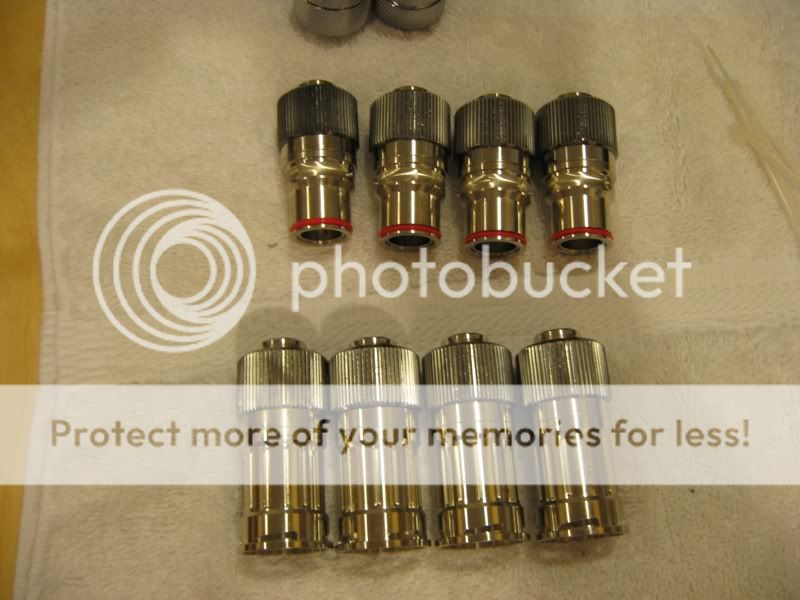

    Next up is the quick release fittings so I can change out videocards and motherboards without any problems.



    This is how the smaller SSD will be mounted along with a special larger version for standard hard drives. These will be mounted on some custom machined standoffs I made. There will be two of each size to allow for future raid setups.



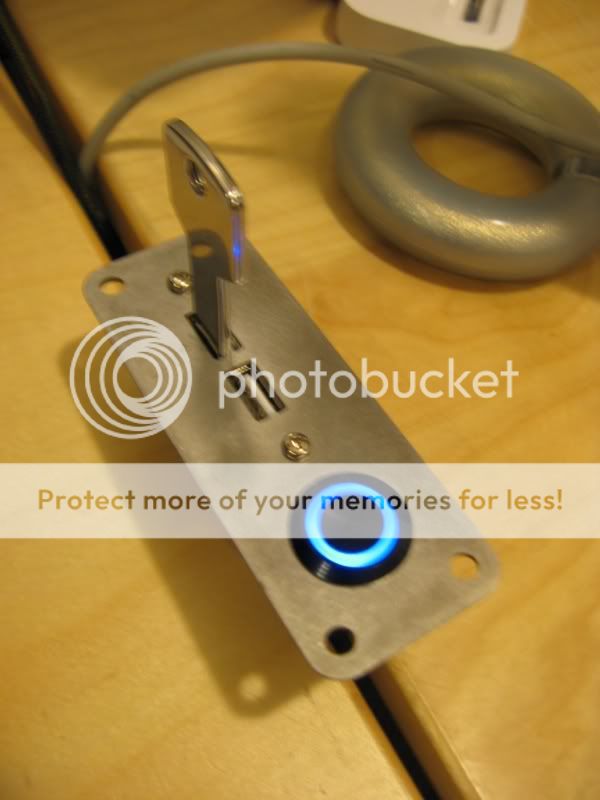

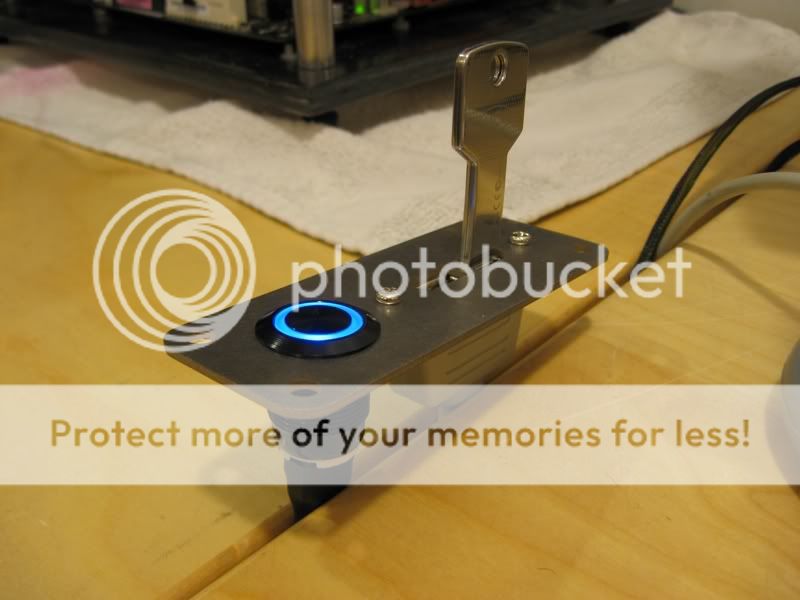

    And finally because this case is on the wall I decided to put the power switch and a couple of USB ports mounted to my desk. This is the plate, unpainted of course, being tested with my current rig. I'd like to acknowledge Performance-PC's for making me a custom 10' long power cable!





    Well that's all for now. I will be working on the case tomorrow and hopefully have some pictures real soon!

    Thanks for checking this out!!!!
    i7 970 4.0 Ghz 1.325v // Asus P6X58D Premium // Windows 7 Ultimate 64bit // 12gb Corsair Dominators // 2- GTX 580 Hydrocoppers in SLI// 2-OCZ Vertex 2 Raid//128Gb Corsair SSD (Temp Storage) // Custom Wall Mount Case // Corsair 1000W // SyncMaster 2433BW // Dual loops 2-laing 355's each with XSPC dual top // (UN) 3G Brackets & X-Brackets // Swiftech Apogee XT // 2 x 120.3 & 2 x 120.2 Swiftech Rads//

    Wall Mount Build Log: http://www.xtremesystems.org/forums/...d.php?t=242186
    MM Extended Ascension Build Log:http://www.xtremesystems.org/forums/...d.php?t=212236[/SIZE][/SIZE][/SIZE]

  18. #18
    Xtreme Enthusiast
    Join Date
    Jan 2009
    Location
    Moscow, Russia
    Posts
    684
    huge pumping power
    nice
    Worklog: Project Black Copper
    Lian Li PC-P80 | Thermochill PA140.3 | Noiseblocker fans | mdpc-x stuff

  19. #19
    Xtreme Member
    Join Date
    Nov 2008
    Location
    Eagle Rock, Ca.
    Posts
    398
    I tried to type earlier saying how amazed I was. But I was lurking.
    So I stopped being lazy and finally logged on to say, "I am amazed, Dave."

    Can't wait to see more of the case and your wire hiding prowess.
    [SIGPIC][/SIGPIC]

    Now Playing

    black freighter: i7 920 | evga classified | mm extended ascension pedestal | 2 x 300gb vraps
    dead men tell no tales build: q9770 | asus striker 2 extreme | 2x4gb ddr3 ocz reaper | 2 x gtx 280 oc2 | 2x 300gb vraps | mm ufo-cyo | pcp&c 1200W

  20. #20
    Moderator
    Join Date
    Aug 2007
    Location
    Back and forth between Florida and Maine
    Posts
    4,097
    Wow ... amazing.

  21. #21
    Xtreme Enthusiast
    Join Date
    Aug 2007
    Location
    Sweden
    Posts
    722
    Great project! Its going to be KILLER when its finished!!
    Loonym...You are missed.

    The element of one

    Breathe me in
    Breathe me in

    I disbelieve in separation. I close my eyes to see you.
    This is for you, everything I am. This is for you, take it from me.
    I, I disbelieve separation. I close my eyes
    there's no escaping me
    This is for you, everything I am. This is for you, take it from me.
    In your heart in your soul. I perceive rejuvenation

    Breathe me in. I am forever. Deep within I am eternal.

    I will return to you. I am with you always. I will never turn away from you.

  22. #22
    Xtreme Enthusiast
    Join Date
    Mar 2008
    Location
    San Diego
    Posts
    581

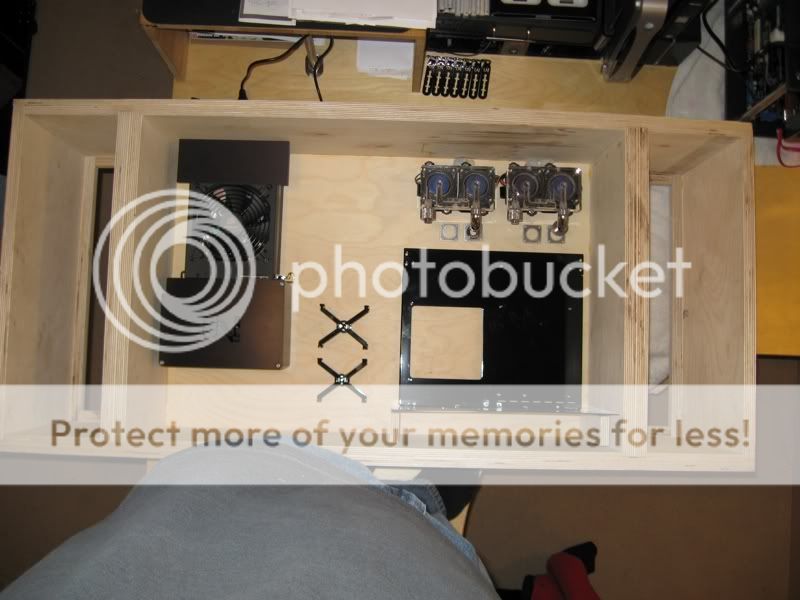

    This is just a quick update.
    The case is done except for all the holes
    and stuff. I brought it in to my desk so I can
    start laying out all the various cutouts.
    I will take some more pics later of the back so you
    can see how I will hide all the wires.
    Enjoy!



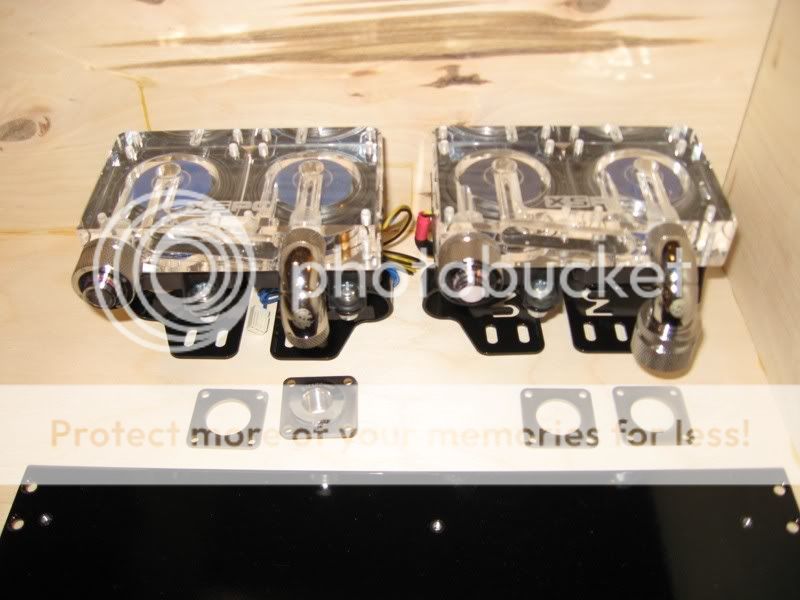

    Pump Mock up



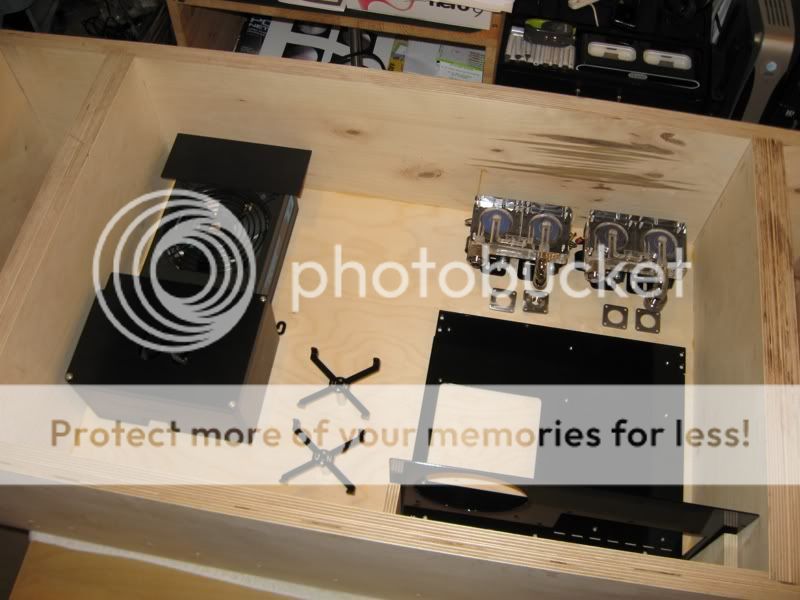

    Overview



    Radiators new home!



    More to come soon, Thanks!
    i7 970 4.0 Ghz 1.325v // Asus P6X58D Premium // Windows 7 Ultimate 64bit // 12gb Corsair Dominators // 2- GTX 580 Hydrocoppers in SLI// 2-OCZ Vertex 2 Raid//128Gb Corsair SSD (Temp Storage) // Custom Wall Mount Case // Corsair 1000W // SyncMaster 2433BW // Dual loops 2-laing 355's each with XSPC dual top // (UN) 3G Brackets & X-Brackets // Swiftech Apogee XT // 2 x 120.3 & 2 x 120.2 Swiftech Rads//

    Wall Mount Build Log: http://www.xtremesystems.org/forums/...d.php?t=242186
    MM Extended Ascension Build Log:http://www.xtremesystems.org/forums/...d.php?t=212236[/SIZE][/SIZE][/SIZE]

  23. #23
    Xtreme Member
    Join Date
    Apr 2008
    Location
    Finland
    Posts
    482
    Wow, this is looking really nice! Looking at your MM build I know there wont be many cables visible

    One thing that got me thinking, how can the pump intake be facing downwards? I always thought the reservoir should be above the pump. I just woke up so maybe I'm just talking nonsense

  24. #24
    Banned
    Join Date
    Dec 2009
    Posts
    245
    sub'd

    much praise for your efforts so far......this project looks like a winner

    can't wait to see end result

  25. #25
    Registered User
    Join Date
    Jan 2009
    Posts
    88
    I love the idea, but I hate the front window. Go for a display-case look, or maybe a television set (the side radiator vents look like speakers)
    The criss-cross bars just look very meh to me.
    Q6600 @ 3.5ghz - 26c idle and 38c load
    XFX 4890 - 960/1200
    ASUS 4350 cut to PCIe x1
    OCZ Solid Series SSD, 30GB
    Black Ice II Radiator
    MCP655 Pump (setting 2)
    GA-EP45-UD3R
    1x250GB WD
    1x500GB WD
    1x1TB Hitachi

Page 1 of 5 1234 ... LastLast

Bookmarks

Bookmarks

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
