[Team.AU] Fun with average E8600

[T_M]

First session of two for this weekend.
30L of LN2 with about 10L left now.

E8600 Retail (Q820A326 - xxxxx850) @ 2.05V read
Asus Rampage Extreme - Custom air cooled NB
Patriot 1866 DDR3 @ ~2.15V
Astra Pot on LN2 @ -130C (-118C CBB)

RAM speed is bugged using this divider, actual RAM speed ~800+MHz
Subtimings totally untweaked and most of BIOS setting @ Auto
Wicked board!

Pull down


After 3.5hrs...


http://img.photobucket.com/albums/v310/T_M/32M-1.jpg




http://img.photobucket.com/albums/v310/T_M/Pifast.jpg


Crappy validation

[Hyperhorn]

Wow, congrats especially on the 32M & PiFast!
I guess you didn't care about validation, because bench clocks are higher?

[ZoLKoRn]

Nice start Tim i really love you're mem speed

waiting to see more benching on 20Liter of remain

btw. When you'll come to Thailand ?

[T_M]

Ill be in Bangkok Tuesday night till Sunday evening.
Working wednesday to friday and likely tied up with dinner/drinks those days too.
Girlfriend joining me Friday night so will have to see if i can squeeze something in Zolky.
PM me your mobile number.

[xt0m]

Hehe, nice result indeed
looks great even after 3½ hrs.. o_O

i really need some ln for my chip as well

[Gautam]

Great work Tim.

Btw, are there any telltale signs that the divider is bugged? It seems like there are several other boards doing this.

[CCC]

well 2:3 divider at 615mhz is about 920-925mhz and he said should be in the 800mhz range so i take it that hes on a 3:4 and its showing as 3:5

[hicookie]

very nice on x48t

[AndreYang]

very nice on x48t

lol...X48T

[Vivi]

t_m did u put a layer of tissue paper between Pot and insu?

[Pcuser]

Nice start Tim

[Fr3ak]

Nice one!

The Rampage Extreme works surprisingly well =) I only did some quick testing on air, but the same CPU that did 595 MHz FSB using SetFSB can boot with 625 MHz on the Rampage O_o

[ataruz]

ı love patriot 1866 1034 mhz 7 6 5 this is very nice

congratz tim nice work and nice scores

[TheKarmakazi]

Excellent work m8! Waiting for fully tweaked, should be nice!

[T_M]

Thanks all.
The RAM speed is bugged - it is not running 1000 @ 7-6-5-15

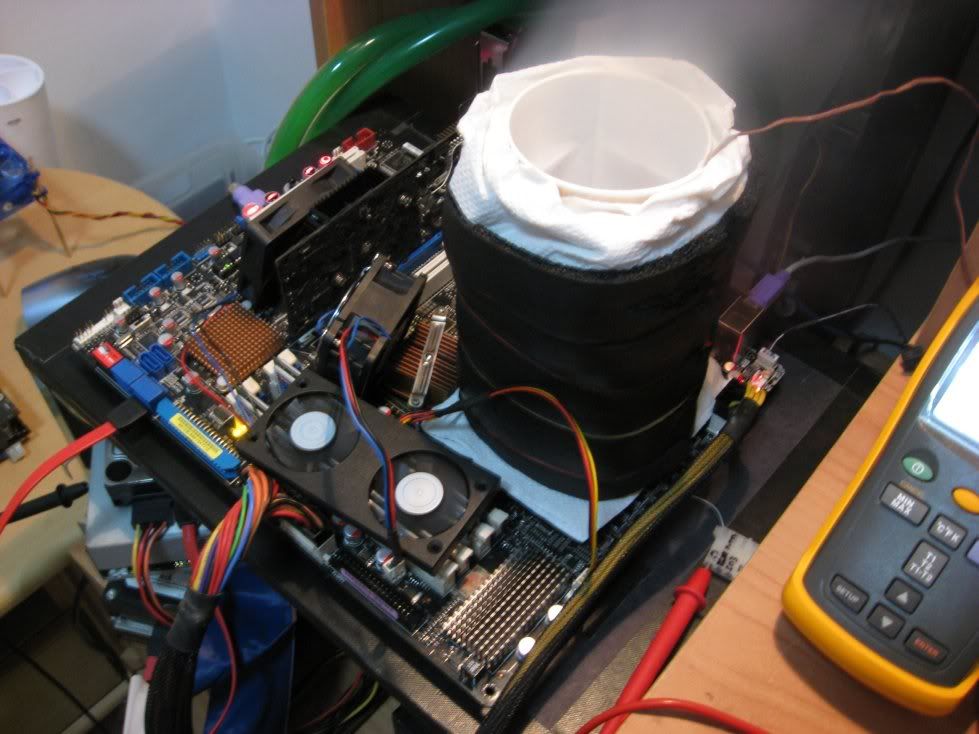

Vivi, the board is coated in vaseline then a thick layer of foam (12mm), then a double layer of paper then a very thin foam (3mm), then another double layer of paper before the pot.
The pot is covered in a 10mm thick foam pipe, then a double thick layer of paper wrapped around head to toe right over the foam cup. This is all then wrapped in a 6mm foam sheet which is what you can see in the pics held on by rubber bands.
In singapore condensation is horrible, and while this all sounds like a lot of work it takes me now about 15mins to prep each time.

[The0men]

Nice work dude. Awsome results. Does sound like alot of work, but the board looks dry to.

[chispy]

Well done Tim , awsome results. Great combo you are running there bro
Im expecting some 3D action from you soon

[c1rcu1tburn3r]

Nice! Have you tried max fsb with rampage? Anyway your validation is crappy

[T_M]

Second session was pretty short, ran into some troubles so dissmantled half way through '05.
AM3 score quite good, 3D'05 got a good score but crashed before i could save the file.

Here's a pictorial setup:

[T_M]

One last 30 minute session at 3D'05.
Very easy clocks, just wanted the damned result.
#2 hwbot.

RAM speed is actually 915MHz, not the 800+ that i said before

http://service.futuremark.com/compare?3dm05=4424266

[Oliver]

Not bad at all Tim, looking forward to see further numbers...

Keep pushing it.

[[XC] gomeler]

Impressive results, this board looks like a beast. High vcore but whatever it takes for 6GHz I suppose

[sobih25]

Well done Tim!

[Vivi]

@ t_m , beaut insulation, i also do the tissue layer over around the Processor and over the surrounding area of resistors because its thin it doesnt heat them up. very nicely done awesome 05 and am3 bro!

this also after about 2.5hours ln2



next time i try your style! tissue around pot before insulation should stop the foam from freezing up so quickly

[4Qman]

great results, well done on the 32mb PI.

Nice pics,
