What is your set up?
Photos?
Load temp screen shots?
Details?
here is my load/idle/clocks
http://img260.imageshack.us/img260/8595/bestclocks.jpg
Ive posted mine a few times, but here it is again :)
http://img36.imageshack.us/img36/1636/dsc00425zw.jpg
http://img17.imageshack.us/img17/667...man1000.th.png
Cool. I saw a few threads here and there but not a specific thread where everyone could share there set up.Quote:
Originally Posted by bhavv
This is the stock reference HD5770 heat sink. Ok but really not meant for extreme over clocking. With a decent heat sink upgrade the HD5770 GPU cools down quite a bit.
http://minidriven.com/GreenMachine/HD5770Heatsink1.jpg
Thanks.Quote:
Originally Posted by skugpezz
Is that on stock cooling?
^^ yeah & i have put some MX-3 to cool it down
The new batches of the 5770 are now being sold with the Egg heatpipe cooler:
http://forums.overclockers.co.uk/sho...&postcount=397
http://www.overclockers.co.uk/pimg/G..._26200_400.jpg
The cooler on them is mighty big, doesnt look as nice as the phoenix shroud, but the heatsink is like 3-4 times larger. I knew I should have waited, I wouldnt have needed to buy the Zalmans then :(
Here's another thread about the new 5770 V2 (with a reply from someone from Asus).
http://forums.bit-tech.net/showthread.php?t=178291
http://img510.imageshack.us/img510/6...5770cooler.jpgQuote:
Hey,
Yes, we've changed the cooler on the cards. You'll find that the new cooler is quieter and provides better temperatures.
You were right about the model code too, the "V2" describes that change of the card and is going to be replacing the original card (In the UK at least).

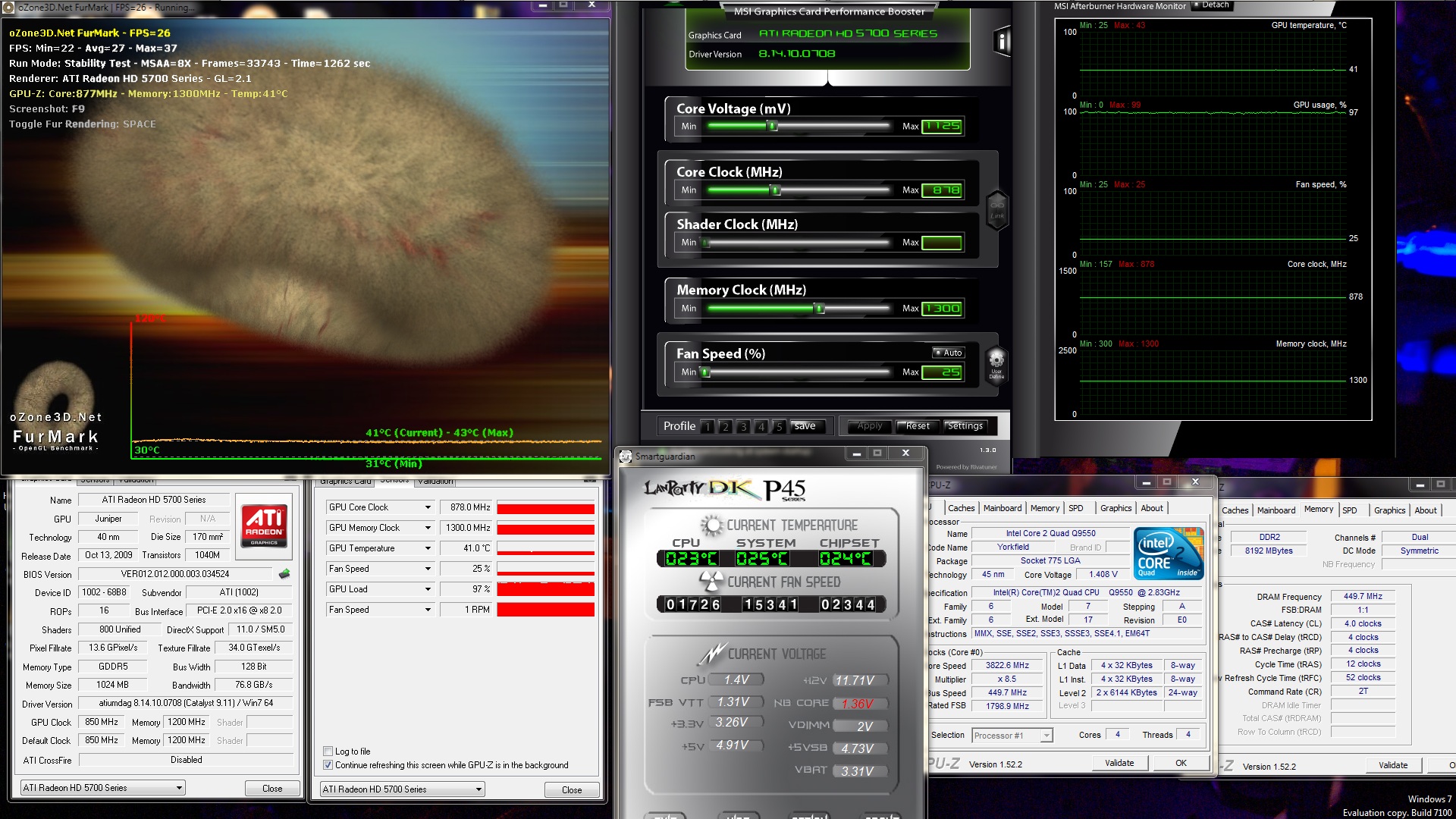

Here is some initial results on cooling with TR HR-03 (rev. A) heat sink. no fan on single HD5770.
http://minidriven.com/GreenMachine/S...5770tuning.jpg
My Antec 900 case does have a side fan blowing air onto the heat sink.
If anyone knows of a good 92mmx92mm25mm fan with 4 pin pwm connection for HD5770 please direct me to it. With a fan I think I can lower my temps even more.
yeap stock cooling with costum fanspeed setup in afterburner.Quote:
Originally Posted by SonDa5
a picture of the card would have be nice :(Quote:
Originally Posted by SonDa5
A post further down in the thread at bit-tech suggests that it doesn't have heatsink(s) for the memory on the GPU side and that they are just exposed. Did the stock coolers you removed from your 5770s have contact pads for the memory?Quote:
Originally Posted by bhavv
My 5770 has a long ramsink that covers the memory chips(the vrms are bare though). I have reference design 5770Quote:
Originally Posted by b3ta
Ive heard that the egg shape coolers are 5-10c worse than the v1
My 5770 @1,2volts/850core with hardmod stays exactly @71 degrees on furmark...
On 1,34 1000core gets over 85...Then i either stop it or it hangs...
I also noticed that the same voltage from 850core to 1000core
1)1000core is stable exactly 1,340v +-0.002 while 850core goes 1,330+-0,01!!!So clock high to get stable voltage!!!
2)850 core needed 1,330 while when set to 1000 it get to 1,34!
you seem to use high voltages...Quote:
Originally Posted by Theorw
So what???:)Quote:
Originally Posted by skugpezz
The card can and the cooler can handle them in games so its ok.Actually u should all know that when u set 1,35 in MSI what u really get is OVER 1,4volt so i dont think that my 1,34 is too much!RIGHT?
Really? I can only see that happening if case ventilation is poor.Quote:
Originally Posted by Bobbylite
Have you seen the V1 cooler under the hood? It's very basic, and the only advantage it has over the V2 cooler that I can see is the fact it exhausts the hot air out of the case. With good case ventilation the V2 cooler should perform better with its thick copper base, fairly big heat-pipes and top-down fan.
The RAM chips on the front of the V2 card aren't 'sinked like they are on the V1 (they are very low-profile 'sinks, not really up to much), but they are unobstructed by shroud/platic and are directly underneath the heatsink so will get a constant direct flow of air from the fan. There looks like there's enough room for decent ramsinks too.
I didnt know that... have link to this info:yepp:Quote:
Originally Posted by Theorw
Looks aside, the V1 coolers heatsink is absolute pants compared to the Asus V2.
Exhausting hot air is pointless when the tiny heatsink cant even keep overclocked load temps below 90 degrees.
Heatpipe fansinks have always been better at reducing GPU temperature, and why on earth does case temperature matter at all so long as your GPU and CPU are adequately cooled?
Quote:
Originally Posted by skugpezz

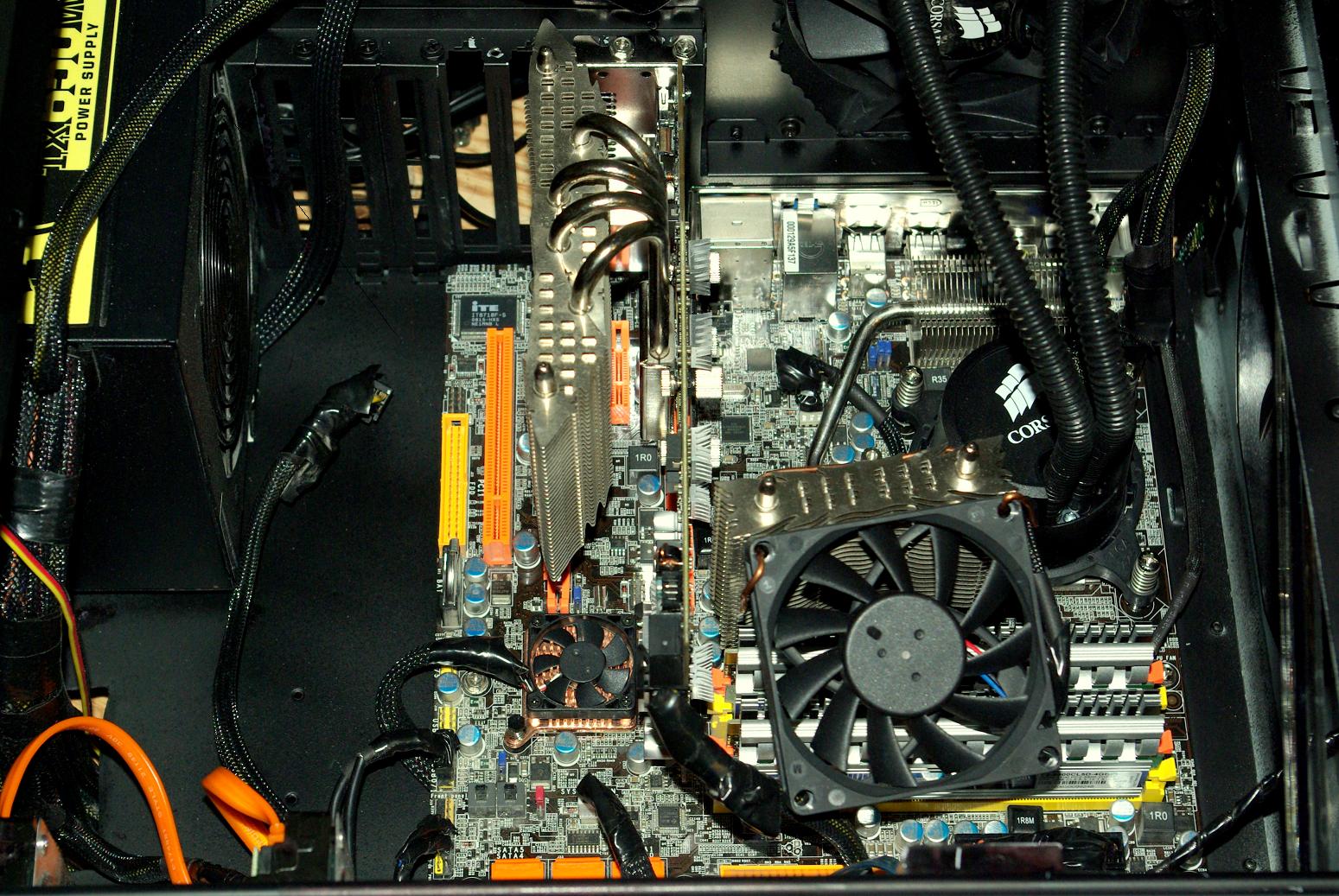

Here is photo of single HD5770 with TR HR-03 rev. A.
http://minidriven.com/GreenMachine/H...ithTRHR-03.jpg
I have 2 HD5770s. I have been running a single HD5770 with the TR HR-03 (rev. A) for over a week now. Just seeing how it runs with the TR HR-03 (rev. A) without a fan. Seems to work very well and I'll put the other HD5770 with same heat sink together soon.
I agree with all you said except the last bit which I've highlighted. Case temp is critical to how well an air cooler works - no heatsink in the world can cool below the ambient case temp. If the case temp is hot then so will the cpu & gpu if their coolers are using the hot air inside the case.Quote:
Originally Posted by bhavv
So, although the v2 cooler should be better than the v1, it still needs nice cool air to work with, hence the importance of good case ventilation.
As long as you have an intake and an exhaust fan, you have cool air ;).
Most cases these days have two of each.
Yup, as long as case ventilation is adequate there shouldn't be a problem. It just that your previous statement gave the impression that case temperature was irrelevant, which is totally wrong:Quote:
Originally Posted by bhavv
If I misunderstood then I apologise. :)Quote:
why on earth does case temperature matter at all so long as your GPU and CPU are adequately cooled?
Personnally, i'm happy with the stock cooler V1:
my CF runs @1010/1250 @1.237v max gpu temp@60°
my single sapphire @1070/1350 @1.274v : max gpu temp@68° (this card runs hotter even @stock compared to the others but hits higher clock: 1100mhz for the core!)
I'm not disturbed by the noise of the fan even @80%...
really, and my system is on a tech bench in a 20C ambient environment. My MSI V1 5770 idles/loads at 27C/60C and the Sapphire V2 idles at 40C/70C. Both retimmed with MX3 and both getting enough air to rule out ventilation. The V1 cooler might be basic, but the design is better by miles just because how the air moves across the sink.Quote:
Originally Posted by Touche Turtle
