I see alot of post all over on these chips...I wonder if there is an easy way to collate the data...
it seems for many the :
0550 UPMW is best available(obviously 0530 are great too but not really around much) 170>165???
0550 VPMW look very good or just ok??? 165>170???
0551..too few around
Do I have it all wrong
I would like to see more posts in KITT's thread
http://www.xtremesystems.org/forums/...ad.php?t=86531
I have a 165 0551UPMW that is running 2700 at 1.4 volts prime and 3d stable that I got from newegg last week..
Very Nice Kris...
Very nice!Quote:
Originally Posted by Willis
I have a 0551 VPMW, with 1.4v it can boot into windows at 2700, I haven't tried any higher volts as I need some better cooling,
I'm almost positive that I can get it primestable at 2700 maybe a little higher
edit: 100th post
The one in my sig opty 170 0550 UPMW is prime stable @ 1.375 in BIOS if this could help.
I really think that 170 0550 UPMW is better than 165 0550 UPMW (it was in my case)
wow..great chip..you lucky bast*rd:banana:Quote:
Originally Posted by Charloz24
I am very jealous...my 170 0546 xpmw does "only" 2700
there is no guaranteed in overclocking, but so far the 170 0550 UPMW appears to clock higher with lower vcore than any other steppings, there's a few vpmw that clock very well but then other vpmw only do 2.7Ghz, so you probably have better chance to get lucky with 170 UPMW instead of 165.
mine is prime and game stable, at 2.9Ghz @1.40v(BIOS 1.42v) on air, or 3.20Ghz @1.52v on phase change.
I understand about YMMV with OCing
many 0546 xpmw do better than mine:(
of course it could be me too...
in germany UPMW and VPMW are both very good
but VPMW seems a bit better....:rolleyes:
I have a 165 0550 upmw that is running at 2.8ghz @ 1.4v (bios)/1.38 (windows). It also does 2.7ghz at stock volts and 2.75ghz with .04%. This is on air w/ big typhoon and open case.
0550 VPMW (CCB1E) here..
It will do 2763 with 1.4v, and a little under 2800 with 1.425. KITT needs to update the database :nono:
170 0550 VPMW dual prime stable at 2.9G on air with vcore 1.4V (1.42V in bios) :p:
Both Prime stable...
170 0530TPMW 2770 vcore set on auto - reads as 1.31v in BIOS
170 0550UPMW 2800 @ vcore set to 1.425 - reads as 1.39v in BIOS
-pickles
well it looks like the
0550 VPMW(CCB1E)
0550 UPMW
both look very sweet
I am looking to try and get cooler running 170..as I fear my 1.5v in summer of FL will require a downclock to maintain reasonable temps on air....
the only 3G 170 is 0550VPMW! but in US i haven't see it!
at least from NewEgg Mwave Wintec Malabs. i went to those places every other day
looks like mine is neck to neck comparing to yours...same clock and same vcore, but my IHS is off to keep the heatload down though :D :DQuote:
Originally Posted by iMAX
UPMW vs VPMWQuote:
Originally Posted by ben805
IHS off vs IHS on
Big Typhoon vs Ninja
:D
Quote:
Originally Posted by iMAX
VPMW will win the game ;):fact:
:toast:
^^ yep, it seems tho..you crazy germans have taken all vpmw's :slap:
i hardly found 1 in-stock and order it right away:banana:
hehe i do not have at least one of those suckers :PQuote:
Originally Posted by no_n|ck
i have a UPMW hehe
Pete took all the VPMWs :slapass:
:D :D :D
:toast:
Indeed..iMAX has a better chip, there has got to be more of those super chips out there somewhere in the US, I read on the other thread a 165 vpmw broke 3.0Ghz on air as well. :D :D
I got a 0551 VPMW 2700MHZ @ 1.39V (MBM5 reports) Set to 1.425 in bios
Got this CPU From Monarch.
This is water cooled, I didn't play much just set it to 1.45V and jumped right to 2700, it was prime stable (17 hours) so I lowered the voltage untill it became unstable. (kind of backwards but it works for me :P)
It might clock Higher I'm not sure, but it took alot of volts to boot up at 3ghz..and it was not stable (could be the MB though whichi s a DFI expert) (Booted with 1.6V) I'll probably leave it at 2700 though...I guess it's not a very good stepping :(
Something in my system does not like over 300 MHZ Could be the MB? I dunno...
can any other CCB1E 0550 VPMW Users report on cold bug ? I cant even boot into windows with -1°C seems like CCBWE 0550 UPMW is easier on the cold bug issue seeing bens scores with phase change.
I have a CCB1E 0550VPMW that does 2750MHz w/ 1.4v, and 2.8GHz with 1.525v. I have not tried to go higher yet. I keep it at 2750 because temps are high at 1.525v. Can't say much about the cold bug, I'm on air.
I'm picking up a Opty 170 CCBWE 0551UPMW tomorrow.
Should be ok you think ?
Let us know your resultsQuote:
Originally Posted by graham_h
All xxB1x, xxB2x, xxB3x chips have awful cold bugs... most of them @ -5 most of them even warmer...Quote:
Originally Posted by EmineM
for phase change u should pick one with xxBWx, but it has cold bug also...
the only dual cores reported to not have the bug, are the xxBHx, but that kind of stepping only happens on manchester's cores (2x512kb)
let us know :DQuote:
Originally Posted by graham_h
CCBWE 0548XPMW
http://simon.webideal.ca/Temp/2.75%202h.JPG
Just got a CCBWE 0550 UPMW Opty 165 :)
So far can only get to 2500Mhz semi stable 1.536v on XP-90 with high speed panaflow fan :(
Never had much luck getting good CPU's :p:
there's some 170 0550 in aus too ;)
upmw and vpmw
ya, I have never really had good luck getting a super good chip either (until this time ;) ) even with other good steppings such as the 0540 FPAW -- it seems the 165 0550's are pretty hit and miss unlike the 170 0550's :(
Quote:
Originally Posted by aussie7
Opty 165 0550UPMW stock voltage(AUTO in BIOS), 10 hours dual prime stable. :)
update for my 0551 VPMW
I dual primed overnight something like 7-8 hours while I slept and I got it up to 2800 MHZ at 1.52V (41-42C)
I just lowered to 1.5V and it's running a little cooler (39-40C) and seems to be stable (priming right now), I tried 1.55V @ 2850 and core 0 Fails, I think my core 1 would easily pass 3ghz...
Bummer... I guess it's not a Dud, just ok.. I don't know if it is safe to run 1.6 volts to a liquid cooled opteron (24-7) and I doubt it is worth it for an extra 50 mhz, so I'll probably leave it @ 2800 @ 1.5V (or less after I play with prime and bios settings some more) and of course when I get it to where I think I would like to keep it I will Prime for over 48 hours :)
0550 VPMW opteron 170 here
my 0550 UPMW is a 165, and I am having problems with the mem controller on it above 310, so still messing with that.
BOTH ARE EXCELLENT CHIPS!!
My 0550 VPMW Has a very weak core0, or a strong core1 depending on how you look at it.
burning in core0 hasnt gained me anything, but still trying
2.8gighz - stock vcore
2.9gighz - 1.4 vcore
3.0gighz - 1.532 vcore
havent tested any further. I can boot into windows at 3.2gighz, core1 is fine. Core0 just is killing me though.
I'm not complaining though 600Mhz overclock is great, not as good as others but still enough for me :)Quote:
Originally Posted by ocZZ
CCB1E0550VPMW
http://www.bilder-hosting.de/tbnl/OXN1K.jpg
amazing rufus..i'm getting now also two L505xx batchers..
Today arrived my 0550VPMW :D
This is a first test, i have to rebuild my wc and see what is capable (tried 3ghz at 1,52v but temps were too high).
http://img435.imageshack.us/img435/6...136v8pw.th.jpg
CCB1E 0550VPMW
[IMG]http://img436.imageshack.us/img436/7...eb263hz.th.jpg[/IMG]
can boot at 3ghz 1.52v but need 1.55-ish to run prime, 0 core fails, 1 core runs all night . temps high even under water , 42-45c@3ghz.
CCB1E 0550VPMW
http://img48.imageshack.us/img48/718...10032zq.th.jpg
so i thinks from what i see here the 0550VPMW seems more powerfull right?
No I am not convinced yet..alot of the great OCs are from exotic cooling..well not to everyone..but I can not afford Phase change or high end waterQuote:
Originally Posted by tzitzos
On air...pretty close but I still think 170 upmw>170 vpmw..but it is closer
165 vpmw>165 upmw
I realize it's wintertime and everybody is doing their "extreme open window OCs" but when i see something out of place (like chipset loading at 23c, joe), i realize that ambient temps are chilled quite a bit, so you may as well tell everyone what the ambients are.
Quote:
Originally Posted by nealh
yeap !! i have the same ideas also but here from what i see the vpmw the worst that they can do is 2800 either with aircooling!!
i have seen a lot of upmw that they don't go more than 2650-2700 also with vcore 1,55++
but as you said!! upmw,vpmw are very close!!
I think production week is much more important than production day.
Quote:
Originally Posted by Absolute_0
idem :) :) :)
My 165 0550VPMW does 2.75 with 1.4 and 2.8 with 1.525, go figure.
That scales pretty poorly :(Quote:
Originally Posted by 003
Yeah, well I also have the older rev of the Ultra-D, but that probably dosn't mean much.
but I am seen at others forums the 170 vpmw not doing as well as 165vpmw(also the 165 either does great or "craps" out around 2700)Quote:
Originally Posted by tzitzos
it does appear IMHO the a good 0550 vpmw is probably a little better than good upmw(at least for a 165)
But w/ air cooling I still think overall the 170 upmw does better..alot the 3Ghz(vpmw) are being done on NON air cooling..there are 2-3 I have seen at 3Ghz or close on air
Problem is (and I am guilty of this I see a few great chips around and they are posted at alot forums) and I "assume" I should get this as well..in my hands for whatever reason I always do less well than alot of people..poor tweaking of ram??, living in FL who knows
Look at my sig..I have a "ok" 0546 xpmw@2.7 1.5v..so what did I do..I am getting a 170 UPMW..I hope to get a 434L..even if I get so lucky..I will probably still never get a dream chip
I just sold a 165@2.6..0534 mpmw...I am waiting to see how the new owner does....he will probably get 2700+ ..LOL
My 0550 VPMW is at 2750 so far, still trying for more, but core 0 pukes out at 2800. Core 1 has primed at 2850 easily :confused:
Quote:
Originally Posted by Absolute_0
Chipset and gpu is watercooled (Watertemp. +15C) and an 120mm fan blows over the mainboard. (Roomtemp. +21C)
Thank you, gives us a better idea of what's going on.
Very damn good results too.
Good luck.. !!Quote:
Originally Posted by nealh
Im also getting one of those in the next week sometime .. ;)
Ι got last week a scarce opteron 165 0551.
Full stepping CCBWE 0551 WPMW
Dual Primes 2730 1.52 on decent custom wc which is mediocre.Can do 2800 stable with 1.6 havent checked prime up there yet(still cold-hot ambient till spring hits)
Although i d like to test it on phase.Other marks is needs errata ON (possible cache controller sux) and the following screen which might make u wanna reconsider if your are on air.i havent tried it on air cooling and would think really to :P.
still not sure what that means with regards to -9 on temps....Quote:
Originally Posted by Hellion
Thunda..you are getting one from Dave too..here's to Good Luck on the OCs for the upcoming 170 UPMW from Dave
CCB1E 0550 VPMW 2808 MHz, 1.42v, water
Quote:
Originally Posted by no_n|ck
yep we the germans bought ALL vpms :D
Usually low tCase max is regarded a bad clocker o bad memory controller.Quote:
Originally Posted by nealh
but all the opterons I have seen say 49C .....am I wrong, have others seen higher tempsQuote:
Originally Posted by Hellion
heh, well not all..i have been able to snack two more:banana:Quote:
Originally Posted by Mr.President
so now i'm getting; 502xx, 504xx, 505xx batches :fact:
should be here on monday, and yes all where bought from ''carzy'' germans :D
OK..I am going to say uncle and once again missed the better stepping
it now looks as more reports are here and elsewhere the
170 0550 VPMW is better for having a chance at 2.9-3.0ghz at a low vcore even on air
looks like 50XX substrate are best???
Of course I was able to get my hands on a 170 0550 upmw 434L substrate..I hope it deos better than my 0546 xpmw or at least as well on lower vcore....
170 0550 upmw 434L
Mines coming next week sometime from Dave @ Flickerdown,hope it clocks well with my TT BT :)
I'll post the results anyhoo's. :D
An update from my 0550VPMW
http://img393.imageshack.us/img393/7...142v1th.th.jpg
If you don´t plan to go subzero i´d say 0550VPMW is the best choice :)
my opti 175 does 2750 with 1.35 in bios...but with a load on both cores i am pushing well into the 50's with a nado and si-97 that i modded a while back when i first got my winnie becasue they sent me the wrong kit...any way i have had this chip over 3gh taking it out side in the cold...i am going to go water cooling soon and that should DRASTICLY help...maybe a 3ghz chip on water with 1.55
Dragon
I am getting the same 0550 UPMW Opteron 170 434L and was wondering how this CPU compared to others you have tried?
Also, what overclock you have accomplished on air - what vcore, temps etc..
Let me know.
Trying to decide whether to keep 0550 UPMW (unopened) or 0550 VPMW I have on order. If I knew the VPMW was going to be better for sure I wouldn't even bother opening and trying the UPMW 434L.
i'd say, wait for VPMW - even if you will not be able to achive 3ghz, it will run 2.8/2.9ghz with much less volts than upmw .. i had 3 upmw's (all 434L), the best one was doing 2.85ghz with 1.55V .. now i have 3 vpmw's and one is doing 3gz@1.48V, and 2 of them are doing 2.9ghz with 1.4V .. btw, you can still open the box in the way it can't been seen it was opend (be careful with the sticker) ..Quote:
Originally Posted by ablatt
Quote:
Originally Posted by iMAX
what type of HSF/FAN are you using to get there?
Quote:
Originally Posted by irev210
if that is air...with those speeds I imagine that they are what you can boot into windows with?
VPMW gets the vote now
I can do 2.90 Ghz dual prime with stock 1.31v
http://img.photobucket.com/albums/v7...l/f9ffd8ef.jpg
Quote:
Originally Posted by Cordovader
what cooling?
From what I can tell, VPMW is better for 165 and UPMW is better for 170. 0551 seem to be very hit or missQuote:
Originally Posted by nealh
Good pretested CPU's often sell for more than brand new ones ;)Quote:
Originally Posted by ablatt
uhhh
I think
CCB1E 0550VPMW is better than CCBWE 0550UPMW on both 165 and 170
However for phase, you can reverse that!
All 0551s are mediocre. The very best do 2.7 with 1.4v, the worst need like 1.6v to do 2.7... maybe there's even worse ones who knows.
Does 50 or less Mhz really matter? C'mon get realistic or do you use your computer to show up others :slapass:Quote:
Originally Posted by ablatt
I have a 165 UPMW that does 2.8 [ stock volts ] with the Amd retail heatpipe and fan ... isnt that good enough
Hey guys,
Opteron 170 0550 UPMW IHS removed, Water cooling. "434L" :)
Max prime has been 2970 at 1.584v. Forgot to take a screenshot.
Failed after 22 mins at 3000mhz
Dual prime stable at 2950 1.57v, seen here:
http://img453.imageshack.us/my.php?i...50157v19nu.jpg
VPMW in terms of 0550 is the best

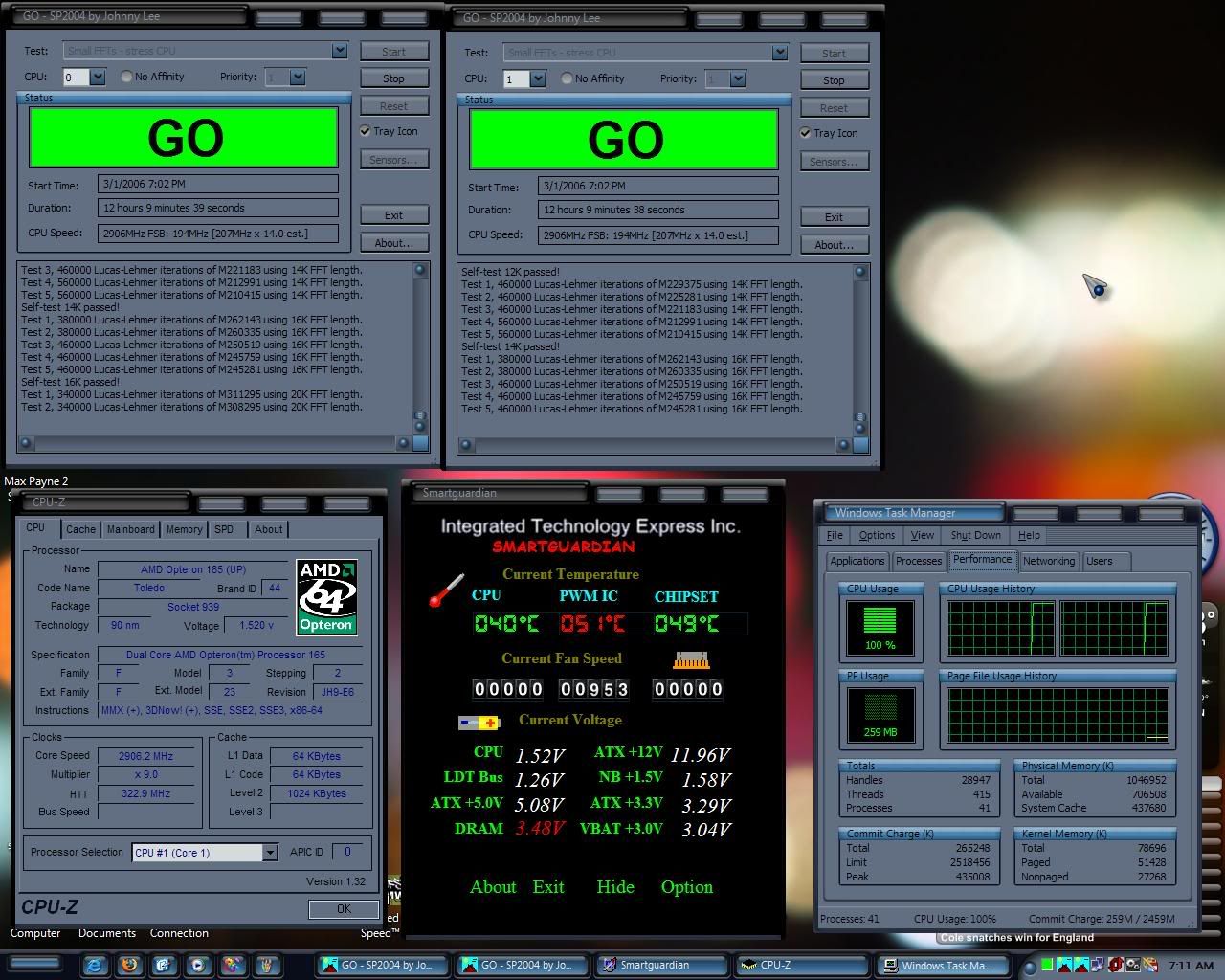

http://img.photobucket.com/albums/v6...prime16512.jpg
CCB1E 0550 VMPW :fact: :fact: :fact:
He KITT what is faster the P4@4.8 or Opteron@3.1?
What's this "substrate 434L" you people keep talking about?
165 CCBWE 0551 UPWM, 1.45v for 2.6, 1.50 for 2.65g, 1.55v for 2.7g NOT stable, tell me about poor scaling :DQuote:
Originally Posted by Absolute_0
Loads of variables out there. And the main one is everybody has its own idea of stabilty. 1 hour prime "stable" can be worse than 32M stable in some heads :D.Quote:
Originally Posted by nealh
Also ambient temps, case ventilation, AS5 settling, etc etc.
Anyway, doesn't anybody realized that 2800 is a 3.703% higher than 2700? I mean, if you can afford phase or LN2 to get insane >3ghz ok, but to get less than a 4-5%, why get so many headaches (and bangs to our wallets :D)? I know this is XS, but sometimes you all have to admit the gain is really really small ;)
Quote:
Originally Posted by mursaat
I agree 100%..which is why in the past I never got caught in a speed or OC..took what I got
Not this time...I am still am looking to have my head examined:stick:
I sold my 165@2610...$30 loss
I have a 170@2700 ?? for sale since I have a 170 0550 VPMW in transit..this is my last one period...all I want is lower vcore becasue of florida temps in the summer
I have never bought 3 cpus looking for an overclock...I just hope I do not lose too much on the 170:(
^Same here, I was happy originally with my X2 3800 @2.67 with 1.55v.. but these opterons are really addicting !
yup. i was happy w/ my 4400 at 2.83 but just purchased a 0550 upmw. and a xpmw. man is my credit card bill gonna be high this month.
Yes that could be the only reason I buy again another 165, but I wanna wait to see how the 06 chips perform. Here in Spain gets pretty hot too, 45c outside :banana:Quote:
Originally Posted by nealh
So this thread is about the comparsion between cpus that were assembled on Thursday of 0550 v those assembled on Friday of 0550?
I would have though any variation in the 5 digit stepping would be more relevant....
The UPMW chips are all CCBWE and the VPMW are all CCB1E.
