Printable View
LANPARTY UT nF4 SLI-D
http://us.dfi.com.tw/Support/Downloa...FLAG=B&SITE=US
LANPARTY UT nF4 SLI-DR
http://us.dfi.com.tw/Support/Downloa...FLAG=B&SITE=US
LANPARTY UT nF4 Ultra-D
http://us.dfi.com.tw/Support/Downloa...FLAG=B&SITE=US
LANPARTY UT nF4-D
http://us.dfi.com.tw/Support/Downloa...FLAG=B&SITE=US
LANPARTY nF4 SLI-DR
http://us.dfi.com.tw/Support/Downloa...FLAG=B&SITE=US
Quote:
Support AMD Athlon 64 FX60 CPUs.
Just flashed my board and so far its looking good ;)
Any other differences besides the FX60 support? I'm not going to flash it just because of that :p:
is there any difference between the files since UT nF4-D is called FX60TEST1.zip and UT nF4 SLI-DR is called FX60TEST3.zip ???
my thoughts exactly :pQuote:
Originally Posted by Daved+
With DFI bioses, if it aint broke.....
i could not have said it betterQuote:
Originally Posted by LexDiamonds
How about Ultra-D moded SLI?
this bios works great at my nf4-d@sli-d
Wonder what bios this is based on?
so there are no changes but fx-60 support?
can some1 report some improvements in ram or cpu overclocking?
mfg
I bet micron :p: :D hehe dunno really but take a look at this http://www.xtremesystems.org/forums/...ad.php?t=80293 :toast:Quote:
Originally Posted by xgman
More divider support for Opty?
Is there another bigtoe enhanced bios on the way?
does this improve anybodys OC?
finally! but...so mysterious...
Dont look at me to flash it, lol.. Ive done enough beta testing for DFI these days.
Not sure what the dividers were on the 510-2fix but this new one consist of 100-120-133-140-150-166-180-200. Prolly the same just never noticed.
Also no problems booting up at 300htt 1:1 with TCCD chips.
Quote:
Originally Posted by RyderOCZ
That's where it'd get interesting to me... :D
704-2 series had beyond 200....up to 250Quote:
Originally Posted by RacerX
any oc or stablity results? anyone?
This is best bios for me so far for my opty and Geil one BH-5,stability has increased for me
Can I use the sli-dr bios on my sli-dr Expert?
can u be more specific? what increased and how much? and how did you test stability? thanks!Quote:
Originally Posted by Shark-357
Quote:
Originally Posted by rick_fx
no, mixing expert and non-expert bios will kill the board. (read it from ocz rep)
Any difference between the Fx60test.zip Fx60test1.zip and the Fx60test3.zip?
I thought the Nf4 Boards have all the same Bios (expect the Expert und RDX2000)
RDX200 is an ATI Chipset board. ;)
Quote:
Originally Posted by mag|c
Quote:
Originally Posted by Flib
Yes there is, and there's always a -1, -2, and -3 flavor of BIOS on the DFI nF4 LANPARTY MoBos. It has to do with voltage tables. I can't tell you the "technical" difference between the three, but I can tell you decisively that -2 is the most recommended version. I know this because I was told so by Andy of OCZ, Tony (a.k.a. - BIGtoe) of OCZ, Robert (a.k.a. - RGone) of DFI and Travis Hill (a.k.a. - Angry_Games) of DFI. They say that the -2 BIOS is the best one to use regardless of whether you are using the Orange or Yellow slots.
EDIT: Although some say that -2 BIOS is best for BH-5/UTT RAM, while -3 BIOS is best for TCCD memory. Click here:
http://www.dfi-bios.tk/
I would still probably listen to the guys above though. :yepp:
I will give the -2 a go as soon as I am home then. Needed to flash it anyway, because I am still using the one it was shipped with :/
Edit: And welcome to the forum GARM :toast:
Edit2: Do you know what this means: " 2. This is a alpha bios for Rev E cpu's, do not use other revisions."
What is a rev E CPU? :confused: A CPU with E* stepping? Wouldnt that be all 939 cpus?
i'm not so sure about that in this case.. why is each version only showing up with different boards then?Quote:
Originally Posted by GARM
Actually, I have an AB0 rev Ultra-D motherboard and tried the relevant bios from the link that was given in the first page but had problems with my Mushkin XP4000 2GB memory, wierd artifacts etc. Any ideas?
Quote:
Originally Posted by ozzimark
That’s because it’s what the DFI Corporation has passed "officially" for your nF4, LANPARTY motherboard. That doesn't mean it's the best BIOS out there. I've been using the revised version 704-2 Beta BIOS by BigToe for a while now and it has been great! This version of BIOS is only available at the two links provided in the DFI-Street Thread I have provided below. The link to download this version is right in the pix or by clicking here: http://www.rgone.net/biosdownload/704-2BTA.zip

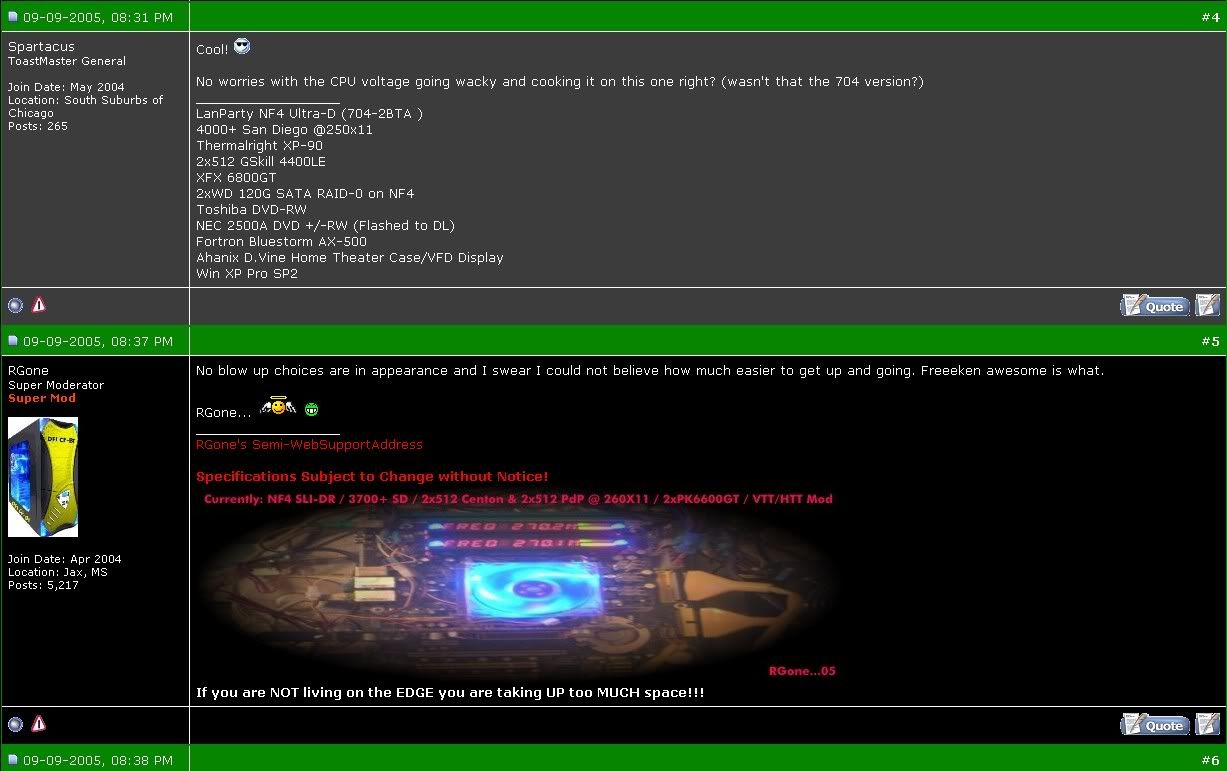

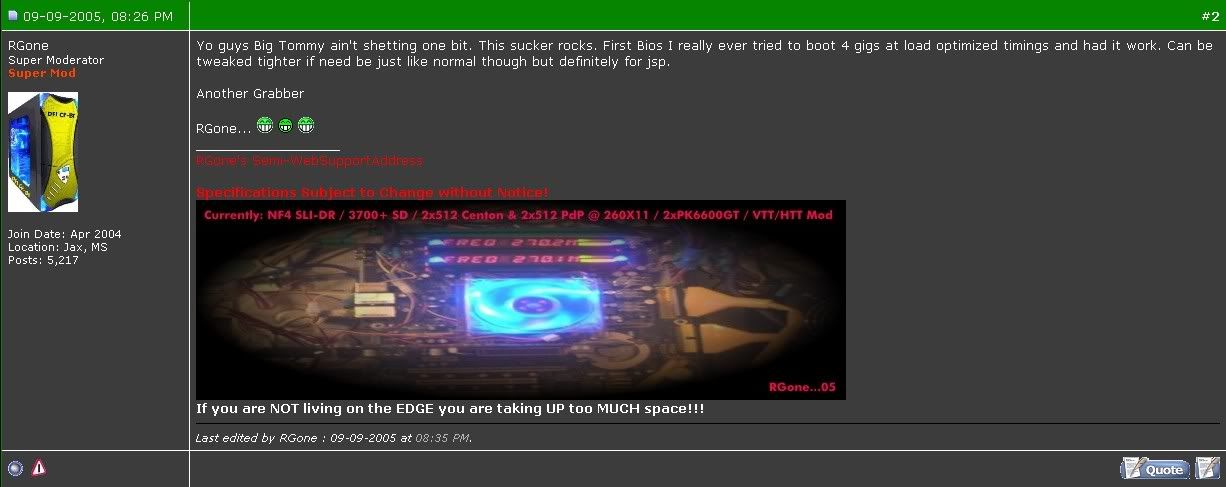

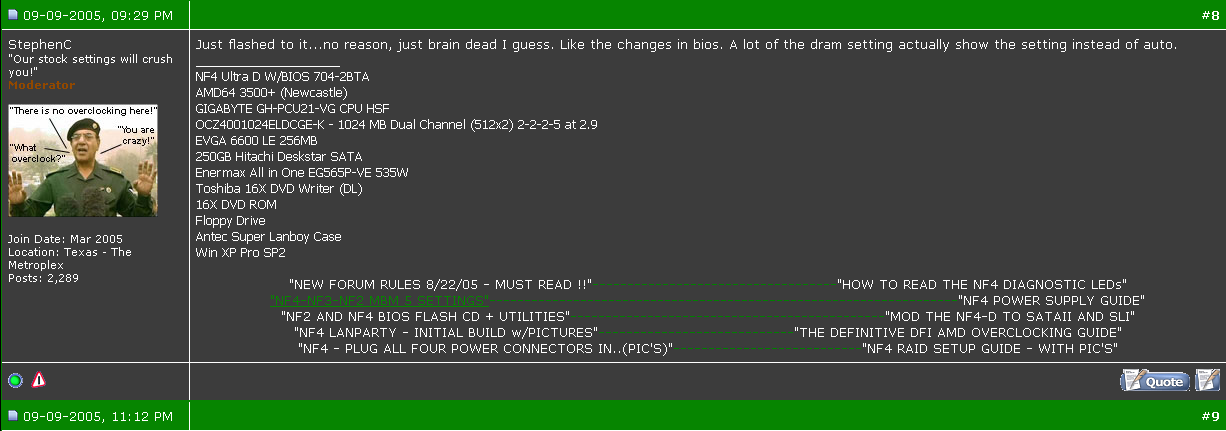

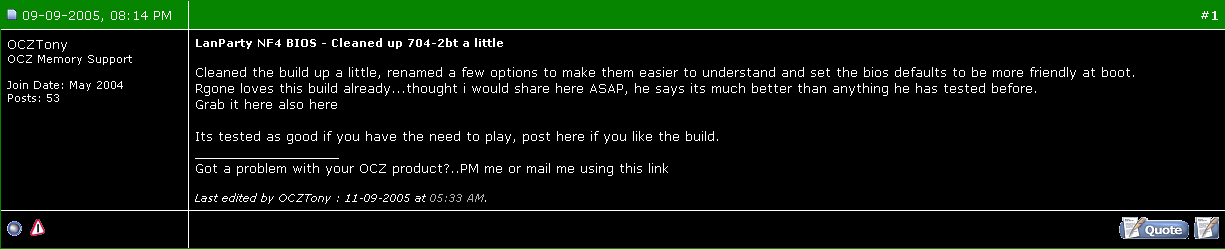

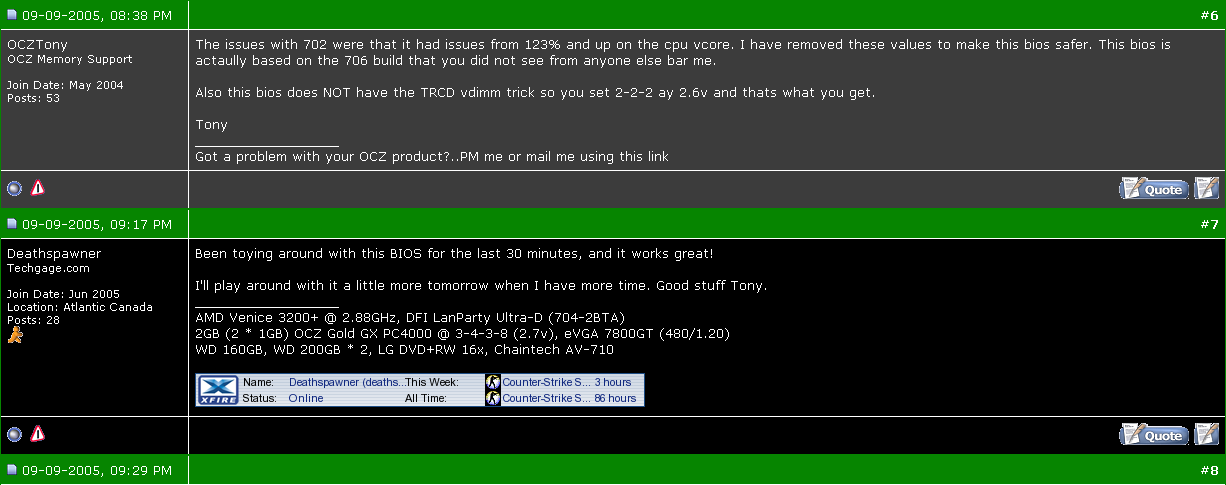

http://i21.photobucket.com/albums/b2...-18_065347.png
http://i21.photobucket.com/albums/b2...-18_065506.jpg
http://i21.photobucket.com/albums/b2...-18_065656.jpg
http://i21.photobucket.com/albums/b2...-18_065825.png
http://i21.photobucket.com/albums/b2...-18_070358.png

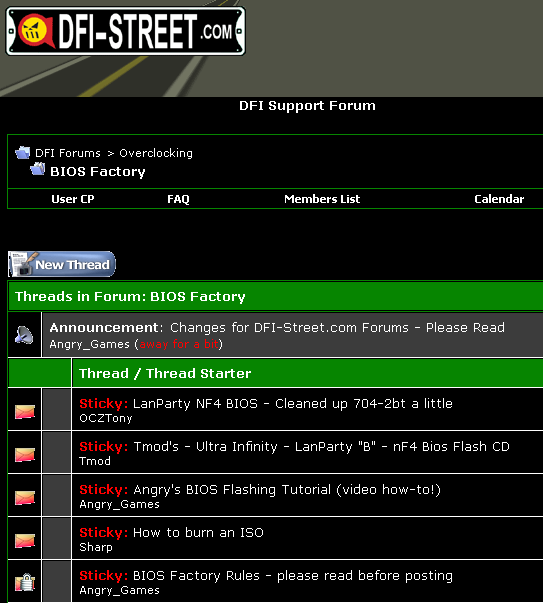

You can visit this thread directly at DFI-Street by clicking here on this image:
http://i21.photobucket.com/albums/b2...-18_065236.png
Fx60 is comign out to socket939, and its this soon.
Thanks
Well there is not much to say my stability increased in a way that i need less volts for the same overclock and my bh-5 go 2mhz higher :) i tested with sp2004.Quote:
Originally Posted by chinkgai
Sorry lost touch for a few months (bloody work :slapass: ) Is this or any other bios resolved the cold boot problem? havnt turn this machine off in months :slapass:
Cheers jeff
No.Quote:
Originally Posted by rick_fx
http://www.xtremesystems.org/forums/...&postcount=114Quote:
Originally Posted by Tony
Hmm, 5 different bioses for every board?! Did i miss something, or why should they not work on all boards of the lanparty nf4 series, like all the time before?
Now the complete layout of my bios page is useless ..... :nono:
More info? :stick: :stick: :stick:Quote:
Originally Posted by Shark-357
We need to know, what is changed.
Oscar Wu beta bios?
It seems that all files are the same, so imho it is multi-compatible.
http://img54.imageshack.us/img54/8366/checksum8io.jpg
i secound that :)Quote:
Originally Posted by GravediggA
I think u can call all this linked bioses : 1114-3 , there are no different ramtables imho. :)
Faster mirror : http://www.techpowerup.com/articles/other/114
All they added was detection code for FX60, the new beta is probably just 623 with this code added.
I have 704-2 for the eXpert now also, voltages are specifically for the eXpert but its built off my 706 build i got off Oskar for the older NF4 models.
Im tweaking it now, then testing it, then i will release it.
maybe for expert bios naming convention change to x704-2 to denote expert so not to confuse with dfi nf4 in discussions ?
Quote:
Originally Posted by Tony
So Tony, in your opinion, what is the best Beta BIOS on the nF4 LANPARTY boards right now?
What answer do u expect? :p:Quote:
Originally Posted by GARM
704-2BT or 704-2BTA i would say...
:p:Quote:
Originally Posted by GravediggA
Or 623-2BTA :D
704-2 Was built off 316 which was a ground up build. It brings the yellow slots into play and is as good or better than any other build. I tweaked it to be more boot friendly as so many were having issues getting a boot from cold with a new board. It also when tweaked correctly allows for some fine overclocking and those who want the higher vcore options before are now finding they are hitting the higher clocks with less voltage.
I have called the expert bios E704-2BT.BIN, E being expert. I will release it soon as i have a feeling most will like this build.
It is dated 18/11, remember though it has 706 memory tables but the expert voltage options etc.
U know why the 704 have this vcore-bug and u can fix it? I would love to see teh BTA with vcore above 113%, then in the coming winter time i must change to 510-2 hellfire, bcs. of the higher vcore options, then i can max out my cpu. ;)
Thanks for the info :)Quote:
Originally Posted by Tony
Can we expect a 706-? bios with more memory voltage options for the DFI NF4?
Or wishful thinking :D
i'm running 704-2BTA on my lp ut sli-dr with X2 3800+ and 2GB ballistix Z503 (in orange slots). is this the best bios for this configuration? will the mem run better in the yellow slots?
thanks.
anyone else using this bios and your optie isnt being reconised correctly on boot up? ive tried 3 differnt bioses and this new one and still no luck :(
peace perc,
I'm using it with a opty 148, no problems...
Perc, I had a beta CPUZ 1.31 and a outdated MaxTcase that gave me the same problems as you with my 175. I re-downloaded both from their respective sites to ensure the latest version and the problems went away.
yeah i cant for the life of me get my bios (no mater what one i use 704-2bt 704-2bta and the latest 11/14 bios) to reconise my cpu as a optie 180 its showing up as a 280 on boot up and as a optie 280 940 pin in cpu-z.... kinda wierd but not effecting performance so screw it i gues.. im getting the expert series anyways so ill just live with it til then...
thx perc,
good
what exactly is the 7/06 BIOS?
What is the difference between the FX60-4 and FX60-5 bioses that DFI has up again?
re: -4 and -5 above, on this link here:
http://www.dfi.com.tw/Support/Downlo...FLAG=B&SITE=US
This files are all the same.. ask DFI, why they wan't to confuse us?! :stick:Quote:
Originally Posted by GravediggA
They are probably just looking at the access logs seeing how many people that download the files have Ultra-D's or SLI-DR's etc
This could be a explenation! :)Quote:
Originally Posted by Gogar
wouldnt sales data do the same?
