HERE we go again......AMD this time...Some BH-6 action...

Just started with stock heatsink and very low frequency........Borrowed FX53 CPU.... :D

To be honnest this mobo - DFI NF4 SLI-D - is rock stable..... :D

Config. for now.....

Motherboard : DFI NF4 SLI-D
PSU : ENERMAX 550 Watts(old) - ALSO tested with the Zippy 700Watts and it was OK.....
DDR Maximizer(all the way - keeps mobo tooooo cool)...... ;)

Rams : 2 x 256MB Kingston Value Rams PC2700(DDR333) at Cas 2 - 2 - 2 - 5 and ........3.82Vdimm(so far - more to come)..... :D

3D Benchable at 287MHz 1:1....so far and climbing... ;)

EDIT: Forgot to mention.....Bios 3.10 Official


http://www.thelab.gr/images/Hipro5/A...288MHz_png.png

http://www.thelab.gr/images/Hipro5/A...88_1_1_png.png

Wow, that is some amazing speeds for PC2700 KHX BH6. Generic PCB I assume?

Any pics of the DDR Maximizer in action? ;)

anything with 1gig???

Quote:

---

Originally Posted by EnJoY

Wow, that is some amazing speeds for PC2700 KHX BH6. Generic PCB I assume?

Any pics of the DDR Maximizer in action? ;)

---

Hmmmm.........I'll take a shot for you......in a minute........I have to boot up, change the mouse and the keyboard and I'll come back...... :D

Quote:

---

Originally Posted by situman

anything with 1gig???

---

No sorry.......ALL of MY Ram modules are 256MBs - 7 of them...... :D

He,he,he..........I'm back......... :D

You asked for it...... :)

http://www.thelab.gr/images/Hipro5/A...Maxi_1_jpg.jpg

http://www.thelab.gr/images/Hipro5/A...Maxi_2_jpg.jpg

http://www.thelab.gr/images/Hipro5/A...Maxi_3_jpg.jpg

http://www.thelab.gr/images/Hipro5/A...Maxi_4_jpg.jpg

http://www.thelab.gr/images/Hipro5/A...Maxi_5_jpg.jpg

Is that the Kingston HyperX you've been sleeping with under your pillow for the last 2 years ? :D

Great results Hipro !

very nice, My BH-6 takes 285-286 without the capacitors mod

it helps or ur BH-6 are already awesome??

WOW


slot 3 = yellow slot

slot 1 = yellow
slot 2 = purple
slot 3 = yellow
slot 4 = purple

Dual ddr is possible I believe with the Slot 1 and 2 (It works), slot 2 and 4 (normal), slot 3 and 4 (yes???), slot 1 + 2 + 3 + 4 (yep)

wow :slobber: :slobber:

truely amazing, well done hipro!

I want one of those Maximizers :D

:toast:
like always :)

Thank you guys........ :)

Ram modules are in Dimm2 and Dimm4..........At Dimm3 is the DDR PCB of the DDR Maximizer........ ;)

Quote:

---

Originally Posted by Major Slaughter

Is that the Kingston HyperX you've been sleeping with under your pillow for the last 2 years ? :D

Great results Hipro !

---

Thanks.......... :)

No they are 2 x 256MB Kingston VALUE Rams.......I had bought them about 33 Euros each........ :D

Quote:

---

Originally Posted by cpulloverclock

very nice, My BH-6 takes 285-286 without the capacitors mod

it helps or ur BH-6 are already awesome??

WOW


slot 3 = yellow slot

slot 1 = yellow
slot 2 = purple
slot 3 = yellow
slot 4 = purple

Dual ddr is possible I believe with the Slot 1 and 2 (It works), slot 2 and 4 (normal), slot 3 and 4 (yes???), slot 1 + 2 + 3 + 4 (yep)

---

They are at Dimm2 and Dimm4 as for the mobo's writings......Cpu-z shows them as slot 3 and slot4.....

Looks pretty insane. What makes this better than a commercial product like the OCZ DDR booster?

FAST UPDATE......... :D

cpu-z Validation......... H E R E ........


On the Validation page, shows my Rams at slot1 and slot2......... :confused:

Quote:

---

Originally Posted by zeebs

Looks pretty insane. What makes this better than a commercial product like the OCZ DDR booster?

---

This will be a commercial product pretty soon too...... ;)

READ if not yet........

HOLY SHAT what did you feed that PC2700 to do 288MHz and where can i get a set :o

The best fsb for my BH-6 DC mode is 302 2-2-2-5 , 3000+ inside, it seems that the memory goes up more easily with a FX

why this maximizer on DFI when board itself has till 4.0 vdimm ?? :)

Quote:

---

Originally Posted by TEDY

why this maximizer on DFI when board itself has till 4.0 vdimm ?? :)

---

Coz Motherboard now is very cool......PLUS I can change the Vdimm onthefly when I bench with different fsb's, etc. ;)

Very impressive as usual Hipro. :toast:

Awesome job Master hipro :toast:

I must have to use your DDR Maximizer, coz my BH-5 can do 286MHz DC 2-2-2-3 with 3.69V but damn, I can't get over this Vdimm, I cant load windows, so I think that using you DDR Maximizer is the only way to do that...what do you think??

This is the result: 286MHz 2-2-2-3 DC

:toast:

awsome score please bench

holy crap when can we get that?! :slobber:

Hipro , is there a A64tweaker screen ?
That i can see the timings , maybe i can sqeeze more out my ram to ;)

FX53 on phase change..........BAD CPU.......old and not overclockable at all..........It maxes out at aprox. 2930MHz......


http://www.thelab.gr/images/Hipro5/A...88_1_2_png.png


Tommorow I'll put in a 3500+ to see if it does any better.....

Quote:

---

Originally Posted by Cranox

Hipro , is there a A64tweaker screen ?
That i can see the timings , maybe i can sqeeze more out my ram to ;)

---

I'll post it to you tommorow coz right now I'm at home.......

Thanks for the pic Hipro, looks so cool, somewhat stylish too with the black. Keep it up... :toast:

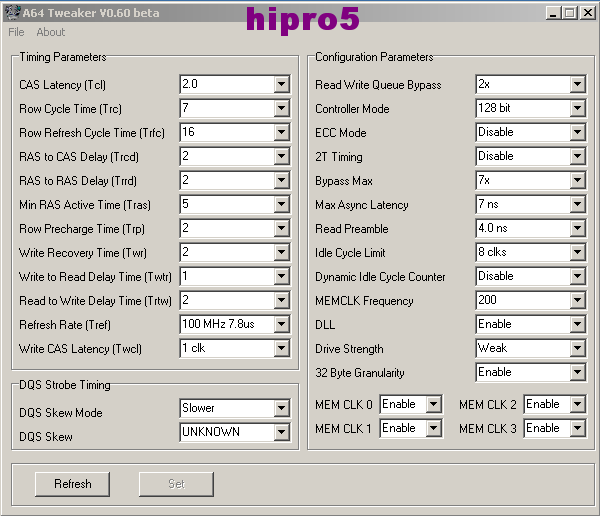

Here's the Tweaker BTW...........


http://www.thelab.gr/images/Hipro5/A...weaker_png.png


......and here's a 3500+ CPU.........Bandwidth is a lot better because of the frequency and the lower latencies in the internal cache of those two different CPUs............Now, once more maxed out the CPU........Shi(f)t, I can't max out my Rams......I have to find a better CPU...... :)


http://www.thelab.gr/images/Hipro5/A...85_1_1_png.png

Just send me a maximizer and I will speak to the overclocking Gods for you. :)

Would be interesting to see if it clocks the same using the 4volt jumper :banana:

I've a question...bandwith wouldn't be better?? :confused: I think i hit 8k with 270-275 2-2-2 and 2,7-2,75ghz... :stick: excusme if i'm wrong but i have to ask... :toast:

EDIT: sorry, didn't see later post's :slap:

good old kingston huh ?

Mine have heatspreaders still intact 2x 256MB KHX3200K2/512 :)

http://www.fileshosts.com/DFI/NF4_SL...em-buff_tn.jpg

http://www.fileshosts.com/DFI/NF4_SL...4_24174_tn.jpg

Quote:

---

Originally Posted by ^don.k's^

I've a question...bandwith wouldn't be better?? :confused: I think i hit 8k with 270-275 2-2-2 and 2,7-2,75ghz... :stick: excusme if i'm wrong but i have to ask... :toast:

---

I don't think so coz I've got about 7839 with Rams at 260MHz and x11multi.......So yes it could be about 8000+ at 270MHz.....

Great numbers! :toast:

Can u test the max. frequenzy with Hexus Pifast?

Quote:

---

Originally Posted by GravediggA

Great numbers! :toast:

Can u test the max. frequenzy with Hexus Pifast?

---

It's about 3055MHz MAX......

U mean 3055 : 11 = ~ 277MHz?

Want to know the max frequency of the BH6 ;)

3D bencable at 1:1 with the FX53 CPU and a GeForce 5300 PCIe VGA are at 286-287MHz .......about the same with Super-Pi, Pi-Fast 4.1 and 4.3......BTW , this was tested with the x8 multi and default heatsink before the phase change ;)

Yeah, thats really nice! Something is holding me back > 280MHz, but anyway good results for me. :)

http://weber-steuerungstechnik.de/felix/bh6280.jpg

Guys one thing to say.......BEWARE when you put Vdimm via the DFI board coz it's NOT as it seems to be.......For example if you put 3.6Vdimm within bios and you see that Vdimm on screen, ACCUALY it is 3.72Vdimm measured with a digital multimeter....Raising the voltages BEWARE to count in this 0.1 - 0.12Vdimm more that it provides......Those mesurements where tooken some days ago on a DFI of a friend of mine......

Good to know that u know Vdimm messuring point, please share with me, i asked for it often, but noone answerd!:)

Into this red cicle there is an Electrolytic capacitor as you can see........BUT there isn't one on your mobo.......I have soldered it....It's a missing capacitor......Now on one of the pad(spots) that this capacitor should be, you can measure the Vdimm ;)


http://www.thelab.gr/images/Hipro5/T...LI_D_2_jpg.jpg

Thx m8! :toast:

Any better results from the cap u added?

Edit: U are right! 3,37V in win = 3,48V on pin ... thats really suck ... :-\

Quote:

---

Originally Posted by GravediggA

Thx m8! :toast:

Any better results from the cap u added?

Edit: U are right! 3,37V in win = 3,48V on pin ... thats really suck ... :-\

---

;)

About the cap I added, I didn't notice anything strange or better........



No more updates of this platform.........Either AMD doesn't like me or I don't like AMD!......My nerves are very delicate for playing around with it........I had to plug the mains to Prommie coz the CPU got too frozen, unplug it , plug it , unplug it......Restarts, freezings into Windows, files missing during boot up windows, with less temp it was ok(when I unplugged the Prommie) and when I wanted to run a bench I had to plug the Prommie again.....When one moment I went to toilet, I came back and the windows were frozen.......My nerves.......BUT that was quite pleased to see what my good old Rams could do in an AMD platform or how high they could go.......

Quote:

---

Originally Posted by eva2000

good old kingston huh ?

Mine have heatspreaders still intact 2x 256MB KHX3200K2/512 :)

---

eva2000 do you know what I just remembered?........Chainbolt from Australia overclockers and the "fight" I and him had, about the BH-5 @ 250MHz ........ :D :toast:

I can't wait to pick up one of your units. I'd much rather use that than the 4.0VDIMM option on the DFI board. :)

Quote:

---

Originally Posted by hipro5

;)

About the cap I added, I didn't notice anything strange or better........



No more updates of this platform.........Either AMD doesn't like me or I don't like AMD!......My nerves are very delicate for playing arround with it........I had to plug the mains to Prommie coz the CPU got too frozen, unplug it , plug it , unplug it......Restarts, freezings into Windows, files missing during boot up windows, with less temp it was ok(when I unpluged the Prommie) and when I wanted to run a bench I had to plug the Prommie again.....When one moment I whent to toilet, I came back and the windows were frozen.......My nerves.......BUT that was quite pleased to see what my good old Rams could do in an AMD platform or how high they could go.......

---

sounds like you have a winchester...
sounds like a CPU that doesnt like the cold... :(

Quote:

---

Originally Posted by conrad.maranan

I can't wait to pick up one of your units. I'd much rather use that than the 4.0VDIMM option on the DFI board. :)

---

Thanks.... :)

Quote:

---

Originally Posted by Kunaak

sounds like you have a winchester...
sounds like a CPU that doesnt like the cold... :(

---

Yes it was.......But even with the FX53, I didn't have much luck..........Anyways, mobo sold 100 Euros to get rid of it and I'm fine now....... :D

did u sell the chip? You seem to hate the mobo because of the cold bug that ur CPU is having. Maybe you can test out an Abit AN8 (non fatality) :)

Man I want one of those babies :banana:

Quote:

---

Originally Posted by situman

did u sell the chip? You seem to hate the mobo because of the cold bug that ur CPU is having. Maybe you can test out an Abit AN8 (non fatality) :)

---

No........The 3500+ was borrowed too..... :D

Nice sticks you got there, George :)
Is there anything you can do at 285-288 range? Anything like SuperPi 1M or PiFast, at least? That Maximizer of yours looks sooo BAAAAD! :thumbsup:

I have read about the Maximizer but have not kept up with it, this piece of hardware looks to be a work of genius hipro. :up:

I can't wait to spend more money! :banana:

Quote:

---

Originally Posted by bachus_anonym

Nice sticks you got there, George :)
Is there anything you can do at 285-288 range? Anything like SuperPi 1M or PiFast, at least? That Maximizer of yours looks sooo BAAAAD! :thumbsup:

---

Thanks M8.........Yes I was able to run 2k1 Loby high/low (worst for the Rams) at x8 multi with the FX53 (low frequency) with a GeForce 5300 PCIe at 286-287MHz real easy......Tested low frequency only to see what my Rams could do.......Maxed out (did't tried higher to be honest) at 289MHz with 3.85Vdimm........ :)

I run TheLab pi-fast but only at maximum frequency of the 3500+ CPU But Rams were only at 279MHz..........TOO SAD......I couldn't find a CPU to "fill" it with MHz's from my rams with high frequency........If I had an FX55 with the x12 multi going high, I think that I could reach at least 9000+ as for S-Sandra........As for the Super-Pi, I got 27sec at almost over 3000MHz BUT once again Rams were in too low frequency........Memtest-86 error-free with 3.82Volts, they were at 285MHz.....

Quote:

---

Originally Posted by Raybo

I have read about the Maximizer but have not kept up with it, this piece of hardware looks to be a work of genius hipro. :up:

I can't wait to spend more money! :banana:

---

Thanks M8........ :toast:

To be honest I DO like myself playing with it, not because of the reason I've built it, but because it's so easy to adjust and work with it the time/moment you want - onthefly - ......This makes my happy....... :D

Yea I think it will be a lot easier than poking around ur mobo tryn to adjust vdimm and vtt. Also a whole lot safer too. I don't even bother with my IC7 anymore. I just throw some OCZ tccd in there and to hell with it.

SOME UPDATES......... :D

We had a DRY ICE party over esdee house........It was fan.......BUT once again unfortunately we couldn't find a CPU to "fill" it with my Rams' MHz.....DFI NF4 SLI-D......That was not a winny CPU and it din't froze at all....!!....... :)

Maxed out S-Sandra ......We did a 292+ MHz bench but we didn't kept it........P.S. Awfull screen capture though..... :D


http://www.thelab.gr/images/Hipro5/A...91_1_1_jpg.jpg


.........and another with the hexus pi-fast BUT CPU MAXED out once again..........Rams were at 1:1........No dividers (200)......... ;)


http://www.thelab.gr/images/Hipro5/A....73sec_jpg.jpg

wtf... why does my BH-6 only do 238 2-2-2 no matter what voltage i give it? 280mhz is :banana::banana::banana::banana:ing amazing, the chips must incinerate at this speed and voltage :P

Quote:

---

Originally Posted by hipro5

SOME UPDATES......... :D

We had a DRY ICE party over esdee house........It was fan.......BUT once again unfortunately we couldn't find a CPU to "fill" it with my Rams MHz.....DFI NF4 SLI-D......That was not a winny CPU and it din't froze at all....!!....... :)

Maxed out S-Sandra ......We did a 292+ MHz bench but we didn't kept it........P.S. Awfull screen capture though..... :D


http://www.thelab.gr/images/Hipro5/A...91_1_1_jpg.jpg


.........and another with the hexus pi-fast BUT CPU MAXED out once again..........Rams were at 1:1........No dividers (200)......... ;)


http://www.thelab.gr/images/Hipro5/A....73sec_jpg.jpg

---

Wow, that's some serious bandwidth! How much Vdimm does it take to do that? This is all that I could do when I was testing the Venice:
http://img115.exs.cx/img115/9205/2754wx.jpg

At 287+ MHz we supllied them(via DDR Maximizer of caurse) 3.85Vdimm.....I think that they could go a lot higher BUT CPU limited us...... :(

EDIT : IF Rams were 2 x 512MB and the Bank Interleave was workig, I think that we could be about 8900 - 9000 S-Sandra...... ;)

Quote:

---

Originally Posted by hipro5

eva2000 do you know what I just remembered?........Chainbolt from Australia overclockers and the "fight" I and him had, about the BH-5 @ 250MHz ........ :D :toast:

---

HAHA... that was sooooo long ago :D

keep forgetting we share the same first name = George :)

Quote:

---

Originally Posted by eva2000

HAHA... that was sooooo long ago :D

keep forgetting we share the same first name = George :)

---

Yup .....but they are the EXACT SAME Rams........ :D

except yours are 2002 BH-5 while mine are 2003 BH-5... i think 2002 vintage stuff still clocked a bit better ?

hipro you are the man.

Quote:

---

Originally Posted by eva2000

except yours are 2002 BH-5 while mine are 2003 BH-5... i think 2002 vintage stuff still clocked a bit better ?

---

Yes you are RIGHT about that......Newest BH-5 chips are doing well, BUT NOT that well any more....... :(


EDIT : Mine are BH-6 chips....... ;)

i remember seeing a site with some modded dimms or yours are these them?

oh yeah BH-6 2002 probably winbond put alot more $$$ into developing them LOL

Quote:

---

Originally Posted by Fzero

i remember seeing a site with some modded dimms or yours are these them?

---

Yes those are the ones...... ;)

Quote:

---

Originally Posted by hipro5

Yes those are the ones...... ;)

---

what exactly did you mod on the dimms ? what does it do the mod ?

http://www.thelab.gr/reviews/ic7mods_en19.php also can this be done to all BH-6/BH-5? VERY nice work btw :)

Ha,ha,ha...........George........LOOK what I've just found!........some OLD photos of my Corsair PC3200(DDR400) that I was benching long time ago on that thread with the chainbold .......shi(f)t......What you have remembered me now!!.....P.S. This exact Ram still works on a friend's of mine rig.... :D :toast:


http://www.thelab.gr/images/Hipro5/T...m_moded1_1.jpg

http://www.thelab.gr/images/Hipro5/T...m_moded2_2.jpg

now that is just spooky if i get some bh-6 ill have to send it to you for some monster fying :p:

lol.. did those sink/cooling help any with max oc ? doubt you could use them in dual channel these days hehe :)

Quote:

---

Originally Posted by eva2000

what exactly did you mod on the dimms ? what does it do the mod ?

---

Exept of the sillicon paste onto every chip of them and then glued with some fast acting glue with the Thermaltake heatsinks, I added some electrolytic capacitors on the back of the PCB and on the Vdimm to ground......I gaind about 2 - 3 MHz more out of it......BUT the above benchies were without them coz we couldn't fit in near DRY ICE's cube.....

Quote:

---

Originally Posted by Fzero

now that is just spooky if i get some bh-6 ill have to send it to you for some monster fying :p:

---

:D :toast:

Quote:

---

Originally Posted by eva2000

lol.. did those sink/cooling help any with max oc ? doubt you could use them in dual channel these days hehe :)

---

Yes they have helped a lot NOT with fast screenshots like S-Sandra(maybe a little) but for Prime, etc.......NO WAY Dual DDR.....Fortunately Dual DDR wasn't even existing that time.... ;) :D

Quote:

---

Originally Posted by hipro5

Ha,ha,ha...........George........LOOK what I've just found!........some OLD photos of my Corsair PC3200(DDR400) that I was benching long time ago on that thread with the chainbold .......shi(f)t......What you have remembered me now!!.....P.S. This exact Ram still works on a friend's of mine rig.... :D :toast:


http://www.thelab.gr/images/Hipro5/T...m_moded1_1.jpg

http://www.thelab.gr/images/Hipro5/T...m_moded2_2.jpg

---

Typical Hipro... just going that little extra further with what ever he can get his hands one :D

2-3Mhz... who cares... its a gain ;) Could of been the factor of 279Mhz or 281Mhz ;)

Great work on the Kingston Value ram :toast:

Quote:

---

Originally Posted by Bennah

Typical Hipro... just going that little extra further with what ever he can get his hands one :D

2-3Mhz... who cares... its a gain ;) Could of been the factor of 279Mhz or 281Mhz ;)

Great work on the Kingston Value ram :toast:

---

Thanks M8...... :D :toast:

wow, nice results hipro. Show us some superpi action.

Quote:

---

Originally Posted by moddolicous

wow, nice results hipro. Show us some superpi action.

---

Super-Pi did the other guys before I go there.....I think that they'll start a new thread over XS tommorow.......It was 26sec.....

last day was a great (and fun day)
ok SuperPI was 26:515 (with the ms patched PI)
Hipro5s mems did great on the AMD platform, the PIfast was about 37:73 (or so)
and im sure we can break 9k on BH6. It was our first experience with Dry ice so it took us much time testing how it behaves on temps. Next time (pretty soon) we 'll do better. (+3D bench with a x850xt)

now that i have all the hardware in my home ill give my UTT a HOT run ;)

[QUOTE=s7e9h3n]Wow, that's some serious bandwidth! How much Vdimm does it take to do that? This is all that I could do when I was testing the Venice:

about 3.92V was for the 290++ action on the BH6.
With a Venice (or a san diego core chip ;) ) we hope for DDR600 benchable

[QUOTE=esdee]

Quote:

---

Originally Posted by s7e9h3n

Wow, that's some serious bandwidth! How much Vdimm does it take to do that? This is all that I could do when I was testing the Venice:

about 3.92V was for the 290++ action on the BH6.
With a Venice (or a san diego core chip ;) ) we hope for DDR600 benchable

---

Hi there esdee.... :D

Count in the Vdimm droop that it occurs via the Mobos DDR Slots which is about 0.03Vdimm, thas 3.88Vdimm real on these Ram modules.........DFI has very loose DDR slots.......NOT touching firmly the BETA DDR PCB of the Maximizer...... ;)

Quote:

---

Originally Posted by hipro5

Hi there esdee.... :D

Count in the Vdimm droop that it occurs via the Mobos DDR Slots which is about 0.03Vdimm, thas 3.88Vdimm real on these Ram modules.........DFI has very loose DDR slots.......NOT touching firmly the BETA DDR PCB of the Maximizer...... ;)

---

hipro5 you know me ... that 0.03V drop is hurting me.
DFIs slots are indeed loose. and spikes is the worst thing i can imagine @ 3.9V.
Im going to solder the maximizer on the mosfets (as soon as i have mine ;) )
i don't give :banana: about guarantees.
(guess what, i found that 500grams of Dry ice are still on the box we keep it).
ill have to rest for a couple of hours and then go back for 30mins of benching

Quote:

---

Originally Posted by conrad.maranan

I can't wait to pick up one of your units. I'd much rather use that than the 4.0VDIMM option on the DFI board. :)

---

Ditto. :D

guys it's so fun to see smartguardian changing the Vdimm indication on the fly (using the trimmer in the maximizer)

ok i know im a teaser ... again :D



http://www.xtremesystems.org/forums/...chmentid=28892

Quote:

---

Originally Posted by esdee

ok i know im a teaser ... again :D



http://www.xtremesystems.org/forums/...chmentid=28892

---

Hipro5 did a good job on that maximizer just from the looks of it...A lot of filtering caps. Here's a :toast: to that.....Waiting patiently for the relase. :)

hipro5 ill remake the insulation on the Dry ice so we can use the HSPs on both dimms. going for DDR600@2-2-25

Quote:

---

Originally Posted by esdee

hipro5 ill remake the insulation on the Dry ice so we can use the HSPs on both dimms. going for DDR600@2-2-25

---

Waiting patiently for your results bro. Goodluck :)

Quote:

---

Originally Posted by esdee

hipro5 you know me ... that 0.3V drop is hurting me.
DFIs slots are indeed loose. and spikes is the worst thing i can imagine @ 3.9V.
Im going to solder the maximizer on the mosfets (as soon as i have mine ;) )
i don't give :banana: about guarantees.
(guess what, i found that 500grams of Dry ice are still on the box we keep it).
ill have to rest for a couple of hours and then go back for 30mins of benching

---

DON'T "play" with numbers esdee........! The 0.3V you are writing down is 300mV Vdrop.......You should write "0.03V" thas 30mV....... ;) :)

Any news about the 3D benches? :D

Quote:

---

Originally Posted by hipro5

DON'T "play" with numbers esdee........! The 0.3V you are writing down is 300mV Vdrop.......You should write "0.03V" thas 30mV....... ;) :)

Any news about the 3D benches? :D

---

ooooops, yes you are right. 0.03V ill edit.

give me a couple of hours for 3D, ill install that r507 prommie of yours in the x850xt. 10kg of dry ice are on the way

some minor updata of Hipro5s BH6... we had more time to play with those babies


NO tweaks for sandra (lock page files)
9k is possible

http://www.thelab.gr/attachment.php?s=&postid=213809

Quote:

---

Originally Posted by esdee

some minor updata of Hipro5s BH6... we had more time to play with those babies


NO tweaks for sandra (lock page files)
9k is possible

http://www.thelab.gr/attachment.php?s=&postid=213809

---

esdee, can you not crop the screenshot that much. if you save it as .PNG you can easly attach even whole 1600x1200 screen here (~200KB). would be nice to see clocks, cpu-z, a64tweaker and all the works...
what OS are you on? XP? is that why you don't use mem pages. if so, change OS, tweak it and 9k is yours @ the same sclocks ;)

otherwise, 292MHz looks really nice and good luck! :thumbsup:

this is max I got from my BH-5 so far, just for reference. I can go as far as 286MHz on that multiplier but Sandra would not show results for the love of my life - "something about module cannot be updated" :lol:

8683/8595 with A64 Winchester @ 310x10=3102MHz DDR564 5-2-2-2.0-1T - cpu-z verified

Quote:

---

Originally Posted by bachus_anonym

esdee, can you not crop the screenshot that much. if you save it as .PNG you can easly attach even whole 1600x1200 screen here (~200KB). would be nice to see clocks, cpu-z, a64tweaker and all the works...
what OS are you on? XP? is that why you don't use mem pages. if so, change OS, tweak it and 9k is yours @ the same sclocks ;)

otherwise, 292MHz looks really nice and good luck! :thumbsup:

this is max I got from my BH-5 so far, just for reference. I can go as far as 286MHz on that multiplier but Sandra would not show results for the love of my life - "something about module cannot be updated" :lol:

8683/8595 with A64 Winchester @ 310x10=3102MHz DDR564 5-2-2-2.0-1T - cpu-z verified

---

bachus sorry , i used the pic from thelab.gr where the size is pretty limited.
and there is nothing special on the screenshot we took of that sandra run
For 9K there will be a full screenshot i promise

the OS is w2k3 but something is wrong with the installation and i cant get the page files tweak to work.Ill have to re install w2k3.

there is some juice left on the mems but the CPU is reaching it's limits

i hope within a week ill have my new phase completed so i will have much time to bench without worryin about the dry ice.ill have some everest latency results soon too ;)

nice BH5 there! "something about module cannot be updated" i get this message when i tested my 2x512 UTT @ 280Mhz , 277 was fine tho

we'll update as soon as we bench again ... it's gonna happen soon ;)

Edit - NM.
