Just out of curiousity and combined 2x512 Mushkin Blue w/ black pcb on slots 3&4 and Gskill LA/tccd440 on slots 1&2
http://img15.exs.cx/img15/2866/screenshot0012qv.jpg
And really low sandra....
http://img15.exs.cx/img15/6674/screenshot0024mj.jpg
hehe interesting :)
I will try with 2T...
are you running a DDR200 (1/2) divider?
No divider...ran 230x12 @ 1T.
why does it say 115mhz memory then?
it has to be running a divider. no other reason it would be that low.
Now ran with cpc off 2T @ 1:1
http://img140.exs.cx/img140/6981/screenshot0047lz.jpg
So far, 240 @ 2T is a compromised setting which tccd and bh5(or ch?) can meet @3.1V
http://img136.exs.cx/img136/7559/screenshot0064yx.jpg
64 tweaker by default http://img183.exs.cx/img183/6755/screenshot0070kj.jpg
2T/1:1 beating 1T/1:1? Its pretty much for sure using a divider in that case.
Well now you got the 1:1 going. Nice. Can you go back to 230 1T 2-2-2? I'm doubting that can be done since most TCCD won't get up that high at tightest timings. However any four 512mb sticks at 1T any speed would be encouraging.
Here man..why you doubting me? Try run 2GB mem. and you can see. B/way this with cpc on which means 1T and 1:1 same as my first post and tweaker on default/no changesQuote:
Originally Posted by STEvil
http://img222.exs.cx/img222/3238/screenshot0093ts.jpg
And this back to 2T....and AM3 with 4x512..http://arc.aquamark3.com/arc/arc_vie...run=1361237359
http://img222.exs.cx/img222/52/screenshot0087kn.jpg
Ooops. Most TCCD won't but you seem to to have the uber TCCDQuote:
Originally Posted by gundamit
Gskill LA @235 with 2-2-2-5 ... heh ... just saw that thread again.
I just wanna try to find a setting that can bring these two memory chips together @2GB. So far with my system it is 240 -2T -2-2-2-5 @ 3.1V.
Because CPU-Z shows 1:2 divider, Sandra scores are horrible, and 2T is giving better scores.Quote:
Originally Posted by Dumo
Amazing!! Never thought about this. Interesting and good job bro!
interesting BH-5 is carrying TCCD to 240mhz 2-2-2-5 ? can you pass memtest #5 and #8 loops in memtest86+ v1.55.1 ?
Is this 316 bios?
I could not boot up..even use same ram for all 4 dimms:(
99.99% sure you're running 2T even if a64tweaker says otherwise as your 240mhz 2-2-2-5 sandra buffered of 6k corresponds closely to my 4x 256MB XMS3500C2v1.1 BH-5 @243mhz 2-2-2-6 2T at http://www.xtremesystems.org/forums/...ad.php?t=58556Quote:
Originally Posted by Kunaak
http://www.fileshosts.com/DFI/NF4_SL.../mem-buff1.jpg
Could be when you set 1T, cpu overrides you and forces mem divider to lower ram speed hence getting lower bandwidth at 1T than 2T
Nice experiments there Dumo. Since u are running 2gb, try running cinebench 2003 with your highest oc on 2gb and see what happens.
It would be SO cool if you and OPB squared off. It seems OPB always ends up beating bachus. Would love to see an OPB vs Dumo squaring off :eek: :D on highest fsb, etc..heck u guys even have such similar rigs lol
It is with 2.17 bios and 2gb mem. with cpc on (1T enabled) will be defaulted to 1/2 divider. With 2T though games ran so smooth :D Will try run 3D benches with max. oc on cpu and vid. card. Good thing is Gskill LA by itself can scale to 240/2-2-2-5 stable @3.1V.
Thats the issue right there...when all 4 dimms are filled the winnie/FX's set the ram to run at a divider and 2T...this is not a MB issue or ram issue...but a CPU issue...Quote:
Originally Posted by eva2000
The Vinnie/Deigo's are supposed to fix this issue...but so far it looks like the vinnies are still running at 2T with all of the dimms filled again...
venices are NOT supposed to fix the 2t issue. they are only supposed to be making 100% officially 4x double sided sticks stable at ddr400 @ 2t. right now winnies/newcastles/claws are rated by amd with 4 x single sided sticks, ddr400 @ 2t, and 4x double sided sticks at ddr333 (not sure if thats 1 or 2 t, would expect 2 t still).
venices are ONLY changing the rating for single sided sticks to 1t, double sided is just getting a speed bump. but as shown here, thats "official" ratings. Aren't any official 4Ghz ath fx's either ;)
ITs VERY good news that they are rating the mem controller at faster speeds for 4 single and double sided sticks, it makes running at 1t with 2 gb's more likely that it is now, but theres no garentee.
so in conclusion running 4 sticks can't be done at 1T without a forced 1/2 divider.
also seems like everyone's dream of 250 2-2-2-5 1T with 4x512mb is not going to be happening anytime soon with Venice either.
Sorry guys I'm kinda new to 4 dimms but I have an other question, can u use 3 sticks of 512mb pc3200 ram (same brand-model)? If yes at 2t again???
edit: on dfi ultra-d with bios 3/16...
I'm not sure, but 3 sticks wont run dual chanel. Still with 2.17bios and I will try it with 3.xx ....Quote:
Originally Posted by ooztuncer
Some weeks ago I had 2 x 512 mb muskin pc 3500 level II + 2 x 512 mb infineon 6a on my Av8.
Even at 166 with 2-2-2-5-1t I had thousands of memtest-errors. Running 215 2-2-2-5-2t was memtest and prime-stable at 2.8 volt.
heres....cpu test....55.5 sec.Quote:
Originally Posted by perkam
http://img224.exs.cx/img224/9366/screenshot0152gn.jpg
Cinebench results for comparison....
http://img67.exs.cx/img67/1143/cineb...03table2zz.png
Sandra cpu...
http://img123.exs.cx/img123/4874/screenshot0173jj.jpg
Are you rock solid Dumo!?
If yes, it would be a great thing! :D
With FX55 130nm yes.Quote:
Originally Posted by Punisher!
Heres wirh FX55 San Diego and the same tccd+utt with 2T....
http://img296.echo.cx/img296/7751/screenshot0387kk.jpg
http://img296.echo.cx/img296/3015/screenshot0391uw.jpg
My system is working like a champ, 250Mhz x11, 2T @ Tight, 3.3Vdimm using Hellfire's 510-2 bios. 4 512M sticks of TMII plain jane UTT/VX.

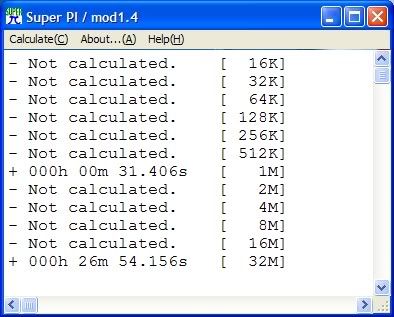

Here is SuperPi:
http://i7.photobucket.com/albums/y29...bd/SuperPI.jpg
And my StressPrime:
http://i7.photobucket.com/albums/y29...tressPrime.jpg

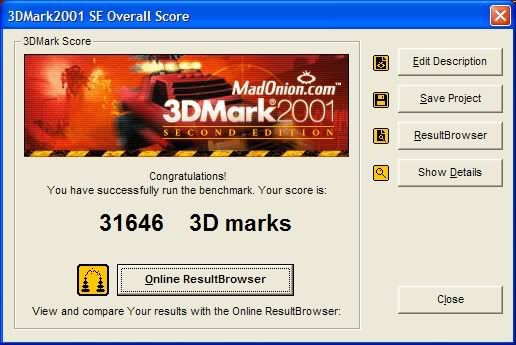

And 3D2k1 with X850 OC'd 560/625 on stock cooler:
http://i7.photobucket.com/albums/y29...1X560OC625.jpg
3D2K05 gets 6436
Heres @3.1V and 2T..tccd and utt :banana::banana::banana::banana:tail...No 1T with 2GB, cpc disable and bank interleaving on...
http://img32.echo.cx/img32/8751/screenshot0418kv.jpg
http://img32.echo.cx/img32/999/screenshot0448ef.jpg
