Xtreme Overclocking of dual G.SKILL TCCD LA up to DDR720

The DDR600 512LA Package.
http://hkp2p.shopping7.org/~hardware/TEST/LA/00.JPG

Testing Environment
K8 939 3000+ (0.09)
G-Skill TCCD LA 256MBX2 2.85V
K8N Neo4 Platinum
GeForce 6200
TEAC 512EB
Delta 300W

http://hkp2p.shopping7.org/~hardware/TEST/LA/01.JPG

DDR682 CL3 4-4-8 Testing Report
Booting Screencut
http://hkp2p.shopping7.org/~hardware/TEST/LA/BIOS.JPG

Memtest 1.40, can not judge the NForce4 chipset.Maybe 1.40 edition Later
CPU 342X9=2728Mhz,DDR682 CL3 4-4-8 1T,PASS 4 Cycle
http://hkp2p.shopping7.org/~hardware/TEST/LA/M1T.JPG

The memory brandwishis is used 2T Command Environment.
CPU 342X9=2728Mhz,DDR682 CL3 4-4-8 2T
If someone has any question,Please do the test by yourself.And we can compare the difference between 1T and 2T.Some Motherboard is more strong ,others are not.
http://hkp2p.shopping7.org/~hardware/TEST/LA/M2T.JPG

In Windows XP environment. It is in the “1T” Command.
http://hkp2p.shopping7.org/~hardware/TEST/LA/1T.jpg

When we check this situation,we can find that it has difference 300MB/S of brandwish.
http://hkp2p.shopping7.org/~hardware/TEST/LA/2T.jpg

In the Windows2003 environment, it can run DDR720.Because my CPU is not veryspowerful. I slow down the CPU MULTIPULER. It is the reason of low brandwish.
http://hkp2p.shopping7.org/~hardware/TEST/LA/720.JPG


In the Force3,MSI K8N NEO2 testing report
http://hkp2p.shopping7.org/~hardware/TEST/666/01.jpg

http://hkp2p.shopping7.org/~hardware/TEST/DDR/M670.jpg

http://hkp2p.shopping7.org/~hardware...DDR/DDR670.jpg

http://hkp2p.shopping7.org/~hardware...DDR/670p95.JPG

Overclocking is not the AMD.Motherboard ,promise cpec.
CPU&Motherboard can access 200MHZ,RAM access 300MHZ
Like Msi_NEO2, 2/3 can pass 300MHZ.
1/3 can not pass 300 MHZ If we make the RAM of pass DDR600,it will be error situation in this Motherboard.
In this high MHZ, It must depend the CPU,MOTHERBOARD,RAM.
All of three equipment are powerful, It can pass the related testing tools.
As I know,DDR600 is the limited item in the market.

NOTE:Next test Nvidia GeForce 6600GT AGP,coming soon

Wow is all I can say. :toast: I was just scrolling through here one last time before I pass out for the night and I had to double take at this thread. Those are some amazing clocks you have on that ram. Keep up the good work :D

that is a badass bios. mines don't say all that information.

very nice :)

Is LA the one where 1 in every 40 chips is binned for it?

So glad that I probably don't have processor that can handle this memory. Less place to spend money on this account at least... LOL.

:slobber:

G.Skill just keeps getting better and better!

where do you get all this stuff :D
and why did you get the 2-2-2 at 200mhz?
what about the 2-3-3 200mhz that goes to DDR 600? unless you got it for free... :toast:
i cant wait for pics to load :( but soon im getting adsl!

Not impressed with 3-4-4 timings. how high could you get at 2.5-3-3?

Just reaching 360 is an accomplishment.
I really have to look into getting some.

http://hkp2p.shopping7.org/~hardware/TEST/LA/00.JPG

isn't 'LA' suppose to be 3-4-4-8 for ddr600 and 'LC' is 2.5-4-4-8 ddr600. look at the stickers on the ram. did 'LA' change binning? are they speed binned at 2.5 cas ddr600? if so then exactly what is the difference between 'LA' and 'LC' ?

http://store.yahoo.com/digi4me/gsk25ddrpcp3.html

http://store.yahoo.com/digi4me/gs51kit2x2dd.html

:slobber: OMG... 360mhz...

I give up, nothing to shoot for anymore :(

Dear kanvait
I am use the Nero2-1.41 mod edition.
General to say,The market-sale motheroard just only DDR600~DDR620.
I tested many neo2-motherboard.They just ddr620 2.5-3-3-6.(Max-Limit).
Unless especial motherboard,It is easy ddr640 or above.
I have a special mothernoard,It has limit in the DDR682(Pass memtest86 v1.30 all test).

thanks charlie for your and every opinion.
I will do my best for this forum,I am a crazy overclocker-user.

This CHIP is TCCD 0440 & 0437.
It has newest process of the TCCD.
it is very nice performance.
But I have no "OCZ-BOOTSTER".I will cry.
So I just tested in the 2.85V of vdimm.

I will wait the DFI_NF4 Motherboard.
This is very strong.
If I receive this motherboard,I will post this test as fast as possible.

thanks everybody

Zero Wing called, and they want their grammar back (sorry, I just had to..)

Nice results, that's so insane :P I'm still trying to reach 300mhz DC :P

Bandwidth does look kinda low @ 8-4-4.. 7-3-3-2.5 = how far does it go?

sweet

Quote:

---

Originally Posted by trans am

http://hkp2p.shopping7.org/~hardware/TEST/LA/00.JPG

isn't 'LA' suppose to be 3-4-4-8 for ddr600 and 'LC' is 2.5-4-4-8 ddr600. look at the stickers on the ram. did 'LA' change binning? are they speed binned at 2.5 cas ddr600? if so then exactly what is the difference between 'LA' and 'LC' ?

http://store.yahoo.com/digi4me/gsk25ddrpcp3.html

http://store.yahoo.com/digi4me/gs51kit2x2dd.html

---

LA 256MBX2
DDR600 3 4-4-8
DDR400 2 2-2-5
Here

LC
DDR550 2.5 4-4-8
DDR400 2 2-2-5
Here

I have had over 3100 in memtest at sub 300fsb with lower latency ram and a 1gig kit...i really can't see the point of high latency ram and 939 cpu's :confused:A64 has a low latency memory controller, you really need to be running 2.5-3-3 or tighter to get the best from it...and the best way to check is Everest Write or sandra unbuffered.

This has nothing to do with OCZ...today these are my comments.

Also continual testing of 256 modules does nothing but prove the load on the memory controller really matters...IE..the lower the better ;)

Lets see you guys run 2-2-2 at 300 or or as close as you can with the TCCD 1gig kit, then I will be impressed.

http://www.xtremesystems.org/forums/...chmentid=20733
http://www.xtremesystems.org/forums/...chmentid=20734

My best on the 9NDA3+, more cpu speed would give even greater bandwidth but im a ram clocker and not a cpu clocker ;)

to bigtoe:
Thanks for your good suggestions :)


Now I show my test on k8n neo2 about one month ago.
And I use G.SKILL 1GB LE to test.

DDR590 1T CL2.5 3-3-5
http://hkp2p.shopping7.org/~hardware/TEST/DDR/M590.jpg

http://hkp2p.shopping7.org/~hardware...DDR/1GB590.jpg

http://hkp2p.shopping7.org/~hardware/TEST/DDR/W690.jpg


I don't have much time to test this ram because I need to test the others like CPU, Motherboard, VGA Card and so on...

What voltage for 5-3-3-2.5 @ 295 1:1?

I'm going to order some LA after Christmas, I think this really is the best TCCD product available personally.

What can I say windwithme... that is some impressive stuff. :thumbsup:

I could only manage 270 MHz 2.5-3-3-5 1T @ 2.85V 2x 512 MB on the Abit AV8 with Corsair TwinX1024-3200XL v1.2 (BP 815 PCB + TCCD ICs)... I think it's pretty good for a setup using a K8T800 Pro motherboard and DDR400 RAM. :)

Here's a screenshot... don't mind the low speed of the CPU... it was cooled by a TR XP120 with no clips attached to the socket (=>crappy cooling) so I couldn't manage higher speeds. That's why the b/w seems a bit too low. But those are 1T results. Cheers! :toast:

PS: I'm glad to be here at last!

varzmaster
Sucky mobo, my friend. What you need is the EPoX or the MSI.

Quote:

---

Originally Posted by IvanAndreevich

What voltage for 5-3-3-2.5 @ 295 1:1?

---

Use Msi K8n Neo2 2.85v :)

Quote:

---

Originally Posted by trans am

Not impressed with 3-4-4 timings. how high could you get at 2.5-3-3?

---

That's why you guys never seen I did that 3-4-4-8 relax timing.. I am always do at lease CL=2.5;)
Bear with me a while, you guys will know how far LA can go! :D

Quote:

---

Originally Posted by IvanAndreevich

varzmaster
Sucky mobo, my friend. What you need is the EPoX or the MSI.

---

Will try today on a volt-modded EPoX 9NDA3+. Will post results. :D I know the AV8 is not the best choice for overclocking... but still... it's not as bad a board as one might think.

How about 3-3-3-x?

could care less about cas latency, its TRCD and TRP that matter..

to varzmaster:
As the VIA chipset,Your testing report is very nice :)

to STEvil:
I will do the testing later.Thanks for your opinion :)


The limits of p revious Testing report is located 600.And it can pass memtest86.This is just testing in the MHZ.

I have no tested the extreme performance and best-optimized –parameter. If I have more time, I will do this testing parameter-value.

thanks :)

DDR600 1T 2.5 3-3-5 :p:
http://hkp2p.shopping7.org/~hardware...200511/335.jpg

DDR600 1t 2.5-3-3-5?..too easy..:p

Quote:

---

Originally Posted by Onepagebook

DDR600 1t 2.5-3-3-5?..too easy..:p

---

hahahaha
it is ok

DDR650 1T cl2.5 4-3-5
http://hkp2p.shopping7.org/~hardware...200511/650.jpg

ok...next..:D
DDR625 1g(512x2) "1t cmd"2.5-3-3-5
not photoshop..:D took it from digital camera..;)

http://www.devilsword.com/ms7125/ddr6251t.jpg

Hey, your monitor is almost as big as mine ;) :D

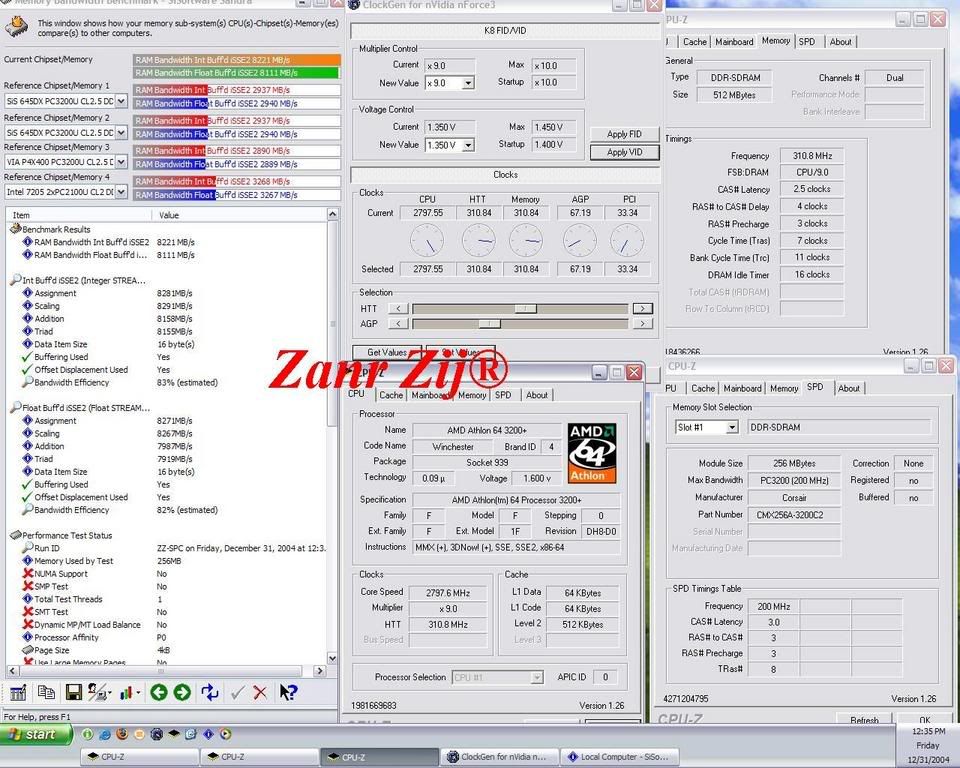

Corsair rev 4.1 do better than my G.Skill sorry :(http://img.photobucket.com/albums/v5...M/a2a89da7.jpg

You guys are just tearing t up.
I really would like to see some 2-2-2 at 300.

Well...I'm impressed.

I have a P4 2.4C that I run at ~282fsb. So I am looking for a 1GB set (512x2) of RAM to run at tight timings at 282 1:1.

I'm about to pull the trigger on the GSkill PC4400. However, there are so many variations (i.e.: LA, LC, LD, LE).

Based on GSkill's specs, I would think the LE would be best. But I saw a post somewhere that indicated that the LA is preferable for highest overclocking speeds at tightest timings. I'm confused.

Which one is best for my situation? :confused: Thanks for any help!

Quote:

---

Originally Posted by althes

You guys are just tearing t up.
I really would like to see some 2-2-2 at 300.

---

Who doesn't? :D

Still DDR 625 with 2,5-3-3-5 timings ain't bad at all for 2x512mb with 1T CMD.

300 2-2-2 isn't going to happen with anyting other than some xtreme BH-5 and some ugly voltage.
And then again, not with 2x512mb. :(

Quote:

---

Originally Posted by Onepagebook

ok...next..:D
DDR625 1g(512x2) "1t cmd"2.5-3-3-5
not photoshop..:D took it from digital camera..;)

http://www.devilsword.com/ms7125/ddr6251t.jpg

---

so great :p:

[QUOTE=Zanr Zij]Corsair rev 4.1 do better than my G.Skill sorry :([QUOTE]


haha dude, did you see mine is [color=red] "1g dual channel DDR625 2.5-3-3-6"...not 256x2?
:p:



Stevil...my monitor?lol it's apple 23" LCD :D

yeah, all i've got is a 22" flatscreen CRT :P

Stunning results. Timings are not on the strong side but those ras-cas 3 results are pretty remarkable :toast:

And yes OPB that is a biga$$ monitor - It really dwarf´s my 19" tft :( :hehe:

Quote:

---

Originally Posted by Kanavit

that is a badass bios. mines don't say all that information.

---

:ROTF: :lol: :rotf:

Quote:

---

Originally Posted by Onepagebook

ok...next..:D
DDR625 1g(512x2) "1t cmd"2.5-3-3-5
not photoshop..:D took it from digital camera..;)

---

dmn, well.. since FX-55 has a good int. mem. controller and the board is NF4.. this is still impressive.. :slobber:

I hope, that in Q1 of 2005 new A64 CPUs, which would have SSE3, less TDP (+DSL) & a better/improved/rev. mem controller would score something like the same on a DFI NF4-Ultra.. :D :D

Quote:

---

Originally Posted by trans am

http://hkp2p.shopping7.org/~hardware/TEST/LA/00.JPG

isn't 'LA' suppose to be 3-4-4-8 for ddr600 and 'LC' is 2.5-4-4-8 ddr600. look at the stickers on the ram. did 'LA' change binning? are they speed binned at 2.5 cas ddr600? if so then exactly what is the difference between 'LA' and 'LC' ?

http://store.yahoo.com/digi4me/gsk25ddrpcp3.html

http://store.yahoo.com/digi4me/gs51kit2x2dd.html

---

LA DDR400 2 2-2-5&DDR600 2.5 4-4-8 256MBX2
LC DDR400 2 2-2-5&DDR550 2.5 4-4-8 256&512MBX2

Sell in newegg...
http://www.newegg.com/app/ViewProduc...231-007&depa=1

thanks wwme. I have a set of 2x256 LC. I haven't played with them yet, but we'll see. Been too busy with the twinmos. I think I'll put the gskill in now. BRB.

Quote:

---

Originally Posted by trans am

thanks wwme. I have a set of 2x256 LC. I haven't played with them yet, but we'll see. Been too busy with the twinmos. I think I'll put the gskill in now. BRB.

---

TA..fire them all the way over 300.. :D


OPB

Quote:

---

Originally Posted by Onepagebook

TA..fire them all the way over 300.. :D


OPB

---

oH BOY. It was not a pleasant overclocking experience. :(. THese wouldn't do the rated timings and speed of ddr550 at 2.5-4-4-8 2.8-3.3v. I just got these last week. I am going to call newegg and see if they will take them back, hopefully they will let me upgrade to pc4800 LA. Those look pretty good! the dates on these are kinda old too. week 31. most of my tccd from 31 we're not very good. I think I'll keep the VX in for now. oh well. :shrug:
http://www.xtremesystems.org/forums/...id=22263&stc=1

Quote:

---

Originally Posted by trans am

oH BOY. It was not a pleasant overclocking experience. :(. THese wouldn't do the rated timings and speed of ddr550 at 2.5-4-4-8 2.8-3.3v. I just got these last week. I am going to call newegg and see if they will take them back, hopefully they will let me upgrade to pc4800 LA. Those look pretty good! the dates on these are kinda old too. week 31. most of my tccd from 31 we're not very good. I think I'll keep the VX in for now. oh well. :shrug:

---

what is your MOTHERBOARD?


Overclocking is not the AMD.Motherboard ,promise cpec.
CPU&Motherboard can access 200MHZ,RAM access 300MHZ
Like Msi_NEO2, 2/3 can pass 300MHZ.
1/3 can not pass 300 MHZ If we make the RAM of pass DDR600,it will be error situation in this Motherboard.

my test
neo2 2.85v
http://hkp2p.shopping7.org/~hardware/TEST/DDR/M670.jpg

9nda3+ 2.8v
http://hkp2p.shopping7.org/~hardware/TEST/9NDA3/670.jpg

neo4 2.85v DDR682 1T CL3 4-4-8
http://hkp2p.shopping7.org/~hardware/TEST/LA/M1T.JPG


In this high MHZ, It must depend the CPU,MOTHERBOARD,RAM.

[QUOTE=windwithme]what is your MOTHERBOARD?


Overclocking is not the AMD.Motherboard ,promise cpec.
CPU&Motherboard can access 200MHZ,RAM access 300MHZ
Like Msi_NEO2, 2/3 can pass 300MHZ.
1/3 can not pass 300 MHZ If we make the RAM of pass DDR600,it will be error situation in this Motherboard.

thanks wwme, but I have many sets of tccd and I've tested them in the same board with the same tried and true settings. I attached an error log from memtest86 so you and OPB can see they are POS sticks. I'm really surprised these sticks couldn't even pass at rated speeds and they are just 2x256. THese should have no problem with this rig. I think I just got sticks that are bad. Maybe shipping damage or ESD damage. THis is my first run with Gskill but I am not giving up. A friend of mine(klisp) just got the same sticks and he also had problems. :shrug:

here's pdp tccd on same board....
I didn't bother with ras-cas 4.
Yes, it's stable.
Like tony mentioned earlier.
the ras-cas 4 on k8 is really a ball buster.
It's the equivalent to bringing sand to the beach.
http://xtremesystems.org/forums/atta...chmentid=19631

Hence why i RMA'ed back to newegg. I had the gskill LE "440" 2x512 set. I also tried 1 stick by itself on all different dimm slots. I also tried all different voltages and mem timmings. I think i got some bad ic's.

The 754 chipset MB I bought 3 pcs before and all the MSI K8N NEO. These I used were the TCC5 RAM. These were all passed the 600MHz and 1T setting.

The 1st K8N NEO I pluged the RAMs on DIMM 1 and 2 and used the 520MHz. The 2nd K8N NEO I pluged the RAMs on DIMM 1 and 2 and used the 540MHz. The 3rd K8N NEO I pluged the RAMs on DIMM 1 and 2 and used the 560MHz. All MB were passed the MEMTEST function

I also bought and tested the two DFI 754 LANPARTYs, one can runnings 560MHz and 580MHz.

As I knew, 754 chipset using the single channel for DIMM can using higher frequency and 939 chipset were opposite. However 939 or 754 DIMM frequency all over 250MHz and normal. But, all chipset had differ performance.

Quote:

---

Originally Posted by Klisp

Hence why i RMA'ed back to newegg. I had the gskill LE "440" 2x512 set. I also tried 1 stick by itself on all different dimm slots. I also tried all different voltages and mem timmings. I think i got some bad ic's.

---

that's bad news.. :mad: What's the max u've reached?

I beleave it was 2x512 260 stable and 1x512 was 272 stable. 1:1

Quote:

---

Originally Posted by rpr

...So I am looking for a 1GB set (512x2) of RAM to run at tight timings....
...
I'm about to pull the trigger on the GSkill PC4400. However, there are so many variations (i.e.: LA, LC, LD, LE)

Which one is best for my situation?

---

Well, would like to know wich is better too (from the better to the "worst")...

LA, LC, LD or LE?

Quote:

---

Originally Posted by windwithme

The 754 chipset MB I bought 3 pcs before and all the MSI K8N NEO. These I used were the TCC5 RAM. These were all passed the 600MHz and 1T setting.

The 1st K8N NEO I pluged the RAMs on DIMM 1 and 2 and used the 520MHz. The 2nd K8N NEO I pluged the RAMs on DIMM 1 and 2 and used the 540MHz. The 3rd K8N NEO I pluged the RAMs on DIMM 1 and 2 and used the 560MHz. All MB were passed the MEMTEST function

I also bought and tested the two DFI 754 LANPARTYs, one can runnings 560MHz and 580MHz.

As I knew, 754 chipset using the single channel for DIMM can using higher frequency and 939 chipset were opposite. However 939 or 754 DIMM frequency all over 250MHz and normal. But, all chipset had differ performance.

---

Thanks for the tip. :rolleyes:

Are these gskill good? F1-3200DSU2-512LC / F1-3200DSU2-1GBLC

Quote:

---

Originally Posted by goreblast

Are these gskill good? F1-3200DSU2-512LC / F1-3200DSU2-1GBLC

---

The LC are rated at 275Mhz, 2.5-4-4-8.
The LE are rated at the same speed but with 2.5-3-3-7 timings.

So I'd go for the LE kit, or the slighty more expensive LA kit.

I can only find the LC available at UK online stores - CPUcity and PC-Memory-Upgrade

Quote:

---

Originally Posted by windwithme

LA DDR400 2 2-2-5&DDR600 2.5 4-4-8 256MBX2
LC DDR400 2 2-2-5&DDR550 2.5 4-4-8 256&512MBX2

Sell in newegg...
http://www.newegg.com/app/ViewProduc...231-007&depa=1

---

is the LA only available in 256x2 sticks?

which is the fastest 512x2 Gskill? is it this one?

550 2.5-3-3-7

or is a LA version of 512x2 coming? im kinda confused with these new LA, LC LE thingys.

Can someone clear it up for me plz?

thanks

Quote:

---

Originally Posted by LightSpeed

is the LA only available in 256x2 sticks?

which is the fastest 512x2 Gskill? is it this one?

550 2.5-3-3-7

or is a LA version of 512x2 coming? im kinda confused with these new LA, LC LE thingys.

Can someone clear it up for me plz?

thanks

---

HOW about looking at the site and reading some threads, kthx..

www.gskil.com

I have a question :
Now i have 1stik Gskill512mb with 431 chips on single channel, but if i buy a 2nd stik with other tccd chips (440 or something) , will i still have dual channel ? ,or do have have to have 2*431 sticks?

The stick have nothing to do with dual channel - But to answer your question . Yes you would :)

Quote:

---

Originally Posted by Ratax

Well, would like to know wich is better too (from the better to the "worst")...

LA, LC, LD or LE?

---

LA.LE>LC>LD :p:

So is LA better than LE in 2x512mb kits?

I have the 2x512mb LA kit from oc-wear.de (about €350 kids :(). Would the LE in theory be better or worse for OC. I don't want 2x256. I need at least one gig in the main system.

Quote:

---

Originally Posted by Juliette

So is LA better than LE in 2x512mb kits?

I have the 2x512mb LA kit from oc-wear.de (about €350 kids :(). Would the LE in theory be better or worse for OC. I don't want 2x256. I need at least one gig in the main system.

---

Honestly, I won'tthink LA 1g kit will better than LE 1g!
LA 1g was tested under DDR600 2t at that time but LE was tested under DDR550 1t:)

Ok. I just cant quite grasp why you're getting the best results on LA, and recommending LE ( i know its 2x256, but the difference cannot possibly be that great..) isnt 2x256 LA also tested at DDR600 2T?

btw, what's the great difference in 2T? As in theoretically, practically, and how much higher in OC you can go with 2T.

Hi guys, i have a friend who has bought a stick of twinmos (256MB) with mTec chips. It is doing 270 2-2-2 at 3'2V on a DFI UT250, not pi stable but it does sandra tests. 4155.
Should him buy a ddr booster? :D

you should try feeding them 3.3v+ and get the codes off it!

http://www.hardlimit.com/forum/attac...achmentid=2782
http://www.hardlimit.com/forum/attac...achmentid=2781

Seems 60D.

hi,
my g.skills are doing well, too.
but i was "afraid" of going above 320fsb.....because i had already to use 1,72v-core AND 1,8v-chipset + 3,1vdimm :(

but i think with lower timings they can do ddr660 easily! btw:
this is an older screen, after buring in they do 312mhz @ 2,5/3/3/5
http://server3.uploadit.org/files/bl...lab-310fsb.JPG
here my best super-pi time
http://server3.uploadit.org/files/blubberblab-33s.JPG

mfg

Quote:

---

Originally Posted by krampak

http://www.hardlimit.com/forum/attac...achmentid=2782
http://www.hardlimit.com/forum/attac...achmentid=2781

Seems 60D.

---

Dood!!

Wrong Thread... :stick:

Here...http://www.xtremesystems.org/forums/...ad.php?t=49229

9NDA3+
DDR600 1T CL2.5 4-3-5,about 2.55V Prime95 ok
http://hkp2p.shopping7.org/~hardware...NDA321/300.JPG

May I suggest some reduction in size of pics, thumbs perhaps even?

I enjoyed reading the text of this thread but the many high res pics on the first page take forever to load.

Have a bit of mercy please on those of us in rural areas where only 56K, really more like 40K connect speed is available.......thanks guys.

Keep up the very good work!

ras-cas 4 again! wtf?

Cool Rams! Sadly, its not available in my country and probably never will be available.

Quote:

---

Originally Posted by Onepagebook

Honestly, I won'tthink LA 1g kit will better than LE 1g!
LA 1g was tested under DDR600 2t at that time but LE was tested under DDR550 1t:)

---

I went with a gig of the le myself that will be here Thursday! I can't wait to sslap those sticks in and crank down the timings.

From everything I have read and heard the le in 2x512 is the way to go.

Quote:

---

Originally Posted by ISS

Cool Rams! Sadly, its not available in my country and probably never will be available.

---

Have a friend buy them for you and ship them to your house.

Hi guys,

I've seen a lot of AMD benchies. But how do these do in Intel Systems?
I see that the LA's are reccommended for socket 939, but I was wondering how some of the results on Intel's look.

I just received the LE 2 x 512MB. It runs fine at the rated speed (2.5,3,3,7,. at 550DDR); however, I can not run Performance Acceleration Technology (PAT) on my Asus P4C800-E Deluxe motherboard. If I try, it will run for a while, then I get a high pitched squeel, and the system freezes.

Defective memory chip??? :confused:

squeel comming from motherboard or PSU?

Tight memory timings may be causing inceased current draw which would cause instabilities if your board or PSU cant supply enough power. Torroids are what "squeel" most often.

I have a monster PSU (PC Power & Cooling). Arguably one of the best (and most expesive) on the market. It holds rail voltages rock solid. I don't think it can be the PSU.

Assuming its not the PSU, what weak link do I look at next? Torroids???

torroids, capacitors, and mosfet used to deliver voltage to the memory.

Quote:

---

Originally Posted by Carnajo

Hi guys,

I've seen a lot of AMD benchies. But how do these do in Intel Systems?
I see that the LA's are reccommended for socket 939, but I was wondering how some of the results on Intel's look.

---

I dont think TCCD does well under Intel. I don't even think that VX does that well under Intel, but I'm not sure about that one. I think the intel king for memory is still BH-5.

VX and TCCD do fine after playing with a bunch of options, just not at "stock" 100% of the time.

hmmmm so whats the real world impact of 2.5-3-3 to 3-4-4?

can somebody bench 3dmark2001 and 2003 with both settings at the same speed?

Right off the news saaya: http://www.anandtech.com/cpuchipsets...oc.aspx?i=2330

Go to page 4 of the article ;)

DFI LP UT Ultra-D
256mbx2 ddr600 1t cl2.5 4-3-5 2.9v
http://hkp2p.shopping7.org/~hardware.../Ultra/650.JPG

Quote:

---

Originally Posted by STEvil

Right off the news saaya: http://www.anandtech.com/cpuchipsets...oc.aspx?i=2330

Go to page 4 of the article ;)

---

i asked for 3dmark, not hl2, i read that article as well :)
