here is the pictures :
pienari do nice work with those mods, thx for him
:toast:
Vmods
i drive some tests with those mods and it works fine,
but now i need know how we can do VTT mod, that maybe
helps with fsb.
1.4v 5150mhz, 303fsb, 5:4,
Superpi 8m 4:43
Doesn't vtt track right on asus boards? Excellent mods too ;)
:slobber:
What cooling is this? 5G??
what's the resistor value for the droop mod??
I must ask... I can see you spent some time figuring out how to make the AGP voltage mod. What is this good for? high FSB? higher AGP frequency or what?
Another thing. Have you had any problems with P5P800 detecting frequencys wrong at post and in bios when going at FSB's beyond 250MHz? The FSB seems unstable to when exceeding the speed of 250MHz... open CPU-Z and it would detect 255-260-265-268-269-270MHz... just an example.
I need help for vdroop mod.In the photo of Verdict I do not see well.
I have need of confirmation before the mod :D
http://www.ocpassion.com/CarNabY/P4/..._Droop_mod.jpg
And still...what's the resistor value for the droop mod ?
Thx all
If the resistance there is the same as it is on the P4C800 then you need 28k ohms of resistance.
Thx bh2k,.. now I have only need of knowing if the points in red are exact for the vdroop :)
Quote:
Originally Posted by CarNabY
Without having the board, I have no idea if thats the correct locations or not.
But, what you do need to know is that the pins that control the Droop are #17 and #18. You can solder the VR to anything connected to both pins. But make sure that what you solder to is connected to BOTH pins and not just one.
I am pretty sure that the capacitor ends in green are connected to #17 and #18, but stilll cant tell. Best to do a connectivity test if you cant follow the traces from the pins.
I marked the pins in green in the pic.
Thx Hell-Fire
Mmmm :rolleyes: I cannot directly solder the resistance to pin 17 and 18?
Sure ya can bud...just most people dont because they are scared of bridging the pins together, or other pins, and causing a short circuit.
im with carnaby. really not sure where those wires are connected to... :(
Quote:
Originally Posted by Hell-Fire
Ok Hell-Fire..no problem
Thx for y help :toast:
Pin 17 and pin18 with trimmer fixed 28k ;)Quote:
Originally Posted by macg
Bye
Just to be on the safe side....can you give me a resistance check between those 2 pins so I can make comparison between your findings and the resistance on a P4C that I have here/
Now I see your active... could you answer my question please? :)
Another thing. Have you had any problems with P5P800 detecting frequencys wrong at post and in bios when going at FSB's beyond 250MHz? The FSB seems unstable to when exceeding the speed of 250MHz... open CPU-Z and it would detect 255-260-265-268-269-270MHz... just an example.
Did any of you experience any wierd things with the FSB at all?
That could stem from all kinds of problems, or glitches.
That could be a simple bios glitch, a chipset problem,...things like that.
I have never modded, nor owned a P5P board, so I am not familiar with it all as far as how it clocks and things like that.
I have encountered things like this on other boards, and typically a bios changed fixed the improper readings.
It's not only me that have the problem, but I would like to know if ALL boards are like this or only some...
Take a look at this galleri. Stop when you had enough (not my pictures, but another one with the same problems)
http://www.overclockers.at/attachmen...chmentid=61793
It could simply be that the board is not engineered properly, or they are using capacitors that have a ton of leakage.
The board could simply be substandard.
Ops!! other problems :mad:
Oczbooster with this P5P? The connection in OCZBooster in cable 20Pin..and P5P is 24Pin!!
thanks mate! :DQuote:
Originally Posted by CarNabY
now if a vdimm mod could be done for this board...
Quote:
Originally Posted by macg
Verdict has a posted pic of the Vio = Vdimm mod, but for the standard Vdimm mod using a trimmer, I need a pic to go by gents.
P5P+560 Stock cooling and vcore default PAT Disable
http://www.ocpassion.com/CarNabY/Asus775/Screen11.GIF
http://www.ocpassion.com/CarNabY/Asus775/Screen04.GIF
The voltage in cpuz not real..bug
P5P+560 Stock cooling and vcore +0.050v
http://www.ocpassion.com/CarNabY/Asus775/Screen05.GIF
http://www.ocpassion.com/CarNabY/Asus775/Screen10.GIF
Maybe with BH5 2-5-2-2 30 sec?
New test Water cooling
With BH5 and OCZBooster. P5P800 No mod Water cooling(water +20°) the maximum frequency that I have closed superpi is:
http://www.ocpassion.com/CarNabY/P4/wbvcored.GIF
And with +0,050Vcore :
http://www.ocpassion.com/CarNabY/P4/Superpi29.GIF
:banana: :banana:
Now i need Vdroop ;)
THX Hell-Fire and Macci for Help :toast:
VDroop ok :banana4:
Now i have 3DMark under test with 4300Mhz..vcore 1.45v and Water +20° :D
guys,
is there any other way to do the droop mod? i mean, am i limited to soldering the trimmer between pin 17 and 18? or could i solder to some other area or component/s?
http://pienari.is-mad.com/Pics/Asus_...Droop_mod1.JPG
i couldnt see clearly where the points to solder are.. can anybody help me out please? thanks!!
bump
I have the same combination.Quote:
Originally Posted by Salkcin
p5p800, 3.6E
while my psu is OCZ 520W, when superpi is running, I was watching the cpuz,
the fsb is going down when iterations continues.
for example I set 14x275, when iteration goes, fsb downs accordingly.
I think there is a bug or cpuZ is showing the exact value under load :confused:
I tested with CPU-Z, WCPUID and a realtime clock of WCPUID. Beneath 250MHz it measures the frequency correct all the time - idle and load. 251MHz to ~260MHz WCPUID + the realtime clock measures correct and the CPU-Z keeps falling under load... at 270MHz and up WCPUID measures a FSB of about 20-30MHz beneath of what the frequency is set - the same idle and load where CPU-Z measures the full frequency idle and drops a lot load.
I suspect it's the PCB.... seems like they used the same for some of their 915P boards wich should be limited by 10% overclock and with the trick Asus made 25% wich would be 250MHz. I can't confirm this, but I have verifyed the performance is a bit random above the 250MHz - the frequency IS unstable.
You're lucky you have a 3,6E - 18x250=4500MHz before you run into problems... I allready do at 3500Mhz and there is more in this CPU!... of course you will loose some performance because you can't take advantage of the CPU Lock Free feature and gain high fsb...
I do not have problems over 250mhz!!
You are conneting a VR between pins #17 and #18 for this mod.
I marked the specific pins in one pic and pointed out a place you can solder.
As far as the lower place in the pic on post #1, I dont know if that resistor end is connected to pin #17 or #18, so thats why I pointed out the ends of the capacitor.
If you are worried about soldering there due to the fact that you can accidently solder a few of the pins on the ADP3180 together, do a connectivity test between pin #17 and the surrounding resistors/capacitors/solder pads until get a hit. Then do the same for pin #18.
Carnaby...
Did'nt your clock frequency drop while running that SuperPi? CPU-Z measures fine when the CPU idles... when it loads the frequency will drop. Can you confirm it measures 261Mhz FSB while loaded 50/100%
http://pienari.is-mad.com/Pics/Asus_..._V-mem_mod.JPG
Vmem Mod
What for a Resistor? Voltage?
Aquaman,
that is the Vdimm=Vio mod (Vdimm = 3.3v rail off the power supply).
You dont use a resistor (typically) on this mod, and the ram is receiving the same voltage as the power supply has on its 3.3v rail.
With a Resistor from 1k Ohm, and you adjust to 0.9k Ohms, the Voltage is 2.97V. Is that correct?
I dont know the internal resistance for the Vio, so I dont know the effect of adding an additional 1K resistor will have on the output voltage to the dimms.
I am not sure that a standard resistor will hold here either. The current may be to high.
What are you offering for the variable Vdimm mod?
Can older p4p800 mod be used?
anyone tried?
OK, although there is no LM358 on P5P800, there is no other way that I can find for Variable vdimm mod.

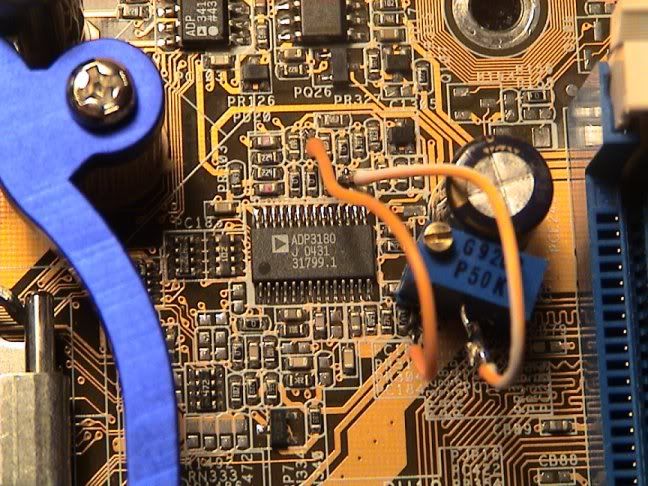

First I made the vdrop,

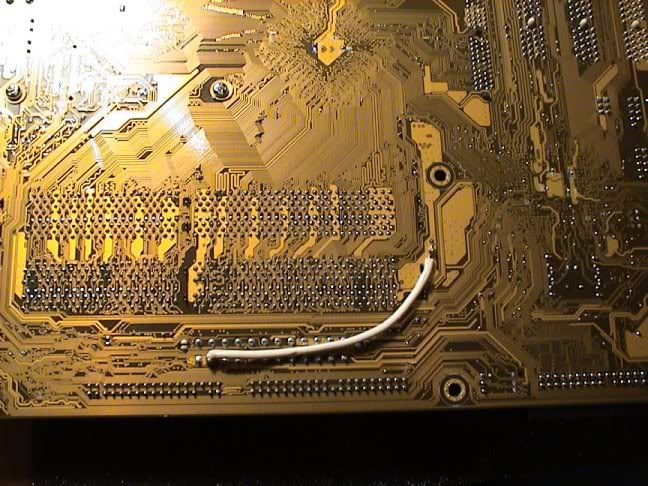

and then the 3.3 rail for the vdimm.
http://img.photobucket.com/albums/v2...p800/Vdrop.jpg
http://img.photobucket.com/albums/v2...00/VoVdimm.jpg
It's fine, now I get more stable oc clocks for cpu, and 225 fsb 1:1 dual 2-2-2-5 timings for my TCCD rams at 3.6V. :D
meke, is the vdrop mod same as the droop mod? can u mark the spots where to solder please? i cant see the resistors where you soldered them to very wall. help would be very much appreciated!
Yes, Vdrop is same as Droop (Vdroop).
There is some ways that I can get some more photo, but my advice is;Quote:
Originally Posted by macg
get one electronic multimeter to yourself and try to find the short circuited component legs directly connecting to #17 and #18.
you can find them around the components that I pictured.
Believe me, it's easy. :toast:
oh ok, thanks! wouldnt hurt if you could post more photos :)

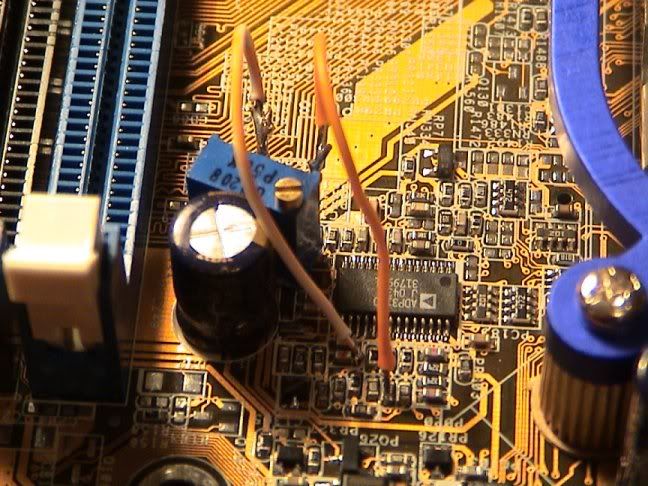

hope this helps :rolleyes:
http://img.photobucket.com/albums/v2...800/Vdrop2.jpg
yup!!! thats perfect! thanks mate :) now all i have to do is solder... lol
just for surety's sake... theyre the resistors with the red circle right?
http://img117.exs.cx/img117/3604/m7svdrop2.th.jpg
yes they are, but please be sure that the e-multimeter beeps for the short circuit.
do not solder before you are sure!
Yes this really works.
before the mod, it was only possible to;
275 x14 air
220 x 18 air
295 x 14 wc
225 x 18 wc
superpi 1M 31 secs.
after the mod ;
290 x14 air
225 x 18 air
300 x 14 wc (nb needs vagp mod :mad: )
240 x 18 wc
superpi 1M 28 secs :banana:

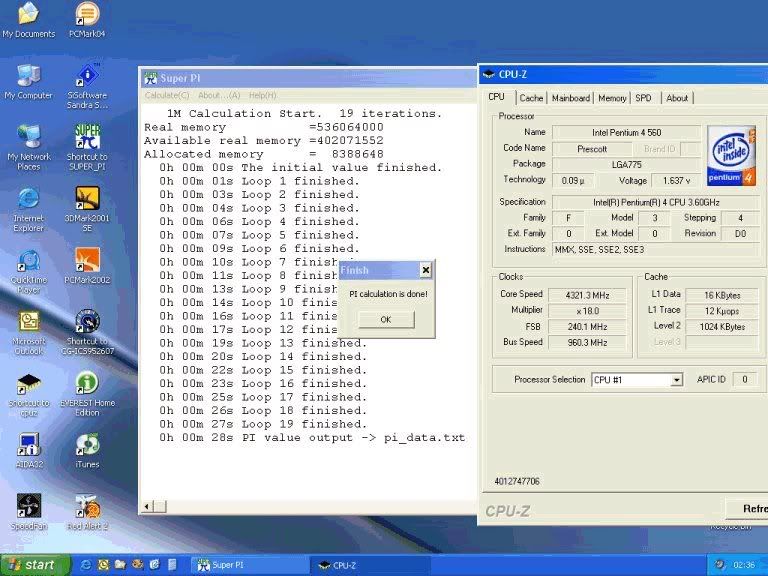

http://img.photobucket.com/albums/v2...perPI/28sn.jpg

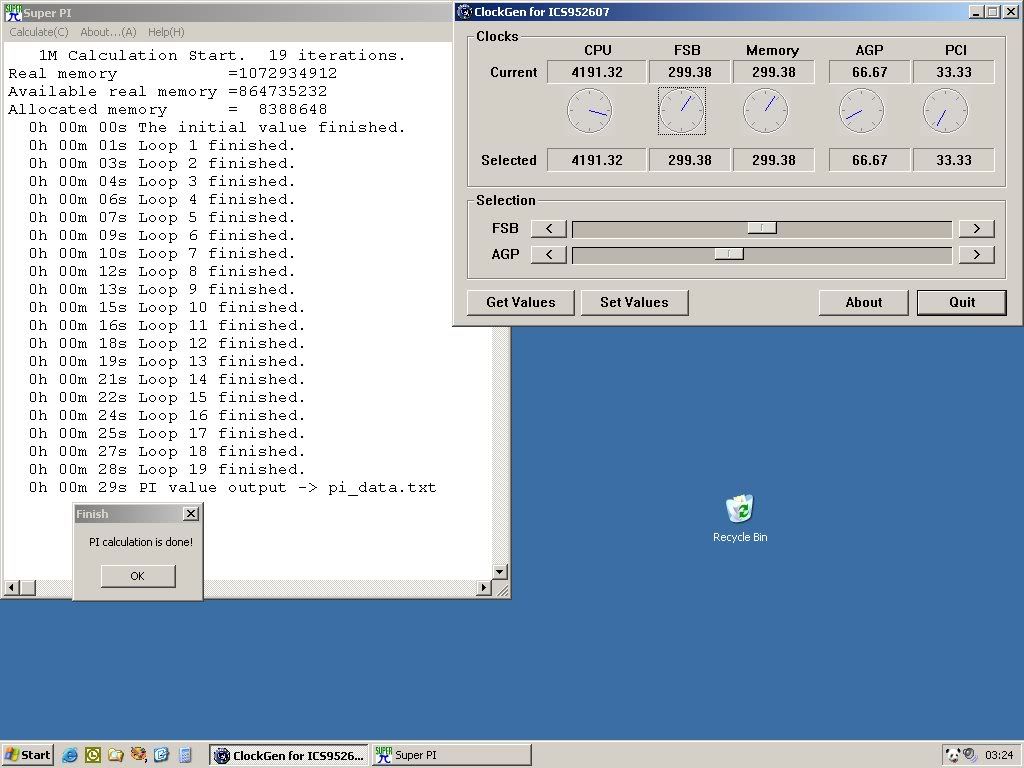

and 300 fsb :toast:
http://img.photobucket.com/albums/v2...800/300fsb.jpg
thanks again man, pretty nice sPI times... :)
Quote:
Originally Posted by CarNabY
Can you please give me some detail about;
what is your chiller water temperature at 250x18 or higher?
what is your cpu temperature at 250x18 or higher?
BTW, you will get 24 or 25 secs if you patch the superPI :banana:
200<-->250Mhz With Water Cooling full bench. Temp Water +10° Vcore 1.5v from bios....real vcore is 1.58v (vdroop)
250<-->263Mhz With Vapochill Cooling full bench.Vcore 1.5v from bios....real vcore is 1.58v
263<-->278Mhz Max Oc only for Spi and screen(not stable)
Bye
Is it possible to use instead of the 47 kOhm Trimmer a 50KOhm Trimmer?
vagp mod; may I hv some better photos and resistor value pls ?
tks
These are nice pictures and some good info, but are there more comprehensive instructions... Like Parts list in particular... I see a lot of refereces to 50k trimmers, but will any do? Whats the recomended amountof turns on the adjustment? Wattage rating?
Thanks...
The Vdroop mod needs approx 28K Ohms to function correctly, You will use a Multimeter to pre-set the Variable resistor (trimmer)....then solder in place as shown.
C
Is this a GOod trimmer to use then?
http://www.alliedelec.com/cart/Produ...299P%2D1%2D503
BumP?Quote:
Originally Posted by DDA
Does anyone have better detail of the Vagp mod?? Resistor value??
C
or maybe a VTT mod??
Found this from my archives:
http://www.akiba-pc.com/P5P800/VAGP.jpg
Asus boards don´t need VTT mod, because its tracked perfectly by default.
Just to add, you can use pin 11 of LM324 for GND if you want.
which pin is 11? I always get confused where to start when counting pins :D
can you mark up the pic?
C
Pin right above letter "A" of the IC marking.;)Quote:
Originally Posted by charlie
thx, Malves!!!
I might have missed it somewhere, but does this board track VTT correctly? In other words, will I be ok if I just use the direct 3.3v vdimm mod? I don't think I'll do any other mods. My A7N8X is dead because of my crummy soldering, but this looks do-able.
-Collin-
Yes, VTT tracks vdimm.
Anybody have any insight into the fsb instability above 260?
Is it real or a measurement glitch?
Any fixes out there?
Gnode
could the vagp damage the videocard ? :confused:
No,Vagp does not have anything to do with the AGP slot. Increasing vagp, may improve stability on high FSB.Quote:
Originally Posted by Supertim0r
Instability at high FSB ---- Solution!!
Update: Solution -- Used a 20 pin to 24 pin adapter for the atx power supply
Rock steady at a FSB of 270 MHz -- Thanks, I Found NEMO
Now at 280 MHz!!! :woot:
Quote:
Originally Posted by gnode
Unfortunately now Instability sets in at 284.
Help anybody?
where can I probe with multimeter, for vcore droop?
So can i use a 28K fixed resistor or should i use a VR to find exactly where it should be?
And how do i know when its where it needs to be?
I've never done any vmods before and i don't want it to fry.
Does anyone make a particular tutorial to help with us?thx
Here is one i drew up for the droop mod.........
http://forum.overhauledpc.com/showth...=9267#post9267
-CaT
Hrmm...it shouldnt damage your agp card, it may heat it up a bit more, as it DOES increase the voltage to the AGP slot, it also raises the NB voltage a bit which is why it can help stability ;)Quote:
Originally Posted by Malves
-CaT
Any reason you couldn't use grabbers on the legs of the chip?
I got the mod finished but i still can't get any higher, i'm going to wait till the middle of winter when i have better temps.
Would the vagp mod help?
Becuase they don't fit :p: Did the vdroop mod with solder...damn it was easy! Even with a 95W soldering gun and crappy tip! Thanks XS! :banana:Quote:
Originally Posted by Lil Big Mec
Ok, this is corect?
1. vAGP
http://img54.imageshack.us/img54/870...00027hj.th.jpg
~50kOhm between the blue pins for 1.89V
2. vDroop
http://img443.imageshack.us/img443/6988/pict00030gm.jpg
28KOhm between pin17 and 18 or between the other two red spots.
Is that ok? Thanks a lot.
vDrop mod failed ... Pins are to small, and in those points nothing can be attached now, this mod can be done on the back?
