Hi! My nickname is ying and i’m a Young learning modder of 17 years old. This is my first post but it doesn’t means that it’s the first time I enter to this forum, the first time I entered in this forum was 1 or 2 years ago, in the beginning of my watercooling experience.

I'm not english native speaker so it's possible that my english in this thread will sound rare.

First o all I want to give THANKS to Coldzero, the only company nowadays who is sponsoring my project ;):

http://img593.imageshack.us/img593/5...xpoweredby.png

For those who doesn’t know what is coldzero, coldzero is a little company (www.coldzero.eu) which dedicates to work with the acrylic and they really make awesome things, they have done some mod’s but their main objective is to make your ideas to real things, so the possibilities are limited to your imagination :) and their own too, because they sell some custom stuff for cases like obsidian series or the famous TJ07.

Other sponsors:

http://img827.imageshack.us/img827/1530/dangerden1.png

http://img405.imageshack.us/img405/6...ertraxtore.png

http://img69.imageshack.us/img69/5884/logotipopro.jpg

Let’s talk about the mod:

My mod will be based in a obsidian 800D from corsair. One of the first objective is to watercool the max. possible hardware maintaining the same simple style that the own obsidian case gives, so to watercool everything and make the watercool system aesthetic look as simple as possible.

Now let’s talk about the hardware. I don’t think that I will renew the hardware so I will continue using socket 1366:

-Intel i7 920 D0 @ 4.2 GHz
-Asus Rampage III Extreme
-Point Of View GTX 480
-Corsair Dominator Airflow II 6Gb (3x2048) PC3-15000(1866Mhz) - CL9
-Corsair HX850
-Seagate Barracuda 500GB

And about the watercooling:

-Ek supreme HF Full nickel + Easy Mount system (black)

http://www.ekwaterblocks.com/shop/me...detail_600.jpg

-Aquacomputer Aquagrafx gtx 480 nickel

http://img651.imageshack.us/img651/2483/mg0044.jpg

-Ek-FB RE3 - Acetal+Nickel

http://www.ekwaterblocks.com/shop/me...c_1180_600.jpg

-Black Ice SR1 480

http://www.dangerden.com/store/image...1-480-800w.jpg

-Black Ice SR1 240

http://www.dangerden.com/store/image...1-240-800w.jpg

-Swiftech mcp 655 (x2) + Ek D5 dual top (single loop) White Acetal

1-The acrylic body (this pictures are old pictures because I use this combo in old project and this is why in the pictures says yingmod and not Dreampc :)! ) :

http://img51.imageshack.us/img51/3512/mg0001t.jpg

http://img196.imageshack.us/img196/4371/mg0006o.jpg

2-Acetal top with bitspower plug:

http://img38.imageshack.us/img38/220/mg0017e.jpg

3-Acetal connector for the Ek top:

http://img707.imageshack.us/img707/8788/mg0016.jpg

A custom killcoil:

http://img24.imageshack.us/img24/3820/mg0019i.jpg

And there’s some pictures about the the reservoir mounted:

http://img703.imageshack.us/img703/4747/mg0022d.jpg

And this is the Ek top for 2 d5 pumps and single loop configuration. It’s white because the day I purchased it, the black one was out of stock:

http://img825.imageshack.us/img825/9906/mg0024y.jpg

http://img846.imageshack.us/img846/4779/mg0025d.jpg

And this is how looks like mounted in the case:

http://img854.imageshack.us/img854/6034/mg0007m.jpg

-Fittings: Fatboy fittings of 13 mm OD
-TFC Pass Through Connector - Fill/Drain Port
-Scythe gentle typhoon AP-15 (1850 rpm) (x4)
-Scythe gentle typhoon 3000rpm (x2)
-Ram waterblock: Ek RAM Dominator EN nickel + acrylic.
-4x120mm Fan Radiator Shroud, Black

http://i220.photobucket.com/albums/d...IMG_0021-1.jpg

Actual build:

http://img837.imageshack.us/img837/1161/mg0023n.jpg

http://img214.imageshack.us/img214/6650/mg0024.jpg

http://img687.imageshack.us/img687/4267/mg0038v.jpg

http://img6.imageshack.us/img6/3747/mg0032a.jpg

http://img441.imageshack.us/img441/4801/mg0039.jpg

http://img687.imageshack.us/img687/4439/mg0041t.jpg

http://img194.imageshack.us/img194/9337/mg0042f.jpg

http://img62.imageshack.us/img62/6500/mg0051w.jpg

http://img39.imageshack.us/img39/9484/mg0058v.jpg

http://img13.imageshack.us/img13/620/mg0059f.jpg

http://img811.imageshack.us/img811/286/mg0071f.jpg

http://img402.imageshack.us/img402/5456/mg0074t.jpg

http://img687.imageshack.us/img687/3194/mg0083f.jpg

http://img3.imageshack.us/img3/7730/mg0107w.jpg

http://img822.imageshack.us/img822/5164/mg0112x.jpg

http://img7.imageshack.us/img7/4624/mg0113u.jpg

http://img822.imageshack.us/img822/2237/mg0119.jpg

http://img822.imageshack.us/img822/8798/mg0120k.jpg

Style:

My mod is not original, I know it! I would like to thank to MurderMod who make’s awesome build and inspired to make my mod, since the first day I saw it I loved this style but how to make something similar to murdermod if they doesn’t work in obsidian cases? The only response I found it was to design my own pieces so this is why this mod could be remembering to murdermod for a lot of users and including me :)


How I work?

Normally, the modders create mod’s with their own hands and their skills but unfortunately I didn’t born with such good skills but I still loving the perfection so decided to learn by my own way to use CAD software for previewing my ideas. Everything in this mod is designed with CAD software, for the main sketch in 2D I used Autocad:

http://img163.imageshack.us/img163/2799/autocad1.png

And when I got the 2D sketch’s OK I try to make it in 3D for checking that all is fine and they fit properly. To do that I use Solidworks 3D CAD software:

http://img715.imageshack.us/img715/7527/solidworks1.png

And for “rendering” I use the photoview 360 from the own Solidwork. I know it, Photoview 360 is not the best tool for rendering but I didn’t got the enough time to learn to use other one’s.

The solidworks is not as easy as the sketchup but it gives some interesting options that sketchup doesn’t offers.

After the design is OK, I send the CAD file to Coldzero and they cut every piece to the millimeter with laser-cut tech. The result: awesome finish!


The main designs:

This is my first post in this forum but I’ve been working in my mod for at least 1 year. So there are some old designs which are a reality, some of they are:
-PSU plate:

http://img593.imageshack.us/img593/203/ying03.jpg

http://img407.imageshack.us/img407/5133/ying041.jpg

-Custom GTX 480 backplate design:

http://img42.imageshack.us/img42/422...backplate2.png

http://img52.imageshack.us/img52/866...backplate3.png

http://img836.imageshack.us/img836/2...dbackplate.png

http://img688.imageshack.us/img688/1...backplate4.png

http://img221.imageshack.us/img221/2...backplate1.png

http://img31.imageshack.us/img31/109...oloroutput.png

-Custom obsidian 800D midplate design:

http://img21.imageshack.us/img21/686...platemodel.png

http://img27.imageshack.us/img27/4034/midplate.png

http://img20.imageshack.us/img20/7361/mg0072v.jpg

http://img826.imageshack.us/img826/2595/mg0071h.jpg

-Motherboard tray plate:

http://img841.imageshack.us/img841/5...platemodel.png

http://img717.imageshack.us/img717/6489/proto11.png

http://img838.imageshack.us/img838/1936/mg0053y.jpg

-Custom 120/140 rear fan grill by coldzero:

http://img11.imageshack.us/img11/4711/90724826.png

http://img835.imageshack.us/img835/5117/mg0084k.jpg

http://img808.imageshack.us/img808/5562/img0031pr.jpg



Nowadays I’m working in a new full faceplate which will be fitting in front of the default faceplate from corsair.

The basic structure is something like this:

http://img710.imageshack.us/img710/6...wconceptmo.png

To place the faceplate, I will use few little backplates:

http://img194.imageshack.us/img194/8921/122132.png

This little backplates will fit inside the obsidian 800D default faceplate structure:

http://img193.imageshack.us/img193/3...0208153541.jpg

http://img854.imageshack.us/img854/4...0208153530.jpg

With screws like this one’s:

http://www.forjasbolivar.com/images/...ll_hex_int.jpg

but in black. There is a little space for the rehobus (lamptron fc5 v2) wich will fit if perfectly and will look like the rehobus it’s integrated with the own pc case:
http://img69.imageshack.us/img69/4533/fc5v2.jpg

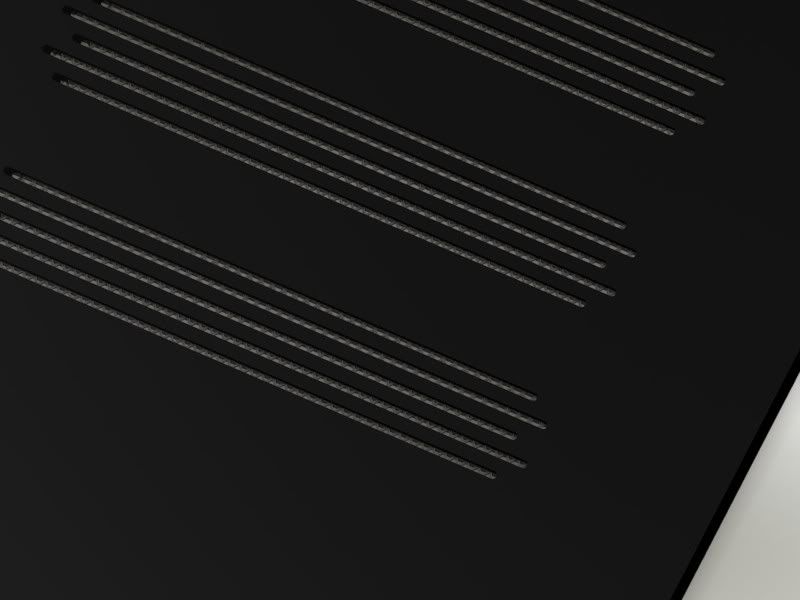

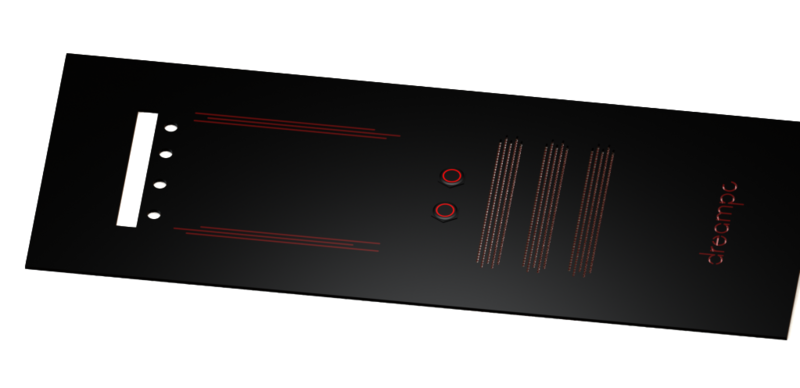

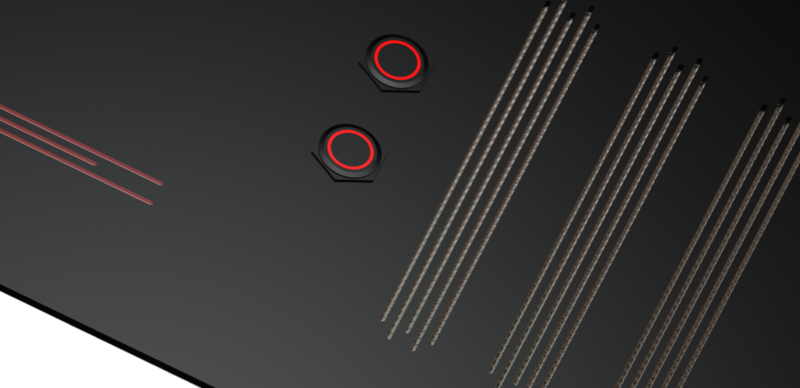

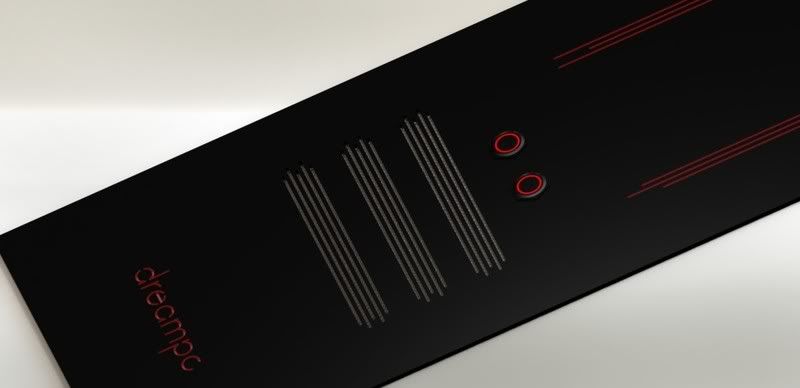

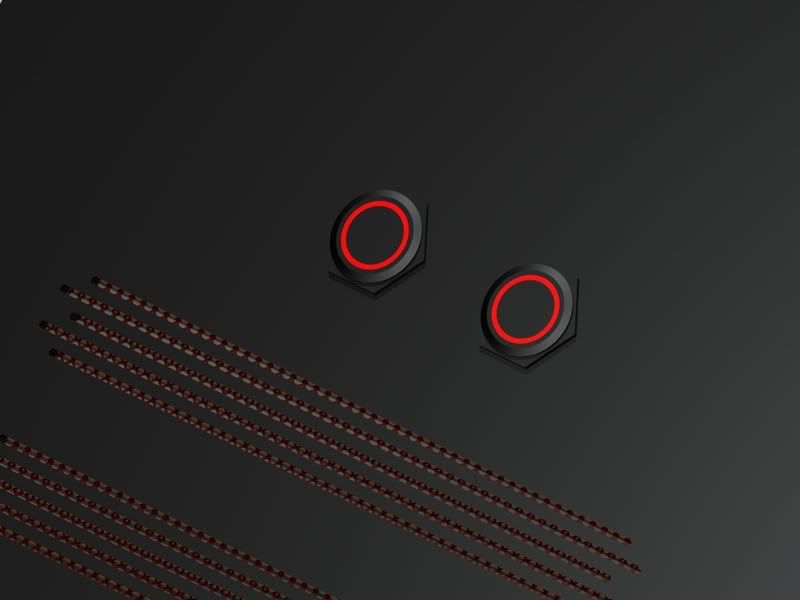

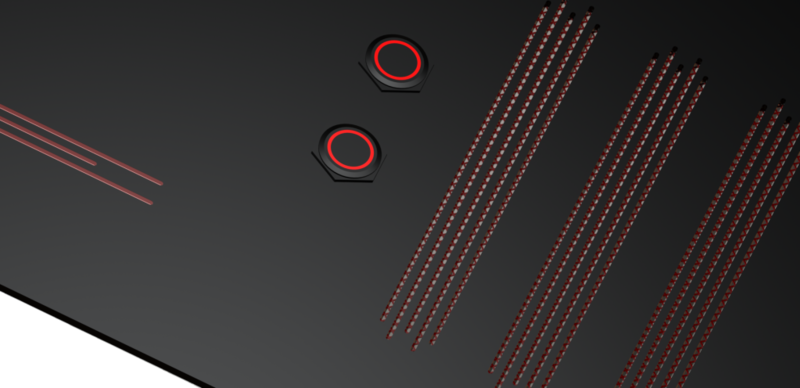

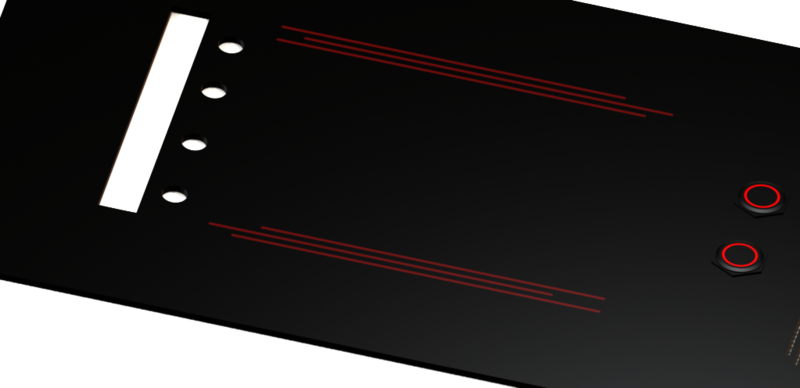

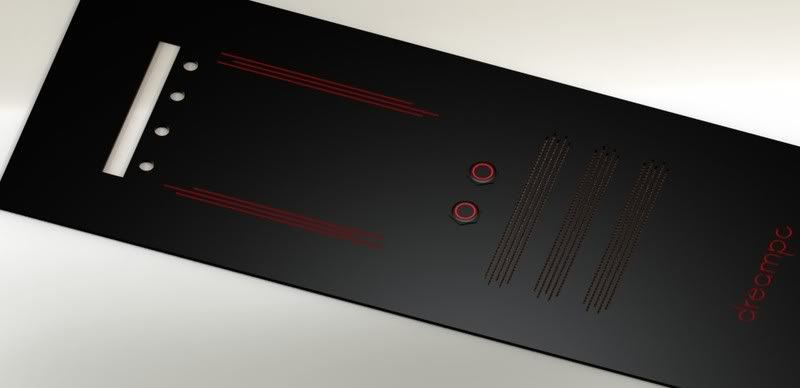

Up there, this it’s just the structure but now comes the customization and design, so the aesthetical part. The most actual design of the faceplate is this one:

http://img513.imageshack.us/img513/8876/drea11.png

http://img109.imageshack.us/img109/9669/drea12.png

http://img593.imageshack.us/img593/4682/drea13.png

http://img819.imageshack.us/img819/7029/drea14.png

http://img534.imageshack.us/img534/7563/drea15.png

http://img836.imageshack.us/img836/725/drea16.png

http://img715.imageshack.us/img715/2826/drea17.png

http://img843.imageshack.us/img843/7928/drea19.png

http://img3.imageshack.us/img3/2271/drea111.png

I like it but I think that it could be better so I will try to make new design in the future :)! (The red circles are power and reset buttons)

But that’s not all, I’m working in a new motherboard tray plate. This one will be different; this one will follow the idea to "integrate" the hardware in the case.
For doing that I will situate some plate's in front of the mother board which will look like a plate that goes out from the motherboard and the other idea in the new plate is to make the PSU cables invisibles, what I mean is that the own PSU cables will looks like they comes from the own case.

The new faceplate by now it’s just a concept so I need to work hard for getting it done ;)! (the design I mean).

To be continued... :)

Looks awesome :D can't wait to see the finish product.

I don't understand why there are no comments, as the design itself is astounding, and so are the finished pieces.

Keep it up mate!

Thanks matari and prava :) i like to see that people like's this project!

Very, very nice designs. Wish I know AutoCAD like you. ::rolleyes:

The design of the midplate:

http://img268.imageshack.us/img268/1...dreampcmod.png

Uploaded with ImageShack.us

Inspired in coldzero midplate :)

And about the line's design, it is more of the same, just lines.

Regards!

Looks exceptional, good luck with it! :up:

That is some fabulous work so far. I have high expectations for the rest of the build now.

And this is the gpu gtx 480 final design:

http://img820.imageshack.us/img820/3238/backplate30.png

With the pcb nvidia reference design holes.

Nowadays i'm trying to get in touch with coldzero for the new pieces, so no coldzero, no party :(

Regards!

New possible designs:


http://img12.imageshack.us/img12/1990/suelo.png

Uploaded with ImageShack.us

http://img571.imageshack.us/img571/3066/laterali.png

Uploaded with ImageShack.us

http://img710.imageshack.us/img710/8...ocompleto1.png

Uploaded with ImageShack.us

The first photo is a possible floor of the case and the second one is the plate that covers the zone of the motherboard (i don't know how to explain it) and the third one is an assembly of the two pieces and is how it will look.

Uptdating the first post.

regards!

New photo about how it should look the assembly of the 3 pieces (backplate, floor and the vertical plate):

http://img717.imageshack.us/img717/523/ensamblaje4.png

I like how it looks like, it's not too simple and not too charged. The color is grey because in black the details aren't as visible as in grey. I like it :) and you?

Update!

http://img849.imageshack.us/img849/3...trayplate1.png

http://img594.imageshack.us/img594/6489/proto11.png

http://img847.imageshack.us/img847/1246/proto12v.png

SPONSORs:


http://img16.imageshack.us/img16/759/coldzerologo.jpg

http://www.tienda-traxtore.com/datos...o_sencillo.gif

Many thanks to coldzero for the support and the trust in my mod :) without him, my pieces will not be the same as how it will be.

And many thanks to traxtore too, the one who is sponsor of my overclock team (msi-traxtore overclock team) too :).
PS: new designs in the first post.

Today I will show you my top from ek and the reservoir combo.

There are 3 parts:

1-

http://img51.imageshack.us/img51/3512/mg0001t.jpg

http://img196.imageshack.us/img196/4371/mg0006o.jpg

2-

http://img38.imageshack.us/img38/220/mg0017e.jpg

3-

http://img707.imageshack.us/img707/8788/mg0016.jpg

An anticyclon as a complement:

http://img195.imageshack.us/img195/5201/mg0007l.jpg

http://img683.imageshack.us/img683/5619/mg0011c.jpg

http://img851.imageshack.us/img851/1741/mg0018x.jpg

And this is my killcoil, a silver ring of silver 999:

http://img24.imageshack.us/img24/3820/mg0019i.jpg

It's real silver 999 and in the real, is more withe and clear.

A photo of the reservoir + the top:

http://img703.imageshack.us/img703/4747/mg0022d.jpg

http://img846.imageshack.us/img846/4779/mg0025d.jpg

And this is the top double for two d5 and single loop in withe:

http://img825.imageshack.us/img825/9906/mg0024y.jpg

[CENTER]http://img16.imageshack.us/img16/759/coldzerologo.jpg

http://img705.imageshack.us/img705/2035/mg0070u.jpg

http://img29.imageshack.us/img29/6119/img0048hs.jpg

http://img689.imageshack.us/img689/1936/mg0053y.jpg

http://img171.imageshack.us/img171/8854/mg0063.jpg

http://img593.imageshack.us/img593/2595/mg0071h.jpg

http://img59.imageshack.us/img59/7361/mg0072v.jpg

http://img651.imageshack.us/img651/4790/mg0076j.jpg

http://img705.imageshack.us/img705/8062/mg0082.jpg

http://img828.imageshack.us/img828/7797/mg0078.jpg

http://img217.imageshack.us/img217/6670/mg0084.jpg

A double grill speacially designed to fit in the obsidian 800D rear fan.

http://img706.imageshack.us/img706/5562/img0031pr.jpg

http://img17.imageshack.us/img17/4664/img0025ip.jpg

http://img13.imageshack.us/img13/363/img0012ow.jpg

Nice! :up:

You make me wanna learn AutoCAD, or at least Sketchup designing...

I came from your posts in the Liquid Cooling Case Gallery. It's all murdered out so elegantly, right down to the GTX 480 backplate. This is a really great build and probably one of the best 800Ds I've seen up there with the MNPC Tech ones and a select few others. Good job!

Quote:

---

Originally Posted by fr0wn3r

Nice! :up:

You make me wanna learn AutoCAD, or at least Sketchup designing...

---

Hey! thanks for your comment :) and yeah! it's true, using autocad, solidworks o sketchup are something useful. I learned to use autocad in the school and nowadays i used it for my mod ;).

Quote:

---

Originally Posted by Beriphent

I came from your posts in the Liquid Cooling Case Gallery. It's all murdered out so elegantly, right down to the GTX 480 backplate. This is a really great build and probably one of the best 800Ds I've seen up there with the MNPC Tech ones and a select few others. Good job!

---

Hi! i like that you liked my project ;). Probably, the best part of the mod is the gtx 480 backplate! And it's right, not tried to copy murdermod's but tried to inspire in murder elegantly ;) but the midplate is the only piece that i think is a murdermod copy XD.

I think that there are a lot more 800D builds that are better that mine but in this mod i tried to make my case to a unique case with custom designs :).

Thanks for comments :) in the future i will add something more and little details.

PS: 2 ram modules dead :(

I loved the backplate!
perfect design! congratulations

Quote:

---

Originally Posted by LeandroJVarini

I loved the backplate!
perfect design! congratulations

---

Thanks :)

The only problem now is how to illuminate it?

Great job ying, it is magnificent :up:

Beautiful build, simple and elegant.

Quick question, which fitting are you using for the bulkhead down at the bottom ?

mmm i think you mean this:

http://coldzero.pt/coldzero/Produto....a=&Artigo=2974


right? in the photo appears an o-ring but in mine there isn't any o-ring (but i ordered this one when paying, so the photo is just orientative).

Hope i answered your question ;).

PS: In the up part i used this: http://www.caseking.de/shop/catalog/...ar::12536.html

And in the bottom part that is not visible i used a normal 90º fitting from phobya.

Very nice job on the details, congrats!

WOW amazing work with the covers... nice job, the back plate is nicely done

Edit

Lol, oh god. Another unknowing soul using "KillCoil" stuff.

Anyway, a nice build. Don't like the font on the GPU Backplate, i find it too bold. Everything else is a really nice piece of craftmanship!


Best regards!

Quote:

---

Originally Posted by Edited

Lol, oh god. Another unknowing soul using "KillCoil" stuff.

Anyway, a nice build. Don't like the font on the GPU Backplate, i find it too bold. Everything else is a really nice piece of craftmanship!


Best regards!

---

Hi! i have been working in a new font:

http://img337.imageshack.us/img337/9...moddreampc.png

I do not remember now but I think that it was made with arial font and then modified a little bit to match with the rest of the designs.

Protip; http://www.dafont.com/forum/read/26191/murdermod

;)

also, drop the killcoil :)

Today i found the font i used for the up letters photo:

http://www.dafont.com/es/lt-oksana.font

A little bit modded with autocad ;)

And about the killcoil, why? i used this killcoil for a year and never got a problem, the EK waterblocks looks like new and they are nickel, so is there any problem when using killcoils?

Today i found the font i used for the up letters photo:

http://www.dafont.com/es/lt-oksana.font

A little bit modded with autocad ;)

And about the killcoil, why? i used this killcoil for a year and never got a problem, the EK waterblocks looks like new and they are nickel, so is there any problem when using killcoils?

I like the font you chose :) However the "Y" is the only one I cant fancy. Are you planning to make them (somwhow, someway) straight, or keep the curve at the bottom?

About KillColi, you might wanna read this;

http://www.xtremesystems.org/forums/...=1#post4970047

Hope it turns you :)

Best regards!

hi! yeah it's true. I can try to change this curved "y" in a arial type "y" or a more standar one.

And about the killcoil, i'm reading the post you linked ;).

later i will upload a photo of a modified "y".

srry double post :/ xd

edited

More, more, more! More new pieces powered by COLDZERO :)

This time im working in a new full frontal for the obsidian 800D.

This is the "autocad" design:

http://img443.imageshack.us/img443/4...ntalfull1z.png

And this is a little "render" about an old design:

http://img69.imageshack.us/img69/1166/22222up.jpg

The little two holes in the center is for the antivandalism buttons:

http://img593.imageshack.us/img593/5...xpoweredby.png

And that is all by now :)

What do you think of making cuts of irregular length? Like vertical lines on one side longer then on other. Same about horizontal ones groups.

Quote:

---

Originally Posted by churchy

What do you think of making cuts of irregular length? Like vertical lines on one side longer then on other. Same about horizontal ones groups.

---

HI! thanks, i will try it in a few days :)

This is just the idea and then i need to customize a little bit more the design.

Some pics about the actual design in 3D:

http://i220.photobucket.com/albums/d...reampclogo.png

http://i220.photobucket.com/albums/d...7/dreampc8.jpg

http://i220.photobucket.com/albums/d...7/dreampc2.jpg

http://i220.photobucket.com/albums/d...7/dreampc7.jpg

http://i220.photobucket.com/albums/d...dreampc8-1.jpg

http://i220.photobucket.com/albums/d.../dreampc91.png

http://i220.photobucket.com/albums/d...7/dreampc9.png

http://i220.photobucket.com/albums/d...dreampc101.png

http://i220.photobucket.com/albums/d.../dreampc10.png

http://i220.photobucket.com/albums/d.../dreampc11.png

http://i220.photobucket.com/albums/d.../dreampc12.jpg

And srry about the quality, i think that its problem from the upload server because in my pc looks great.

Not to be a party pooper, but I don't think the font suits the shape of the front panel. Also, I would put the vandal switches underneeth the air-intake thingy. That would free up space for some extra designe elements, and make the asymetrical look you are having even better.

No offense, byt that's my $0,02. :)

Quote:

---

Originally Posted by Edited

Not to be a party pooper, but I don't think the font suits the shape of the front panel. Also, I would put the vandal switches underneeth the air-intake thingy. That would free up space for some extra designe elements, and make the asymetrical look you are having even better.

No offense, byt that's my $0,02. :)

---

Hey! thanks for commenting :)

I will revise all the structure in the future version. Probably i will change the power buttons situation and the front grill. The problem is that it's not a full new faceplate, its just a faceplate that will be situated in front of the original one so i need to study more the original faceplate structure.

The main problem is i'm too busy with the exams so I can't dedicate the enough time i would like to be working in this :/ .

The font can't be changed, its the main logo of the mod so it will continuate being the same.

Thanks for following my mod :)

btw think about button placement in simple terms - will case be on table or on floor and how far to reach to them.

Some changes:

http://img513.imageshack.us/img513/8876/drea11.png

http://img109.imageshack.us/img109/9669/drea12.png

http://img593.imageshack.us/img593/4682/drea13.png

http://img819.imageshack.us/img819/7029/drea14.png

http://img534.imageshack.us/img534/7563/drea15.png

http://img836.imageshack.us/img836/725/drea16.png

http://img715.imageshack.us/img715/2826/drea17.png

http://img843.imageshack.us/img843/7928/drea19.png

http://img3.imageshack.us/img3/2271/drea111.png

And little changes to the fron grill.

The grill look rare but what about the button new placement?? the case will be in the floor and i can reach them easy :).

Few new designs:

http://img11.imageshack.us/img11/9725/mbbackplate11.jpg

http://img59.imageshack.us/img59/890...late2copia.jpg

http://img684.imageshack.us/img684/4...ackplate31.jpg

http://img191.imageshack.us/img191/4...backplate4.jpg

http://img839.imageshack.us/img839/2...backplate5.jpg

http://img26.imageshack.us/img26/9611/mbbackplate62.jpg

This plates will be attached to the motherboard in the PCI zone and screwed directly to the motherboard holes.

The idea is to "integrate" the hardware to the case so the motherboard will look like is coming from the own case.

Is just a concept but looks great and "original" :)

The final faceplate design will be the one showed in the up post and it will be made by coldzero ( www.coldzero.eu ).

Great renders and nice idea :) :D

Quote:

---

Originally Posted by SoMBrA

Great renders and nice idea :) :D

---

Thanks mate! :)

But i found a little problem :S . The rampage III extreme doesn't have one of the holes of the standard ATX motherboards :S. So I will need to redesign how to attach it.

During the next days hope I can post the new design.

The new design and probably the final one for the motherboard plate:

http://img811.imageshack.us/img811/6...cadmbplate.png

http://img543.imageshack.us/img543/4...777777777p.jpg

Srry for the double post :/

A little offtopic, I've just found that:

-This are PSU plates for obisidan 800D / 700D cases and they are really intertesting :D :


http://www.coldzero.eu/img/p/824-1234-thickbox.jpg

http://www.coldzero.eu/product.php?id_product=824



http://www.coldzero.eu/img/p/821-1231-thickbox.jpg

http://www.coldzero.eu/product.php?id_product=821


http://www.coldzero.eu/img/p/823-1233-thickbox.jpg

http://www.coldzero.eu/product.php?id_product=823


http://www.coldzero.eu/img/p/822-1232-thickbox.jpg

http://www.coldzero.eu/product.php?id_product=822


http://www.coldzero.eu/img/p/818-1227-thickbox.jpg

http://www.coldzero.eu/product.php?id_product=818


You have the other types here: http://www.coldzero.eu/category.php?id_category=143

My favourite one is the ROG logo one wich come's with SMD leds preinstalled :). In my opinion, a must-have accessory for obsidian users.

Mine is this one:

http://img12.imageshack.us/img12/203/ying03.jpg

But due to major changes in the project, I will redesign it according to the other pieces.

Can you take some more pictures of the midplate? I'm thinking about getting one made as well.

Quote:

---

Originally Posted by KetelOne

Can you take some more pictures of the midplate? I'm thinking about getting one made as well.

---

Srry, this day i'm busy and I can't take the picture but hope this will help you:

http://img27.imageshack.us/img27/4034/midplate.png

New sponsor:

http://img827.imageshack.us/img827/1530/dangerden1.png

http://img811.imageshack.us/img811/1...sdreamflex.png

New hardware update, a brand new gtx 480 for 200€:

http://www.4frags.com/catalog/images/evgagtx480g.JPG

For a SLI config and watercooled too:

http://www.aquatuning.de/images/prod...400/9935_0.jpg

With some accessories:

http://www.aquatuning.de/images/prod...400/9737_0.jpg
http://www.aquatuning.de/images/prod...400/9737_3.jpg

http://www.aquatuning.de/images/prod...400/9738_0.jpg
http://www.aquatuning.de/images/prod...400/9738_1.jpg

And new gpu backplates is going to be designed with LED integrated.

This are the renders of the final backplate design, illuminated with red leds. Simple and aesthetical:

http://img42.imageshack.us/img42/422...backplate2.png

http://img52.imageshack.us/img52/866...backplate3.png

http://img836.imageshack.us/img836/2...dbackplate.png

http://img688.imageshack.us/img688/1...backplate4.png

http://img221.imageshack.us/img221/2...backplate1.png

Bonus picture :D

http://img31.imageshack.us/img31/109...oloroutput.png

I have just ordered the waterblock from aquatuning and I took few pictures of the actual build :D!!

http://img837.imageshack.us/img837/1161/mg0023n.jpg

http://img214.imageshack.us/img214/6650/mg0024.jpg

http://img687.imageshack.us/img687/4267/mg0038v.jpg

http://img6.imageshack.us/img6/3747/mg0032a.jpg

http://img441.imageshack.us/img441/4801/mg0039.jpg

http://img687.imageshack.us/img687/4439/mg0041t.jpg

http://img194.imageshack.us/img194/9337/mg0042f.jpg

http://img62.imageshack.us/img62/6500/mg0051w.jpg

http://img39.imageshack.us/img39/9484/mg0058v.jpg

http://img13.imageshack.us/img13/620/mg0059f.jpg

http://img811.imageshack.us/img811/286/mg0071f.jpg

http://img402.imageshack.us/img402/5456/mg0074t.jpg

http://img687.imageshack.us/img687/3194/mg0083f.jpg

http://img3.imageshack.us/img3/7730/mg0107w.jpg

http://img822.imageshack.us/img822/5164/mg0112x.jpg

http://img7.imageshack.us/img7/4624/mg0113u.jpg

http://img822.imageshack.us/img822/2237/mg0119.jpg

http://img822.imageshack.us/img822/8798/mg0120k.jpg

Very neat and sweet! :up:
