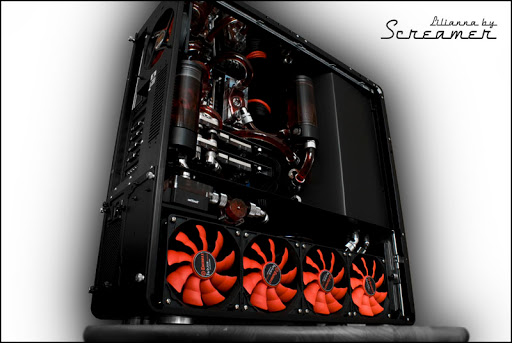

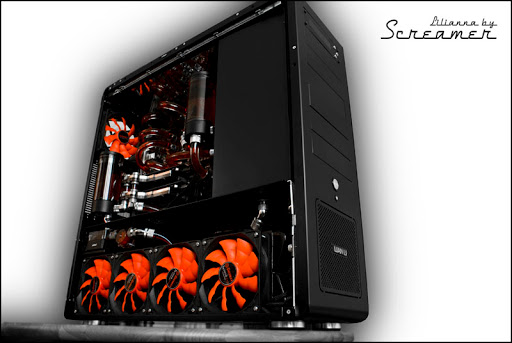

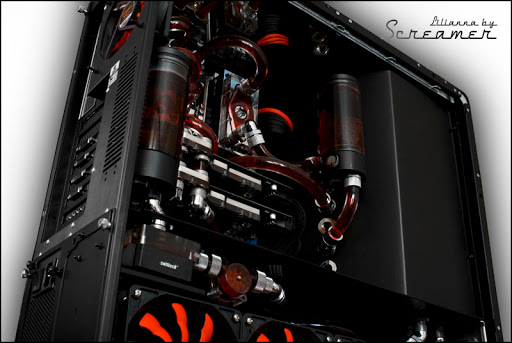

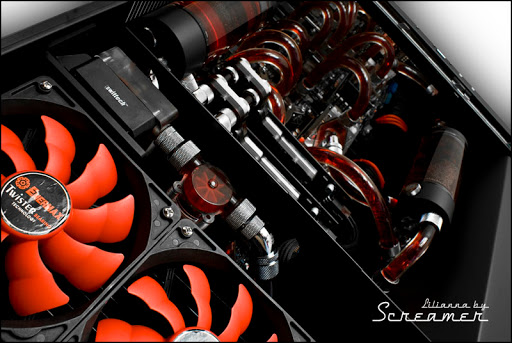

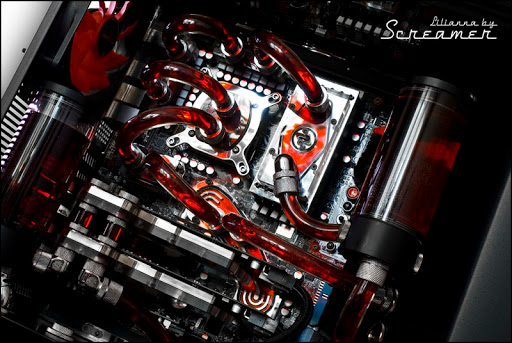

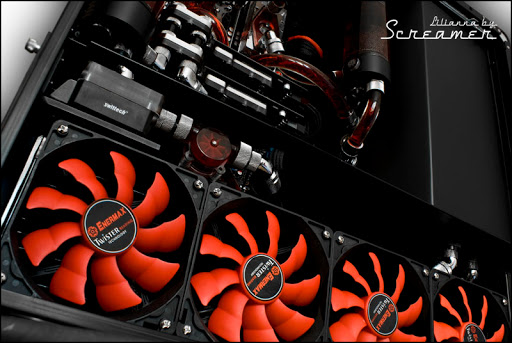

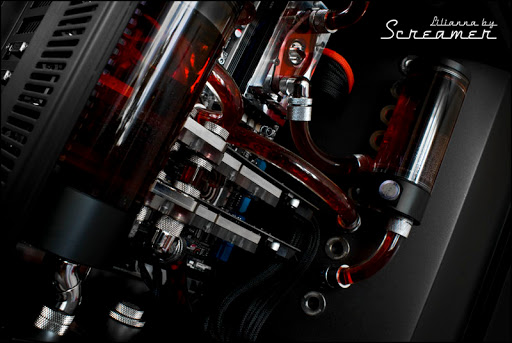

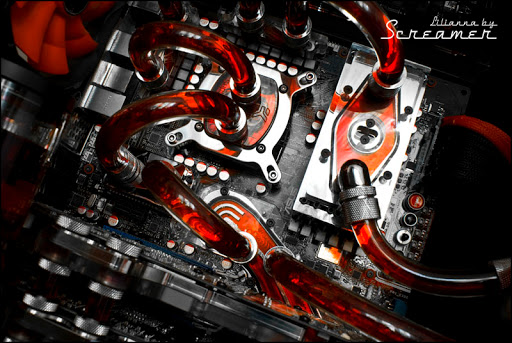

Lilianna by Screamer - LC build

Only one shot :)

http://h.imagehost.org/0420/DSC07542.jpg

Quote:

---

Originally Posted by Screamer

Only one shot :)

---

Absolutely beautiful! :yepp:

@scremer, do you have any build logs?

Quote:

---

Originally Posted by Sadasius

Absolutely beautiful! :yepp:

---

Thanks :rolleyes:

Quote:

---

Originally Posted by GJS1

@scremer, do you have any build logs?

---

Yes, but not here. I have worklog on Polish forum. More photos you will find in my signature.

Wow Screamer. Awesome work. Quite possibly the neatest rig I've ever seen :)

Awesome look screamer....how did you make your coolant ?

PRO work screamer !

Loved it !

Screamer: what model is that black flow meter you used in this build?
P.S.
It would be nice if you had url to your build log in signature :)

Screamer I must say I'm very impressed with the work you've done.Most of the rigs I see in here are done very well.But if there was a top notch prize,You might just win.The layout and color are perfect.

:clap:

Quote:

---

Originally Posted by P5ym0n

Wow Screamer. Awesome work. Quite possibly the neatest rig I've ever seen :)

---

Quote:

---

Originally Posted by The Byter

PRO work screamer !

Loved it !

---

Thanks :)

Quote:

---

Originally Posted by felix_w

Awesome look screamer....how did you make your coolant ?

---

Just destilled water + Mayhems Dye Red.

Quote:

---

Originally Posted by churchy

Screamer: what model is that black flow meter you used in this build?
P.S.
It would be nice if you had url to your build log in signature :)

---

It's GMR Acetal flowmeter. Regarding build log, I have a worklog on the Polish forum, but I think today I will add here a large part of it.

Thats possibly my favourite rig to date Screamer.
Simply perfect.

Hello.

It will not be a worklog (complete worklog you will find here) This build is completed, but some people have asked me to put it here. So, I will try to show you my way to the LC in Lian Li case PC-V2010B which is called Lilianna :)



I will not write much but I will present how to the system has changed and how it looks now after a year.

First of all - case. Lian Li PC-V2010B with some changes and black powder coating.





http://g.imagehost.org/0225/DSC04297.jpg

http://g.imagehost.org/0626/DSC04298.jpg

http://g.imagehost.org/0046/DSC04376.jpg

http://g.imagehost.org/0555/DSC04438.jpg

http://g.imagehost.org/0361/DSC04412.jpg

http://g.imagehost.org/0018/DSC04455.jpg

http://g.imagehost.org/0155/DSC04658.jpg

http://g.imagehost.org/0033/DSC04686.jpg

http://g.imagehost.org/0085/DSC04689.jpg

http://g.imagehost.org/0997/DSC04706.jpg



First parts.

http://g.imagehost.org/0879/DSC04869.jpg

http://g.imagehost.org/0571/DSC04882.jpg

http://g.imagehost.org/0586/DSC04887.jpg

http://g.imagehost.org/0496/DSC04926.jpg

http://g.imagehost.org/0608/DSC04930.jpg

http://g.imagehost.org/0037/DSC04921.jpg

http://f.imagehost.org/0039/DSC04935.jpg


I swapped perforated 5.25" bezels on full from PC-V2000B.

http://g.imagehost.org/0138/DSC04916.jpg


Something for fan control:

http://f.imagehost.org/0252/DSC04945.jpg

http://f.imagehost.org/0638/DSC04946.jpg

http://f.imagehost.org/0440/DSC04948.jpg

http://f.imagehost.org/0358/DSC04949.jpg

http://f.imagehost.org/0954/DSC04963.jpg

http://f.imagehost.org/0565/DSC04972.jpg



Cables, cables, cables...

http://g.imagehost.org/0642/DSC05023.jpg

http://g.imagehost.org/0051/DSC05026.jpg

http://g.imagehost.org/0165/DSC05042.jpg

http://g.imagehost.org/0469/DSC05192.jpg




OK. Now I will show you all my revisions and changes which I made during the year. It's so much, so I will show it in parts.

Revision 1.

Hardware:
Asus P5Q Pro + E8400 + GTX260

LC:
Blocks: Swiftech Apogee GTZ, EK blocks on P5Q Pro and GTX260
Radiator: Feser Xchanger 240
Reservoir: EK Multioption Res 150
Pump: Swiftech MCP350 DDC1T
Tube: Feser Tube 10/16 Clear UV
Fittings: Feser 10/16 and Bitspower (angled)
Fluid: Feser One Red UV


http://g.imagehost.org/0259/DSC05104.jpg

http://g.imagehost.org/0073/DSC05124.jpg

http://g.imagehost.org/0801/DSC05169.jpg

http://g.imagehost.org/0659/DSC05177.jpg

http://g.imagehost.org/0912/DSC05201.jpg

http://g.imagehost.org/0640/DSC05213.jpg



And final shots:

http://g.imagehost.org/0243/DSC05247.jpg

http://g.imagehost.org/0161/DSC05295.jpg

http://g.imagehost.org/0473/DSC05308.jpg

http://g.imagehost.org/0185/DSC05312.jpg

http://g.imagehost.org/0984/DSC05318.jpg

http://g.imagehost.org/0984/DSC05339.jpg

http://g.imagehost.org/0611/DSC05361.jpg

http://g.imagehost.org/0510/DSC05362.jpg

http://img19.imageshack.us/img19/7127/linnanana.png




Window and air vents


http://h.imagehost.org/0784/DSC06722.jpg

http://h.imagehost.org/0441/DSC06733.jpg

http://h.imagehost.org/0763/DSC06734.jpg

http://h.imagehost.org/0565/DSC06737.jpg

http://h.imagehost.org/0950/DSC06751.jpg

http://h.imagehost.org/0047/DSC06753.jpg





Revision 2.

Hardware:
Asus P5Q Pro + E8400 + GTX260

LC:
Blocks: Swiftech Apogee GTZ, EK blocks on P5Q Pro and GTX260
Radiators: 2 x Feser Xchanger 240
Reservoir: EK Multioption Res 150
Pump: Swiftech MCP350 DDC1T
Tube: Masterkleer Clear Tube 11,1/15,9
Fittings: Feser 10/16 and Bitspower (angled)
Fluid: Feser One Red UV



http://f.imagehost.org/0410/DSC06609.jpg

http://h.imagehost.org/0374/DSC06797.jpg

http://h.imagehost.org/0469/DSC06800.jpg

http://h.imagehost.org/0408/DSC06922.jpg

http://h.imagehost.org/0202/DSC069231.jpg

http://a.imagehost.org/0059/DSC06986.jpg

http://a.imagehost.org/0864/DSC06987.jpg

http://a.imagehost.org/0883/DSC06996.jpg

http://a.imagehost.org/0439/DSC07010.jpg

http://a.imagehost.org/0727/DSC06981.jpg

http://a.imagehost.org/0097/DSC06979.jpg

http://a.imagehost.org/0404/DSC06978.jpg

http://a.imagehost.org/0313/DSC06989.jpg

http://a.imagehost.org/0699/DSC06973.jpg

http://a.imagehost.org/0102/DSC06976.jpg

http://a.imagehost.org/0406/DSC06983.jpg

To be continued.
I Have a thousands photos :)

Continued.


Custom panel for Aquaero:



http://a.imagehost.org/0796/DSC07018.jpg

http://a.imagehost.org/0106/DSC07035.jpg

http://a.imagehost.org/0794/DSC07044.jpg

http://a.imagehost.org/0399/DSC07054.jpg

http://a.imagehost.org/0134/DSC07384.jpg





Revision almost 3 - plastic fantastic :)

New CPU, PSU, motherboard and memory

Hardware:
Evga X58 SLI LE + i7 920 + GTX260

LC:
Blocks: Swiftech Apogee GTZ, EK block GTX260
Radiators: 2 x Feser Xchanger 240
Reservoir: EK Multioption Res 150
Pump: Swiftech MCP350 DDC1T
Tube: Masterkleer Clear Tube 11,1/15,9
Fittings: Feser 10/16 and Bitspower (angled)
Fluid: Feser One Red UV



http://a.imagehost.org/0237/DSC07501.jpg

http://a.imagehost.org/0028/DSC07466.jpg

http://a.imagehost.org/0139/DSC07473.jpg

http://h.imagehost.org/0159/DSC07478.jpg

http://a.imagehost.org/0117/DSC07482.jpg



And final shots:

http://a.imagehost.org/0827/DSC07476.jpg

http://a.imagehost.org/0719/DSC07477.jpg

http://a.imagehost.org/0628/DSC07480.jpg

http://a.imagehost.org/0434/DSC07483.jpg

http://a.imagehost.org/0827/DSC07484.jpg

http://a.imagehost.org/0734/DSC07488.jpg




Next was short episode with two loops. Very short.



http://a.imagehost.org/0437/DSC07711.jpg

http://a.imagehost.org/0240/DSC07715.jpg

http://h.imagehost.org/0956/DSC07718.jpg

http://a.imagehost.org/0353/DSC07719.jpg

http://a.imagehost.org/0651/DSC07721.jpg

http://a.imagehost.org/0573/DSC07742.jpg

http://a.imagehost.org/0070/DSC07753.jpg

http://a.imagehost.org/0731/DSC07786.jpg

http://a.imagehost.org/0300/DSC07767.jpg





Revision 3

New Motherboard blocks, tube and radiator

Hardware:
Evga X58 SLI LE + i7 920 + GTX260

LC:
Blocks: Swiftech Apogee GTZ with custom plexi top, MIPS Evga X58 SLI LE set, EK block GTX260
Radiators: Feser Xchanger 240 + 480
Reservoir: EK Multioption Res 150
Pump: Swiftech MCP350 DDC1T
Tube: Tygon 11,2/15,9
Fittings: Feser 10/16 and Bitspower (angled)
Fluid: Feser One Red UV



http://h.imagehost.org/0132/DSC07899.jpg

http://h.imagehost.org/0040/DSC07907.jpg

http://h.imagehost.org/0433/DSC07909.jpg

http://h.imagehost.org/0837/DSC07901.jpg

http://h.imagehost.org/0038/DSC07917.jpg



And final shots:

http://h.imagehost.org/0156/DSC07927.jpg

http://a.imagehost.org/1000/DSC08021.jpg

http://h.imagehost.org/0387/DSC08023.jpg

http://h.imagehost.org/0387/DSC08013.jpg

http://h.imagehost.org/0255/DSC07971.jpg

http://h.imagehost.org/0672/DSC08011.jpg

http://h.imagehost.org/0478/DSC08005.jpg

http://h.imagehost.org/0191/DSC08024.jpg




Revision 4

New motherboard, graphic card and blocks

Hardware:
Asus R2E + i7 920 + HD5850

LC:
Blocks: Swiftech Apogee GTZ with custom plexi top, EK R2E set, EK block HD5850
Radiators: Feser Xchanger 240 + 480
Reservoir: EK Multioption Res 150
Pump: Swiftech MCP350 DDC1T
Tube: Masterkleer 11,1/15,9
Fittings: Feser 10/16 and Bitspower (angled)
Fluid: Feser One Red UV



http://h.imagehost.org/0562/DSC09152.jpg

http://h.imagehost.org/0854/DSC09156.jpg

http://h.imagehost.org/0374/DSC09170.jpg

http://h.imagehost.org/0718/DSC09172.jpg

http://h.imagehost.org/0169/DSC09176.jpg

http://h.imagehost.org/0068/DSC09185.jpg

http://h.imagehost.org/0285/DSC09188.jpg

http://h.imagehost.org/0292/DSC09219.jpg

http://h.imagehost.org/0883/DSC09238.jpg

http://h.imagehost.org/0454/DSC09239.jpg

http://h.imagehost.org/0891/DSC09209.jpg

http://h.imagehost.org/0802/DSC09217.jpg

http://h.imagehost.org/0204/DSC09233.jpg

http://h.imagehost.org/0597/DSC09243.jpg

http://h.imagehost.org/0501/DSC09249.jpg

To be continued.

Continued


Revision 5

New radiators, pump and ram block

Hardware:
Asus R2E + i7 920 + HD5850

LC:
Blocks: Swiftech Apogee GTZ with custom plexi top, EK R2E set, EK block HD5850, custom made ram and QPI block
Radiators: Swiftech 240 + 480
Reservoir: EK Multioption Res 150
Pump: Swiftech MCP355 DDC1T+
Tube: Masterkleer 11,1/15,9
Fittings: Feser 10/16 and Bitspower (angled)
Fluid: Feser One Red UV



http://f.imagehost.org/0574/DSC09724.jpg

http://i.imagehost.org/0565/DSC09785.jpg

http://f.imagehost.org/0359/DSC09784.jpg

http://f.imagehost.org/0460/DSC09753.jpg

http://i.imagehost.org/0078/DSC09742.jpg

http://i.imagehost.org/0475/DSC09738.jpg

http://i.imagehost.org/0882/DSC09737.jpg

http://i.imagehost.org/0275/DSC09746.jpg

http://f.imagehost.org/0478/DSC09728.jpg

http://f.imagehost.org/0881/DSC09724.jpg




Cover for 5,25".



http://i.imagehost.org/0546/DSC09958.jpg

http://d.imagehost.org/0701/DSC00003.jpg

http://i.imagehost.org/0347/DSC00013.jpg

http://j.imagehost.org/0069/DSC09963.jpg

http://j.imagehost.org/0781/DSC09959.jpg

http://j.imagehost.org/0577/DSC09960.jpg






Short episode with other color...

Revision 6

New radiators, pump and ram block

Hardware:
Asus R2E + i7 920 + 2 x HD5850

LC:
Blocks: Swiftech Apogee GTZ with custom plexi top, EK R2E set, EK block HD5850, custom made QPI block
Radiators: Swiftech 240 + 480
Reservoir: EK Multioption Res 150 + 250
Pump: Swiftech MCP355 DDC1T+
Tube: Masterkleer 11,1/15,9
Fittings: Feser 10/16 and Bitspower (angled)
Fluid: destilled water + Mayhems Dye Blue




http://j.imagehost.org/0913/DSC00026.jpg

http://j.imagehost.org/0127/DSC00028.jpg

http://j.imagehost.org/0016/DSC00029.jpg

http://j.imagehost.org/0324/DSC00034.jpg

http://j.imagehost.org/0222/DSC00041.jpg

http://j.imagehost.org/0590/DSC00062.jpg

http://j.imagehost.org/0532/DSC00044.jpg

http://j.imagehost.org/0020/DSC00048.jpg

http://j.imagehost.org/0776/DSC00049.jpg

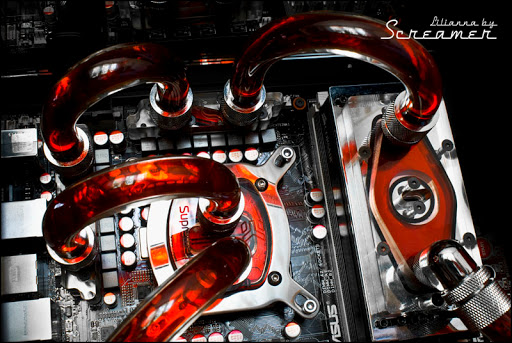

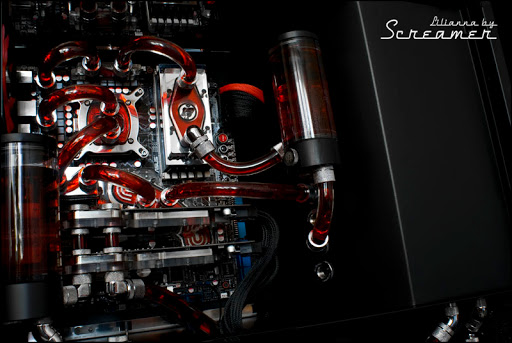

Revision almost 7

New CPU block

Hardware:
Asus R2E + i7 920 + HD5850

LC:
Blocks: EK Supreme LT, EK R2E set, EK block HD5850, custom made ram block
Radiators: Swiftech 240 + 480
Reservoir: EK Multioption Res 150 + 250
Pump: Swiftech MCP355 DDC1T+
Tube: Masterkleer 11,1/15,9
Fittings: Feser 10/16 and Bitspower (angled)
Fluid: destilled water + Mayhems Dye Red




http://j.imagehost.org/0337/DSC00244.jpg

http://j.imagehost.org/0456/DSC00246.jpg

http://j.imagehost.org/0440/DSC00247.jpg

http://j.imagehost.org/0243/DSC00248.jpg

http://j.imagehost.org/0646/DSC00249.jpg

http://j.imagehost.org/0458/DSC00252.jpg

http://j.imagehost.org/0753/DSC00254.jpg

http://j.imagehost.org/0181/DSC00255.jpg

http://i.imagehost.org/0696/DSC00258.jpg





And finally...


Revision 7

New CPU block

Hardware:
Asus R2E + i7 920 + 2 x HD5850

LC:
Blocks: EK Supreme LT, EK R2E set, EK block HD5850, custom made ram block, Enzotech QPI block
Radiators: Swiftech 240 + 480
Reservoir: EK Multioption Res 150 + 250
Pump: Swiftech MCP355 DDC1T+
Tube: Tygon 9,5/15,9
Fittings: Feser 10/16 and Bitspower (angled)
Fluid: destilled water + Mayhems Dye Red




A few days ago...


http://j.imagehost.org/0394/DSC00555.jpg

http://j.imagehost.org/0497/DSC00559.jpg

http://j.imagehost.org/1000/DSC00562.jpg

http://j.imagehost.org/0806/DSC00565.jpg

http://j.imagehost.org/0116/DSC00572.jpg

http://j.imagehost.org/0145/DSC07450.jpg

http://h.imagehost.org/0182/DSC07470.jpg




And today:

http://h.imagehost.org/0420/DSC07542.jpg

http://h.imagehost.org/0067/DSC07545.jpg

http://j.imagehost.org/0268/DSC07556.jpg

http://h.imagehost.org/0167/DSC07558.jpg

http://h.imagehost.org/0975/DSC07561.jpg

http://h.imagehost.org/0880/DSC07585.jpg

http://a.imagehost.org/0274/DSC07587.jpg

http://a.imagehost.org/0085/DSC07588.jpg

http://j.imagehost.org/0885/DSC07591.jpg

http://h.imagehost.org/0675/DSC07595.jpg

http://h.imagehost.org/0989/DSC07598.jpg




I love my build :)

http://a.imagehost.org/0102/DSC07578.jpg

http://a.imagehost.org/0040/DSC07574.jpg

http://a.imagehost.org/0947/DSC07569.jpg

http://h.imagehost.org/0150/DSC07566.jpg

http://h.imagehost.org/0464/DSC07567.jpg

http://h.imagehost.org/0861/DSC07546.jpg

http://a.imagehost.org/0254/DSC07550.jpg

http://a.imagehost.org/0562/DSC07552.jpg

http://j.imagehost.org/0760/DSC07563.jpg

http://h.imagehost.org/0874/DSC07576.jpg

http://h.imagehost.org/0768/DSC07554.jpg

http://a.imagehost.org/0970/DSC07557.jpg

http://j.imagehost.org/0280/DSC07559.jpg

http://j.imagehost.org/0680/DSC07560.jpg

http://h.imagehost.org/0077/DSC07562.jpg

http://h.imagehost.org/0891/DSC07589.jpg

http://h.imagehost.org/0790/DSC07590.jpg

http://h.imagehost.org/0690/DSC07596.jpg






And that's it. It's over for now :)

Wow. Have you submitted the build to MDPC? Top notch.

Very nice...

I always envy such huge case with lots of room to work with..

Phil

Oh. My. God. This is THE most beautiful worklog I have ever seen. It's always so perfect... I ask "Why do you need a revision?" and the pictures speak for themselves. I need this case haha!

This is one of the most Awesome Rig I've ever seen :up:

I can't write other kind of words for you. Your work it's just amazing and all it's clean and well placed. I Love the 5,25 bay cover, I've never seen one like this with that kind of work on it.

Thanks for Create this Topic, I've saved all the pics on my computer.

I think it must be on MDPC ;)

What did you use to cut out the side panel for the window and air vents?
The cut looks perfect!

Thanks guys :)

Quote:

---

Originally Posted by jumper2high

What did you use to cut out the side panel for the window and air vents?
The cut looks perfect!

---

Water cutting :)

Oooh, :banana::banana::banana::banana:. :)

Excellent work, beautiful rig!

Attention to detail is next to none, one of the greatest black/red rig I've seen!

Keep up good work, waiting for next revision lol :D

WOW. Amazing, 100% MDPC quality. This work log is beautiful and the computer looks amazing.

Very nice!! It's cool seeing how you evolved the build over time.

I like the condensed version of a build log since my attention span is that of a house fly! LOL

So Screamer,

You like the Magmas on your radiator? Working well? I also am using the magmas but not so sure about them. Static pressure is a bit weak...

Dave.

thanks for sharing it on this site

I learned a lot from your pictures

F*ckin' Epic case !

Edit: and I also appreciate that you've also got the original V2000 case too :)

submit this to mdpc duuuude.

mdpc easily. one of the best builds I've seen.

Damn man, that's way too much swapping hardware. BTW, how are your temps xD

Love the fact that you picked a Lian Li case, seriously everyone that do builds with Lian Li cases always seem to come out perfect. Maybe your next build should be using the Lian Li V2120? -- Just giving some ideas =)

This definitely deserves to be up on MDPC with a few modifications of course.

Quote:

---

Originally Posted by churchy

Oooh, :banana::banana::banana::banana:. :)

---

My thoughts exactly ! :eek:

Wow.

so pro!...love it...all of it! wheeew!....

Quote:

---

Originally Posted by davidm71

So Screamer,

You like the Magmas on your radiator? Working well? I also am using the magmas but not so sure about them. Static pressure is a bit weak...

Dave.

---

I'm satisfied with my Magma's. I use thin radiators from Swiftech so I don't need a storm :) My Magma's are working on 400-500rpm

Finally you made a worklog on XS, im watching your worklog on purepc for long time hehe, top quality!

I like rev 3 the best because I don't like to put design over performance. :up: You do have a really nice build by the way! :yepp: Keep up the good work.

Now to actually use the computer :p: nice build and love the curves (tubing).

Come on, I don't think it is over, keep in your good job.

btw: thanks for your help ^^

This is an epic build mate. I must agree, this does deserve to be featured on MDPC.
In a word, AWESOME. :)

Quote:

---

Originally Posted by Screamer

Finally, yesterday I had some time to make good pictures. Good light and several hours of time with camera in hand and the effect can be seen below. More photos as always in my gallery :)

---

Awesome Work!!!

Simply AMAZING. You NEED to show me how you made that aluminum piece to hide the 5.25" bay, I was thinking of something similar for my build, although it won't be bent and cover the entire bay.

Thanks All. It gives me the desire to next ideas :)

Quote:

---

Originally Posted by blazarcher

BTW, how are your temps xD

---

Temps are OK. I will put screen here at evening.

Quote:

---

Originally Posted by hausner

Finally you made a worklog on XS, im watching your worklog on purepc for long time hehe, top quality!

---

My main worklog is on pclab. On purepc is only a gallery :)

Quote:

---

Originally Posted by blazarcher

Simply AMAZING. You NEED to show me how you made that aluminum piece to hide the 5.25" bay, I was thinking of something similar for my build, although it won't be bent and cover the entire bay.

---

No problem, but at evening :)

What do you have behind the drive bay? I like the covers, but I'm not getting why you have all the tubing holes through that panel with no tubing (sorry if I'm slow)? I see now that you have light behind there , but was there another purpose? Also, any pics with the cover off so we can see what you're up to?

BTW - easily one of the best v2010's I've seen.

Quote:

---

Originally Posted by Screamer

..My main worklog is on pclab. On purepc is only a gallery :)..

---

Simply put urls to both by editing first post :). Of course gallery link is in your sig, but sig can change by time, imho better of all needed info is in post.

Quote:

---

Originally Posted by blazarcher

BTW, how are your temps xD

---

Screen from April.

CPU 4GHz, all cores charged by hour. 8 blocks in the system - CPU, RAM, QPI, 2xGPU, 2xMosfets and NB/SB. Two radiators: Swiftech MCR220 and MCR420. Fans: ~500-600RPM, pump 65%, flow ~100L/h.

CPU temps: idle ~31*C, load max 66*C
Fluid temps (load): ahead radiators 28,5*C (Fluid in), after radiators 27,7*C (Fluid out)

Ambient temperature: 22,4*C (fifth sensor, described as a bottom)

http://i.imagehost.org/t/0247/4_0GHz...ime95_Swif.jpg

Today temps are higher, in load around 75*C but we have summer :)
Anyway, temps are not very important for me. The most important is beautiful system :)

Quote:

---

Originally Posted by blazarcher

Simply AMAZING. You NEED to show me how you made that aluminum piece to hide the 5.25" bay, I was thinking of something similar for my build, although it won't be bent and cover the entire bay.

---

Simple project :)

http://i.imagehost.org/0072/projekt1.jpg

Piece of aluminum sheet:

http://i.imagehost.org/0979/P1070832.jpg

and ready cover. It was made by my friend, Barus.

http://d.imagehost.org/0376/DSC09915.jpg

http://d.imagehost.org/0184/DSC09917.jpg

http://d.imagehost.org/0732/DSC09921.jpg

http://e.imagehost.org/0798/DSC09943.jpg

http://i.imagehost.org/0604/DSC09946.jpg

Quote:

---

Originally Posted by LogAn'sRun

What do you have behind the drive bay? I like the covers, but I'm not getting why you have all the tubing holes through that panel with no tubing (sorry if I'm slow)? I see now that you have light behind there , but was there another purpose? Also, any pics with the cover off so we can see what you're up to?

---

Behind te drive bay I have one of my radiator (Swiftech MCR220 with Magmas).

http://i.imagehost.org/0723/DSC09689.jpg




Cover was made for a some idea - all of tubes coming out from one place. Idea was good but nothing came of it. Here are the photos from the trials.

http://a.imagehost.org/0304/DSC00013.jpg

http://j.imagehost.org/0076/DSC00019.jpg

http://j.imagehost.org/0372/DSC00020.jpg

http://h.imagehost.org/0776/DSC00021.jpg

Now the cover is for the light, keeping the reservoir and I for the first connect to LC system (cover -> RAM). I hope you understand my English :D

Quote:

---

Originally Posted by churchy

Simply put urls to both by editing first post :). Of course gallery link is in your sig, but sig can change by time, imho better of all needed info is in post.

---

Link added.

Holy :banana::banana::banana::banana:

That shroud/cover is an insanely good idea! Don't have to worry about any mess of tubing showing. :up:

If you liked this build just as I did go to http://www.million-dollar-pc.com/nex...ful-system.htm and report this system (just ad the link to this thread on the left tab)... Beautiful work Screamer!

Wait, are you going to be using a colored liquid?

14 posts pertaining to this build have been moved from the Liquid Cooling Case Gallery Thread to this worklog.

Nice build, Screamer.

waiting for revision 1 million

Lol

Great rig btw ;)

Without a doubt...my favorite build log here.

LT will change for HF soon... :)


http://a.imagehost.org/0031/DSC07701.jpg

http://i.imagehost.org/0033/DSC07702.jpg

http://i.imagehost.org/0627/DSC07705.jpg

You know, that cover reminds me of those old telephone switching boards:

http://www.cs.brandeis.edu/~rshaull/...witchboard.jpg

Truly a very good looking, unique design :D.

Awesome!!! Congrats.

Cheers

Did you ever consider the Supreme HF Red Acrylic Top?

wow, this build is amazing! looks super clean, this is mdpc material. now on some of your revisions, you used Masterkleer 11,1/15,9. to my knowledge, masterkleer only has one size, and it's 7/16" ID 5/8" OD, so are the ones you used the same as THESE? i'm surprised you can get such tight bend radius without any kinks in there.

excellent work Paul;)
Case Looks Sweet :clap:

Quote:

---

Originally Posted by ScottALot

Did you ever consider the Supreme HF Red Acrylic Top?

---

No. I don't like colored tops, just as I never used the color tubing :)

Quote:

---

Originally Posted by WhiteFireDragon

wow, this build is amazing! looks super clean, this is mdpc material. now on some of your revisions, you used Masterkleer 11,1/15,9. to my knowledge, masterkleer only has one size, and it's 7/16" ID 5/8" OD, so are the ones you used the same as THESE? i'm surprised you can get such tight bend radius without any kinks in there.

---

Yes, it's that size. But Masterkleer has many other sizes and colour tubing.
e.g. http://www.aquatuning.de/product_inf...--3-8-ID-.html

Quote:

---

Originally Posted by kwscore

excellent work Paul;)
Case Looks Sweet :clap:

---

Thank you :D

Stunning work and photos. I want to see you do more things!

Screamer,first thing,best rig I have ever seen,just put 2x HD5870 :),and you'r cooler than ever :D.
Second,can you please tell me,how did you manage to change PSU Fan without damaging the warranty sticker?
Thank you so much!

Quote:

---

Originally Posted by Black Tears

Screamer,first thing,best rig I have ever seen,just put 2x HD5870 :),and you'r cooler than ever :D.
Second,can you please tell me,how did you manage to change PSU Fan without damaging the warranty sticker?
Thank you so much!

---

I'm not sure Screamer used the same method, but I found out sticker come of surpisingly easy when they get some steam for a few seconds. Try putting it under some steam, peel a small bit loose, use steam again, and peel. Repeat process until sticker is loose. That way, the sticker stays intact, and as long as you make sure no dirt gets on the glue, it stick with almost the same adhesion as before.

Also, your name made me rather nostalgic, since it's a variation of an old nickname I used on a lot of forums and in a lot of games :up:.

Thanks all :)

Quote:

---

Originally Posted by Black Tears

Second,can you please tell me,how did you manage to change PSU Fan without damaging the warranty sticker?

---

Regarding PSU I think that photo will give you good explanation :)

http://a.imagehost.org/0965/DSC07359.jpg

Quote:

---

Originally Posted by Screamer

Regarding PSU I think that photo will give you good explanation :)

---

ROFL, good one :D. Right, sometimes no need to overcomplify things :)

Aaaaaa,that is damn nice :).
I also have HX1000,and it is a bit loudy :),so I'll do some modding :).
Thank you for clearing this out!

Quote:

---

Originally Posted by churchy

ROFL, good one :D. Right, sometimes no need to overcomplify things :)

---

Fair enough, didn't know where the sticker was. My Real Power 520 had it on a place where something like that wouldn't have worked :rolleyes:.

Ooh, that looks good...Grat work man!

Very nice build!

if it is really true I do not know what to think:shrug:

Hmmm that's ridiculous:eek see yourself guys

http://www.youtube.com/watch?v=Uu6XN...eature=related

If I did something wrong by putting a link is very sorry;)

Wow...
I must open my Corsair and check if the inside there are no such surprises

that's a bit surprising for corsair... is it a fake?
i only have the 620W PSU, but the inside is far from those pictures!

I think one week will be enough for work on the new revision, so new pictures soon :)

http://i.imagehost.org/0863/DSC07771.jpg

http://i.imagehost.org/0642/DSC07930.jpg

http://j.imagehost.org/0652/DSC07936.jpg

http://j.imagehost.org/0808/DSC07948.jpg

ooo cant wait, keep this thread alive!

another rev already ? :O

Ill be following

Well done Screamer, I think this is first photo of stock D5 where it actually looks great :)

Quote:

---

Originally Posted by luke997

Well done Screamer, I think this is first photo of stock D5 where it actually looks great :)

---

lol yer, looks ugly doesnt it ha:rofl:

Love this build. *_*

Quote:

---

Originally Posted by Screamer

and some new pictures from me :)

more in Gallery

http://www.abload.de/img/dsc01064jc3g.jpg

http://www.abload.de/img/dsc01051yfcx.jpg

http://www.abload.de/img/dsc01033jel3.jpg

http://www.abload.de/img/dsc010484ey7.jpg

---

These are absolutely awesome. I do miss your 250 EK res, but it looks cool with that 150 and the bend tube also. The EK HF looks astonishing! Great work bro!

Quote:

---

Originally Posted by iHannes

Love this build. *_*
...
These are absolutely awesome. I do miss your 250 EK res, but it looks cool with that 150 and the bend tube also. The EK HF looks astonishing! Great work bro!

---

Thanks iHannes :)

Below more photos from my last revision. Actually I have two loops: first for graphic cards and second for rest components. Enjoy :)

http://lh6.ggpht.com/_TrWqM_EttV4/TM...U/DSC01072.jpg

http://lh6.ggpht.com/_TrWqM_EttV4/TM...k/DSC01030.jpg

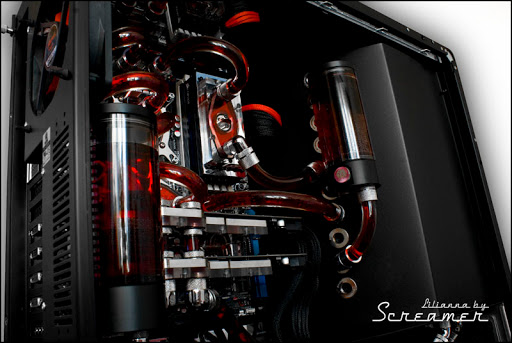

http://lh3.ggpht.com/_TrWqM_EttV4/TM...E/DSC01025.jpg

http://lh5.ggpht.com/_TrWqM_EttV4/TM...g/DSC01026.jpg

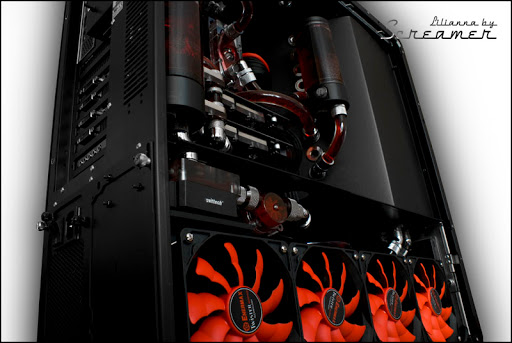

http://lh3.ggpht.com/_TrWqM_EttV4/TM...Y/DSC01027.jpg

http://lh5.ggpht.com/_TrWqM_EttV4/TM...g/DSC01031.jpg

http://lh5.ggpht.com/_TrWqM_EttV4/TM...A/DSC01029.jpg

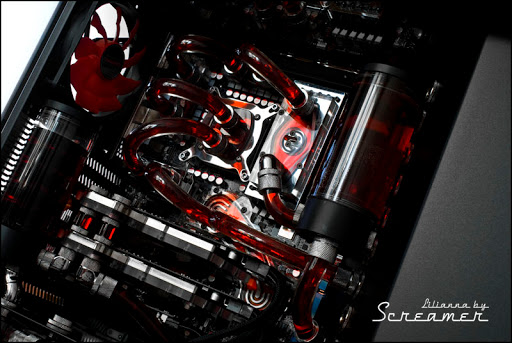

http://lh6.ggpht.com/_TrWqM_EttV4/TM...I/DSC01032.jpg

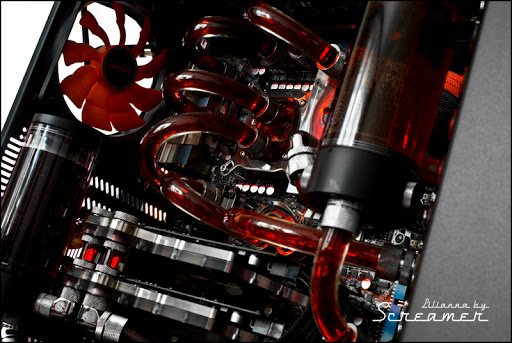

http://lh4.ggpht.com/_TrWqM_EttV4/TM...U/DSC01034.jpg

http://lh5.ggpht.com/_TrWqM_EttV4/TM...o/DSC01089.jpg

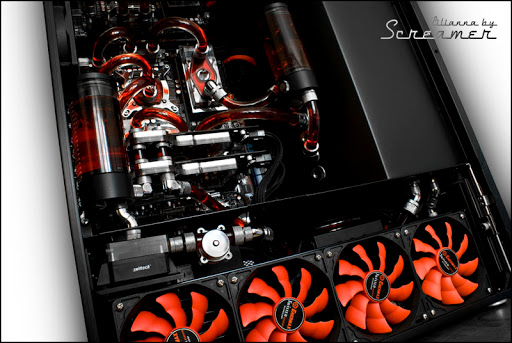

http://lh6.ggpht.com/_TrWqM_EttV4/TM...0/DSC01045.jpg

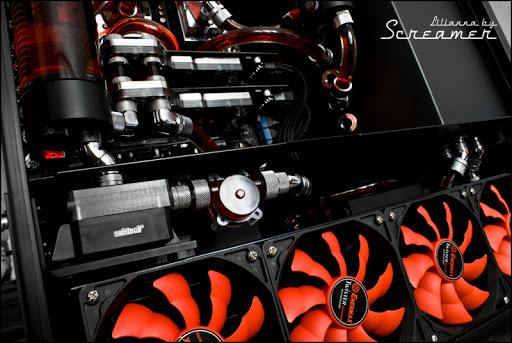

http://lh6.ggpht.com/_TrWqM_EttV4/TM...o/DSC01046.jpg

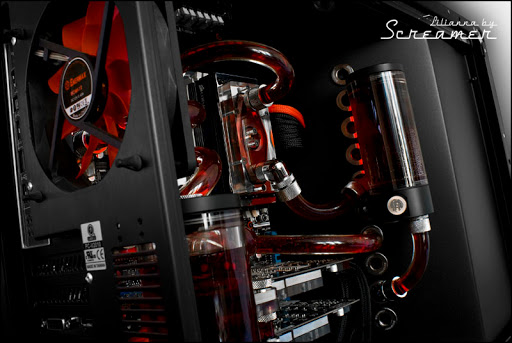

http://lh6.ggpht.com/_TrWqM_EttV4/TM...s/DSC01048.jpg

http://lh4.ggpht.com/_TrWqM_EttV4/TM...Q/DSC01050.jpg

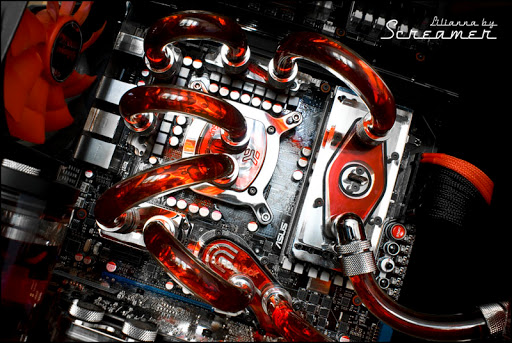

http://lh3.ggpht.com/_TrWqM_EttV4/TM...M/DSC01051.jpg

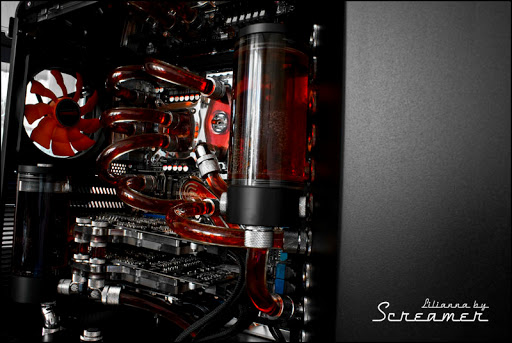

http://lh4.ggpht.com/_TrWqM_EttV4/TM...M/DSC01052.jpg

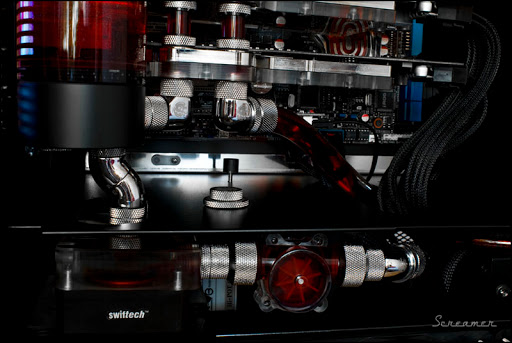

http://lh4.ggpht.com/_TrWqM_EttV4/TM...M/DSC01059.jpg

http://lh5.ggpht.com/_TrWqM_EttV4/TM...g/DSC01060.jpg

http://lh4.ggpht.com/_TrWqM_EttV4/TM...M/DSC01063.jpg

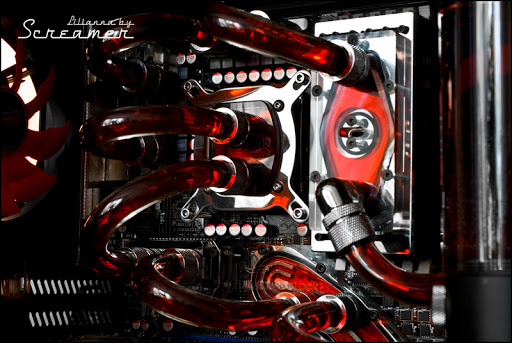

http://lh3.ggpht.com/_TrWqM_EttV4/TM...M/DSC01036.jpg

http://lh5.ggpht.com/_TrWqM_EttV4/TM...U/DSC01033.jpg

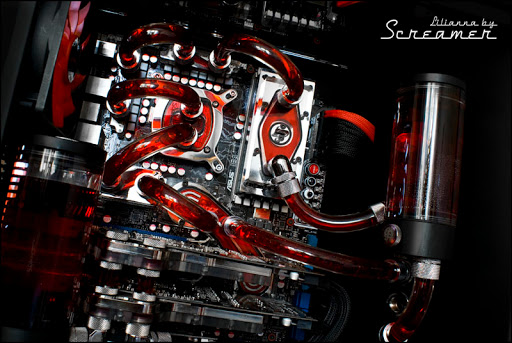

http://lh3.ggpht.com/_TrWqM_EttV4/TM...g/DSC01028.jpg

http://lh5.ggpht.com/_TrWqM_EttV4/TM...s/DSC01064.jpg

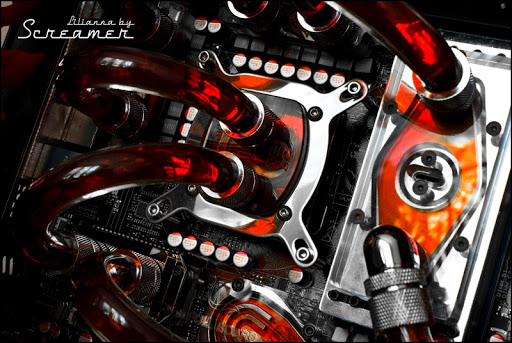

http://lh4.ggpht.com/_TrWqM_EttV4/TM...Q/DSC01066.jpg

http://lh5.ggpht.com/_TrWqM_EttV4/TM...o/DSC01069.jpg

http://lh5.ggpht.com/_TrWqM_EttV4/TM...E/DSC01077.jpg

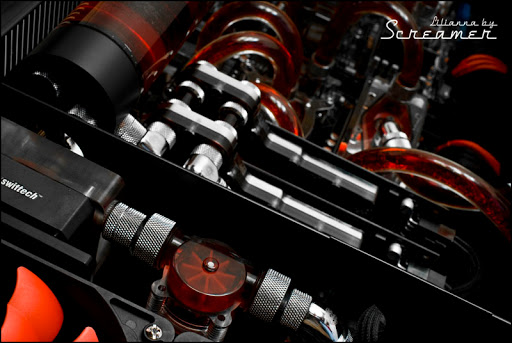

http://lh4.ggpht.com/_TrWqM_EttV4/TM...A/DSC01078.jpg

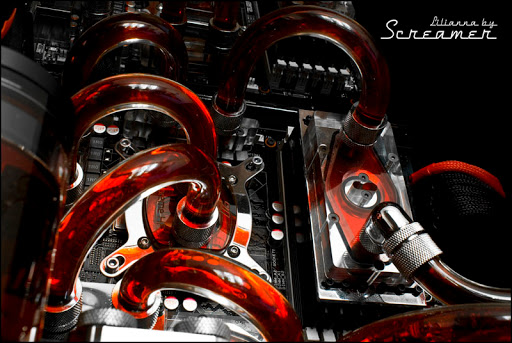

http://lh3.ggpht.com/_TrWqM_EttV4/TM...s/DSC01080.jpg

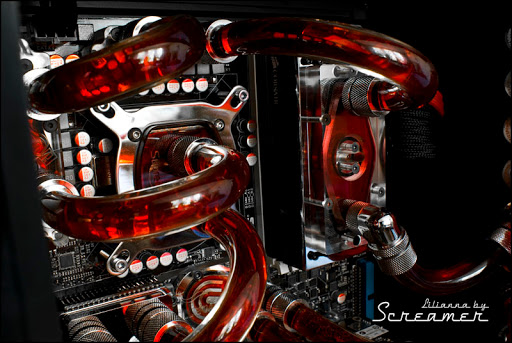

http://lh3.ggpht.com/_TrWqM_EttV4/TM...o/DSC01082.jpg

http://lh5.ggpht.com/_TrWqM_EttV4/TM...Y/DSC01083.jpg

http://lh4.ggpht.com/_TrWqM_EttV4/TM...A/DSC01086.jpg

do you have more?? :D
no seriously, awesome job! like it +++

Awesome build and pictures!:up:

There is absolutely no way of improving this build, its just perfect! :shocked:

Well actually I'd personally make it a single loop and connect top gfx card --> NB/chipset.
Although, then it wouldnt look as original as it is.

I really dig the res/gpu/pump area. The fittings work so well there and really make all the connections clean!

Screamer how did you cover up the drive bays? what did you use?

I think this is by far, the best build I have ever seen.

:caution: If Carlsberg built PC's... :caution:

It'd be this !

Quote:

---

Originally Posted by Phaseshift

Screamer how did you cover up the drive bays? what did you use?

---

it's just a piece of metal sheet, cutted, curved and powder coated :)

http://www.abload.de/thumb/p1070832r5dq.jpg http://www.abload.de/thumb/dsc09915v55y.jpg http://www.abload.de/thumb/dsc09921quqz.jpg http://www.abload.de/thumb/dsc0994335xt.jpg

Quote:

---

Originally Posted by Screamer

it's just a piece of metal sheet, cutted, curved and powder coated :)

http://www.abload.de/thumb/p1070832r5dq.jpg http://www.abload.de/thumb/dsc09915v55y.jpg http://www.abload.de/thumb/dsc09921quqz.jpg http://www.abload.de/thumb/dsc0994335xt.jpg

---

ooooh pretty! how did you mount it?

Left side is simply inserted under the motherboard, and the right side is screwed to bay with two screws
