Super pi 1M 6.515s , 3dmark05 50k , Clarkdale ??

got this chip long time ago , but never tired it

last weekend , tested it with EVGA E659 classified

let's see the result

Testing Platform

Clarkdale 3.33g
EVGA E659
ADATA 2200 CL8
ANTEC TPQ1200w OC
WD500G
F1ee


Super Pi 1m 6.515s

http://pic.xfastest.com/nickshih/655g1m.JPG






3dmark05 50131

http://pic.xfastest.com/nickshih/50131.jpg






3dmark03 179727

http://pic.xfastest.com/nickshih/177727.jpg








03 score can be higher , that system is just for gaming

the MCH of clarkdale is bad , with high BCLK , 2:6 is the limit

if the max frequency can hit 6.9 , maybe 6.7xg super pi 1m will be under 6.3s

:shocked:

Baby Gulftown! The memory divider options suck, guess it is time for CAS5 DDR3. Cool results, looking forward to these chips hitting retail.

Quote:

---

Originally Posted by nickshih

that system is just for gaming

---

Do you have any comparison results to share vs i7/i5 45nm quad cores?

i dont see any picture or link of spi ?!?!?! is it just me ??

It's just you, it's the first picture ;)

CRAZY 1M!! :shocked:

Is this my X'mas gift!? :D

Amazing clock for such Clarkdale i5 :up:

thats sick... nice cpu

that is totally sick, very nice work :up: :clap: :shocked:

awesome result Nick....:up::up:

any couldbug on that chip ? and I want to see how about in 3D mark 01 ...

Awesome results:shocked:
''1514Mhz 6-5-5-21-1T''
This is very nice.

Nice start with low cost chips nick ;)

great results nick, amazing little i5 you have there :D

What cpu is it ? 660 or 61 ?

Sick scores :shocked: Great work!

What the H*ll :shocked:

wtf ..awesome runs woooo

maaan these tiny newcomers will make action in 2D for sure! 03 single would be interesting also...too bad with the mem, need more dividers. thanks for sharing these great impressions!

Quote:

---

Originally Posted by SoF

maaan these tiny newcomers will make action in 2D for sure! 03 single would be interesting also...too bad with the mem, need more dividers. thanks for sharing these great impressions!

---

They are more divider, but that s IMC issue. I cant clock ram like lynnfield ... max is arround 900 Mhz for now with all divider.

Holy.... :eek: :eek:

That was a VERY SICK clock Nick :clap: :clap:

About time we see some 2D Lovin' with those chip, (and a more than decent 2k3 & 2k5 too) :D :D

What's the Cold Bug, mate? -150C?

Keep Pushing it :up:

amazing man!!!

Quote:

---

Originally Posted by kiwi

Do you have any comparison results to share vs i7/i5 45nm quad cores?

---

if i get more time , i will do it @@

Quote:

---

Originally Posted by Hazzan

awesome result Nick....:up::up:

any couldbug on that chip ? and I want to see how about in 3D mark 01 ...

---

without cold bug under LN2 . but from -168 ~ -18X , i get cold slow problem

so i always keep at -160~-162

01 is bad , i have tested it

Quote:

---

Originally Posted by KizilejdeR

Awesome results:shocked:
''1514Mhz 6-5-5-21-1T''
This is very nice.

---

actually is 5 5 5 21 1T , CPUZ wrong

Quote:

---

Originally Posted by Pt1t

What cpu is it ? 660 or 61 ?

---

60..

Amazing!
Always a pleasure to see some sic scores :up:

I have been trying to tell people about this.....:fact:



Nice work as always Nick:up:

I want one now...

Very nice score there mate great chips cant wait to get one

goooooooooooo nick :D

Quote:

---

Originally Posted by Pt1t

They are more divider, but that s IMC issue. I cant clock ram like lynnfield ... max is arround 900 Mhz for now with all divider.

---

My experinece is:
200bclk: 2:10 okay
220bclk: 2:8 okay
223bclk+: must force to use 2:6, otherwise no BOOT

outstanding work man :up:
Clarks are monsters

Where are you find the bios ???

Thanks for these results, so excited about these chips, should be a blast to play with.

Nice toys Nick :D
Outstanding results...:D
An AM3 run would be very interesting:D

Insane result and great work with this 660er ;-) Unbelievable. It would be very nice to see AM3 with this piece of silicium.

that will be the cost efficient chip which we can all tested ! :D thank you for sharing

Quote:

---

Originally Posted by TinTin

My experinece is:
200bclk: 2:10 okay
220bclk: 2:8 okay
223bclk+: must force to use 2:6, otherwise no BOOT

---

55a-ud4 + 530:
220bclk: 2:10 okay
230bclk: 2:8 okay
230bclk+: must force to use 2:6 :)

Awesome runs.

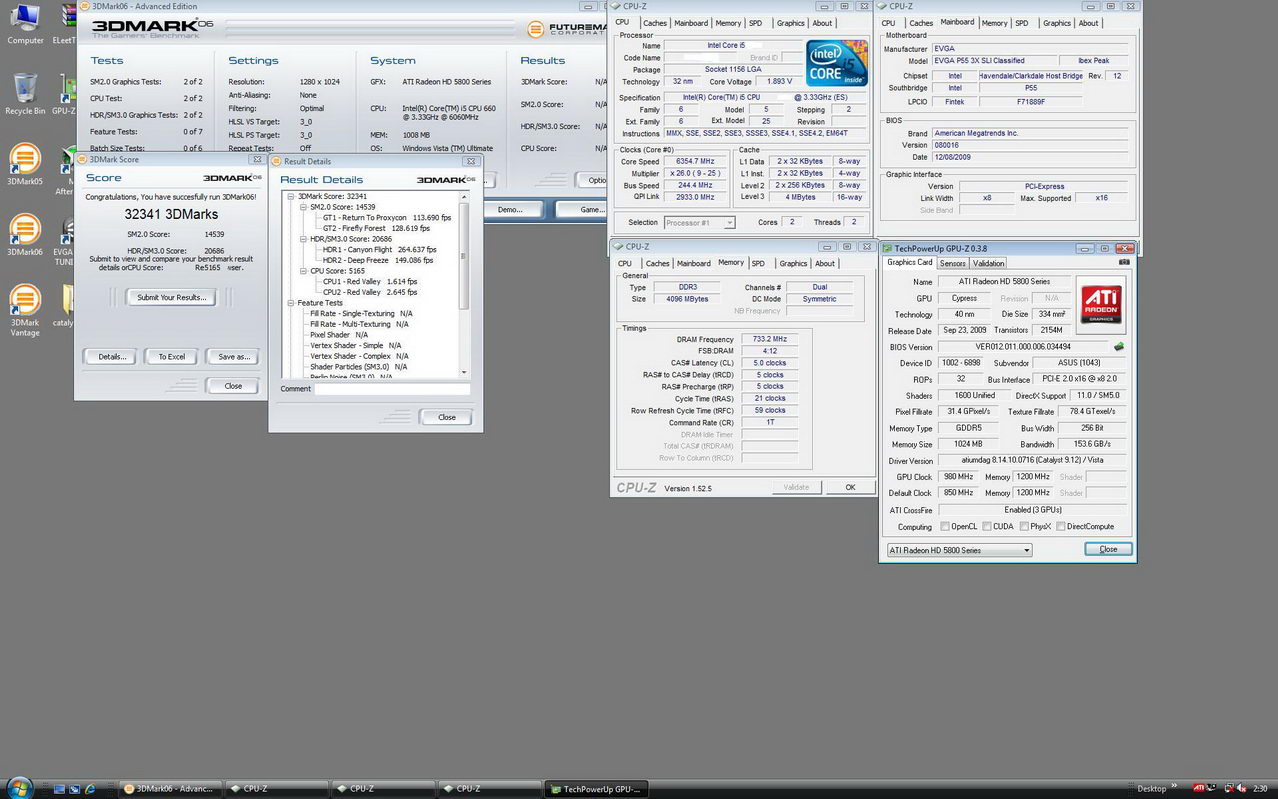

and here is the result of 3dmark06 with 5870x3

The GT2 GT3 score is amazing

but the CPU test score is low , bcz of only 2 cores and HT is off

HT on is useless , CPU score + 800 , but whole system will get unstable with the same CPU frequency




http://pic.xfastest.com/nickshih/32341.jpg

I want one.............. NOW jajaaja

with my new P55:shocked:

nickshih
are that 06` numbers ok for 3x5870?

Monster chip! Great results! Congrats and thanks for share Nick!

Quote:

---

Originally Posted by WaterFlex

nickshih
are that 06` numbers ok for 3x5870?

---

final score is normal , bcz the CPU score is low

GT2 GT3 is still amazing ~~

nice work:up: upcoming cpu revisions could be even better.

The right settings on boards may get you benching at -180C instead of -110C so I've made a guide here:

http://kingpincooling.com/forum/showthread.php?t=361

Really nice scores nickshih :up: - this cpu is totally crazy :D

@sham: thanks for sharing :) - very good timing :D - EVGA P55 FTW & i5 670 on the way to me...

Quote:

---

Originally Posted by Afrokalle

Really nice scores nickshih :up: - this cpu is totally crazy :D

@sham: thanks for sharing :) - very good timing :D - EVGA P55 FTW & i5 670 on the way to me...

---

To cold boot @ ~ -180C :D
http://kingpincooling.com/forum/show...54&postcount=3

Damn dude nice.

Im assuming this was cherry picked due to its overclock ability?

Quote:

---

Originally Posted by OverShocked

Damn dude nice.

Im assuming this was cherry picked due to its overclock ability?

---

just random picked ... not cherry picked yet , so that score will be overtaked asap......

Quote:

---

Originally Posted by LardArse

The right settings on boards may get you benching at -180C instead of -110C so I've made a guide here:

http://kingpincooling.com/forum/showthread.php?t=361

---

actually , i put the same chip on ASUS mobo , cold bug from -18x to -110

at present , seems that mobo will decide what your chip's can do

Quote:

---

Originally Posted by nickshih

just random picked ... not cherry picked yet , so that score will be overtaked asap......

---

Nick, can it run at X27 for 1 core for a SPI 1M? :ROTF::D

Quote:

---

Originally Posted by TinTin

Nick, can it run at X27 for 1 core for a SPI 1M? :ROTF::D

---

The 670 will have 28x multi for Turbo so hopefully we can get that to lock with a good BIOS :up:

Quote:

---

Originally Posted by TinTin

Nick, can it run at X27 for 1 core for a SPI 1M? :ROTF::D

---

sure , so ...i have backup.....:clap:

Quote:

---

Originally Posted by nickshih

sure , so ...i have backup.....:clap:

---

6.8G SPI1M, WR....:D:rofl:
Maybe a 670 can break 7GHz....wooooow:ROTF:

Quote:

---

Originally Posted by TinTin

6.8G SPI1M, WR....:D:rofl:
Maybe a 670 can break 7GHz....wooooow:ROTF:

---

i dont want to kill me chip -.-" ....maybe 2.xv vcore will do it

Finally affordable AND powerful OC is back!
