16.235s SuperPi 1m Phenom II 955

My best time so far in 1m...on my worst chip and cheapo ram...

Currently the highest air submission on hwbot.org, however, I know there are tonnes of people out there that have already beat my score on air, but have yet to submit it to hwbot.


Specs:

Phenom II X4 955 BE 3.2GHz OCed to 4153MHz
Gigabyte MA-790FXT-UD5P
G.Skill Pi 1333MHz 7-7-7-18 Stock speeds OCed to 1704MHz 7-7-7-15-11-1T 1.75V
PCP&C 750W
TRUE 120 Lapped w/ Push-pull


http://i74.photobucket.com/albums/i253/Wop11/16578.png

Updated my SS's moved to OP.....Look at coretemp for core frequencies, CPU-Z being screwy.

http://i74.photobucket.com/albums/i253/Wop11/16235s.png
http://i74.photobucket.com/albums/i253/Wop11/16172s.png

Nice! What is your NB vid for 2.9Ghz? I cant seem to get mine stable above 2.6Ghz. If I could get my NB freq higher my pi would be much better than it is. BTW, this is with CPU @ 3.7Ghz w/ 1.42v
http://i120.photobucket.com/albums/o184/m411b/955pi.jpg

Quote:

---

Originally Posted by m411b

Nice! What is your NB vid for 2.9Ghz? I cant seem to get mine stable above 2.6Ghz. If I could get my NB freq higher my pi would be much better than it is. BTW, this is with CPU @ 3.7Ghz w/ 1.42v

---

NB voltage I used was +.5V

Little more than the chip should be ran at, but it was just for a 1m run. It was also only stable for 1m runs. I'll state that now before anyone calls me out on posting "far from the truth results"

nice slappa, i finally broke 17 sec on mine too. still getting the feel for this setup.
16.968 http://www.hwbot.org/result.do?resultId=870286
i was able to get nb to 3gig but so far ive been unable to get past 4.1ghz on cpu
http://i31.photobucket.com/albums/c3...1204/16968.jpg

http://img199.imageshack.us/i/superpig.jpg/

almost to the 16's, on 720BE

SuperPi is all about the ram. Get that ram clocked up guys! :D

Quote:

---

Originally Posted by Slappa

SuperPi is all about the ram. Get that ram clocked up guys! :D

---

For 32M yes but for 1M high CPU-NB seems much more important.

Here's my 940 on water with just DDR 2 for comparisation:

http://img.photobucket.com/albums/v6...ry/1M16547.jpg

I can match your DDR3 result easy with DDR 2 but i'm sure i cannot keep up in 32M. ;)

Quote:

---

Originally Posted by Zeus

I can match your DDR3 result easy with DDR 2 but i'm sure i cannot keep up in 32M. ;)

---

Not with my most recent time ;)

PS. CPUZ is glitched for frequency in this SS so look at coretemp

http://i74.photobucket.com/albums/i253/Wop11/16235s.png

True but that wasn't due to DDR3. :D My CPU has nothing left, today my 955+Crosshair III+4Gigs of DDR3 will be here, hopefully i can give ya some competition again. ;)

Quote:

---

Originally Posted by Zeus

True but that wasn't due to DDR3. :D My CPU has nothing left, today my 955+Crosshair III+4Gigs of DDR3 will be here, hopefully i can give ya some competition again. ;)

---

Yeah. There is something offset about the efficiency of my ram, once I get that sorted out, you'll be left behind in the dust :P

omg, +0.5 at CPU-NB? Not is too much with AIR? But good 1M:up:
I msut wait for better temps in room, now is here very hot...and il want try 213 FSB with NB about 2770MHz and CPU at 19.5x

Quote:

---

Originally Posted by FlanK3r

omg, +0.5 at CPU-NB? Not is too much with AIR? But good 1M:up:
I msut wait for better temps in room, now is here very hot...and il want try 213 FSB with NB about 2770MHz and CPU at 19.5x

---

It is a tad too much but it doesn't matter...it was just a few 1m runs.

Keep tweaking that ram and lets see some 16s flat, it can be done.

Quote:

---

Originally Posted by Slappa

Yeah. There is something offset about the efficiency of my ram, once I get that sorted out, you'll be left behind in the dust :P

---

That's the spirit my friend!

I just installed the Crosshair III with a 955 and some OCZ DDR3 AMD version.

Second boot up at 3.6GHz and 2.6NB, voltages at auto.

Unfortunately it's too hot now here to do some serious overclocking (27ºC roomtemp atm) but i will try to give you some competition here buddy. :)

chew* hit 15.xxx on air

yes, Chew has WR with aircooling...crazy man :)

Quote:

---

Originally Posted by cdawall

chew* hit 15.xxx on air

---

I know....I think I was the first one to know...

You have to remember that he had a better chip/set of ram though.

I'm using a crap chip and cheapo ram.

I'm going to be shooting for below 16s once I get my new chip+ram

Quote:

---

Originally Posted by Slappa

I know....I think I was the first one to know...

You have to remember that he had a better chip/set of ram though.

I'm using a crap chip and cheapo ram.

I'm going to be shooting for below 16s once I get my new chip+ram

---

set the affinity to whatever of your cores clocks the best and clock that core higher using k10stat

and best on air is not saying much lol this is the best 550BE i have seen on DICE yet its still not top on anything ;)

http://img.techpowerup.org/090617/su...e%203150nb.jpg

Quote:

---

Originally Posted by cdawall

set the affinity to whatever of your cores clocks the best and clock that core higher using k10stat

and best on air is not saying much lol this is the best 550BE i have seen on DICE yet its still not top on anything ;)

---

I know about the affinity and K10stat stuff....Except if you're only using one core higher and the affinity set on the highly clocked core, you actually get a slower time than if all the cores were at the same high speed

I'm not near as nooby as you think I may be. Beat your DICE scores on the bot btw ;) Some of yours were ES submissions as well. All retail on mine.

Best on air shows how skilled the overclocker/tuner is....nothing in relation to WR's that are done on LN2/LHe though

I'll be able to beat that 550BE next time I do DICE as well :D

Quote:

---

Originally Posted by Slappa

I know about the affinity and K10stat stuff....Except if you're only using one core higher and the affinity set on the highly clocked core, you actually get a slower time than if all the cores were at the same high speed

I'm not near as nooby as you think I may be. Beat your DICE scores on the bot btw ;) Some of yours were ES submissions as well. All retail on mine.

Best on air shows how skilled the overclocker/tuner is....nothing in relation to WR's that are done on LN2/LHe though

I'll be able to beat that 550BE next time I do DICE as well :D

---

most of my records were also held with a very early bad clocking chip and a mid range mobo ;)


just out of curiosity which DICE bench did you top me in? i notice you got me by a couple of 10ths of a second in superpi

and i never said you were nooby just that i put out what i and several others had used to squeeze a better time out of there chips.


hehe beat this one and i'll give you some props

http://img.techpowerup.org/090624/Capture037.jpg

Just to set the record straight thats actually a crappy chip my worst in fact....I don't need an uber set of expensive ram to nail a good time ( $40 bottom of the barrel works fine for me )......nor do I need ddr III

http://chew.ln2cooling.com/qdig-file...0II/lrg_13.JPG

Man, It's fun just looking at this stuff. I could only wish I was there doing it. But, being a young teen and having a middle-class family who doesn't make too much money I must sit. To all the overclockers, I really look up to you guys. chew* especially :D

I'm 14 tomorrow.

Quote:

---

Originally Posted by chew*

Just to set the record straight thats actually a crappy chip my worst in fact....I don't need an uber set of expensive ram to nail a good time ( $40 bottom of the barrel works fine for me )......nor do I need ddr III

http://chew.ln2cooling.com/qdig-file...0II/lrg_13.JPG

---

nope you don't i was looking up some settings for a 945ES chip for a buddy and lookie what i found not to far off on this one

http://img.techpowerup.org/090224/Capture052.jpg

i ran 16.4xx on my 940be with only 2300mhz nb and 1030mhz 5.5.5.15 ddr2 ram

Quote:

---

Originally Posted by crazydiamond

i ran 16.4xx on my 940be with only 2300mhz nb and 1030mhz 5.5.5.15 ddr2 ram

---

you know the drill


http://img11.imageshack.us/img11/7783/xscuseless.gif

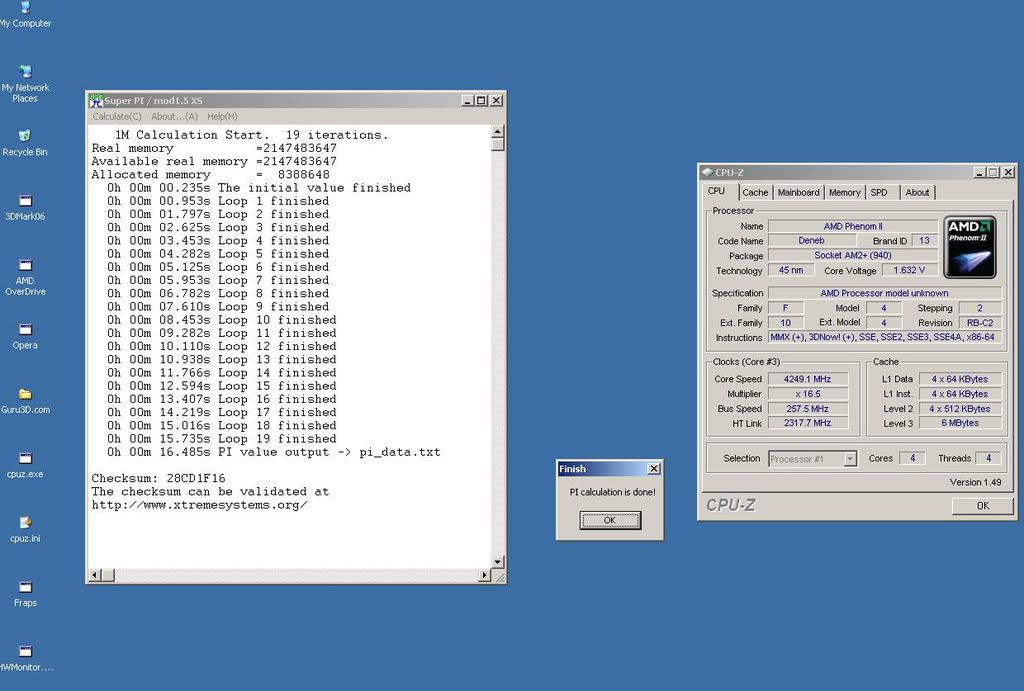

word... 30+ amd products in the last 18 months (newegg screenies if you reaaaalllly want ;) ),, just dont post it all,, heres an old screeny when my nb was locked so i was stuck w/ 9x multi - 2317mhz, i kinda wanna go for 15.xxx now =)

http://i70.photobucket.com/albums/i8...titled-1-2.jpg

Nice!!! Don't mean to doubt you, but without pics everybody's prime stable at 6+ghz lol. It's an exciting time for the AMD enthusiasts with all the fantastic silicon they've been putting out. They're a generation behind, but as long as they're nipping at Intels heels it's a win-win for everybody.

Here's some new ram I'm working on, not bad for $50.

http://chew.ln2cooling.com/everest%2...1800%20ram.JPG

2x1 or one stick of 2x2 kit? or to make it easy, what ram? ;)

Quote:

---

Originally Posted by crazydiamond

2x1 or one stick of 2x2 kit? or to make it easy, what ram? ;)

---

2x1, it says Dual Channel.

good call, thats why i shouldnt drink lol

Quote:

---

Originally Posted by crazydiamond

good call, thats why i shouldnt drink lol

---

huh, :eek: you start your friday drinking at 4am. You are Xtreme :p:

Did not bother with brand of ram because well it doesn't matter..... the timings dictate that it can be only GTR or GTS and likely to only happen with severe binning.....

I will say these are sold as 1600 7-7-7. Only thing you can buy to match this that's almost guranteed is elpida hypers.....with the high failure rates not worth it for 2x1 g....

How much Vddr did 900 7-6-5-15 take? 2.2V? Nice ram. :up:

Quote:

---

Originally Posted by Zeus

How much Vddr did 900 7-6-5-15 take? 2.2V? Nice ram. :up:

---

2.1 ;) voltage is always a last resort.

u are master and we are only "pupils" :D....great Chew

Quote:

---

Originally Posted by FlanK3r

u are master and we are only "pupils" :D....great Chew

---

Just an average guy like everyone else that wants the most for my money :)

I feel like a pupil in a classroom though. ;-)

Quote:

---

Originally Posted by chew*

Just an average guy like everyone else that wants the most for my money :)

---

Yep. I'm sure a lot of us started that way....looking for more value.

I know thats how I started. I had an HP 939 rig....I actually managed to OC it through software.....200MHz gain on my 4200+ X2. Nothing big, but for a software OC on an HP, pretty decent.

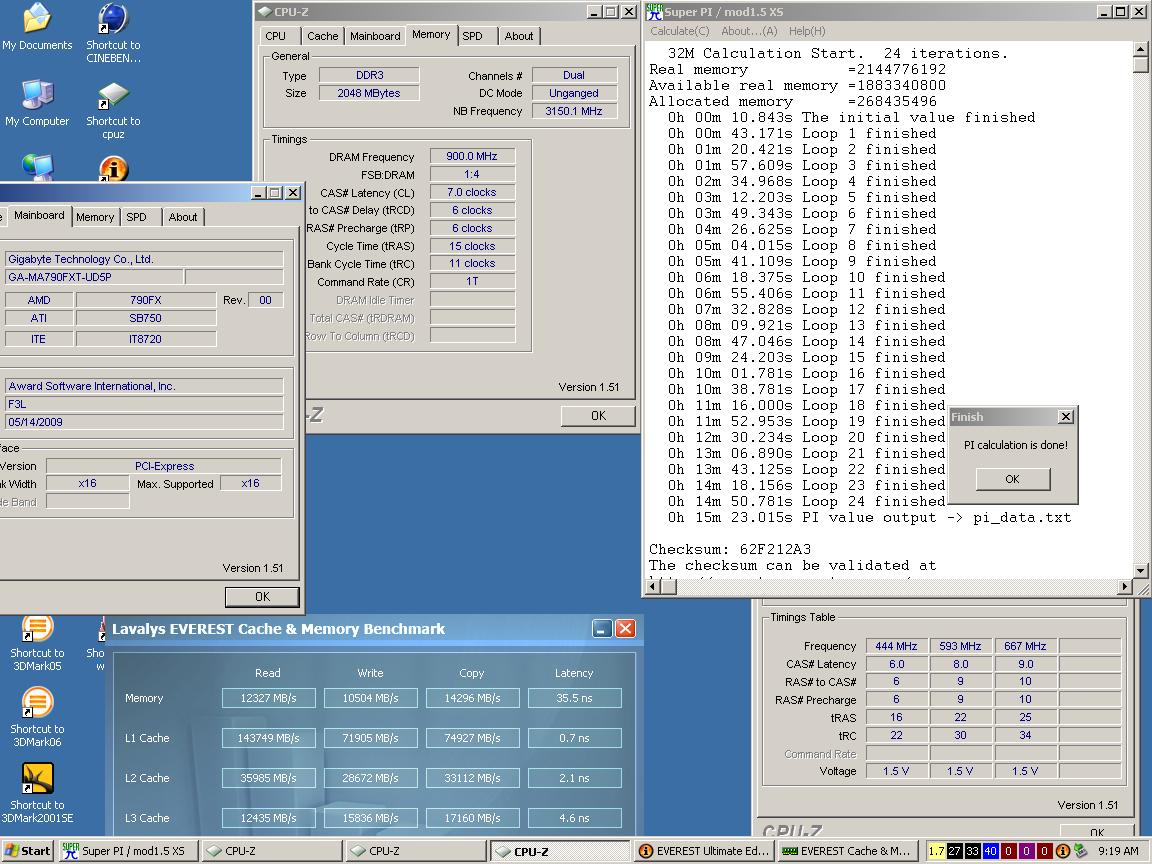

The binning continues....mind you this is useless for real world just getting some sticks lined up for some 2d work......

This set is rather interesting in the fact that they hate voltage......oddly enough they are rated for 2.0v.........

Gonna see if i can break past this magical barrier with these.....I could run 1m higher with the other sticks....and error free in memtest but 32m would just lock.....:shrug:

1.95v $40 ram.
http://chew.ln2cooling.com/everest%2...on/binning.JPG

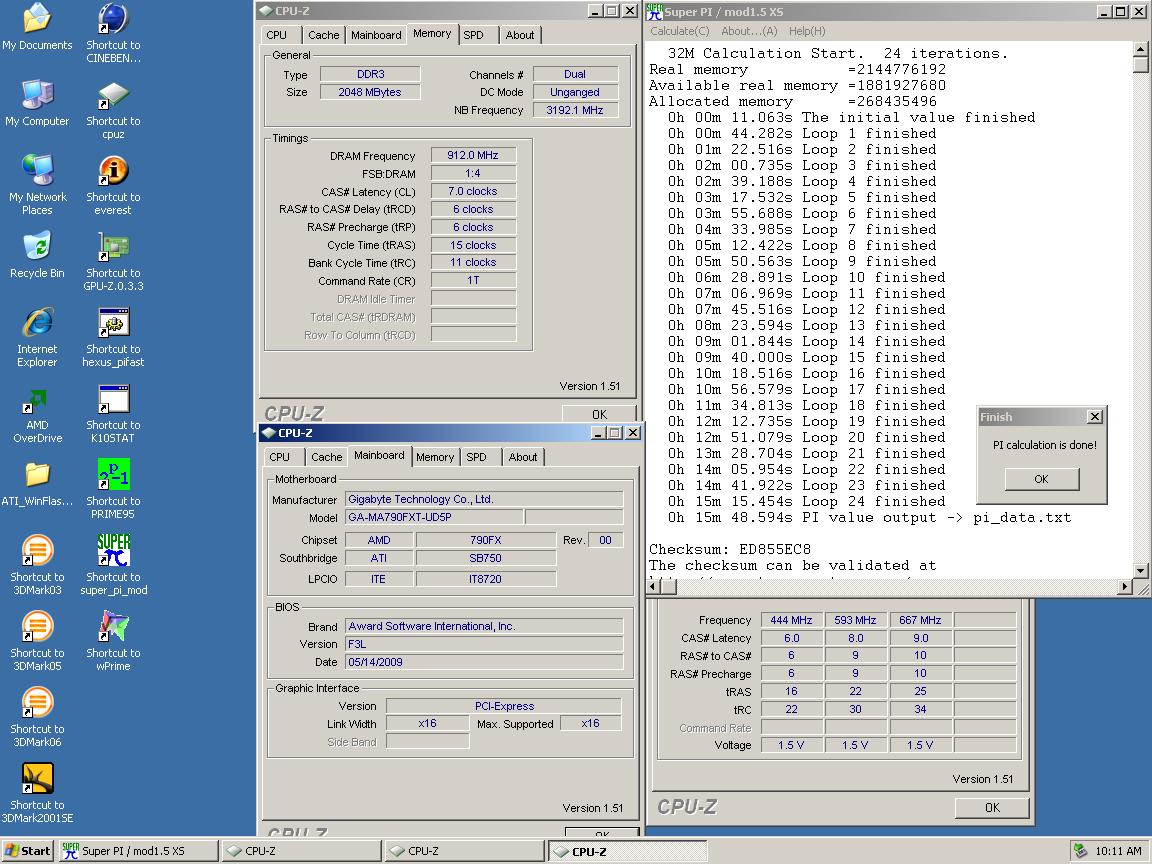

Magical barrier broken.

Unfortunately no matter what I do I can't go further.....one stick hates voltage......over 1.95v.......other stick wants voltage over 1.95v. Rock and a hard place type deal....not bad considering my ability to do anything with voltage was impaired....

http://chew.ln2cooling.com/everest%2...rison/1824.JPG

Man you get all the fun lol.. Nice job as always ;)

Hey Slappa, just beat you best result but only just, at a lower frequency:

http://img.photobucket.com/albums/v6...ifactory/6.jpg

I haven't really pushed things yet, just 1.47Vcore at a 25ºC roomtemp.

The race to 15 seconds is on mate. ;)

Zeus asus is a tad faster in PI ;)

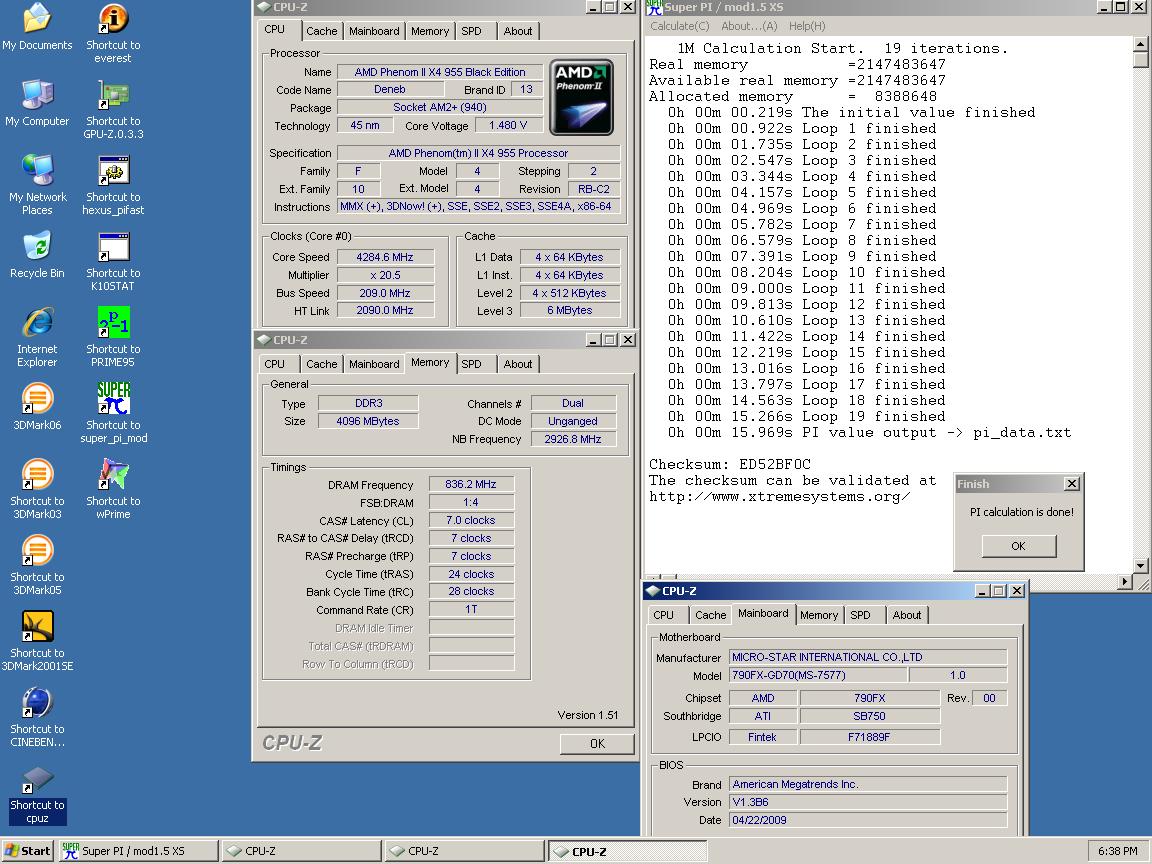

I forsee someone on MSI getting there before either of you ;)

Quote:

---

Originally Posted by Zeus

Hey Slappa, just beat you best result but only just, at a lower frequency:



I haven't really pushed things yet, just 1.47Vcore at a 25ºC roomtemp.

The race to 15 seconds is on mate. ;)

---

Very nice.

Thing is, my system was faster, but there are anomalies (efficiency problems) going on with my ram in 1m. I'm waiting till I can get a new set, and until then, I can't get sub 16s

Ok.......I should have stuck with my own teachings...anything is possible. Seems the gigabyte can keep up with the asus.

I narrowed it down to a specific combo of settings......looking at my asus results.....I duplicated similar cpu/nb ratios and voila......not on air atm but.....this might be doable.....the math is done.

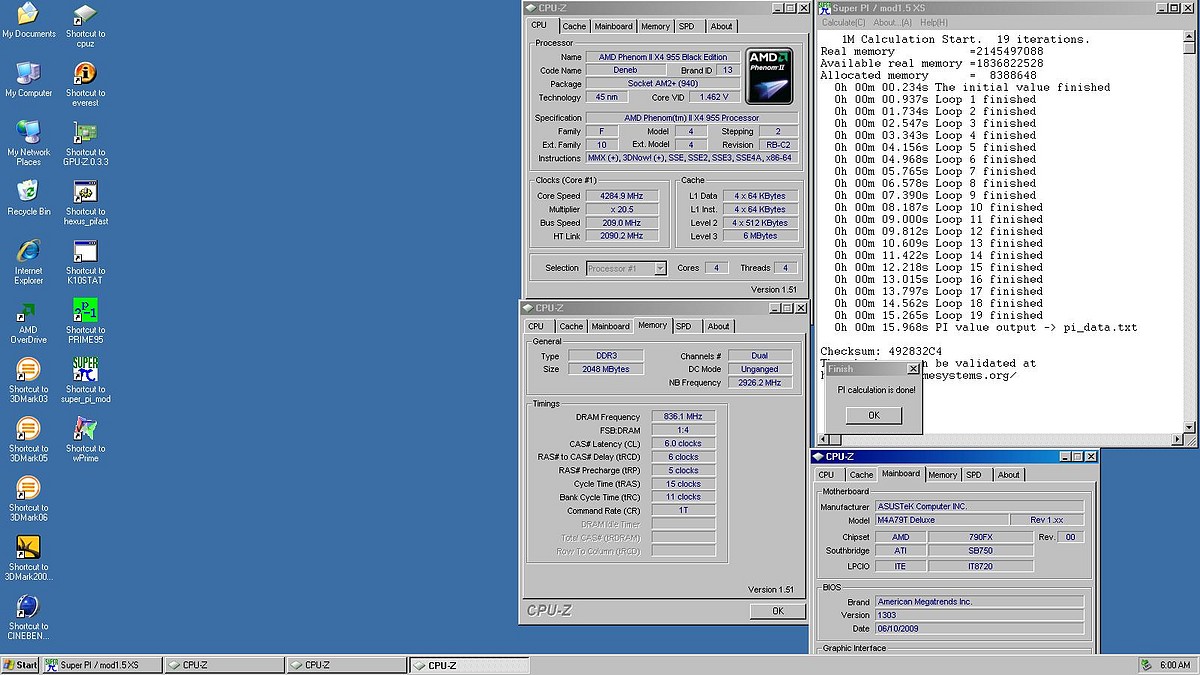

Previous asus air results

http://chew.ln2cooling.com/qdig-file...a79T/lrg_5.JPG

What cpu you use is not important...only the combo....of cpu/nb speeds.

HT is best under 2200......ram does not matter as long as its fast and tight.....

5-5-5 1400+
6-6-6 1600+
7-7-7 1800+
or in my case a mix of 6-6-6 / 7-7-7

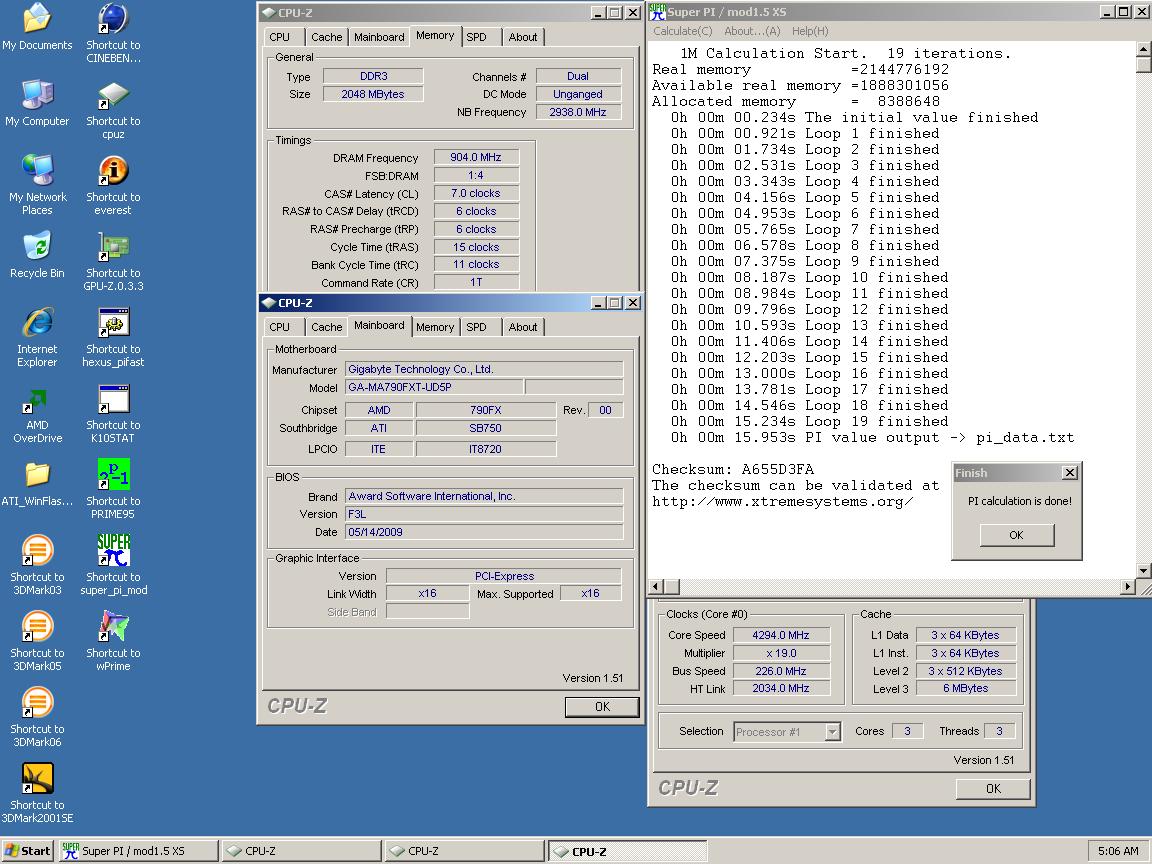

Phase results
http://chew.ln2cooling.com/everest%2...b%2016%27s.JPG

Nice work chew*.

Very nice ram clocks and timings there, i doubt 2x2GB can come anywhere close to that.

If i can maintain the efficiency of my last run i think i can break into the 15sec zone at ~4250MHz.

Now if only temps here in the Netherlands go down i can do some serious clocking.

Running 1M at 4212MHz (1.49V) was possible with 25ºC ambient so 4250 should be doable with more favourable conditions i guess.

My colleague bought an airconditioner a while back... it didn't cost him an arm and a leg lol... maybe you should buy that too Zeus... nothing like 15c air hitting your case eh?
You seem to spend some cash now and then anyway so I figure this could be a worthwhile... upgrade? ;)

Well, i could get actually sell my "old" AM2+ stuff for a good price so that's why i upgraded.

I got sick and tired of the Vdroop of the M4A79 deluxe, this one has LLC to keep me happy. ;)

I think i'll wait for the temps to come down which will happen anytime soon now, it's Netherlands after all. :D

4250 is gonna be 16 flat. Need 4280.

chew*

Great work getting sub 16s on the gigabyte......nothing is linear....everything is possible :P

I did some more work last night but I'm limited on my chip. Even with a low 23C idle I cannot superpi at 4231MHz on my 955. I'm also limited at my ram, it is at its max almost. I did get 16.234s though.,... .001s faster

When I come back with a diff chip and a new set of ram, getting 15s will be my goal with the gigabyte board....

It will take a lot of work....sleepless nights, maybe even weeks.....but I'll try.

and with DDR2 its impossible under 16 :-/...with AIR cooling

Quote:

---

Originally Posted by FlanK3r

and with DDR2 its impossible under 16 :-/...with AIR cooling

---

nothing is impossible :D

Quote:

---

Originally Posted by chew*

4250 is gonna be 16 flat. Need 4280.

---

You might be right.

http://img.photobucket.com/albums/v6...factory/10.jpg

Still 25ºC ambient here. :mad:

Quote:

---

Originally Posted by Zeus

You might be right.


Still 25ºC ambient here. :mad:

---

Chew*'s always right

Nothing is impossible....Only highly improbable......

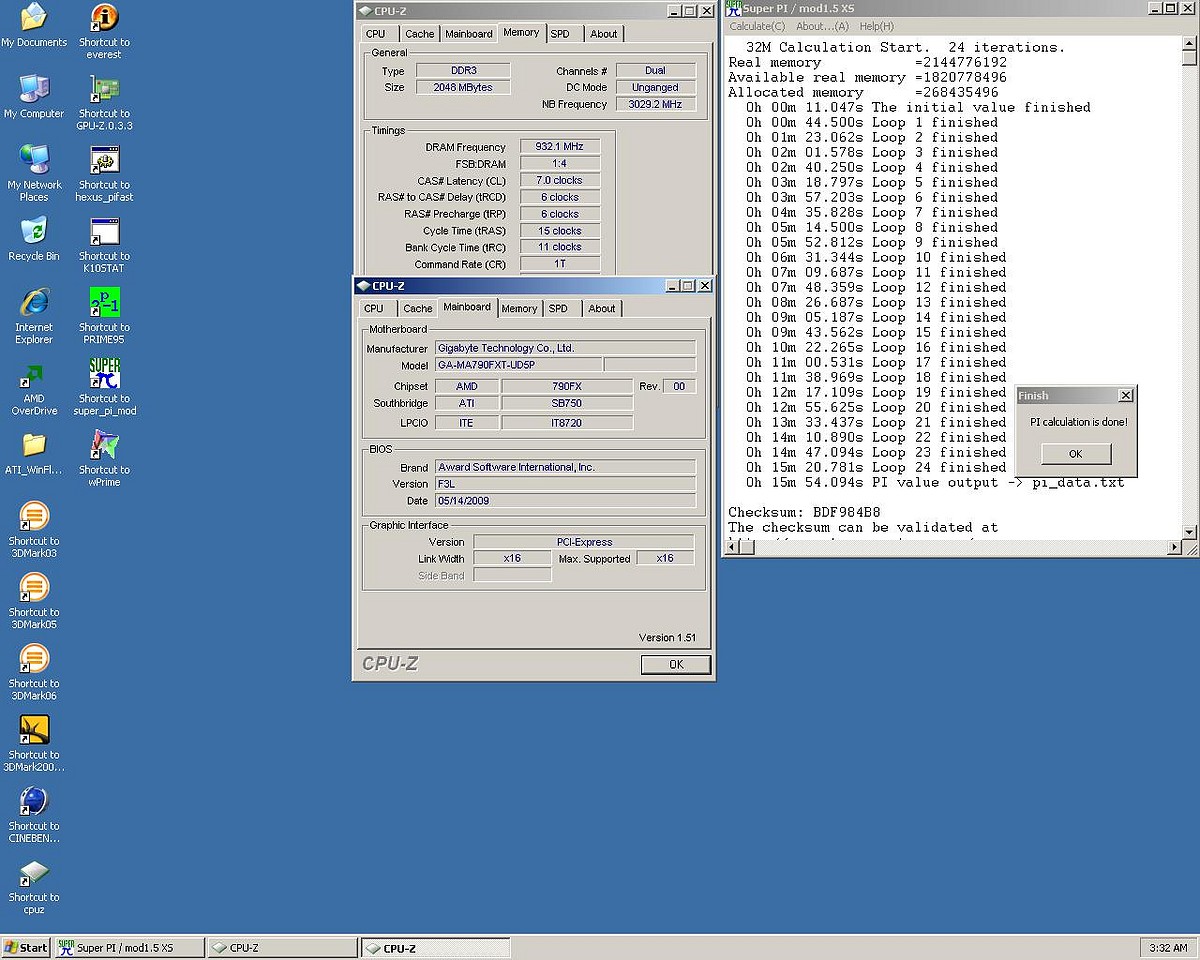

So lets see where were we. I maxxed at 1824 1.95v.....I was bored so I decided to tackle this some more plus Msimax was :stick: me on aim becasue he matched me and passed me.

A little competition goes a long way :D

Limited to 1.95v still..........

http://chew.ln2cooling.com/qdig-file...1862%2032m.JPG



http://chew.ln2cooling.com/qdig-file...1872%2032m.JPG

I had no choice but to slack off on this

http://chew.ln2cooling.com/qdig-file...n/lrg_1880.JPG

An individual told me that anything is possible....and I believe My mind has been freed......

I have come across a LOT over the past 3 hours.

First off, I removed the heatspreaders on my ram to find that the IC's were Elpidas. This is GREAT considering this ram is $42 USD.

Building upon that finding, I changed around some timings and tuned my ram again.

The outcome was that I was able to hit 7-8-7-20-1T @ 1800MHz 1.65V for 1m runs. Haven't tried 32m yet. But Remember, this is ram that is binned at 1333MHz 7-7-7-18T 1.6V

Did not take any Screenshots yet.....you can expect them tomorrow evening though.

Nice find man! If they are Elpida Hypers be carefull not to kill them as some seem to die by only just looking at 'm.

All you need now is a cpu that will clock better. ;)

Quote:

---

Originally Posted by Zeus

Nice find man! If they are Elpida Hypers be carefull not to kill them as some seem to die by only just looking at 'm.

All you need now is a cpu that will clock better. ;)

---

They are regular elpidas.....which are elpida hypers from the reject bin...so they should go pretty high

Ehh I think I can take you on with the same cpu.

I'll try tonight maybe

*chew, what NB vid are you using? If you dont mind me asking. Im using .5 over mormal just to be stable @ 2800mhz, and had to use looser timings on ram to get there!

Bring it on man!

I've been testing to find the limit for CPU-NB for 1M stabilty.

Turns out it maxes somewhere at 3050MHz with 1.3875V and still a 24ºC ambient.

Raising volts to 1.4V didn't do much so it seems i've hit the limit on that, unless i can get the temps down off course. :)

I think this 955BE is an average clocker but it clocks better than my former 940BE, that's for sure.

Did you make any progress yet?

Quote:

---

Originally Posted by m411b

*chew, what NB vid are you using? If you dont mind me asking. Im using .5 over mormal just to be stable @ 2800mhz, and had to use looser timings on ram to get there!

---

All those results above are on phase change except the asus.....voltage is chip to chip dependant and motherboard dependant......I have one chip here that needs crazy volts just to do 2600.......

Just water! 28 minutes prime stable now. CPU *44c under load and *30c idle :) I think my ram is holding me back. Im @ 25-8-7-7 w/ 1.95 1600mhz, but stable with Crucial ballistics 1333.

Quote:

---

Originally Posted by Zeus

Bring it on man!

I've been testing to find the limit for CPU-NB for 1M stabilty.

Turns out it maxes somewhere at 3050MHz with 1.3875V and still a 24ºC ambient.

Raising volts to 1.4V didn't do much so it seems i've hit the limit on that, unless i can get the temps down off course. :)

I think this 955BE is an average clocker but it clocks better than my former 940BE, that's for sure.

Did you make any progress yet?

---

Your chip is stronger than mine.

I need +.525V on the CPU-NB to get 3042MHz 1m

Your cores go higher too.

I will be able to beat your time, been testing now....but the only way is to lower my ambient dramatically....which means huge fan +window open

What is the default value for NB vid? Isn't that 1.15V? That would mean you're pumping a whopping 1.64V into that CPU-NB! :eek:

I think i degraded the NB of my 940 by pumping 1.47V into it with the stock cooler. It was always able to run 2.8GHz with NBvid at auto but after i pushed that volts through it i never got it to do that again.

It could have been the 2,5Vdimm i used as well, i don't really know but i'd rather be safe than sorry so i will stay below 1.45V on th NB to be sure.

Quote:

---

Originally Posted by Zeus

What is the default value for NB vid? Isn't that 1.15V? That would mean you're pumping a whopping 1.64V into that CPU-NB! :eek:

I think i degraded the NB of my 940 by pumping 1.47V into it with the stock cooler. It was always able to run 2.8GHz with NBvid at auto but after i pushed that volts through it i never got it to do that again.

It could have been the 2,5Vdimm i used as well, i don't really know but i'd rather be safe than sorry so i will stay below 1.45V on th NB to be sure.

---

Killing hardware is the last of my worries :)

how much u need at 2800-2900MHz CPU-NB? I have problem with +0.25 at 2800+ at NB

Quote:

---

Originally Posted by FlanK3r

how much u need at 2800-2900MHz CPU-NB? I have problem with +0.25 at 2800+ at NB

---

All chips require different amounts.....

Personally, mine needs +.4 - +.475 for 2800-2900

Finally beat your score :P

Afraid I can't go much further as both my ram and CPU seem to be maxed/very close to max. Plus I had to have a huge box fan and my window open for this one.

Once again, Look at coretemp for core frequencies.

http://i74.photobucket.com/albums/i253/Wop11/16172s.png

Hey Slappa,

First of all congrats on that very nice score.

You did beat my score with my 940BE, but not my best with my 955BE or you posted the wrong screenshot.

Check out post 54 in this thread. (16.078sec)

Sorry to rain on your parade my friend.

Quote:

---

Originally Posted by Zeus

Hey Slappa,

First of all congrats on that very nice score.

You did beat my score with my 940BE, but not my best with my 955BE or you posted the wrong screenshot.

Check out post 54 in this thread. (16.078sec)

Sorry to rain on your parade my friend.

---

Oh heh :shrug:

I didn't even see that one :(

Ah well...

Still on a $42 set of ram...and my cpu won't go that high...and ASUS is better for superpi

whau, nice socre, il try today, but its hot :(. I must evening and too open window :). But my PC is about 3m from window and im too lazy get PC nearer. But hope for 20 Celsius temperature evening :).

This morning we got torrential rain accompanied with some fresh dutch air.

Conditions i just had to use to swing things in my favour, work had to wait! :D

With the pc in front of the backdoor sub 16 seconds came way too easy:

http://img.photobucket.com/albums/v6...tory/sub16.jpg

Nice to have chew* proven wrong as 4260MHz was enough, efficiency of this board is second to none it seems. :)

Off course i didn't stop there, i have a few better ones but i'm not gonna spill the beans yet, i'll wait for your new CPU so i can keep you on your toes, lol.

Mind you, this is all done with 4 cores, so not just one core clocked all the way up with the other 3 sitting at girly speeds.

I'm using the tweak it function to oc the fsb which works like a charm.

C'mon Slappa!! --Your turn. (or whoever feels like joining the race)

very nice Zeus, how is your the best max AIR validation? Great chip, i mean...

Quote:

---

Originally Posted by Zeus

This morning we got torrential rain accompanied with some fresh dutch air.

Conditions i just had to use to swing things in my favour, work had to wait! :D

With the pc in front of the backdoor sub 16 seconds came way too easy:


Nice to have chew* proven wrong as 4260MHz was enough, efficiency of this board is second to none it seems. :)

Off course i didn't stop there, i have a few better ones but i'm not gonna spill the beans yet, i'll wait for your new CPU so i can keep you on your toes, lol.

Mind you, this is all done with 4 cores, so not just one core clocked all the way up with the other 3 sitting at girly speeds.

I'm using the tweak it function to oc the fsb which works like a charm.

C'mon Slappa!! --Your turn. (or whoever feels like joining the race)

---

Very nice score.

I'll try my best....however don't expect me to win without a new set of ram first :P

Also, as you can see from chew*'s results.....it will be challenging on this motherboard.

Quote:

---

Originally Posted by FlanK3r

very nice Zeus, how is your the best max AIR validation? Great chip, i mean...

---

Tnx.

I don't know what the max validation is for this chip, tbh i don't care much about validation really but i know it can run 1M at higher freqency's than i showed. ;)

Quote:

---

Originally Posted by Slappa

Very nice score.

I'll try my best....however don't expect me to win without a new set of ram first :P

Also, as you can see from chew*'s results.....it will be challenging on this motherboard.

---

Thanks man.

Are you sure you'll need that much ram speed?

Mine was only at DDR1420 as you can see but with nice timings though, i know your mobo is different but did you try lower ram speed with 6-6-6 timings or is your ram not capable of doing that?

im not today luckly...All runs crash at superpi, a problem is, think, core #3 (4th core)...All more than 4100MHz 1M crash today-blue screen or frozed.:(

Quote:

---

Originally Posted by Zeus

Nice to have chew* proven wrong as 4260MHz was enough, efficiency of this board is second to none it seems. :)

---

Yah haven't used that board yet...only going by what the m4a79 needed.....I would not say effeciency is second to none yet though ;) I think I might break the MSI out with a fresh install as my drives have all undergone at least 2 DI and 4 ln2 sessions ( preety much hammered OS's )

Quote:

---

Originally Posted by FlanK3r

im not today luckly...All runs crash at superpi, a problem is, think, core #3 (4th core)...All more than 4100MHz 1M crash today-blue screen or frozed.:(

---

Cooling is your friend, these CPU's respond very well to lower ambient i found out this morning.

Quote:

---

Originally Posted by chew*

Yah haven't used that board yet...only going by what the m4a79 needed.....I would not say effeciency is second to none yet though ;) I think I might break the MSI out with a fresh install as my drives have all undergone at least 2 DI and 4 ln2 sessions ( preety much hammered OS's )

---

Well, so far efficiency is very good, sub 68K Performance Product is quite easy actually.
It's definately better than the M4A79 deluxe i had before but that was a DDR2 board of course.

DeDal broke the 1M WR with this board too, might be coincidence but from what i've seen it's quite good for 1M.

I'm looking forward to your runs on the MSI, i'd like to see at what frequency it will break 16seconds. ;)

zeus:i msut maybe waiting to midnight :) or next days will be better for overclocking :D http://www.pocasi.cz/#rt=listResult@...=134989697@z=5

Good luck pushing it, here's a little teaser:

http://valid.canardpc.com/cache/banner/599853.png

;)

nice Zeus, with how Vcore? Inb my signature is my to time record - with 1.47V.

1.47V as well.

Quote:

---

Originally Posted by Zeus

Thanks man.

Are you sure you'll need that much ram speed?

Mine was only at DDR1420 as you can see but with nice timings though, i know your mobo is different but did you try lower ram speed with 6-6-6 timings or is your ram not capable of doing that?

---

Well...I might.

My cpu has hit a wall at 4230MHz for 1m through testing so far......and thats on 12C ambients. Once I tune up my ram again I'll see if I can push it higher.

I think your attributing boards effeciency to the wrong factor, fresh install ;)your going by effeciency of just CPU speed...

When I calculate efficiency I calculate the NB as well combined total...

so your run required 4260 + 2982 = 7242

My run with m4a79 T 4285 + 2926 = 7211 and matched the same time dirty install.

My run on giga 4294 + 2938 = 7232 and beat the crosshairs time on a dirty install.

If you don't measure it this way I could just crank NB beyond 3000 and claim its more efficient.

Here's the MSI on a completely wrecked and patched OS.......tested today long after I tested asus......asus had quite the advantage ram timing wise.

http://chew.ln2cooling.com/everest%2...n/MSI%20PI.JPG

Nice one there chew*, is that on air/water?

If you want to do a real fair comparisation you have to take memspeed and even timings into consideration as well.

Your NB speed was slower but your ramspeed was higher, there's always something, hehe. ;)

You're right about a fresh install, this one i'm using is far from fresh but still running fine though.

Just water man easier to research this before applying on air.

True about the ram. I still think the msi is most efficient clock per clock, especially if you factor in ram speed/timings.

Nice one. Anything left in that cpu?

Here's what 4280 got me:

http://img.photobucket.com/albums/v6...ory/sub162.jpg

Quote:

---

Originally Posted by Zeus

Nice one. Anything left in that cpu?

Here's what 4280 got me:

---

On water?

quite a bit.....another 200 mhz.

What? Another 200MHz on watercooling? :eek:

Just for validation or 1M stable?

Quote:

---

Originally Posted by Zeus

Nice one. Anything left in that cpu?

Here's what 4280 got me:

---

Excellent result.

As I said before, I'm limited at the chip. Gonna be hard for me to beat that one.....if it is even possible on the gigabyte board

Thanks man, it's not the best i could do. ;)

I'll keep the better ones untill you have a new chip.

i know about x4 975 (i know to launch, but NDA...), omg + next 200MHz ...its chip what talking about in your post ,-)?

Quote:

---

Originally Posted by Zeus

What? Another 200MHz on watercooling? :eek:

Just for validation or 1M stable?

---

I validated this cpu over 4500 on this high end water setup......I have another 200mhz for 1m.

Nah flanker this is like the middle guy of all my chips.

We should have a "tweak it" versus "OC knob" battle in 1m zues I got times down to 15.6xx last night playing with it while running 1m.

Quote:

---

Originally Posted by chew*

I validated this cpu over 4500 on this high end water setup......I have another 200mhz for 1m.

Nah flanker this is like the middle guy of all my chips.

We should have a "tweak it" versus "OC knob" battle in 1m zues I got times down to 15.6xx last night playing with it while running 1m.

---

This is amazing AMD stuff ya know:up:

Hehe second battle go to Chews win?:D (first was with Aircooling 1M :) for Chew)

Quote:

---

Originally Posted by chew*

I validated this cpu over 4500 on this high end water setup......I have another 200mhz for 1m.

Nah flanker this is like the middle guy of all my chips.

We should have a "tweak it" versus "OC knob" battle in 1m zues I got times down to 15.6xx last night playing with it while running 1m.

---

I would love to buddy but i'm not sure if i can keep up with ya.

I haven't seen 15.6xx yet but i've been close. :)

At what frequency did you see 15.6xx?

I'm in for a good battle, hopefully Slappa can participate when he gets a new cpu.

Quote:

---

Originally Posted by Zeus

I would love to buddy but i'm not sure if i can keep up with ya.

I haven't seen 15.6xx yet but i've been close. :)

At what frequency did you see 15.6xx?

I'm in for a good battle, hopefully Slappa can participate when he gets a new cpu.

---

I was up to 5 notches on the OC knob by middle of the run before I backed off.

6 notches gave me a ram error. No clue what speed was was just fooling around to see how far it could go. I would imagine near 4380 at max.

Sounds like a very strong CPU, don't know if mine will be able to run 1M at 4380MHz.

Shame you did not make a screenie.

What was your ambient temp then?

Quote:

---

Originally Posted by Zeus

Sounds like a very strong CPU, don't know if mine will be able to run 1M at 4380MHz.

Shame you did not make a screenie.

What was your ambient temp then?

---

22C via AC.
