Just recieved a delivery of Delta FFB1424UHE-M 367 CFM Fans
I think this is about as extreme as off the shelf radiator setups get.
All up these fans will be drawing ~16 amps or 384 watts at 24V and deliver a massive 1468 CFM to the GTX.
Hmmm that Meanwell SP-300-24 PSU isnt gona cut it... I better duck over to jaycar, then Im off to build my hovercraft.... Ill post pics and a small vid later today :up:
http://lh4.ggpht.com/_5JXSu5Gfgo4/ST...0/DSC03506.JPG
I hope it's going to be in another room... it'll sound like a couple of debating tornadoes.
that is INSANE I LOVE IT!!! :D :D :D
what dBa are the fans? :D
ROFL
delta temps <<< what's that :rofl::D
Put a rad guard on it. Just in case it decides to burp a fin out. Fins at that speed could be deadly! :D
Could one actually blow out a radiator?
will cause temporal deafness?
they run at about 70 dbaQuote:
Originally Posted by Langer
Im actually thinking of modding a noise cancelling car muffler into my case (currently considering a MM Pinacle 18) to reduce the noise
Depending on which way he mounts those fans on the case he could possibly have the first ever hovercraft computer! or worse case he sucks his mother board thru!
>70dba if you strap them to that radiator.Quote:
Originally Posted by b@llz0r
The muffler solution sounds interesting... I'm not sure how effective it will be - how do you plan on doing this... I hope not just silencing the exhaust.
^I know it sounds strange, but my fans got QUIETER when I hooked them to my rad.....
Ive seen muflers which use noise cancelling technology (similar to the headphones) I was thinking I'd buy one of those strip out the noise cancelling gear (microphone, speeker and probably some kind of signal processor) and mount it inside my caseQuote:
Originally Posted by Langer
http://auto.howstuffworks.com/muffler6.htm
Why not just wire up electrostatic transducers near each fan?
These will absorb and convert the vibrations and changes in air pressure to an electrical signal - allowing it to be modified.
I'm pretty sure this is how they make 'noise-canceling" headphones.
I thought of doing this a few years ago, but I never got around to going though with it.
The result if done properly would be like a black hole for sound waves - sort-of.
Exact same concept as your muffler, but smaller scale and higher sensitivity could be resulted.
b@llzor, set those fans up so the next time your GF decides to throw O.J. at the comp, it blows it back at her....then you can....um...hm, this is a kid friendly site. :ROTF:
You idiot!
Let us know how it works out. :)
Man, if a vantec tornado fan is self propelled, you could probably build some kind of horizontal leaf blower with that.
As you're in Perth, I can now hear where you live ;)
Good luck!
:rofl::rofl::rofl:Quote:
Originally Posted by dingdong555
Haha, too right. You'll be adding to the jetstream effect accross the desert bullzor! :p:Quote:
Originally Posted by dingdong555
now THAT doesn't fit in my Lian-Li :D
Awesome stuff... let us know how it performs asap :up:
Xtreme for sure :up:
oh my god. the sence of watercoooling with that noise level has been thrown away, except you are a gamer and need so much power.
Let's go steal us some nice parts :DQuote:
Originally Posted by dingdong555
oh wow those are some huge fans and i thought my 130db fans were loud....
Omgg hope you dont have any pets that walk around the house :D
Quote:
Originally Posted by clone38
lol a cat walks by and gets sucked into it like a Tree Mulcher..... nothing but Fur flies out the other side! :rofl:
367CFM?!
I dont think every fan in my MM combined pushes that much. :O
well I ran a few tests on the fan at different voltages.... man these things are beasts
http://lh5.ggpht.com/_5JXSu5Gfgo4/ST...s400/movie.jpg
My local electronics store didnt have a psu over 300w... Im gona need about 800 for this setup so I ordered a meanwell SE-1000-24 so it can power the RD30 too :up:
Congrats on the nice looking setup!! CFM of pure win no doubt.
**I have some 170x52mm SanAce blowers..good for 300CFM each..it you need some more pressure for your radiator. :D
http://i265.photobucket.com/albums/i...0/P1050208.jpg
I think Danger Den has one of those installed in a custom case already . . .if you need a case you might drop them a line . . .
Oh . . . :up::up::up::up::up: and the obligatory EXTREME FTW!!!!!!!!!
Now take it to Blingville :yepp::yepp::yepp::yepp::yepp: :shocked:
sweet.. ill check it out.Quote:
Originally Posted by DarthBeavis
Ballzor you worried me when you picked that thing up.
It would chop your fingers off at that speed or at least cause some serious damage.
It had a fan grill so no exposed bladesQuote:
Originally Posted by Eddie3dfx
That fan could seriously mess you up :explode2:
the noise is... :shocked::shocked::shocked:Quote:
Originally Posted by b@llz0r
Wow I can just imagine what 4 of those on 24 volts would sound like. Heck if you really want to go ludacrous get 4 more and do a push/pull. However that might suck the fins out of the radiator :shocked:. Going to have to make a custom fan controller for those things or just tell people you have an airport in the next room. :rofl:
the rheostat in the vid is one of eight 150w rheostats to control the fans :up:
Ive been doing a bit more research on noise-cancelling technology.... some people are using it for servers... im gona contact them and see if i can get a unit for my case. The constant hum... or should I say scream, of fans is just the kind of sound this technology works well for.
Don't worry about the noise, after a couple of weeks with these in your office you will be pretty much hearing impaired. :up:Quote:
Originally Posted by tiro_uspsss
what?Quote:
Originally Posted by Jor3lBR
:rofl:
I just watched the vid and about died laughing...how are you ever going to be able to hear after sitting next to 4 of those?!?!?!
Wow. I watched the video and LOL'd my rear off. If that is what it takes to be xtreme, I'm out!
Now I just wanna see some one put these in a MM case with 3 or 4 560's with those fans!!
Great Vid man those are some BEASTY fans!! totally made my day.
I too was like OMg he picked it up.. at full speed!!!
Anyone tried one of those fans as a vegetable chopper? :D
Wow b@llz0r those are some serious fans! Great video and demonstration. That's probably going to be the best rad/fan setup of all time.
"...it's kind of hard to, they're pretty ****in' noisy already..."
Anyone catch that at about 3:15? :ROTF:
Nice fans mate, make sure you make a video once it's all done as we can hear what four of them sound like. :up:
you should add subtitles b@llz0r, I just couldn't get what you were saying there :rofl:
Seriously now, those are some vicious crazy fans there !
It reminds of of some industrial vacuum cleaners :D
lol in my opinon, that sound reminds me of the wood planer in my schools shop
I Love It!
300+watts on just fans thats extreme, might have been cheaper on the electric to spring for lower rpm fans on the rad and a pelt :D
How much did each of those fans run you?
waaaa don't cut your fingers!!! i just saw the video dude....damnit safety first...nice audio though...woot!!!
edit: i didn't read the posts after the vid..you did have grills... good job:)
Nice video,but i was waiting on the screen going a nice shade of red when you picked up the fan when it started to move around the room.
sounds like a shop vac. :ROTF:
My god man, the torque and the thrust that thing has is silly. :ROTF: That was way outta control! I like it. :D
Quote:
Quote:
Originally Posted by Jor3lBR View Post
Don't worry about the noise, after a couple of weeks with these in your office you will be pretty much hearing impaired.
Quote:
Originally Posted by b@llz0r
:ROTF::rofl::ROTF::rofl::ROTF::rofl::ROTF::rofl::R OTF::rofl::clap:
I was more concerned with him repeatedly getting his fingers near it...Quote:
Originally Posted by T_Flight
I thoroughly enjoyed that vid.
I demand a hovercraft build BEFORE you anything else. Balsa wood =FTW.
-yonton228/timmy
Yes, seriously do be careful even with the fan shrouds. If you push your finger and it slips in between the grill rings it might still get ahold of you. I've messed with R/C electric planes before, and have almost had accidents with propellers. That thing can seriously be a self feeding meat grinder. No joke. When you think about it, it is kinda scary.Quote:
Originally Posted by iandh
I'm not one for warnings, and those warning that try to protect people from themselves, but these fans are something that should definitely have a warning because of the Xtreme power of them. A fan like this at 24v is serious buisness. I have seen electric aircraft that run on 18v with Li-Po batteries in them that weigh 22 pounds and can fly for 18 minutes. This thing has 24v and unlimited AC/DC power.
come on for the fun of it, 8 on one rad, u know u want to try it :D
Quote:
Originally Posted by KaptCrunch
ive just gota build one of these http://www.analog.com/library/analog...s/34-02/noise/
I don't want to learn today but I think this pic gives me the scope of what you need to do x 3.
http://www.analog.com/library/analog...oise/Fig10.jpg
:rofl::rofl::rofl:Quote:
Originally Posted by Demthios

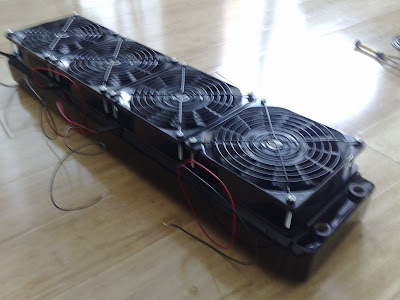

low quality camera phone teaser :D
http://lh6.ggpht.com/_5JXSu5Gfgo4/ST...7122008139.jpg
just saw the vid, that thing sounds like my old loud vac at home:ROTF:
*sees rad flying everywhere* :D
Well it might work I mean there are 4 fans. . .. . . hovercraft rad FTW
Dude you need 4 more for push/pull c'mon!
I only have two more, and my current psu wouldnt power 4 more anyway.Quote:
Originally Posted by nikhsub1
I will try the push pull when the next batch of fans and my meanwell 1000-24 gets here :D
I'm interested in the performance at 12V, if it's got good pressure and cfm at 12V some of us might be able to run it straight off a regular PSU.
Quote:
Originally Posted by silverphoenix
In the first vid i showed it running at 12V, it was pumping out a lot more air than my koolance 140s do, id say ~180CFM at a total guess. The pressure was enough to push it along the floor when I put my hand up to it.
Im gona rig one up on my loungeroom HTPC/Gaming rig at 12V with a switch for gaming.
http://lh5.ggpht.com/_5JXSu5Gfgo4/ST...s400/movie.jpg
Vid of the 4 in action on the GTX :up:
Quantity PriceQuote:
Originally Posted by aspire.comptech
1 - 15 $37.77
16 - 31 $30.68
32 - 499 $30.07
500 - 1499 $29.45
1500 + $28.83
http://www.onlinecomponents.com/buy/...TS/FFB1424UHEM
I still get a good lol that they need their own psu pretty much
HOLY NOISE BATMAN!
That's some crazy shizard. Atleast now I know where I can find a house that I can steal heaps of PC parts from :up:
Just watched the vid...it's just not fair that those fans make my Pelko 265CM fans look civilized. I think the CIA here in the US could surplant waterboarding for extracting information...just turn one of of those on and leave the holding cell...
WTH I need to look at Virgin Blue from 12-1 aka cheap hour :D.Quote:
Originally Posted by dingdong555
it didn't fly :( :DQuote:
Originally Posted by b@llz0r
When you put the camera behind it, the wind noise was like riding a bike
at 200kmh :D
Wow! Insane. Any results?
After watching and especially listening to those beastly fans I would never run them over about 5v I think, pair them with an iwaki pump and "store" the radiator at your neighbor's house lol ( iwaki's in series if required considering tubing length required to get to/from your neighbor's house).
planning to reach ambient with one rad i see?
correction.... two rads :D
pc+WC install pics please!!
