BUMBLEBEE BEGINS....
COMING SOON at your NEAREST CINEMA
http://i96.photobucket.com/albums/l1...1020081904.jpg
hi ALL
i am starting my Build Log on my FULL WATERCOOLING SETUP.
Though, not all my parts are not complete as 2 batch of orders are still pending. but nevertheless i am making this work log to go through my setup with my present parts.
and for the NAME of my Watercooled RIG :cool:... i WILL EXPLAIN through the course of my completion of my RIG :D...
My specs for meantime would be
A single loop running a CPU, NB, SB and 2x Danger Den Water Blocks 3870x2.
Rig:
Rampage Formula
Gigabyte 570Aurora
Gigabyte 800watts Odin GT
150 WD Raptor
Q6600
2x ATI 3870x2
Present Watercooling Parts:
1x 355 pump with XSPC Res Top
1x Dtek V2 Cpu Block
1x EK NB SB 4 Acetal for my Northbridge
1x EK NB SB 5 acetal for my Southbridge
2x Danger Den 3870x2 Blocks
1x GTX480
1x Bitspower Thermal Sensor
1/2 ID 3/4 OD Tubes
Yellow Fesser Coolants
My Full watercooling plan is to Have this additional Parts for Completion of my Setup. Hopefully if my budget will allow, i will be completing this a month from now hehehe :)
additional parts for completion
1x 355 pump with XSPC Res Top
2x EK Mosfet x38 Blocks
1x ANFI or MIPS RAM Blocks
1x GTX480 Radiator

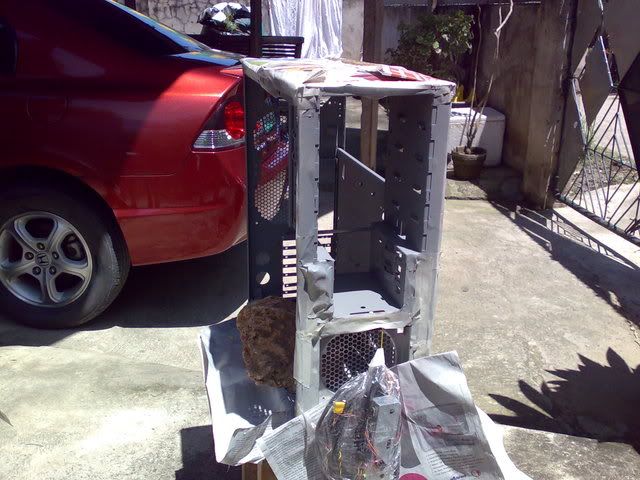

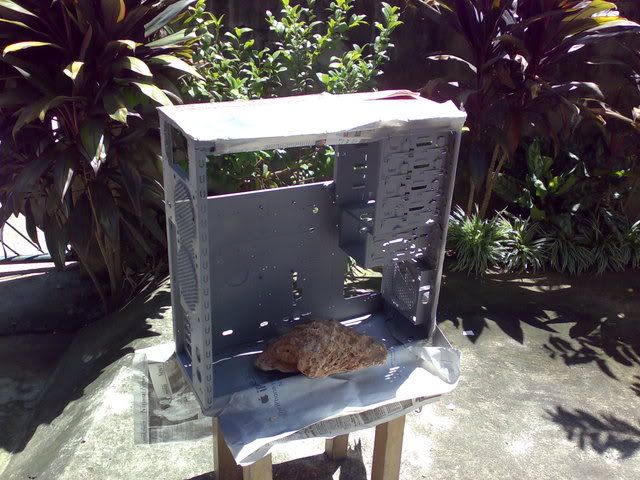

A New Body Color and Ready to TRANSFORM :)
http://i96.photobucket.com/albums/l1...1020081836.jpg
http://i96.photobucket.com/albums/l1...1020081837.jpg

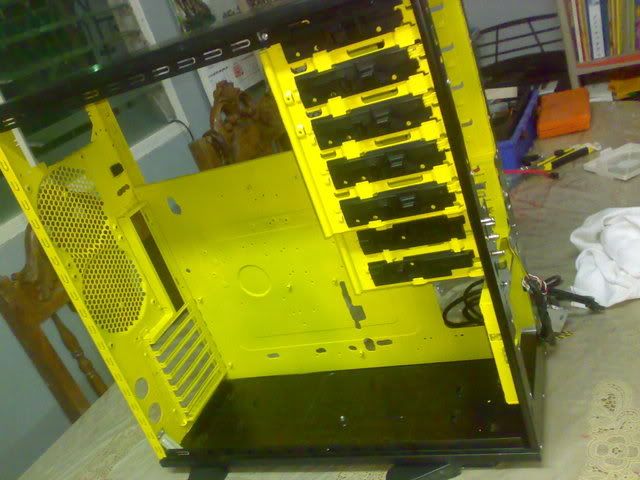

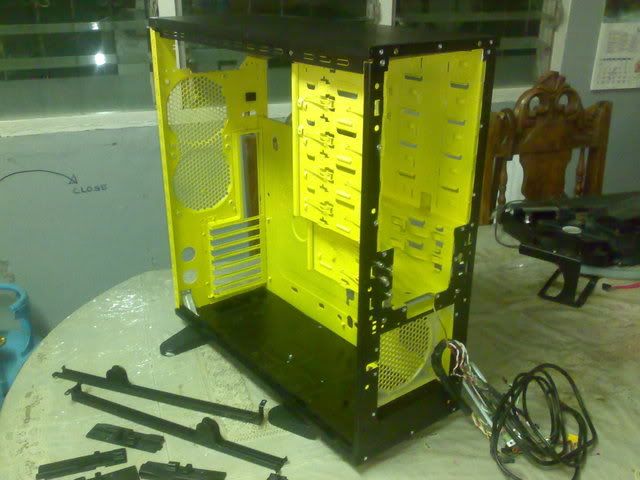

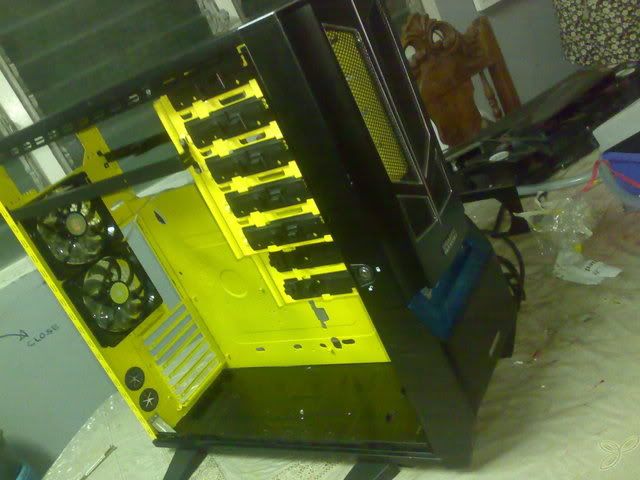

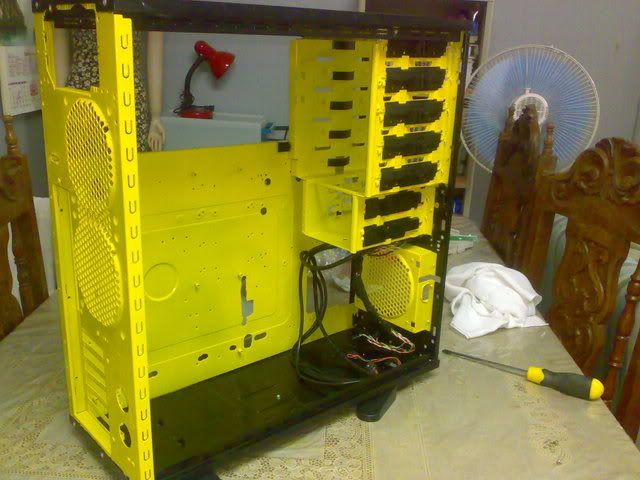

and READY to BE TRANSFORM
BUMBLEBEE GA1 CONCEPT here i come :P
http://i96.photobucket.com/albums/l1...1020081840.jpg
http://i96.photobucket.com/albums/l1...1020081841.jpg
http://i96.photobucket.com/albums/l1...1020081842.jpg
http://i96.photobucket.com/albums/l1...1020081847.jpg
TBH the school bus yellow sort of makes me feel sick when I stare at it too long, it may just be the picture, but it does suit the "bumblebee" theme well. The gear you will be putting inside, should appreciate the watercooling, but where will you fit the GTX rad?
i will be mounting my 2x GTX480 rads at the back like a jet lol
subscribed, coming out great so far :)

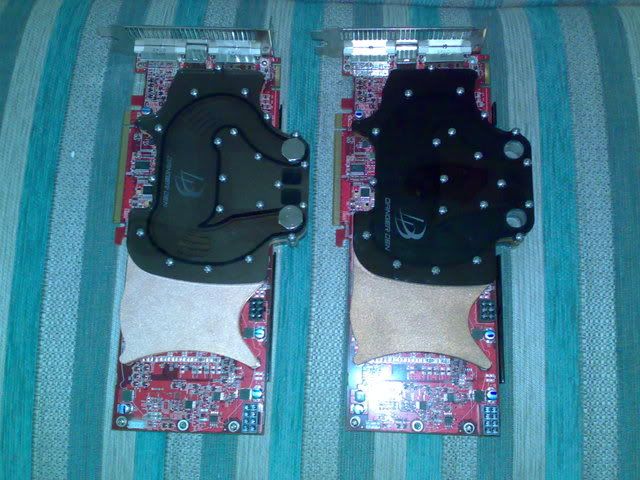

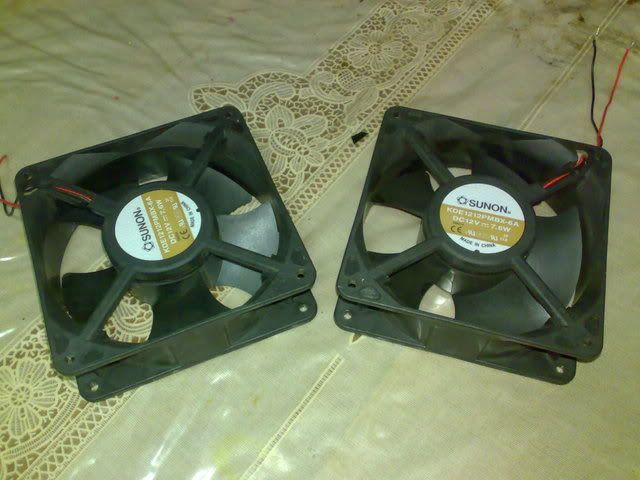

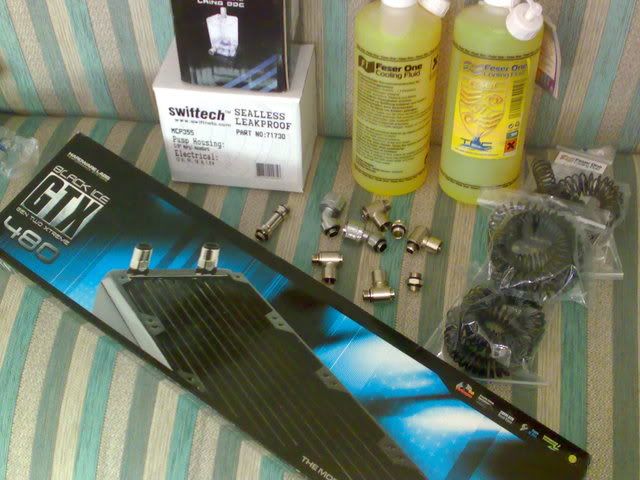

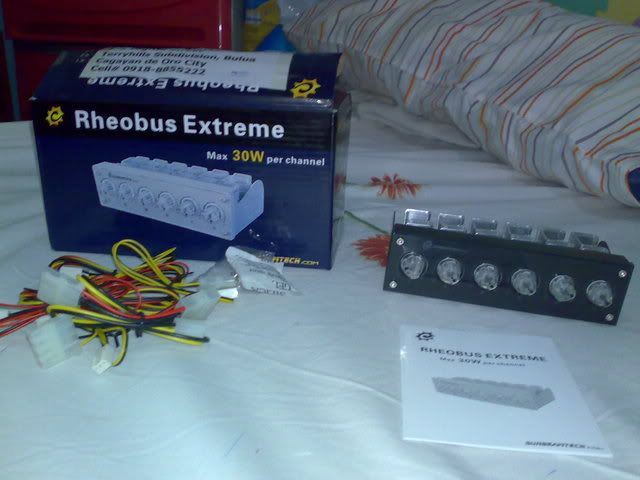

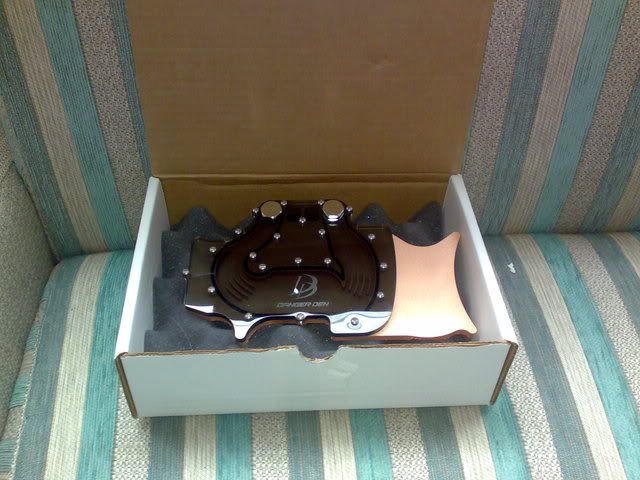

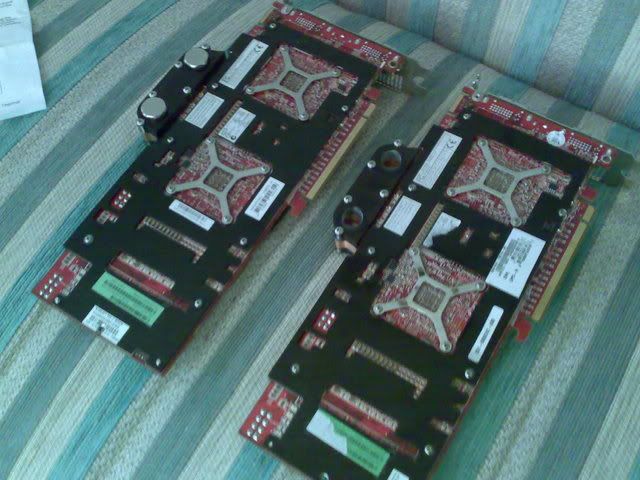

BUMBLEBEE ARMORY :shocked: :shoot:

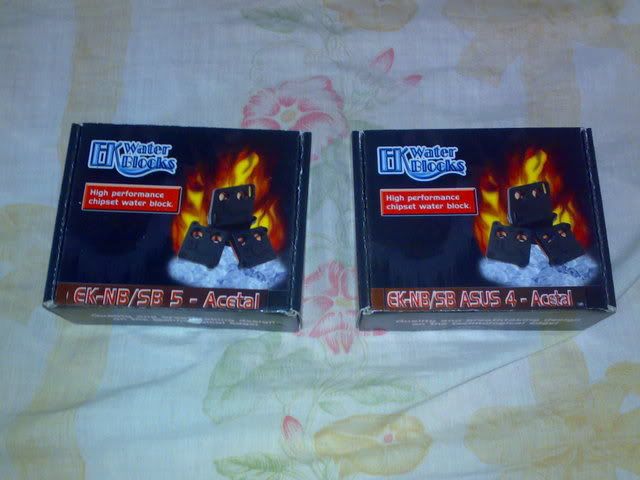

http://i96.photobucket.com/albums/l1...20081385-2.jpg
http://i96.photobucket.com/albums/l1...20081661-1.jpg
http://i96.photobucket.com/albums/l1...20081665-1.jpg
http://i96.photobucket.com/albums/l1...20081667-1.jpg
http://i96.photobucket.com/albums/l1...1020081851.jpg
http://i96.photobucket.com/albums/l1...1020081854.jpg
http://i96.photobucket.com/albums/l1...0820081629.jpg
http://i96.photobucket.com/albums/l1...0820081624.jpg
opppsss THE SECRET WEAPON of BUMBLEBEE :ROTF::bounces::frag:
http://i96.photobucket.com/albums/l1...20081750-1.jpg
:p:
^^^ Sweet Bro, Can't Wait To See This Thing Put Together :)
thanks chicken_patty
looking forward to finally complete this :)
no problem bro, I will be putting my components back into my case tomorrow. Right now they are out of a case. I did some minor modding and cutting/trimming. Now I have more space to mount my water cooling stuff and hopefully better airflow. Ill post up a pic or two so you can see it. I hope to have it done tomorrow.Quote:
Originally Posted by Cpt_Zero
looks like an interesting build!
sub'd
just wondering though, what's up with the mannequin?
spray paint to match, black and yellow too... hehehe
lol
ah the maniquin, thats my audience lol.
Its an old maniquin of my wife rtw boutique store before. :p
I real wanna see where you are really gonna fit those 2 rads
I wanna see more!

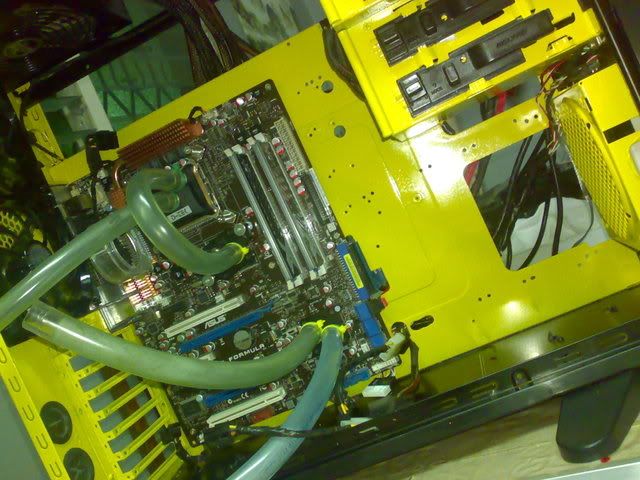

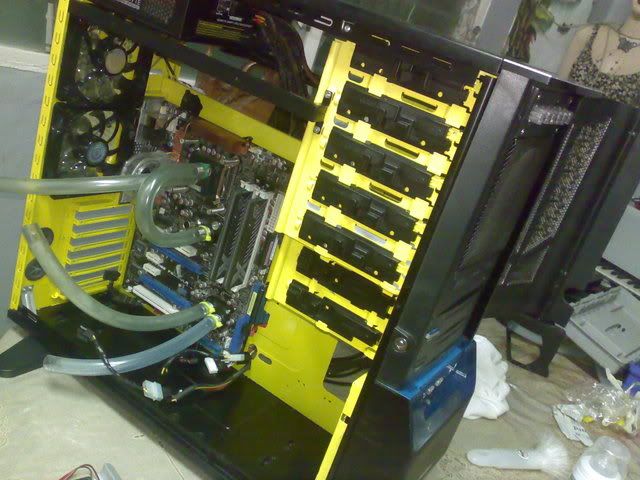

Re installing
and wire management :eek:
:)
http://i96.photobucket.com/albums/l1...20081848-1.jpg
http://i96.photobucket.com/albums/l1...1020081849.jpg
:shocked: :yepp:
where are you going to be mounting your rad?
here is the awnser ;)Quote:
Originally Posted by Chicken Patty
nice build btw Cpt_Zero and the painting done looks like you have painted before :p: :up:Quote:
Originally Posted by Cpt_Zero

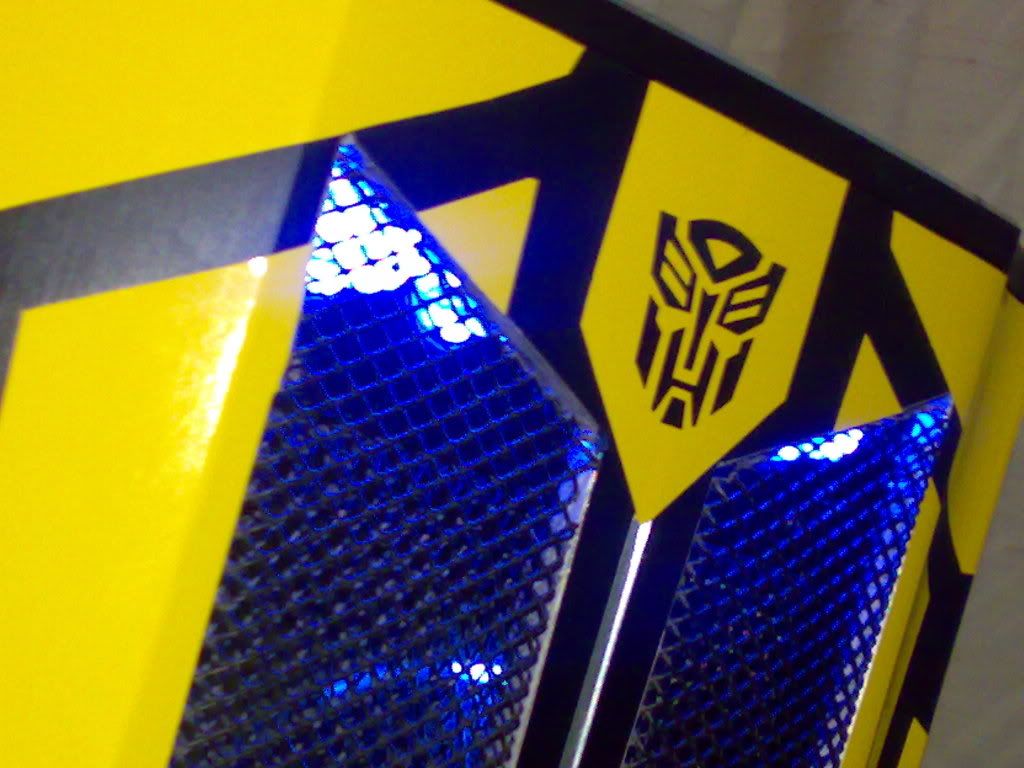

new frontal fascia
:shakes:

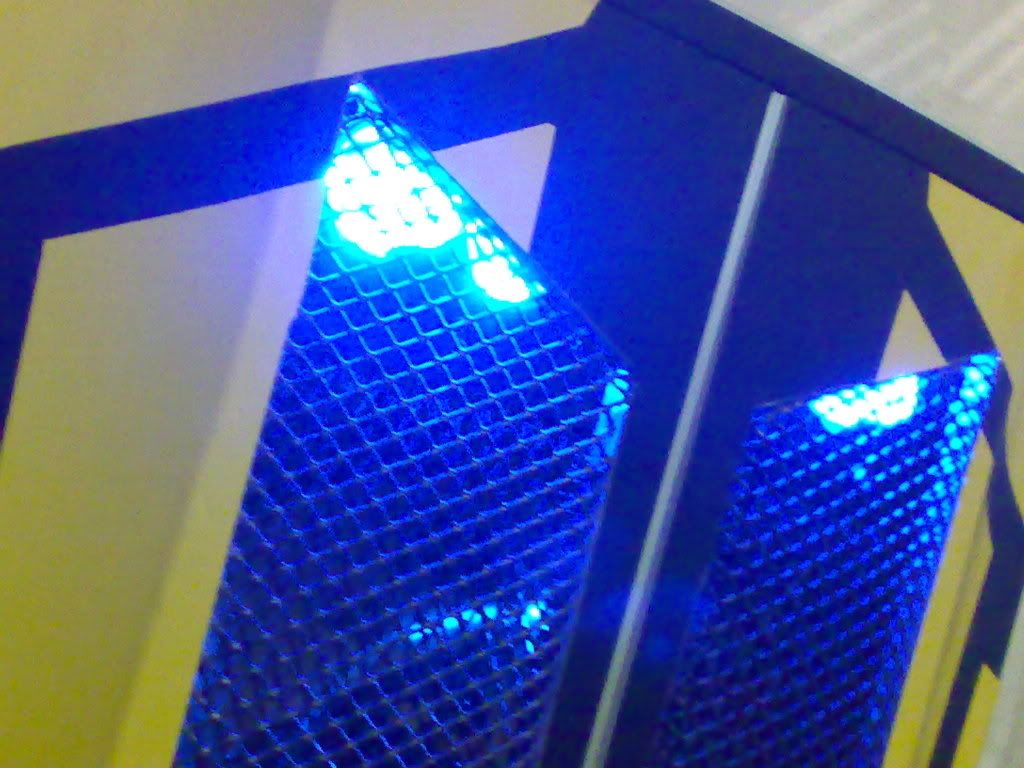

THE STAREEEEEEE!!!!!!! :shakes: :D
http://i96.photobucket.com/albums/l1...1020081949.jpg
:D
:cool:
:shocked:
omg if only i can have the link of where to buy these 1/2 ID 3/4 OD yellow tubes
:shrug:
and it could really help my rig to be completed hehehe

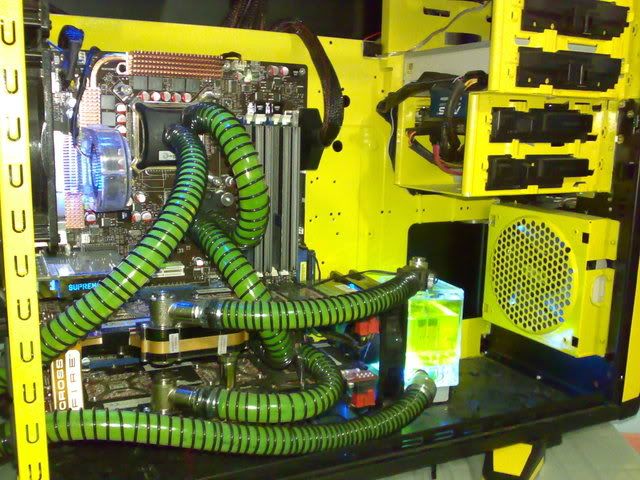

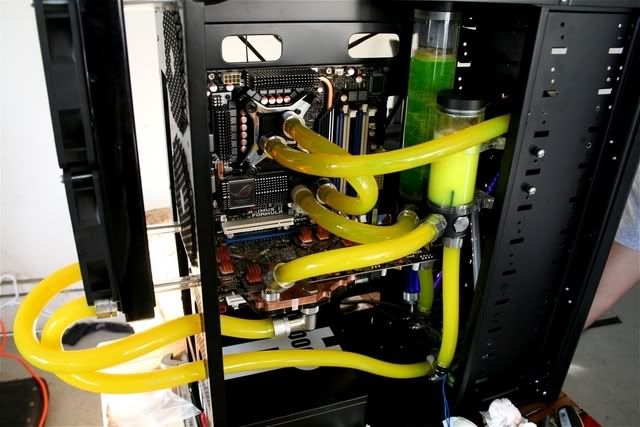

http://i96.photobucket.com/albums/l1...ellowtubes.jpg
if only these yellow tubes will be in my rig huhuhu
http://i96.photobucket.com/albums/l1...lon/yellow.jpg
I like the first picture with the Swiftech GTZ :) But did you already looked by the Feser Company for these tubes?
feser has these tubes but they only sell 3/8" ID version of this tube... there 1/2" ID colored tubing is not the best selection
cpt zero
you can get clear tubing and this coolant from Feser one :)
http://www.performance-pcs.com/catal...ducts_id=22682
Why don't you just go with 3/8"ID tubing then if you want that color? The performance difference is almost negligible.
u need black or yellow tubes, those green ones ruin your "bumblebee" look
chicken patty
i have to say that those who plan to make yellow themes in their watercooling tubing, i would really say that you have to dump the idea of using UV yellow Coolant from fesser one if you want your liquid to appear yellow.

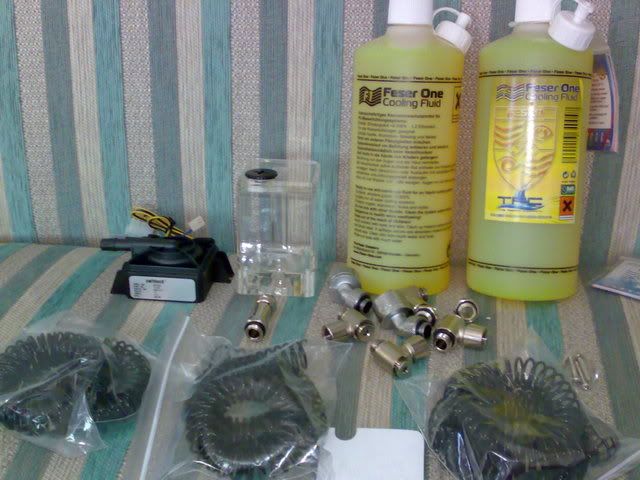

you will only be dissapointed. i have bought this yellow UV coolant and its appears to be green if you pour it in your system.
http://i96.photobucket.com/albums/l1...1020081854.jpg
that is one of my problem
i have a color scheme problem in my tubing

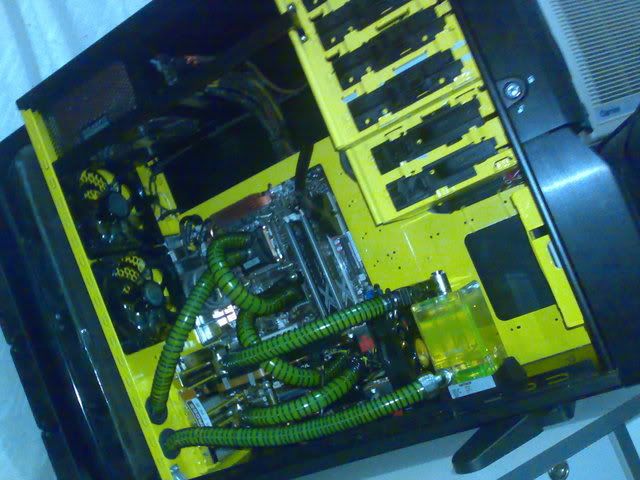

http://i96.photobucket.com/albums/l1...1020081858.jpg

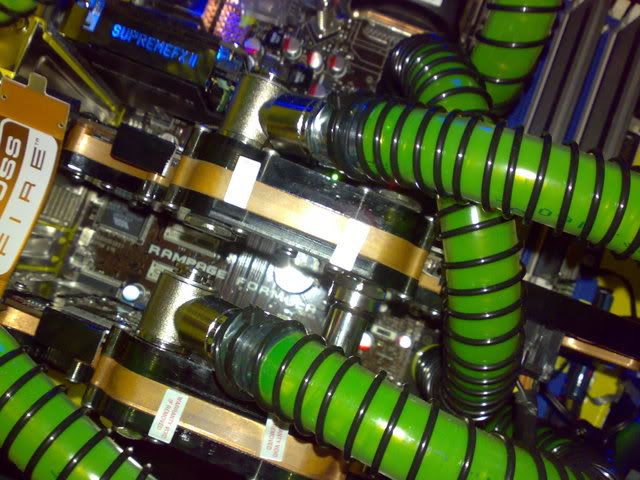

even in close up, it is green in color huhuhu.

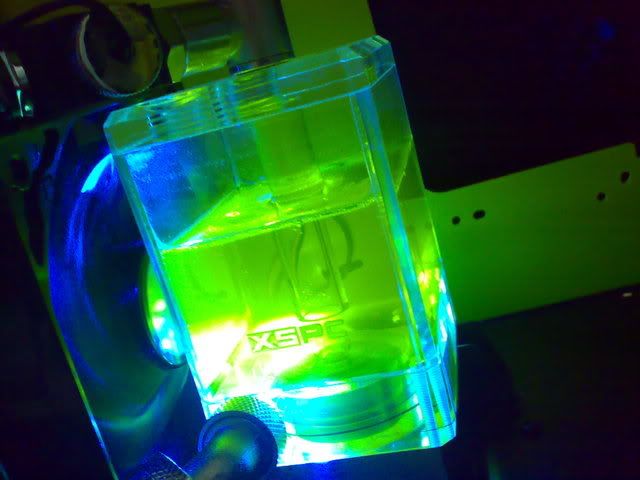

i tried to add distilled water as per advice of other LC'ers its not still yellow sheeettt

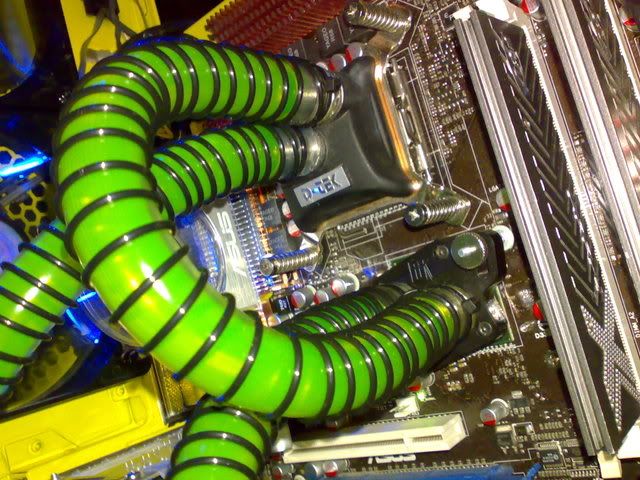

http://i96.photobucket.com/albums/l1...1020081897.jpg
http://i96.photobucket.com/albums/l1...1020081896.jpg
http://i96.photobucket.com/albums/l1...1020081894.jpg
damn dude, I had never seen it in person. It just said yellow so I figured. Maybe using their dye will get the color yellow?
yeap chicken_patty i dont know really why but i guess there is a thin line in being green and being yellow in coolant that is why i really wanted the yellow tubes :(
but i have already contacted the modder of the rig above and its tygon omfg
1/2 3/4 tygon yellow and damn its so expensive like 5USD per foot huhuhu
wow, is there a link, I have never seen colored Tygon.Quote:
Originally Posted by Cpt_Zero
what a long wait hehehe
but finally like all parts are coming in for me now :)

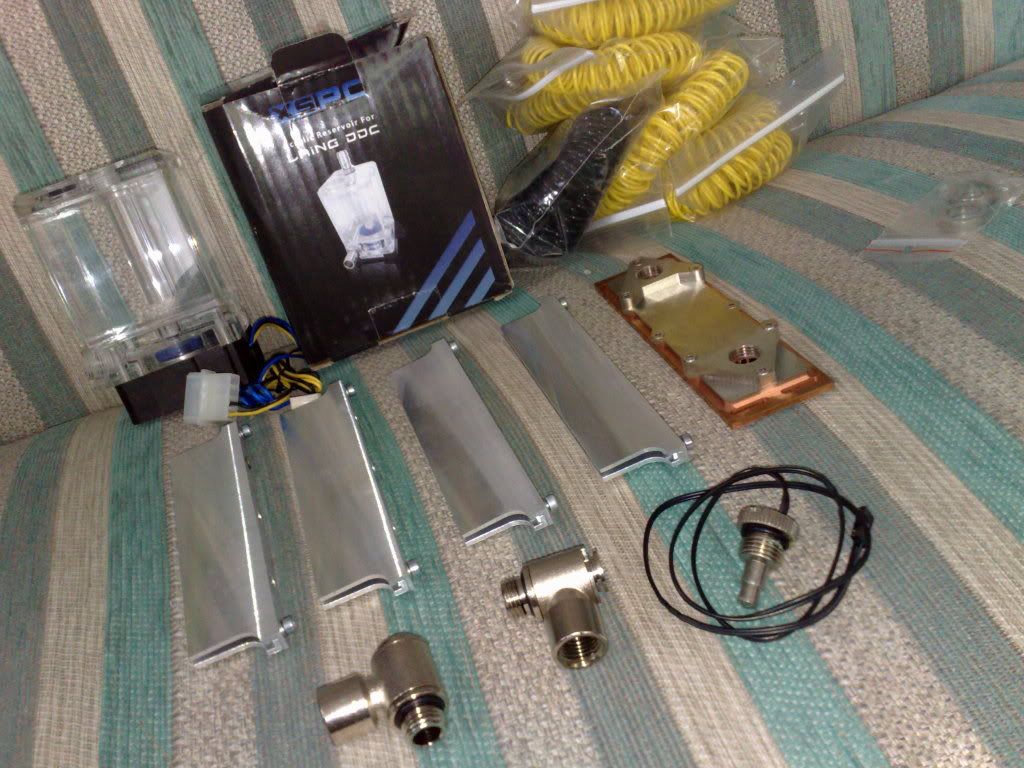

package coming in
http://i96.photobucket.com/albums/l1...4042009481.jpg
http://i96.photobucket.com/albums/l1...42009482-1.jpg
what a long wait hehehe
but finally like all parts are coming in for me now :)
package coming in
http://i96.photobucket.com/albums/l1...4042009481.jpg
http://i96.photobucket.com/albums/l1...42009482-1.jpg
more package
something came up at my doors :) hehehe

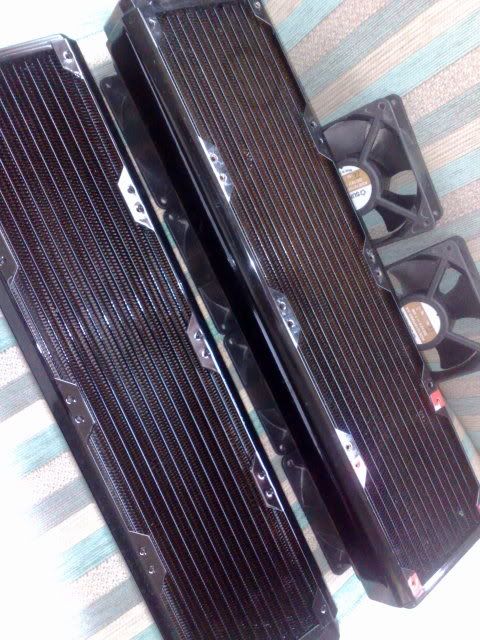

http://i96.photobucket.com/albums/l1...5042009525.jpg
very nice bro, those are GTX 480's?
Damn.....Twin GTX 480's! :shocked: Mucho cooling power!

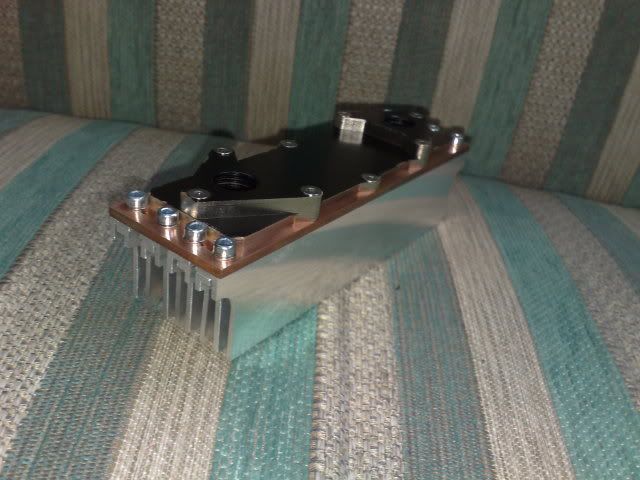

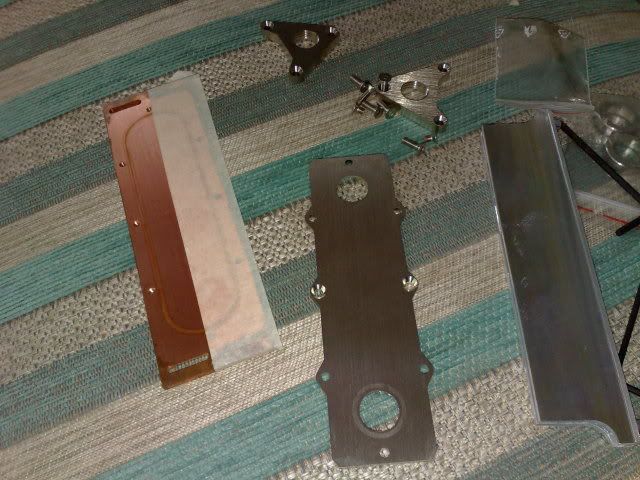

hmmm little customizing on my RAM Freezer
BLACK TOPS hehehe
http://i96.photobucket.com/albums/l1...42009484-1.jpg
http://i96.photobucket.com/albums/l1...42009485-1.jpg

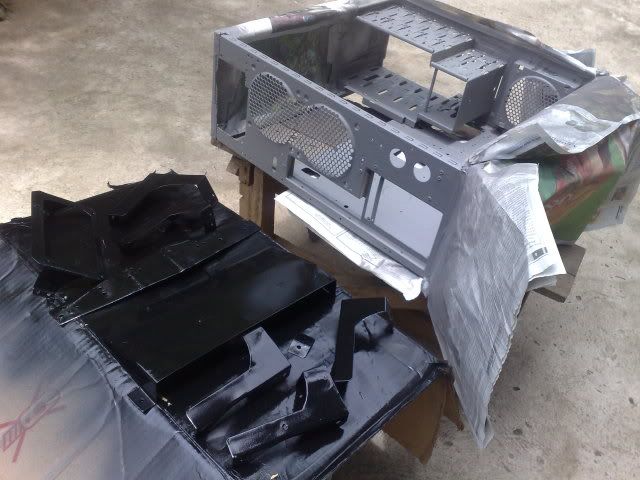

hmmm repaint again my casing
http://i96.photobucket.com/albums/l1...7042009544.jpg

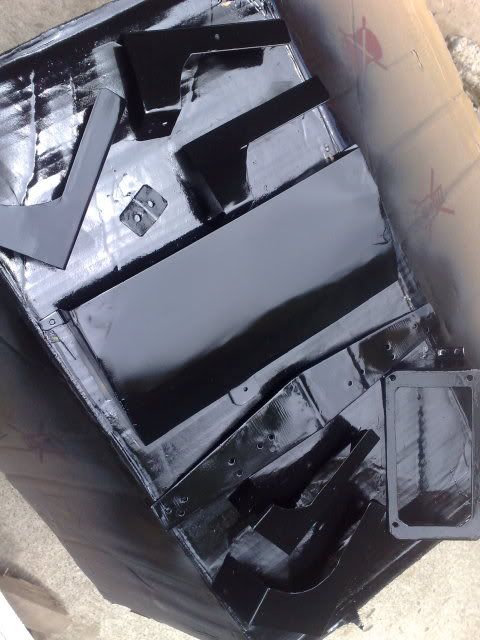

and painting the bracket for my 2 GTX480 hehehe
http://i96.photobucket.com/albums/l1...7042009545.jpg

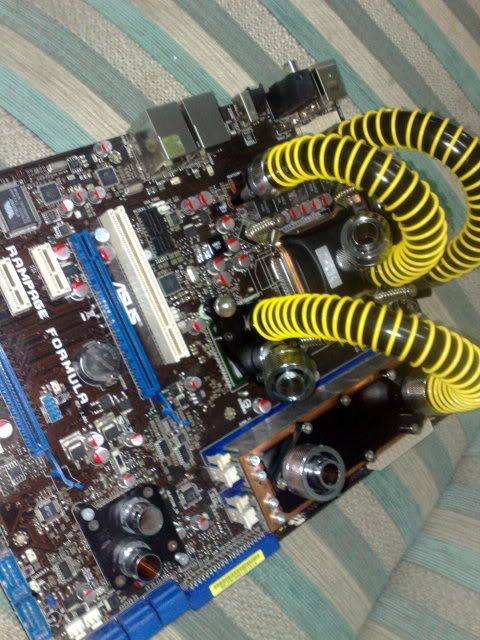

re configure my setup hehehe
http://i96.photobucket.com/albums/l1...5042009543.jpg

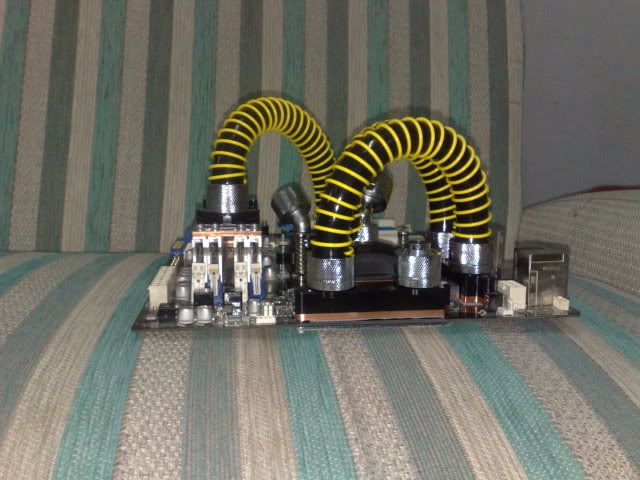

hmm familiar sight :)
http://i96.photobucket.com/albums/l1...5042009542.jpg
mcdonalds! :)

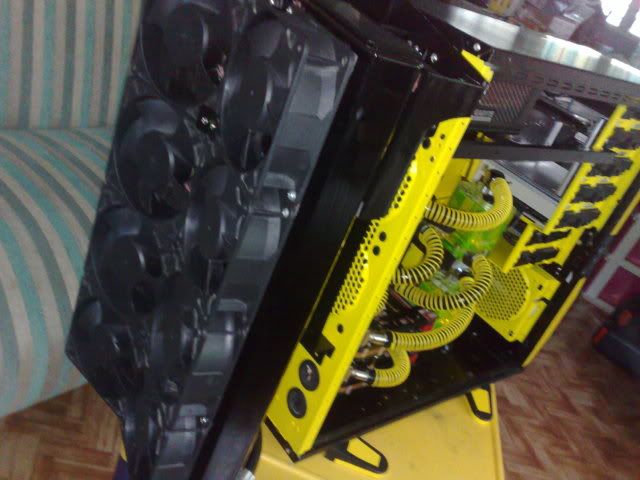

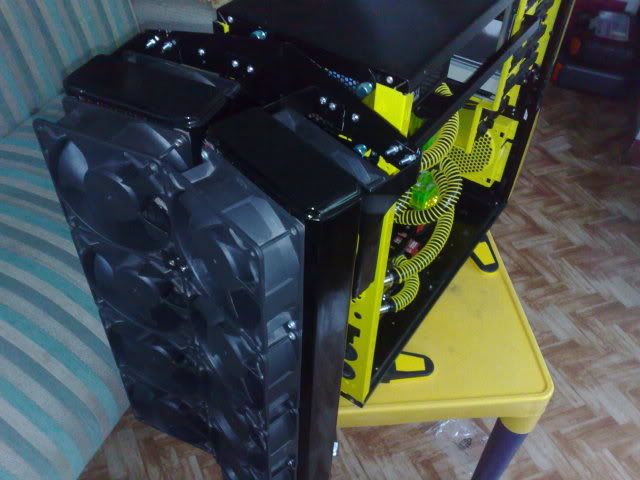

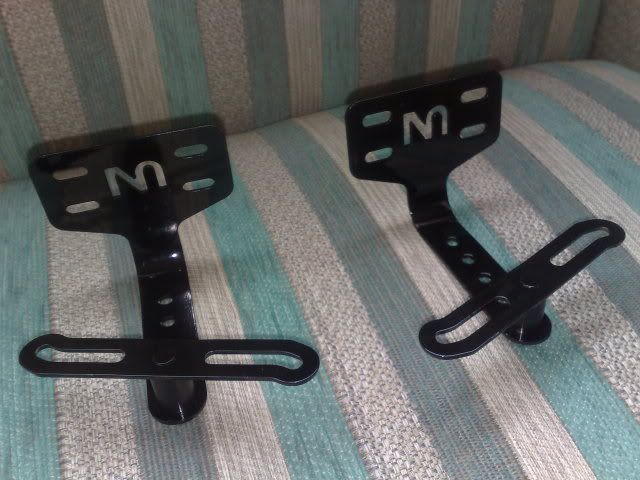

now the finish product of my bracket for my 2 GTX480 rads heheh
yummmmmyyyyyy :)
http://i96.photobucket.com/albums/l1...8042009558.jpg
http://i96.photobucket.com/albums/l1...8042009557.jpg
can you show us how it is mounted?
you have a evil plot :D

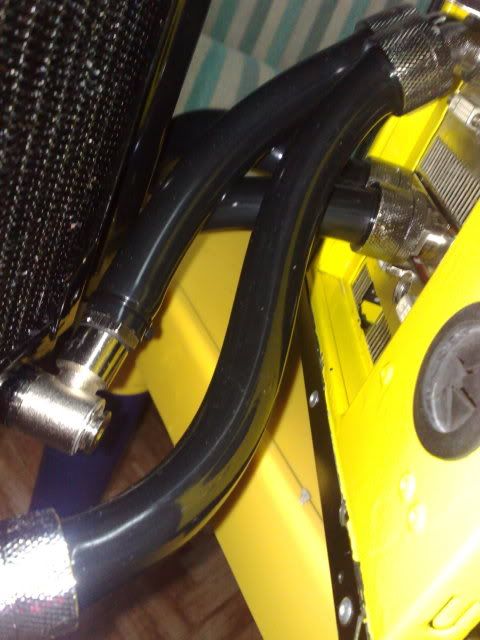

dont use those 90s they are restrictive
here ilikecosmos
http://i96.photobucket.com/albums/l1...8042009559.jpg

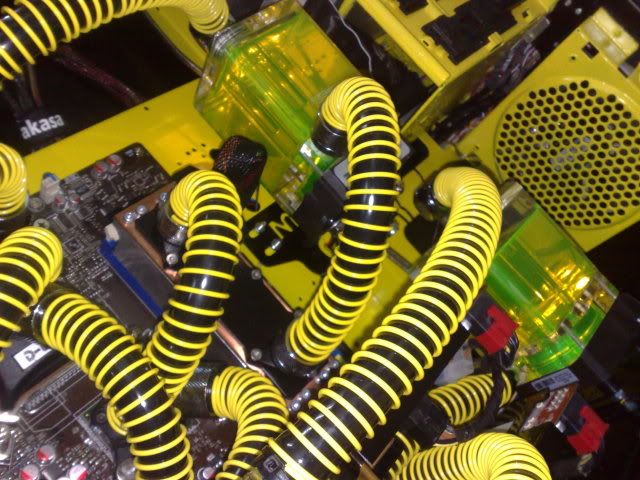

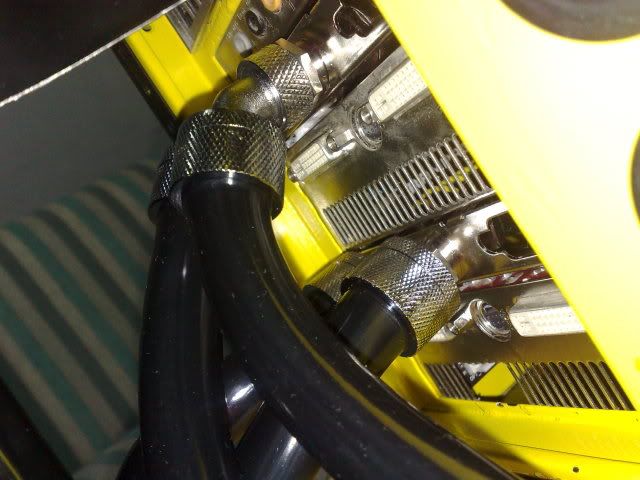

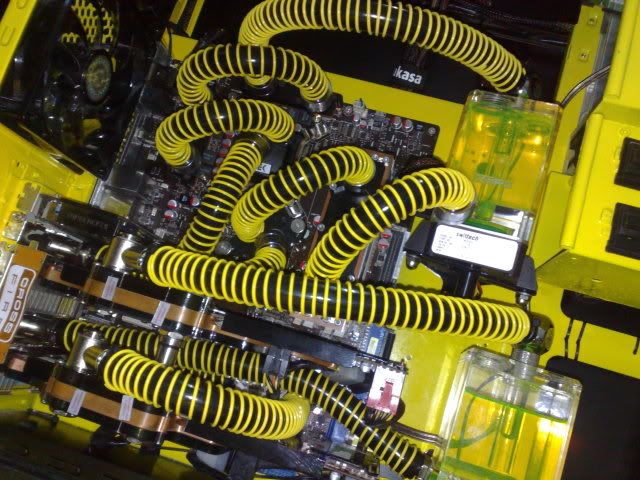

though the coolant was a little out of theme
:)
http://i96.photobucket.com/albums/l1...8042009569.jpg
http://i96.photobucket.com/albums/l1...8042009575.jpg

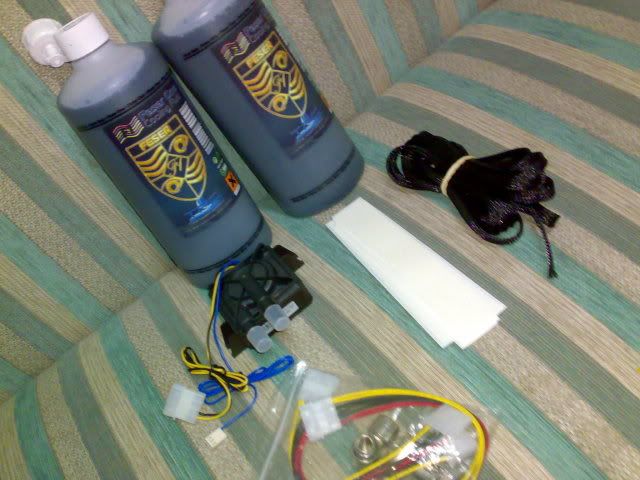

NO PROBLEM coz my other order ust arrived to save the day
I hope black fesser coolant will :)
http://i96.photobucket.com/albums/l1...9042009004.jpg
http://i96.photobucket.com/albums/l1...9042009006.jpg
holy crap dude, thats amazing!! can you take better pics of how you mounted the rads, I might be really interested in doing something like this :up:
awesome color scheme!
i really liked those yellow details on fans and rads.
congratulation for such a nice job!
cheers
thanks chickenpatty
hmmm i have taken pics for the mounting of the rads
its actually like a v type styled. i made a bracket with holes that are in line with the mount of the PSU.
it helps that the anodized thumbscrew that hold the PSU will be hold also the bracket.
anyway just watch the pic, i hope it helps :)
http://i96.photobucket.com/albums/l1...8042009559.jpg
thanks andrzr for the appreciation :)

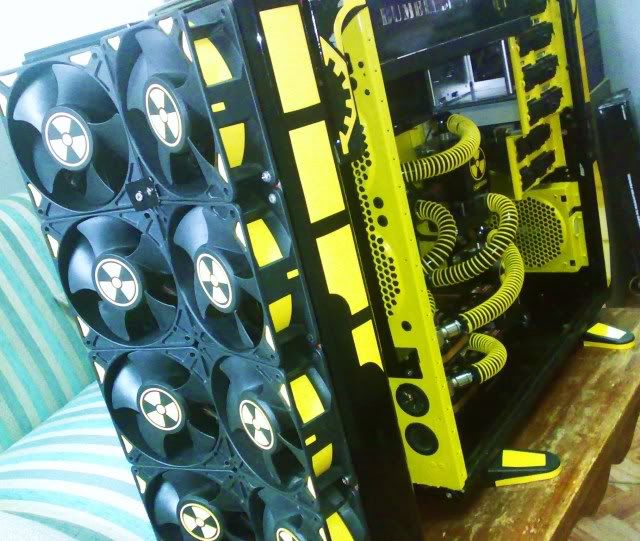

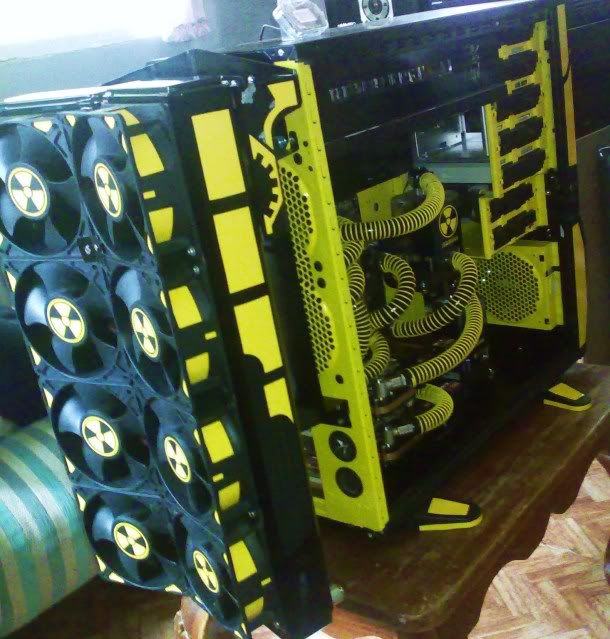

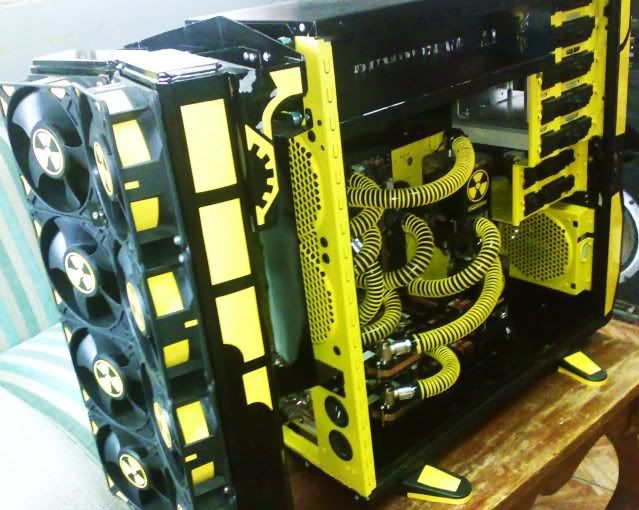

MORE PICS side part
http://i96.photobucket.com/albums/l1...lrollon/c7.jpg
http://i96.photobucket.com/albums/l1...lrollon/c6.jpg
http://i96.photobucket.com/albums/l1...lrollon/c4.jpg
http://i96.photobucket.com/albums/l1...lrollon/c3.jpg
thanks for the pic, im trying to figure it out but man regardless this build is insane, great job dude :up:
Looks pretty freakin sweet man. Awesome job. And I second Chicken Patty's request on more pics of the RAD bracket. If you could take a couple of more pics of it I would greatly appreciate it. I have the same case and I am trying to get ideas to mount my 2 rads. I am debating to either go external mounted in a similar way that you did or to take a spare case and turn it into a radbox.
Anyways, sweet build.
-yonton228/timmy
thanks guys
anyway i will wait for the dlsr of my friend,
il take more pics for the rad mounting. hope it helps. :)
for the meantime

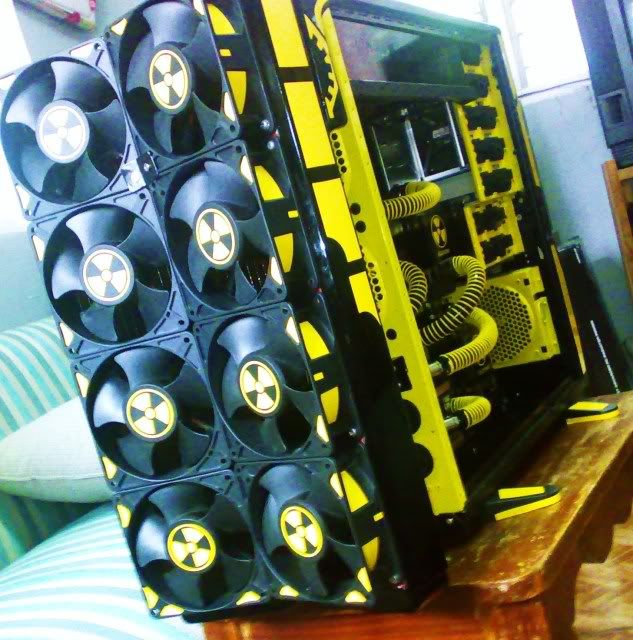

WITH LIGHTS
WITH LIGHTS :)
http://i96.photobucket.com/albums/l1...lrollon/a3.jpg
http://i96.photobucket.com/albums/l1...llon/aa8-1.jpg
http://i96.photobucket.com/albums/l1...rollon/aa8.jpg
http://i96.photobucket.com/albums/l1...lrollon/a1.jpg
http://i96.photobucket.com/albums/l1...rollon/aa6.jpg
this build just blew me away!!!! :up:
Beautiful build. Very good theme too! :up:
Dayam, that's a mean build :up:
It's great work ..!
OMG ! Not what I expected the end result to turn out like.
Amazing m8... not my particular taste but still love the work thats went into it and ofc the attention to detail
:up: :up: :up: :up: :up:
Wooow, that i an amazing looking bulid. Great bracket you made for the rad mouting on the back. You should make more and sell them! Very nice looking build, great job!
Looking good dude - liking your theme :cool:
great work :)
Holy cow man nice build! Does it pop wheelies? That's got to be some serious weight in the back there. :up:
hmmm i might be updating new upgrades soon :)
