Hi guys. I open this thread gor gathering some info about those new AxeRam from Transcend.
I tryed to find some thread about them, but no success. :shrug:
What're this baby's capable to do with some OC ?
Transcend 2GB aXeRam DDR2 1200+ (PC9200) CL5
Transcend 2GB aXeRam DDR2 1066+ (PC8500) CL5
the 1066+ can likely do 1200MHz for 24/7
Funny, Transcend a while ago gave me some 800mhz and 1066mhz axeram to test, and a couple days ago i got their new 1200mhz.
800mhz uses an unknown type of chip, transcend put their own name on the chips.
1066mhz uses D9GMH, as well as their 1200.
I'll soon be posting my fun with the 1200, they look beautiful!
Post a photo of them. I'll probably be able to tell you what they are.Quote:
Originally Posted by hixie
Looking forward. :)Quote:
I'll soon be posting my fun with the 1200, they look beautiful!
http://www.xtremesystems.org/forums/...21&postcount=7
+1
I have tested both 1200 kit and 800 with N next to the bar code and they gave me the same results...
however 2 kits of 1200 Axeram can not ran stably on abit-ip35 pro at 1200.Abit and transcend engirees are informed but no solution found..maybe in a later bios..
On maximus they rulez.. 1300+ with 2.26
Nice pic you got there.
Tuesday i will receive 2x kit 2gb PC1060+
One of them can do 600Mhz 5-5-5-15 620Mhz 2.21v on Maximus
http://i123.photobucket.com/albums/o...nes/620221.jpg
And this is with PC1200+ ( http://www.xt-pc.com/viewtopic.php?p...hlight=#185705 )
http://i123.photobucket.com/albums/o...nd600a216v.jpg
looks nice:up:
good ram
Transcend 1200+ 5-5-5-15 @663 2.40v
Asus maximus
its a good mems
http://i123.photobucket.com/albums/o...es/663a240.jpg
No point, it says Transcend and a bunch of random numbers that transcend put on the chips themselves.Quote:
Originally Posted by r00n
I know the engineers in the factory but they wouldn't tell me what they are.
Probably promos or hynix.
Yes, I know, but I will be looking at all the other key factors like dimension, size and location of the A1-dot, alphanumeric codes used, the font of these codes, etc. etc. etc.Quote:
Originally Posted by hixie
Just post a photo. ;)
Ok, i have a pic somewhere, i'll see if i can dig it up.Quote:
Originally Posted by r00n
These transcend aXeram 1066 Mhz and 1200 Mhz became available recently at Finnish shops. The web page for one of them states explicity that they are D9GMH and using brainpower PCB (listed as B62URCE). Prices are good, although I'm still leaning towards the Kingston 1150 MHz 5-5-5 for best value. It will be a while before (if) I set up a 3rd folding machine, but this or the kingston will replace the memory in my quad machine.
I heard/read somewhere that the DDR2-800 AxeRAM has some kind of newer Samsung chip...
I sure hope Samsung has some kind of new chip that clocks amazingly at low volts, kind of like d9 = bh5 (loves voltage), tight timings, amazing clocks sorta thing?, TCCD = low voltage, high clocks.
You all get the idea :\
Very ImpressiveQuote:
Originally Posted by Counter CS
Hi. I just received my 2 Kit PC8500 (1066+) :up:
http://img259.imageshack.us/img259/6...1746jn6.th.jpghttp://img145.imageshack.us/img145/8...1750sm8.th.jpg
Test later, i got to work :rolleyes:
I look forward to your test, i plan on purchasing that kit.:up:
Nice job linking to my thread :)Quote:
Originally Posted by BryaN.sG
I was specifically asking about the 6400, while this guy is asking about the higher end modules, which all seem to have D9.
Yes, Microns come on all 1066 & 1200 aXeRam modules.
Hi, i just finish to test 1 of the 4 sticks with 2.1v 5-5-5-5-15 .
Max FSB stable with Dual Pi 32M
I'm with multi 6x . More test tomorow, got to work :rolleyes:
http://img410.imageshack.us/img410/6...7mhz21vsw4.jpg
Nearly 600MHz @CL5 2.1V.
Nice.:up:
Hello Guys.
Those are some nice rams. Planning on purchase a PC2-9600 Kit.
Do they run CL4 on 1200MHz?
Hello all, i have very strange problem with 2 pairs of 2x1GB DDR 800, separately they can work at 1150mhz 15 5 5 5 2.2v.By separately i mean kit by kit.But when i use them all (4 pcs) i cannot achieve even 950 at 12 4 4 4.I had the same problem with my P5B Deluxe and it turned out that the chipset is not good enough to handle with them.But now i am using P5K-E with 4x1 TeamXtreem and they work without problems at 950 12 4 4 4.Where is the problem?!
Thank you in advance.
I have now 4x 1GB on my P5K Deluxe @ 532Mhz 5-5-5-5-15 2.1v no problem.
I havenīt mutch time to test those 4GB separetedly. Sorry.
I've heard that some of the DDR1200 kits can't even do 600MHz at the rated voltage (2.2v) on gigabyte X38. Incompatible? or just they are not binned very tight? Good D9 chips should do 600Mhz below 2.1v IMO.
:p: You're a funny guy :ROTF: :up:Quote:
Originally Posted by sonicsallen
+600Mhz 2.1v is possible :yepp: it all depend on what hardware you have, and some "Finger KIT" :D
I've just ordered 4 x 1 GB of this transcend aXeram, but the 800 MHz Cl4 version. Supposed to be D9GMH.
Well, it's lower binned (Transcend Axeram 800 MHz 4-4-4-12) but the RAM I got is D9GMH. Best I can get out of it is 976 MHz CL5 @ 2.1 v running 4 x 1 GB, which is good enough for me. It runs pretty hot, and it wouldn't post at 2.3 v, but a super pi 8 M of 3:27 with 3120 MHz C2Q and only 390 fsb is pretty good performance.
Please use memtest86+ 3.3 Boot test, and tell me what's max you can go with 2.1v 5-5-5-15 :up:Quote:
Originally Posted by JVguest
I bought the Axeram kit (2x1GB) 800 CL4 from newegg. I started to tweak it yesterday, it will run 1066MHz CL 5-5-5-23 at 2.00V, 2T command. At 800MHz it runs at 4-4-4-15 1T command.
I took the heatplate off and it uses micron chips, I'll post pictures later.
It runs hot but I noticed the heatplates were not making contact with all chips, I tried to fit them better but I need to check if it works.
What should I try? Rise voltage and try 5-5-5-15 or 1T command? Also I could not use the boost options on my P5K-E.
No can do. It's running f@h 24/7. The memory would run at 976 CL4 @ 2.2 v but wouldn't pass SP 16 M. Passed it once, but not the second time. I tried 2x1024 at 1170 CL5 & CL6, but it froze in the bios at 2.2 and 2.3 v, and wouldn't post at 2.1v. default TRFC is always 44 cycles, although I tried 52 as well. It's possible that this memory could run better on another board, I'm running it in Abit IP-35E.Quote:
Originally Posted by Counter CS
If they donīt past memtest86+ test-boot, you should fisrt try to find the best settings at 5-5-5-15 2.1v with that test, you will find stable OC with that. :up:Quote:
Originally Posted by JVguest
:welcome:
CPU @ 3500Mhz / 600Mhz 5-5-5-15-5-42-5-11-5 @ 2.1v set on BIOS :up:
Memtest86+ 3.3 stable no errors
http://img518.imageshack.us/img518/3...3500600wp6.jpg
CPU @ 3870Mhz / 600Mhz 5-5-5-15-3-30-3-3-3 @ 2.2v set on BIOS
Memtest86+ 3.3 stable no errors
http://img514.imageshack.us/img514/407/10qh5.jpg
Consolidated my dual opteron machine down to a cheap AM2 microatx setup. Decided to gamble with a set of these (Ballistix went out of stock as I was checking out lol) and here's what I got:
http://img.photobucket.com/albums/v4...rts/ram-01.jpg
http://img.photobucket.com/albums/v4...rts/ram-02.jpg
I'll have to play with them next weekend though as I'm going out of town for the weekend.
I bought a 2x1 GB kit of 800's for 73€ + delivery that were, according to the company that sold them, certainly D9GMH. And indeed they are usable, at least on lower latencies. With Asus P5K-E, E6750, 333 strap and 5:8 divider I ran Orthos Blend 5-5-4-12 2.2v with following results:
610: 4 minutes and error
600: 15 minutes and error
590: 13 hours and error
580: 25 hours w/o errors; I stopped
Not bad for configuration that's aimed for 24/7 SETI. I guess these will do with the upcoming Wolfdales. However, with 4-4-4-x settings these perform significantly worse. Two passes of Orthos (appx. 3 minutes) with same voltage and you are down to 490 MHz: that is around as stable as 5-5-4-12 at 610 MHz. Stable clocks with the settings and voltage are probably around 450-460 MHz.
With 5-4-4-x settings things get better: The RAM seemed to work fine at 530 MHz for around two days until shutten-down computer and mystically reseted BIOS which, however, could very well have something to do with a boozing party we had during that night! :D
You might want to consider these sticks for their price, at least if you can find 100% certain batch of D9 chips.
Mine is not doing so well at 1080 5-5-5-15-AUTO @2.1V. I'll try to fix it using specifica timings, I need the 1080 for my current setup (Q6600 3600(450*8) or I'll have to use 900 (not good).
Thought i'll add to the list.
660mhz 5-5-5-15 @ 2.50V
5-5-5-15 @ 2.4v
http://koti.mbnet.fi/paakkis/aXeRam-695MHz.gif
Wtf? That's crazy.
My 4x1Gt axeram 800+
http://mauri.1g.fi/kuvat/muuta/maximus086.jpg_full.jpg
can you give us more details please..Quote:
Originally Posted by paakkis
mine aXe ram 1200.... 5-4-3-3@1250 2.4v
Agreed, would like some more details please.Quote:
Originally Posted by r4zor
Does this model run D9GMH or D9GKX & has anyone tried this specific pair with the evga 680i boards?
According to the product Image I see the "N" which means D9 right?Quote:
Model
Brand Transcend
Series aXeRam
Model TX1200QLJ-2GK
Type 240-Pin DDR2 SDRAM
Tech Spec
Capacity 2GB (2 x 1GB)
Speed DDR2 1200 (PC2 9600)
Cas Latency 5
Timing 5-5-5-15
Voltage 2.2V
Heat Spreader Yes
Features EPP Ready
Recommend Use High Performance or Gaming Memory

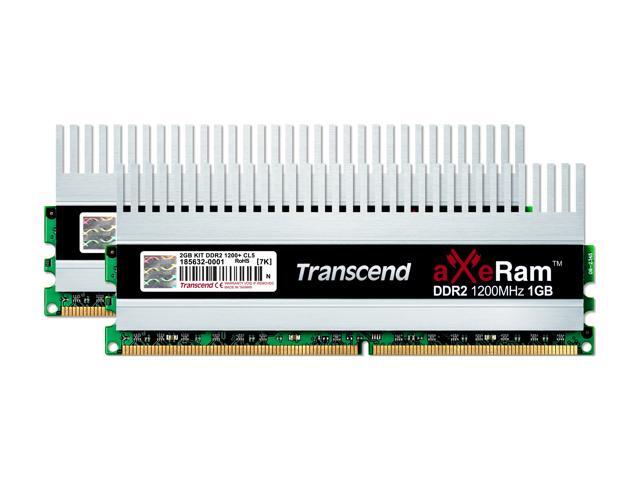

http://images10.newegg.com/NeweggIma...208-343-01.jpg

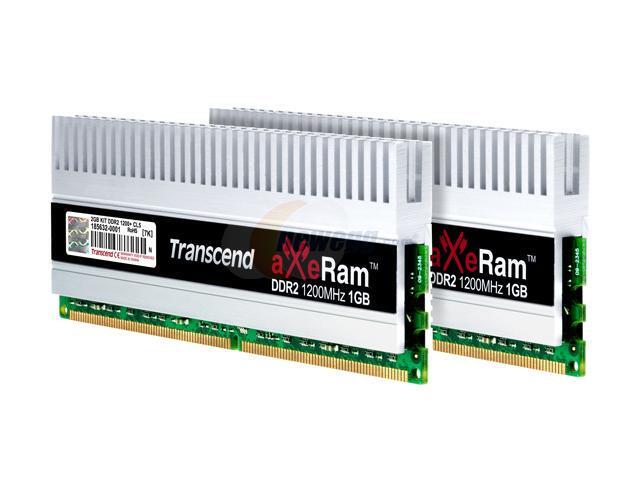

http://images10.newegg.com/NeweggIma...208-343-02.jpg

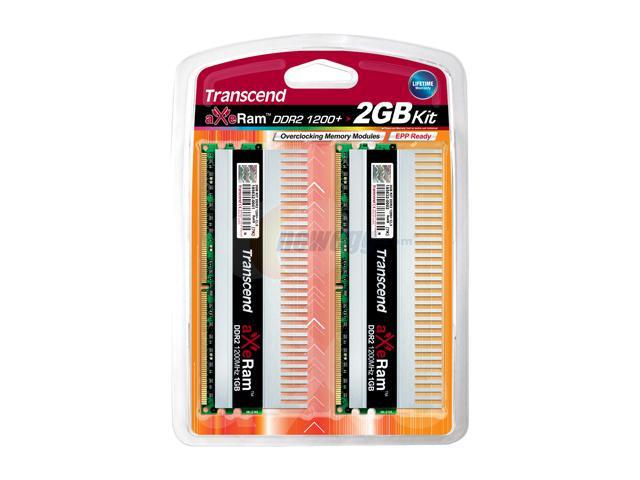

http://images10.newegg.com/NeweggIma...208-343-03.jpg
And lastly would replacing the heat spreaders with these pure-copper ones as seen here provide any advtange/gains?
http://www.xtremesystems.org/forums/...1&d=1190470828
http://www.xtremesystems.org/forums/...1&d=1190470828
http://www.xtremesystems.org/forums/...1&d=1190470828
http://www.peecee.dk/resize.php?id=78081
http://www.peecee.dk/resize.php?id=78082
http://www.peecee.dk/resize.php?id=78084
http://www.peecee.dk/resize.php?id=78085
Pictures are courtesy of Nanok
Asus Maximus Formula SE ,bios 0901, subtimings auto, 120mm fan cooling.
695MHz i can run 06 mark and superpi 1M-8M , havent try 32M yet or memtest.
I believe that i have to raise voltages a bit to run 32M. I waiting my second kit,
more fun to play with 4 sticks :)
and you are referring to the "Model TX1200QLJ-2GK"Quote:
Originally Posted by paakkis
Yep
Seems like the transcend 1200+ works very well with the maximus formula. Seen many very good results.
And to answer Hecktic's question, i don't think the copper heatspreaders would benefit too much, i have a 1100rpm fan blowing over the sticks and the RAM is still cool to touch running at 660mhz 5-5-5-15 @ 2.5V
thanks guys... so no one has tried this with evga 680i boards?
I just spoke with Transcend customer service over the phone and they said you are not guaranteed to receive Micron as we use a number of different chip makers like Samsung, Epilida, etc.
So that leads me to ask, has anyone got the "Model TX1200QLJ-2GK" which is the 1200mhz 2gb kit from newegg and got the micron D9s ?
Sigh... I just called evga tech support and they said the ram should work at 800mhz or 1066mhz with no problems compatibility wise... however they also said they cannot say for certain if the ram will run at 1200mhz :(
so has anyone tried this ram with evga 680i ?
I have a set of AxeRam 1200 (model TX1200QLJ-2GK) and they have D9GMH.
Haven't tested them... :p:
Did it buy them from newegg ?Quote:
Originally Posted by JoeBar
I was getting some random errors with prime and orthos, I thought it was my CPU overclock or FSB.
At the end I discover it was the RAM. My Axeram 800 doesn't like 1080 with 5-5-5-15.
I had to change my setup for 400*9 with RAM at 1000 to get it stable with 2.1V.
It is a great deal but I think I got a bad batch.
Did you guys notice that the heatspreaders are not well placed? They don't touch every chip, I had to take them off and put it again with pressure over specific points.
yah but you have the 800mhz model which I believe uses the same heatspreader as the 1066mhz model.Quote:
Originally Posted by leo_bsb
If you look on page 2 of this thread I posted what the 1200mhz model looks like and its a gigantic aluminum heatspreader, kinda like the corsair Dominator series.
But either way Im going to use my own heat spreader... no aluminum for me :D
No, i'm from Greece...Quote:
Originally Posted by hecktic
well newegg deactivated the item now for some reason... oh well... $144 was a good price and now if I want to buy this ram I have to get it from TRanscend Online store which has it for $177 :(Quote:
Originally Posted by JoeBar
http://ec.transcendusa.com/product/I...=TX1200QLJ-2GK
So for $7.99 more I can get this here
http://www.newegg.com/Product/Produc...82E16820313009
(ofcoruse I am referring to the After-Rebate price of $184.99 which isnt too bad since this is clocked at 100mhz more than the Transcend)
I just hope it works with the evga 680i board.... I should be getting it this week on Wed.
Yeah I am using them on a Evga 680i. They are fine at 1200mhz. 5-5-5-15 2T.
Hi people. Here in Portugal you can buy a KIT of Transcend 2GB DDR2 AXERAM PC2-9600 for only 119€ :up:
This is the Best Store here in Portugal ;) PCDIGA
hi everybody,i have bought this transcend 2gb pc9600 but i have a little problem to overclok them.
i can do 623 at 5-5-5-15 with 2.2v but no more high.i increase the voltage to 2.55v ant this is the same thing.spi 32mo desn't work at 624 but it works at 623....
I have done with my q6600 415*7 ans the ram on 2/3 for 623mhz.my q6600 is stable at 3.4ghz so it's not that.
do you know why?i have forgotten something in my bios?
i have a fan on them so i don't understand....
this is my timings
http://images3.hiboox.com/vignettes/0408/zu125c28.jpg
thank you
did you try it with increased memory controller voltage?
what is the name in the bios?i have a p5k e wifi....i have only increase the ddr voltage.
sorry.. dunno what exact option is called for it in asus boards, but its prolly something like mch or something close to that, if it doesnt exist, just try northbridge voltage since memory controller is in there.
ok thank you.i will try that ;)
I bought two 2x1GB Axe PC8500 kits. Did anyone try it on 790FX chipset yet?
I dont know if the mobo might be holding me back but I didnt manage to get 585Mhz out of it from 2.15 to 2.35V's. I did one stupid thing though, mix the sets but CPU-Z reports them from the same week (50/07) so I dont think it would matter a lot.
Also CPU-Z reports them as PC-6400 while the name is reported correctly: TX1066QLJ-2GK. What's with that?
Waiting for DFI 790FX-M2R mobo now so maybe it's just my board not liking high DDR speeds. Apart from the DFI 790FX-M2R I didnt see anyone using high DDR speeds at all on 790FX so who knows. But if that doesnt work I can always use 504Mhz 4-4-4-10, maybe better timings once I get the new mobo.
And if it matters, all 4 sticks have the 'N' on the sticker. Didnt take off heatspreaders though to check if they really are D9GMH, but I guess it should be.
Hi to all from Italy!
I'm waiting for tomorrow a 2x1gb axeram 9600 kit, hope will be lucky, couse i got a P5Bdeluxe, and someone told me that the ram will not run fine on this MB....
Someone have experience in that case?
So, see you for good screens next week (i hope:) )
a leetle more aXeRam testing: http://www.xtremesystems.org/forums/...d.php?t=175543
Great work:clap:
You think 2,3v 24/7 is too much for gmh (with a good air flow)?
You know something about compatibility with p5b?
there shouldn't really be a problem with p5b...many ppl clocked the crap outa that board and many will have been using d9gmh.
in my opinion d9gmh ic's are weak...yes they clock like mad and respond to voltage...but they also die way too easily...so for 24/7 i would run them as low as possible...and when benching if you push them hard don't be supprised if they fail.
this applies to all brands using d9gmh
Today i got free time.... I answered to transcend about the compatibility with p5b-deluxe, just arrived this reply:Quote:
Originally Posted by kaktus
Dear Kaktys,
The TX1200QLJ-2GK should work OK on the P5B-deluxe.
Best regards,
Transcend support
Crucial for Ballistix declared 2.2V, only one producer declares more than 2.2V and that is OCZ with Reaper series.
So, I think that it's risky to go above 2.1V w/o airflow and above 2.2V with airflow for everyday OC.
But mushkin and TEAM XTREEM declare 2,3 (also with gmh):confused:
In Greece 115€Quote:
Originally Posted by Counter CS
Bought :p:
I am having issues with this ram and would like to get some input. I currently have 4x1GB sticks of the 1200+ ram and I am trying to get it to work in a Gigabyte GA-EP35-DS3P. I can get either set to work independently using only 2 sticks at 1200 and pretty much everything else stock at 2.2v memory settings. I toss in the other 2 sticks and I can't get it to go above like 1066 for some reason. I have tried increasing voltages and so forth and can't find the sweet spot. Anyone else have 4 sticks working in one of Gigabytes p35 want to share their settings.
Thanks
-Mallow
Damn Abit........ :(
I have this same problem like Mallow but my mobo is evga 680i couple of axeram 1200+ work perfect on full speed and show sli-ready. But when i put second couple of douse ram they just work on 800mH on timing 5-5-5-15 2t. i try basic things like chance voltage but mothing seems work? any advise?
I have tried changing alot of timings, voltages and a bunch of other stuff but cant seem to get mine to boot either. Right now running with only 2 sticks.Quote:
Originally Posted by erouz
I wait for new evga780i maybe on that mobo gonna work good.
No, Team Xtreem declares 2.0V-2.2V for GMH microns.Quote:
Originally Posted by kaktus
I,ve managed to run my Axe RAM 4*1GB 1200+ on 1155MHz 4-4-4-12 with 2.4v but 3D Mark06 stable only. I haven't tested with Prime yet. But these timings give me +209 3D Marks:
http://img142.imageshack.us/img142/486/16901eu1.th.jpg
I think 2.4V is a bit high for 24/7 D9GMH usage.
I tooQuote:
Originally Posted by mad_skills
2.3 MAX
Sorry for my BAD english :(
got the 800 about a month ago, does 540 @ 2.2, and they run pretty hot, I would be careful.
...finally....
Arrived kit (2x1gb 1200mhz), one module didn't work, so I returned it to the shop for RMA. Trascend returned money, not a new kit, so now the shop will send a 2x1gb kit OCZ flex pc9600..... maybe this will better??
About this kit, I've seen in the ddr2 list chips "micron D9GMH(if produced before 2008)".... what about??
:shrug:
I try max clcok with 2.35V for 24/7, and this is may results ;)
http://www.sx-team.com/index.php?opt...5&limitstart=1
Do you know if the IC's in the PC2-9600 are still Micron D9 ?
Back in stock at The Egg for $109.99. Just picked up a kit.
As did I :up:Quote:
Originally Posted by WrigleyVillain
Looks like it was good that we ordered when we did WV, it's now a deactivated item!
