Got my Kentsfield QX6700 B3 ES! Time to Overclock!!

Printable View

10-25-2006, 05:41 PM
managerman

Got my Kentsfield QX6700 B3 ES! Time to Overclock!! UPDATED!!

Hello...

I received a Kentsfield QX6700 B3 ES today and threw it in for a few quick tests...

I set the Vcore to 1.55v and ran four instances of Prime 95

I was able to boot into windows at 3.75Ghz but is was not stable enough to run any CPU intensive tests....

I ended up at 3.51 Ghz and it continues to run now...:banana:

Idle temps between 48-55C depending on core...100% load on all cores temps between 77-84C

I have attached a screen shot....I am going to try some more benches later tonight and tomorrow...

UPDATE: Quad Prime still going after 2 hours!

-M

http://www.hermancircus.com/core2Quad1.jpg
10-25-2006, 05:46 PM
raccoonone

nice, lets see how far it can go:)
10-25-2006, 06:21 PM
slykid

Quote:

Originally Posted by managerman

Hello...

I received a Kentsfield QX6700 B3 ES today and threw it in for a few quick tests...

I set the Vcore to 1.55v and ran four instances of Prime 95

I was able to boot into windows at 3.75Ghz but is was not stable enough to run any CPU intensive tests....

I ended up at 3.51 Ghz and it continues to run now...:banana:

Idle temps between 48-55C depending on core...100% load on all cores temps between 77-84C

I have attached a screen shot....I am going to try some more benches later tonight and tomorrow...

-M

http://www.hermancircus.com/core2Quad1.jpg

where did you buy the chip though?i thought it was suppose to be out next month
10-25-2006, 06:38 PM
markopoleo

That seems crazy hot to me 70c under load? Thats like worst then old P4s did.
10-25-2006, 06:39 PM
Noob-ftw

0_o

Nice!
10-25-2006, 07:16 PM
managerman

Quote:

Originally Posted by slykid

where did you buy the chip though?i thought it was suppose to be out next month

I did not buy it....:)

-M
10-25-2006, 07:25 PM
ShiningArcanine

Quote:

Originally Posted by markopoleo

That seems crazy hot to me 70c under load? Thats like worst then old P4s did.

The vcore being set to a 1.55 voltage would probably explain the temperature under load.
10-25-2006, 07:36 PM
menlatin

Remember, there are FOUR heat sources under that IHS. Each of them producing about 65 watts of heat. Thats esencially the same amount of heat that FOUR stock e6600's produce. Thats alot of heat. They're going to be hot.
10-25-2006, 07:39 PM
Fuji

Quote:

Originally Posted by menlatin

Remeber, there are FOUR heat sources under that IHS. Each of them producing about 65 watts of heat. Thats esencially the same amount of heat that FOUR stock e6600's produce. Thats alot of heat. They're going to be hot.

It's actually 130 watts not 260. It's two conroe's glued together so it's 65*2 = 130 watt. And your temps are high!
10-25-2006, 07:46 PM
managerman

I agree temps are high...going to try to back down the voltage and see if I can mainatin the current overclock stability...

-M
10-25-2006, 08:04 PM
Brahmzy

I wanna see some 1M Pi action.
10-25-2006, 08:17 PM
Hassan

heat is not too far out of line... I pull ~66-70 with each of my cores under 4 x sp2004 with water... if they are stable then let them fly
10-25-2006, 08:39 PM
buckshot

WoW :slobber:
10-25-2006, 08:50 PM
Supertim0r

1.35-1.4v should be enough for 3.5ghz

nice chip :)
10-25-2006, 10:59 PM
[XC] mysticmerlin

Bring that rig over to XS WCG and put it in 100% use and then you will know if it is stable. Pi$$ on prime95 and all that other crap. Real world is what you will use every day and WCG will push it to the max.
10-26-2006, 03:43 AM
managerman

Quote:

Originally Posted by Brahmzy

I wanna see some 1M Pi action.

Update: I stopped the prime 95 after 8 hours.....and ran a 1M Super Pi......and it would not run it....made it about half way through then gave me an error..Ran multiple instances of 3dmark05 and 06 with no problem...hmmm....will play with it some more after work..

-M
10-26-2006, 04:38 AM
cupra

yep all the B3 are great overclockers, i try with my b3 and 3.6g is possible with a "normal" vcore.
its can run 1 super pi at almost 3.8gb on air, the B3 are amazing.

http://img155.imageshack.us/img155/2...0pi4ao6.th.jpg
10-26-2006, 04:44 AM
XS Janus

Crazy temps!!
________
Herbalaire
10-26-2006, 06:09 AM
managerman

Quote:

Originally Posted by cupra

yep all the B3 are great overclockers, i try with my b3 and 3.6g is possible with a "normal" vcore.
its can run 1 super pi at almost 3.8gb on air, the B3 are amazing.

http://img155.imageshack.us/img155/2...0pi4ao6.th.jpg

Cupra....

Quick question?? Does your B3 have a large span in temperatures between cores 1 and 2 and 3 and 4??? For example...My cores 1 and 2 are about 6-7C higher in temps than cores 3 and 4..

-M
10-26-2006, 08:38 AM
cupra

Quote:

Originally Posted by managerman

Cupra....

Quick question?? Does your B3 have a large span in temperatures between cores 1 and 2 and 3 and 4??? For example...My cores 1 and 2 are about 6-7C higher in temps than cores 3 and 4..

-M

yep i think that is ok.

core 1 - 78
core 2 - 77
core 3 - 75
core 4 - 73

http://img111.imageshack.us/img111/1931/coreos3.th.jpg
10-26-2006, 08:42 AM
Richard Dower

I'd have to have each core at 64C and no higher to feel safe.
10-26-2006, 08:48 AM
cupra

Quote:

Originally Posted by Richard Dower

I'd have to have each core at 64C and no higher to feel safe.

with a quad cores at full load and air cooling - its not be easy thing :cool:
10-26-2006, 09:07 AM
markopoleo

Now that i think about it, guess thats not "to bad" considering its 4 cores next to each other and the size they are. I wonder what happens if one core fails do the rest fail? :D
10-26-2006, 09:25 AM
managerman

Quote:

Originally Posted by cupra

yep i think that is ok.

core 1 - 78
core 2 - 77
core 3 - 75
core 4 - 73

http://img111.imageshack.us/img111/1931/coreos3.th.jpg

Thanks for the confirmation......More testing will take place tonight!!:)

Matt
10-26-2006, 09:40 AM
gillll

just out of curiosity the cores have the metal above them (forgot the exact word) if u take it out u reveal the cores themselves for extreme ocing it should be better with straight cooling over the cores.

no metal cover. or that CPU companies should start developing better solutions like single metal cover per core ?

the one metal cover over a lot of cores ain't exactly optimal.
10-26-2006, 09:41 AM
EVILCOSMOS

Good to see XS has Kentsfield first and people ready to overclock them for our benefit.

Good work and keep us all posted on just how amazing these chips are:clap:
10-26-2006, 10:08 AM
CaNNibaL

Aren't those temps a little bit high ?! ^^ > 75 ºC
10-26-2006, 10:16 AM
sierra_bound

The temp is actually good, considering VCore was at 1.55v. Kentsfield runs hotter than Conroe, which is to be expected given the number of cores.
10-27-2006, 07:01 PM
managerman

Update

Here is an update with a few more benchmarks!...

Enjoy...

-Mhttp://www.hermancircus.com/qx6700_2.jpg
10-27-2006, 07:09 PM
gearhead364

That is a nice chip you have there, however temps seem a little high on water cooling. Any idea when they will be available to the rest of us and at what cost?
10-27-2006, 07:13 PM
sierra_bound

Retail Kentsfield will be available the middle of November.
10-27-2006, 07:25 PM
gearhead364

That soon, I was expecting like January; I would like to trust your word, but do you have a source that can rid me of my doubt?
10-27-2006, 07:51 PM
sierra_bound

Not the most reliable source. But the dates mentioned seem logical. Kentsfield ES chips have been around for several months now.

http://www.theinq.com/default.aspx?article=35346
10-27-2006, 07:58 PM
gearhead364

You are right, not the most reliable; but this means I might be able to afford one of these suckers after x-mas. Thanks for the info !
10-27-2006, 09:31 PM
terrace215

Quote:

Originally Posted by gearhead364

That soon, I was expecting like January; I would like to trust your word, but do you have a source that can rid me of my doubt?

http://www.intel.com/intel/finance/e...ngsRelease.pdf

Intel has already begun revenue shipments of Kentsfield and Clovertown processors. That's a good indication it won't be much longer. They are also on record as saying they will launch this quarter. January would be next quarter.

It's basically an open secret that the launch is mid-Nov.
10-27-2006, 10:04 PM
gearhead364

Any prices posted, I have seen the supposed 999 and 851 prices, but I am assuming that those are for the higher end models.
10-27-2006, 10:10 PM
sierra_bound

Quote:

Originally Posted by gearhead364

Any prices posted, I have seen the supposed 999 and 851 prices, but I am assuming that those are for the higher end models.

This might answer some of your questions.

http://www.dailytech.com/article.aspx?newsid=4217

There will also be Xeon processors that are nearly identical to Kentsfield.

http://www.dailytech.com/article.aspx?newsid=4253
10-27-2006, 10:11 PM
HKPolice

84C on watercooling?!!? :(
10-28-2006, 08:34 AM

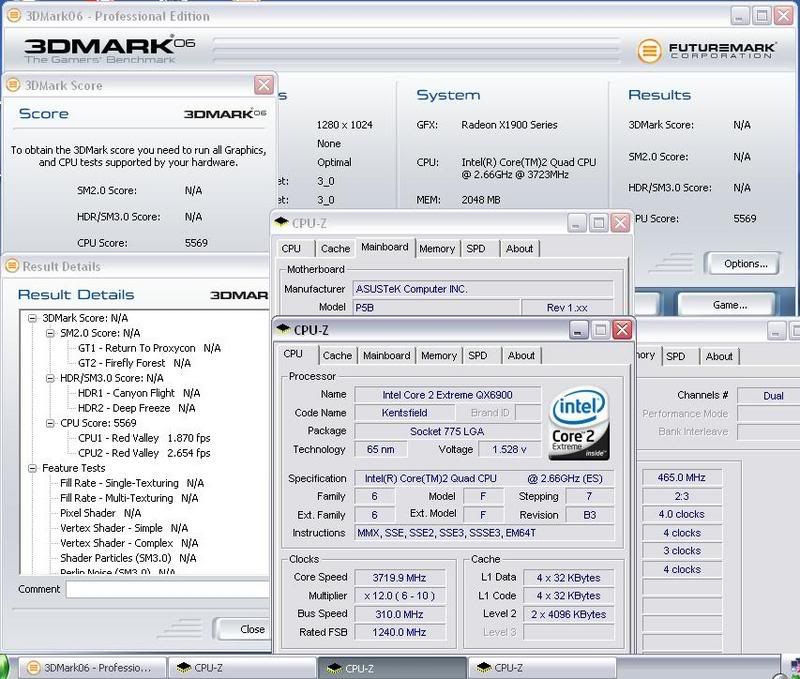

clon22

Try @ 3.7ghz...
Hmm... quad really such a big difference on cpu score??.
Mine @ 3.7ghz 3d06...
Or is mine a bug??
But i tried a few times... results abt the same...

http://i76.photobucket.com/albums/j3...12_3720mhz.jpg
10-28-2006, 09:30 AM
cupra

Quote:

Originally Posted by clon22

Try @ 3.7ghz...
Hmm... quad really such a big difference on cpu score??.
Mine @ 3.7ghz 3d06...
Or is mine a bug??
But i tried a few times... results abt the same...

http://i76.photobucket.com/albums/j3...12_3720mhz.jpg

yep same hare, huge difference on 3dmark06 :)
10-28-2006, 09:36 AM
blossa

Hrm... This is what I got a month or two ago with my B0 and P5WDG2 WS Pro. I am not sure of what speed my RAMs ran though.
http://www.loppmarknader.nu/benchmar...rk06_11190.png
Your cpu-score is damn good.
10-28-2006, 09:45 AM
managerman

Quote:

Originally Posted by clon22

Try @ 3.7ghz...
Hmm... quad really such a big difference on cpu score??.
Mine @ 3.7ghz 3d06...
Or is mine a bug??
But i tried a few times... results abt the same...

Hmmm...I agree My CPU score is pretty low...I wonder if I am getting any thermal throttling?? I will try the 3DMark06 CPU test by itself when I get home this PM..I do not think 200 mhz would cause that large of a discrepancy?

-M
10-28-2006, 02:00 PM
Eagle26

why did I buy my core 2 duo!!!!!!!! :banana::banana::banana::banana:
10-28-2006, 11:03 PM
clon22

Quote:

Originally Posted by managerman

Hmmm...I agree My CPU score is pretty low...I wonder if I am getting any thermal throttling?? I will try the 3DMark06 CPU test by itself when I get home this PM..I do not think 200 mhz would cause that large of a discrepancy?

-M

Yup...
thought so too... :)
Coz i remembered Victor's quad core thread...
His @ 3.6ghz was already 5.4k for cpu score.. :)
Amazingly these B3's bench very well..
10-28-2006, 11:06 PM
clon22

Quote:

Originally Posted by Eagle26

why did I buy my core 2 duo!!!!!!!! :banana::banana::banana::banana:

Quad runs high on benches only...
But for our normal daily game/usage...
they dun seem to run any faster(for me at least)...
Maybe its applications that r not optimised to run on quad... :)
10-29-2006, 06:47 AM
Rmrdr13

Quote:

Originally Posted by clon22

Quad runs high on benches only...
But for our normal daily game/usage...
they dun seem to run any faster(for me at least)...
Maybe its applications that r not optimised to run on quad... :)

Not yet alteast, but give it time:banana:
10-29-2006, 07:40 AM
Dutch Schultz

Quote:

Originally Posted by sierra_bound

Retail Kentsfield will be available the middle of November.

I Can't wait that long!:brick:
10-29-2006, 10:22 AM
Rmrdr13

Quote:

Originally Posted by Dutch Schultz

I Can't wait that long!:brick:

I know exactly how you feel. Only 2 more weeks atleast!
10-29-2006, 05:25 PM
managerman

Quote:

Originally Posted by clon22

Yup...
thought so too... :)
Coz i remembered Victor's quad core thread...
His @ 3.6ghz was already 5.4k for cpu score.. :)
Amazingly these B3's bench very well..

I have tried everything to get the CPU scores up...can you do a run of 3dmark06 CPU tests at 3.5Ghz and see what you get...I get around 4500-4700...when I see you and others way over 5000...I wonder what is wrong with my setup...Maybe I need to do a fresh OS install..?

Also...what is your Cinebench 9.5 time for the multi-thread test? I get 12 seconds...

-M
10-31-2006, 05:30 PM
managerman

3DMark06 CPU score fixed!!

Ok...My scores for the 3DMark06 CPU test now seem much more in line with what everybody else is getting....All that changes was I loaded the new Catalyst 6.10 drivers....I even lowered my clock speed to 3.46Ghz

Hmmm...not sure why that worked but it seems like it did....See picture....

Actually I cannot wait to sell off these x1900xtx's in crossfire...I have two new 8800GTX's coming next week!!! That should be fun!!:banana:

-M

http://www.hermancircus.com/qx6700_3.jpg
10-31-2006, 05:56 PM
Pjoeloe

Nice setup you`ve got there. What are you, pimp, oil seller, dvd copy dude ? :p: :slobber:
10-31-2006, 06:00 PM
managerman

Here we go at 3.56Ghz! 900Mhz overclock....

-M

http://www.hermancircus.com/qx6700_4.jpg
10-31-2006, 06:02 PM
managerman

Quote:

Originally Posted by Pjoeloe

Nice setup you`ve got there. What are you, pimp, oil seller, dvd copy dude ? :p: :slobber:

No just your average computer geek who works for a computer company and has a serious addiction to overclocking!!! :toast:

-M
10-31-2006, 06:46 PM
Supertim0r

have you tried lowering the vcore ?
10-31-2006, 06:54 PM
osiris999

good job
10-31-2006, 07:10 PM
G H Z

Quote:

Originally Posted by managerman

Here we go at 3.56Ghz!

Feel free to overclock the cards ;)
10-31-2006, 07:16 PM
managerman

Quote:

Originally Posted by Supertim0r

have you tried lowering the vcore ?

Yes...VCORE is down to 1.50v from 1.55v

-M
10-31-2006, 07:16 PM
managerman

Quote:

Originally Posted by G H Z

Feel free to overclock the cards ;)

ATI X1900XTX Crossfire setup is overclocked to 690 core 800 mem

-M
10-31-2006, 07:19 PM
G H Z

Then feel free to overclock them more :) :toast:

All times are GMT -8. The time now is 08:09 AM.

XtremeSystems
