F3c BIOS for Gigabyte GA-965P-DQ6

Printable View

08-01-2006, 05:18 AM
Benny Lodewijk

F3c BIOS for Gigabyte GA-965P-DQ6

Use at your own risk ! Do not ask me for the changelog.

Download it here
08-01-2006, 05:30 AM
Richard Dower

What is the date of the bios?...can you post some CPU-Z screenies?
08-01-2006, 05:34 AM
Benny Lodewijk

Quote:

Originally Posted by Richard Dower

What is the date of the bios?...can you post some CPU-Z screenies?

sorry, forgot the date. Tomorrow i will post some screenies.
08-01-2006, 05:35 AM
Richard Dower

I'll be trying this bios in the next couple of days and report back...god willing it'll fix some of the memory issues.
08-01-2006, 05:41 AM
Tenkian

Any chance of an updated bios for the DS4? I'm on F2 and it will not work with OCZ PC6400 2x1GB Special Ops 5-5-5-12 RAM.
08-01-2006, 05:44 AM
Benny Lodewijk

Quote:

Originally Posted by Tenkian

Any chance of an updated bios for the DS4? I'm on F2 and it will not work with OCZ PC6400 2x1GB Special Ops 5-5-5-12 RAM.

i hope i can get the updated BIOS for DS4 tomorrow. I'll post here.
08-01-2006, 05:51 AM
Tenkian

Cheers, had an email support query with gigabyte support but it still says "the item will be processed" :rolleyes:

having to run with Samsung 2x512 PC3200 ram ugh.
08-01-2006, 10:53 AM
Liudavid

Thanks for the bios, it fixed my Riad 0 issue.
Cheers.
08-01-2006, 12:57 PM
irev210

Quote:

Originally Posted by Liudavid

Thanks for the bios, it fixed my Riad 0 issue.
Cheers.

can someone else host... i am having same darn riad 0 issue (cant enter bios when raid is selected)

geocities bandwidth exceeded :(
08-01-2006, 01:34 PM
[timko]

I've upped it to a some free hosting sites...

http://www.wirefiles.com/show.php/3073_965pdq6f3c.zip

http://www.upload2.net/page/download...q6f3c.zip.html

http://z15.zupload.com/download.php?...filepath=23901

http://www.webfilehost.com/?mode=viewupload&id=6070956

Enjoy :)
08-01-2006, 02:12 PM
simon04

Changelog:

Quote:

31.07.06
GA-965P-DQ6 - Beta-BIOS Version F3c
1. Fix PC667 Speichertimings
2. Fix SATA Probleme

Source

According to the german forum of gigabyte, it is also possible to flash this DQ6-BIOS on a DS4 - i just read...
08-01-2006, 02:54 PM
Richard Dower

Bablefish says

1. Fix PC667 Memory Timings
2. Fix SATA Problems

Hmmm...interesting.
08-01-2006, 02:55 PM
Haltech

Here, ill host it on my server..

F3C BIOS
08-01-2006, 04:44 PM
orion23

Thanks for the mirrors guys, you've been of great help!
08-01-2006, 05:34 PM
Liudavid

However, I still can't oc through bios with F3c. Wheneven I change the FSB even 1MHz, it will reset to default after the first boot. Is it an issue with Nvidia Display card as i am using a 7950GX2? Grrrr......
08-01-2006, 05:39 PM
Alphy

Man, this is just too much. I was going to get a E6300, but with all these quirks people are having, it really sounds hit or miss. I'll wait until there are other boards besides the DS3 and the Asus.
08-01-2006, 05:43 PM
Benny Lodewijk

screenshot DQ6 with F3c BIOS. Just short testing only.

http://img.photobucket.com/albums/v6...1m_dq6_451.jpg
08-01-2006, 06:26 PM
xgman

That looks pretty good benny. At least it is booting over 400 fsb. What are your cpu temps like?
08-01-2006, 06:32 PM
Benny Lodewijk

i got F3d BIOS for DQ6 this morning and already send it to you xgman. Please host it and give the link in this thread to help another user's. Many thanks before
08-01-2006, 06:37 PM
Benny Lodewijk

CPU-Z Validation @ 471 Mhz FSB

http://valid.x86-secret.com/show_oc?id=109192
08-01-2006, 06:50 PM
Liudavid

Quote:

Originally Posted by Benny Lodewijk

i got F3d BIOS for DQ6 this morning and already send it to you xgman. Please host it and give the link in this thread to help another user's. Many thanks before

Wow, thanks alot for the effort. :bows: :bows: :bows:

Looking forward to see if this one can fix the oc issue i am having.
08-01-2006, 06:53 PM
gotheb1ues

Quote:

F3d BIOS for DQ6

Yes please.
08-01-2006, 06:57 PM
Lestat

471 is fine and all but it totally defeats the purpose of higher multipliers.

conroes dont react much differently with higher FSb or tight ram.
its pure cpu clocks.

bring that multi back up to 9x for that 6600 and lets see the truth of how far it goes.

if it cant break 400.. its no better than all the other boards. including its baby brother the DS3.
08-01-2006, 07:19 PM
Benny Lodewijk

F3d BIOS download.
08-01-2006, 07:31 PM
orion23

I'll try this f3d bios tomorrow evening and hopefully it will help me go past 350FSB, I am kind of stuck there.

I have done 380fsb X 10 with an E6700 for a few minutes but that's all.

I have tried lowering the multiplier to 6 or 7 and try a 400-450 fsb ( no adjustments) and it still doesn't go that far.

380fst is the highest I've done
3.8ghz 380fsb X 10 1.58V 1:1 4-4-4-12 2.1v mchv + .20
08-01-2006, 07:32 PM
gotheb1ues

Quote:

Originally Posted by Benny Lodewijk

F3d BIOS download.

Sorry, this GeoCities site is currently unavailable.
08-01-2006, 07:38 PM
Benny Lodewijk

Quote:

Originally Posted by orion23

I'll try this f3d bios tomorrow evening and hopefully it will help me go past 350FSB, I am kind of stuck there.

I have done 380fsb X 10 with an E6700 for a few minutes but that's all.

I have tried lowering the multiplier to 6 or 7 and try a 400-450 fsb ( no adjustments) and it still doesn't go that far.

380fst is the highest I've done
3.8ghz 380fsb X 10 1.58V 1:1 4-4-4-12 2.1v mchv + .20

if you already get the F3d BIOS, please host it and share with other member's here. Many thanks.
08-01-2006, 07:42 PM
nop

Thanks Benny.

Anybody who want F3d BIOS,please PM me your email address.
08-01-2006, 07:43 PM
xgman

f3d bios file link

moved
08-01-2006, 07:45 PM
Benny Lodewijk

Quote:

Originally Posted by xgman

f3d bios file link

http://www.geocities.com/realtyservice/965pdq6.zip

thanks xgman !!! :toast:
08-01-2006, 10:00 PM
Benny Lodewijk

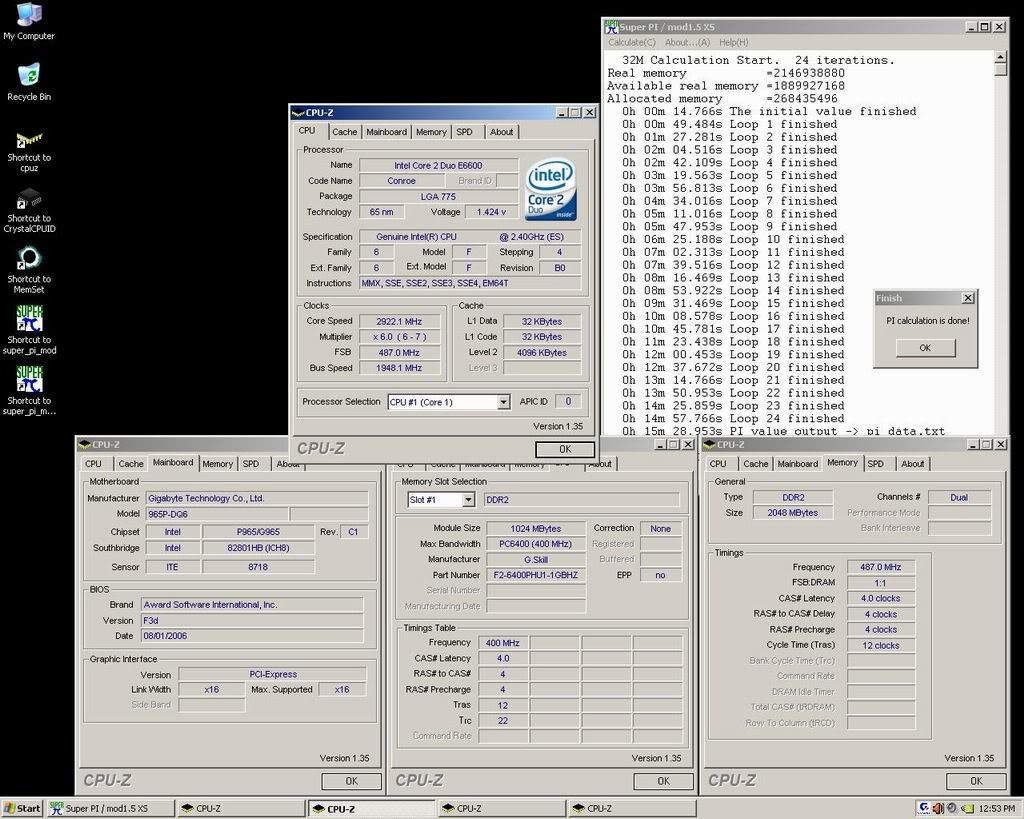

result with F3d BIOS FSB 486 Mhz

MCH Volt = +0.65
FSB Volt = +0.35

http://img.photobucket.com/albums/v6...2m_dq6_487.jpg

http://valid.x86-secret.com/show_oc?id=109218
08-02-2006, 12:06 AM
irenic

benny, still no news on new bios for DS4? :(
08-02-2006, 01:05 AM
Kesnel

Thanks for the bios Benny. :toast:

Does this solve the issue of no boot at over +0.3vmch and 1.6vcore? I'll test this bios out later today hopefully.
08-02-2006, 01:40 AM
Tenkian

I'm looking for the DS4 BIOS aswell, gigabyte support have not been very helpful . Here is the conversation I had with their support :

Q: Board will not post with OCZ DDR2 PC2-6400 Special Ops Edition RAM 2x 1GB. Tried standard Samsung PC3200 DDR2 RAM 2x 256 and board post's fine and am able to get into BIOS.

Is this RAM compatible or is there a BIOS fix?

A: These modules are not supported as the voltage required range from 2.0v to 2.2v, standard DDR2 voltage is 1.8v. Try increasing a little DIMM voltage.

Q: There are several threads on the www.xtremesystems.com forums with various people having problems with the gigabyte DS3, DS4 and DQ6 boards. The problem is something to do with DDR2 800 Ram. The board always tries to set the CAS to 3 and ignores the SPD of the RAM. As this ram cannot work at CAS3 the system will not post.

e.g. http://www.xtremesystems.org/forums/...&highlight=ds4

A: Please use bootable memory and go in to BIOS and try upping the DIMM voltage.

It seems the support guy I was speaking to has no idea of the problems going on! :rolleyes:
08-02-2006, 02:44 AM
Richard Dower

Benny, you're a star!...keep up the good work.
08-02-2006, 07:26 AM
irenic

so sad. looks like DS4 is only a stepson of the gigabyte family :(
08-02-2006, 09:54 AM
AcUaViVa

can update WHITOUT floppy?
08-02-2006, 12:04 PM
Tony

If the board is booting at cas3 i can change the bios to force cas4 at boot, the issue is you will need to boot twice so the board can try to use CMOS settings.

Also if you have an 533 fsb cpu they don't seem to like ddr800 memory...must be a strap issue so try and stay with 667 and lower latency.

Let me know if you me to tweak a bios, you will need to forward the exact bios you want me too look at
08-02-2006, 12:17 PM
AcUaViVa

how can change latencies in bios?

or push the vdimm up?

thanks

p.d i can't update whit a old floppy , any sytems to update bios?

thanks
08-02-2006, 01:31 PM
Kesnel

Is anyone else finding that when they save and exit the bios you get a full shutdown before it starts up again?

+0.3vmch and above still means no boot once you save it, however if you save then shut it down after the failed boot and boot up again it seems to work ok.
08-02-2006, 01:36 PM
orion23

Still no luck for me trying to get past the 370-380 FSB even with the f3d bios.

When updating the bios, am I supposed to update both roms with the same bios or can the backup simply have a copy of the original bios that the motherboard was shipped with?
08-02-2006, 01:37 PM
Benny Lodewijk

Quote:

Originally Posted by irenic

so sad. looks like DS4 is only a stepson of the gigabyte family :(

hi Irenic,

maybe you can try this BETA BIOS for DS4. Download here
08-02-2006, 02:09 PM
irenic

thx a lot benny! btw i cant dl the file, issit bcoz the site is down?

err can i flash using the software utility? :-s
08-02-2006, 05:56 PM
Benny Lodewijk

Quote:

Originally Posted by irenic

thx a lot benny! btw i cant dl the file, issit bcoz the site is down?

err can i flash using the software utility? :-s

PM me your email so i can send it. You can using @BIOS Utility to flash it
08-02-2006, 10:46 PM
irenic

benny, is the bios u upload here is same like the one this guy uploads?

http://www.xtremesystems.org/forums/...d.php?t=109719

i notice ur DS4 is 965pds4d5 while his is F3B.

anyway i already flashed with ur bios and amazingly i need to re install audio driver. But it doesnt matter, i really hope it can give me few extra FSB :D

thx again!!
