06-14-2006, 03:11 PM
Jagz64

Asus P5W DH Deluxe [Over-View] LOL

Asus P5W DH Deluxe [Over-View]

Source: Link

Enjoy :D
06-14-2006, 03:17 PM
Nasgul

It's a sweet looking board.

Problem? No ICH8-R.
06-14-2006, 03:19 PM
vapb400

Very nice board, well featured. However I doubt it will be the best overclocking board and that is what I am looking for.

LOL altavista certainly does some rough translations (yes I do understand that translating is ridiculously hard)
06-14-2006, 03:30 PM
Ad1tya

Its quite and awesome board.

Mostly, ill be buying this, as I need a damn Crossfire Supporting board. RD600 isnt supp to release till like August/Sep.. Which is sad :(.
06-14-2006, 03:40 PM
Stelios

I can't believe they put a 4pin power connector .... :(
06-14-2006, 05:04 PM
syne_24

Why crossfire only on the good looking asus boards? I dont feel like doing a complete changeover and get rid of my vid card aswell.
06-14-2006, 11:21 PM
Skyline GT-R

Because Crossfire is only for the 975X chipset. And those are the premium boards...
06-15-2006, 04:50 AM
Vric

if it wouldn't have an heat-pipe and a parallel port, I would get it.
06-15-2006, 04:58 AM
FischOderAal

that's my board man!

just ordered one and it should be shipped on 21. June! :banana: (some shops equal with their dates).

and for ~200€ excl delivery it's right at my price! *yeeehaw*
06-15-2006, 05:03 AM
Skyline GT-R

Great let us know how it clocks! :banana:
06-15-2006, 05:07 AM
DaWaN

ROFL the babelfish translation:

Quote:

8 stages of the food

:ROTF:

But the 4 pin power is holding me back and it wonders me if this board is as good as P5WD2-E Premium
06-15-2006, 06:37 AM
Jack

Quote:

Originally Posted by Nasgul

Problem? No ICH8-R.

What's so great about the ICH8-R?
06-15-2006, 06:52 AM
FischOderAal

Quote:

Originally Posted by DaWaN

ROFL the babelfish translation:

:ROTF:

But the 4 pin power is holding me back and it wonders me if this board is as good as P5WD2-E Premium

somewhere in the article it is mentioned that they asked Asus why the only used the 4-Pin and the answerded that it is Intel Spec and due to the fact that the Core 2 Duos do not need that much Power.

sounds stupid for me... because some people will use Preslers or Prescotts on that Mobo...

Quote:

Originally Posted by Jack

What's so great about the ICH8-R?

not much. advanced hardware monitoring features and "Intel Fast Memory Access" technology are the biggest points. the last technology is senseless. because latencys do not have such a big effect on Intel based systems...
06-15-2006, 07:06 AM
Skyline GT-R

No, that fast memory access has nothing to do with the ICH8R ;) Memory access is controlled by the Northbridge and the ICH8R is a southbridge... That Fast Memory Access you are talking about is a feature of the new P965 chipset ;)
06-15-2006, 07:22 AM
Mortal

Quote:

3 tablecloths

Damn, that just seals the deal for me! :p:

Quote:

even if your PC is extinct

God, it gets better!
06-15-2006, 07:49 AM
jdam

i like that fan you can put at the end (or the beginning) of that heatpipe/fins mechanism. should work well.
06-15-2006, 08:48 AM
JoeBar

Quote:

Originally Posted by FischOderAal

somewhere in the article it is mentioned that they asked Asus why the only used the 4-Pin and the answerded that it is Intel Spec and due to the fact that the Core 2 Duos do not need that much Power.

sounds stupid for me... because some people will use Preslers or Prescotts on that Mobo...

Intel prescotts and preslers do not require EPS12V (the 8 pin power connector) this is required only for XE cpus (955,965).
06-15-2006, 10:56 AM
FischOderAal

Quote:

Originally Posted by Skyline GT-R

No, that fast memory access has nothing to do with the ICH8R ;) Memory access is controlled by the Northbridge and the ICH8R is a southbridge... That Fast Memory Access you are talking about is a feature of the new P965 chipset ;)

ah, sry. screwed this up :( thanks for your correction ;)

Quote:

Originally Posted by JoeBar

Intel prescotts and preslers do not require EPS12V (the 8 pin power connector) this is required only for XE cpus (955,965).

didn't knew that. sry once again :toast:
------------------------------
but, the one Heatsink is senseless (for Mosfet cooling), because with it only half of the Mosfets are cooled. I think it might be a try to transport the heat faster away from the chipset, plus having bigger cooling surface.
06-15-2006, 11:23 AM
DaWaN

Quote:

Originally Posted by JoeBar

Intel prescotts and preslers do not require EPS12V (the 8 pin power connector) this is required only for XE cpus (955,965).

So you can't run 955's and 965's on this board :stick:
I think i'm sticking to the new P5WD2-E Prem. rev then :)
06-15-2006, 11:28 AM
Gautam

A food hard disk? This will do perfectly with my lunch date with Conroe, can't wait to pull out the tablecloths. Stable food delivery too, how can you go wrong?

On a serious note, that 259 Euro pricetag ain't pretty.
06-15-2006, 11:33 AM
jrw

"Core 2 Duet" :D
06-15-2006, 11:57 AM
illidan

Quote:

Originally Posted by JoeBar

Intel prescotts and preslers do not require EPS12V (the 8 pin power connector) this is required only for XE cpus (955,965).

preslers do require EPS12V (the 8 pin power connector) :)
06-15-2006, 02:19 PM
GQJesus

I gotta say...I'm really likin' that remote that you can power your PC on with.:banana:
06-15-2006, 02:26 PM
PcCI2iminal

sweet !!!!!

but they will costs 300us$ in JP

http://www.ocworks.com/motherboard/asus_p5wdhdw.html

:(
06-15-2006, 02:32 PM
GQJesus

Does anyone know the MSRP for the US? (or the range expected)
06-15-2006, 07:46 PM
Anemone

Would prefer the 975X revised with the ICH8-R on it. Digital pwm shouldn't be something Asus is last on board for too.

Gotta see some reviews, just can't order blind .. :(
06-16-2006, 02:06 AM
CornerJack

I make test this week-end :D
06-16-2006, 04:55 AM
Benny Lodewijk

just got this board today.

http://img.photobucket.com/albums/v6...ofIMG_1081.jpg

but the problem is vcore is locked !!! i can't change the vcore at all. Waiting for the update BIOS

some test

http://img.photobucket.com/albums/v6...alpi1m3ghz.png
06-16-2006, 05:06 AM
vanovich

congrats on the board , would love to know how it handles high fsb .where did you buy it from?
06-16-2006, 05:17 AM
Benny Lodewijk

Quote:

Originally Posted by vanovich

congrats on the board , would love to know how it handles high fsb .where did you buy it from?

i'm not buying it. It's a sample from ASUS.
06-16-2006, 05:46 AM
Pt1t

Quote:

Originally Posted by Benny Lodewijk

i'm not buying it. It's a sample from ASUS.

try with a lower multi to find max FSB plz :p
06-16-2006, 05:50 AM
Benny Lodewijk

Quote:

Originally Posted by Pt1t

try with a lower multi to find max FSB plz :p

I'll do that after ASUS send me the newest BIOS to fix vcore problem
06-16-2006, 06:03 AM
Eastcoasthandle

yea, I have read reports that the bios is having difficulty registering the cpu correctly. Or, the bios is not fully compatible with the cpu creating missing functionality that is needed to OC it at the moment...
06-16-2006, 06:45 AM
BulldogPO

How high are those caps near socket?
I`m interested cos I want to use Scythe Ninja with it.
06-16-2006, 06:50 AM
Pt1t

Quote:

Originally Posted by Benny Lodewijk

I'll do that after ASUS send me the newest BIOS to fix vcore problem

You dont need vcore to do it :stick:
06-16-2006, 07:48 AM
LoKi2k

what is the temp of the nb, when the board is lying?
06-16-2006, 08:58 AM
mine

loki2k

you mean for sure ......if the board is in horizontal position

because of the heatpipe ? This is an interesting question for me as well
06-16-2006, 10:04 AM
JoeBar

Quote:

Originally Posted by illidan

preslers do require EPS12V (the 8 pin power connector) :)

Maybe that's what u think but it's not correct. Pls give me an evidence of your opinion.
To clear this out for u my psu isn't EPS12V compatible and my 940 runs flawlessly @ 4.52ghz... ;)
06-16-2006, 10:07 AM
LoKi2k

sorry 4 my bad bad english... :(

but yes, you are right. thats what i want to know ;)

grüße
06-16-2006, 11:26 AM
EvilMoe

Hello Loki!

Nice Board. I orded it for next week.
The Asus P5WDH looks very nice.
06-16-2006, 11:39 AM
stummerwinter

Hello EvilMoe!

Welcome on XS!

:toast:

Sry for OT...:D
06-17-2006, 12:06 AM
mine

hey this thread seems to be dominated mostly by europeans
:banana:

actually if we spell Benny Lodewijks in its origin

Bernhard Ludewig

:banana: :banana:

hey benny did you get the latest asus beta bios ??
06-17-2006, 12:17 AM
fr4nc3sco

but at the moment the max fbs settabile from bios or aiboster it is 400 or 450?
06-17-2006, 12:20 AM
Schlingel

all guys from forumdeluxx appearing here ;) sry for OT
06-17-2006, 12:29 AM
Evilsizer

hope this thing does fsb-400mhz ocing min on air.
the black pcb is a nice change.
06-17-2006, 01:07 AM
CornerJack

Information of the Conroe E6600 with the Asus P5W DH Deluxe.

http://www.overclex.net/data/images/...-14/cpu-z1.jpg

And information bios :)

http://www.overclex.net/data/images/...6-14/bios1.jpg
06-17-2006, 01:33 AM
mine

nice CJ ...you are the very first

more :clap:
06-17-2006, 01:40 AM
FischOderAal

thanks for sharing Infos.

but what exactly is "FSB Termination Voltage"?
but good to know that you can overvoltage the Northbridge itself ;) on my P4C I have to rise the AGP Voltage to do so...

and: would you be so kind and tell me if you can disable SATA2 Legacy (you know, this thingie that SATA2 drives are recognized as IDE drives in Windows). that was the reason why my Abit Serillel 2 didn't work properly (only worked with PIO...)

€: seems like the Germans are most interested in this Mobo :D
greetz to all forumdeluxxers :D
06-17-2006, 01:52 AM
Benny Lodewijk

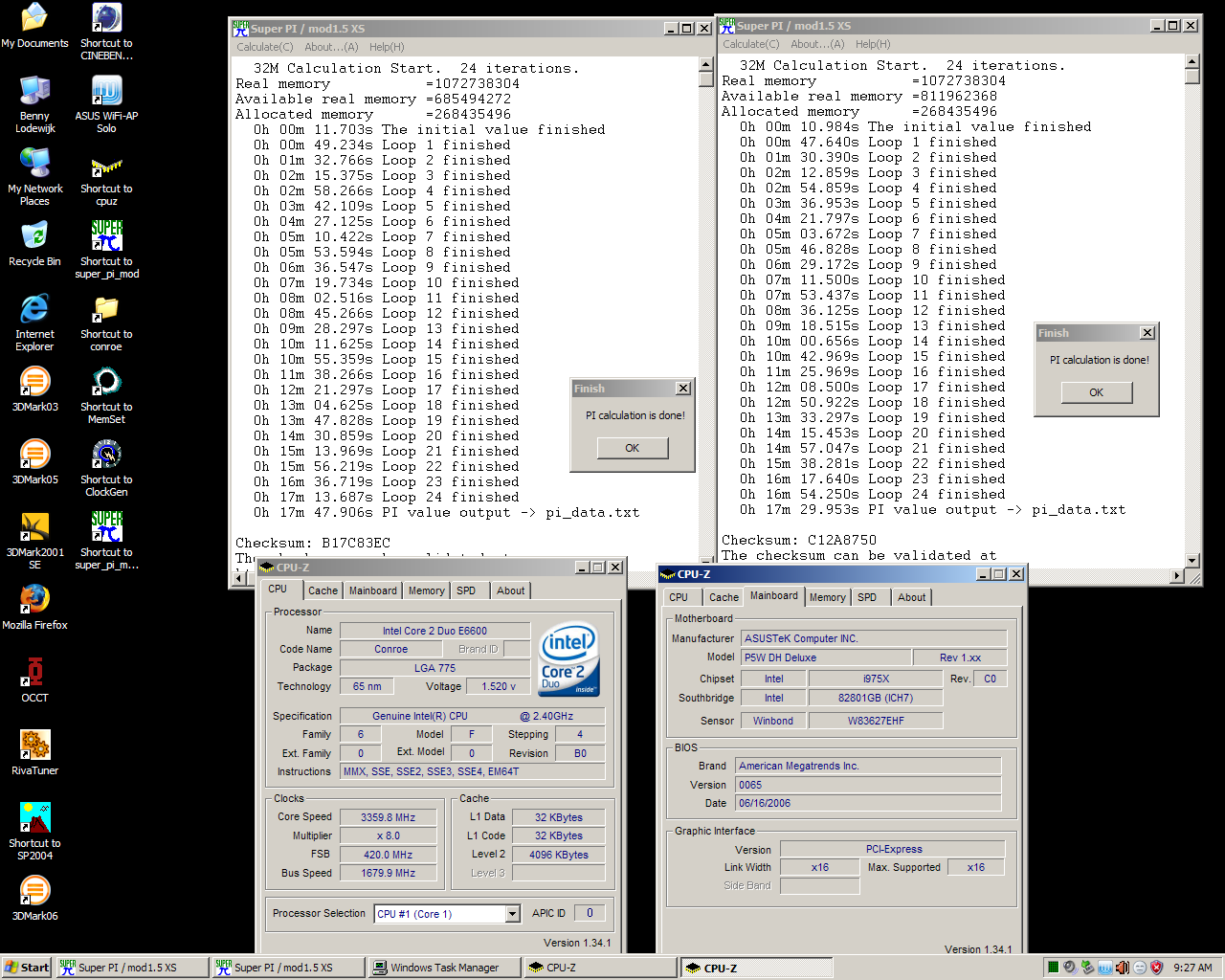

this is mine with new BIOS :D, cooling with Air.

http://img.photobucket.com/albums/v6...m3500e6600.png

http://img.photobucket.com/albums/v6...m3500e6600.png
06-17-2006, 02:00 AM
mine

thanx @ lot B.

nice benches !

we have a group buy of the P5W DH here in Germany so you will attract
a lot of interested people...

some virtual

:toast: :toast:
06-17-2006, 02:43 AM
principino1984

what's the highest fsb you can set by bios and by aibooster?

thanx

Marco
06-17-2006, 03:04 AM
Waus-mod

max fsb please.
06-17-2006, 03:13 AM
CornerJack

In Bios : 450 :)
06-17-2006, 03:54 AM
Benny Lodewijk

I noticed some divider option didn't works. It always freeze after reboot.
06-17-2006, 05:00 AM
Waus-mod

Can you please lower youre mp and find out what is max fsb.. not only the bios option please.
06-17-2006, 05:37 AM
skuliaxe

Quote:

Originally Posted by Benny Lodewijk

this is mine with new BIOS :D, cooling with Air.

Nice Over Clock in AIR...
What are your temps in full LOAD?

What cooler are you using?
(I might not need Water Cooling after all...hehe)
06-17-2006, 05:55 AM
Benny Lodewijk

Quote:

Originally Posted by skuliaxe

Nice Over Clock in AIR...
What are your temps in full LOAD?

What cooler are you using?
(I might not need Water Cooling after all...hehe)

thanks. According to AI Booster the temp is 38 degree vcore 1.5 volt. I'm using HSF Gigabyte G-Power Pro
06-17-2006, 06:48 AM
CornerJack

Nothing is optimized, my objectif is to see until where I can go in aircooling.
For the moment, the processor running at 3510MHz with 1.4125v (I know CPU-z and Asus says more):D

http://www.overclex.net/data/images/...d2006-8632.jpg
06-17-2006, 06:54 AM
|-jokker-|

The board is looking good till now .
Good mhz indeed .
Can we need now some fsb max and hardcore oc :P
06-17-2006, 07:13 AM
CornerJack

Tomorrow prommy :D
06-17-2006, 07:35 AM
georgesod

The problem for me is the low vdim
06-17-2006, 07:49 AM
Rovtar

omfg great mobo :D
06-17-2006, 07:57 AM
Benny Lodewijk

Quote:

Originally Posted by georgesod

The problem for me is the low vdim

2.4v is not enough ?

http://img.photobucket.com/albums/v6..._DH_bios02.jpg
06-17-2006, 08:03 AM
|-jokker-|

Quote:

Originally Posted by CornerJack

Tomorrow prommy :D

Tomorrow no .
Today :P
06-17-2006, 08:11 AM
georgesod

Quote:

Originally Posted by Benny Lodewijk

2.4v is not enough ?

http://img.photobucket.com/albums/v6..._DH_bios02.jpg

Well comparing it with the new dfi 975 it is
06-17-2006, 08:48 AM
phobos

Quote:

Originally Posted by FischOderAal

€: seems like the Germans are most interested in this Mobo :D
greetz to all forumdeluxxers :D

Skoal bro' :toast:

Can't wait to get my new toys together and play around ;)

What about VCore droop on that board?
06-17-2006, 09:03 AM
JoeBar

Also if the restart/shutdown prob still exists?
06-17-2006, 09:14 AM
bogdannovaceanu

Quote:

Originally Posted by CornerJack

In Bios : 450 :)

wrong !!! max fsb is 400 mhz!look on asus site !
06-17-2006, 09:24 AM
CornerJack

Quote:

Originally Posted by bogdannovaceanu

wrong !!! max fsb is 400 mhz!look on asus site !

:nono:

http://www.overclex.net/data/images/...6-14/bios2.jpg
06-17-2006, 09:29 AM
mine

Quote:

Originally Posted by bogdannovaceanu

wrong !!! max fsb is 400 mhz!look on asus site !

i think people , who actually are testing the board will know it better
my friend
06-17-2006, 09:32 AM
bogdannovaceanu

specifications from asus : max fsb=400.......http://www.asus.com/products4.aspx?m...1=3&l2=11&l3=0
06-17-2006, 09:37 AM
CornerJack

Quote:

Originally Posted by bogdannovaceanu

specifications from asus : max fsb=400.......http://www.asus.com/products4.aspx?m...1=3&l2=11&l3=0

Aircooling just now... 1.6v
http://valid.x86-secret.com/show_oc.php?id=100619

http://valid.x86-secret.com/cache/100619.png
06-17-2006, 09:42 AM
mine

very nice ..
3,7@410 fsb on air with a 6600 stepping 4 and so lala cooler ;-)
impressive !
06-17-2006, 09:45 AM
Skyline GT-R

Apparently Asus site is wrong... don't guys understand that? If someone who actualy has the board tells is it's 450 and he shows a picture to proof it... Then I know what to think....
06-17-2006, 09:58 AM
Iconyu

Quote:

Originally Posted by bogdannovaceanu

specifications from asus : max fsb=400.......http://www.asus.com/products4.aspx?m...1=3&l2=11&l3=0

I can't believe you're arguing with someone that owns the board.

Edit: CornerJack, I would have thought your ram would run 1:1 even at 410fsb, why is your CPUZ saying 4:3?
06-17-2006, 10:05 AM
ost_2005

What about Vdroop? This is which I care most.

So please tell me.Thank in advance.
06-17-2006, 10:08 AM
CornerJack

Quote:

Originally Posted by Iconyu

I can't believe you're arguing with someone that owns the board.

Edit: CornerJack, I would have thought your ram would run 1:1 even at 410fsb, why is your CPUZ saying 4:3?

Sorry, I must edit my signature because the Corsair memory is on the road, for the test actually it's OCZ 5400 4-4-4-12
06-17-2006, 10:18 AM
elec999

The board look good. But whats that Asus ez backup, there like a small plate on the board, that says Asus ez backup
Thanks
06-17-2006, 01:14 PM
generics_user

Quote:

Originally Posted by elec999

The board look good. But whats that Asus ez backup, there like a small plate on the board, that says Asus ez backup
Thanks

from asus-page:

Quote:

ASUS EZ-Backup™
Others guarantee your hard-drive, EZ-Backup guarantees your data on the hard-drive.
No driver, no configuration, just plug and play RAID to backup your data instantaneously. Exclusive to ASUS EZ-Backup™, users can utilize SATA2 technology to arrange RAID1 (default) or RAID0 system without BIOS or any other setup. EZ-Backup™ is ideal for anyone who wishes to secure the data on the hard-drive but doesn't want the hassle of complicated software configuration. EZ-Backup™ looks after your data for you.
06-17-2006, 01:17 PM
freestylercs

Quote:

Originally Posted by phobos

Skoal bro' :toast:

Can't wait to get my new toys together and play around ;)

What about VCore droop on that board?

lol

@2,4V looks good, but not good enough, i think.

free
06-18-2006, 02:34 AM
phobos

Quote:

Originally Posted by freestylercs

@2,4V looks good, but not good enough, i think.

Mods are on their way ;) (Or actually already here?)
06-18-2006, 08:34 AM
mine

Quote:

Originally Posted by CornerJack

Sorry, I must edit my signature because the Corsair memory is on the road, for the test actually it's OCZ 5400 4-4-4-12

CJ do you have a link to the beta bios 0065 ?
06-18-2006, 08:37 AM
CornerJack

Quote:

Originally Posted by |-jokker-|

Tomorrow no .
Today :P

News from my test today with Prommy.
The resuslt is no good :(

Impossible to have a FSB > 422MHz ? Max is 9 x 422MHz, 423MHz = freeze.
I have make a test with a multiplicator 8 and 8 x 422 = perfect, 8 x 423 = freeze...

I installed Clock Gen and it's possible to have a FSB 500MHz but even if I take 450, it remains blocked to 422...

My best score today with SuperPI is 13,594. My bios is 0065 and I have see Kyosen with fsb 450MHz and bios 0401.
06-18-2006, 08:42 AM
mine

9x423 is :stick: more than 3,8 GHz on air with a 6600

without any mod....

this is great CJ !!!
06-18-2006, 10:13 AM
toddm27

this board is looking promising, can't wait for some to start hitting the shelfs in the us
06-18-2006, 11:34 AM
fr4nc3sco

it is possible to know where to download bios 0065 and 0401?
default that bios there is?
06-18-2006, 11:36 AM
FischOderAal

Quote:

Originally Posted by fr4nc3sco

it is possible to know where to download bios 0065 and 0401?
default that bios there is?

http://members.inode.at/p.damjanovic/0065.rar :toast:
06-18-2006, 12:24 PM
fr4nc3sco

Quote:

Originally Posted by FischOderAal

http://members.inode.at/p.damjanovic/0065.rar :toast:

tnx :toast:
06-18-2006, 06:39 PM
Benny Lodewijk

yes, max FSB i got is 420 MHz.

http://img.photobucket.com/albums/v6...usp5w_dh02.png
06-18-2006, 09:10 PM
CornerJack

Benny Lodewijk, you have the same problem ? It's not possible to habe a FSB > 420 ?
06-18-2006, 09:15 PM
Benny Lodewijk

Quote:

Originally Posted by CornerJack

Benny Lodewijk, you have the same problem ? It's not possible to habe a FSB > 420 ?

yes and i'm still go on air with it.
06-18-2006, 11:03 PM
ost_2005

Quote:

Originally Posted by Benny Lodewijk

yes, max FSB i got is 420 MHz.

http://img.photobucket.com/albums/v6...usp5w_dh02.png

What about Vdroop? This is which I care most.

So please tell me.Thank in advance.
06-19-2006, 03:39 AM
LoKi2k

fsb 420 is good for me. i hope i can run my 6700 @ 4,2 ghz 24/7 rockstable with singlestage...
06-19-2006, 06:49 AM
FischOderAal

Quote:

Originally Posted by FischOderAal

http://members.inode.at/p.damjanovic/0065.rar :toast:

this one is uploaded by a german Forumdeluxx Member called DonniPredi. ;) thank him ;)
06-19-2006, 07:44 AM
CornerJack

YES ! Good news, I put the tension of the chipset to the maximum (1.65v)
And SuperPI : 12.891
Tomorrow, I have Corsair PC8500 :D
But, I have bug with CPU-z ??? an idea ?

http://www.overclex.net/data/images/...i12.891bis.jpg
06-19-2006, 07:51 AM
sierra_bound

Nice clocks on that E6600. :up:

CPU-Z has trouble reading Conroe speeds. Try using Crystal CPUID instead.

http://crystalmark.info/download/index-e.html

Just click on the left-side screen for the latest version.
06-19-2006, 08:07 AM
vanovich

just disable eist in biose .its becouse iest jumps in when idle . to save energy .is it 2xprime stable there? nice clock .what voltage you feeding the cpu ,1,7?
06-19-2006, 08:19 AM
sierra_bound

On some boards like the Bad Axe, EIST can't be disabled in BIOS, at least not to my knowledge. I'm not sure if the Asus board has a setting.

Crystal CPUID will read the correct speed, even at idle.
06-19-2006, 11:04 AM
LoKi2k

how far can you go with prime? would you please so kind and test 15 or 30 minutes?
06-19-2006, 11:13 AM
i||uSi0n^

first of all hello to every'1, this is my first post here, been arround for a while reading on conroe etc and thought its really time to join in on the fun :)

P5W DH sure looks like a nice board but now im not sure about either to get a P5B Deluxe or P5W DH especially the difference between both is arround +/-15 euro, btw does the board feature that "asus cpu multiplier unlock" thingy...?

thanks,
i||uSi0n^

Show 100 post(s) from this thread on one page

All times are GMT -8. The time now is 02:59 AM.

XtremeSystems
